HONDA FIT 2016 3.G Quick Guide

14 || 15
S
AFETY
SAFETY

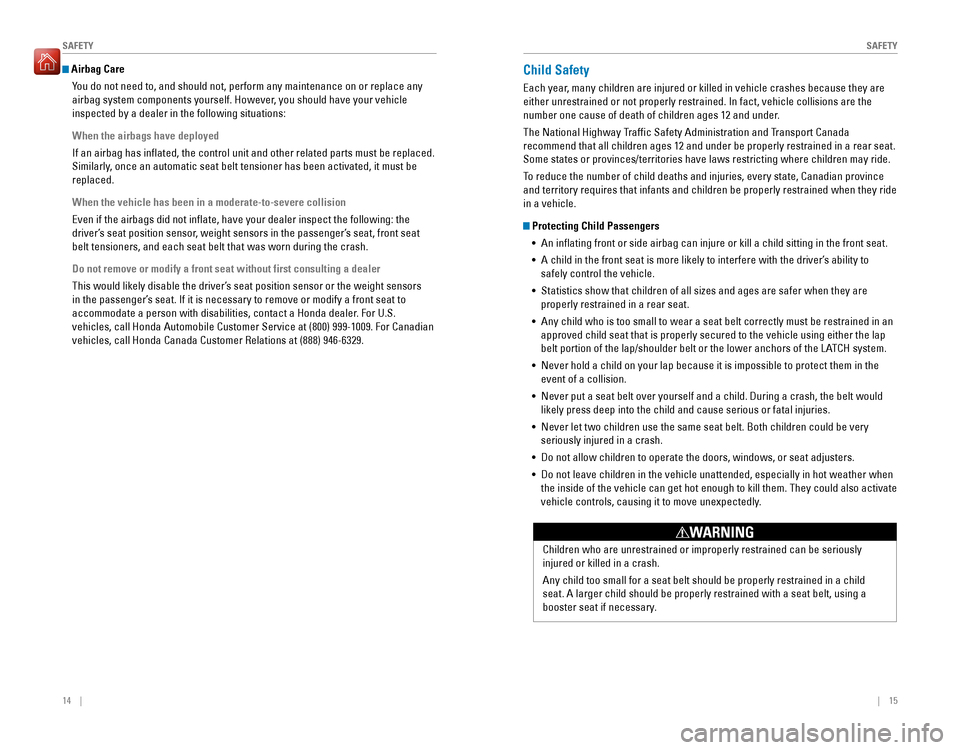

Airbag Care
You do not need to, and should not, perform any maintenance on or replace any
airbag system components yourself. However, you should have your vehicle  inspected by a dealer in the following situations:
When the airbags have deployed
If an airbag has inlated, the control unit and other related parts must be replaced. 
Similarly, once an automatic seat belt tensioner has been activated, it must be replaced.
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inlate, have your dealer inspect the following: the 
driver’s seat position sensor, weight sensors in the passenger’s seat, front seat belt tensioners, and each seat belt that was worn during the crash.
Do not remove or modify a front seat without first consulting a dealer
This would likely disable the driver’s seat position sensor or the weight sensors 
in the passenger’s seat. If it is necessary to remove or modify a front seat to 
accommodate a person with disabilities, contact a Honda dealer. For U.S. 
vehicles, call Honda Automobile Customer Service at (800) 999-1009. For Canadian vehicles, call Honda Canada Customer Relations at (888) 946-6329.
Child Safety
Each year, many children are injured or killed in vehicle crashes because they are  either unrestrained or not properly restrained. In fact, vehicle collisions are the 
number one cause of death of children ages 12 and under.
The National Highway Trafc Safety Administration and Transport Canada recommend that all children ages 12 and under be properly restrained in a rear seat. 
Some states or provinces/territories have laws restricting where children may ride. 
To reduce the number of child deaths and injuries, every state, Canadian province  and territory requires that infants and children be properly restrained when they ride in a vehicle.
Protecting Child Passengers
•  An inlating front or side airbag can injure or kill a child sitting in the front seat.
•  A child in the front seat is more likely to interfere with the driver’s ability to  safely control the vehicle.
•  Statistics show that children of all sizes and ages are safer when they are 
properly restrained in a rear seat.
•  Any child who is too small to wear a seat belt correctly must be restrained in an 
approved child seat that is properly secured to the vehicle using either the lap
belt portion of the lap/shoulder belt or the lower anchors of the LATCH system.
•  Never hold a child on your lap because it is impossible to protect them in the  event of a collision.
•  Never put a seat belt over yourself and a child. During a crash, the belt would 
likely press deep into the child and cause serious or fatal injuries.
•  Never let two children use the same seat belt. Both children could be very 
seriously injured in a crash.
•  Do not allow children to operate the doors, windows, or seat adjusters.
•  Do not leave children in the vehicle unattended, especially in hot weather when  the inside of the vehicle can get hot enough to kill them. They could also activate
vehicle controls, causing it to move unexpectedly.
Children who are unrestrained or improperly restrained can be seriously injured or killed in a crash. Any child too small for a seat belt should be properly restrained in a child 
seat. A larger child should be properly restrained with a seat belt, using a 
booster seat if necessary.
WARNING

16 || 17
S
AFETY
SAFETY

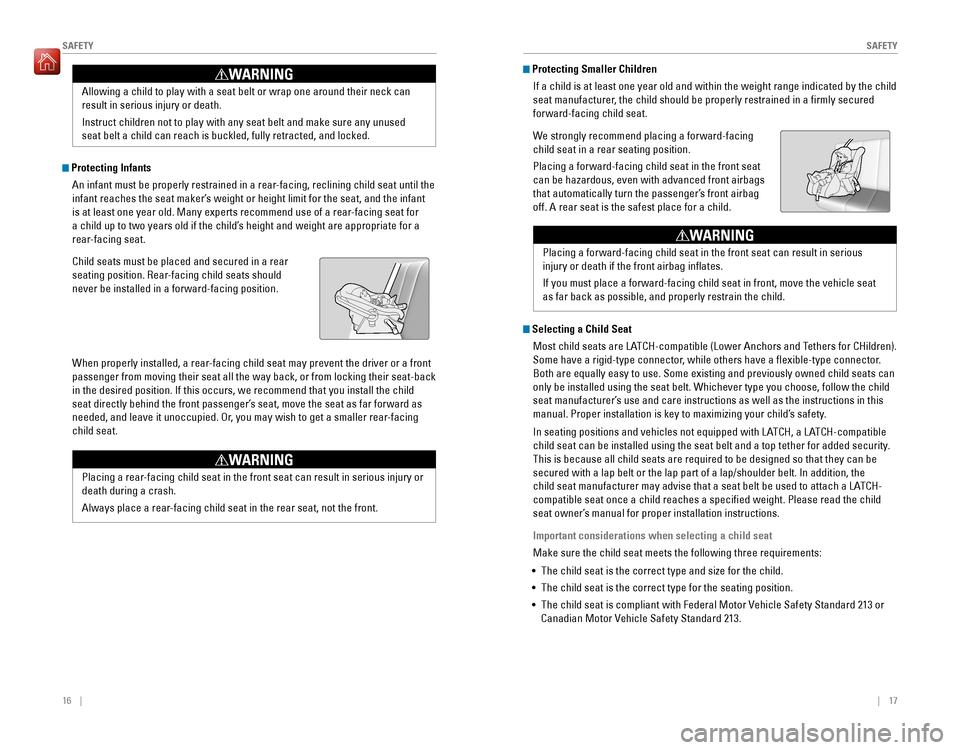

Protecting Infants
An infant must be properly restrained in a rear-facing, reclining child seat until the 
infant reaches the seat maker’s weight or height limit for the seat, and the infant
is at least one year old. Many experts recommend use of a rear-facing seat for
a child up to two years old if the child’s height and weight are appropriate for a
rear-facing seat. Child seats must be placed and secured in a rear 
seating position. Rear-facing child seats should never be installed in a forward-facing position.
When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back in the desired position. If this occurs, we recommend that you install the child 
seat directly behind the front passenger’s seat, move the seat as far forward as 
needed, and leave it unoccupied. Or, you may wish to get a smaller rear-facing child seat.
Placing a rear-facing child seat in the front seat can result in serious injury or death during a crash.
Always place a rear-facing child seat in the rear seat, not the front.
WARNING
Allowing a child to play with a seat belt or wrap one around their neck can  result in serious injury or death.
Instruct children not to play with any seat belt and make sure any unused  seat belt a child can reach is buckled, fully retracted, and locked.
WARNING Protecting Smaller Children
If a child is at least one year old and within the weight range indicated by the child 
seat manufacturer, the child should be properly restrained in a irmly secured forward-facing child seat.
We strongly recommend placing a forward-facing child seat in a rear seating position. Placing a forward-facing child seat in the front seat
can be hazardous, even with advanced front airbags 
that automatically turn the passenger’s front airbag off. A rear seat is the safest place for a child.Placing a forward-facing child seat in the front seat can result in serious injury or death if the front airbag inlates.
If you must place a forward-facing child seat in front, move the vehicle seat  as far back as possible, and properly restrain the child.
WARNING
Selecting a Child Seat
Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren). 
Some have a rigid-type connector, while others have a lexible-type connector. 
Both are equally easy to use. Some existing and previously owned child seats can 
only be installed using the seat belt. Whichever type you choose, follow the child 
seat manufacturer’s use and care instructions as well as the instructions in this
manual. Proper installation is key to maximizing your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible 
child seat can be installed using the seat belt and a top tether for added security. This is because all child seats are required to be designed so that they can be secured with a lap belt or the lap part of a lap/shoulder belt. In addition, the 
child seat manufacturer may advise that a seat belt be used to attach a LATCH-compatible seat once a child reaches a speciied weight. Please read the child 
seat owner’s manual for proper installation instructions.
Important considerations when selecting a child seat
Make sure the child seat meets the following three requirements:
•  The child seat is the correct type and size for the child. •  The child seat is the correct type for the seating position.
•  The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.

18 || 19
S
AFETY
SAFETY

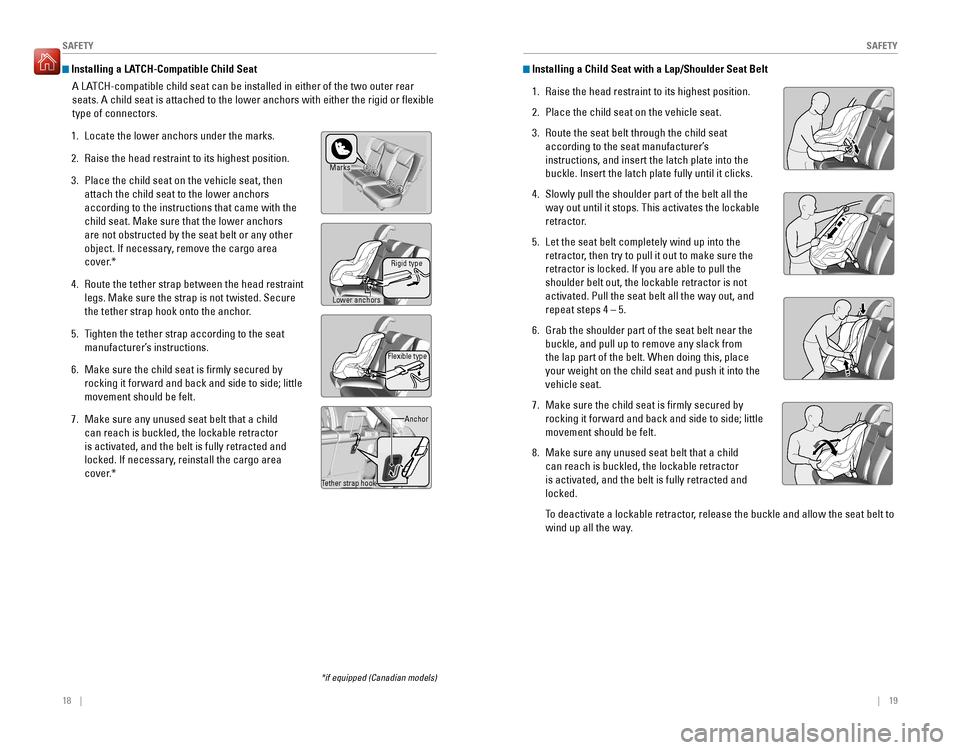

Installing a LATCH-Compatible Child Seat
A LATCH-compatible child seat can be installed in either of the two outer rear 
seats. A child seat is attached to the lower anchors with either the rigid or lexible type of connectors.
1. Locate the lower anchors under the marks.
2. Raise the head restraint to its highest position.
3. Place the child seat on the vehicle seat, then attach the child seat to the lower anchors according to the instructions that came with the child seat. Make sure that the lower anchors are not obstructed by the seat belt or any other 
object. If necessary, remove the cargo area 
cover.*
4. Route the tether strap between the head restraint legs. Make sure the strap is not twisted. Secure
the tether strap hook onto the anchor.
5. Tighten the tether strap according to the seat manufacturer’s instructions.
6. Make sure the child seat is irmly secured by  rocking it forward and back and side to side; little movement should be felt.
7. Make sure any unused seat belt that a child 
can reach is buckled, the lockable retractor is activated, and the belt is fully retracted and 
locked. If necessary, reinstall the cargo area 
cover.*
Installing a Child Seat with a Lap/Shoulder Seat Belt
1. Raise the head restraint to its highest position.
2. Place the child seat on the vehicle seat.3. Route the seat belt through the child seat 
according to the seat manufacturer’s instructions, and insert the latch plate into the buckle. Insert the latch plate fully until it clicks.
4. Slowly pull the shoulder part of the belt all the  way out until it stops. This activates the lockable 
retractor.
5. Let the seat belt completely wind up into the 
retractor, then try to pull it out to make sure the retractor is locked. If you are able to pull the shoulder belt out, the lockable retractor is not activated. Pull the seat belt all the way out, and repeat steps 4 – 5.
6. Grab the shoulder part of the seat belt near the buckle, and pull up to remove any slack from the lap part of the belt. When doing this, place your weight on the child seat and push it into the vehicle seat.
7. Make sure the child seat is irmly secured by  rocking it forward and back and side to side; little movement should be felt.
8. Make sure any unused seat belt that a child 
can reach is buckled, the lockable retractor is activated, and the belt is fully retracted and locked.
  To deactivate a lockable retractor, release the buckle and allow the seat belt to  wind up all the way.
Marks
*if equipped (Canadian models)
Rigid type
Lower anchors
Flexible type
Anchor
Tether strap hook

20 || 21
S
AFETY
SAFETY

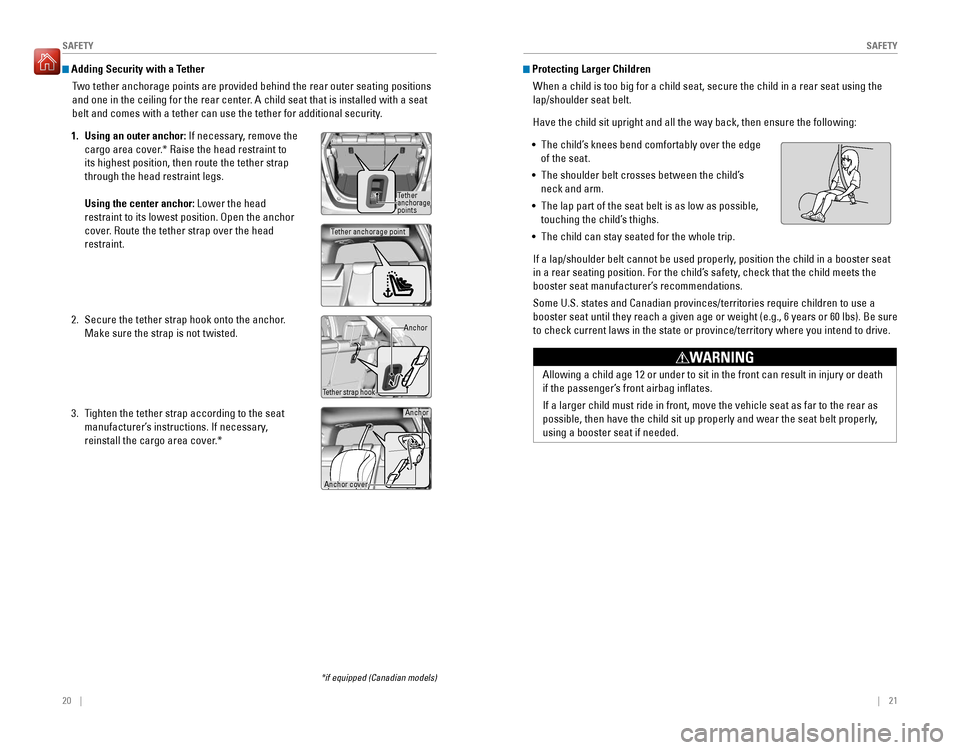

Adding Security with a Tether
Two tether anchorage points are provided behind the rear outer seating positions 
and one in the ceiling for the rear center. A child seat that is installed with a seat
belt and comes with a tether can use the tether for additional security. 
1. Using an outer anchor:  If necessary, remove the 
cargo area cover.* Raise the head restraint to its highest position, then route the tether strap through the head restraint legs. Using the center anchor: Lower the head
restraint to its lowest position. Open the anchor
cover. Route the tether strap over the head restraint.
2. Secure the tether strap hook onto the anchor. Make sure the strap is not twisted.
3. Tighten the tether strap according to the seat manufacturer’s instructions. If necessary, 
reinstall the cargo area cover.* 
Protecting Larger Children
When a child is too big for a child seat, secure the child in a rear seat using the  lap/shoulder seat belt. Have the child sit upright and all the way back, then ensure the following:
•  The child’s knees bend comfortably over the edge  of the seat.
•  The shoulder belt crosses between the child’s 
neck and arm.
•  The lap part of the seat belt is as low as possible, 
touching the child’s thighs.
•  The child can stay seated for the whole trip.
If a lap/shoulder belt cannot be used properly, position the child in a booster seat 
in a rear seating position. For the child’s safety, check that the child meets the
booster seat manufacturer’s recommendations. Some U.S. states and Canadian provinces/territories require children to use a 
booster seat until they reach a given age or weight (e.g., 6 years or 60 lbs). Be sure to check current laws in the state or province/territory where you intend to drive.
Allowing a child age 12 or under to sit in the front can result in injury or death
if the passenger’s front airbag inlates.
If a larger child must ride in front, move the vehicle seat as far to the rear as  possible, then have the child sit up properly and wear the seat belt properly, using a booster seat if needed.
WARNING
Tether
anchorage points
Tether strap hook Anchor
*if equipped (Canadian models)
Tether anchorage point
Anchor
Anchor cover

22 || 23
S
AFETY
SAFETY

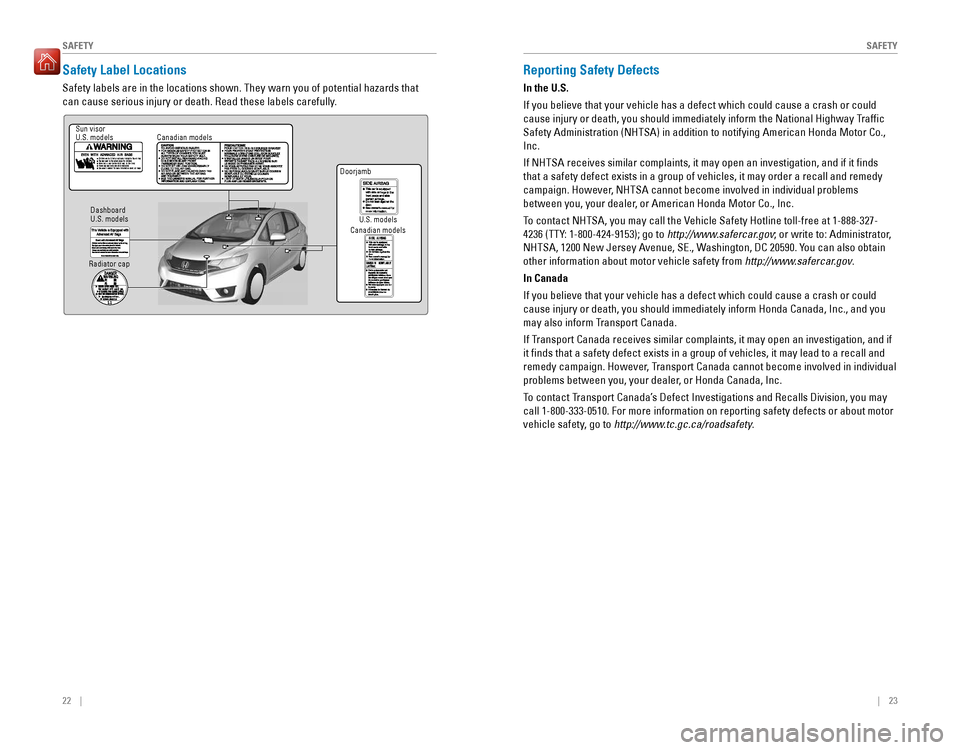

Safety Label Locations
Safety labels are in the locations shown. They warn you of potential hazards that 
can cause serious injury or death. Read these labels carefully.
Reporting Safety Defects
In the U.S. If you believe that your vehicle has a defect which could cause a crash or could 
cause injury or death, you should immediately inform the National Highway Trafc Safety Administration (NHTSA) in addition to notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it inds 
that a safety defect exists in a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in individual problems 
between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-
4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator,
NHTSA, 1200 New Jersey Avenue, SE., Washington, DC 20590. You can also obtain  other information about motor vehicle safety from  http://www.safercar.gov.
In Canada
If you believe that your vehicle has a defect which could cause a crash or could 
cause injury or death, you should immediately inform Honda Canada, Inc., and you 
may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if 
it nds that a safety defect exists in a group of vehicles, it may lead to a recall and
remedy campaign. However, Transport Canada cannot become involved in individual 
problems between you, your dealer, or Honda Canada, Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may 
call 1-800-333-0510. For more information on reporting safety defects or about motor 
vehicle safety, go to http://www.tc.gc.ca/roadsafety .
Sun visor
U.S. models Canadian models
DashboardU.S. models
Radiator cap Doorjamb
U.S. models
Canadian models

24 || 25
I
NSTRUMENT PANEL
INSTRUMENT PANEL
Smart Entry system* There is a problem with the smart entry system. Malfunction indicator lamp (check engine light)
• The emissions control system may have a problem, or the fuel cap is loose   or missing.
• (Blinks) A misire in the engine’s cylinders is detected. Stop in a safe place, 
and wait for the engine to cool down. Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has 
normal braking ability, but no anti-lock function. 
Tire Pressure Monitoring System (TPMS) (U.S. models only)
There is a problem with the tire pressure monitoring system, or the vehicle is  tted with the compact spare tire.
Vehicle Stability Assist (VSA ®
)
There is a problem with the VSA system or hill start assist system. Brake system There is a problem with a braking system component. Electric power steering There is a problem with the system. Stop in a safe place, and restart the vehicle. Starter system* There is a problem with the starter system. High temperature The engine coolant temperature is high. Drive slowly to prevent overheating. If the indicator remains on, immediately stop the vehicle in a safe place (see page 100). Low temperature
The engine coolant temperature is low. If the indicator remains on, there  may be a problem with temperature sensors.
Canada U.S.
U.S.
Canada
Learn about the indicators, gauges, and displays related to driving the vehicle. Indicators briely appear with each engine start and then go out. Red and amber 
indicators are most critical. Blue and green indicators are used for general information.
Malfunction Indicators
These are the most critical indicators. If they come on and stay lit while driving or at 
any other time, there may be a problem. See your dealer if necessary.
Brake system
• Brake luid is low.• The brake system has a problem.Press the brake pedal lightly to check pedal pressure. If normal, check 
the brake luid level when you stop. If abnormal, take immediate action. If 
necessary, downshift the transmission to slow the vehicle using engine
braking. Have your vehicle repaired immediately. Low oil pressure
Engine oil pressure is low. Stop in a safe place. Open the hood. Check the oil 
level, and add oil if necessary (see page 117). If the indicator does not turn 
off, have your vehicle repaired immediately. Charging system
The battery is not charging. Turn off all electrical items, but do not turn off  the vehicle to prevent further battery discharge. Have your vehicle repaired 
immediately. Supplemental Restraint System (SRS)
There is a problem with one of the airbag systems or seat belt tensioners. 
Canada
U.S.
INSTRUMENT PANEL
*if equipped

26 || 27
I
NSTRUMENT PANEL
INSTRUMENT PANEL
Condition Indicators
These indicators may require you to perform an action.
Parking brake
Release the parking brake before driving. You will hear a beep if you drive with it not fully released. Seat belt reminder Make sure seat belts are fastened for you and all passengers. The indicator  blinks and beeps sound continuously if you or your front passenger has not fastened your seat belts when you begin driving. If the indicator remains on 
after seat belts are fastened, see your dealer. Door/tailgate open
A door or the tailgate is open. A beep sounds if any door or the tailgate is open while driving. Low fuel
Refuel as soon as possible. If the indicator blinks, there is a problem with the 
fuel gauge. See your dealer. Low tire pressure
Stop in a safe place, check tire pressures, and inlate tire(s) if necessary. If  the indicator remains on after tire inlation, you need to calibrate the system (see page 102). The indicator also appears if your vehicle is tted with the
compact spare tire. Have your regular tire repaired or replaced as soon as possible.
Washer uid level (Canadian models only)
Washer uid is low. Rell the reservoir (see page 119).Maintenance Minderâ„¢ Scheduled maintenance for your vehicle is due (see page 113).
Ca nada
U.S.
Immobilizer
Your key or remote transmitter cannot be recognized by the vehicle. If the 
indicator blinks, you may not be able to start the engine. Turn the vehicle off, and then on again. If it continues to blink, there may be a problem with the 
system. See your dealer.
On/Off Indicators
These indicators remind you when an item is on or off.
VSA off VSA on (blinks)
CRUISE MAIN onCRUISE CONTROL on
Turn signals/hazards on Fog lights* onHigh beams onExterior lights onECON mode* on
*if equipped

28 || 29
V
EHICLE CONTROLS
INSTRUMENT PANEL
Information Display
Consists of several displays that provide you with useful information.
Press the select/reset knob to change information in the center of the display.
Select/reset knob
Odometer
Trip meter A
Engine oil life Range
Trip meter A
Average fuel economy A Trip meter A
Average fuel economy B
Trip meter B
Instant fuel economy Clock Outside temperature* Fuel gauge
These items are always displayed.
*if equipped Learn about the various controls necessary for operating and driving the vehicle.
Using the Key or Remote Transmitter
Lock or unlock the doors and tailgate.
Unlock button:
Press once to
unlock the driver’s door. Press again to unlock all doors and the tailgate.
Built-in key: Slide the release
knob on the back of the  transmitter and pull out the
built-in key. 
Lock button:
Press to lock the
doors and tailgate. Press again for audible veriication.
Panic button: Press and
hold to sound the alarm for 30 seconds. Press again to cancel.
VEHICLE CONTROLS
Release knob
Built-in key
*if equipped
Leaving the key or remote transmitter in the vehicle can result in theft or
accidental movement of the vehicle. Always take it with you whenever you leave the vehicle unattended.
NOTICE

30 || 31
V
EHICLE CONTROLS
VEHICLE CONTROLS
Smart Entry System*
When you carry the remote transmitter (for example, in a pocket or purse) and it
is outside the vehicle and within range (about 32 inches or 80 cm), you can lock or 
unlock the doors and tailgate without handling the transmitter.
Unlocking/Locking the Doors
To unlock:
 Grab the driver’s door handle when the 
vehicle is off to unlock the driver’s door. Grab the 
front passenger’s door handle to unlock all doors and the tailgate.
To lock:  Press the door lock button on the front 
door handle when the vehicle is off. If the remote  transmitter is inside the vehicle, the doors will not lock.
Unlocking/Locking the Tailgate
To unlock: Press the tailgate release button under 
the tailgate handle to unlock the doors and the tailgate. The vehicle can be on or off.
To lock:  Press the tailgate lock button to lock the 
tailgate and all doors. If the remote transmitter is  inside the vehicle, the tailgate and doors will not lock.
Tailgate release button
*if equipped
Door lock button
Door Operation
Use several methods to lock or unlock the doors.
Using the Lock Tab
To unlock:  Pull the lock tab rearward. When you 
unlock the door using the lock tab on the driver’s 
door, only the driver’s door unlocks.
To lock:  Push the lock tab forward. When you lock 
the door using the lock tab on the driver’s door, all  other doors and the tailgate lock.
Using the Front Door Inner Handle
When you pull either front door inner handle, the door unlocks and opens.
Unlocking and opening the driver’s door from the inner handle unlocks all the other doors.
Using the Master Door Lock Switch
To unlock: Press the unlock side of the switch to
unlock all doors and the tailgate.
To lock: Press the lock side of the switch to lock all
doors and the tailgate.
You can use the master door lock switch to customize the door locking and 
unlocking settings. See the Owner’s Manual on the Owner Information CD or at owners.honda.com (U.S.) or myhonda.ca (Canada) for instructions.
Childproof Door Locks
The childproof door locks prevent the rear doors
from being opened from the inside, regardless of the  position of the lock tab. Slide the lever in the rear door to the lock position,
and close the door. Open the door using the outer door handle.
Lock button
Lock tabTo lock
To unlock
Inner handle
To lock
To unlock
Master doorlock switch
Lock Unlock

32 || 33
V
EHICLE CONTROLS
VEHICLE CONTROLS

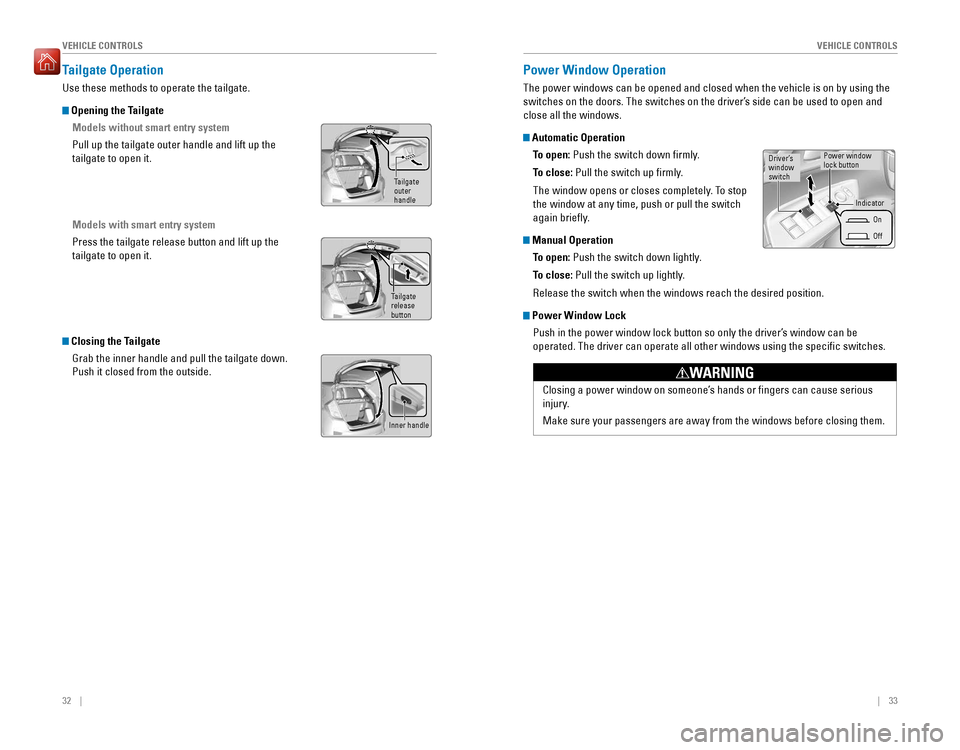

Tailgate Operation
Use these methods to operate the tailgate.
Opening the Tailgate
Models without smart entry system
Pull up the tailgate outer handle and lift up the tailgate to open it.
Models with smart entry system
Press the tailgate release button and lift up the  tailgate to open it.
Closing the Tailgate
Grab the inner handle and pull the tailgate down.  Push it closed from the outside.
Tailgate release button
Power Window Operation
The power windows can be opened and closed when the vehicle is on by using the 
switches on the doors. The switches on the driver’s side can be used to open and close all the windows.
Automatic Operation
To open: Push the switch down rmly.
To close: Pull the switch up rmly.
The window opens or closes completely. To stop the window at any time, push or pull the switch
again briely.
Manual Operation
To open: Push the switch down lightly.
To close: Pull the switch up lightly.
Release the switch when the windows reach the desired position.
Power Window Lock
Push in the power window lock button so only the driver’s window can be  operated. The driver can operate all other windows using the specic switches.
Closing a power window on someone’s hands or ngers can cause serious
injury. Make sure your passengers are away from the windows before closing them.
WARNING
Tailgate outer handle
Inner handle
Off
Power window lock button
Indicator
Driver’s  window switch
On
