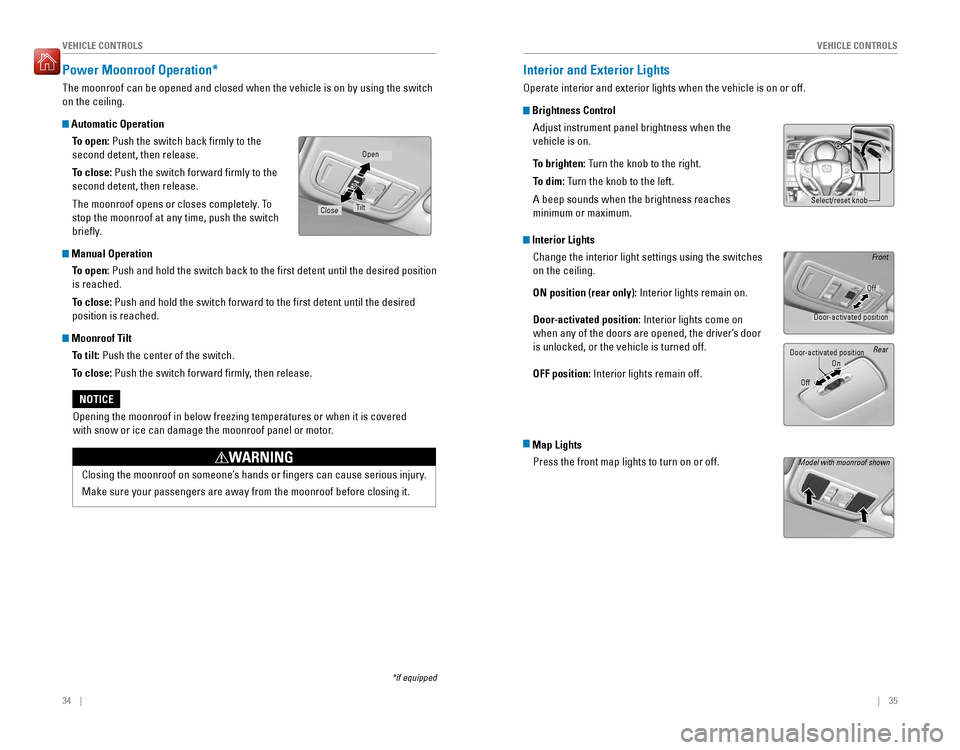

Power Moonroof Operation*
The moonroof can be opened and closed when the vehicle is on by using the switch on the ceiling.
Automatic Operation
To open:
Push the switch back irmly to the
second detent, then release.
To close: Push the switch forward rmly to the
second detent, then release.
The moonroof opens or closes completely. To stop the moonroof at any time, push the switch
briely.
Manual Operation
To open: Push and hold the switch back to the irst detent until the desired position
is reached.
To close: Push and hold the switch forward to the rst detent until the desired
position is reached.
Moonroof Tilt
To tilt: Push the center of the switch.
To close: Push the switch forward rmly, then release.
Opening the moonroof in below freezing temperatures or when it is covered
with snow or ice can damage the moonroof panel or motor.
NOTICE
Closing the moonroof on someone’s hands or ngers can cause serious injury. Make sure your passengers are away from the moonroof before closing it.
WARNING
*if equipped
Close Open
Tilt
Interior and Exterior Lights
Operate interior and exterior lights when the vehicle is on or off.
Brightness Control
Adjust instrument panel brightness when the vehicle is on.
To brighten: Turn the knob to the right.
To dim: Turn the knob to the left.
A beep sounds when the brightness reaches minimum or maximum.
Interior Lights
Change the interior light settings using the switches on the ceiling. ON position (rear only): Interior lights remain on.
Door-activated position: Interior lights come on
when any of the doors are opened, the driver’s door is unlocked, or the vehicle is turned off. OFF position: Interior lights remain off.
Map Lights
Press the front map lights to turn on or off.
Off
Door-activated position Front
Off
Rear
Door-activated position
On
Select/reset knob
Model with moonroof shown
Page 22 of 75
36 || 37
V
EHICLE CONTROLS
VEHICLE CONTROLS
Exterior Lights
Rotate the switches on the headlight lever to operate the exterior lights. Push the
lever forward to turn on the high beams. Return the lever to its original position for low beams. OFF: All exterior lights are off.
: Turn on exterior lights except headlights.
AUTO: Turn on the automatic lighting feature*.
Headlights turn on or off depending on ambient brightness when the vehicle is on. Headlights automatically come on after the wipers are engaged for a certain time.
: Turn on all exterior lights including headlights.
: Turn fog lights* on or off.
*if equipped
One-Touch Turn Signal
Use this quick and convenient method to signal a lane change. Lightly push the turn signal lever up or down for a three-blink sequence. For a continuous signal, push the lever up or down until it locks into place.
Left turn
Right turn
High beams
Low beams Flash the high beams
Fog lights*
Wiper Operation
The windshield wipers and washers can be used when the vehicle is on.
Front Wipers
Move the wiper lever up or down to the desired position.
Headlight-Wiper Integration*
When the headlights are in the AUTO position, they automatically turn on when the front wipers operate several times within a certain interval. The headlights turn off shortly after the wipers are turned off, or if there is enough
ambient light.
Rear Wiper
Rotate the end of the wiper lever to the desired position. When you shift to Reverse (R) and the front wipers are activated, the rear wiper activates even if the switch is off.
Do not use the wipers when the windshield is dry. The windshield will get scratched, or the rubber blades will get damaged.
In cold weather, the blades may freeze to the windshield, becoming stuck. Operating the wipers in this condition may damage the wipers. Use the
defroster to warm the windshield, or manually clear the windshield of ice and snow before turning on the wipers.
NOTICE
*if equipped
Pull to use
washer.
MIST OFF
INT: Low speed intermittent LO: Low speed wipe HI: High speed wipe
OFF
INT: Intermittent wipeON: Continuous wipe
Washer
Page 23 of 75
38 || 39
V
EHICLE CONTROLS
VEHICLE CONTROLS
Reclining the seat-back too far can result in serious injury or death in a crash. Adjust the seat-back to an upright position, and sit well back in the seat.
WARNING

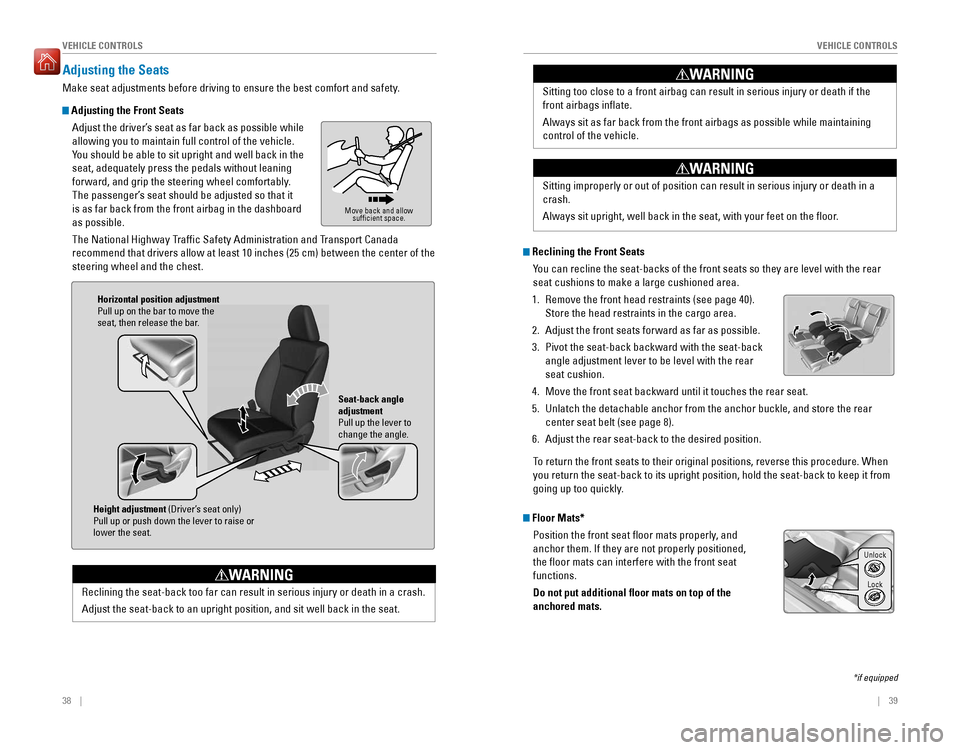

Adjusting the Seats
Make seat adjustments before driving to ensure the best comfort and safety.
Adjusting the Front Seats
Adjust the driver’s seat as far back as possible while allowing you to maintain full control of the vehicle.
You should be able to sit upright and well back in the seat, adequately press the pedals without leaning
forward, and grip the steering wheel comfortably.
The passenger’s seat should be adjusted so that it is as far back from the front airbag in the dashboard as possible.
The National Highway Traf c Safety Administration and Transport Canada
recommend that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and the chest.
Move back and allow
suf cient space.
Height adjustment (Driver’s seat only)
Pull up or push down the lever to raise or lower the seat. Seat-back angle adjustment
Pull up the lever to change the angle.
Horizontal position adjustment
Pull up on the bar to move the
seat, then release the bar. Sitting improperly or out of position can result in serious injury or death in a crash.
Always sit upright, well back in the seat, with your feet on the loor.
WARNING
Floor Mats*
Position the front seat oor mats properly, and
anchor them. If they are not properly positioned, the oor mats can interfere with the front seat functions. Do not put additional oor mats on top of the anchored mats.
Unlock
Lock
Sitting too close to a front airbag can result in serious injury or death if the front airbags inlate. Always sit as far back from the front airbags as possible while maintaining control of the vehicle.
WARNING
Reclining the Front Seats
You can recline the seat-backs of the front seats so they are level with the rear seat cushions to make a large cushioned area.
1. Remove the front head restraints (see page 40). Store the head restraints in the cargo area.
2. Adjust the front seats forward as far as possible.
3. Pivot the seat-back backward with the seat-back angle adjustment lever to be level with the rear seat cushion.
4. Move the front seat backward until it touches the rear seat.
5. Unlatch the detachable anchor from the anchor buckle, and store the rear center seat belt (see page 8).
6. Adjust the rear seat-back to the desired position.
To return the front seats to their original positions, reverse this procedure. When you return the seat-back to its upright position, hold the seat-back to keep it from
going up too quickly.
*if equipped
Page 24 of 75
40 || 41
V
EHICLE CONTROLS
VEHICLE CONTROLS
Improperly positioning head restraints reduces their effectiveness and increases the likelihood of serious injury in a crash.
Make sure head restraints are in place and positioned properly before driving.
WARNING
Failure to reinstall, or correctly reinstall, the head restraints can result in severe injury during a crash. Always replace the head restraints before driving.
WARNING

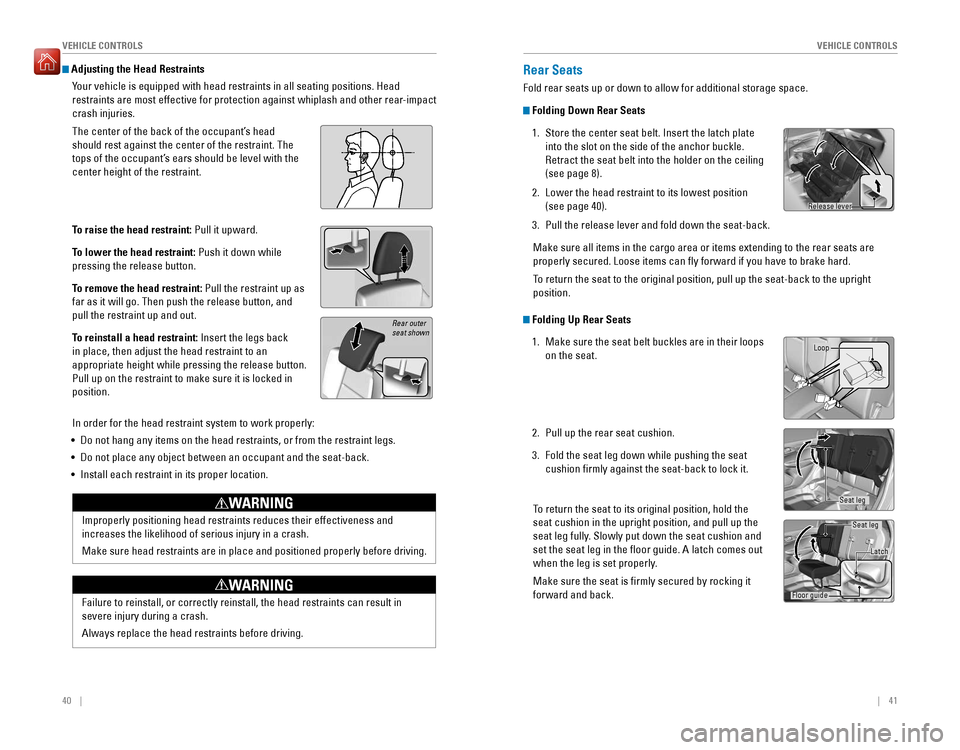

Adjusting the Head Restraints
Your vehicle is equipped with head restraints in all seating positions. Head
restraints are most effective for protection against whiplash and other rear-impact crash injuries.
The center of the back of the occupant’s head should rest against the center of the restraint. The
tops of the occupant’s ears should be level with the center height of the restraint.
To raise the head restraint: Pull it upward.
To lower the head restraint: Push it down while
pressing the release button.
To remove the head restraint: Pull the restraint up as
far as it will go. Then push the release button, and pull the restraint up and out.
To reinstall a head restraint: Insert the legs back
in place, then adjust the head restraint to an appropriate height while pressing the release button. Pull up on the restraint to make sure it is locked in position. In order for the head restraint system to work properly:
• Do not hang any items on the head restraints, or from the restraint legs.
• Do not place any object between an occupant and the seat-back.
• Install each restraint in its proper location.
Rear outer seat shown
Rear Seats
Fold rear seats up or down to allow for additional storage space.
Folding Down Rear Seats
1. Store the center seat belt. Insert the latch plate into the slot on the side of the anchor buckle. Retract the seat belt into the holder on the ceiling (see page 8).
2. Lower the head restraint to its lowest position (see page 40).
3. Pull the release lever and fold down the seat-back.
Make sure all items in the cargo area or items extending to the rear seats are properly secured. Loose items can ly forward if you have to brake hard.
To return the seat to the original position, pull up the seat-back to the upright position.
Folding Up Rear Seats
1. Make sure the seat belt buckles are in their loops on the seat.
2. Pull up the rear seat cushion.
3. Fold the seat leg down while pushing the seat cushion irmly against the seat-back to lock it.
To return the seat to its original position, hold the seat cushion in the upright position, and pull up the
seat leg fully. Slowly put down the seat cushion and set the seat leg in the oor guide. A latch comes out
when the leg is set properly. Make sure the seat is irmly secured by rocking it forward and back.
Release lever
Loop
Seat leg
Seat leg Latch
Floor guide
Page 25 of 75
42 || 43
V
EHICLE CONTROLS
VEHICLE CONTROLS
Adjusting the Mirrors
Adjust the angle of the mirrors for the best visibility when you are sitting in the correct driving position.
Rearview Mirror with Day/Night Positions
Manually adjust the position to reduce headlight
glare from vehicles behind you. Flip the tab to switch between day and night positions.
Power Door Mirrors
Adjust the power door mirrors when the vehicle is on. L/R selector switch: Select the left or right mirror.
After adjusting the mirror, return the switch to the center position. Mirror position adjustment switch: Press the switch
left, right, up, or down to move the mirror.
Adjustment switch Selector switch
Adjusting the Rear Seats
Pull the release lever on the left or right side to
change the angle of the seat-back.
Release lever
Adjusting the Steering Wheel
The steering wheel height and distance from your body can be adjusted so that you can comfortably grip the steering wheel in an appropriate driving posture.
1. Pull up the steering wheel adjustment lever.
2. Move the steering wheel up or down, and in or out.
3. Push down the steering wheel adjustment lever to lock the steering wheel in position.
Adjusting the steering wheel position while driving may cause you to lose control of the vehicle and be seriously injured in a crash. Adjust the steering wheel only when the vehicle is stopped.
WARNING
To adjust To lock
Night position Ta b
DaypositionAir Conditioning System*
Manually control the front heating and cooling in your vehicle’s interior using the buttons and dials on the dashboard.
Fan control/ OFF dial
A/C button Temperature control dial
Fresh air/recirculation lever:
Recirculation mode (left side):
Recirculates air from the vehicle’s interior.
Fresh air mode (right side): Maintains
outside ventilation. Rear defogger/heated door mirror button*Mode control dial
*if equipped
Page 26 of 75
44 || 45
V
EHICLE CONTROLS
VEHICLE CONTROLS
Climate Control System*
The automatic climate control system can maintain your preferred interior temperature by selecting the proper mix of heated or cooled air and fan speed.
Touch the icons on the dashboard to control the system.
*if equipped
AUTO: Select to
maintain a set temperature. Use the temperature control to set the preferred temperature. ON/OFFA/C
Recirculation mode Rear defogger/heated door mirrors
Windshield defroster
Fan control
Mode control: Change air ow location.Temperature control
Fresh air mode
Seat Heaters*
Quickly warm the front seats when the vehicle is on. Press the switch next to the parking brake to select the HI or LO setting. The indicator for the selected setting appears on the switch. In the HI setting, the seat heater cycles on and off.In the LO setting, the seat heater runs continuously and does not automatically turn off.
Heat-induced burns are possible when using seat heaters.
Persons with a diminished ability to sense temperature (e.g., persons with
diabetes, lower-limb nerve damage, or paralysis) or with sensitive skin should not use the seat heaters.
WARNING
Setting the Clock
Adjust the time using the steps described for your system type.
Using the Color Audio System*
Use this method for vehicles with color audio system. Use the selector knob to make and enter selections. 1.
Press and hold the MENU/CLOCK button.
2. Select the hour and adjust as necessary.
3. Select the minutes and adjust as necessary.
4. Select Set when complete.5. Press the Back button to exit the menu.
Using the Settings Menu*
Use this method for vehicles with touchscreen. Touch items to make selections.
1. From the HOME screen, select Settings.
2. Select System. 3. Select Clock/Info.
4. Select Clock Adjustment.
5. Adjust the hour and minute values.
6. Select OK when complete.
On vehicles with navigation, the time is automatically set using GPS signals.
*if equipped
VO L
HOME
MENU BA CK
Page 27 of 75
46 || 47
AUDIO AND CONNECTIVITY
V EHICLE CONTROLS
Models with touchscreen
Select items on the touchscreen to make selections.
1. From the HOME screen, select SETTINGS.
2. Select an option (Phone, Audio, Bluetooth, Info, Camera, System, or Navi*).
3. Select a setting option, and make your preferred changes.
4. Press BACK to exit the menus.
Customized Features
Use the Settings menu to customize certain features when the vehicle is stopped.
How to Change Settings
Models with color audio system
Use the selector knob to make and enter selections.
1. Press the MENU/CLOCK button.
2. Select Settings.
3. Select a setting option, and make your preferred changes.
4. Press the Back button to exit the menus.
VOL
HOME
MENU BA CKClock/Info Phone
Learn how to operate the vehicle’s audio system.
Basic Audio Operation
Connect audio devices and operate buttons and displays for the audio system.
USB Port
1. Open one of the USB covers in the front console. 2. Insert a USB lash drive or other audio device, such as an iPod ®
or iPhone ®
, into the USB port.
An additional USB port is located inside the center console.* iPod and iPhone are trademarks of Apple, Inc.
State, provincial, or local laws may prohibit the operation
of handheld electronic devices while operating a vehicle.
Accessory Power Socket
Open the socket cover in the front console to use power when the vehicle is on. An additional power socket is located inside the
center console.*
AUDIO AND CONNECTIVITY
*if equipped
Do not insert an automotive type cigarette lighter element. This can overheat the power socket.
NOTICE
HDMI Port*
1. Open the HDMI cover in the front console.
2. Insert an HDMI cable into the HDMI port.
Additional cables and connectors sold separately.
*if equipped
Page 28 of 75
48 || 49
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
*if equipped
Auxiliary Input Jack*
Connect standard audio devices with a 1/8-inch
(3.5 mm) stereo miniplug.
1. Open the AUX cover in the front console. 2. Insert the miniplug attached to the audio device into the jack. The audio system switches to AUX mode. Use the device to control the audio.
Steering Wheel Controls
You can operate certain functions of the audio system using the steering wheel controls. SOURCE button:
Cycle through available audio
modes. t /u buttons:
Change presets, tracks, albums, or
folders.+/- buttons: Adjust audio volume.
Menu button*: From the audio screen, press and
hold to choose options for the current audio mode (models with touchscreen). Use the +/- buttons and
the SOURCE button to scroll and enter selections.
FM/AM/XM ®
Radio
Press t or u for the next or previous station.
Press and hold t or u for the next or previous strong station.
CD/iPod ®
/USB/ Bluetooth ®
Audio
Press t or u for the next or previous track.
Press and hold t or u
for the next or previous folder (CD/USB).
Pandora ®
(U.S. only)
Press u for the next song.
Press and hold t or u for the next or previous station.
Adjusting the Sound
Adjust various sound settings.
Models with color audio system
Use the selector knob to make and enter selections.
1. Press the Sound button.
2. Select a sound mode to change, and adjust it using the selector knob.
3. Press the Back button to exit the menu.
Models with touchscreen
Make selections using the touchscreen.
1. From the HOME screen, select Settings.
2. Select Audio.
3. Select Sound.4. Select the tabs to change the sound mode and adjust the setting.
5. Select OK when complete.
Menu button
Selector knob Sound button
VO
L
HOME
MENU BA CK
Page 29 of 75
50 || 51
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with color audio system
Color Audio System*
Use the buttons to control the display and audio system.
Selector knob:
Make and enter selections.
Volume/power knob MENU/CLOCK button:
Display menu options. Press and hold for clock adjustment. BACK button:
Go back to the
previous display.
Display button:
Adjust display brightness. Sound button:
Adjust sound.
Models with color audio system
FM/AM Radio
Play FM or AM radio stations.
Radio button:
Select a band.
Preset buttons (1–6): Press and hold
a preset button to store the current station. Press a preset button to select a previously stored station.
Seek/Skip buttons:
Search up and down the selected
band for a station with a strong signal. Selector knob:
Rotate to tune
radio frequency. Press for more options.
*if equipped
Page 30 of 75
52 || 53
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
Models with color audio system
Compact Disc (CD)
The audio system supports audio CDs, CD-Rs, and CD-RWs in MP3, WMA, or AAC formats.
CD eject button
CD slot CD/AUX button: Play a CD.
Do not use CDs with adhesive labels or insert a damaged CD. Inserting these types of CDs may cause them to get stuck or damage the audio unit.
NOTICE
Selector knob:
Rotate to change tracks. Press to display a track list.Seek/Skip buttons: Press to change tracks. Press and hold to move rapidly within a track.
Play mode buttons (1–6): Select a play
mode, such as random, repeat, etc. Corresponding icons appear above each button.
Models with color audio system
iPod ®
Play and operate an iPod through the vehicle’s audio system. Connect your device
(see page 47).
Seek/Skip buttons:
Press to change tracks. Press and hold to move rapidly within a track.
CD/AUX button:
Play a connected iPod.
Selector knob:
Rotate to change tracks. Press to enter the music search list.
Play mode buttons (3, 5, 6): Select a play mode,
such as random, repeat, etc. Corresponding icons appear above each button.
Searching for Music
Use the selector knob to search for tracks stored on the iPod.
1. From the audio screen, press the selector knob.
2. Select a search option.
3. Select the track you want to play.
iPod is a trademark of Apple, Inc.
