remote start HONDA FIT 2020 (in English) User Guide

150
uuSecurity System uSecurity System Alarm
Controls
■The panic button on the remote
transmitter
If you press the panic button for
approximately one seco nd, the following will
occur for about 30 seconds:
• The horn sounds.
• Some exterior lights flash.
■Canceling panic mode
Press any button on the remote transmitter, or turn the ignition switch to ON
(w*1.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Panic Mode
Panic Button
20 FIT-31T5A6500.book 150 ページ ２０１９年９月２６日　木曜日　午後４時４１分

155
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Continued
Controls
ENGINE START/STOP Button
*1 : Except U.S. models with continuously variable transmission
■Changing the Power Mode
Models with smart entry system
1ENGINE START/STOP Button
ENGINE START/STOP Button Operating Range
You can start the engine when the smart entry
remote is inside the vehicle.
The engine may also run if the smart entry remote is
close to the door or window, ev en if it is outside the
vehicle.
ON mode:
The button is on (in red), if the engine is running.
If the battery of the smar t entry remote is getting
low, the engine may not start when you push the
ENGINE START/STOP button. If the engine does not
start, refer to the following link. 2 If the Smart Entry Remote Battery is Weak
P. 555
Operating Range
ACCESSORY
The button blinks (in red).
Operate the audio system and
other accessories in this position.
Continuously Variable Transmission Manual Transmission
VEHICLE OFF (LOCK)
The button is off. The steering
wheel is locked.
*1 The power to
all electrical components is
turned off.
ON
The button is blinks (in red). All
electrical components can be
used.
Press the button without transmission in
( P.
Put the transmission into
( P, then press the button.
Press the button.
Without depressing
the brake pedal
Without depressing
the clutch pedal
The transmission in
( P.U.S. models
20 FIT-31T5A6500.book 155 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
156
Controls
If you leave the vehicle for 30 to 60 minutes with the transmission in (P*1 and the
power mode in ACCESSORY, the vehicle automa tically goes into the mode similar to
VEHICLE OFF (LOCK) to avoid draining the battery.
When in this mode:
The steering wheel does not lock.
You cannot lock or unlock doors with th e remote transmitter or the smart entry
system.
Press the ENGINE START/STOP button three times to swit ch the mode to VEHICLE
OFF (LOCK).
*1 : Continuously variable transmission models
■Automatic Power Off1 ENGINE START/STOP Button
Do not leave the power mode in ACCESSORY or ON
when you get out.
If the power mode does not change from VEHICLE
OFF to ACCESSORY, press the ENGINE START/STOP
button while moving the st eering wheel left and
right. The steering wheel will unlock, allowing the
mode to change.
Except U.S. models with cont inuously variable transmission
Except U.S. models with continuously variable transmission
20 FIT-31T5A6500.book 156 ページ ２０１９年９月２６日　木曜日　午後４時４１分

157
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
If you open the driver’s door when the power mode is set to ACCESSORY, a warning
beep sounds.
Warning buzzers may sound from inside and/
or outside the vehicle to remind you that the
smart entry remote is out of the vehicle. If the
buzzer continues even after the remote is put
back inside, place it to be within its
operational range.
■When the power mode is in ON
If the smart entry remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from both inside and
outside the vehicle. A warning message on the
information display notifies the driver inside that
the remote is outside of the vehicle.
■When the power mode is in
ACCESSORY
If the smart entry remote is taken out of the
vehicle, and all the doors are closed, a
warning buzzer sounds from outside the
vehicle.
■Power Mode Reminder
■Smart Entry Remote Reminder1 Smart Entry Remote Reminder
When the smart entry remote is within the system’s
operational range, and the driv er’s door is closed, the
warning function cancels.
If the smart entry remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the smart entry remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the smart entr y remote on the dashboard
or in the glove box. It may cause the warning buzzer
to go off. Under some other conditions that can
prevent the vehicle from locating the remote, the
warning buzzer may al so go off even if the remote is
within the system’s operational range.
20 FIT-31T5A6500.book 157 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuOperating the Switches Around the Steering Wheel uLight Switches
162
Controls
The headlights automatically co me on when the wipers are used several times within
a certain number of intervals wi th the headlight switch in AUTO.
The headlights automatically go off a few minutes later if the wipers are stopped.
The headlights, all other exterior lights, an d the instrument panel lights turn off 15
seconds after you remove the key or set the power mode to VEHICLE OFF (LOCK),
take the remote with you, and close the driver's door.
If you turn the igniti on switch to LOCK
(0*1 with the headlight switch on, but do
not open the door, the lights turn off after 10 minutes (3 minutes, if the switch is in
the AUTO position).
The lights turn on again when you unlock or open the driver's door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver's door, you will hear a lights on reminder chime.
*1 : Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
■Headlight Integration with Wipers*
■Automatic Lighting Off Feature
1Headlight Integration with Wipers*
This feature activates while the headlights are off in
AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
* Not available on all models
20 FIT-31T5A6500.book 162 ページ ２０１９年９月２６日　木曜日　午後４時４１分

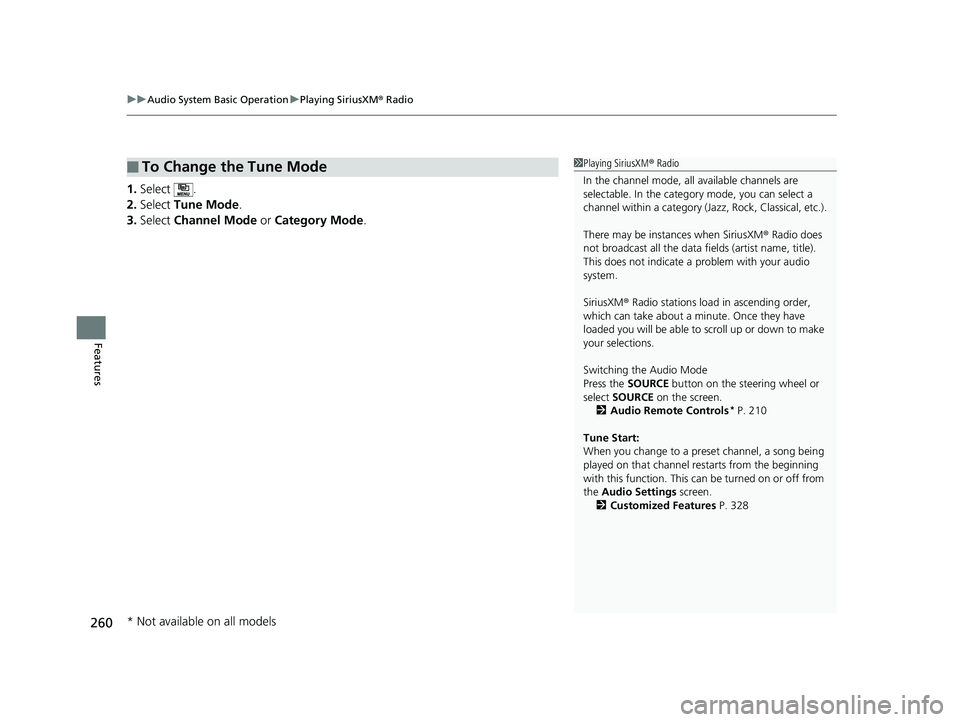

uuAudio System Basic Operation uPlaying SiriusXM ® Radio
260
Features
1. Select .
2. Select Tune Mode .
3. Select Channel Mode or Category Mode .
■To Change the Tune Mode1Playing SiriusXM ® Radio
In the channel mode, all available channels are
selectable. In the categor y mode, you can select a
channel within a ca tegory (Jazz, Rock, Classical, etc.).
There may be instances when SiriusXM ® Radio does
not broadcast all the data fi elds (artist name, title).
This does not indicate a problem with your audio
system.
SiriusXM ® Radio stations load in ascending order,
which can take about a minute. Once they have
loaded you will be able to scroll up or down to make
your selections.
Switching the Audio Mode
Press the SOURCE button on the steering wheel or
select SOURCE on the screen.
2 Audio Remote Controls
* P. 210
Tune Start:
When you change to a preset channel, a song being
played on that channel restarts from the beginning
with this function. This can be turned on or off from
the Audio Settings screen.
2 Customized Features P. 328
* Not available on all models
20 FIT-31T5A6500.book 260 ページ ２０１９年９月２６日　木曜日　午後４時４１分

408
uuTowing a Trailer uTowing Your Vehicle
Driving
1. Remove the 20 A Front ACC Socket and 7.5
A ACC fuses. These fuses are located in the
interior fuse box.
2 Interior Fuse Boxes P. 568
2.Remove the 15 A Back Up Main fuse. This
fuse is located in th e engine compartment
fuse box.
2 Engine Compartment Fuse Box P. 5663.Store the fuses in a safe place so you do not
lose them.
u Make sure to reinstall the fuses before
you start driving your vehicle.
4. Push the ENGINE START/STOP button
without depressing the clutch pedal.
u The indicator on the ENGINE START/
STOP button blinks.
5. Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the indicator is blinking.
u The indicator stop blinking, then stays
on.
6. Shift to
(N.
7. Push the ENGINE START/STOP button
once without depressing the clutch pedal.
u Make sure the steering wheel does not
lock.
Engine Compartment Fuse Box
15 A Back Up Fuse
Interior Fuse Box
20 A Accessory
Power Socket Fuse
7.5 A ACC fuseModels with smart entry system
20 FIT-31T5A6500.book 408 ページ ２０１９年９月２６日　木曜日　午後４時４１分

uuWhen Driving uStarting the Engine
412
Driving
3. Press the ENGINE START/STOP button
without depressing the accelerator pedal.1 Starting the Engine
Bring the smart entry remote close to the ENGINE
START/STOP button if the battery in the smart entry
remote is weak. 2 If the Smart Entry Remote Battery is Weak
P. 555
The engine may not start if the smart entry remote is
subjected to strong radio waves.
Do not hold the ENGINE START/STOP button to
start the engine.
If the engine does not start, wait at least 30 seconds
before starting the engine again.
20 FIT-31T5A6500.book 412 ページ ２０１９年９月２６日　木曜日　午後４時４１分

545
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 546
If a Tire Goes Flat Changing a Flat Tire ......................... 547
Engine Does Not Start Checking the Engine ........................ 554
If the Smart Entry Remote Battery is Weak.............................................................555
Emergency Engine Stop ................... 556
Jump Starting .................................... 557
Models with smart entry system
Models with smart entry system
Shift Lever Does Not Move .............. 559
Overheating How to Handle Overheating............. 560
Indicator, Coming On/Blinking If the Low Oil Pressure Indicator Comes On............................................................. 562
If the Charging System Indicator Comes On ................................................. 562
If the Malfunction Indicator Lamp Comes On or Blinks ..................................... 563
If the Brake System Indicator (Red) Comes On...................................................... 564 If the Electric Power Steering (EPS) System
Indicator Comes On ........................... 564
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks ....................... 565
Fuses Fuse Locations ................................. 566
Inspecting and Changing Fuses ........ 570
Emergency Towing ........................... 571
When You Cannot Open the Tailgate..... 572
U.S. models
20 FIT-31T5A6500.book 545 ページ ２０１９年９月２６日　木曜日　午後４時４１分

554
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.
Check for a message on the multi-information display.●If the To Start, Hold Remote Near Start Button message appears2If the Smart Entry Remote Battery is Weak P. 555
uMake sure the smart entry remote is in its operating range.2 ENGINE START/STOP Button Operating Range P. 155
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all 2Battery P. 534●If the interior lights come on normally 2 Fuses P. 566
●Make sure the smart entry remote is in its operating range.2ENGINE START/STOP Button Operating Range P. 155
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly.Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2 Starting the Engine P. 409, 411
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 148
Check the fuel level.
There should be enough fuel in the tank. 2 Fuel Gauge P. 106, 110
Check the fuse.
Check all fuses, or have your vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 570
If the problem continues:2Emergency Towing P. 571
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 557
Models with multi- information display
All models
Models with Smart Entry System
20 FIT-31T5A6500.book 554 ページ ２０１９年９月２６日　木曜日　午後４時４１分
