navigation system HONDA HR-V 2016 2.G Navigation Manual

20
System Setup
Start-up
The navigation system starts automatically when you set the power mode to
ACCESSORY or ON. At start-up, the follo wing Confirmation screen is displayed.
Select OK.
u The HOME screen is displayed.1Start-up
Do not use the smartphone while driving.
Avoid focusing on the scre en and drive safely
following the actual traffic restrictions.
If the navigation system lo ses power at any time, you
may need to press and hold the (Audio Power)
button for more than two seconds, or you may be
prompted for the 5-digit security code. 2 System Initialization P. 222
You can change the system language at any time. 2 Language P. 77
If you do not select OK on the Confirmation screen,
the HOME screen is displaye d after a certain period of
time.
OK on the Confirmation screen cannot be selected
by using a voice command.
If Remember Last Screen is set to On, the top
screen of the last mode is displayed after the HOME
screen. 2 Other Settings P. 76
U.S. models

22
System Setup
Voice Control System
Your vehicle has a voice control system that allows hands-free operation of most of
the navigation system functions. You can also control the audio and climate control
system, and make and receive phone calls using Bluetooth® HandsFreeLink ®.
The voice control system uses the (Talk) and (Hang-Up/Back) buttons on
the steering wheel and microphones at the top of
the navigation screen.
A “Getting Started” feature provides a tutorial that expla i
ns how to use the voice
control system.
2 Voice Help P. 15
Command Input
If the system does not understand a command or you wait too long to give a
command, the system asks you to repeat the command.
When you give a command, the system gene rally either repeats the command as
a
confirmation or asks you for further information. If you do not wish to hear this
feedback, you can turn it off. However, list ening to the feedback will help familiarize
you with the way the system expects commands to be phrased.
2 Voice Recognition Settings P. 69
On character input screens, a list of possible characters is displayed if the system
does not recognize your command.
You can find out which voice commands ar e ava
ilable for a particular screen using
the “Voice Help ” command. The
system will display and read the list of available
commands to you.
2 Voice Help P. 15
1 Voice Control System
When you press the (Talk) button, a helpful
prompt asks what you would like to do. Press and
release the (Talk) butt on again to bypass this
prompt and give a command.
1 Command Input
The audio system is muted while using the voice
control system.

23
uu Voice Control System u Voice Recognition
System Setup
Voice Recognition
To achieve optimum voice recognition wh en using either the navigation voice
control system or Bluetooth® HandsFreeLink ®:
• Make sure the correct screen is displa yed for
the voice command that you are
using.
2 Voice Commands P. 234
• Close the windows and moonroof.
• Adjust the dashboard and side vents so air does not blow onto the microphones
at the top of
the navigation screen.
• Speak clearly in a clear, natural speaking voice wit h
out pausing between words.
• Reduce any background noise if possible. The system may
misinterpret your
command if more than one person is speaking at the same time.
• Refer to the Voice Help tutorial.
2 Voice Help P. 15

25Continued
System Setup
Display Mode Settings
Turning Off the Display
Press the (Display mode) button for more than two seconds.
u Select HOME or
BACK, or press the (Display mode) button to turn on the
display.
Switching Display Mode Manually
Set the screen brightness separately for Day and Night modes. Press the
(Display mode) button to cycle through th e display
modes (Day to Night to Off).
Press the (Display mode)
button.
u The Brightness bar is displayed for
a few second
s.
u Select or to adjust
the
brightness.
1 Switching Display Mode Manually
The display brightness ca n be changed from the
System settings screen as well. 2 Display P. 65
You can also adjust the display brightness by sliding
or flicking on the bar.
The map color is also switched depending on the Day
and Night mode. The map color can be set on the
Navigation settings screen. 2 Color P. 53
Illumination
control PriorityOperation
button1Selects Day or Night disp
lay mode when the user
wants to change the brightness of the display
temporarily.
Remember: This button overrides all other display
bri g

htness adjustment that is set by the sunlight sensor
automatically or you ch anged manually from the
System settings screen.

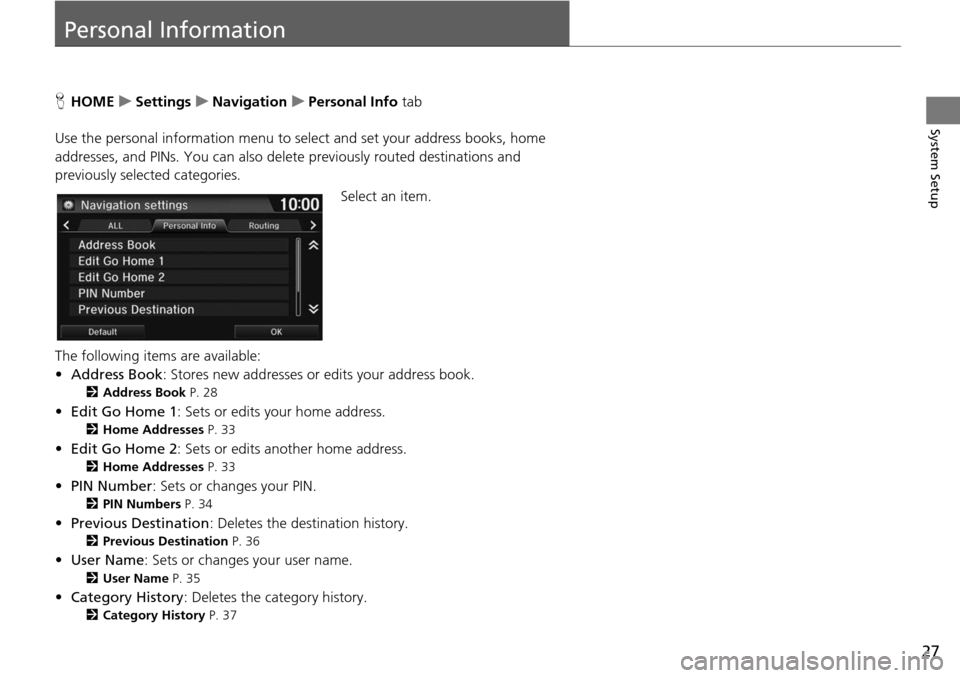

27
System Setup
Personal Information
HHOME u Settings u Navigation u Personal Info tab
Use the personal informatio n menu to
select and set your address books, home
addresses, and PINs. You can also delete previously routed destinations and
previously selected categories.
Select an item.
The following items are available:
• Add ress Book :
Stores new addresses or edits your address book.
2Address Book P. 28
• Edit Go Home 1 : Sets or edits your home address.
2Home Addresses P. 33
• Edit Go Home 2 : Sets or edits another home address.
2Home Addresses P. 33
• PIN Number : Sets or changes your PIN.
2PIN Numbers P. 34
• Previous Destination : Deletes the destination history.
2Previous Destination P. 36
• User Name : Sets or changes your user name.
2User Name P. 35
•Category History : Deletes the category history.
2Category History P. 37

28
uu Personal Information u Address Book
System Setup
Address Book
H HOME u Settings u Navigation u Personal Info tab u Address Book
Store up to 200 address entries in two address books ( Driver 1 and Dr
iver 2). You
can add, edit, and delete info rmation in the address books.
Select the driver to edit the address
book.
u The ad dress book is displayed.
u Select the category
tab to display
only the addresses in the selected
category.
1 Address Book
The number of addresses is shared by the two
address books. For example, if Driver 1 has 150
addresses, Driver 2 can only have 50.
If you have PIN-protecte d your address book, enter
your PIN when prompted. Select OK. PINs are
optional. 2 PIN Numbers P. 34
Any address book categories you create are also
displayed on the Address book screen.
2 Selecting an Address Book Category P. 31

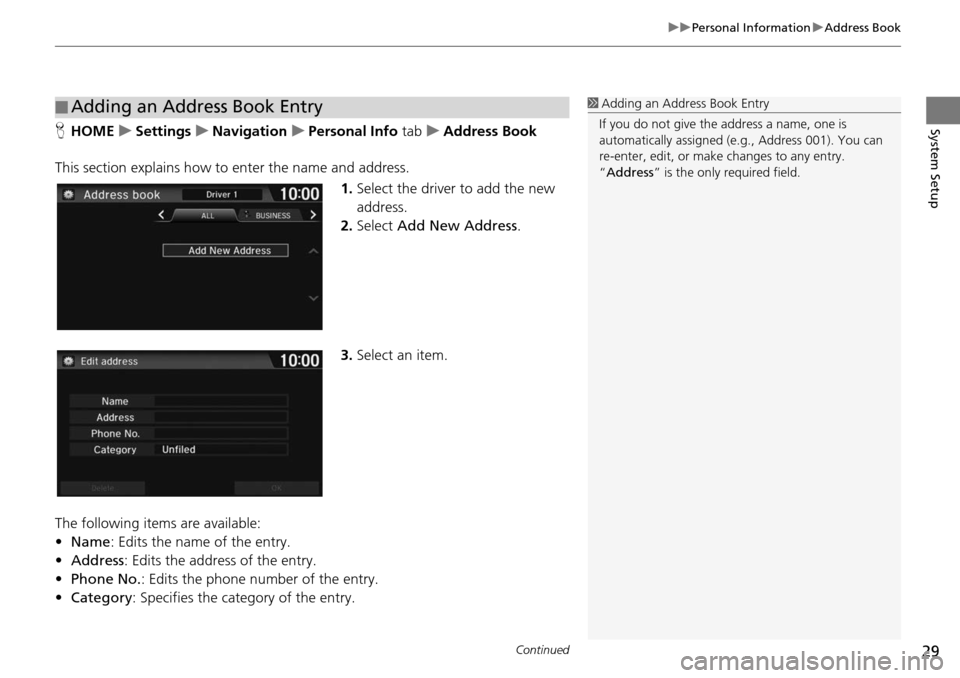

Continued29
uu Personal Information u Address Book
System SetupH HOME u Settings u Navigation u Personal Info tab u Address Book
This section explains how to enter th
e name and address.
1.Select the drive r
to add the new
address.
2. Select Add New Addres s.
3. Select an item.
The following ite

ms are available:
• Na me: Edits the name of the entry.
• Addr ess: Edits the a
ddress of the entry.
• Phone No.: Edits the phone number of the entry.
• Category : Specifies the
category of the entry.
■Adding an Address Book Entry1
Adding an Address Book Entry
If you do not give the address a name, one is
automatically assigned (e.g., Address 001). You can
re-enter, edit, or make changes to any entry.
“Address ” is the only required field.

Continued31
uu Personal Information u Address Book
System SetupH HOME u Settings u Navigation u Personal Info tab u Address Book
1. Select the drive r
and then select
the address to edit.
2. Enter the name, address, phone
nu

mber, and category fields.
2Adding an Address Book
Entry P. 29
3. Select OK.
H HOME u Settings u Navigation u Personal Info tab u Address Book
1. Select the driver and
then select an
address.
2. Select Categ
ory.
3. Select BUSI
NESS, PERSONAL , or
a category you created.
■ Editing an Address Book Entry1
Editing an Address Book Entry
The entered contents are displayed on the Edit
address screen.
■ Selecting an Address Book Category
1
Selecting an Addr ess Book Category
You can have a total of 100 categories (including
“Unfiled”). But these cate gories cannot be shared
with two address books.
If you delete a category that is used by other
addresses, the category type for those addresses
changes to “Unfiled.”
Category Icons
The following icons can be selected for a category:

uu Personal Information u Address Book
32
System Setup
■ Creating a New Category
1.Select New Category .
2. Enter a name and select an icon when prompted. Select OK.
u The created category is displa y
ed in the list of categories.
■ De leting or Editing a Category
1. Select Edit
or Delete .
2. Select a category and delete, or change the name and icon.
H HOME u Sett

ings u Navigation u Personal Info tab u Address Book
1. Select the driver and the
n select
the address to delete.
2. Select Dele
te.
3. Select Yes.
■Deleting an Address Book Entry1
Deleting an Address Book Entry
When you transfer the vehicle to a third party, delete
all address book entries.

33
uu Personal Information u Home Addresses
System Setup
Home Addresses
H HOME u Settings u Navigation u Personal Info tab u Edit Go Home 1 or
Edit Go
Home 2
Set two home addresses that you frequently use. 1.Edit the n a
me, address, and phone
number the same way as an
address in the address book.
2 Adding an Address Book
Entry P. 29
2. Select OK.
1Home Addresses
If you have PIN-pr otected your home addresses, enter
your PIN when prompted. Select OK. PINs are
optional.
2 PIN Numbers P. 34
If your home street is not in the system database,
park on the nearest verified street to your home.
When entering the “ Address” field, select Current
Position to use your current location as the home
address.
You can delete a home addr ess if necessary. Select
Clear Home Entry . Select Yes.
When you transfer the vehicle to a third party, delete
all home addresses.
The home icon is shown on the map screen in the 5
mile (8 km) or less scales.
