HONDA HR-V 2018 Navigation Manual (in English)

79

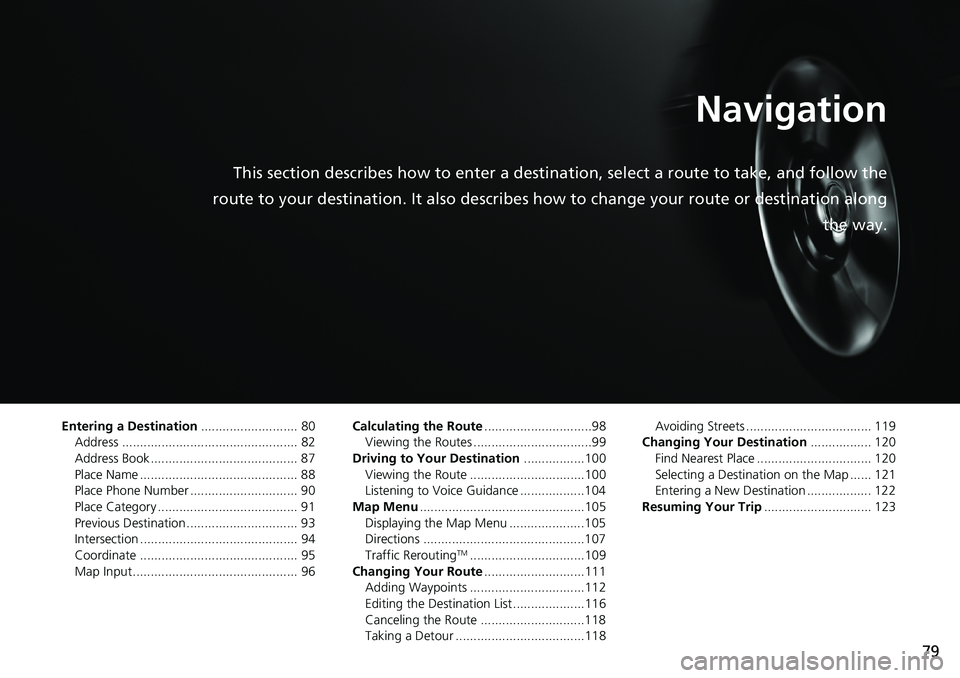

Navigation
This section describes how to enter a destination, select a route to take, and follow the
route to your destination. It also describes how to change your route or destination along
the way.
Entering a Destination........................... 80
Address ................................................. 82
Address Book ......................................... 87
Place Name ............................................ 88
Place Phone Number .............................. 90
Place Category ....................................... 91
Previous Destination ............................... 93
Intersection ............................................ 94
Coordinate ............................................ 95
Map Input .............................................. 96Calculating the Route..............................98
Viewing the Routes .................................99
Driving to Your Destination.................100
Viewing the Route ................................100
Listening to Voice Guidance ..................104
Map Menu..............................................105
Displaying the Map Menu .....................105
Directions .............................................107
Traffic Rerouting
TM................................109
Changing Your Route............................111
Adding Waypoints ................................112
Editing the Destination List ....................116
Canceling the Route .............................118
Taking a Detour ....................................118Avoiding Streets ................................... 119
Changing Your Destination................. 120
Find Nearest Place ................................ 120
Selecting a Destination on the Map ...... 121
Entering a New Destination .................. 122
Resuming Your Trip.............................. 123

80
Navigation

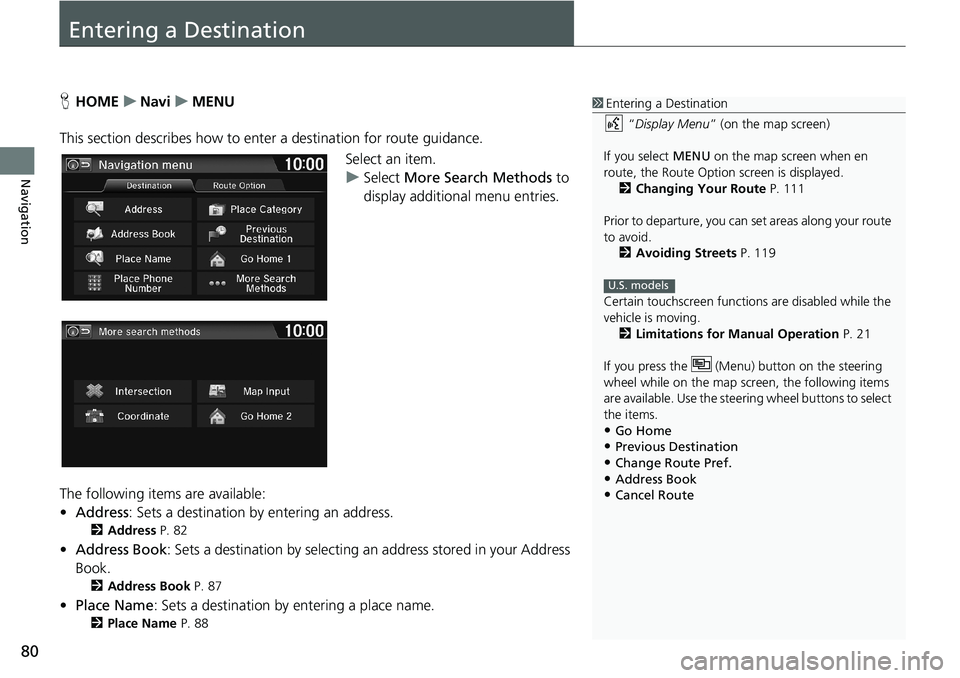

Entering a Destination
HHOMEuNaviuMENU
This section describes how to enter a destination for route guidance.
Select an item.
uSelect More Search Methods to
display additional menu entries.
The following items are available:
•Address: Sets a destination by entering an address.
2Address P. 82
•Address Book: Sets a destination by selecting an address stored in your Address
Book.
2Address Book P. 87
•Place Name: Sets a destination by entering a place name.
2Place Name P. 88
1Entering a Destination
“Display Menu” (on the map screen)
If you select MENU on the map screen when en
route, the Route Option screen is displayed.
2Changing Your Route P. 111
Prior to departure, you can set areas along your route
to avoid.
2Avoiding Streets P. 119
Certain touchscreen functions are disabled while the
vehicle is moving.
2Limitations for Manual Operation P. 21
If you press the (Menu) button on the steering
wheel while on the map screen, the following items
are available. Use the steering wheel buttons to select
the items.
•Go Home•Previous Destination
•Change Route Pref.
•Address Book•Cancel Route
U.S. models

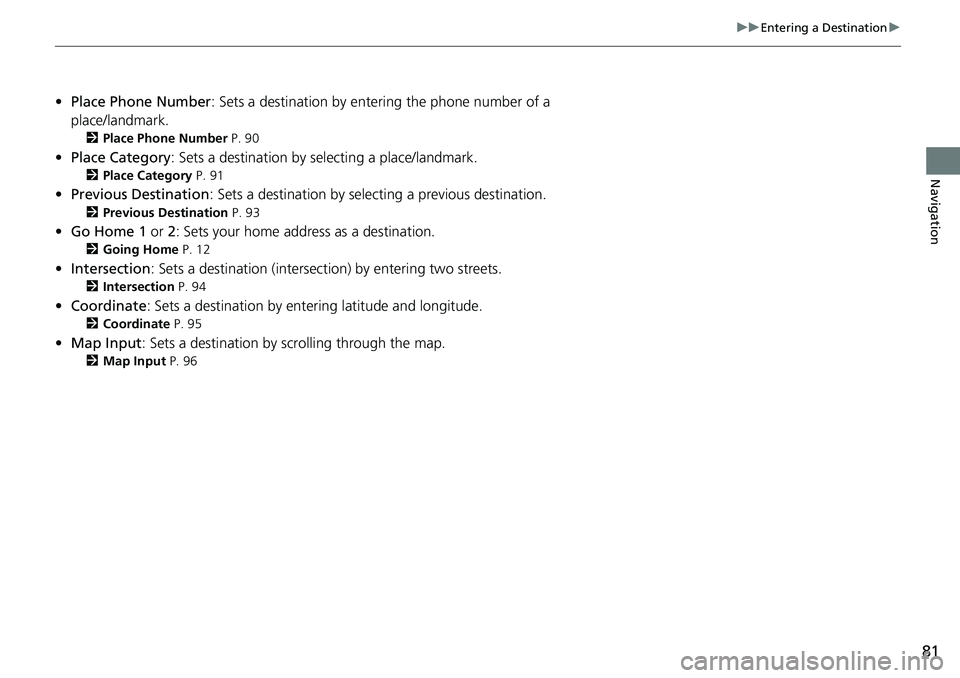

81
uuEntering a Destinationu
Navigation
•Place Phone Number: Sets a destination by entering the phone number of a
place/landmark.
2Place Phone Number P. 90
•Place Category: Sets a destination by selecting a place/landmark.
2Place Category P. 91
•Previous Destination: Sets a destination by selecting a previous destination.
2Previous Destination P. 93
•Go Home 1 or 2: Sets your home address as a destination.
2Going Home P. 12
•Intersection: Sets a destination (intersection) by entering two streets.
2Intersection P. 94
•Coordinate: Sets a destination by entering latitude and longitude.
2Coordinate P. 95
•Map Input: Sets a destination by scrolling through the map.
2Map Input P. 96

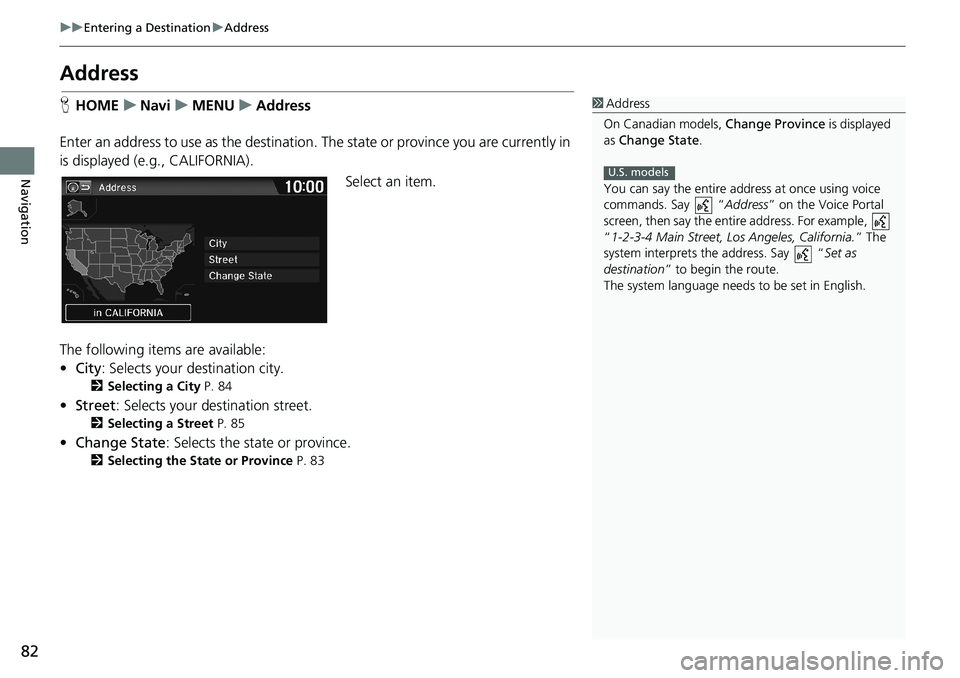

82
uuEntering a DestinationuAddress
Navigation
Address
HHOMEuNaviuMENUuAddress
Enter an address to use as the destination. The state or province you are currently in
is displayed (e.g., CALIFORNIA).
Select an item.
The following items are available:
•City: Selects your destination city.
2Selecting a City P. 84
•Street: Selects your destination street.
2Selecting a Street P. 85
•Change State: Selects the state or province.
2Selecting the State or Province P. 83
1Address
On Canadian models, Change Province is displayed
as Change State.
You can say the entire address at once using voice
commands. Say “Address” on the Voice Portal
screen, then say the entire address. For example,
“1-2-3-4 Main Street, Los Angeles, California.” The
system interprets the address. Say “Set as
destination” to begin the route.
The system language needs to be set in English.
U.S. models

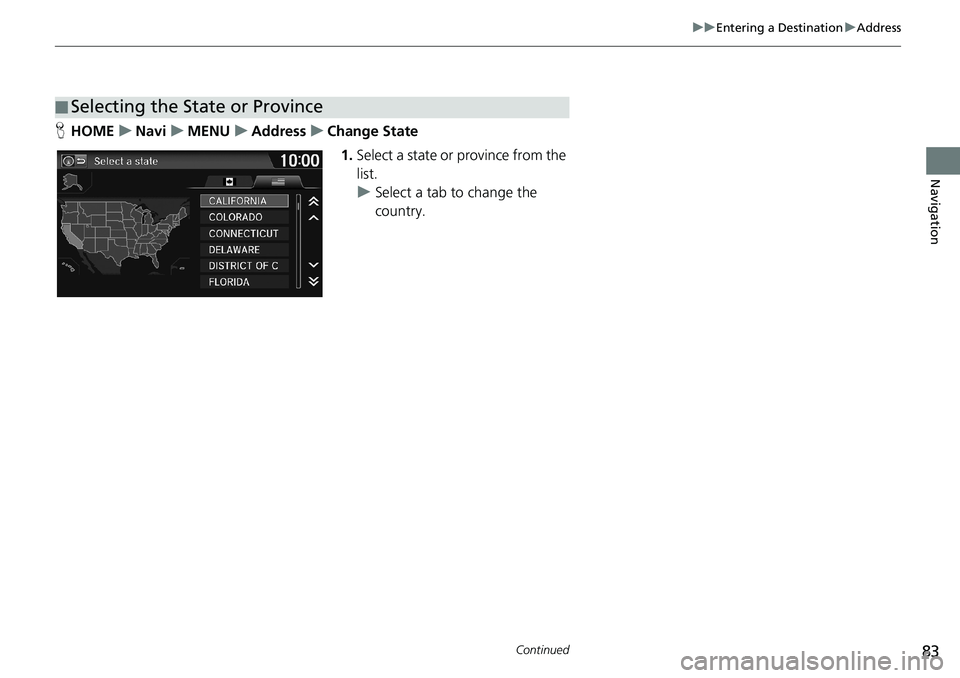

83
uuEntering a DestinationuAddress
Continued
Navigation
HHOMEuNaviuMENUuAddressuChange State
1.Select a state or province from the
list.
uSelect a tab to change the
country.
■Selecting the State or Province

uuEntering a DestinationuAddress

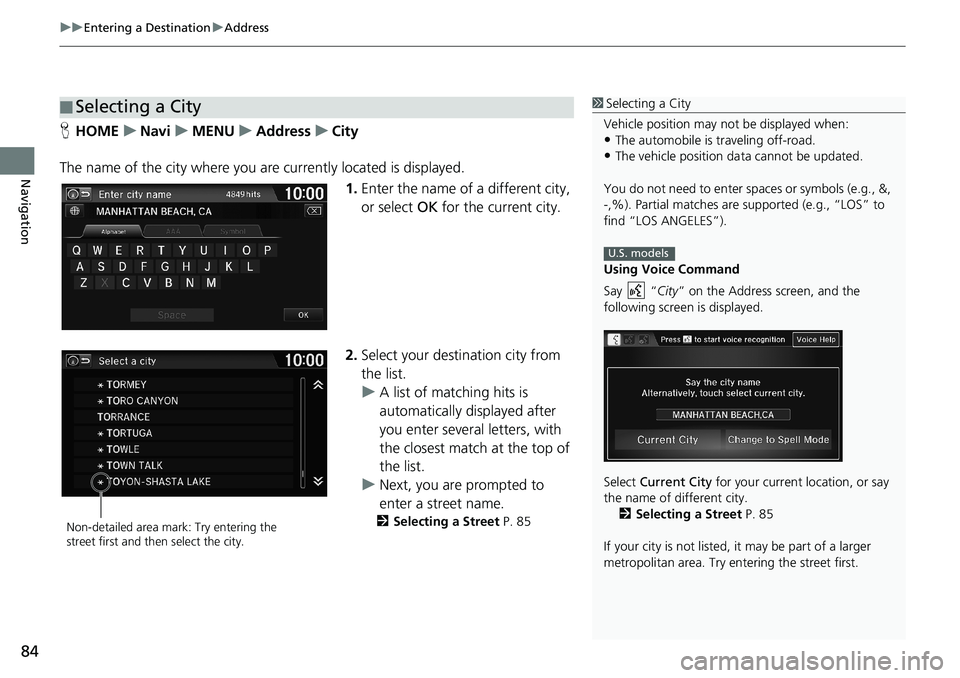

84
Navigation
HHOMEuNaviuMENUuAddressuCity
The name of the city where you are currently located is displayed.
1.Enter the name of a different city,
or select OK for the current city.
2.Select your destination city from
the list.
uA list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
uNext, you are prompted to
enter a street name.
2Selecting a Street P. 85
■Selecting a City1Selecting a City
Vehicle position may not be displayed when:
•The automobile is traveling off-road.
•The vehicle position data cannot be updated.
You do not need to enter spaces or symbols (e.g., &,
-,%). Partial matches are supported (e.g., “LOS” to
find “LOS ANGELES”).
Using Voice Command
Say “City” on the Address screen, and the
following screen is displayed.
Select Current City for your current location, or say
the name of different city.
2Selecting a Street P. 85
If your city is not listed, it may be part of a larger
metropolitan area. Try entering the street first.
U.S. models
Non-detailed area mark: Try entering the
street first and then select the city.

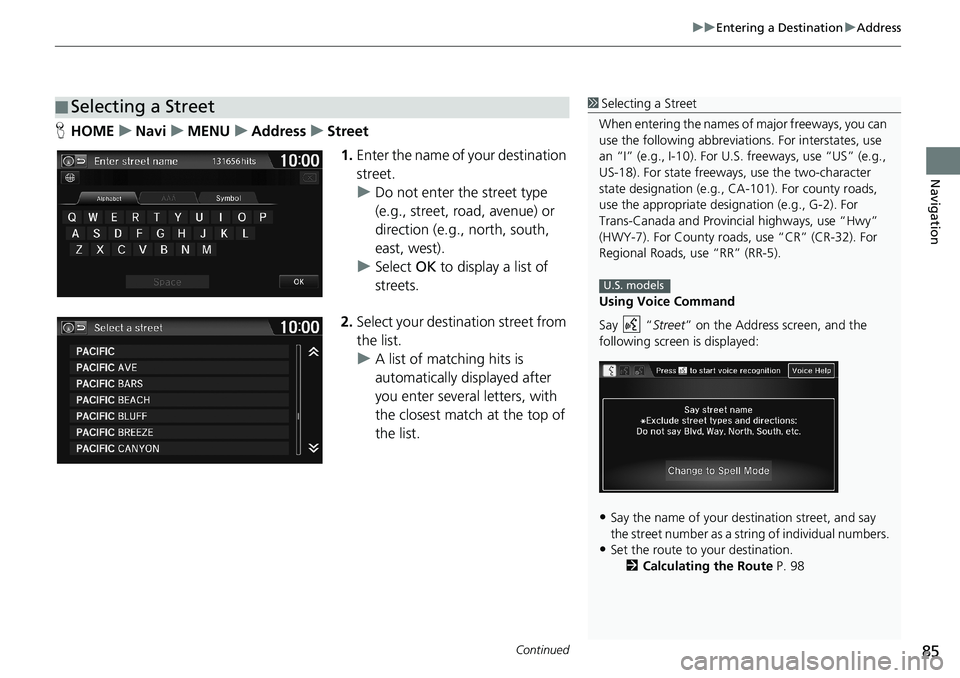

Continued85
uuEntering a DestinationuAddress
Navigation
HHOMEuNaviuMENUuAddressuStreet
1.Enter the name of your destination
street.
uDo not enter the street type
(e.g., street, road, avenue) or
direction (e.g., north, south,
east, west).
uSelect OK to display a list of
streets.
2.Select your destination street from
the list.
uA list of matching hits is
automatically displayed after
you enter several letters, with
the closest match at the top of
the list.
■Selecting a Street1Selecting a Street
When entering the names of major freeways, you can
use the following abbreviations. For interstates, use
an “I” (e.g., I-10). For U.S. freeways, use “US” (e.g.,
US-18). For state freeways, use the two-character
state designation (e.g., CA-101). For county roads,
use the appropriate designation (e.g., G-2). For
Trans-Canada and Provincial highways, use “Hwy”
(HWY-7). For County roads, use “CR” (CR-32). For
Regional Roads, use “RR” (RR-5).
Using Voice Command
Say “Street” on the Address screen, and the
following screen is displayed:
•Say the name of your destination street, and say
the street number as a string of individual numbers.
•Set the route to your destination.
2Calculating the Route P. 98
U.S. models

uuEntering a DestinationuAddress

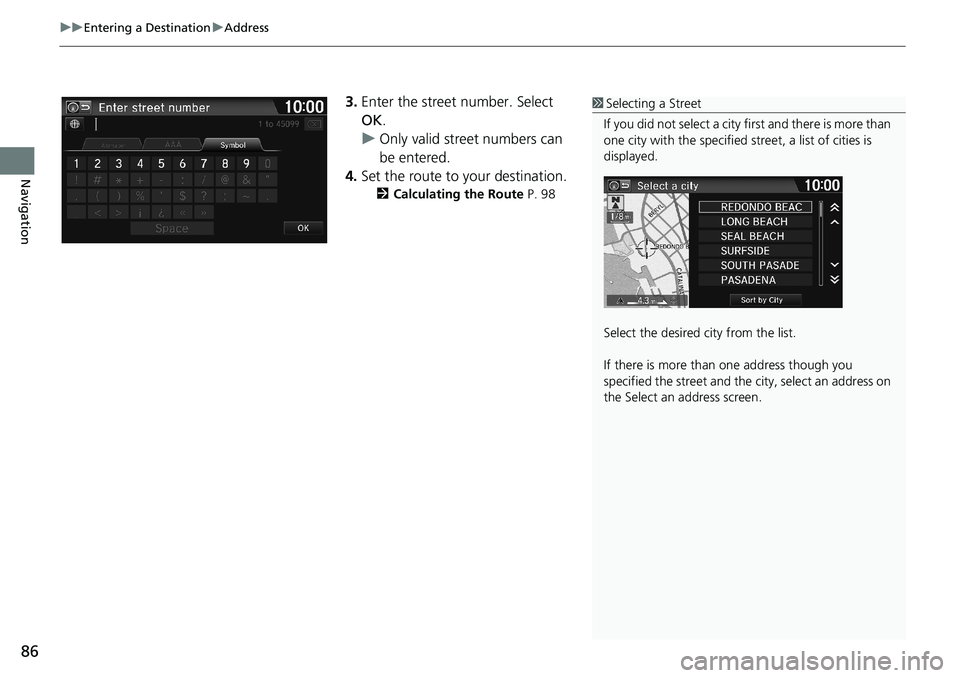

86
Navigation
3.Enter the street number. Select
OK.
uOnly valid street numbers can
be entered.
4.Set the route to your destination.
2Calculating the Route P. 98
1Selecting a Street
If you did not select a city first and there is more than
one city with the specified street, a list of cities is
displayed.
Select the desired city from the list.
If there is more than one address though you
specified the street and the city, select an address on
the Select an address screen.

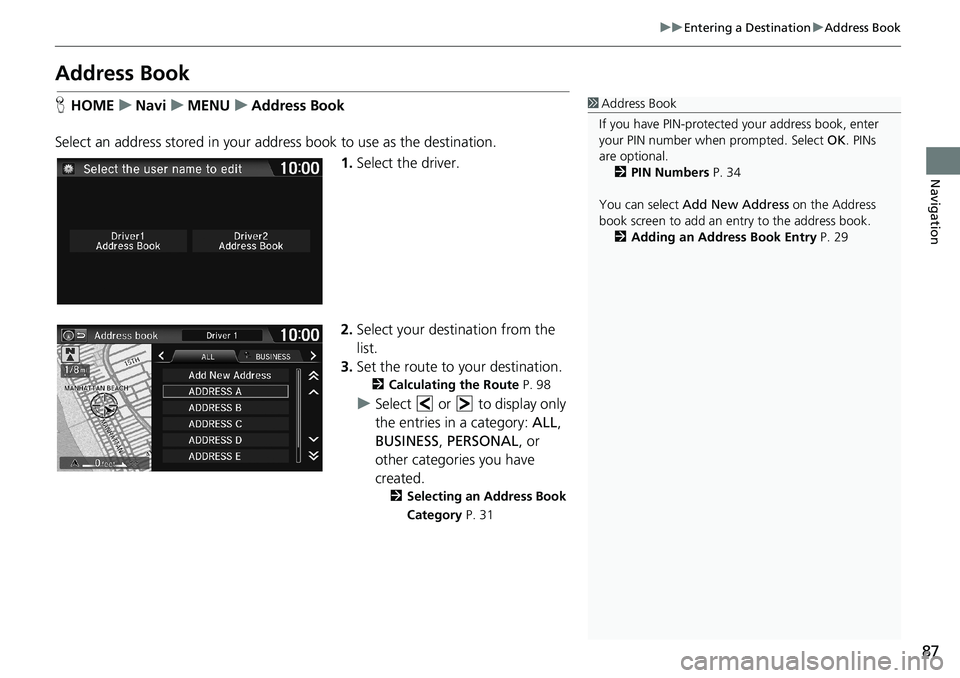

87
uuEntering a DestinationuAddress Book
Navigation
Address Book
HHOMEuNaviuMENUuAddress Book
Select an address stored in your address book to use as the destination.
1.Select the driver.
2.Select your destination from the
list.
3.Set the route to your destination.
2Calculating the Route P. 98
uSelect or to display only
the entries in a category: ALL,
BUSINESS, PERSONAL, or
other categories you have
created.
2Selecting an Address Book
Category P. 31
1Address Book
If you have PIN-protected your address book, enter
your PIN number when prompted. Select OK. PINs
are optional.
2PIN Numbers P. 34
You can select Add New Address on the Address
book screen to add an entry to the address book.
2Adding an Address Book Entry P. 29

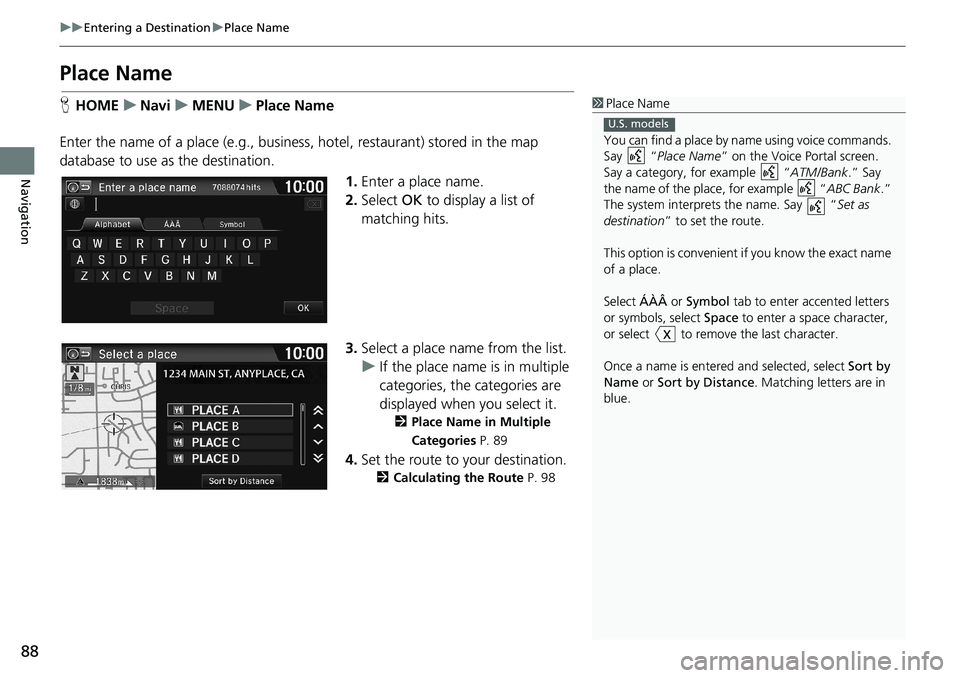

88
uuEntering a DestinationuPlace Name
Navigation
Place Name
HHOMEuNaviuMENUuPlace Name
Enter the name of a place (e.g., business, hotel, restaurant) stored in the map
database to use as the destination.
1.Enter a place name.
2.Select OK to display a list of
matching hits.
3.Select a place name from the list.
uIf the place name is in multiple
categories, the categories are
displayed when you select it.
2Place Name in Multiple
Categories P. 89
4.Set the route to your destination.
2Calculating the Route P. 98
1Place Name
You can find a place by name using voice commands.
Say “Place Name” on the Voice Portal screen.
Say a category, for example “ATM/Bank.” Say
the name of the place, for example “ABC Bank.”
The system interprets the name. Say “Set as
destination” to set the route.
This option is convenient if you know the exact name
of a place.
Select ÁÀÂ or Symbol tab to enter accented letters
or symbols, select Space to enter a space character,
or select to remove the last character.
Once a name is entered and selected, select Sort by
Name or Sort by Distance. Matching letters are in
blue.
U.S. models
