HONDA HR-V 2019 Owner's Manual (in English)

139
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

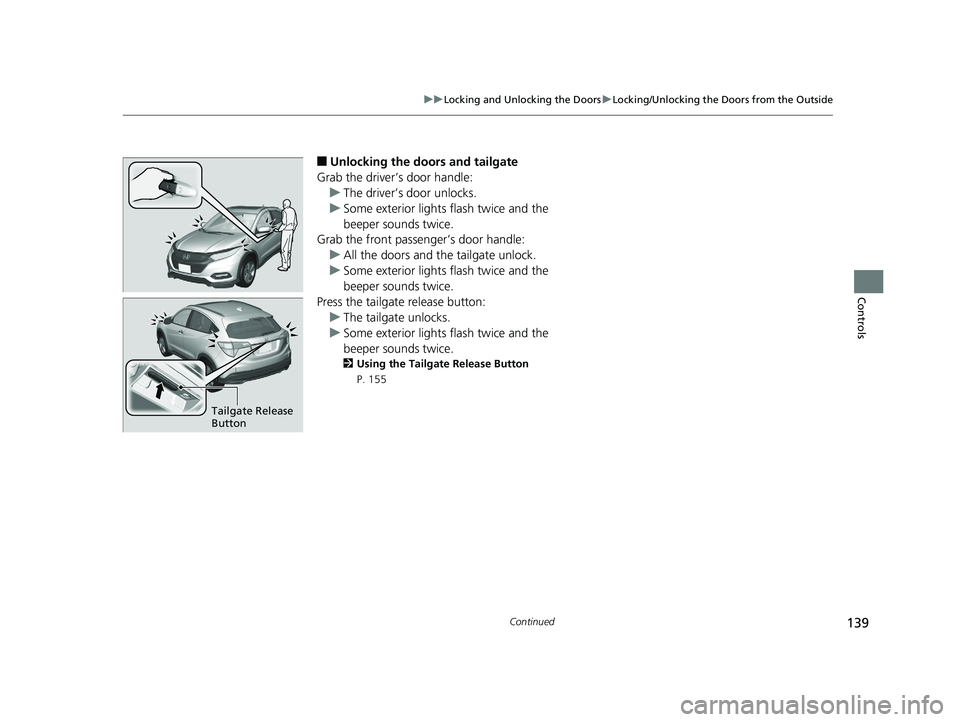

■Unlocking the doors and tailgate
Grab the driver’s door handle: u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s door handle:
u All the doors and the tailgate unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the tailgate release button: u The tailgate unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
2 Using the Tailgate Release Button
P. 155
Tailgate Release
Button
19 HR-V HDMC HDMG-31T7A6300.book 139 ページ ２０１８年６月１日　金曜日　午後１時１４分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
140
Controls

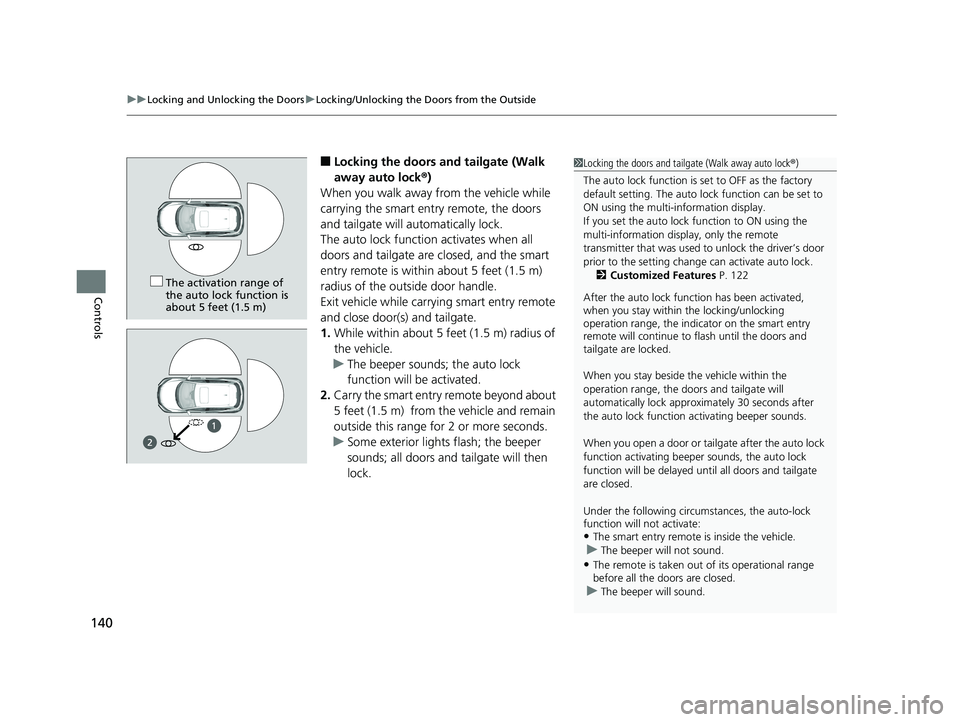

■Locking the doors and tailgate (Walk
away auto lock ®)
When you walk away from the vehicle while
carrying the smart entry remote, the doors
and tailgate will automatically lock.
The auto lock function activates when all
doors and tailgate are closed, and the smart
entry remote is within about 5 feet (1.5 m)
radius of the outside door handle.
Exit vehicle while carrying smart entry remote
and close door(s) and tailgate.
1. While within about 5 feet (1.5 m) radius of
the vehicle.
u The beeper sounds; the auto lock
function will be activated.
2. Carry the smart entry remote beyond about
5 feet (1.5 m) from the vehicle and remain
outside this range fo r 2 or more seconds.
u Some exterior lights flash; the beeper
sounds; all doors and tailgate will then
lock.1Locking the doors and tailg ate (Walk away auto lock®)
The auto lock function is set to OFF as the factory
default setting. The auto lo ck function can be set to
ON using the multi-information display.
If you set the auto lock function to ON using the
multi-information display, only the remote
transmitter that was used to unlock the driver’s door
prior to the setting change can activate auto lock. 2 Customized Features P. 122
After the auto lock function has been activated,
when you stay within the locking/unlocking
operation range, the indicator on the smart entry
remote will continue to flash until the doors and
tailgate are locked.
When you stay beside the vehicle within the
operation range, the door s and tailgate will
automatically lock approx imately 30 seconds after
the auto lock function activating beeper sounds.
When you open a door or tailgate after the auto lock
function activating beeper sounds, the auto lock
function will be delayed unt il all doors and tailgate
are closed.
Under the following circumstances, the auto-lock
function will not activate:
•The smart entry remote is inside the vehicle.
uThe beeper will not sound.
•The remote is taken out of its operational range
before all the doors are closed.
uThe beeper will sound.
The activation range of
the auto lock function is
about 5 feet (1.5 m)
1
19 HR-V HDMC HDMG-31T7A6300.book 140 ページ ２０１８年６月１日　金曜日　午後１時１４分

Continued141
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

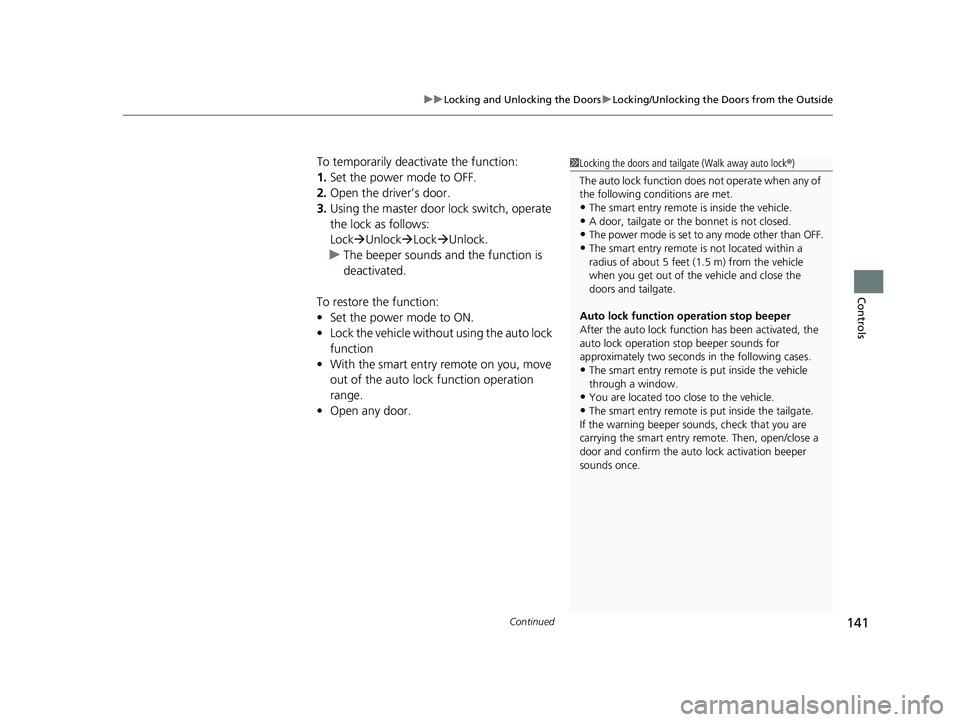

To temporarily deactivate the function:
1. Set the power mode to OFF.
2. Open the driv er’s door.
3. Using the master door lock switch, operate
the lock as follows:
Lock Unlock Lock Unlock.
u The beeper sounds and the function is
deactivated.
To restore the function:
• Set the power mode to ON.
• Lock the vehicle withou t using the auto lock
function
• With the smart entry remote on you, move
out of the auto lock function operation
range.
• Open any door.1Locking the doors and tailg ate (Walk away auto lock®)
The auto lock function does not operate when any of
the following conditions are met.
•The smart entry remote is inside the vehicle.
•A door, tailgate or the bonnet is not closed.•The power mode is set to any mode other than OFF.
•The smart entry remote is not located within a
radius of about 5 feet (1 .5 m) from the vehicle
when you get out of the vehicle and close the
doors and tailgate.
Auto lock function operation stop beeper
After the auto lock function has been activated, the
auto lock operation stop beeper sounds for
approximately two seconds in the following cases.
•The smart entry remote is put inside the vehicle
through a window.
•You are located too close to the vehicle.
•The smart entry remote is put inside the tailgate.
If the warning beeper sounds, check that you are
carrying the smart entry remote. Then, open/close a
door and confirm the auto lock activation beeper
sounds once.
19 HR-V HDMC HDMG-31T7A6300.book 141 ページ ２０１８年６月１日　金曜日　午後１時１４分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
142
Controls

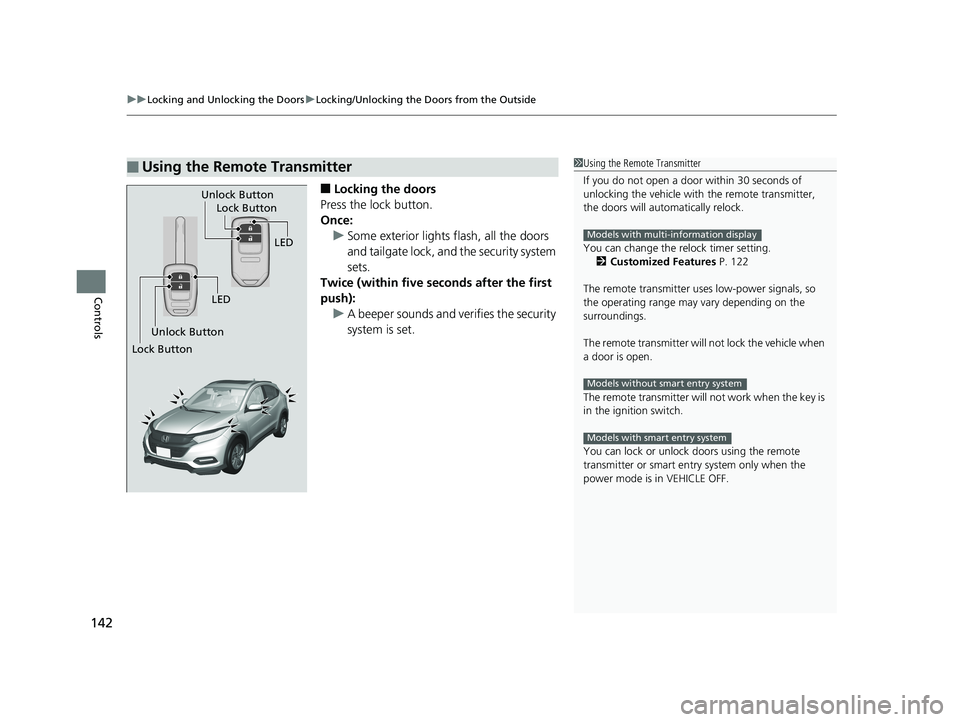

■Locking the doors
Press the lock button.
Once: u Some exterior lights flash, all the doors
and tailgate lock, and the security system
sets.
Twice (within five se conds after the first
push):
u A beeper sounds and verifies the security
system is set.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting. 2 Customized Features P. 122
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote transmitter will not lock the vehicle when
a door is open.
The remote transmitter will not work when the key is
in the ignition switch.
You can lock or unlock doors using the remote
transmitter or smart entry system only when the
power mode is in VEHICLE OFF.
Models with multi-information display
Models without smart entry system
Models with smart entry system
LED
Unlock Button Lock Button
Unlock Button
LED
Lock Button
19 HR-V HDMC HDMG-31T7A6300.book 142 ページ ２０１８年６月１日　金曜日　午後１時１４分

Continued143
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

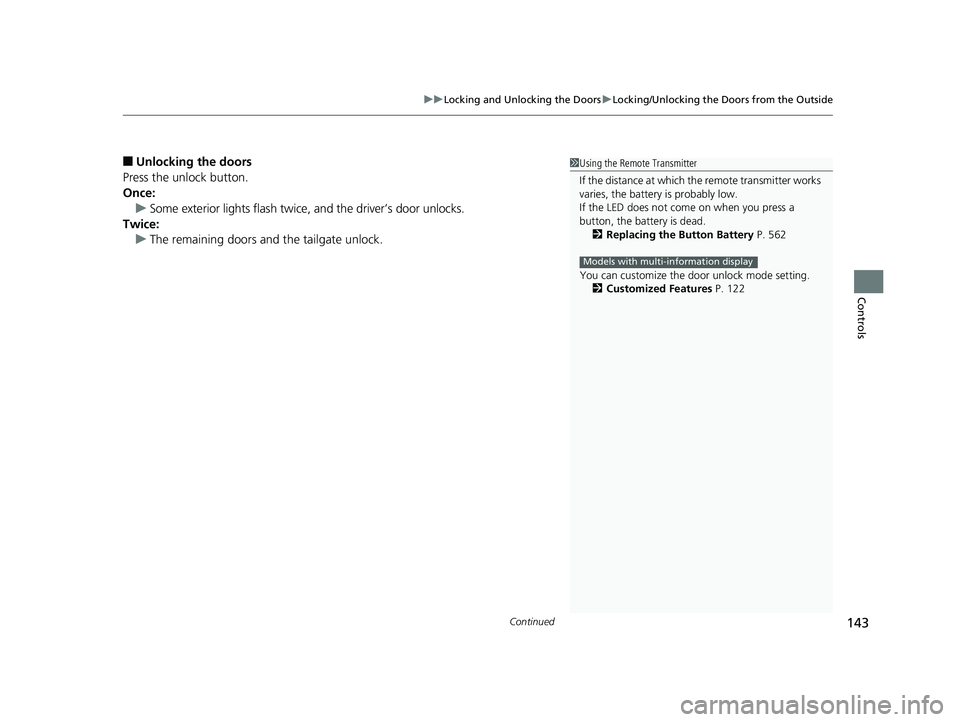

■Unlocking the doors
Press the unlock button.
Once: u Some exterior lights flash twice, and the driver’s door unlocks.
Twice: u The remaining doors and the tailgate unlock.1Using the Remote Transmitter
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 562
You can customize the door unlock mode setting. 2 Customized Features P. 122
Models with multi-information display
19 HR-V HDMC HDMG-31T7A6300.book 143 ページ ２０１８年６月１日　金曜日　午後１時１４分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
144
Controls

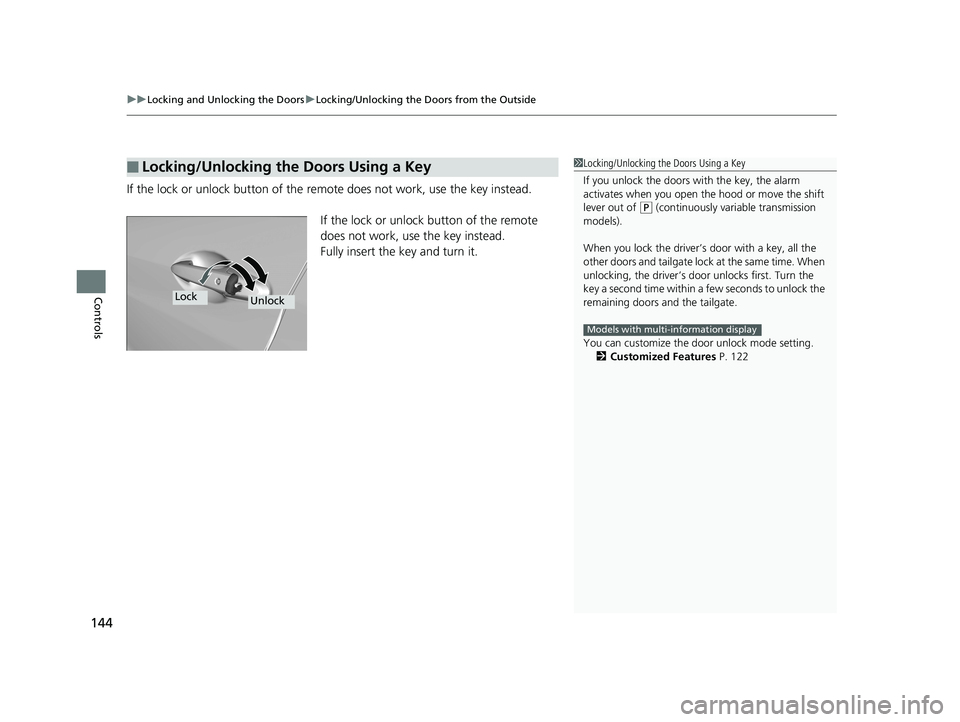

If the lock or unlock button of the re mote does not work, use the key instead.
If the lock or unlock button of the remote
does not work, use the key instead.
Fully insert the key and turn it.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
If you unlock the doors wi th the key, the alarm
activates when you open the hood or move the shift
lever out of
( P (continuously vari able transmission
models).
When you lock the driver’s door with a key, all the
other doors and tail gate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting. 2 Customized Features P. 122
Models with multi-information display
LockUnlock
19 HR-V HDMC HDMG-31T7A6300.book 144 ページ ２０１８年６月１日　金曜日　午後１時１４分

145
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls

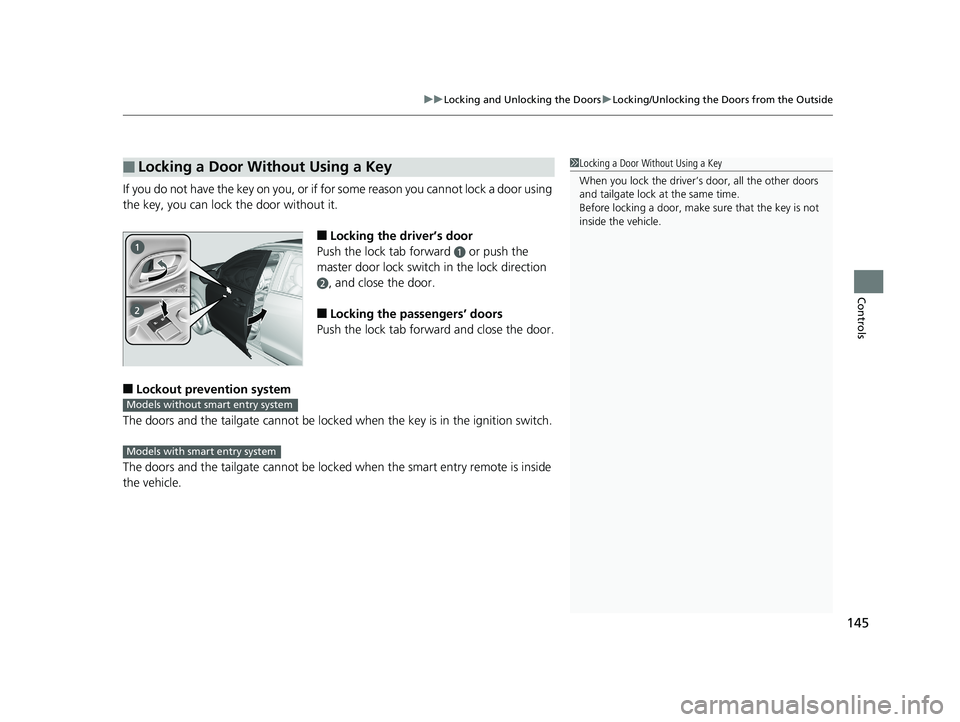

If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the driver’s door
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the passengers’ doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors and the tailgate cannot be locked when the key is in the ignition switch.
The doors and the tailgate cannot be locked when the smart entry remote is inside
the vehicle.
■Locking a Door Without Using a Key1 Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
Models without smart entry system
Models with smart entry system
19 HR-V HDMC HDMG-31T7A6300.book 145 ページ ２０１８年６月１日　金曜日　午後１時１４分

146
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

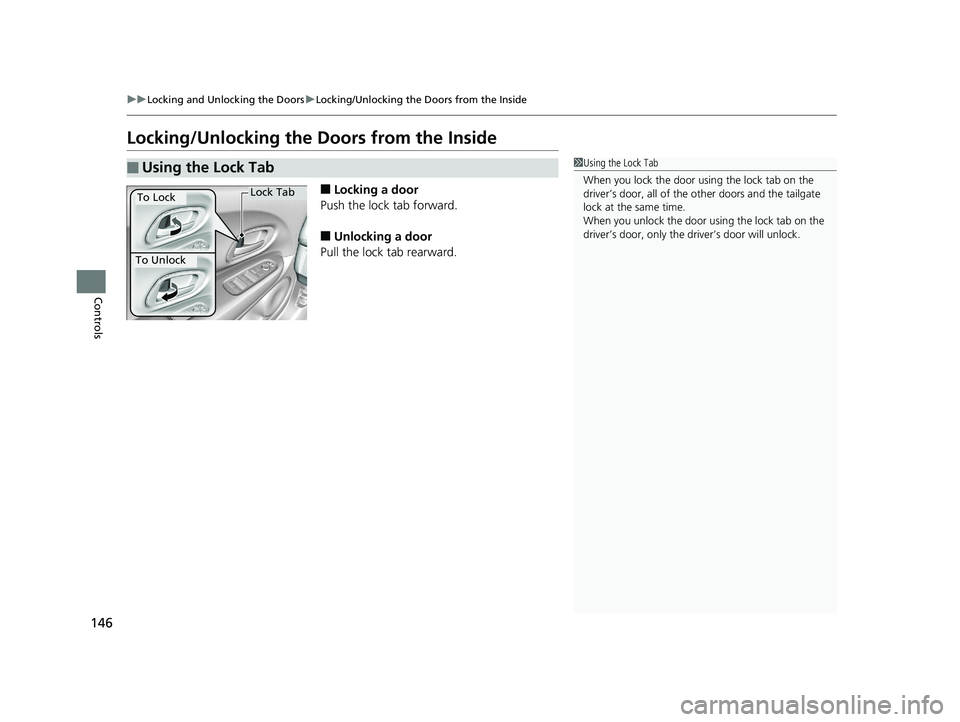

Locking/Unlocking the Doors from the Inside
■Locking a door
Push the lock tab forward.
■Unlocking a door
Pull the lock tab rearward.
■Using the Lock Tab1 Using the Lock Tab
When you lock the door using the lock tab on the
driver’s door, all of the ot her doors and the tailgate
lock at the same time.
When you unlock the door using the lock tab on the
driver’s door, only the driv er’s door will unlock.
To Unlock
Lock TabTo Lock
19 HR-V HDMC HDMG-31T7A6300.book 146 ページ ２０１８年６月１日　金曜日　午後１時１４分

Continued147
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
Controls

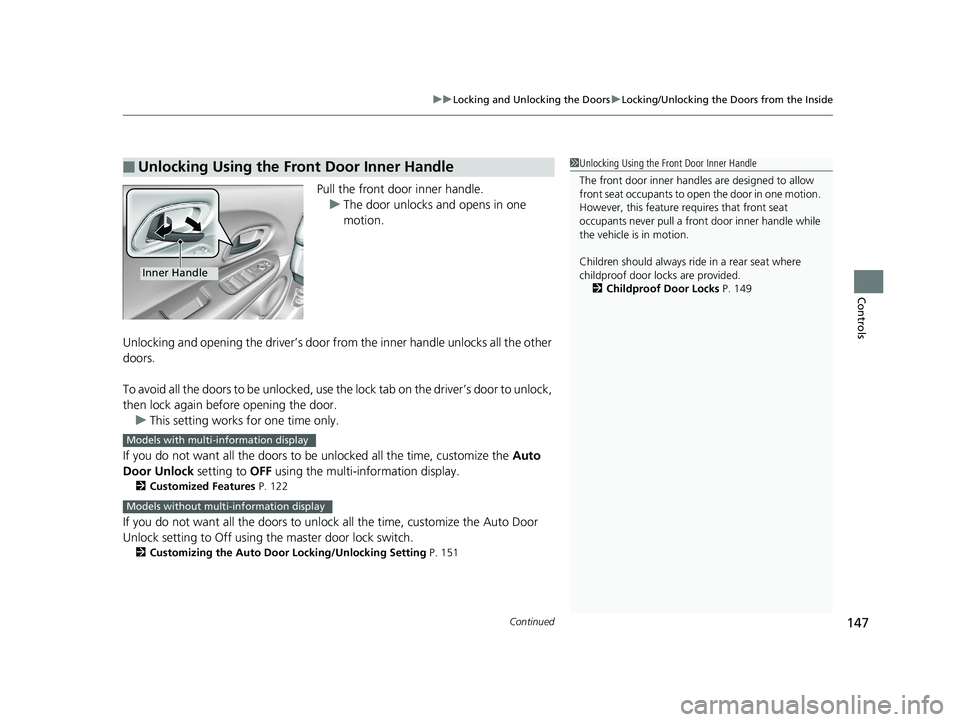

Pull the front door inner handle.
u The door unlocks and opens in one
motion.
Unlocking and opening the driver’s door from the inner handle unlocks all the other
doors.
To avoid all the doors to be unlocked, use the lock tab on the driver’s door to unlock,
then lock again before opening the door. u This setting works for one time only.
If you do not want all the doors to be unlocked all the time, customize the Auto
Door Unlock setting to OFF using the multi-information display.
2Customized Features P. 122
If you do not want all the doors to unlock all the time, customize the Auto Door
Unlock setting to Off using th e master door lock switch.
2Customizing the Auto Door Locking/Unlocking Setting P. 151
■Unlocking Using the Front Door Inner Handle1Unlocking Using the Front Door Inner Handle
The front door inne r handles are designed to allow
front seat occupants to open the door in one motion.
However, this feature requires that front seat
occupants never pull a front door inner handle while
the vehicle is in motion.
Children should always ride in a rear seat where
childproof door locks are provided.
2 Childproof Door Locks P. 149
Inner Handle
Models with multi-information display
Models without multi-information display
19 HR-V HDMC HDMG-31T7A6300.book 147 ページ ２０１８年６月１日　金曜日　午後１時１４分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Inside
148
Controls

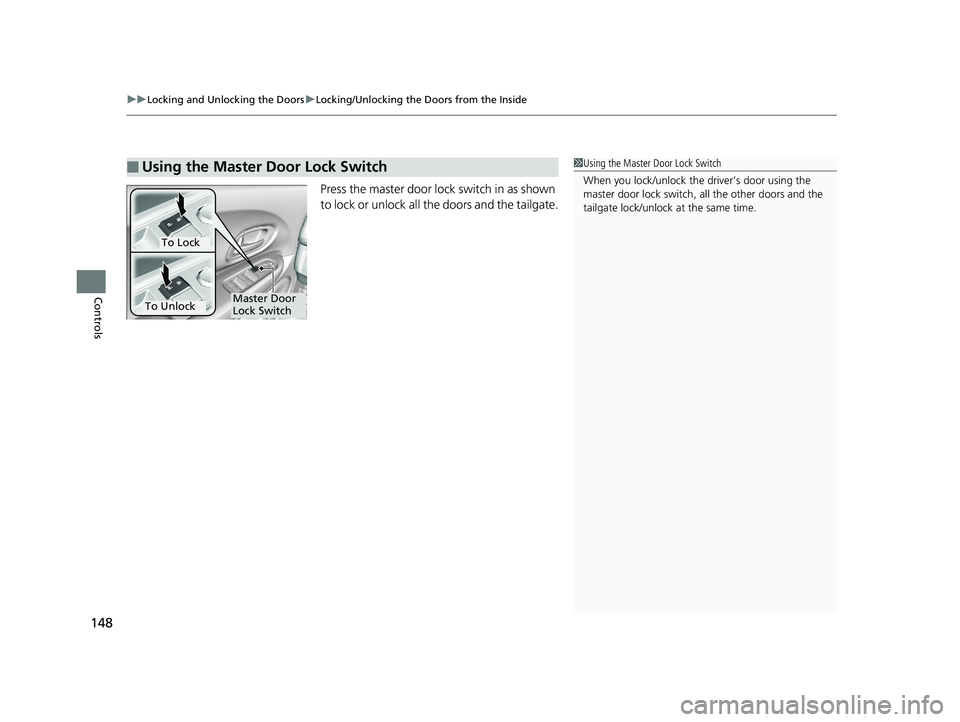

Press the master door lock switch in as shown
to lock or unlock all the doors and the tailgate.
■Using the Master Door Lock Switch1Using the Master Door Lock Switch
When you lock/unlock the driver’s door using the
master door lock switch, all the other doors and the
tailgate lock/unlock at the same time.
To Lock
To UnlockMaster Door
Lock Switch
