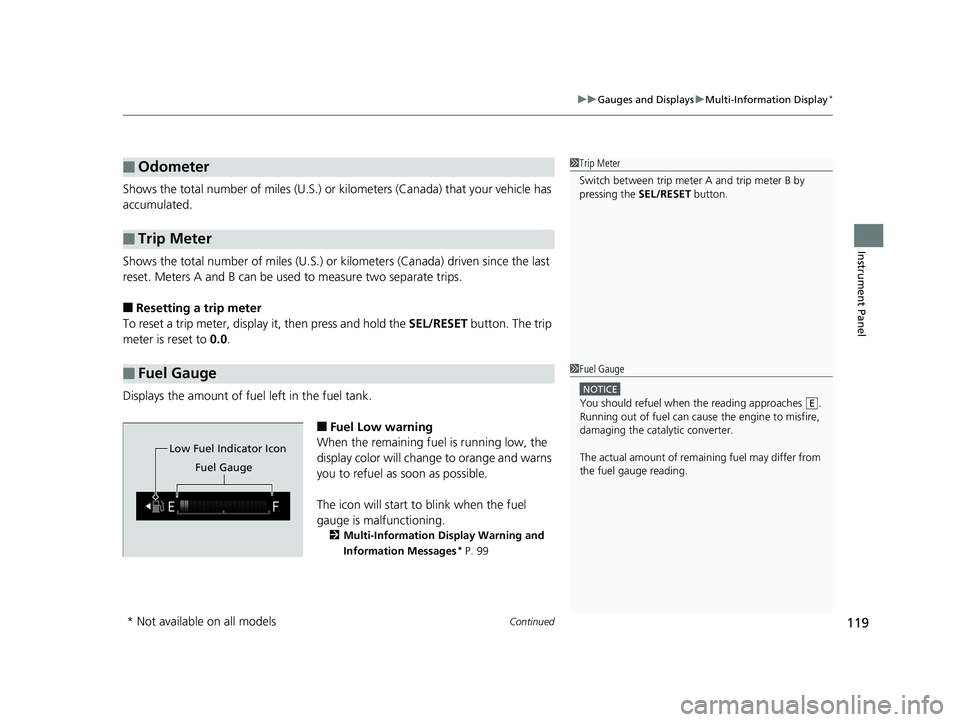

Continued119
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Shows the total number of miles (U.S.) or kilometers (Canada) that your vehicle has
accumulated.
Shows the total number of miles (U.S.) or k ilometers (Canada) driven since the last
reset. Meters A and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the SEL/RESET button. The trip
meter is reset to 0.0.
Displays the amount of fuel left in the fuel tank.
■Fuel Low warning
When the remaining fuel is running low, the
display color will change to orange and warns
you to refuel as soon as possible.
The icon will start to blink when the fuel
gauge is malfunctioning.
2 Multi-Information Display Warning and
Information Messages
* P. 99
■Odometer
■Trip Meter
■Fuel Gauge
1Trip Meter
Switch between trip meter A and trip meter B by
pressing the SEL/RESET button.
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
Low Fuel Indicator Icon
Fuel Gauge
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 119 ページ ２０１８年６月１日　金曜日　午後１時１４分

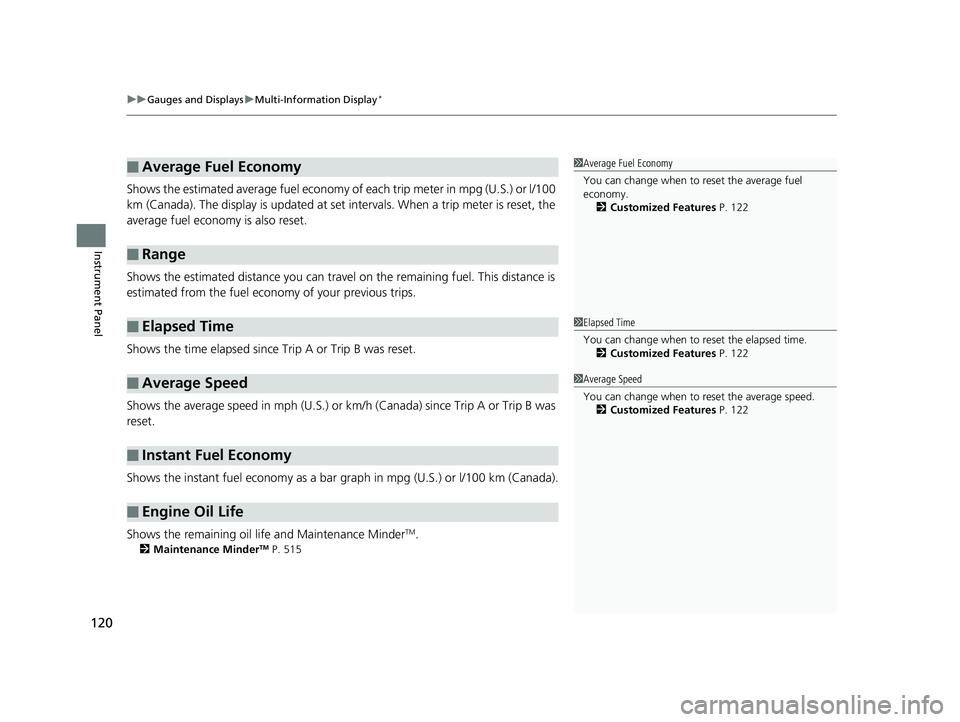

uuGauges and Displays uMulti-Information Display*
120
Instrument Panel
Shows the estimated average fuel economy of each trip meter in mpg (U.S.) or l/100
km (Canada). The display is updated at set intervals. When a trip meter is reset, the
average fuel economy is also reset.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your previous trips.
Shows the time elapsed since Trip A or Trip B was reset.
Shows the average speed in m ph (U.S.) or km/h (Canada) since Trip A or Trip B was
reset.
Shows the instant fuel economy as a bar gr aph in mpg (U.S.) or l/100 km (Canada).
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 515
■Average Fuel Economy
■Range
■Elapsed Time
■Average Speed
■Instant Fuel Economy
■Engine Oil Life
1Average Fuel Economy
You can change when to reset the average fuel
economy.
2 Customized Features P. 122
1Elapsed Time
You can change when to reset the elapsed time.
2 Customized Features P. 122
1Average Speed
You can change when to reset the average speed.
2 Customized Features P. 122
19 HR-V HDMC HDMG-31T7A6300.book 120 ページ ２０１８年６月１日　金曜日　午後１時１４分

Continued121
uuGauges and Displays uMulti-Information Display*
Instrument Panel

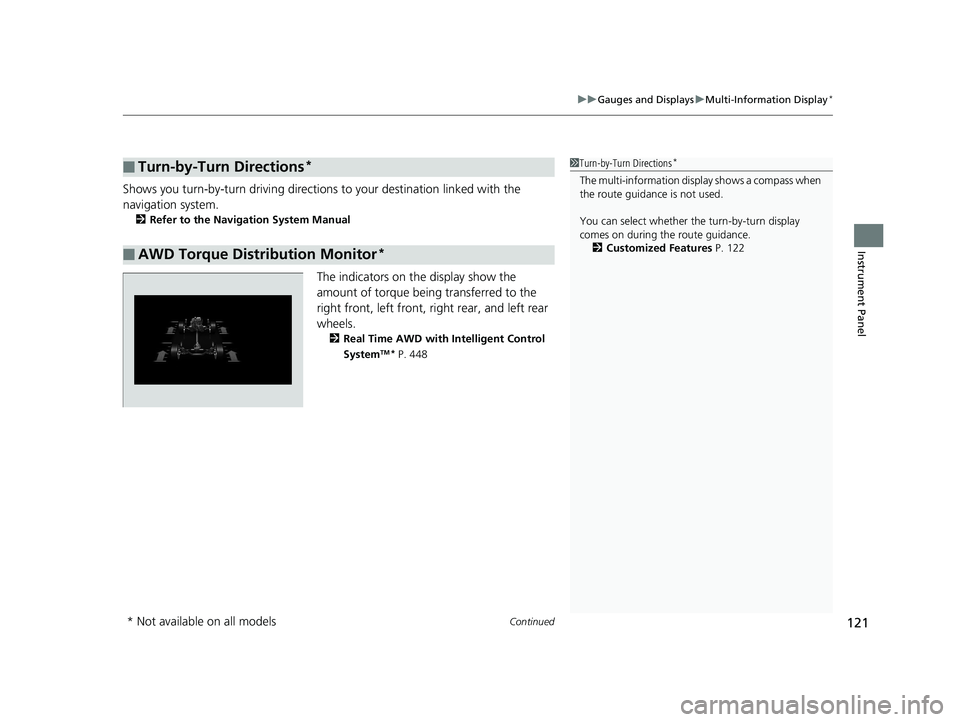

Shows you turn-by-turn driv ing directions to your destination linked with the
navigation system.
2 Refer to the Navigation System Manual
The indicators on the display show the
amount of torque being transferred to the
right front, left front, right rear, and left rear
wheels.
2Real Time AWD with Intelligent Control
SystemTM* P. 448
■Turn-by-Turn Directions*
■AWD Torque Distribution Monitor*
1Turn-by-Turn Directions*
The multi-information disp lay shows a compass when
the route guidance is not used.
You can select whether the turn-by-turn display
comes on during the route guidance.
2 Customized Features P. 122
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 121 ページ ２０１８年６月１日　金曜日　午後１時１４分

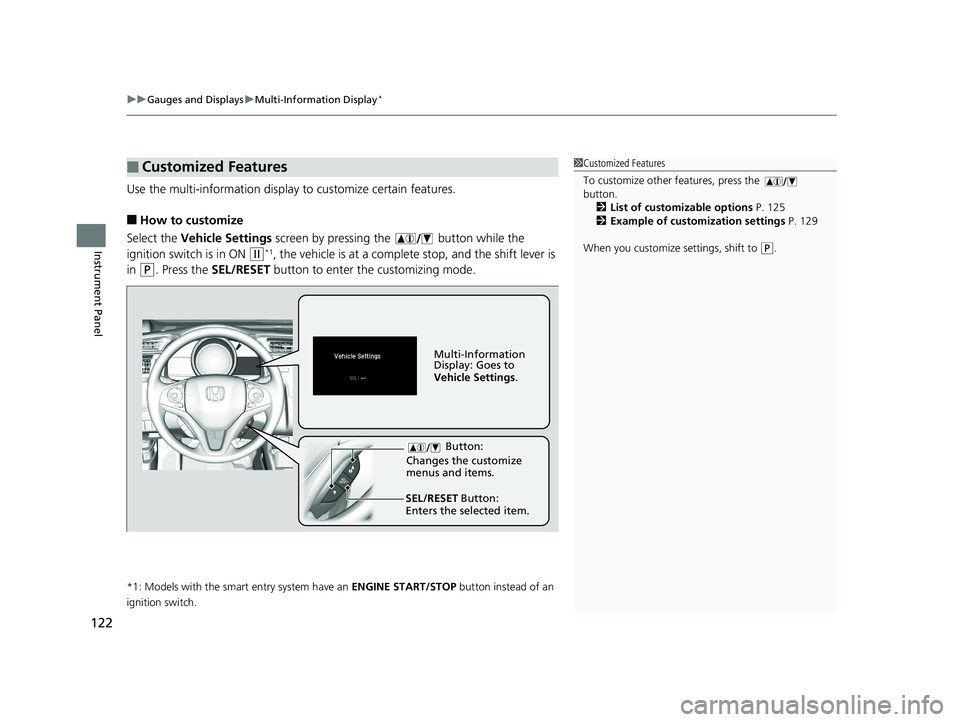

uuGauges and Displays uMulti-Information Display*
122
Instrument Panel
Use the multi-information display to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the
ignition switch is in ON
(w*1, the vehicle is at a complete stop, and the shift lever is
in
(P. Press the SEL/RESET button to enter the customizing mode.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Customized Features1 Customized Features
To customize other features, press the
button.
2 List of customizable options P. 125
2 Example of customization settings P. 129
When you customize settings, shift to
( P.
Button:
Changes the customize
menus and items.
Multi-Information
Display: Goes to
Vehicle Settings .
SEL/RESET Button:
Enters the selected item.
19 HR-V HDMC HDMG-31T7A6300.book 122 ページ ２０１８年６月１日　金曜日　午後１時１４分

123
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

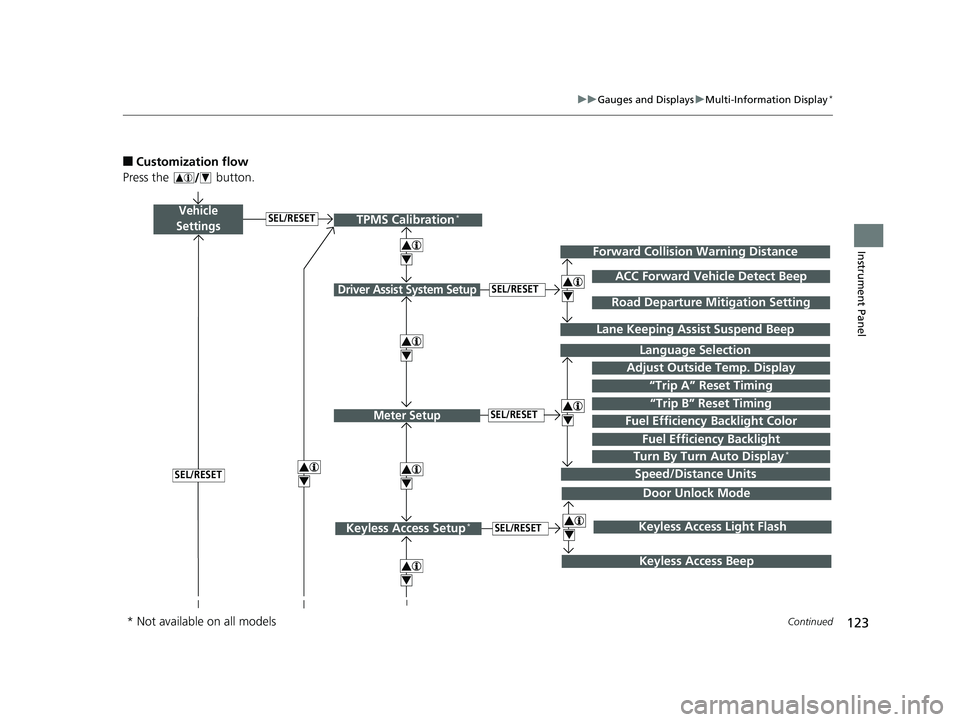

■Customization flow
Press the button.
Vehicle
Settings
Adjust Outside Temp. Display
Language Selection
Driver Assist System Setup
Meter Setup“Trip B” Reset TimingSEL/RESET
SEL/RESET
“Trip A” Reset Timing
4
ACC Forward Vehicle Detect Beep
Lane Keeping Assist Suspend Beep
4
SEL/RESET
Forward Collision Warning Distance
4
SEL/RESET
Speed/Distance Units
Road Departure Mitigation Setting
Fuel Efficiency Backlight
Turn By Turn Auto Display*
TPMS Calibration*
4
Fuel Efficiency Backlight Color
4
4
Door Unlock Mode
Keyless Access Setup*SEL/RESET
Keyless Access Beep
4Keyless Access Light Flash
4
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 123 ページ ２０１８年６月１日　金曜日　午後１時１４分

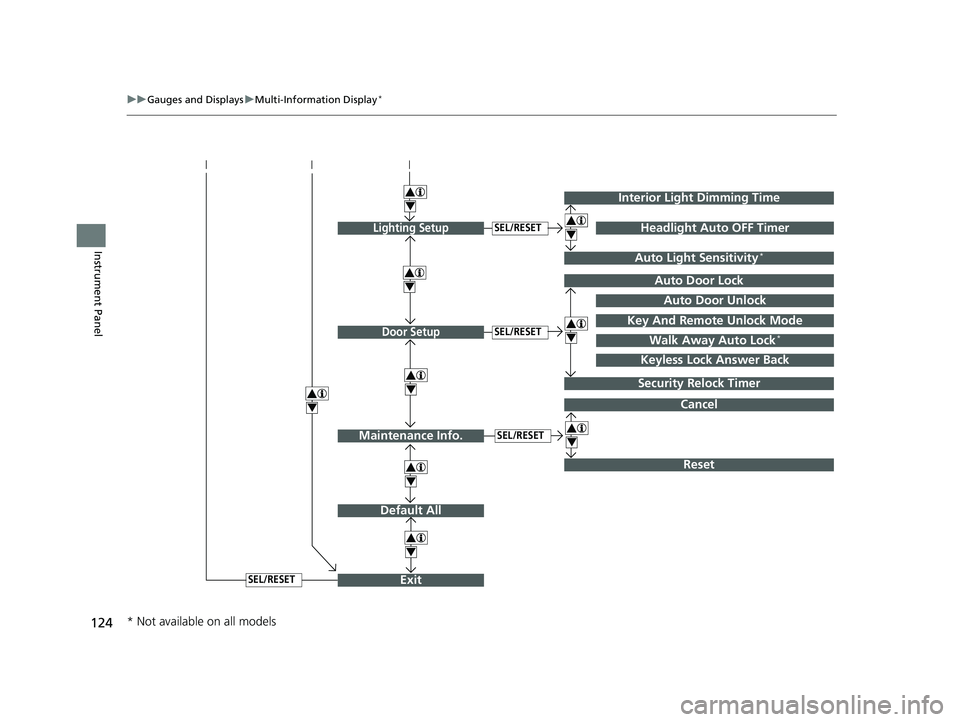

124
uuGauges and Displays uMulti-Information Display*
Instrument Panel
Exit
4
4
Door Setup
Default All
SEL/RESET
4
Lighting SetupSEL/RESET
4Auto Door Lock
Auto Door Unlock
Key And Remote Unlock Mode
Walk Away Auto Lock*
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity*
4
4
Security Relock Timer
Keyless Lock Answer Back
Cancel
Maintenance Info.SEL/RESET
Reset
4
4
SEL/RESET
4
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 124 ページ ２０１８年６月１日　金曜日　午後１時１４分

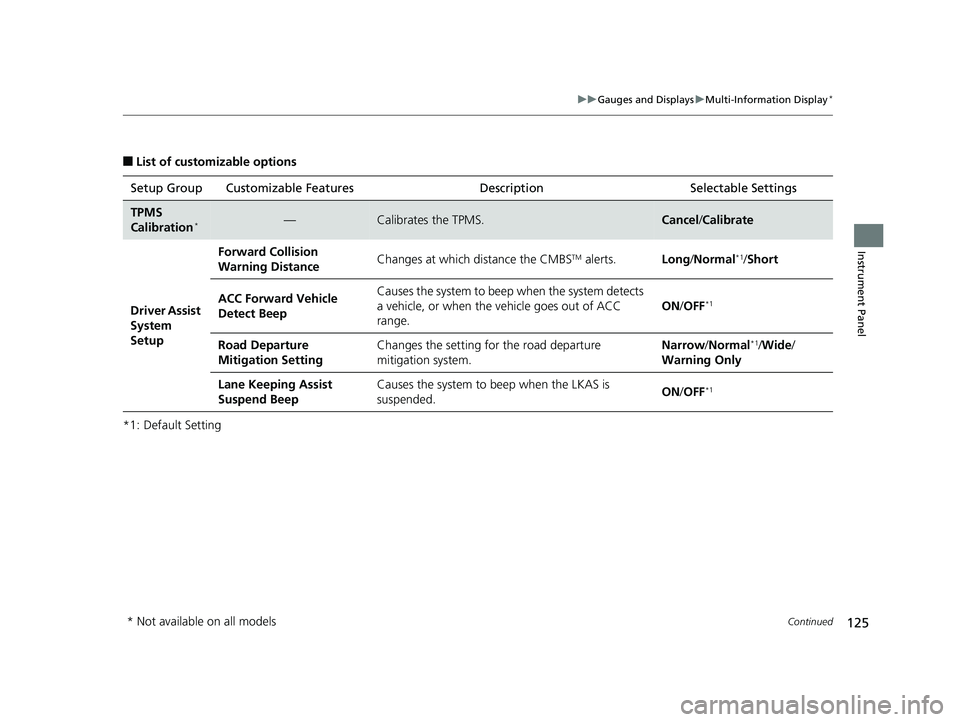

125
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
■List of customizable options
*1: Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration*—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup Forward Collision
Warning Distance
Changes at which distance the CMBS
TM alerts.
Long/Normal*1/ Short
ACC Forward Vehicle
Detect Beep Causes the system to beep
when the system detects
a vehicle, or when the vehicle goes out of ACC
range. ON
/OFF
*1
Road Departure
Mitigation Setting Changes the setting fo
r the road departure
mitigation system. Narrow/
Normal*1/Wide /
Warning Only
Lane Keeping Assist
Suspend Beep Causes the system to b
eep when the LKAS is
suspended. ON
/OFF
*1
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 125 ページ ２０１８年６月１日　金曜日　午後１時１４分

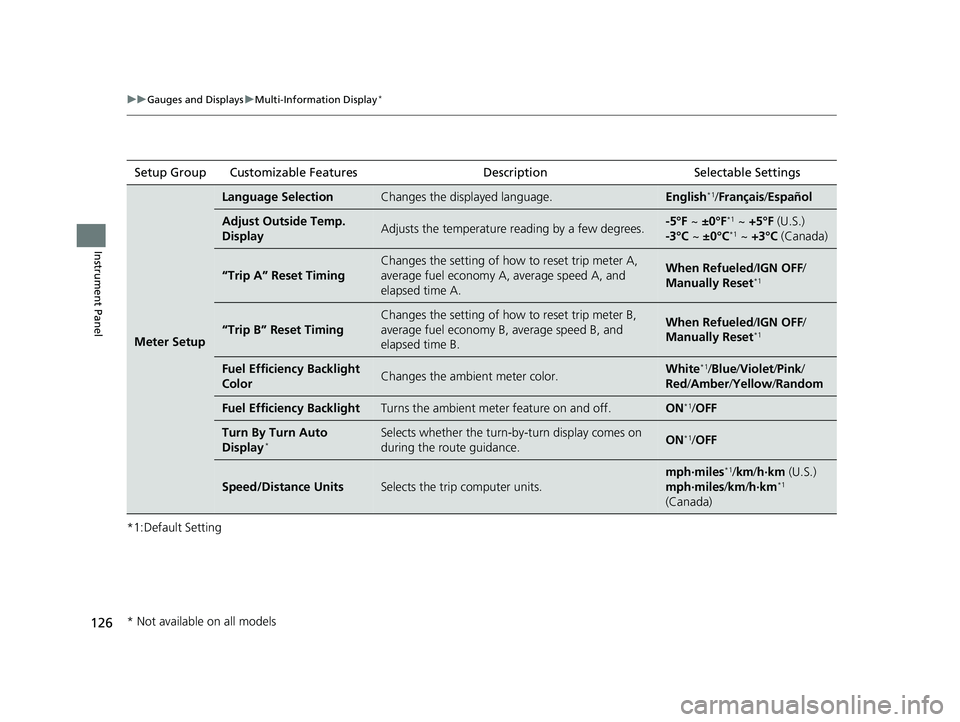

126
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/
Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F (U.S.)
-3°C ~ ±0°C*1 ~ +3°C (Canada)
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Refueled /IGN OFF /
Manually Reset*1
Fuel Efficiency Backlight
ColorChanges the ambient meter color.White*1/ Blue /Violet/ Pink/
Red /Amber /Yellow /Random
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/ OFF
Turn By Turn Auto
Display*Selects whether the turn-b y-turn display comes on
during the route guidance.ON*1/ OFF
Speed/Distance UnitsSelects the trip computer units.
mph∙miles*1/km/ h∙km (U.S.)
mph∙miles /km /h∙km*1
(Canada)
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 126 ページ ２０１８年６月１日　金曜日　午後１時１４分

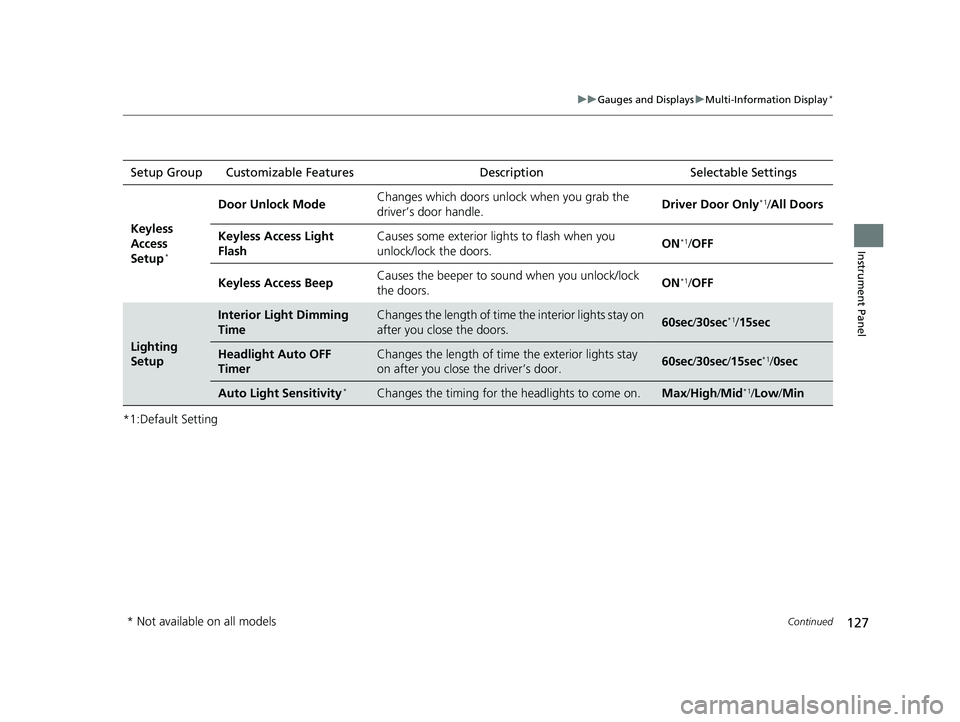

127
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Keyless
Access
Setup
*
Door Unlock Mode Changes which doors unlock when you grab the
driver’s door handle. Driver Door Only*1/
All Doors
Keyless Access Light
Flash Causes some exterior li
ghts to flash when you
unlock/lock the doors. ON
*1/
OFF
Keyless Access Beep Causes the beeper to s
ound when you unlock/lock
the doors. ON
*1/
OFF
Lighting
Setup
Interior Light Dimming
TimeChanges the length of time the interior lights stay on
after you close the doors.60sec /30sec*1/15sec
Headlight Auto OFF
TimerChanges the length of time the exterior lights stay
on after you close the driver’s door.60sec /30sec /15sec*1/ 0sec
Auto Light Sensitivity*Changes the timing for th e headlights to come on.Max/High /Mid*1/Low /Min
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 127 ページ ２０１８年６月１日　金曜日　午後１時１４分

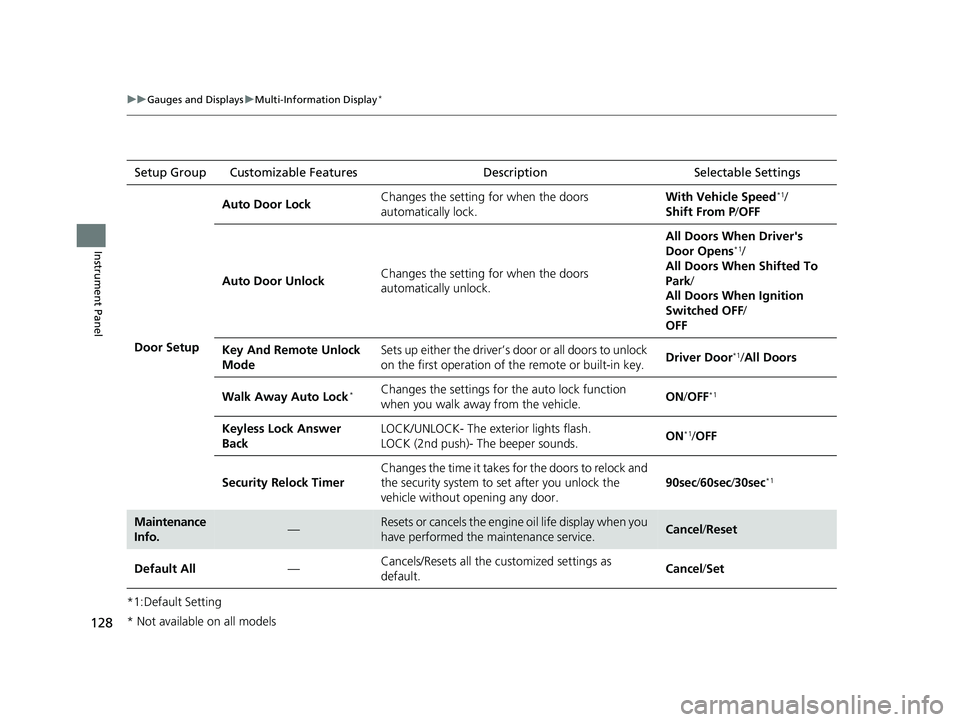

128
uuGauges and Displays uMulti-Information Display*
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Door Setup Auto Door Lock
Changes the setting for when the doors
automatically lock. With Vehicle Speed
*1/
Shift From P /OFF
Auto Door Unlock Changes the setting for when the doors
automatically unlock. All Doors When Driver's
Door Opens
*1/
All Doors When Shifted To
Park/
All Doors When Ignition
Switched OFF/
OFF
Key And Remote Unlock
Mode Sets up either the driver’s door or all doors to unlock
on the first operation of the remote or built-in key.
Driver Door
*1/
All Doors
Walk Away Auto Lock
*Changes the settings for the auto lock function
when you walk away from the vehicle. ON
/OFF*1
Keyless Lock Answer
Back LOCK/UNLOCK- The exte
rior lights flash.
LOCK (2nd push)- The beeper sounds. ON*1/
OFF
Security Relock Timer Changes the time it takes for the doors to relock and
the security system to set after you unlock the
vehicle without opening any door. 90sec
/60sec /30sec
*1
Maintenance
Info.—Resets or cancels the engine oil life display when you
have performed the maintenance service.Cancel /Reset
Default All —Cancels/Resets all the cu
stomized settings as
default. Cancel
/Set
* Not available on all models
