HONDA HR-V 2019 Owner's Manual (in English)

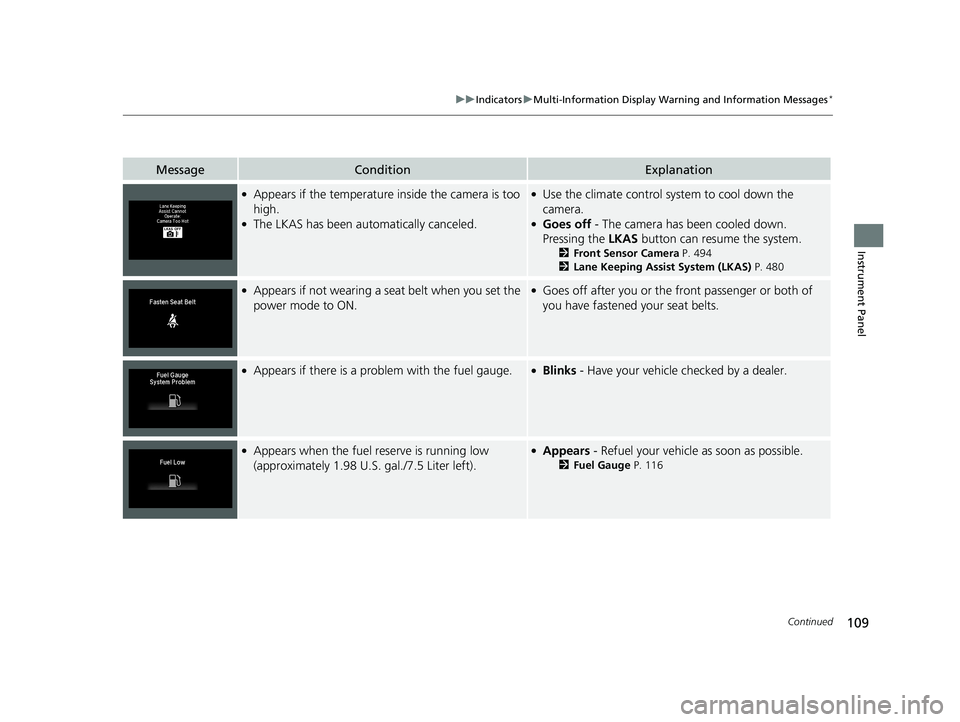

109
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the temperature inside the camera is too
high.
●The LKAS has been automatically canceled.
●Use the climate control system to cool down the
camera.
●Goes off - The camera has been cooled down.
Pressing the LKAS button can resume the system.
2Front Sensor Camera P. 494
2 Lane Keeping Assist System (LKAS) P. 480
●Appears if not wearing a seat belt when you set the
power mode to ON.●Goes off after you or the front passenger or both of
you have fastened your seat belts.
●Appears if there is a problem with the fuel gauge.●Blinks - Have your vehicle checked by a dealer.
●Appears when the fuel reserve is running low
(approximately 1.98 U.S. gal./7.5 Liter left).●Appears - Refuel your vehicle as soon as possible.
2Fuel Gauge P. 116
19 HR-V HDMC HDMG-31T7A6300.book 109 ページ ２０１８年６月１日　金曜日　午後１時１４分

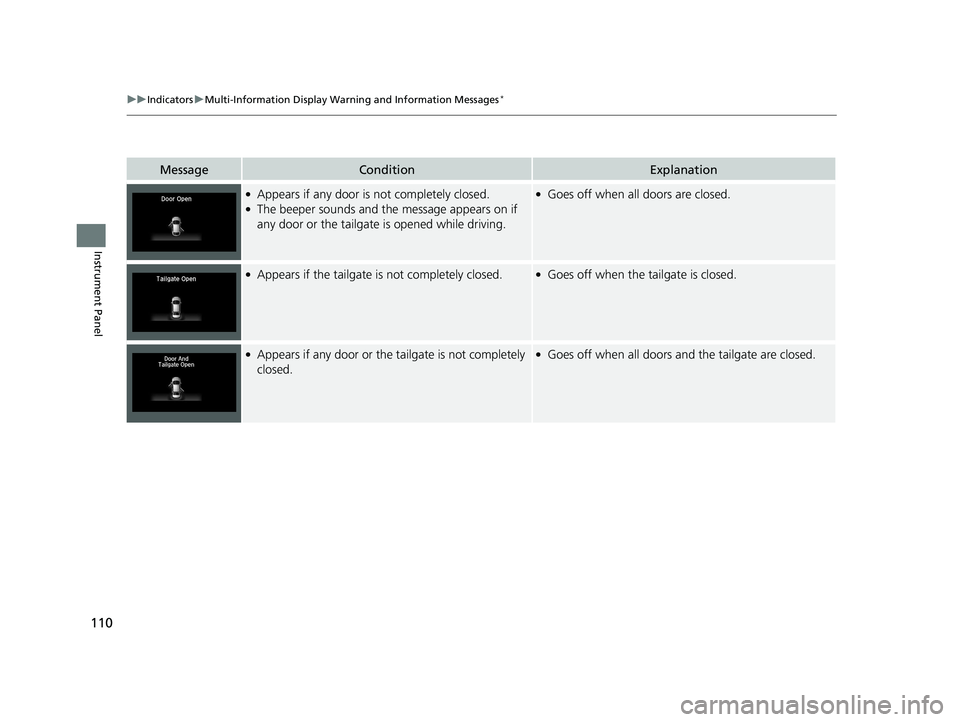

110
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears if any door is not completely closed.●The beeper sounds and the message appears on if
any door or the tailgate is opened while driving.
●Goes off when all doors are closed.
●Appears if the tailgate is not completely closed.●Goes off when the tailgate is closed.
●Appears if any door or the tailgate is not completely
closed.●Goes off when all doors and the tailgate are closed.
19 HR-V HDMC HDMG-31T7A6300.book 110 ページ ２０１８年６月１日　金曜日　午後１時１４分

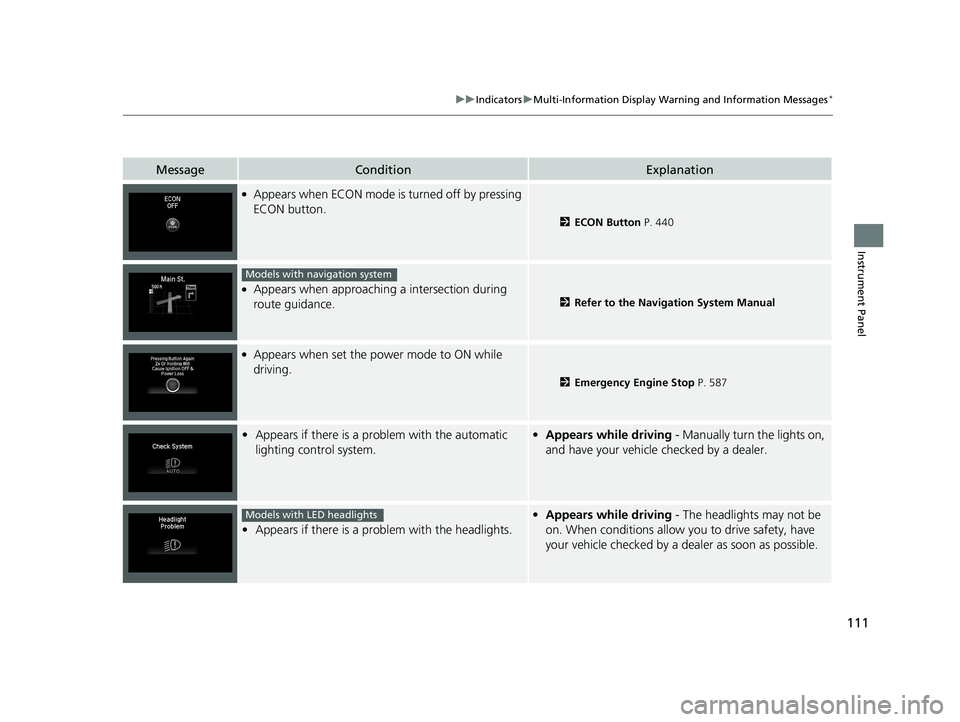

111
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
●Appears when ECON mode is turned off by pressing
ECON button.
2 ECON Button P. 440
●Appears when approaching a intersection during
route guidance.2Refer to the Navigation System Manual
●Appears when set the power mode to ON while
driving.
2Emergency Engine Stop P. 587
•Appears if there is a pr oblem with the automatic
lighting control system.• Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a problem with the headlights.
•Appears while driving - The headlights may not be
on. When conditions allow you to drive safety, have
your vehicle checked by a d ealer as soon as possible.
Models with navigation system
Models with LED headlights
19 HR-V HDMC HDMG-31T7A6300.book 111 ページ ２０１８年６月１日　金曜日　午後１時１４分

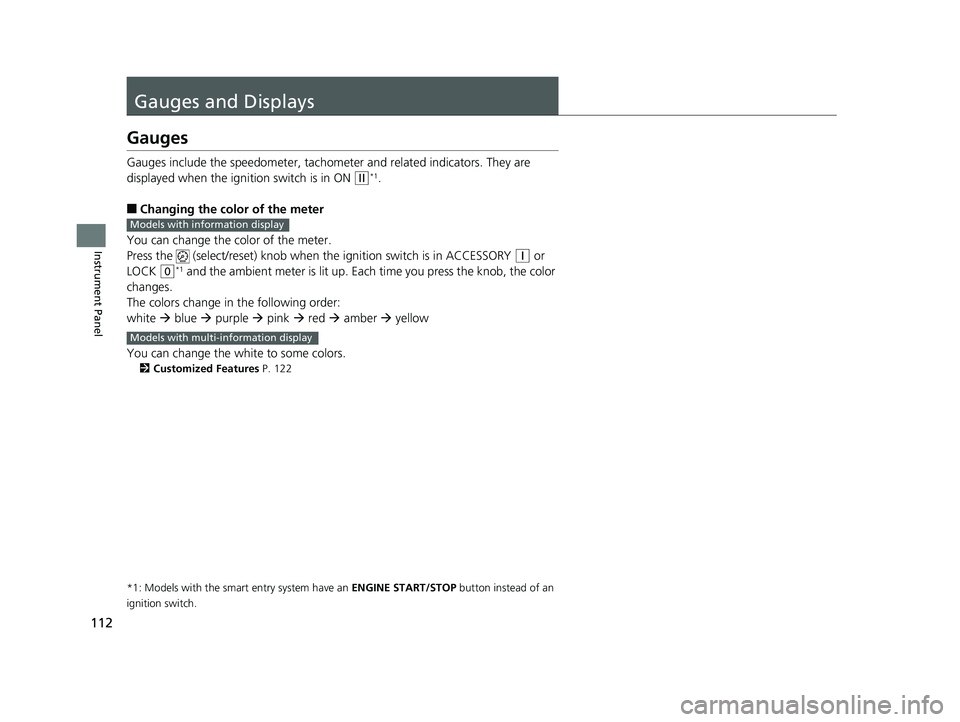

112
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer and related indicators. They are
displayed when the ignition switch is in ON
(w*1.
■Changing the color of the meter
You can change the color of the meter.
Press the (select/reset) knob when the ignition switch is in ACCESSORY
(q or
LOCK
(0*1 and the ambient meter is lit up. Each time you press the knob, the color
changes.
The colors change in the following order:
white  blue  purple  pink  red  amber  yellow
You can change the white to some colors.
2 Customized Features P. 122
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with info rmation display
Models with multi- information display
19 HR-V HDMC HDMG-31T7A6300.book 112 ページ ２０１８年６月１日　金曜日　午後１時１４分

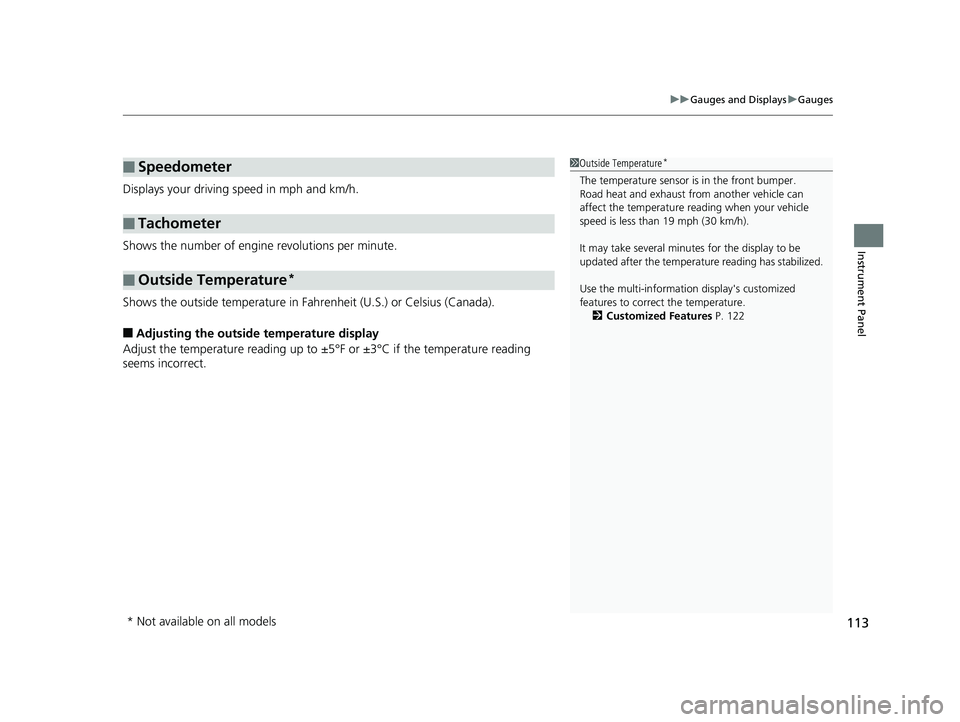

113
uuGauges and Displays uGauges
Instrument Panel
Displays your driving speed in mph and km/h.
Shows the number of engine revolutions per minute.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ±5 °F or ±3°C if the temperature reading
seems incorrect.
■Speedometer
■Tachometer
■Outside Temperature*
1 Outside Temperature*
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the multi-information display's customized
features to correct the temperature. 2 Customized Features P. 122
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 113 ページ ２０１８年６月１日　金曜日　午後１時１４分

114
uuGauges and Displays uInformation Display*
Instrument Panel
Information Display*
The information display shows the fuel gauge, odometer, trip meter, engine oil life
and maintenance service item codes, and other gauges.
Press the (select/reset) knob to change the display.
Each time you press the (select/reset) knob, the information display changes as follows:
■Switching the Display
1Switching the Display
Some of the items on the information display also
appear on the audio/information screen. They also
change along with the info rmation display changes
while the fuel consumption is shown.
Models with display audio system
Instant Fuel Economy
Clock
Odometer
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Range
Trip Meter A
Outside Temperature
Fuel Gauge Instant Fuel Economy
Clock
Average Fuel Economy A
Trip Meter A
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Average Fuel Economy B
Trip Meter B
Outside Temperature
Fuel GaugeInstant Fuel Economy
Clock
Engine Oil Life
Fuel Gauge
Select/Reset Knob
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 114 ページ ２０１８年６月１日　金曜日　午後１時１４分

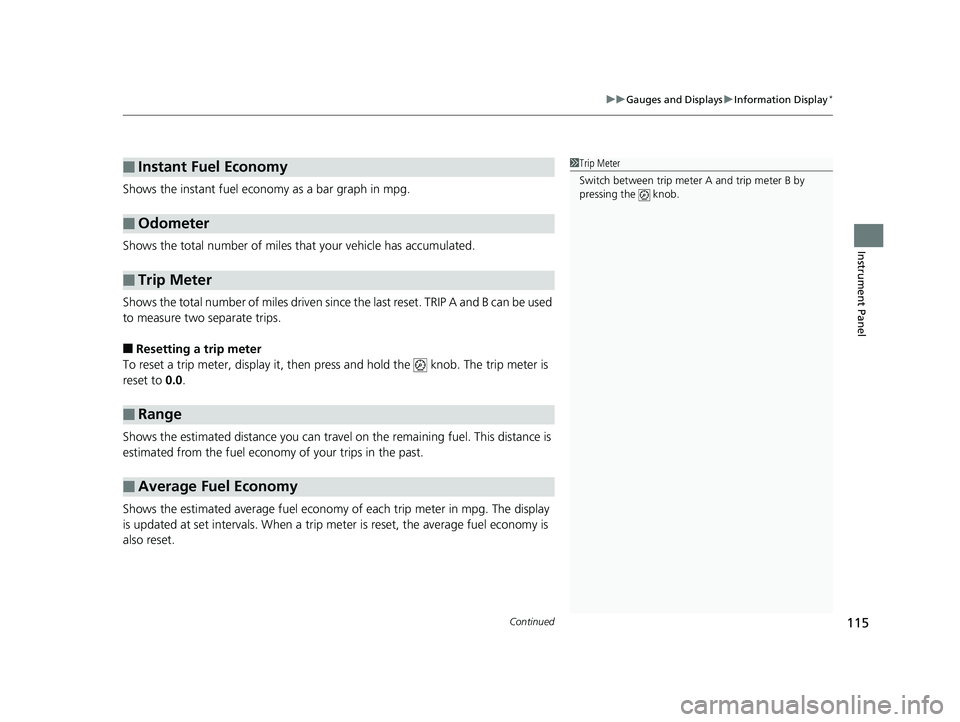

Continued115
uuGauges and Displays uInformation Display*
Instrument Panel
Shows the instant fuel econ omy as a bar graph in mpg.
Shows the total number of miles that your vehicle has accumulated.
Shows the total number of miles driven since the last reset. TRIP A and B can be used
to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then pr ess and hold the knob. The trip meter is
reset to 0.0.
Shows the estimated distance you can travel on the remaining fuel. This distance is
estimated from the fuel economy of your trips in the past.
Shows the estimated average fuel economy of each trip meter in mpg. The display
is updated at set intervals. When a trip me ter is reset, the average fuel economy is
also reset.
■Instant Fuel Economy
■Odometer
■Trip Meter
■Range
■Average Fuel Economy
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the knob.
19 HR-V HDMC HDMG-31T7A6300.book 115 ページ ２０１８年６月１日　金曜日　午後１時１４分

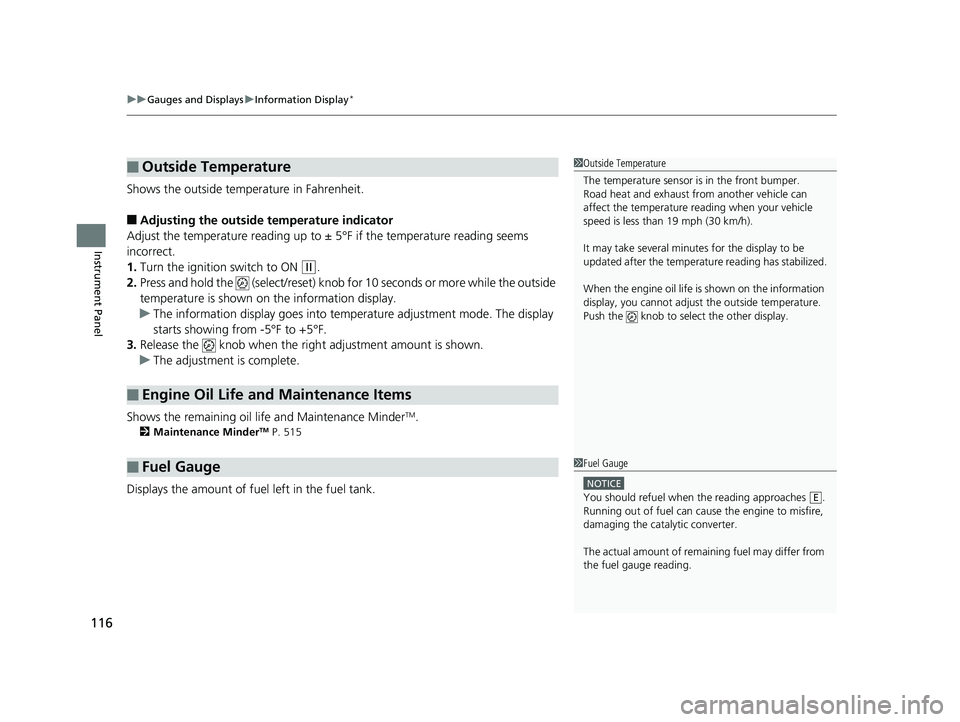

uuGauges and Displays uInformation Display*
116
Instrument Panel
Shows the outside temperature in Fahrenheit.
■Adjusting the outside temperature indicator
Adjust the temperature reading up to ± 5°F if the temperature reading seems
incorrect.
1. Turn the ignition switch to ON
(w.
2. Press and hold the (select/reset) knob for 10 seconds or more while the outside
temperature is shown on the information display.
u The information display goes into temp erature adjustment mode. The display
starts showing fro m -5°F to +5°F.
3. Release the knob when the righ t adjustment amount is shown.
u The adjustment is complete.
Shows the remaining oil life and Maintenance Minder
TM.
2 Maintenance MinderTM P. 515
Displays the amount of fuel left in the fuel tank.
■Outside Temperature
■Engine Oil Life and Maintenance Items
■Fuel Gauge
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust fr om another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
When the engine oil life is shown on the information
display, you cannot adjust the outside temperature.
Push the knob to select the other display.
1 Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
19 HR-V HDMC HDMG-31T7A6300.book 116 ページ ２０１８年６月１日　金曜日　午後１時１４分

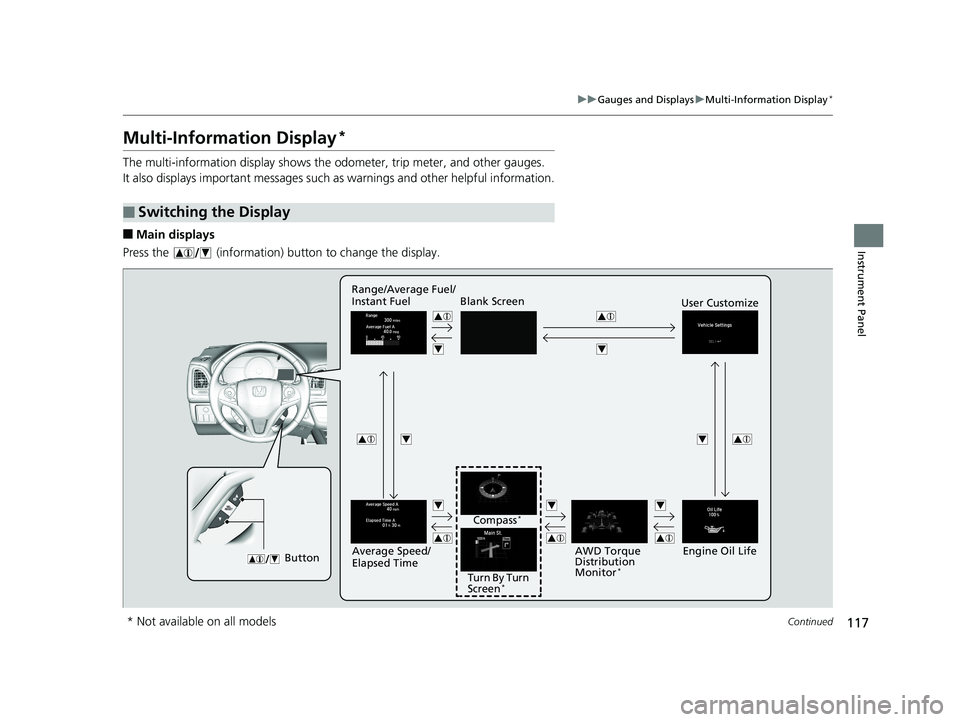

117
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel
Multi-Information Display*
The multi-information displa y shows the odometer, trip meter, and other gauges.
It also displays important messages such as warnings and other helpful information.
■Main displays
Press the (information) button to change the display.
■Switching the Display
Blank Screen User Customize
Button
Engine Oil Life
Range/Average Fuel/
Instant Fuel
Turn By Turn
Screen
*
Compass*
Average Speed/
Elapsed Time AWD Torque
Distribution
Monitor
*
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 117 ページ ２０１８年６月１日　金曜日　午後１時１４分

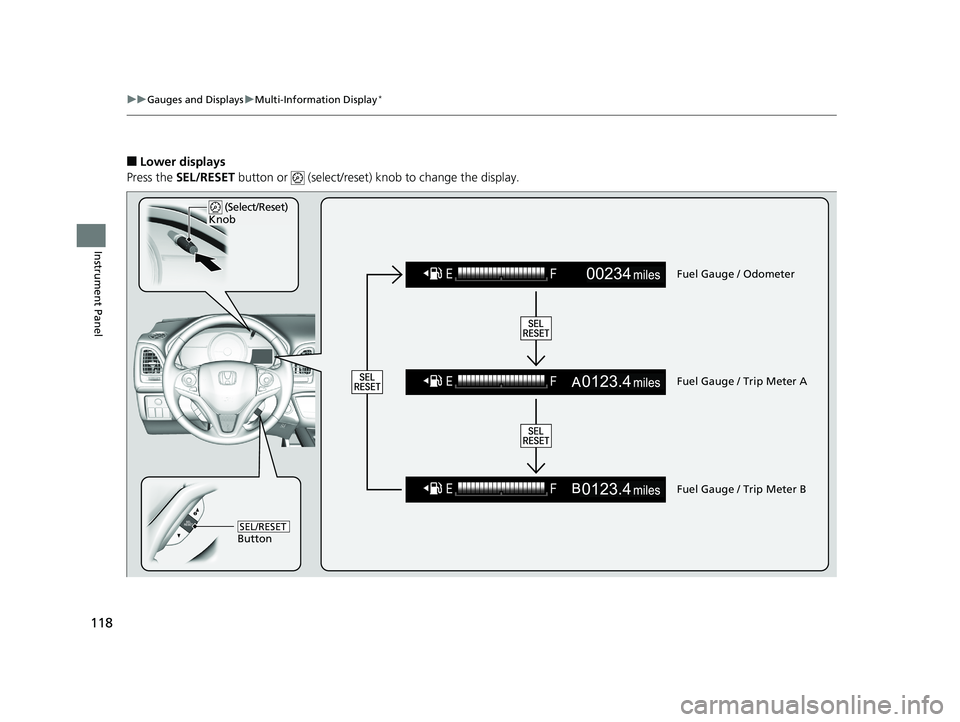

118
uuGauges and Displays uMulti-Information Display*
Instrument Panel
■Lower displays
Press the SEL/RESET button or (select/reset) knob to change the display.
Fuel Gauge / Odometer
Fuel Gauge / Trip Meter A
Fuel Gauge / Trip Meter B
(Select/Reset)
Knob

ButtonSEL/RESET
19 HR-V HDMC HDMG-31T7A6300.book 118 ページ ２０１８年６月１日　金曜日　午後１時１４分
