HONDA HR-V 2019 Owner's Manual (in English)

129
uuGauges and Displays uMulti-Information Display*
Continued
Instrument Panel

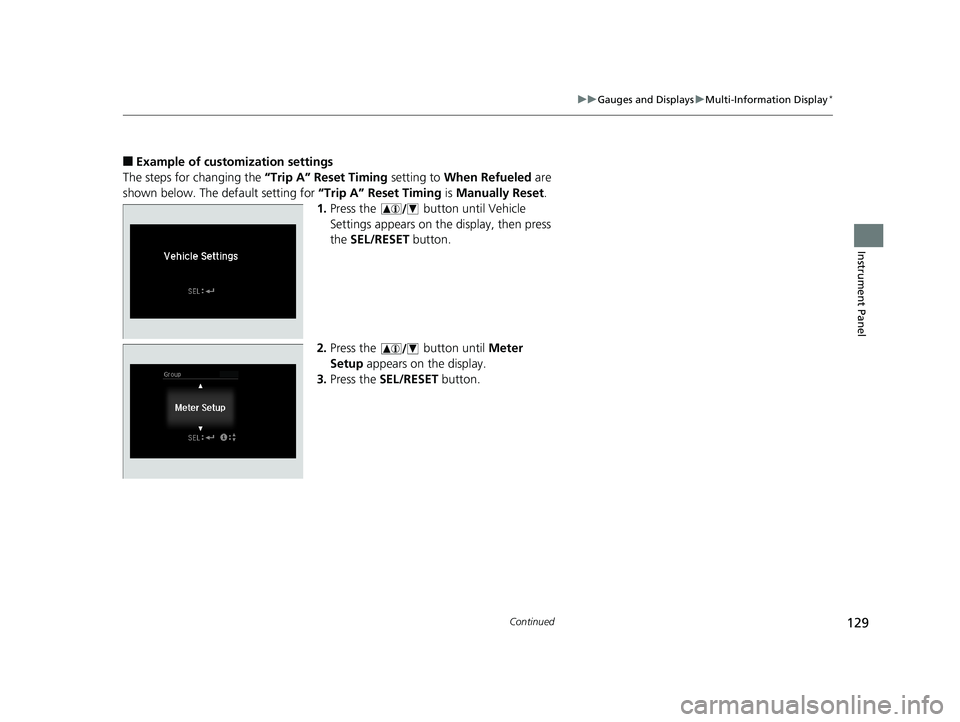

■Example of customization settings
The steps for changing the “Trip A” Reset Timing setting to When Refueled are
shown below. The default setting for “Trip A” Reset Timing is Manually Reset .
1. Press the button until Vehicle
Settings appears on the display, then press
the SEL/RESET button.
2. Press the button until Meter
Setup appears on the display.
3. Press the SEL/RESET button.
19 HR-V HDMC HDMG-31T7A6300.book 129 ページ ２０１８年６月１日　金曜日　午後１時１４分

130
uuGauges and Displays uMulti-Information Display*
Instrument Panel

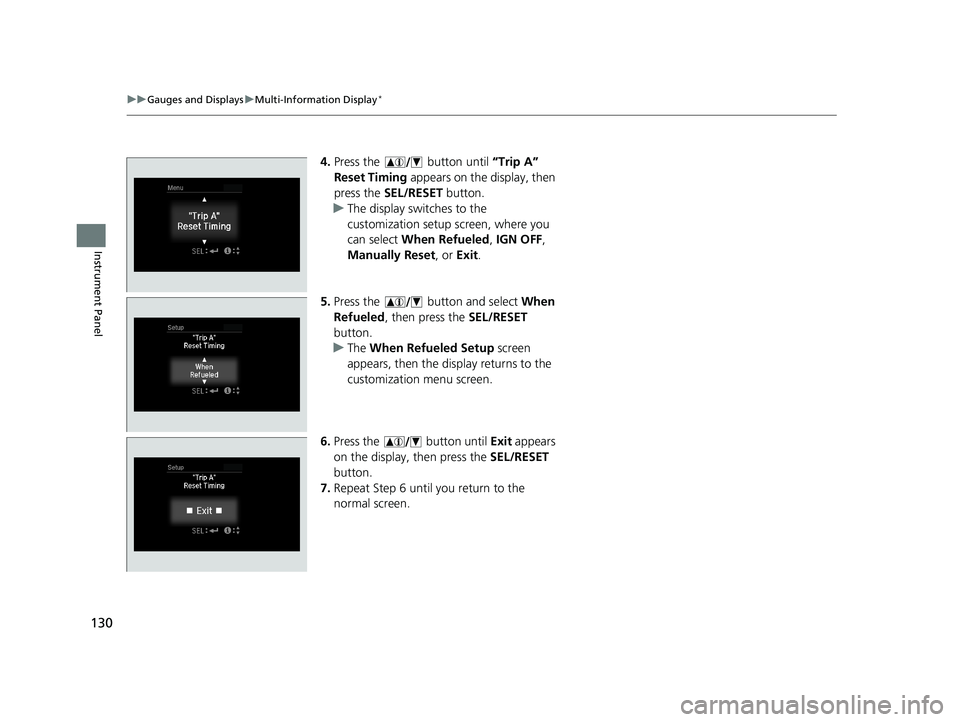

4. Press the button until “Trip A”
Reset Timing appears on the display, then
press the SEL/RESET button.
u The display switches to the
customization setup screen, where you
can select When Refueled , IGN OFF,
Manually Reset , or Exit .
5. Press the button and select When
Refueled , then press the SEL/RESET
button.
u The When Refueled Setup screen
appears, then the di splay returns to the
customization menu screen.
6. Press the button until Exit appears
on the display, then press the SEL/RESET
button.
7. Repeat Step 6 until you return to the
normal screen.
19 HR-V HDMC HDMG-31T7A6300.book 130 ページ ２０１８年６月１日　金曜日　午後１時１４分

131

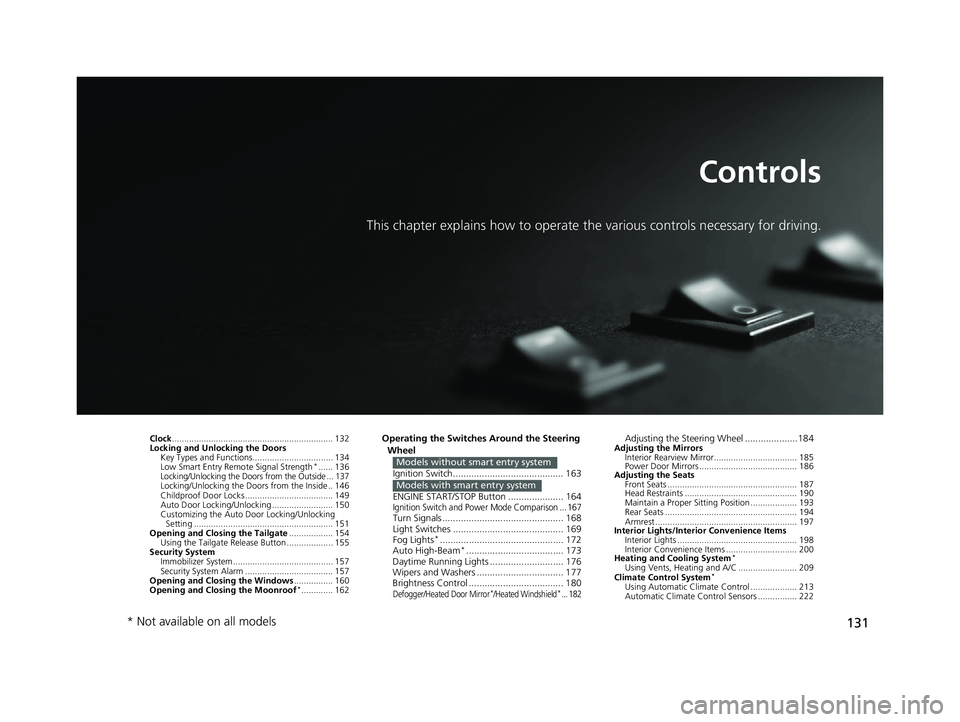

Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................................. 132
Locking and Unlocking the Doors
Key Types and Functions................................. 134
Low Smart Entry Remote Signal Strength
*...... 136Locking/Unlocking the Doors from the Outside ... 137Locking/Unlocking the Doors from the Inside .. 146
Childproof Door Locks .................................... 149
Auto Door Locking/Unlocking ......................... 150
Customizing the Auto Door Locking/Unlocking Setting ......................................................... 151
Opening and Closing the Tailgate .................. 154
Using the Tailgate Release Button ................... 155
Security System Immobilizer System......................................... 157
Security System Alarm .................................... 157
Opening and Closing the Windows ................ 160
Opening and Closing the Moonroof
*............. 162
Operating the Switches Around the Steering
Wheel
Ignition Switch.......................................... 163
ENGINE START/STOP Button ..................... 164
Ignition Switch and Power Mode Comparison ... 167Turn Signals .............................................. 168
Light Switches .......................................... 169
Fog Lights
*............................................... 172
Auto High-Beam*..................................... 173
Daytime Running Lights ............................ 176
Wipers and Washers ................................. 177
Brightness Control .................................... 180
Defogger/Heated Door Mirror*/Heated Windshield*... 182
Models without smart entry system
Models with smart entry system
Adjusting the Steering Wheel ....................184Adjusting the Mirrors Interior Rearview Mirror.................................. 185
Power Door Mirrors ........................................ 186
Adjusting the Seats
Front Seats ..................................................... 187
Head Restraints .............................................. 190
Maintain a Proper Sitting Position ................... 193
Rear Seats ...................................................... 194
Armrest .......................................................... 197
Interior Lights/Interior Convenience Items
Interior Lights ................................................. 198
Interior Convenience Items ............................. 200
Heating and Cooling System
*Using Vents, Heating and A/C ........................ 209
Climate Control System*Using Automatic Climate Control ................... 213
Automatic Climate Control Sensors ................ 222
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 131 ページ ２０１８年６月１日　金曜日　午後１時１４分

132
Controls

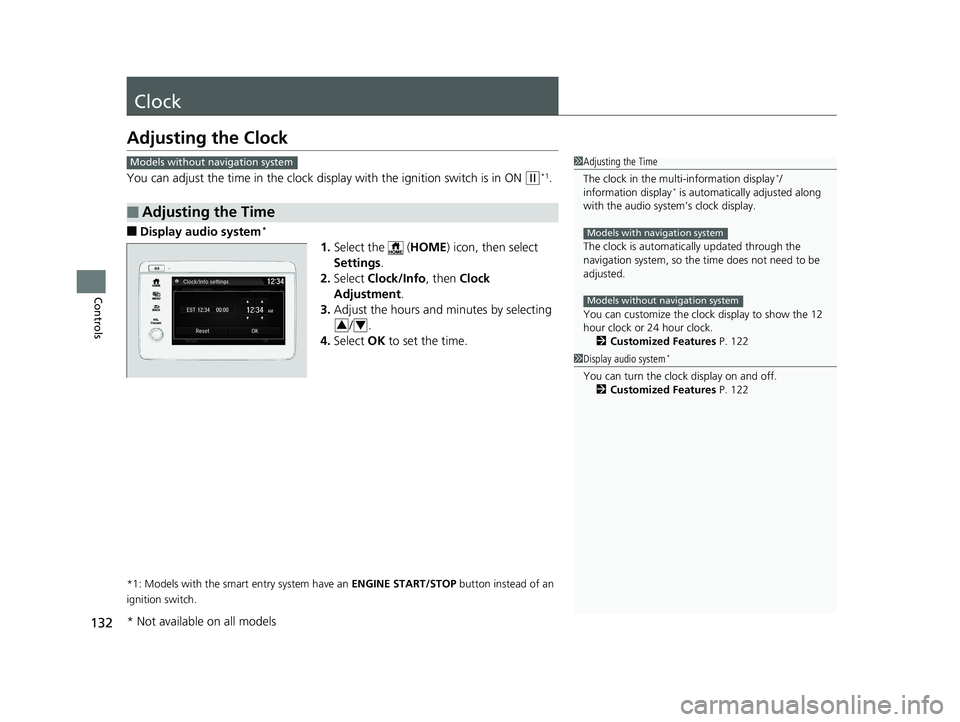

Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch is in ON (w*1.
■Display audio system*
1.Select the ( HOME) icon, then select
Settings .
2. Select Clock/Info , then Clock
Adjustment .
3. Adjust the hours and minutes by selecting
/.
4. Select OK to set the time.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
Models without navigation system1 Adjusting the Time
The clock in the multi-information display
*/
information display* is automatically adjusted along
with the audio system’s clock display.
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 122
Models with navigation system
Models without navigation system
1Display audio system*
You can turn the clock display on and off.
2 Customized Features P. 122
34
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 132 ページ ２０１８年６月１日　金曜日　午後１時１４分

133
uuClock uAdjusting the Clock
Controls

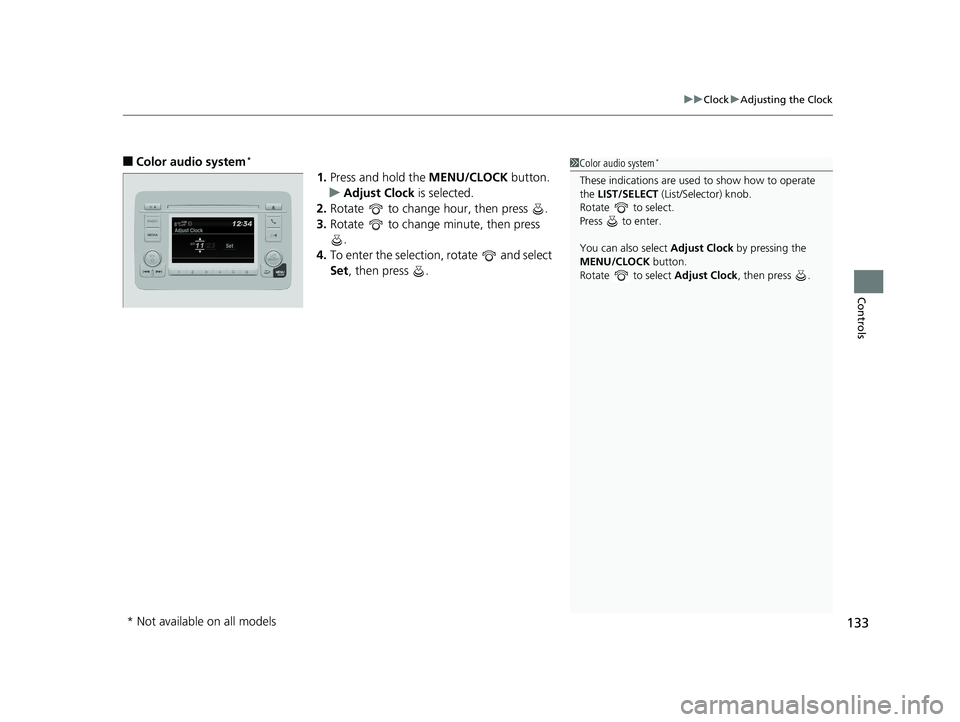

■Color audio system*
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set, then press .
1Color audio system*
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
You can also select Adjust Clock by pressing the
MENU/CLOCK button.
Rotate to select Adjust Clock, then press .
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 133 ページ ２０１８年６月１日　金曜日　午後１時１４分

134
Controls

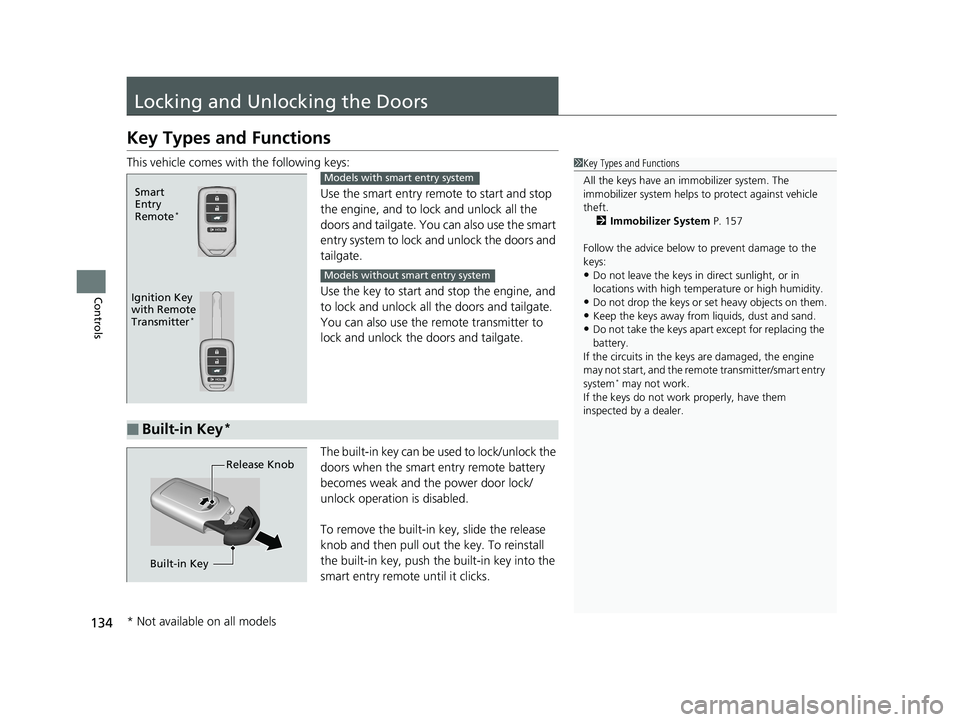

Locking and Unlocking the Doors
Key Types and Functions
This vehicle comes with the following keys:Use the smart entry remote to start and stop
the engine, and to lock and unlock all the
doors and tailgate. You can also use the smart
entry system to lock and unlock the doors and
tailgate.
Use the key to start and stop the engine, and
to lock and unlock all the doors and tailgate.
You can also use the re mote transmitter to
lock and unlock the doors and tailgate.
The built-in key can be us ed to lock/unlock the
doors when the smart entry remote battery
becomes weak and th e power door lock/
unlock operation is disabled.
To remove the built-in key, slide the release
knob and then pull out the key. To reinstall
the built-in key, push th e built-in key into the
smart entry remote until it clicks.1 Key Types and Functions
All the keys have an immobilizer system. The
immobilizer system helps to protect against vehicle
theft. 2 Immobilizer System P. 157
Follow the advice below to prevent damage to the
keys:
•Do not leave the keys in direct sunlight, or in
locations with high temperature or high humidity.
•Do not drop the keys or set heavy objects on them.•Keep the keys away from liquids, dust and sand.
•Do not take the keys apart except for replacing the
battery.
If the circuits in the keys are damaged, the engine
may not start, and the remote transmitter/smart entry
system
* may not work.
If the keys do not work properly, have them
inspected by a dealer.
Ignition Key
with Remote
Transmitter
*
Smart
Entry
Remote
*
Models with smart entry system
Models without smart entry system
■Built-in Key*
Release Knob
Built-in Key
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 134 ページ ２０１８年６月１日　金曜日　午後１時１４分

135
uuLocking and Unlocking the Doors uKey Types and Functions
Controls

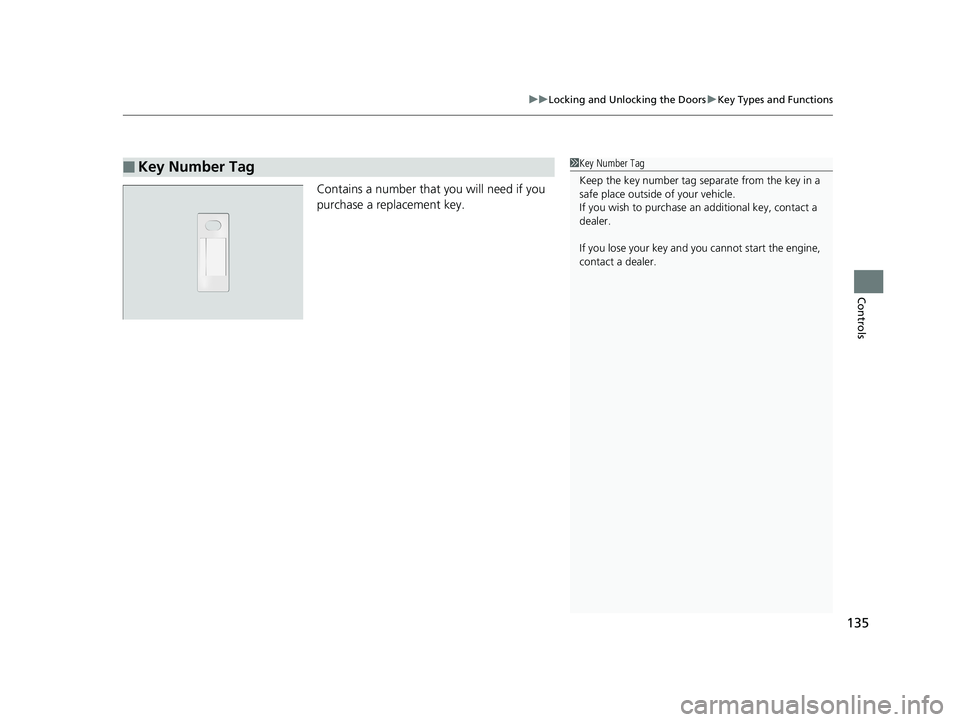

Contains a number that you will need if you
purchase a replacement key.
■Key Number Tag1 Key Number Tag
Keep the key number tag separate from the key in a
safe place outside of your vehicle.
If you wish to purchase an additional key, contact a
dealer.
If you lose your key and you cannot start the engine,
contact a dealer.
19 HR-V HDMC HDMG-31T7A6300.book 135 ページ ２０１８年６月１日　金曜日　午後１時１４分

136
uuLocking and Unlocking the Doors uLow Smart Entry Remote Signal Strength*
Controls

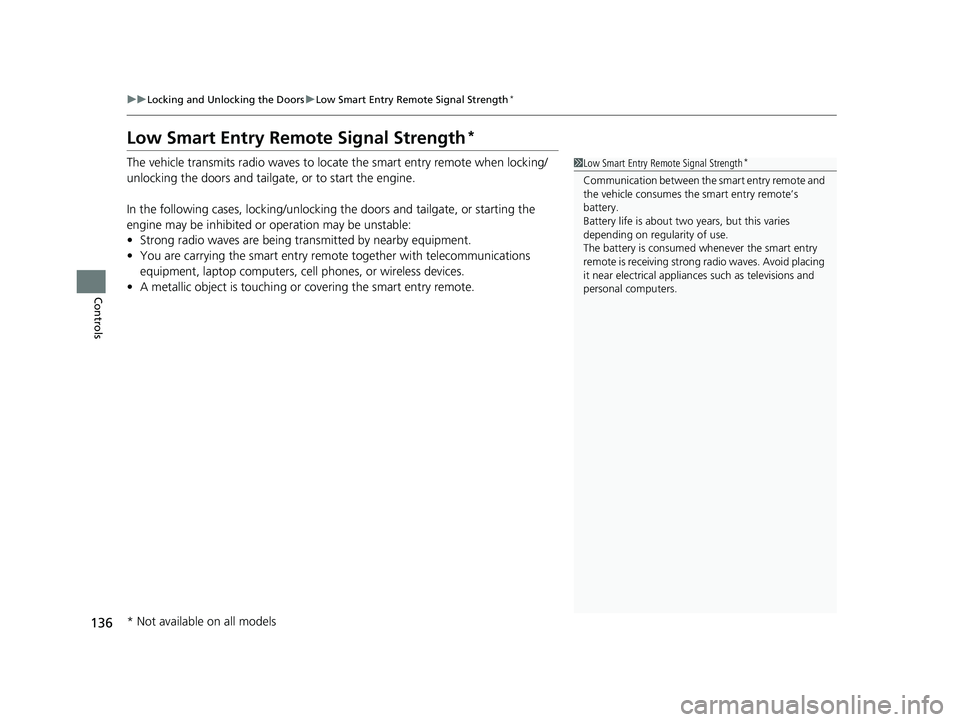

Low Smart Entry Remo te Signal Strength*
The vehicle transmits radio waves to loca te the smart entry remote when locking/
unlocking the doors and tailgate, or to start the engine.
In the following cases, locking/unlocking the doors and tailgate, or starting the
engine may be inhibited or operation may be unstable:
• Strong radio waves are being tra nsmitted by nearby equipment.
• You are carrying the smart entry remote together with telecommunications
equipment, laptop computers, ce ll phones, or wireless devices.
• A metallic object is touching or covering the smart entry remote.1Low Smart Entry Remote Signal Strength*
Communication between the smart entry remote and
the vehicle consumes the smart entry remote’s
battery.
Battery life is about two years, but this varies
depending on regularity of use.
The battery is consumed whenever the smart entry
remote is receivi ng strong radio wave s. Avoid placing
it near electrical appliances such as televisions and
personal computers.
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 136 ページ ２０１８年６月１日　金曜日　午後１時１４分

137
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Continued
Controls

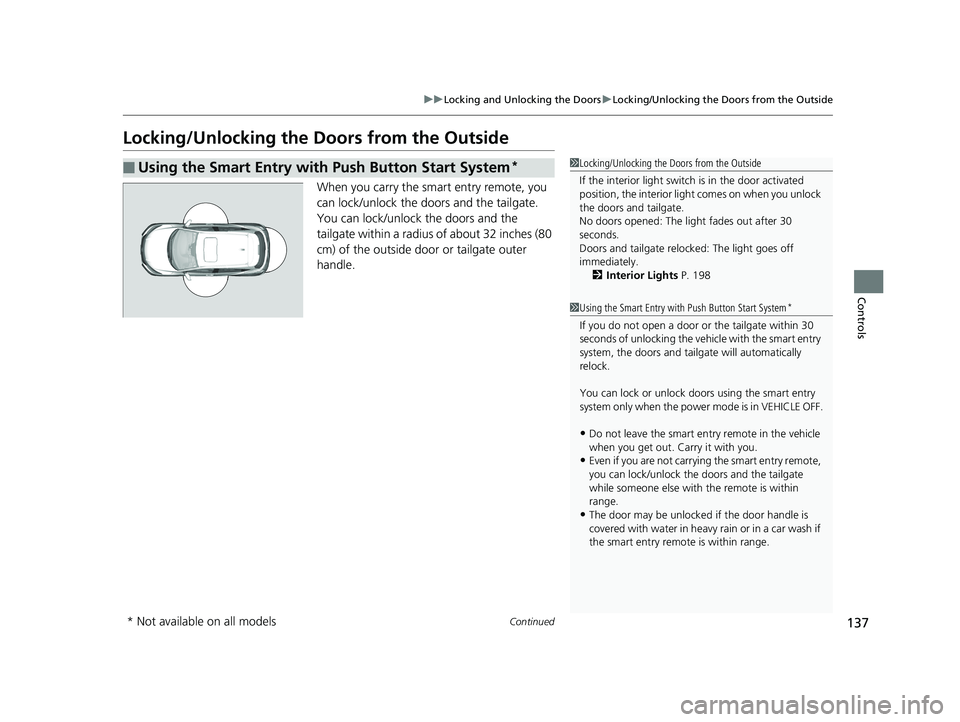

Locking/Unlocking the Doors from the Outside
When you carry the smart entry remote, you
can lock/unlock the doors and the tailgate.
You can lock/unlock the doors and the
tailgate within a radius of about 32 inches (80
cm) of the outside door or tailgate outer
handle.
■Using the Smart Entry with Push Button Start System*1Locking/Unlocking the Doors from the Outside
If the interior light switch is in the door activated
position, the interior light comes on when you unlock
the doors and tailgate.
No doors opened: The li ght fades out after 30
seconds.
Doors and tailgate relo cked: The light goes off
immediately. 2 Interior Lights P. 198
1Using the Smart Entry with Push Button Start System*
If you do not open a door or the tailgate within 30
seconds of unlocking the vehicle with the smart entry
system, the doors and tailg ate will automatically
relock.
You can lock or unlock doors using the smart entry
system only when the power mode is in VEHICLE OFF.
•Do not leave the smart entry remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the smart entry remote,
you can lock/unlock the doors and the tailgate
while someone else with the remote is within
range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the smart entry remote is within range.
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 137 ページ ２０１８年６月１日　金曜日　午後１時１４分

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
138
Controls

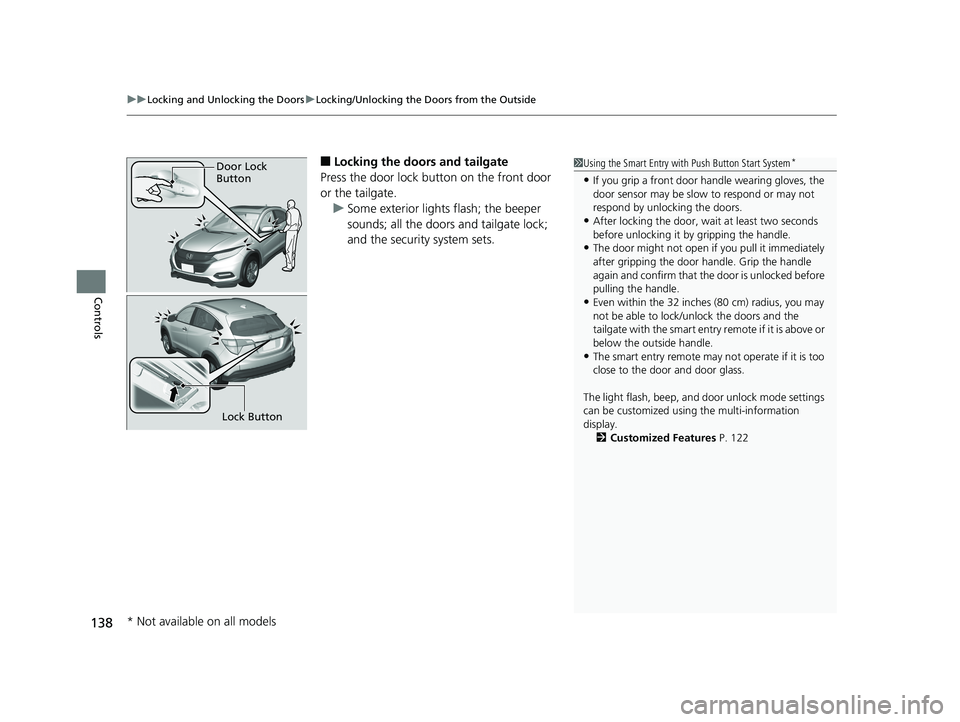

■Locking the doors and tailgate
Press the door lock button on the front door
or the tailgate. u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system sets.1Using the Smart Entry with Push Button Start System*
•If you grip a front door handle wearing gloves, the
door sensor may be slow to respond or may not
respond by unlocking the doors.
•After locking the door, wait at least two seconds
before unlocking it by gripping the handle.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unlock the doors and the
tailgate with the smart entry remote if it is above or
below the outside handle.
•The smart entry remote may not operate if it is too
close to the door and door glass.
The light flash, beep, a nd door unlock mode settings
can be customized using the multi-information
display. 2 Customized Features P. 122
Door Lock
Button
Lock Button
* Not available on all models
19 HR-V HDMC HDMG-31T7A6300.book 138 ページ ２０１８年６月１日　金曜日　午後１時１４分
