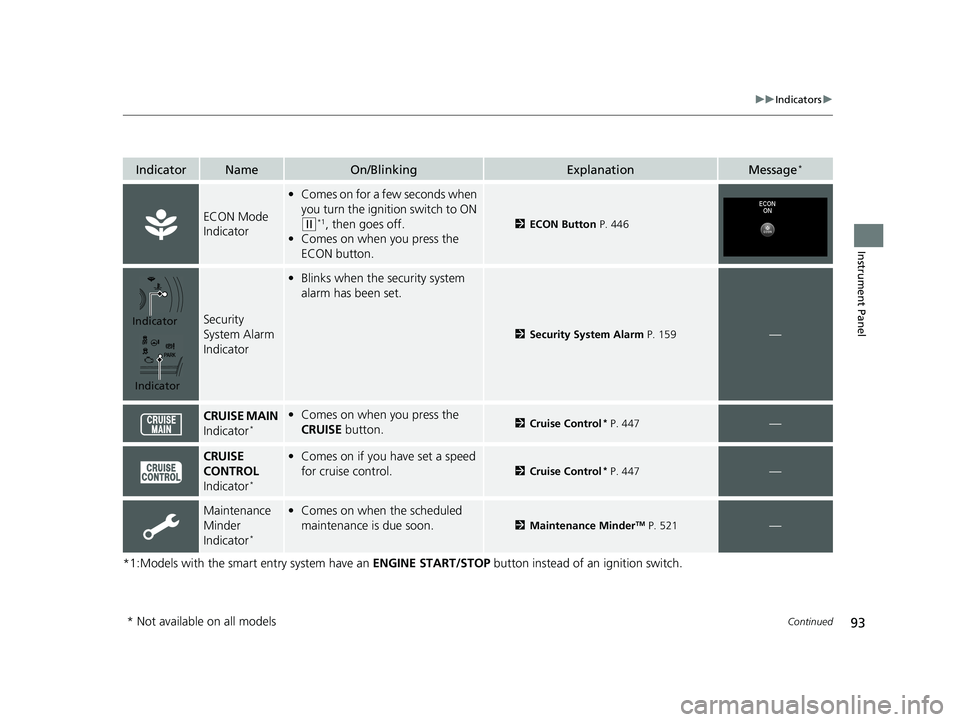

Page 95 of 639

93
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
ECON Mode
Indicator
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when you press the
ECON button.2 ECON Button P. 446
Security
System Alarm
Indicator
•Blinks when the security system
alarm has been set.
2 Security System Alarm P. 159—
CRUISE MAIN
Indicator*• Comes on when you press the
CRUISE button.2 Cruise Control* P. 447—
CRUISE
CONTROL
Indicator
*
• Comes on if you have set a speed
for cruise control.
2 Cruise Control* P. 447—
Maintenance
Minder
Indicator
*
•Comes on when the scheduled
maintenance is due soon.
2 Maintenance MinderTM P. 521—
Indicator
Indicator
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 93 ページ 2019年8月8日 木曜日 午後3時52分
Page 96 of 639

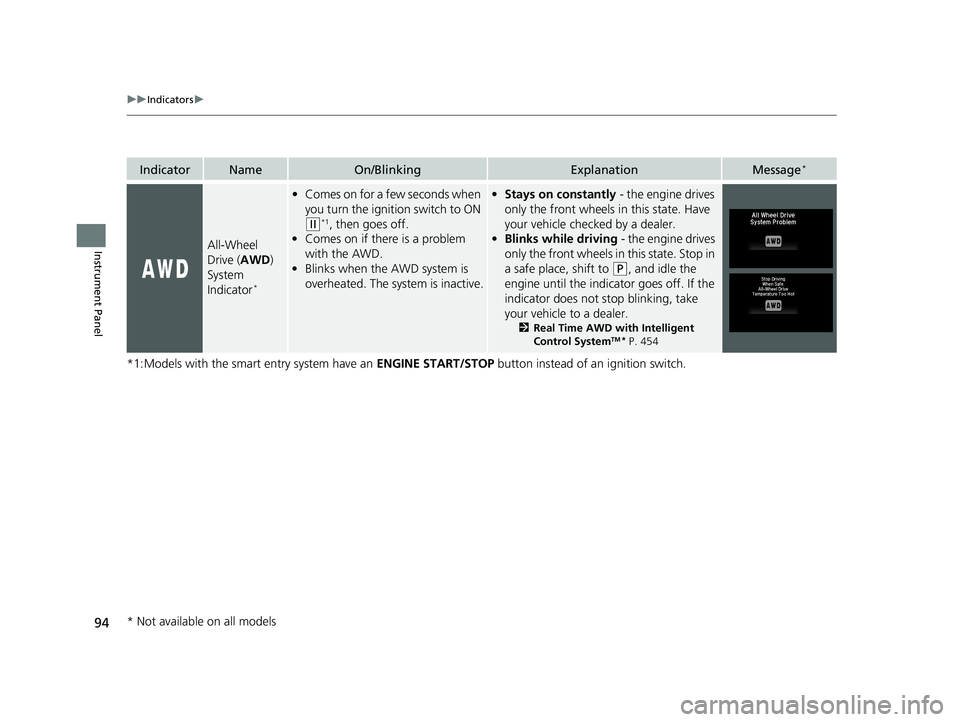

94
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
All-Wheel
Drive (AWD)
System
Indicator
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with the AWD.
• Blinks when the AWD system is
overheated. The system is inactive.
• Stays on constantly - the engine drives
only the front wheels in this state. Have
your vehicle checked by a dealer.
• Blinks while driving - the engine drives
only the front wheels in this state. Stop in
a safe place, shift to
(P, and idle the
engine until the indicator goes off. If the
indicator does not stop blinking, take
your vehicle to a dealer.
2 Real Time AWD with Intelligent
Control SystemTM* P. 454
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 94 ページ 2019年8月8日 木曜日 午後3時52分

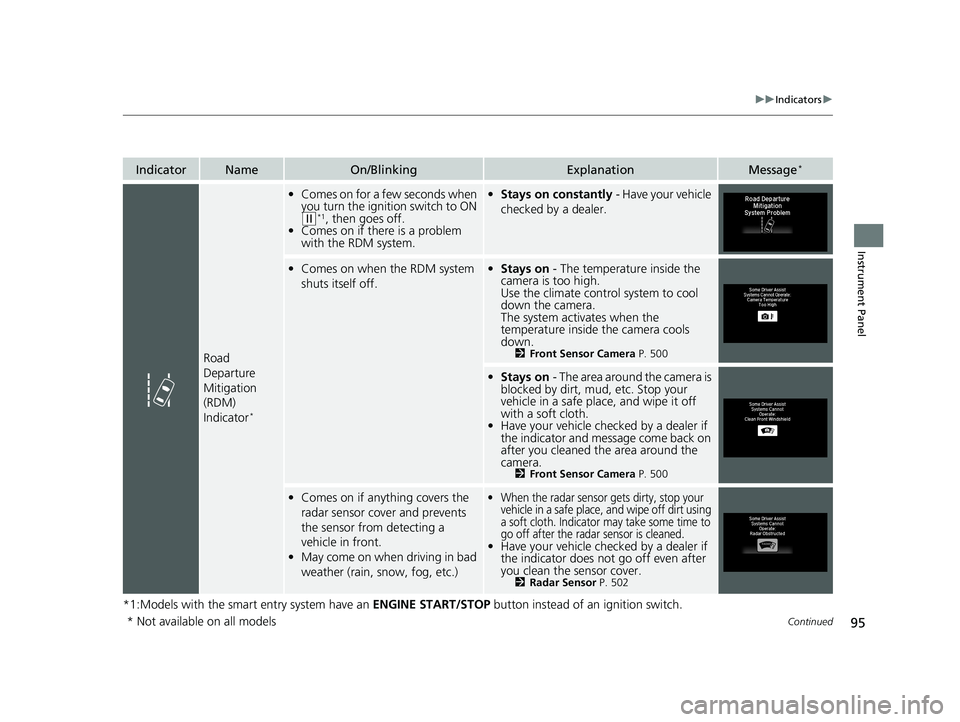

Page 97 of 639

95
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Road
Departure
Mitigation
(RDM)
Indicator
*
•Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with the RDM system.
•Stays on constantly - Have your vehicle
checked by a dealer.
• Comes on when the RDM system
shuts itself off.•Stays on - The temperature inside the
camera is too high.
Use the climate contro l system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 500
•Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2 Front Sensor Camera P. 500
•Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a
vehicle in front.
• May come on when driving in bad
weather (rain, snow, fog, etc.)•When the radar sensor gets dirty, stop your
vehicle in a safe place, and wipe off dirt using
a soft cloth. Indicator may take some time to
go off after the radar sensor is cleaned.
•Have your vehicle checked by a dealer if
the indicator does not go off even after
you clean the sensor cover.
2 Radar Sensor P. 502
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 95 ページ 2019年8月8日 木曜日 午後3時52分
Page 98 of 639

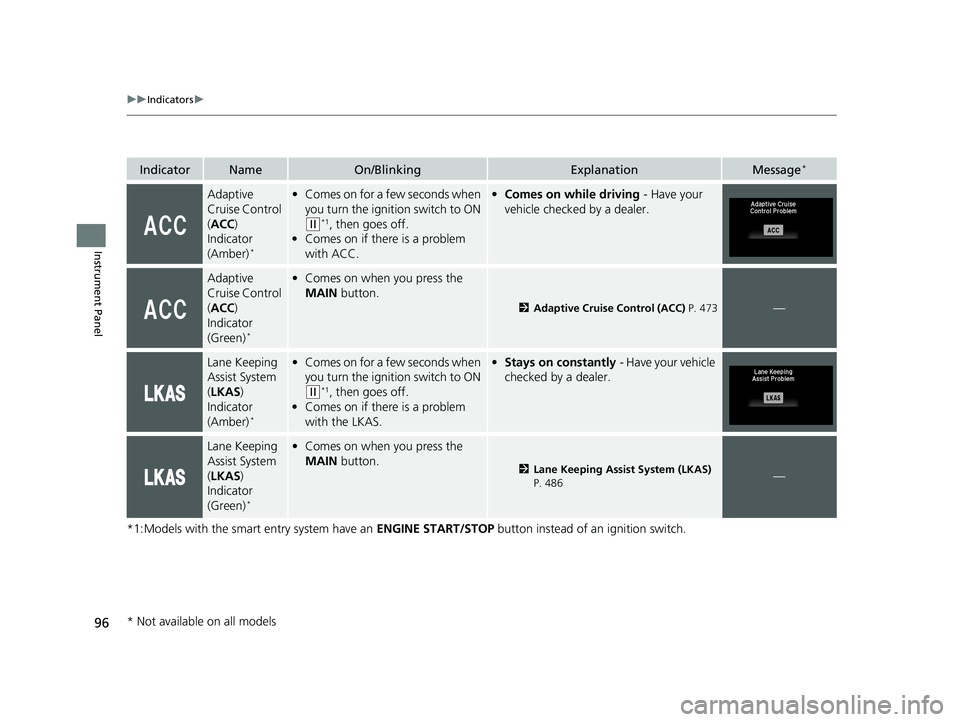

96
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Adaptive
Cruise Control
(ACC )
Indicator
(Amber)
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with ACC.
• Comes on while driving - Have your
vehicle checked by a dealer.
Adaptive
Cruise Control
( ACC )
Indicator
(Green)
*
• Comes on when you press the
MAIN button.
2Adaptive Cruise Control (ACC) P. 473—
Lane Keeping
Assist System
(LKAS )
Indicator
(Amber)
*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on if there is a problem
with the LKAS.
• Stays on constantly - Have your vehicle
checked by a dealer.
Lane Keeping
Assist System
( LKAS )
Indicator
(Green)
*
• Comes on when you press the
MAIN button.
2Lane Keeping Assist System (LKAS)
P. 486—
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 96 ページ 2019年8月8日 木曜日 午後3時52分

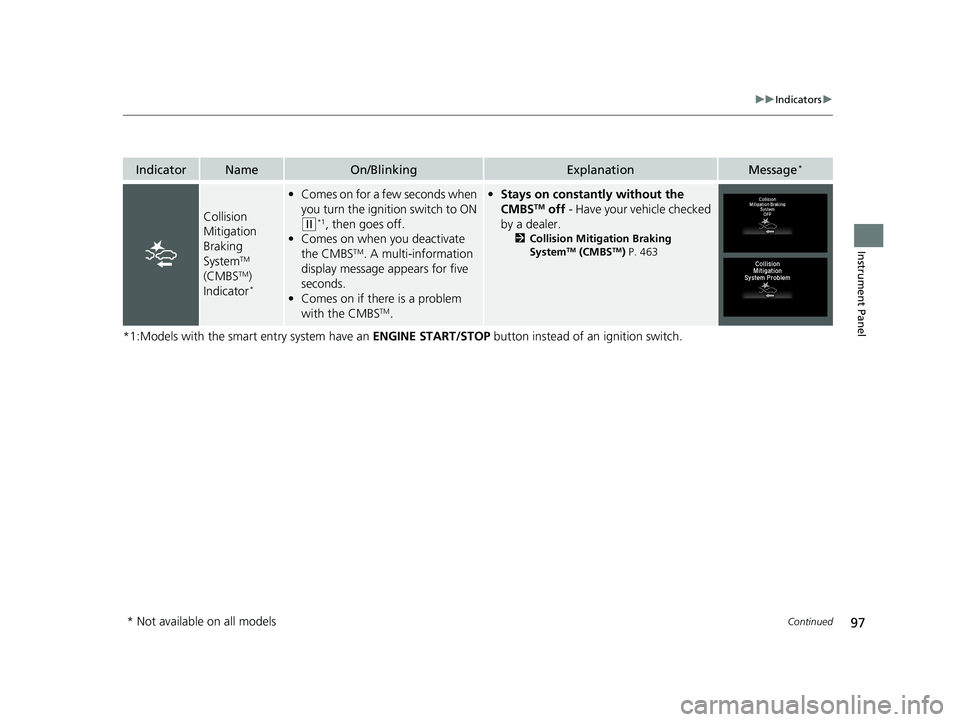

Page 99 of 639

97
uuIndicators u
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator*
• Comes on for a few seconds when
you turn the ignition switch to ON
(w*1, then goes off.
• Comes on when you deactivate
the CMBS
TM. A multi-information
display message appears for five
seconds.
• Comes on if there is a problem
with the CMBS
TM.
•Stays on constantly without the
CMBSTM off - Have your vehicle checked
by a dealer.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 463
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 97 ページ 2019年8月8日 木曜日 午後3時52分

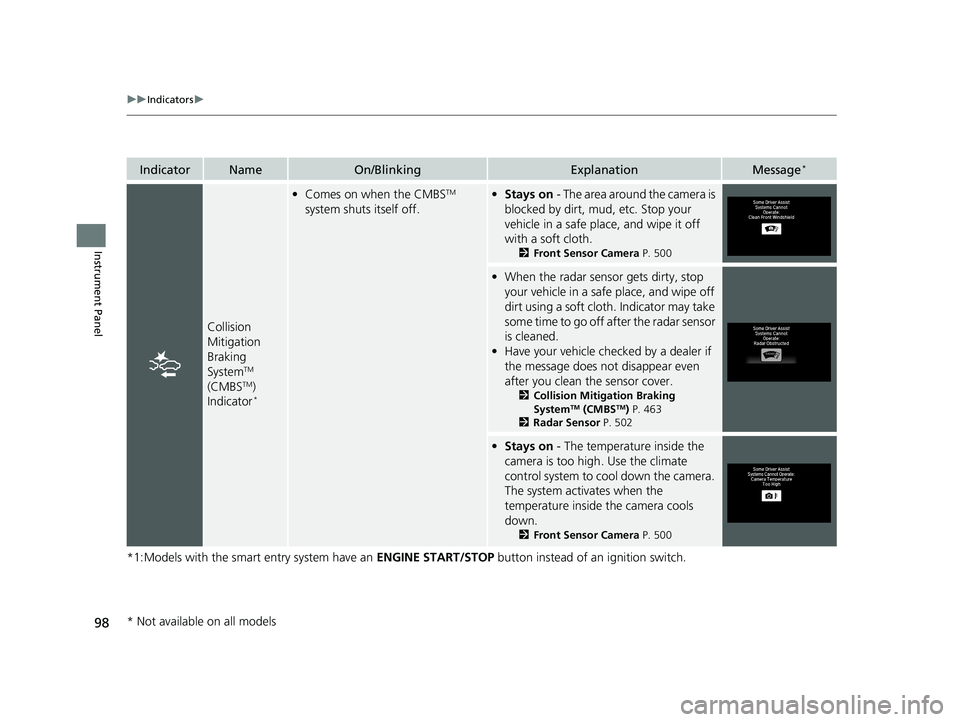

Page 100 of 639

98
uuIndicators u
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
IndicatorNameOn/BlinkingExplanationMessage*
Collision
Mitigation
Braking
System
TM
(CMBSTM)
Indicator*
• Comes on when the CMBSTM
system shuts itself off.• Stays on - The area around the camera is
blocked by dirt, mud, etc. Stop your
vehicle in a safe plac e, and wipe it off
with a soft cloth.
2 Front Sensor Camera P. 500
•When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft clot h. Indicator may take
some time to go off after the radar sensor
is cleaned.
• Have your vehicle checked by a dealer if
the message does not disappear even
after you clean the sensor cover.
2 Collision Mitigation Braking
SystemTM (CMBSTM) P. 463
2 Radar Sensor P. 502
•Stays on - The temperature inside the
camera is too high . Use the climate
control system to cool down the camera.
The system acti vates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 500
* Not available on all models
20 HR-V HDMC HDMG-31T7A6400.book 98 ページ 2019年8月8日 木曜日 午後3時52分

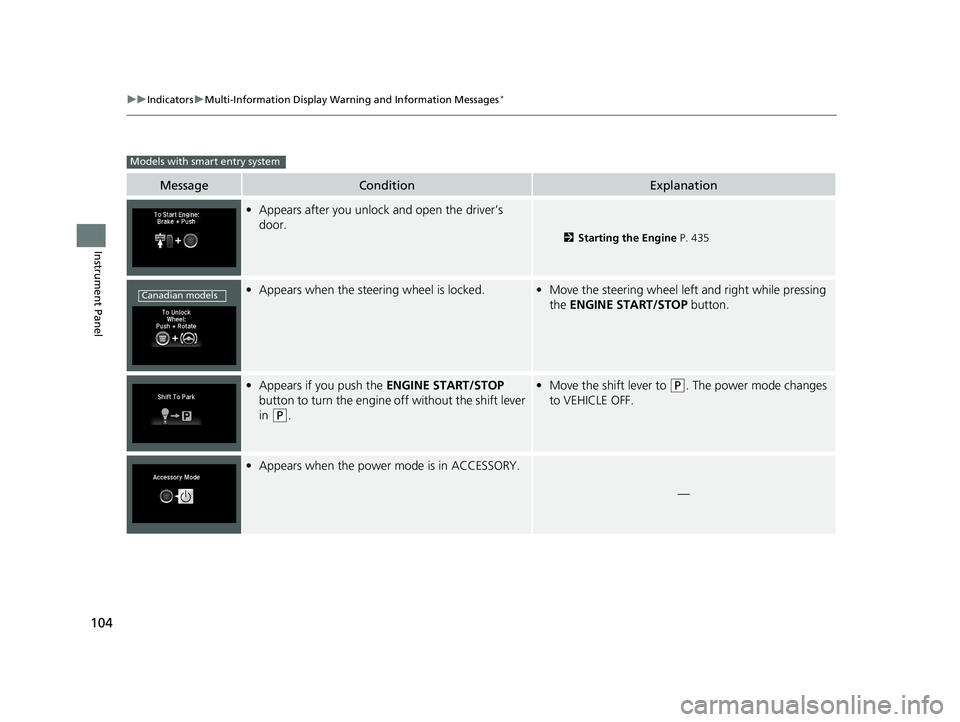

Page 106 of 639

104
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears after you unlock and open the driver’s
door.
2 Starting the Engine P. 435
•Appears when the steering wheel is locked.•Move the steering wheel left and right while pressing
the ENGINE START/STOP button.
•Appears if you push the ENGINE START/STOP
button to turn the engine off without the shift lever
in
(P.
• Move the shift lever to (P. The power mode changes
to VEHICLE OFF.
• Appears when the power mode is in ACCESSORY.
—
Models with smart entry system
Canadian models
20 HR-V HDMC HDMG-31T7A6400.book 104 ページ 2019年8月8日 木曜日 午後3時52分

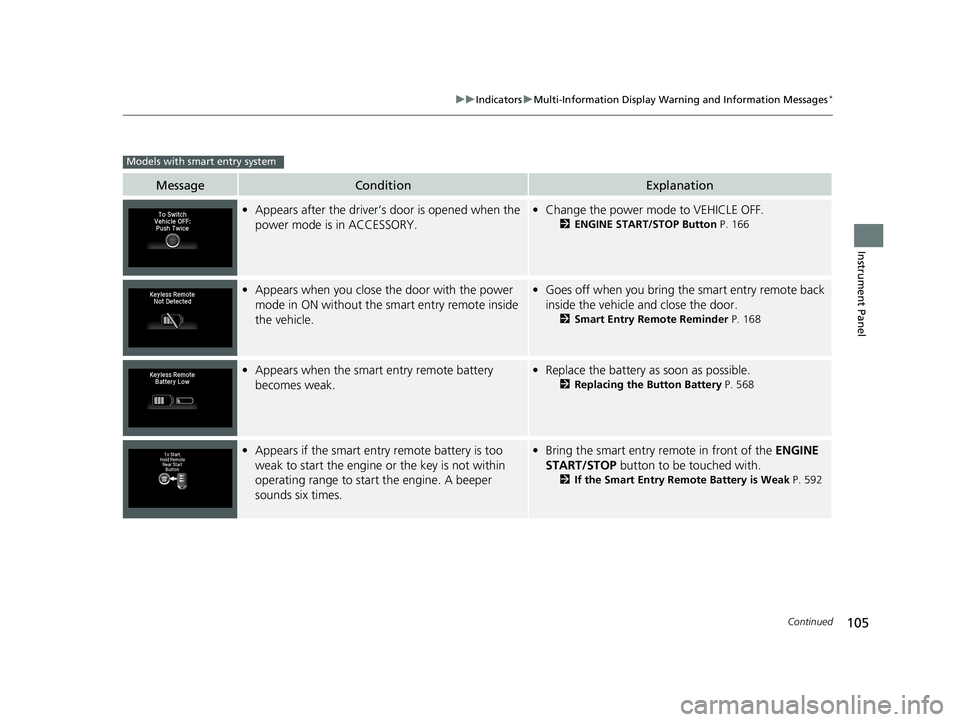

Page 107 of 639

105
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Continued
Instrument Panel
MessageConditionExplanation
•Appears after the driver’s door is opened when the
power mode is in ACCESSORY.• Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button P. 166
•Appears when you close the door with the power
mode in ON without the smart entry remote inside
the vehicle.•Goes off when you bring the smart entry remote back
inside the vehicle and close the door.
2 Smart Entry Remote Reminder P. 168
•Appears when the smart entry remote battery
becomes weak.•Replace the battery as soon as possible.
2 Replacing the Button Battery P. 568
•Appears if the smart entry remote battery is too
weak to start the engine or the key is not within
operating range to start the engine. A beeper
sounds six times.•Bring the smart entry remote in front of the ENGINE
START/STOP button to be touched with.
2If the Smart Entry Remote Battery is Weak P. 592
Models with smart entry system
20 HR-V HDMC HDMG-31T7A6400.book 105 ページ 2019年8月8日 木曜日 午後3時52分

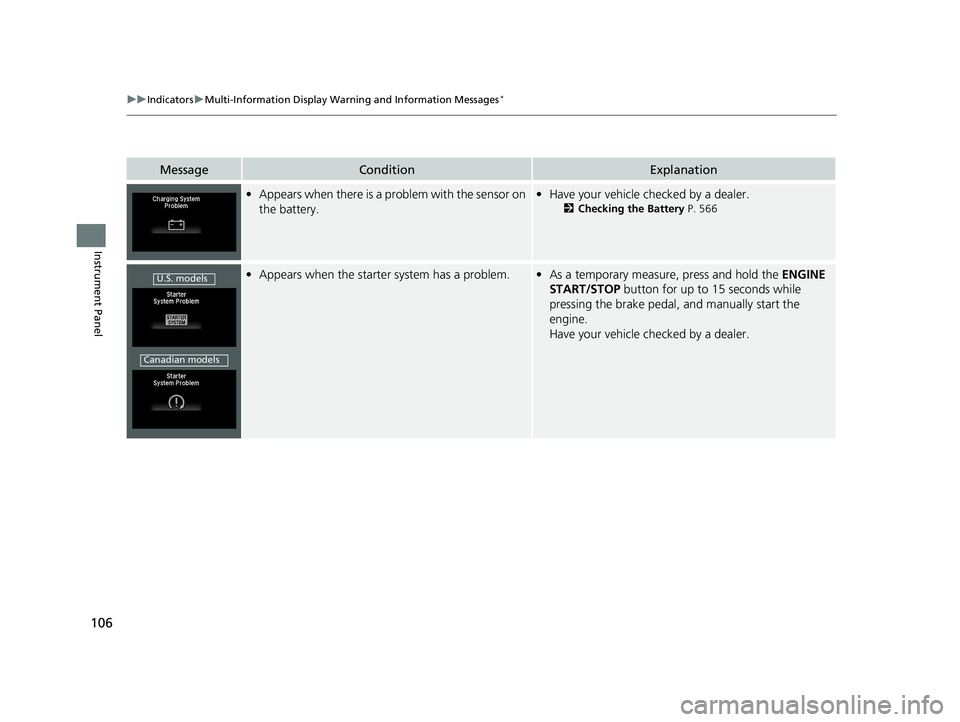

Page 108 of 639

106
uuIndicators uMulti-Information Display Warn ing and Information Messages*
Instrument Panel
MessageConditionExplanation
•Appears when there is a problem with the sensor on
the battery.•Have your vehicle checked by a dealer.
2 Checking the Battery P. 566
•Appears when the starter system has a problem.•As a temporary measure, press and hold the ENGINE
START/STOP button for up to 15 seconds while
pressing the brake pedal, and manually start the
engine.
Have your vehicle checked by a dealer.U.S. models
Canadian models
20 HR-V HDMC HDMG-31T7A6400.book 106 ページ 2019年8月8日 木曜日 午後3時52分

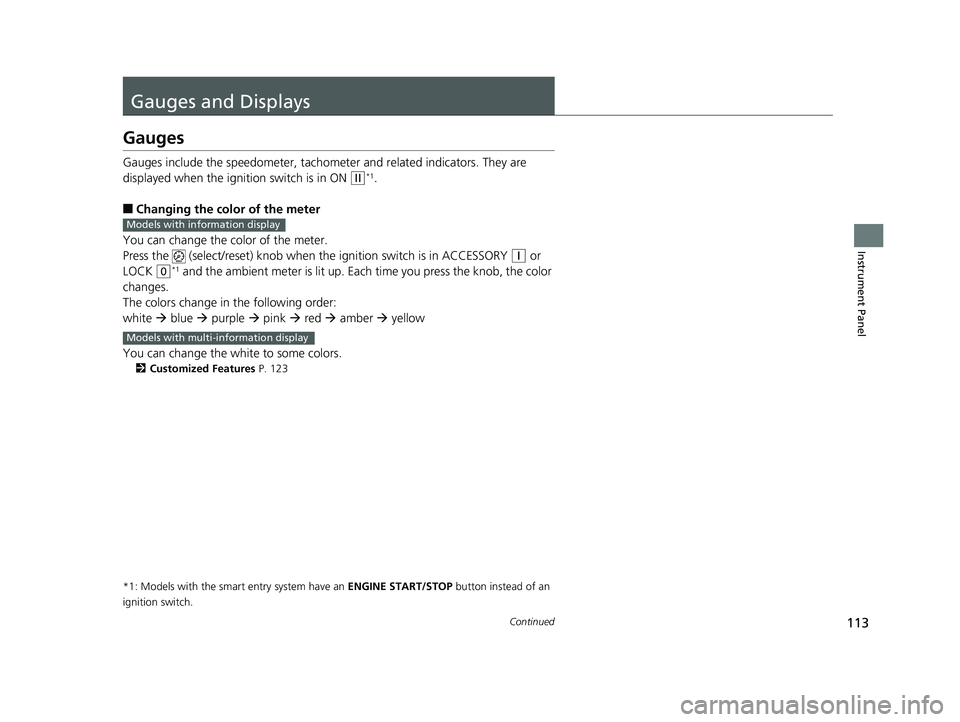

Page 115 of 639

113Continued
Instrument Panel
Gauges and Displays
Gauges
Gauges include the speedometer, tachometer and related indicators. They are
displayed when the ignition switch is in ON
(w*1.
■Changing the color of the meter
You can change the color of the meter.
Press the (select/reset) knob when the ignition switch is in ACCESSORY
(q or
LOCK
(0*1 and the ambient meter is lit up. Each time you press the knob, the color
changes.
The colors change in the following order:
white blue purple pink red amber yellow
You can change the white to some colors.
2 Customized Features P. 123
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with info rmation display
Models with multi- information display
