If you have recently ref ueled your
vehicle, the indicator could come on
because of a loose or missing f uel f ill
cap. Tighten the cap until it clicks at
least three times. Tightening the cap
will not turn the indicator of f
immediately; it takes at least three
days of normal driving.If the indicator remains on, or the
f uel cap was not loose or missing,
have your vehicle checked by the
dealer as soon as possible.
If the indicator comes on
while driving, it means one
of the engine’s emissions control
systems may have a problem. Even
though you may f eel no dif f erence in
your vehicle’s perf ormance, it can
reduce your f uel economy and cause
increased emissions. Continued
operation may cause serious damage.
Immediately turn of f all electrical
accessories. Try not to use other
electrically operated controls such as
the power windows. Keep the engine
running; starting the engine will
discharge the battery rapidly. If the charging system
indicator comes on brightly
when the engine is running, the
battery is not being charged.
Go to a service station or garage
where you can get technical
assistance. This indicator may also come on
along with the ‘‘D’’ indicator.
Charging System Indicator, Malf unction Indicator L amp
Malf unction Indicator L amp
Charging System Indicator
180
If you keep driving with the
Malf unction Indicator Lamp on, you
can damage your vehicle’s emissions
controls and the engine. Those repairs
may not be covered by your vehicle’s
warranties.

Your vehicle has certain ‘‘readiness
codes’’ that are part of the on-board
diagnostics f or the emissions
systems. In some states, part of the
emissions testing is to make sure
these codes are set. If they are not
set, the test cannot be completed.
If your 12 volt vehicle’s battery has
been disconnected or gone dead,
these codes are erased. It takes at
least three days of driving under
various conditions to set the codes
again.To check if they are set, turn the
ignition to ON (II), without starting
the engine. The malf unction
indicator lamp will come on f or 20
seconds.If itthengoesoff,the
readiness codes are set. If it blinks
f ive times, the readiness codes are
not set. If possible, do not take your
vehicle f or a state emissions test
until the readiness codes are set.
Refer to
f or more inf ormation (see page ).
202
Malf unction Indicator L amp
Readiness Codes
State Emissions T esting
T aking Care of t he Unexpect ed
181

The brake system
indicator normally
comesonwhenyou
turn the ignition switch to ON (II)
and as a reminder to check the
parking brake. It will stay lit if you do
not f ully release the parking brake.
If the brake system indicator comes
on while driving, the brake f luid level
is probably low. Press lightly on the
brake pedal to see if it f eels normal.
If it does, check the brake f luid level
thenexttimeyoustopataservice
station (see page ).
If the f luid level is low, take your
vehicle to a dealer, and have the
brake system inspected f or leaks or
worn brake pads. However, if the brake pedal does not
f eel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will f eel the brake
pedal go down much f arther bef ore
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
Slow down by shif ting to a lower
gear, and pull to the side of the road
when it is saf e. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed and repaired as
soon as possible (see
on page ). If you must drive the vehicle a short
distance in this condition, drive
slowly and caref ully.
145 183
Brake System Indicator
Emergency
Towing
182
U.S. Canada

µµ
µ
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
There are three popular types of
prof essional towing equipment.
The operator
loads your vehicle on the back of a
truck.
The tow
truck uses two pivoting arms that go
under the tires (f ront or rear) and lif t
them of f the ground. The other two
tires remain on the ground.
The tow
truck uses metal cables with hooks
on the ends. These hooks go around
parts of the f rame or suspension and the cables lif t that end of the vehicle
of f the ground. Your vehicle’s sus-
pension and body can be seriously
damaged.
If your vehicle cannot be transported
by f lat-bed, it should be towed by
wheel-lif t equipment with the f ront
wheels of f the ground. If , due to
damage, your vehicle must be towed
with the f ront wheels on the ground,
do the f ollowing:
Release the parking brake.
Shif t the transmission to Neutral.
Release the parking brake.
Start the engine.
ShifttoD,thentoN.
Turn of f the engine. With the f ront wheels on the ground,
it is best to tow the vehicle no farther
than 50 miles (80 km), and keep the
speedbelow35mph(55km/h).
If your vehicle is equipped with a
f ront spoiler, remove it bef ore
towing so it is not damaged.
5-speed Manual Transmission:
Automatic Transmission (CVT):
Emergency T owing
Flat -bed Equipment
Wheel-lif t Equipment
Sling-t ype Equipment
This is the best way to trans-
port your vehicle.
T his is
an acceptable way to tow your
vehicle. T his method of towing
is unacceptable.
T aking Care of t he Unexpect ed
183
Trying to lif t or tow your vehicle by the
bumpers will cause serious damage.
The bumpers are not designed to
support the vehicle’s weight. Improper towing preparation will
damage the transmission. Follow the
above procedure exactly. If you cannot
shif t the transmission or start the
engine (CVT), your vehicle must be
transported with the f ront wheels of f
the ground.

If your vehicle gets stuck in sand,
mud, or snow, call a towing service

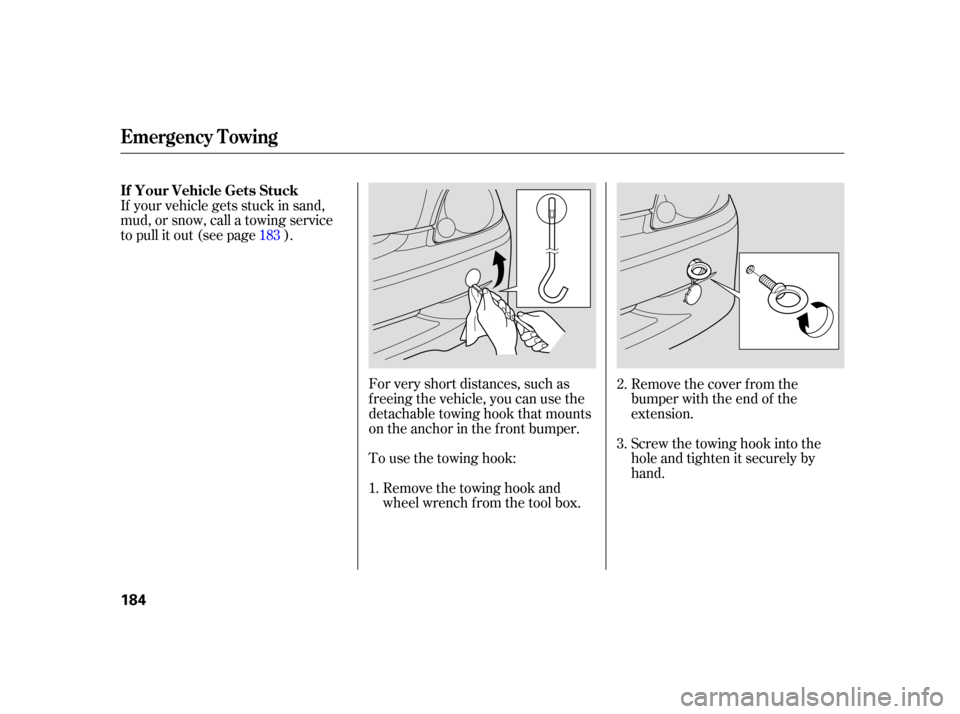

to pull it out (see page ).For very short distances, such as
f reeing the vehicle, you can use the
detachable towing hook that mounts
on the anchor in the f ront bumper.
To use the towing hook:Remove the towing hook and
wheel wrench f rom the tool box. Remove the cover f rom the
bumper with the end of the
extension.
Screw the towing hook into the
hole and tighten it securely by
hand.
1. 2.
3.
183
If Your Vehicle Gets Stuck
Emergency T owing
184

The under-hood f use box is in the
engine compartment. To open it,
pushthetabsasshown.If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine f rom the chart on pages
and , or the diagram on the
fuse box lid, which fuse or fuses
control that device. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
the cause. Replace any blown fuses,
andcheckif thedeviceworks.
Turn the ignition switch to LOCK
(0). Make sure the headlights and
all other accessories are of f .
Remove the cover f rom the f use
box.
The interior f use is underneath the
dashboard on the driver’s side.
Remove the storage pocket by
swinging the lid down, pushing up,
and pulling it straight out of its
hinges. 1.
2.188 189
CONT INUED
Checking and Replacing Fuses
Fuses
T aking Care of t he Unexpect ed
185
INTERIOR
TABUNDER-HOOD

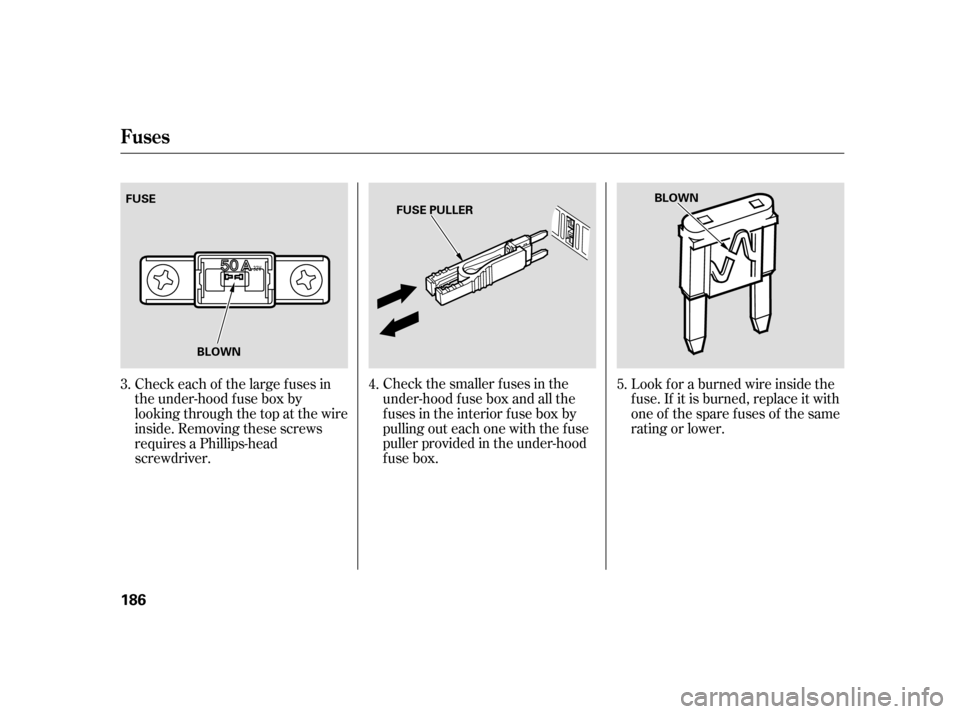

Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse box by
pulling out each one with the f use
puller provided in the under-hood
fuse box.Look f or a burned wire inside the
f use. If it is burned, replace it with
one of the spare f uses of the same
rating or lower.
Check each of the large f uses in
the under-hood f use box by
looking through the top at the wire
inside. Removing these screws
requires a Phillips-head
screwdriver.
3.
4.5.
Fuses
186
FUSE
BLOWN FUSE PULLER
BLOWN

If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘COdE’’ in the f requency
display. Use the preset buttons to
enter the f ive-digit code (see page).
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualif ied mechanic.
If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
6. 90
Fuses
T aking Care of t he Unexpect ed
187
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.

µµ
Î Î
Î
No. Amps. Circuits Protected
No.No.
Amps. Amps.
Circuits Protected Circuits Protected
1
2
3
4
5
6
7
8
9
10 10 A
15 A
20 A
7.5 A
7.5 A
7.5 A 15 A
20 A
7.5 A 20 A SRS
Fuel Pump, SRS
Front Wiper
FI-ECU
Turn Light
Meter
IG Coil
Power Window, Passenger
Starter Signal
Power Window, Driver 11
12
13
14
15
16
17
18
19 20
21
22
23
24
25
26
27
7.5 A 10 A
20 A
10 A
7.5 A
7.5 A
7.5 A
7.5 A 10 A
10 A
20 A
7.5 A
7.5 A
10 A
7.5 A
ACC Radio
ACC Socket
Not used
LAF Heater
Small Light
Air Conditioning, R/C
Mirror
Daytime Running Light
Back Up Light
Interior Light Radio
Daytime Running Light
Door Lock
Tailgate Lock
IMA
Not used
Rear Wiper
Back Light
: Canadian model only
Fuse Locations
188

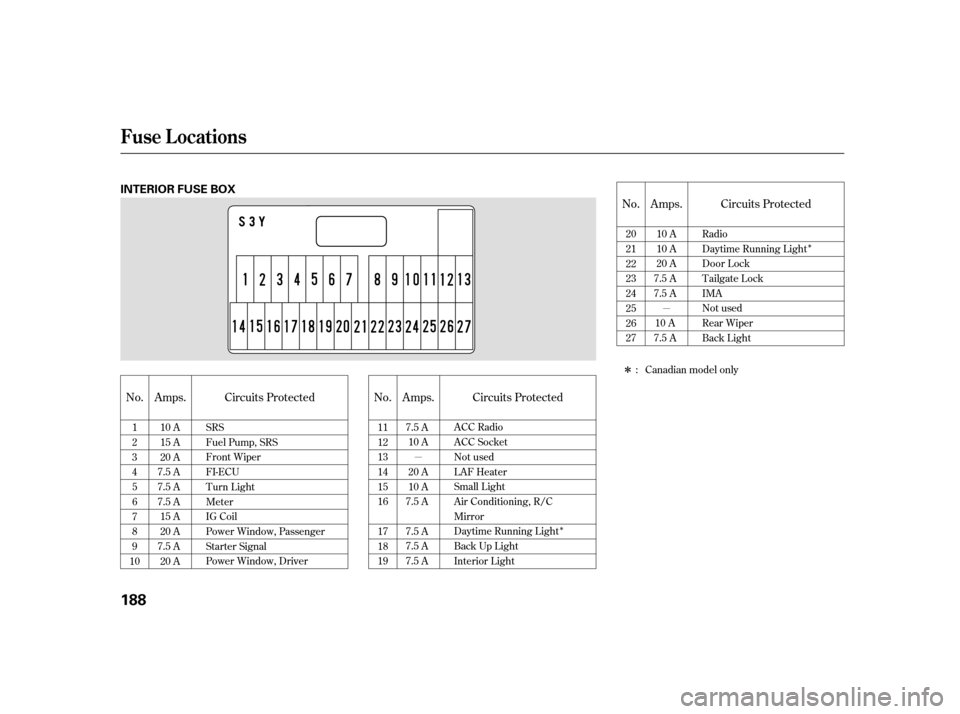

INTERIOR FUSE BOX

µ
µ
No.
No. Circuits Protected
Circuits Protected Amps.
Amps.
11
12
13
14
15
16
17
18
19
20
1
2
3
4
5
6
7
8
9
10 Cooling Fan
Heater Motor
Rear Defroster
ABS F/S
Power Steering
Back Up, ACC
Power Window
IMA ECU
Condenser Fan
Spare Fuse
IG1 Main
Battery
ABS Motor
Hazard
IMA
Horn Stop
Fuel Pump
Lef t Headlight
Not used
Right Headlight 30 A
40 A
30 A
20 A
40 A
30 A
40 A
7.5 A 20 A
50 A
80 A
30 A
10 A
15 A
10 A
15 A
15 A
15 A
Fuse Locations
T aking Care of t he Unexpect ed
189
