Your vehicle has several identif ying
numbers in various places.
The Vehicle Identif ication Number
(VIN) is the 17-digit number your
Honda dealer uses to register your
vehicle f or warranty purposes. It is
also necessary f or licensing and
insuring your vehicle. The easiest
placetofindtheVINisonaplate
fastened to the top of the dashboard.
Youcanseeitbylookingthrough
the windshield on the driver’s side. It
is also on the Certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
Certif ication label.
Identif ication Numbers
192

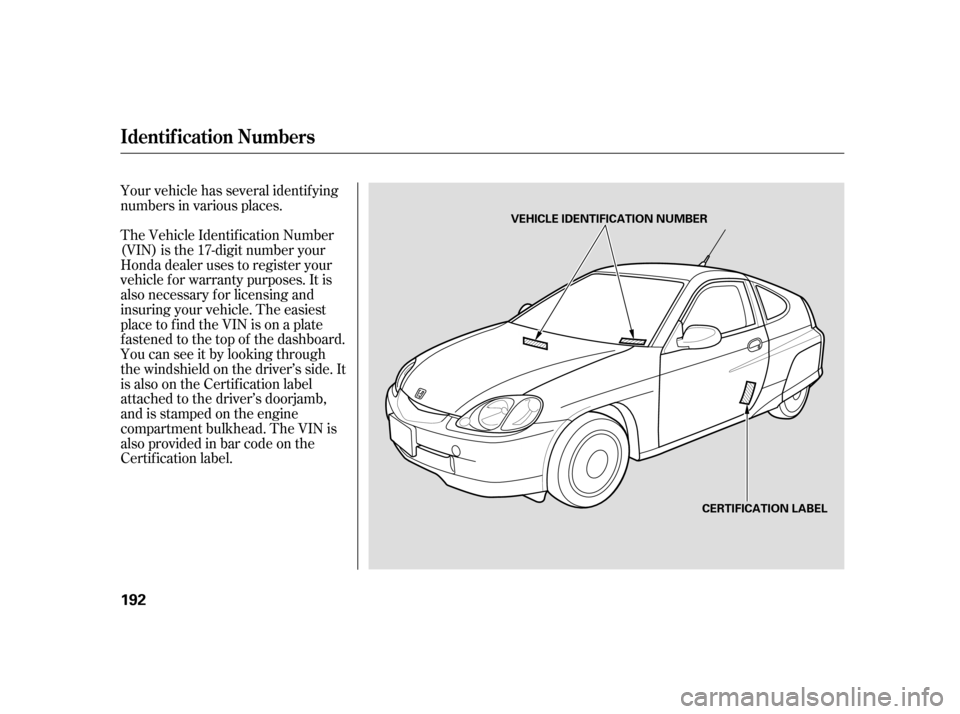

VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

The Engine Number is stamped into
the engine block.
The transmission number is on a
label on top of the transmission.
The IMA Motor Number is stamped
on the motor housing.
Identif ication Numbers
T echnical Inf ormation
193
ENGINE NUMBER
IMA MOTOR NUMBER
AUTOMATIC TRANSMISSION (CVT)
NUMBER TRANSMISSION NUMBER

ÎÎÎ
Î
Î
Î
Î
Î
Specif ications
194
Dimensions
Weights
EngineCapacities
66.7 in (1,695 mm)
53.3 in (1,355 mm)
94.5 in (2,400 mm)
56.5 in (1,435 mm)
52.2 in (1,325 mm) 10.6 US gal (40
)
155.0 in (3,938 mm)
0.61 US gal (2.3)
ILZFR5A-11 10.3 : 1 10.8 : 1
60.8 cu-in (995 cm
)
2.8x3.21in(72x81.5mm)
0.11 US gal (0.4
)
4.8 US qt (4.5
)
5.8 US qt (5.5)
3.5 US qt (3.3)
1.7 US qt (1.6
)
1.6 US qt (1.5)
3.2 US qt (3.0
)
2.4 US qt (2.3)
2.6 US qt (2.5)
Length
Width
Height
Wheelbase
Track
Gross vehicle weight rating
Type
BorexStroke
Displacement
Compression ratio
Spark plugs Fuel tank
Engine
coolant
Engine oil
Manual transmission
fluid
Automatic transmission
fluid (CVT)
Windshield washer reservoir
Including the coolant in the reserve tank and that remaining in the
engine.
Reserve tank capacity:
See the certification label attached
to the driver’s doorjamb.
Water cooled 4-strokeSOHC VTEC in line
3-cylinder gasoline engine 1.06 US gal (4.0
)
1.03 US gal (3.9)
Contact your Honda dealer when replacement is necessary. Front
Rear
Approx.
U.S. model
M/T
CVT
1: 2:
3:M/T
CVT
Change
Total
Change
Without filter
Total
Change
Total
Change
Total
4 : Excluding the oil remaining in the engine.
1 32
4
Including filter

µµµ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
µ
Î
Î
Specif ications
T echnical Inf ormation
195
Air Conditioning
Lights
12 Volt Battery Alignment
Tires
Fuses
HFC-134a (R-134a)
17.6 19.4 oz (500 550 g) SP-10
12 V 60/55 W (HB2) 0.00 in (0.0 mm)
0.12 in (3.0 mm)
0°1°
2°
P165/65R14 78S
T115/70D14 88M
12 V 21 W
12 V 5 W
12 V 12 V
21/5 W
21 W
12 V 18 W
12 V
12 V 5W
5W
12 V
12 V
5W
3.4 W
12V 27Ah/5HR 30 Ah/5 HR
12 V
Refrigerant type
Charge quantity
Lubricant type
Headlights (HI/LO)
Front turn signal lights
Front parking lights
Side marker lights
Rear turn signal lights
Brake/Taillights
Back-up lights
Trunk light
License plate light
Interior light
Capacity
Toe-in
Camber
Caster
Size
Pressure
Interior
Under-hood
See page
188or the fuse label
attached to the inside of the fuse
box door under the dashboard.
See page 189or the fuse box
cover. 38 psi (260 kPa , 2.6 kgf/cm
)
35 psi (240 kPa , 2.4 kgf/cm)
60 psi (420 kPa , 4.2 kgf/cm)
Front
Rear
Front
Rear
Front
Front/Rear
Spare
Front
Rear
Spare
U.S. model M/T
CVT

µ
The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.
Quality grades can be f ound where
applicable on the tire sidewall
between the tread shoulder and the
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades. The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices, and dif f erences in
road characteristics and climate.
The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
DOT T ire Quality Grading (U.S. Vehicles)
Unif orm T ire Quality Grading
T readwear 200
Traction AA
Temperature A Treadwear
Traction AA, A, B, C
196

µ
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law. Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not over-
loaded. Excessive speed, underinf la-
tion, or excessive loading, either
separately or in combination, can
cause heat buildup and possible tire
f ailure.
DOT T ire Quality Grading (U.S. Vehicles)
Temperature A,B,C
T echnical Inf ormation
197

µ
µ
µ
µµ
µ
µ
µµ
µ µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below. Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Tire Identif ication Number (TIN) is
a group of numbers and letters that
look like the f ollowing example TIN.
This indicates that the tire
meets all requirements of
the U.S. Department of
Transportation.Manuf acturer’s
identification mark.
Tire type code. Date of manufacture.
Whenever tires are replaced, they
should be replaced with tires of the
same size. The f ollowing is an
exampleof tiresizewithan
explanation of what each component
means.
Tire construction code (R
indicates radial). Aspect ratio (the tire’s section
height as a percentage of its
width). Tire width in millimeters. Vehicletype(Pindicates
passenger vehicle).
P
R DOT
B97R
FW6X2202
165
65 14
78
S
Tire Labeling
Tire Size
T ire Ident if icat ion Number
198
DOT B97R FW6X 2202
P165/65R14 78S

Î
ÎThe burning of gasoline in your
vehicle’s engine produces several by-
products. Some of these are carbon
monoxide (CO), oxides of nitrogen
(NOx), and hydrocarbons (HC).
Gasoline evaporating f rom the tank
also produces hydrocarbons.
Controlling the production of NOx,
CO, and HC is important to the
environment. Under certain
conditions of sunlight and climate,
NOx and HC react to f orm
photochemical ‘‘smog.’’ Carbon
monoxide does not contribute to
smog creation, but it is a poisonous
gas. The United States Clean Air Act
sets standards f or automobile
emissions. It also requires that
automobile manufacturers explain to
owners how their emissions controls
workandwhattodotomaintain
them. This section summarizes how
the emissions controls work.
Scheduled maintenance is on page
.
In Canada, Honda vehicles comply
with the Canadian emission
requirements, as specif ied in an
agreement with Environment
Canada, at the time they are
manuf actured.
Your vehicle has a positive
crankcase ventilation system. This
keeps gasses that build up in the
engine’s crankcase f rom going into
the atmosphere. The positive crankcase ventilation valve routes
them from the crankcase back to the
intake manif old. They are then
drawn into the engine and burned.
As gasoline evaporates in the f uel
tank, an evaporative emissions
control canister f illed with charcoal
adsorbs the vapor. It is stored in this
canister while the engine is of f . Af ter
the engine is started and warmed up,
the vapor is drawn into the engine
and burned during driving.
The onboard ref ueling vapor
recovery (ORVR) system captures
the f uel vapors during ref ueling. The
vapors are adsorbed in a canister
f illed with activated carbon. While
driving, the f uel vapors are drawn
into the engine and burned of f .
129
Emissions Cont rols
The Clean Air Act
Crankcase Emissions Control
System Evaporative Emissions Control
System
Onboard Ref ueling Vapor
Recovery
T echnical Inf ormation
199
