HONDA INSIGHT 2010 2.G Owners Manual

Turn Signal
OFF
Parking and interior lights
Headlights on
High Beams
Flashhighbeams
Rotate the switch
counterclockwise also to spray the
window washer and turn the wiper
on.
Hold past ON to activate the rear
window wiper a f ew times and to
spray the rear window washer. Rotate the switch clockwise to
turn the rear window wiper ON.
The wiper operates every 7
seconds af ter completing two
sweeps. When you turn the wiper switch to
the ‘‘OFF’’ position, the wiper will
return to its parked position. OFF Therearwindowwasherusesthe
same f luid reservoir as the wind-
shield washer. When you shif t the transmission to
the reverse position with the f ront
windshield wiper activated, the rear
wiper operates automatically even if
the rear wiper switch is of f .
1.
2.
3.
4.
5.
6.
4.
3. 1.
2. Turn Signal and Headlights
Rear Window Wiper and Washer
Windshield Wipers and Washers, Turn Signal and Headlights
118
—
—y


y
)"y
y
2010 Insight

µµ µPush down on the
lef t lever to signal a lef t turn and up
to signal a right turn. To signal a lane
change, push lightly on the lever and
hold it. The lever will return to the
center when you release it or
complete a turn. Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder.
This indicator stays on if you leave
the lights on and turn the ignition
switch to the ACCESSORY (I) or
LOCK (0) position.
If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
chime when you open the driver’s
door. Push the lef t lever
f orward until you hear a click. The
blue high beam indicator will come
on (see page ). Pull the lever back
to return to the low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back. 69
Turn Signal
HeadlightsHigh Beams
Turn Signals and Headlights
Inst rument s and Cont rols
119
—
—y


y
)"y
y
2010 Insight

With the headlight switch of f or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.If you see a ‘‘CHECK DRL
SYSTEM’’ message on the multi-
inf ormation display, there is a
problem with the daytime running
light system. Take your vehicle to a
dealer to have it checked.
Daytime Running L ights
Headlights
120
—
—y

y
)"y
y
2010 Insight

To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to theor position. Turning the
knob to the right until you hear a
tone will cancel the reduced
brightness.
The instrument panel will illuminate
with reduced brightness when you
unlock and open the driver’s door.
The brightness will increase slightly
when you insert the key in the
ignitionswitch,thengotonormal
brightness when you turn the
ignition switch to the ON (II)
position.
The knob on the instrument panel
controls the brightness of the
instrument panel lights. Turn the
knob to adjust the brightness with
the ignition switch in the ON (II)
position and the parking lights on. When you turn the knob, the multi-
inf ormation display changes to
vertical bars that show you the
current level.
You will hear a tone when you reach
the maximum or minimum
brightness. The brightness level
goes out about 5 seconds af ter you
stop adjusting.
CONT INUED
Instrument Panel Brightness
Inst rument s and Cont rols
121
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB
BRIGHTNESS LEVEL
—
—y

y
)"y
y
2010 Insight

If you do not insert the key in the
ignition switch af ter opening the
driver’s door, the illumination turns
of f about 30 seconds af ter you close
the door.
If you insert the key but do not turn
the ignition switch to the ON (II)
position, the illumination turns of f in
about 10 seconds.Push the button next to the audio
system to turn on the hazard
warning lights (f our-way f lashers).
This causes all f our outside turn
signal lights and both turn signal
indicators in the instrument panel to
f lash. Use the hazard warning lights
if you need to park in a dangerous
area near heavy traffic, or if your
vehicle is disabled. Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button
122
HAZARD WARNING BUTTON
—
—y

y
)"y
y
2010 Insight

The def ogger will shut itself of f
within about 10 to 30 minutes
according to the outside temperature
(over 32°F, 0°C).
Make sure all rear windows are clear
and you have good visibility bef ore
starting to drive.Pushing this button also turns the
mirror heaters on or of f . For more
inf ormation, see page .
The def ogger and antenna wires on
the inside of all rear windows can be
accidentally damaged. When
cleaning the glass, always wipe side-
to-side.
The rear window def ogger will clear
fog, frost, and thin ice from the
windows. Push the def ogger button
to turn it on and off. The indicator in
the button comes on to show the
def ogger is on. It also shuts of f when
you turn of f the ignition switch. You
have to turn the defogger on again
when you restart the vehicle. 145U.S. EX models and all Canadian models
Rear Window Def ogger
Inst rument s and Cont rols
123
U.S. EX model is shown.
—
—y

y
)"y
y
2010 Insight

Press the ECON button to activate
the ECON mode. ECON ON will be
displayed on the multi-inf ormation
display and the ECON mode
indicator will illuminate in the
instrument panel. Press the ECON
button again to turn it off. ECON
OFF will appear on the multi-
inf ormation display.
The ECON button turns the ECON
mode on and of f . The ECON mode
helps you improve your f uel
economy by modif ying some vehicle
functions. When the ECON mode is
on: In addition, when the ECON mode is
on, you may get more Ecological
Drive Assist points (see page ).The climate control system will
have greater temperature
f luctuations Engine perf ormance will be
dif f erent Whenyouturnoff andthenrestart
the engine, the ECON mode setting
remains the same as previously set.
304
ECON Button
124
MULTI-INFORMATION DISPLAY
ECON BUTTON ECON MODE INDICATOR
—
—y


y
)"y
y
2010 Insight

Move the steering wheel so it
points toward your chest, not
toward your f ace. Make sure you
can see the instrument panel
gauges and indicators.
Make any steering wheel
adjustments before you start driving.
Pull the lever under the steering
column toward you until it stops.Push the lever f orward f ully to
lock the steering wheel in position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out. Make sure the lever is positioned
securely at the bottom of the
steeringcolumnasshown.
1. 3.
4.
2.
Steering Wheel A djustments
Inst rument s and Cont rols
125
To adjust To lock LEVERAdjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
—
—y

y
)"y
y
2010 Insight

These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.

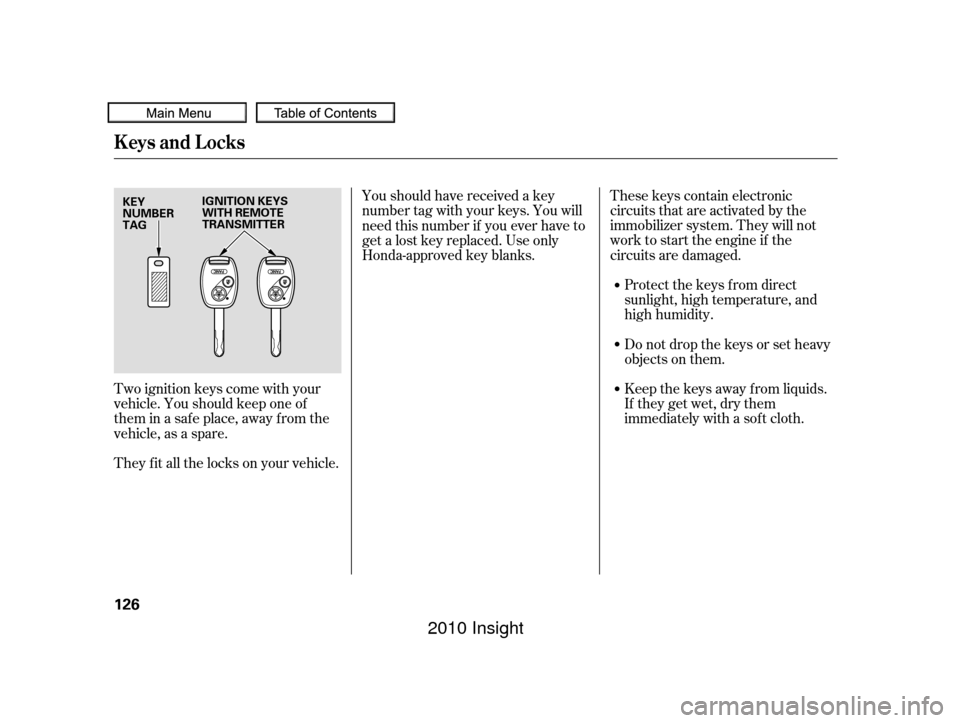

Two ignition keys come with your
vehicle. You should keep one of
them in a saf e place, away f rom the
vehicle, as a spare.
They f it all the locks on your vehicle. Youshouldhavereceivedakey
number tag with your keys. You will
need this number if you ever have to
get a lost key replaced. Use only
Honda-approved key blanks.
Keys and Locks
126
KEY
NUMBER
TAG
IGNITION KEYS
WITH REMOTE
TRANSMITTER
—
—y

y
)"y

y
2010 Insight

If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
If you lose your key and you cannot
start the engine, contact your dealer.
The immobilizer system protects
your vehicle f rom thef t. If an
improperly coded key (or other
device) is used, the engine’s f uel
system is disabled.
When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on
brief ly, then go of f . If the indicator
starts to blink, it means the system
does not recognize the coding of the
key. Turn the ignition switch to the
LOCK (0) position, remove the key,
reinsert it, and turn the ignition
switch to the ON (II) position again.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer System
Inst rument s and Cont rols
127
Always take the ignition key with you
whenever you leave the vehicle alone.
—
