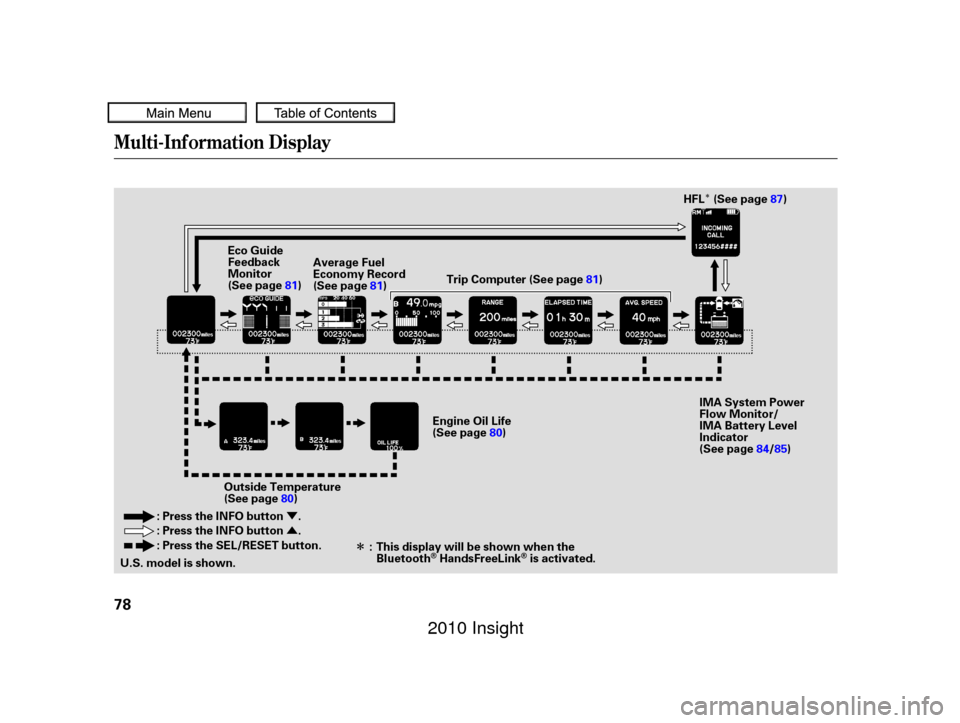

Multi-Inf ormation Display
78
U.S. model is shown.
:
This display will be shown when the
BluetoothHandsFreeLinkis activated. IMA System Power
Flow Monitor/
IMA Battery Level
Indicator
(See page
84/85)
: Press the INFO button .
: Press the INFO button .
: Press the SEL/RESET button. HFL (Seepage87
)
Average Fuel
Economy Record
(See page 81)
Engine Oil Life
(See page80)
Outside Temperature
(See page 80) Trip Computer (See page
81)
Eco Guide
Feedback
Monitor
(See page
81)
—
—y

y
)"yy
2010 Insight

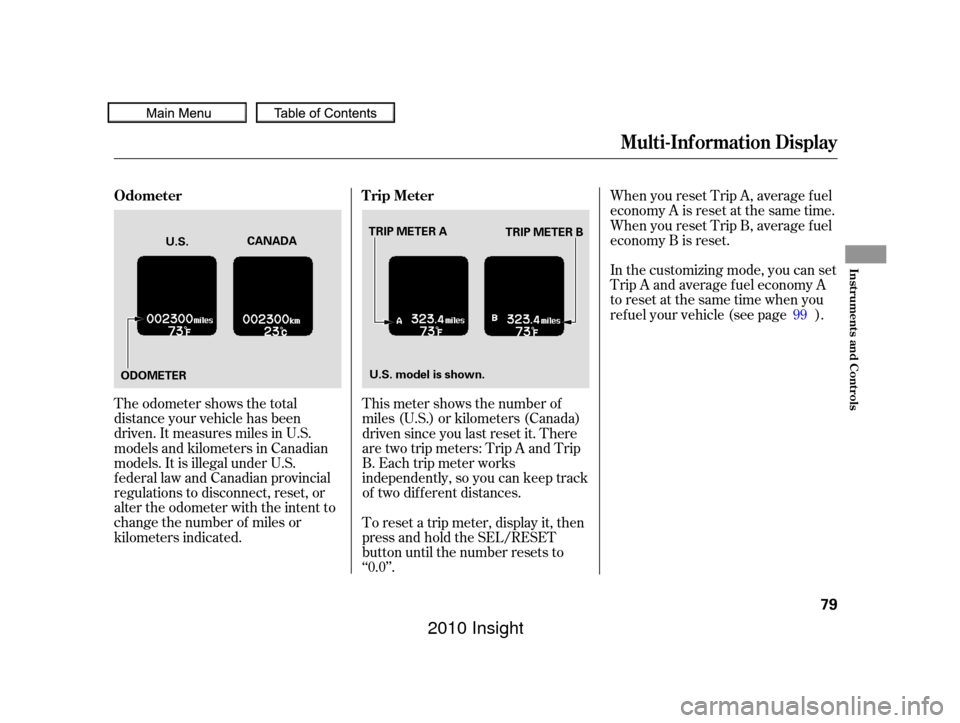

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
change the number of miles or
kilometers indicated.This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it. There
are two trip meters: Trip A and Trip
B. Each trip meter works
independently, so you can keep track
of two dif f erent distances.When you reset Trip A, average f uel
economy A is reset at the same time.
When you reset Trip B, average f uel
economy B is reset.
In the customizing mode, you can set
Trip A and average f uel economy A
to reset at the same time when you
ref uel your vehicle (see page ).
To reset a trip meter, display it, then
press and hold the SEL/RESET
button until the number resets to
‘‘0.0’’. 99
Odometer
T rip Meter
Multi-Inf ormation Display
Inst rument s and Cont rols
79
TRIP METER A
TRIP METER B
ODOMETER U.S. model is shown.
U.S.
CANADA
—
—y

y
)"yy
2010 Insight

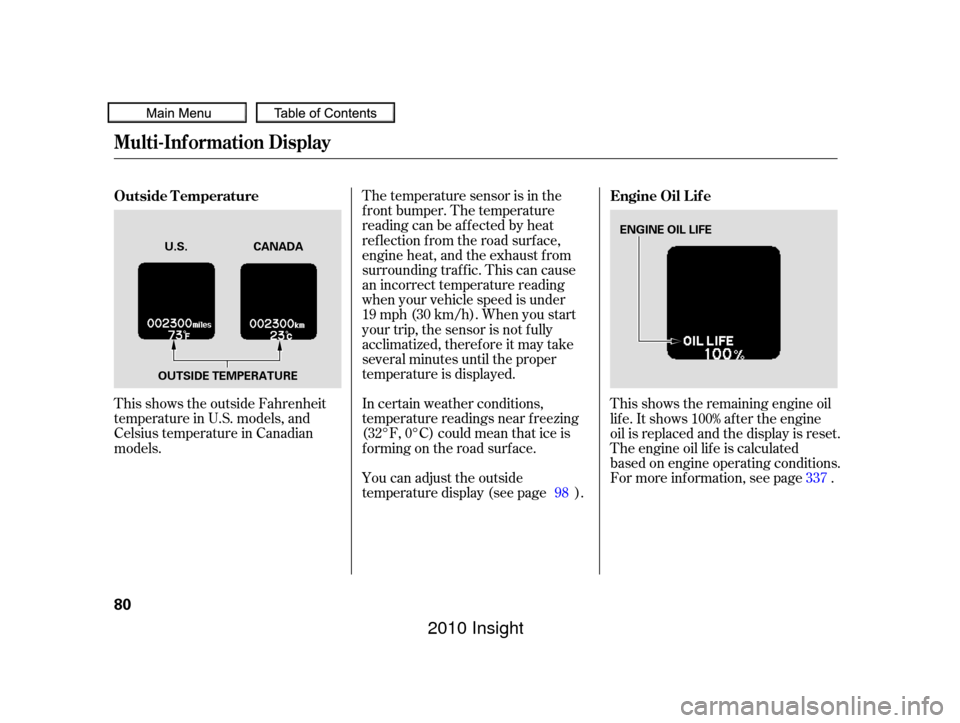

This shows the outside Fahrenheit
temperature in U.S. models, and
Celsius temperature in Canadian
models.In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
You can adjust the outside
temperature display (see page ). The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
This shows the remaining engine oil
lif e. It shows 100% af ter the engine
oil is replaced and the display is reset.
The engine oil lif e is calculated
based on engine operating conditions.
For more inf ormation, see page .337
98
Outside Temperature
Engine Oil Lif e
Multi-Inf ormation Display
80
OUTSIDE TEMPERATURE ENGINE OIL LIFE
U.S. CANADA
—
—y

y
)"yy
2010 Insight

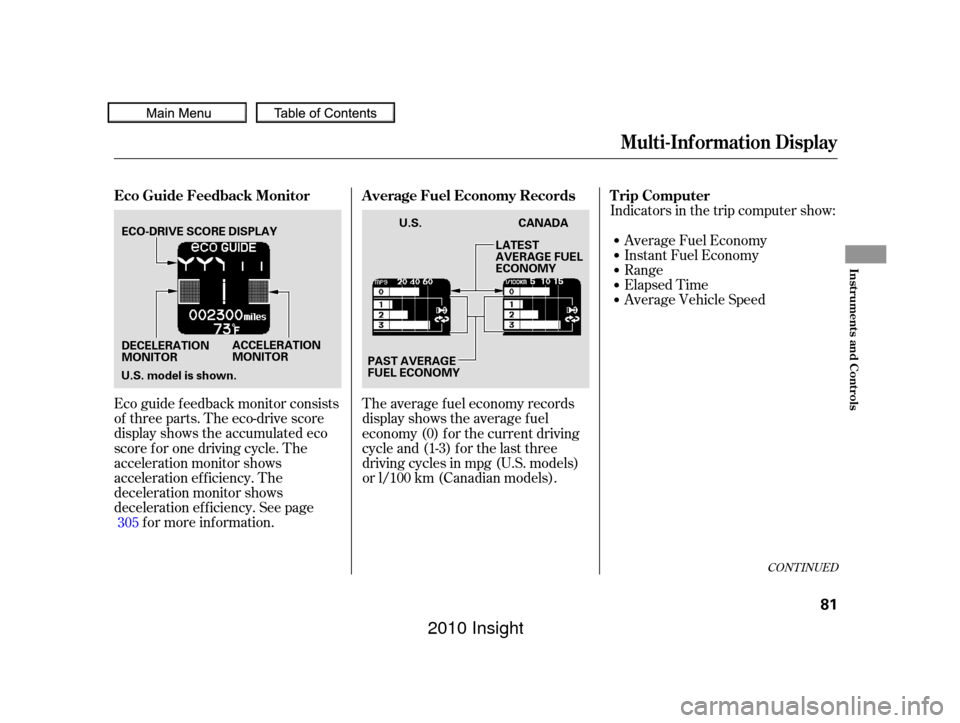

Eco guide f eedback monitor consists
of three parts. The eco-drive score
display shows the accumulated eco
score f or one driving cycle. The
acceleration monitor shows
acceleration ef f iciency. The
deceleration monitor shows
deceleration ef f iciency. See pagef or more inf ormation. The average f uel economy records
display shows the average f uel
economy (0) f or the current driving
cycle and (1-3) f or the last three
driving cycles in mpg (U.S. models)
or l/100 km (Canadian models). Indicators in the trip computer show:
Average Fuel Economy
Range
Elapsed Time
Average Vehicle Speed Instant Fuel Economy
305
CONT INUED
Eco Guide Feedback Monitor A verage Fuel Economy Records T rip Computer
Multi-Inf ormation Display
Inst rument s and Cont rols
81
U.S. model is shown. DECELERATION
MONITOR
ACCELERATION
MONITOR LATEST
AVERAGE FUEL
ECONOMY
PAST AVERAGE
FUEL ECONOMY
ECO-DRIVE SCORE DISPLAY
U.S.
CANADA
—
—y


y
)"yy
2010 Insight

Mile indication (U.S. models)Kilometer indication (Canadian models) Average Fuel Economy A
Average Fuel Economy B

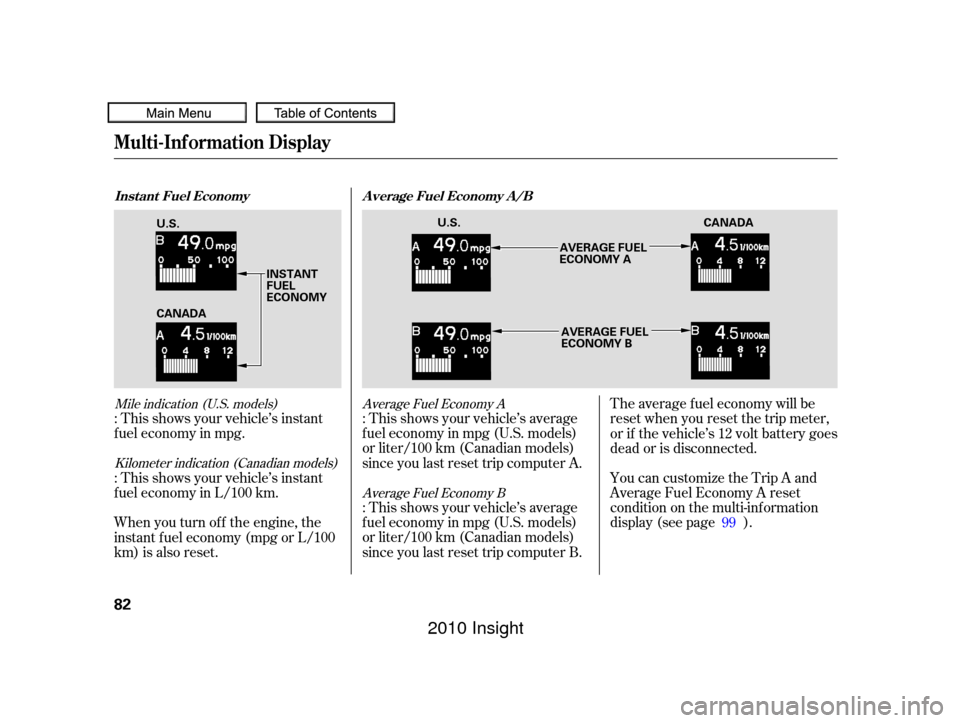

: This shows your vehicle’s instant
f uel economy in mpg. : This shows your vehicle’s average
f uel economy in mpg (U.S. models)
or liter/100 km (Canadian models)
since you last reset trip computer A.
: This shows your vehicle’s average
f uel economy in mpg (U.S. models)
or liter/100 km (Canadian models)
since you last reset trip computer B.You can customize the Trip A and
Average Fuel Economy A reset
condition on the multi-information
display (see page ).
: This shows your vehicle’s instant
f uel economy in L/100 km.
When you turn of f the engine, the
instant f uel economy (mpg or L/100
km) is also reset. The average f uel economy will be
reset when you reset the trip meter,
or if the vehicle’s 12 volt battery goes
dead or is disconnected.
99
A verage Fuel Economy A /B
Inst ant Fuel Economy
Multi-Inf ormation Display
82
U.S.
CANADA AVERAGE FUEL
ECONOMY A
AVERAGE FUEL
ECONOMY B CANADA
U.S.
INSTANT
FUEL
ECONOMY
—
—y

y
)"yy
2010 Insight

This shows the average speed you
are traveling in miles per hour (mph)
f or U.S. models or kilometers per
hour (km/h) f or Canadian models.
This shows the accumulated
traveling time since you last reset it.
When you turn the ignition switch to
the ON (II) position, ELAPSED
TIME is reset.
This shows the estimated distance
you can travel on the fuel remaining
in the f uel tank. This distance is
estimated f rom the f uel economy
you received over the last several
miles(U.S.) or kilometers (Canada),
so it will vary with changes in speed,
traf f ic, etc.
If you want to reset the ELAPSED
TIME manually, go to the trip
computer’s ELAPSED TIME display,
andpressandholdtheSEL/RESET
button until the number resets.
You can customize the ELAPSED
TIME reset conditions on the multi-
inf ormation display (see page ).To reset the AVG. SPEED reading,
press and hold the SEL/RESET
button until the number resets.
100
EL A PSED T IME
RANGE A VG. SPEED
Multi-Inf ormation Display
Inst rument s and Cont rols
83
—
—y

y
)"yy
2010 Insight

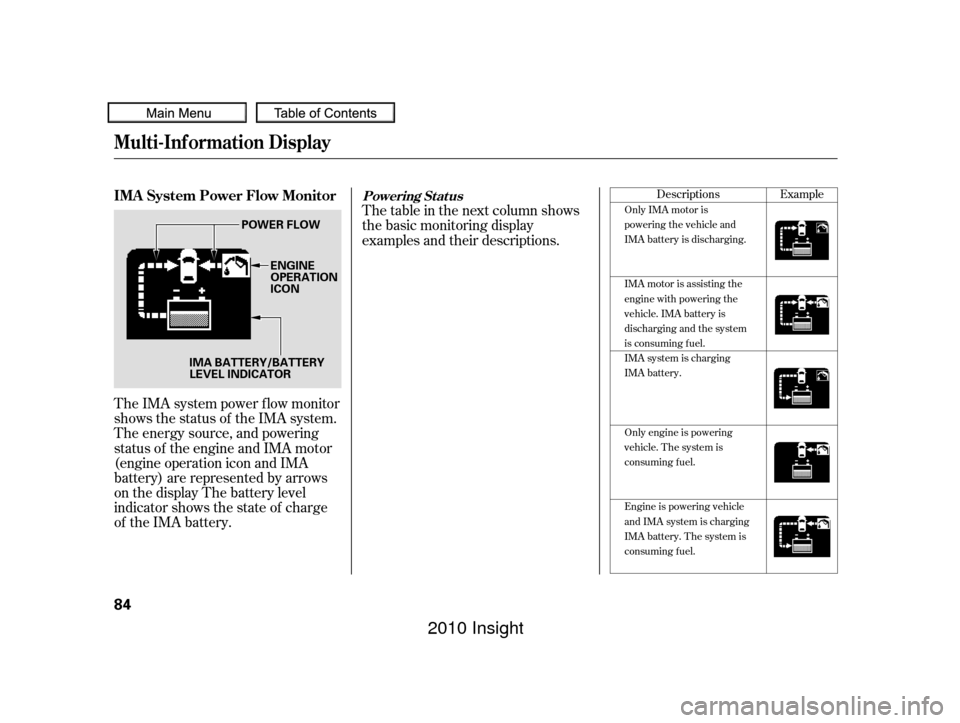

The IMA system power f low monitor
shows the status of the IMA system.
The energy source, and powering
status of the engine and IMA motor
(engine operation icon and IMA
battery) are represented by arrows
on the display The battery level
indicator shows the state of charge
of the IMA battery.The table in the next column shows
the basic monitoring display
examples and their descriptions.
Example
Descriptions
Only IMA motor is
powering the vehicle and
IMA battery is discharging.
IMA motor is assisting the
engine with powering the
vehicle. IMA battery is
discharging and the system
is consuming fuel.
IMA system is charging
IMA battery.
Only engine is powering
vehicle. The system is
consuming f uel.
Engine is powering vehicle
and IMA system is charging
IMA battery. T he system is
consuming f uel.IMA System Power Flow MonitorPowering Status
Multi-Inf ormation Display
84
IMA BATTERY/BATTERY
LEVEL INDICATOR POWER FLOW
ENGINE
OPERATION
ICON
—
—y

y
)"yy
2010 Insight

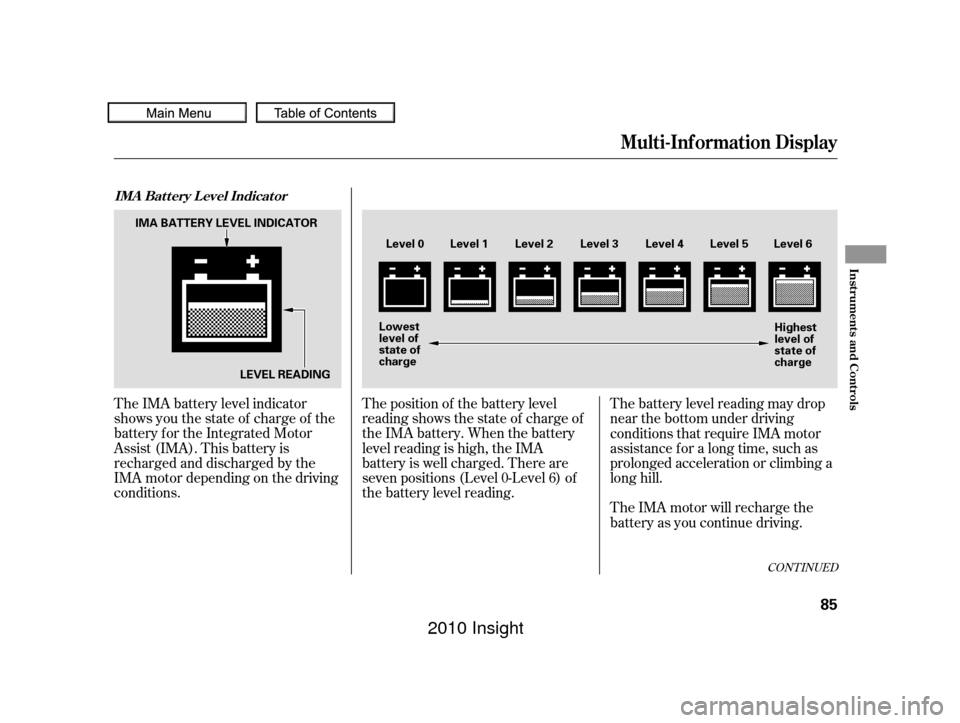

The IMA battery level indicator
shows you the state of charge of the
battery for the Integrated Motor
Assist (IMA). This battery is
recharged and discharged by the
IMA motor depending on the driving
conditions.The position of the battery level
reading shows the state of charge of
the IMA battery. When the battery
level reading is high, the IMA
battery is well charged. There are
seven positions (Level 0-Level 6) of
the battery level reading.The battery level reading may drop
near the bottom under driving
conditions that require IMA motor
assistance f or a long time, such as
prolonged acceleration or climbing a
long hill.
The IMA motor will recharge the
battery as you continue driving.
CONT INUED
IMA Bat t ery L evel Indicat or
Multi-Inf ormation Display
Inst rument s and Cont rols
85
LEVEL READING
Lowest
level of
state of
charge
Highest
level of
state of
charge
IMA BATTERY LEVEL INDICATOR
Level 0 Level 1 Level 2 Level 3 Level 4 Level 5 Level 6
—
—y

y
)"yy
2010 Insight

On vehicle with paddle shif tersOn vehicle without paddle shif ters
The IMA battery is charged at a
higher rate when the transmission is
in L (Low) mode (see page ).
The battery level gauge does not
read the battery level directly. It
calculates the level by continuously
measuring the current f low, voltage,
and temperature. If the battery is mostly discharged,
the Auto Idle Stop f unction is
disabled (see page ). The IMA battery is charged at a
higher rate when the transmission is
in LOW (L) range (see page ). Since the level is not read directly,
small sensing errors can, over time,
cause the gauge to read higher than
the actual battery level. The system
will then perf orm a correction, and
the battery level gauge reading will
drop suddenly. When this happens,
IMA assist and Auto Idle Stop are
disabled until the IMA battery is
suf f iciently recharged by normal
driving.This correction of the battery level
gauge is normal and does not
indicate a problem. If the IMA
battery develops a problem or
becomes deteriorated, the IMA
system indicator will come on. If this
happens, have the vehicle checked
by your dealer as soon as possible.
320
314
322
Multi-Inf ormation Display
86
—
—y

y
)"y
y
2010 Insight

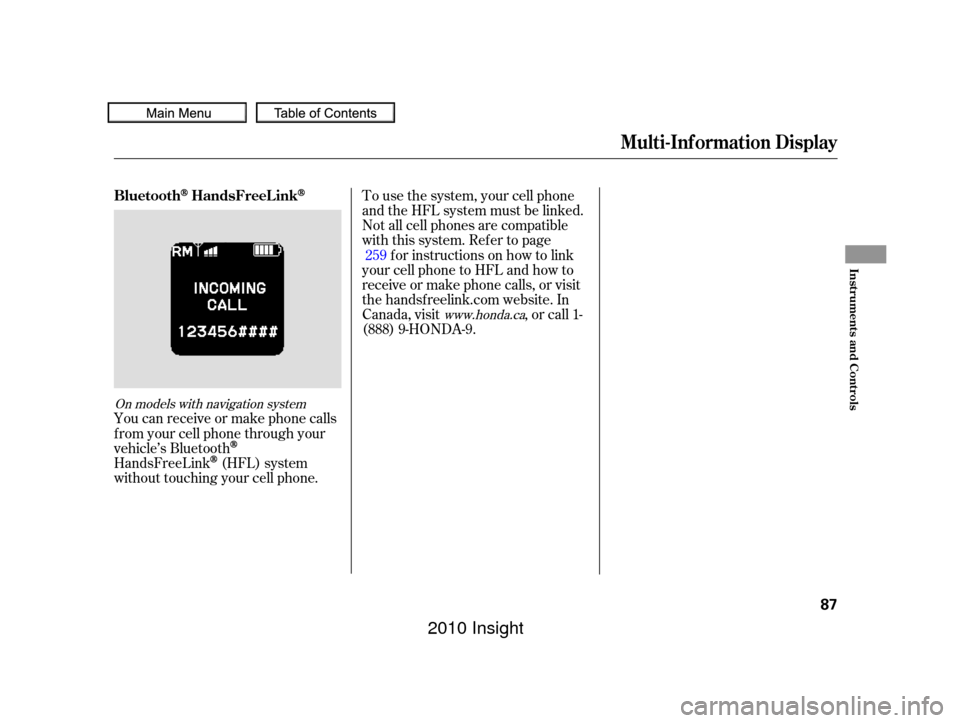

To use the system, your cell phone
and the HFL system must be linked.
Not all cell phones are compatible
with this system. Ref er to pagefor instructions on how to link
your cell phone to HFL and how to
receive or make phone calls, or visit
the handsf reelink.com website. In
Canada, visit , or call 1-
(888) 9-HONDA-9.
You can receive or make phone calls
f rom your cell phone through your
vehicle’s Bluetooth
HandsFreeLink(HFL) system
without touching your cell phone. 259
www.honda.ca
On models with navigation system
BluetoothHandsFreeL ink
Multi-Inf ormation Display
Inst rument s and Cont rols
87
—
—y

y
)"yy
