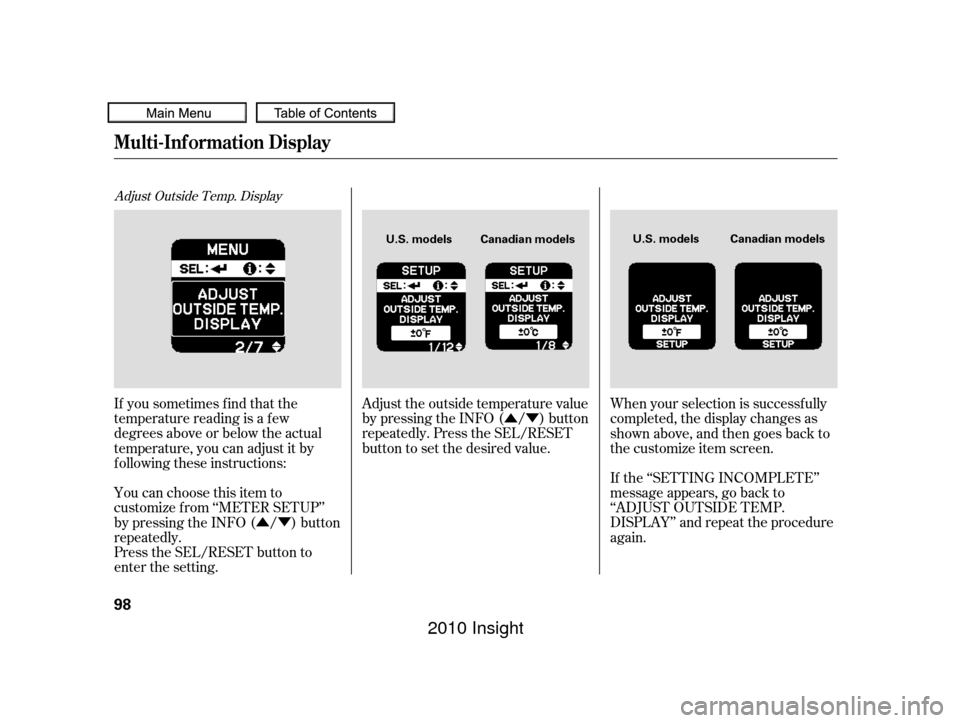

Adjust Outside Temp. Display
If you sometimes f ind that the
temperature reading is a f ew
degrees above or below the actual
temperature, you can adjust it by
f ollowing these instructions: Adjust the outside temperature value
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET
button to set the desired value.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ADJUST OUTSIDE TEMP.
DISPLAY’’ and repeat the procedure
again.
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly.
Press the SEL/RESET button to
enter the setting.
Multi-Inf ormation Display
98
Canadian models
Canadian models
U.S. models
U.S. models
—
—y


y
)"y
y
2010 Insight

ÛÝ
ÛÝ Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customize item screen.

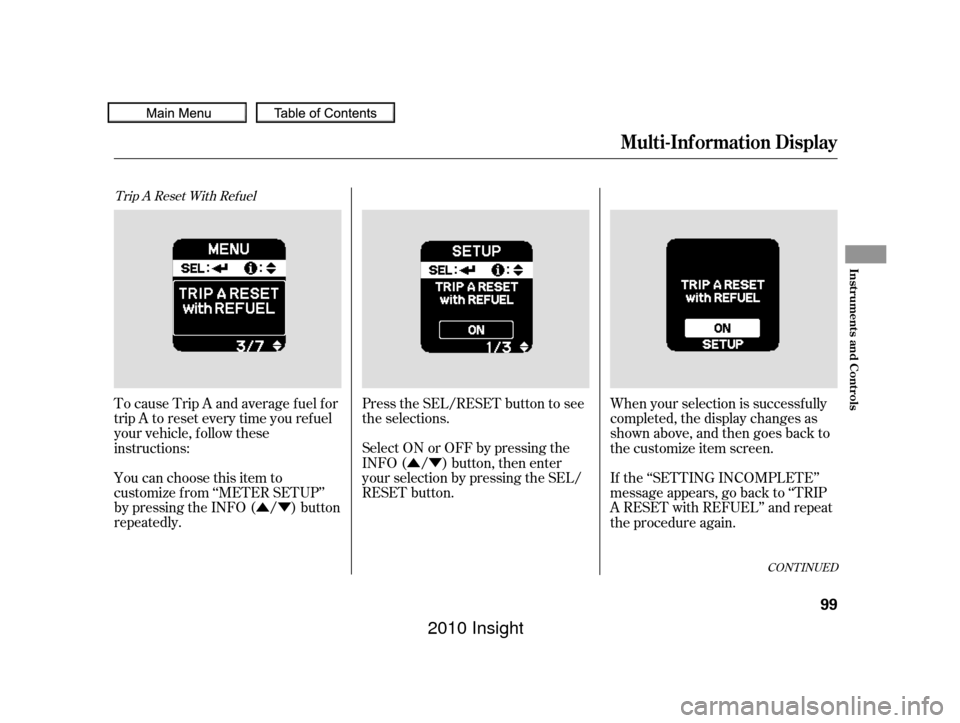

To cause Trip A and average fuel for
trip A to reset every time you ref uel
your vehicle, f ollow these
instructions:
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. If the ‘‘SETTING INCOMPLETE’’
message appears, go back to ‘‘TRIP
A RESET with REFUEL’’ and repeat
the procedure again.
Trip A Reset With Ref uel
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
99
—
—y

y
)"y
y
2010 Insight

ÛÝÛÝ
µ
µ
µ

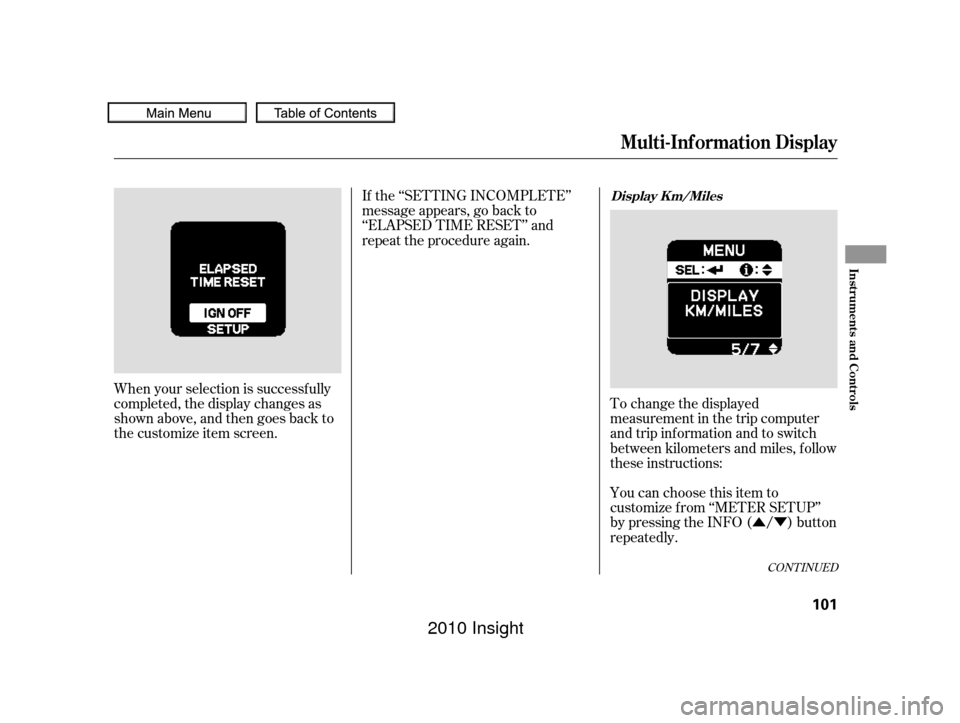

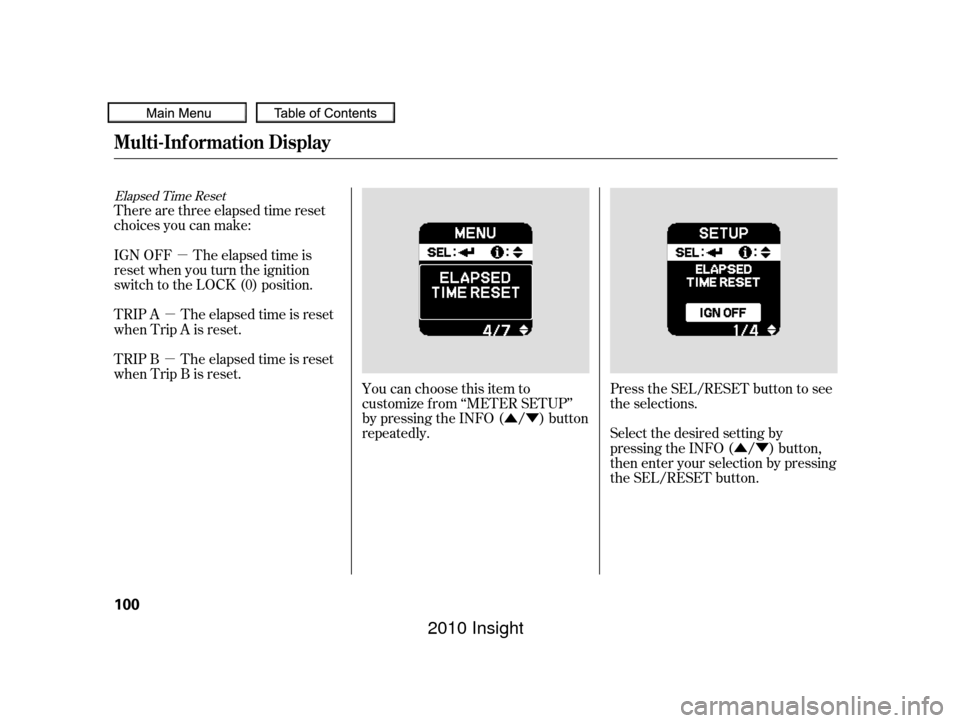

Elapsed Time Reset
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET button to see
the selections.
Select the desired setting by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button.
There are three elapsed time reset
choices you can make:
IGN OFF The elapsed time is
reset when you turn the ignition
switch to the LOCK (0) position.
TRIP A The elapsed time is reset
when Trip A is reset.
TRIP B The elapsed time is reset
when Trip B is reset.
Multi-Inf ormation Display
100
—
—y

y
)"y
y
2010 Insight

ÛÝ
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customize item screen. If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘ELAPSED TIME RESET’’ and
repeat the procedure again.
To change the displayed
measurement in the trip computer
and trip inf ormation and to switch
between kilometers and miles, f ollow
these instructions:
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly.
CONT INUED
Multi-Inf ormation Display

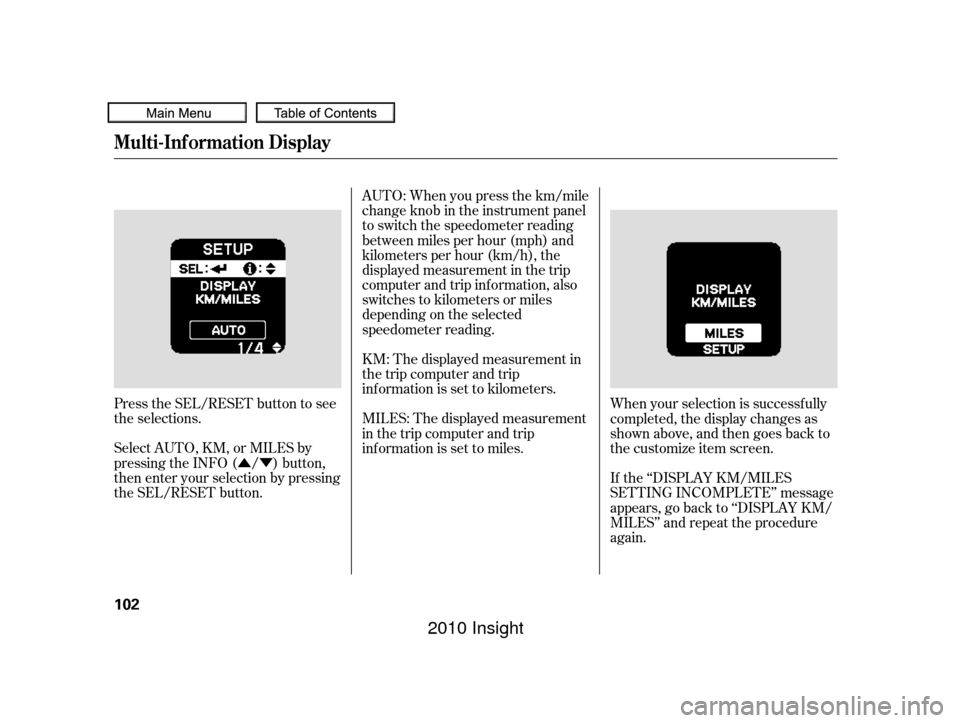

Display K m/Miles
Inst rument s and Cont rols
101
—
—y

y
)"y
y
2010 Insight

ÛÝ
Press the SEL/RESET button to see
the selections.
Select AUTO, KM, or MILES by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button. AUTO: When you press the km/mile
change knob in the instrument panel
to switch the speedometer reading
between miles per hour (mph) and
kilometers per hour (km/h), the
displayed measurement in the trip
computer and trip inf ormation, also
switches to kilometers or miles
depending on the selected
speedometer reading.
KM: The displayed measurement in
the trip computer and trip
inf ormation is set to kilometers.
MILES: The displayed measurement
in the trip computer and trip
inf ormation is set to miles.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘DISPLAY KM/MILES
SETTING INCOMPLETE’’ message
appears, go back to ‘‘DISPLAY KM/
MILES’’ and repeat the procedure
again.
Multi-Inf ormation Display
102
—
—y



y
)"y
y
2010 Insight

ÛÝÛÝ

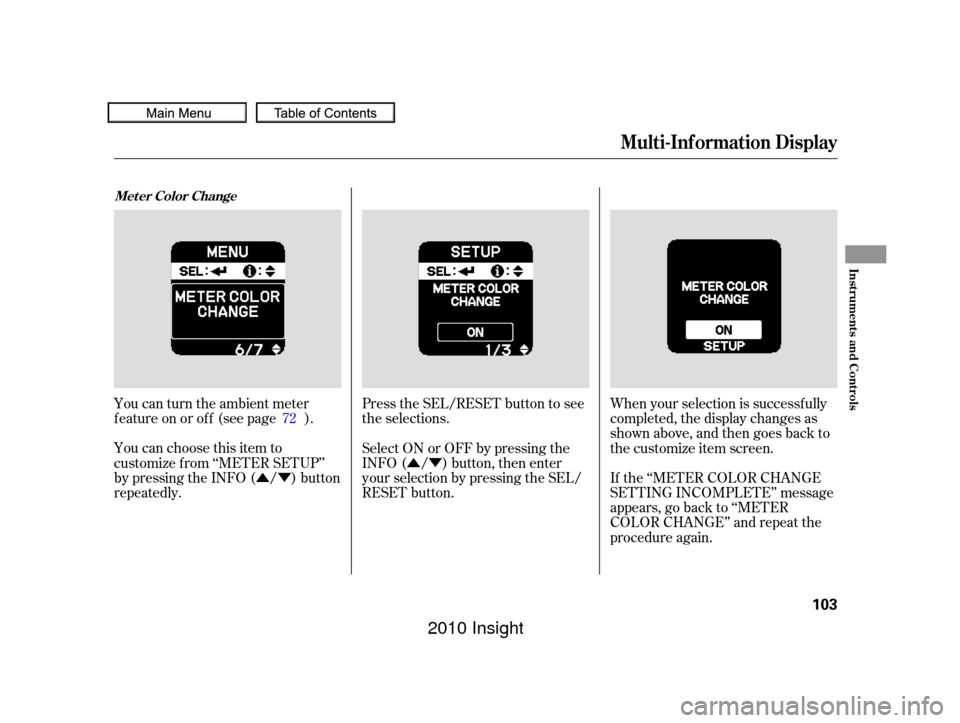

You can turn the ambient meter
feature on or off (see page ).
You can choose this item to
customize f rom ‘‘METER SETUP’’
by pressing the INFO ( / ) button
repeatedly. Press the SEL/RESET button to see
the selections.
Select ON or OFF by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘METER COLOR CHANGE
SETTING INCOMPLETE’’ message
appears, go back to ‘‘METER
COLOR CHANGE’’ and repeat the
procedure again.
72
Met er Color Change
Multi-Inf ormation Display
Inst rument s and Cont rols
103
—
—y


y
)"y
y
2010 Insight

Û
Ý
ÛÝ
Ý
Û

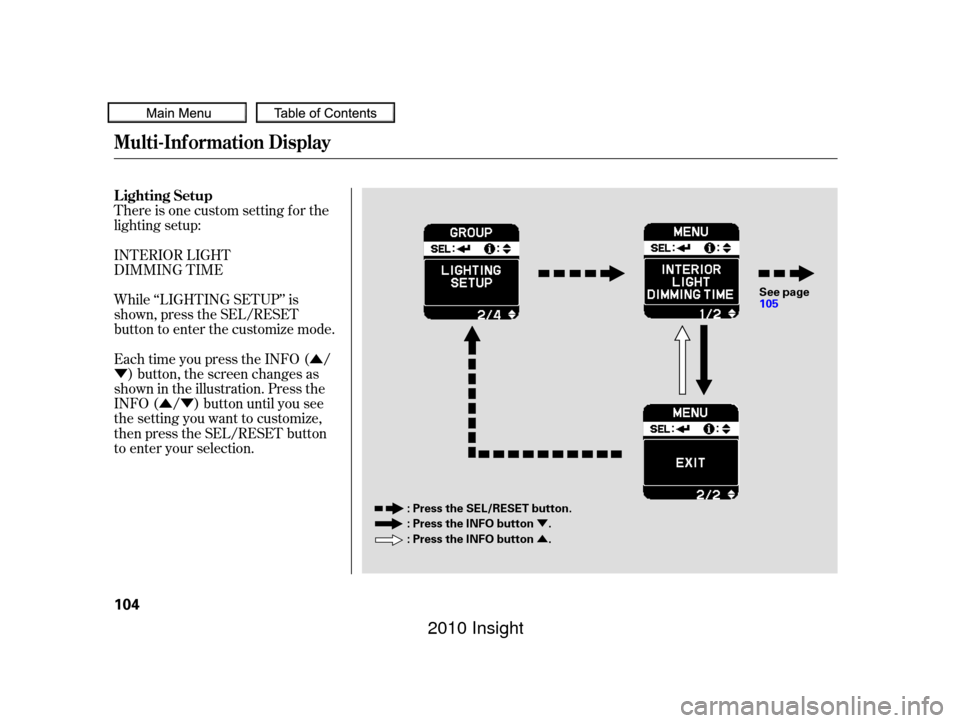

There is one custom setting f or the
lighting setup:
INTERIOR LIGHT
DIMMING TIME
While ‘‘LIGHTING SETUP’’ is
shown, press the SEL/RESET
button to enter the customize mode.
Each time you press the INFO ( /) button, the screen changes as
shown in the illustration. Press the
INFO ( / ) button until you see
the setting you want to customize,
then press the SEL/RESET button
to enter your selection. Lighting Setup
Multi-Inf ormation Display
104
: Press the SEL/RESET button.
: Press the INFO button .
: Press the INFO button . See page
105
—
—y

y
)"y
y
2010 Insight

Û
Ý ÛÝ

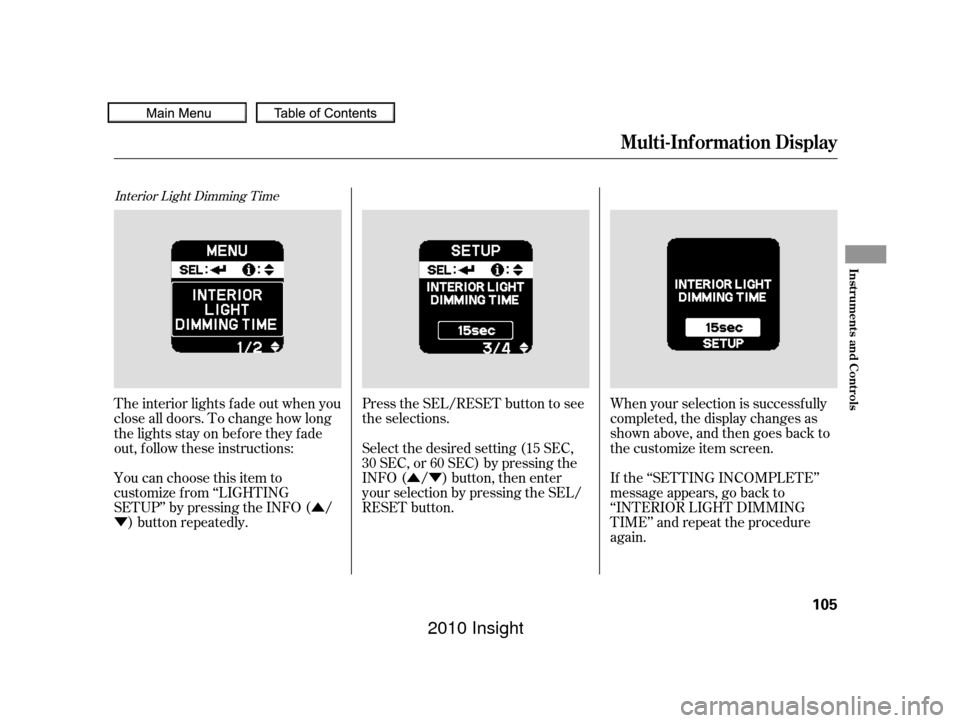

Interior Light Dimming Time
Press the SEL/RESET button to see
the selections.
When your selection is successf ully
completed, the display changes as
shown above, and then goes back to
the customize item screen.
If the ‘‘SETTING INCOMPLETE’’
message appears, go back to
‘‘INTERIOR LIGHT DIMMING
TIME’’ and repeat the procedure
again.
The interior lights f ade out when you
close all doors. To change how long
thelightsstayonbeforetheyfade
out, f ollow these instructions:
You can choose this item to
customize f rom ‘‘LIGHTING
SETUP’’ by pressing the INFO ( /
) button repeatedly. Select the desired setting (15 SEC,
30 SEC, or 60 SEC) by pressing the
INFO ( / ) button, then enter
your selection by pressing the SEL/
RESET button.
Multi-Inf ormation Display
Inst rument s and Cont rols
105
—
—y

y
)"y

y
2010 Insight

Û
Ý
ÛÝ
ÛÝ
AUTO DOOR LOCK

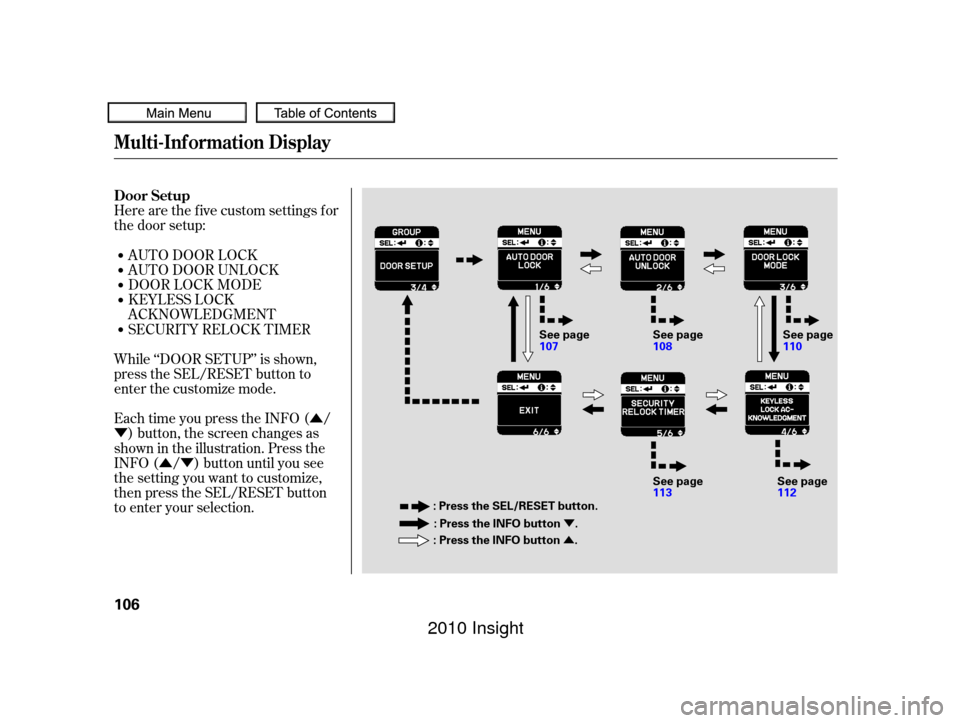

Here are the five custom settings for
the door setup:
While ‘‘DOOR SETUP’’ is shown,
press the SEL/RESET button to
enter the customize mode.
Each time you press the INFO ( /
) button, the screen changes as
shown in the illustration. Press the
INFO ( / ) button until you see
the setting you want to customize,
then press the SEL/RESET button
to enter your selection. KEYLESS LOCK
ACKNOWLEDGMENT
SECURITY RELOCK TIMER AUTO DOOR UNLOCK
DOOR LOCK MODE
Door Setup
Multi-Inf ormation Display
106
: Press the INFO button .
: Press the INFO button .
: Press the SEL/RESET button. See page
107
See page
108
See page
113 See page
112See page
110
—
—y

y
)"y


y
2010 Insight

µÛÝ
ÛÝ
µ
µ

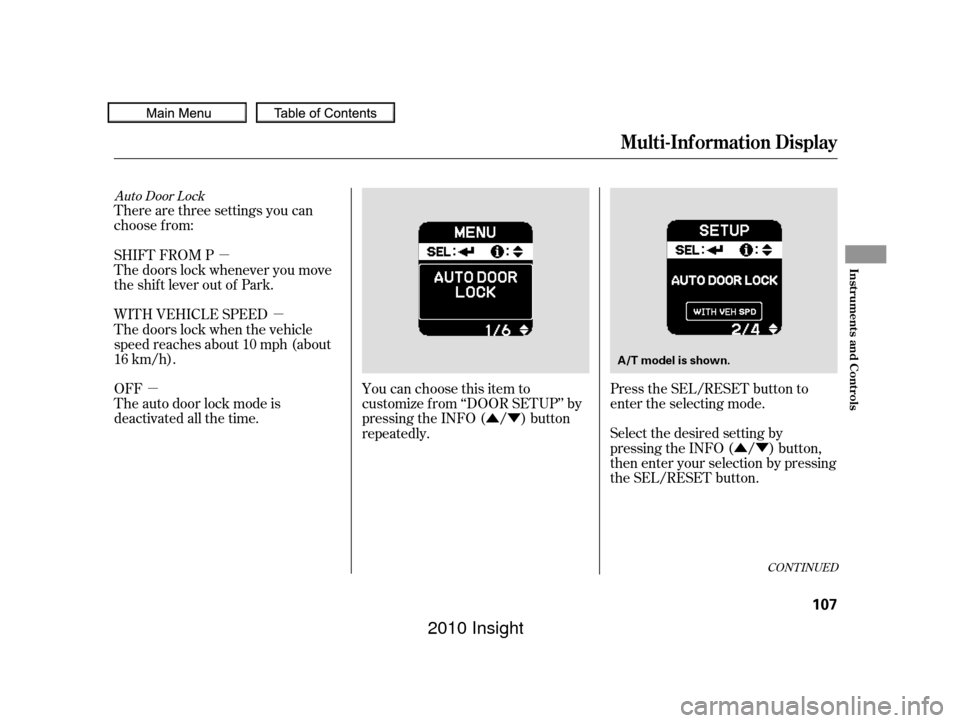

Auto Door Lock
There are three settings you can
choose f rom:
SHIFT FROM P
The doors lock whenever you move
the shift lever out of Park.
Select the desired setting by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button.
You can choose this item to
customize f rom ‘‘DOOR SETUP’’ by
pressing the INFO ( / ) button
repeatedly.
Press the SEL/RESET button to
enter the selecting mode.
WITH VEHICLE SPEED
The doors lock when the vehicle
speed reaches about 10 mph (about
16 km/h).
OFF
The auto door lock mode is
deactivated all the time.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
107
A/T model is shown.
—
