2010 Insight

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 60
............................
Instrument Panel . 61
..........
Instrument Panel Indicators . 62
.............................................
Gauges . 72
.............
Multi-Inf ormation Display . 75
Controls Near the Steering .........................................
Wheel .116
Windshield Wipers and .....................................
Washers .117
.......
Turn Signals and Headlights . 118
.........
Daytime Running Lights . 120
......
Instrument Panel Brightness . 121
...............
Hazard Warning Button . 122
...............
Rear Window Def ogger . 123
...................................
Econ Button .124
......
Steering Wheel Adjustments . 125
.............................
Keys and Locks .126
......................
Immobilizer System .127
..............................
Ignition Switch .128
....................................
Door Locks .130
............
Childproof Door Locks . 131
.....................
Remote Transmitter .132
..............................................
Hatch .136
................
Unlocking the Hatch . 137
...............................................
Seats .138
...........
Front Seat Adjustments . 138Driver’s Seat Height
............................
Adjustment .138
........................
Head Restraints .139
.
Folding the Rear Seats Down . 142
......................................
Armrest .143
...........................................
Mirrors .144
..
Adjusting the Power Mirrors . 144
..............
Power Mirror Heaters . 145
............................
Power Windows .146
...............................
Parking Brake .148
.........
Interior Convenience Items . 149
.....................
Cargo Area Cover .150
...............
Under Floor Storages . 152
...
Floor Storage Compartment . 152
.....................
Beverage Holders .153
........
Accessory Power Sockets . 153
.............
Console Compartment . 154
..................................
Glove Box .154
...............................
Center Tray .155
..........................
Center Pockets .155
..................................
Coat Hook .156
..................................
Sun Visors .156
............................
Vanity Mirror .156
...............................
Interior Lights .157
Instruments and Controls
Inst rument s and Cont rols
59
—
—y


y
)"yy
2010 Insight

Î
ÎÎÎ
If equipped
:

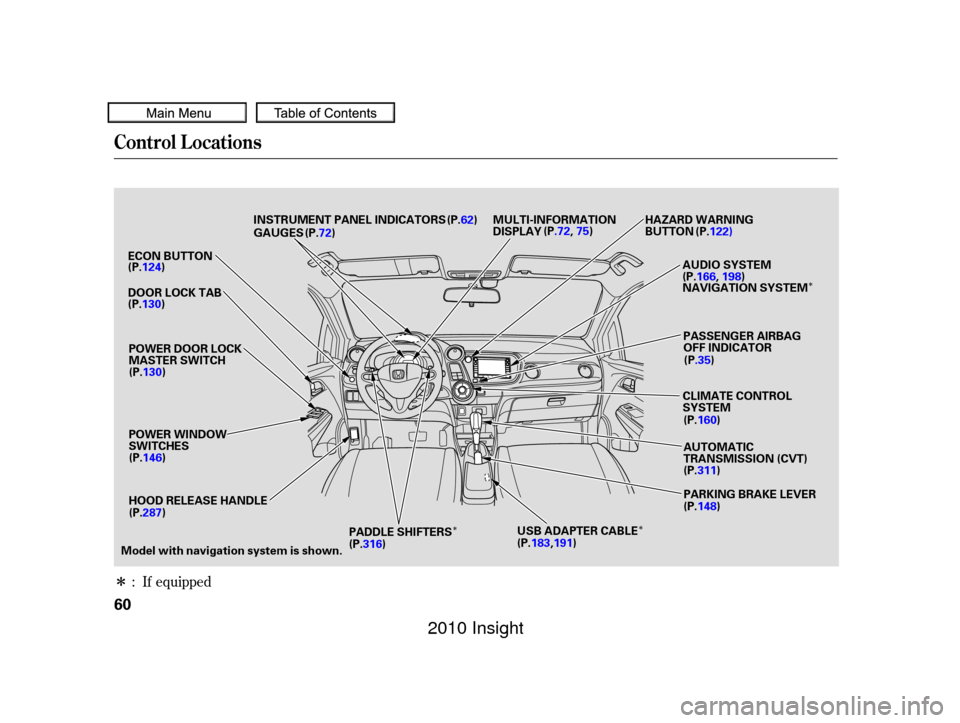

Control L ocations
60
POWER WINDOW
SWITCHES
DOOR LOCK TAB
GAUGES
POWER DOOR LOCK
MASTER SWITCH HAZARD WARNING
BUTTON
CLIMATE CONTROL
SYSTEMPARKING BRAKE LEVER
ECON BUTTON
HOOD RELEASE HANDLE PADDLE SHIFTERSUSB ADAPTER CABLE
MULTI-INFORMATION
DISPLAY
(P.287) (P.316) (P.
311 )
(P.
160 )
(P.35
)
PASSENGER AIRBAG
OFF INDICATOR
(P.72)
INSTRUMENT PANEL INDICATORS (P.62)
(P.124)
(P.130)
(P.130)
(P.146)
(P.183,191)(P.
148 )
(P.122)
(P
.72, 75)
AUDIO SYSTEM
(P.166,198)
NAVIGATION SYSTEM
AUTOMATIC
TRANSMISSION (CVT)
Model with navigation system is shown.
—
—y

y
)"yy
2010 Insight

ÎÎ
Î
Î
Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.

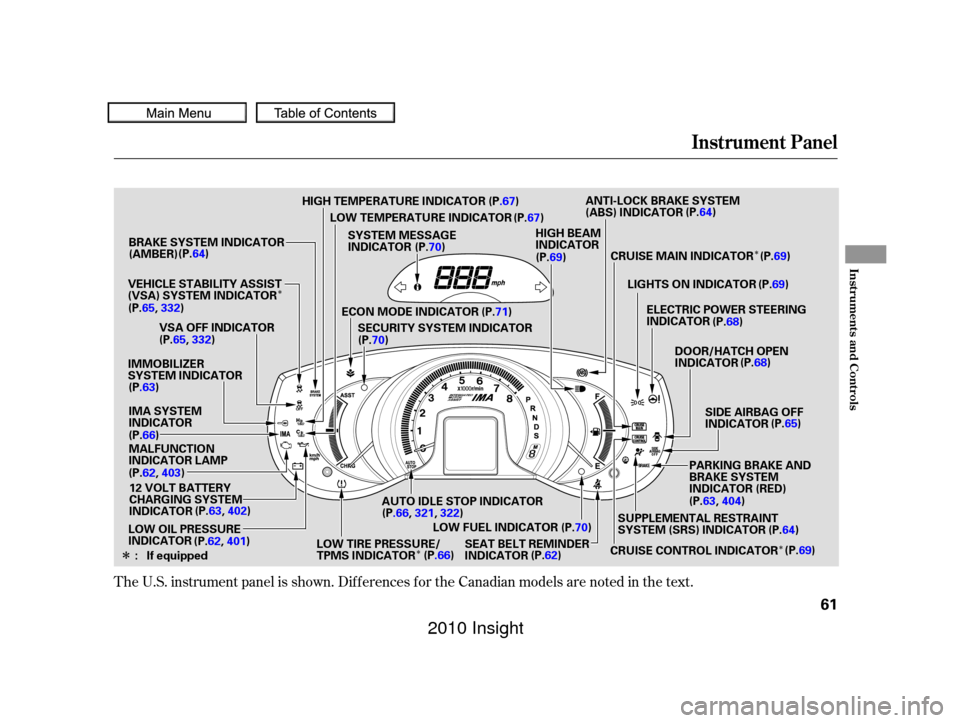

Instrument Panel
Inst rument s and Cont rols
61
SECURITY SYSTEM INDICATOR LIGHTS ON INDICATOR
SEAT BELT REMINDER
INDICATOR ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) INDICATOR
SYSTEM MESSAGE
INDICATOR
BRAKE SYSTEM INDICATOR
(AMBER)
VSA OFF INDICATOR
MALFUNCTION
INDICATOR LAMP PARKING BRAKE AND
BRAKE SYSTEM
INDICATOR (RED)
DOOR/HATCH OPEN
INDICATOR
SIDE AIRBAG OFF
INDICATOR
VEHICLE STABILITY ASSIST
(VSA) SYSTEM INDICATOR
IMMOBILIZER
SYSTEM INDICATOR
IMA SYSTEM
INDICATOR HIGH BEAM
INDICATOR
ELECTRIC POWER STEERING
INDICATOR
(P.64)
(P.65, 332)
(P .63)
(P.66)
(P.62, 403)
(P.63,402)
: If equipped (P.62)(P.64)
(P.63,
404) (P.65)
(P.68)
(P.68)
(P.
69)
(P.64)
(P.69)
HIGH TEMPERATURE INDICATOR (P
.67)
LOW TEMPERATURE INDICATOR (P.67)
(P.70)
(P .66) CRUISE MAIN INDICATOR (P.69)
CRUISE CONTROL INDICATOR (P.69)
LOW OIL PRESSURE
INDICATOR
(P.62,401)
LOW TIRE PRESSURE/
TPMS INDICATOR
12 VOLT BATTERY
CHARGING SYSTEM
INDICATOR (P.70)
ECON MODE INDICATOR (P.71)
(P.70)
AUTO IDLE STOP INDICATOR
LOW FUEL INDICATOR
(P.65,
332)
(P.66, 321, 322)
—
—y

y
)"yy
2010 Insight

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passengers to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
You will also see a ‘‘FASTEN SEAT
BELT’’ message on the multi-
inf ormation display.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your seat belt, the beeper sounds
and the indicator f lashes. If you do
notfastenyourseatbeltbeforethe
beeper stops, the indicator stops
f lashing but remains on. If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals, and you
will see a ‘‘FASTEN SEAT BELT’’ or
‘‘FASTEN PASSENGER SEAT
BELT’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
You will also see a ‘‘CHECK
EMISSION SYSTEM’’ message on
the multi-information display. For
more information, see page .
The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running, and you
will see a ‘‘CHECK ENGINE OIL
LEVEL’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
21 403
401
Instrument Panel Indicators
Seat Belt Reminder
Indicator Malf unction Indicator
Lamp
L ow Oil Pressure
Indicator
62
—
—y

y
)"yy
2010 Insight

If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, it can
indicate a problem in the brake
system. You will also see a
‘‘BRAKE FLUID LOW’’ or
‘‘CHECK BRAKE SYSTEM’’
message on the multi-inf ormation
display. For more inf ormation, see
page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. It will then go of f if
you have inserted a properly coded
ignition key. If it is not a properly
coded key, the indicator will blink,
and the engine’s f uel system will be
disabled (see page ). This indicator has two f unctions:
If you drive without releasing the
parking brake, a beeper will sound,
and you will also see a ‘‘RELEASE
PARKING BRAKE’’ message on
the multi-information display (see
page ). Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. Driving with
the parking brake not f ully
released can damage the brakes
and tires.
If this indicator comes on when the
engine is running, the 12 volt battery
is not being charged, and you will
also see a ‘‘CHECK CHARGING
SYSTEM’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
1.2.
404
402
148
126
Instrument Panel Indicators
Immobilizer System
Indicator Parking Brake and
Brake System
Indicator (Red)
12 Volt Battery Charging
System Indicator
Inst rument s and Cont rols
63
U.S. Canada
—
—y


y
)"yy
2010 Insight

This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and START (III) position.
When the brake system indicator
(amber) comes on and stays on,
there is a problem with the Creep
Aid System or Brake Assist (the
normal brake operates properly).
Have your vehicle checked by your
dealer. For more inf ormation, see
page .
You will also see a ‘‘CHECK BRAKE
SYSTEM’’ message on the multi-
inf ormation display (see page ).This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
side airbags, passenger’s side airbag
cutoff system, side curtain airbags,
automatic seat belt tensioners,
driver’s seat position sensor, or the
f ront passenger’s weight sensors.
You will also see a ‘‘CHECK
AIRBAG SYSTEM’’ message on the
multi-inf ormation display. For more
inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If this indicator comes on at
any other time, there is a problem in
theABS.If thishappens,takethe
vehicle to your dealer to have it
checked. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock f unction. You
will also see a ‘‘CHECK ABS
SYSTEM’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
324
89 326
34
Instrument Panel Indicators
Brake System
Indicator
(A mber)Anti-lock Brake System
(A BS) Indicator
Supplemental Restraint
System Indicator
64
U.S. Canada
—
—y

y
)"yy
2010 Insight

If equipped
If equipped
Itcomesonasareminderthatyou
have turned of f the vehicle stability
assist (VSA) system.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. For more inf ormation, see
page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position.
It flashes when VSA is active (see
page ).
If itcomesonandstaysonatany
other time, or it does not come on
when you turn the ignition switch to
the ON (II) position, there is a
problem with the VSA system. You
will also see a ‘‘CHECK VSA
SYSTEM’’ message on the multi-
inf ormation display. Take your
vehicle to a dealer to have it checked.
Without VSA, your vehicle still has
normal driving ability, but will not
have VSA traction and stability
enhancement. For more inf ormation,
see page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates that the
passenger’s side airbag has
automatically shut of f . You will also
see a ‘‘PASSENGER SIDE AIRBAG
OFF’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
34
332
332
332
Instrument Panel Indicators
VSA Of f Indicator
Vehicle Stability Assist
(VSA ) System Indicator
Side Airbag Of f
Indicator
Inst rument s and Cont rols
65
U.S. Canada
—
—y


y
)"yy
2010 Insight

If this happens, pull to the side of the
road when it is safe, check which tire
has lost pressure, and determine the
cause. If it is because of a f lat tire,
replace the flat tire with the compact
spare (see page ), and have the
f lat tire repaired as soon as possible.
If two or more tires are underinf lated,
call a prof essional towing service.
Refer to page for more
inf ormation.If this indicator begins to f lash,
there is a problem with the tire
pressure monitoring system
(TPMS). You will also see a
‘‘CHECK TPMS SYSTEM’’
message on the multi-inf ormation
display. The indicator continues to
f lash f or a while (approximately 1
minute), then stays on. If this
happens, have your dealer check
the system as soon as possible.
For more inf ormation, see page .
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position.
This indicator has two f unctions:
If it comes on while driving, it
indicates that one or more of your
vehicle’s tires are signif icantly low
on pressure.
You will also see a ‘‘CHECK TIRE
PRESSURE’’ message on the multi-
inf ormation display (see page ).
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position. If it comes on at any other
time, it indicates a problem in the
integrated motor assist (IMA)
system. With the IMA indicator on,
the vehicle may not accelerate as it
normally does. Have the vehicle
checked by the dealer as soon as
possible.
You will also see a ‘‘CHECK IMA
SYSTEM’’ message on the multi-
inf ormation display.
See pages and .
1.
2.
321 322 328412
387
329
Instrument Panel Indicators
Low Tire Pressure/
TPMS Indicator
IMA System Indicator
A uto Idle Stop Indicator
66
—
—y


y
)"y
y
2010 Insight

If the indicator begins to blink or
stays on, you will also see a ‘‘WATER
TEMP HOT’’ message on the multi-
inf ormation display. This warning
will alert you that the engine should
be cooled down.
This indicator shows the
temperature of the engine coolant. It
normallycomesonwhenyouturn
the ignition switch to the ON (II)
position and goes of f af ter a f ew
seconds. In normal driving
conditions, this indicator should not
blink or stay on. In severe driving
conditions, such as very hot weather
or a long period of uphill driving, this
indicator may blink. This means the
engine coolant temperature is high.
If the indicator begins to blink while
you are driving, be sure to slow down
to prevent overheating. If the
indicator stays on, pull safely to the
side of the road and turn of f the
engine. See page f or instructions
and precautions on checking the
engine’s cooling system.
Do not drive the vehicle while the
indicator is on or the engine may be
damaged.This indicator shows the
temperature of the engine coolant. If
there is no problem, this indicator
comes on when the engine is cold. If
itcomesonwhentheengineiswarm
(normal operating temperature),
have the vehicle inspected by your
dealer as soon as possible.
398
Instrument Panel Indicators
High T emperature
Indicator Low Temperature
Indicator
Inst rument s and Cont rols
67
—
—y

y
)"yy
2010 Insight
