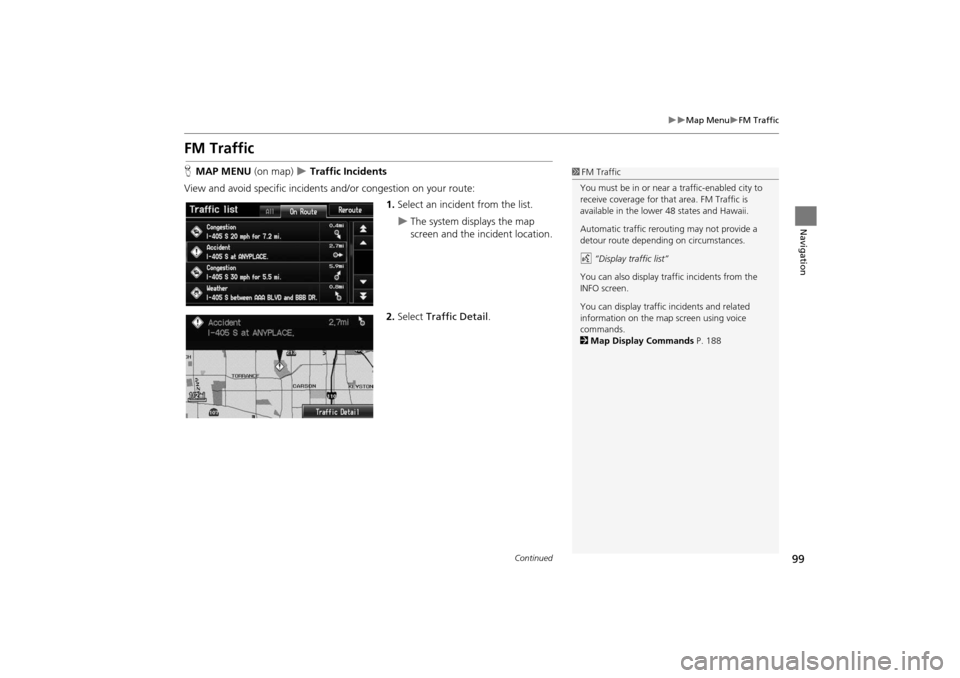

HONDA INSIGHT 2014 2.G Navigation Manual

99
XXMap MenuXFM Traffic
Navigation
FM Traffic
HMAP MENU (on map) X Traffic Incidents
View and avoid specific incidents and/or congestion on your route: 1.Select an incident from the list.
XThe system displays the map
screen and the incident location.
2. Select Traffic Detail .
1FM Traffic
You must be in or near a traffic-enabled city to
receive coverage for that area. FM Traffic is
available in the lower 48 states and Hawaii.
Automatic traffic rerouting may not provide a
detour route dependi ng on circumstances.
d “Display traffic list”
You can also display traff ic incidents from the
INFO screen.
You can display traffic incidents and related
information on the map screen using voice
commands.
2 Map Display Commands P. 188
Continued
INSIGHT_KA-31TM8820.book 99 ページ ２０１１年８月９日　火曜日　午後３時３１分

100
XXMap MenuXFM Traffic
Navigation
3.Select Avoid.
XRepeat step 1 to 3 as necessary.
4. Select Reroute .
XThe system recalculates a detour
route that avoids the traffic
incidents.
1FM Traffic
You can choose to avoid up to 10 traffic
incidents. It is not alwa ys possible for the system
to calculate a route that avoids all traffic
incidents or specific traf fic incidents you select.
The “On Route” tab on the Traffic List screen is
only available duri ng route guidance.
You cannot select an inci dent to avoid from the
“All” tab.
You can also detour ar ound a traffic incident
manually if you encounter an unexpected
obstacle.
2 Taking a Detour P. 102
INSIGHT_KA-31TM8820.book 100 ページ ２０１１年８月９日　火曜日　午後３時３１分

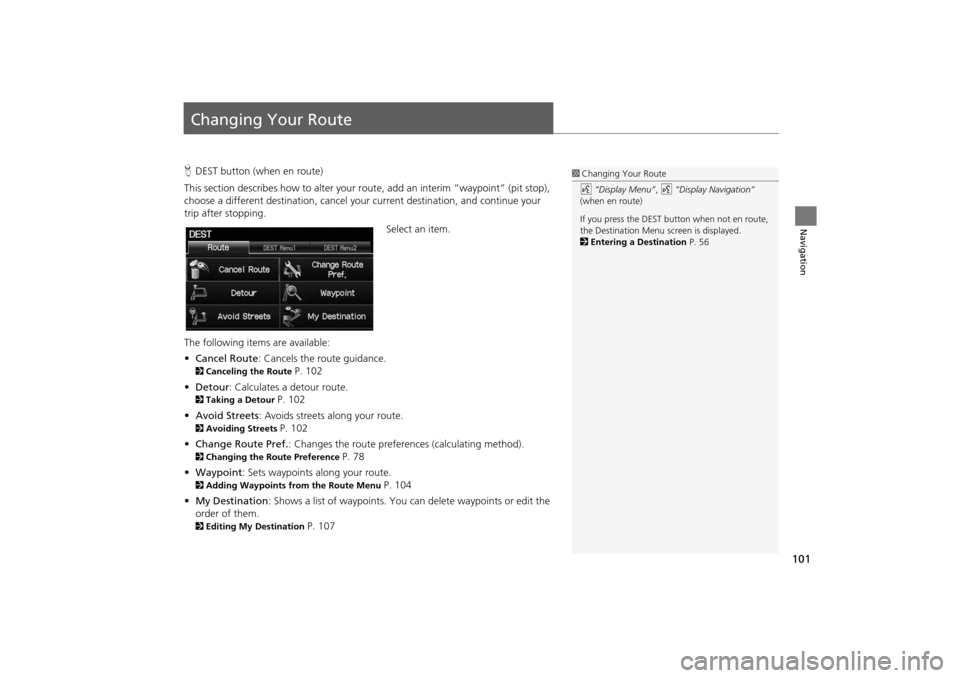

101
Navigation
Changing Your Route
HDEST button (when en route)
This section describes how to alter your r oute, add an interim “waypoint” (pit stop),
choose a different destination, cancel your current destination, and continue your
trip after stopping.
Select an item.
The following items are available:
• Cancel Route : Cancels the route guidance.
2Canceling the Route P. 102
• Detour : Calculates a detour route.
2Taking a Detour P. 102
• Avoid Streets : Avoids streets along your route.
2Avoiding Streets P. 102
• Change Route Pref. : Changes the route preferences (calculating method).
2Changing the Route Preference P. 78
• Waypoint : Sets waypoints along your route.
2Adding Waypoints from the Route Menu P. 104
• My Destination : Shows a list of waypoints. You can delete waypoints or edit the
order of them.
2 Editing My Destination P. 107
1Changing Your Route
d “Display Menu” , d “Display Navigation”
(when en route)
If you press the DEST but ton when not en route,
the Destination Menu screen is displayed.
2 Entering a Destination P. 56
INSIGHT_KA-31TM8820.book 101 ページ ２０１１年８月９日　火曜日　午後３時３１分

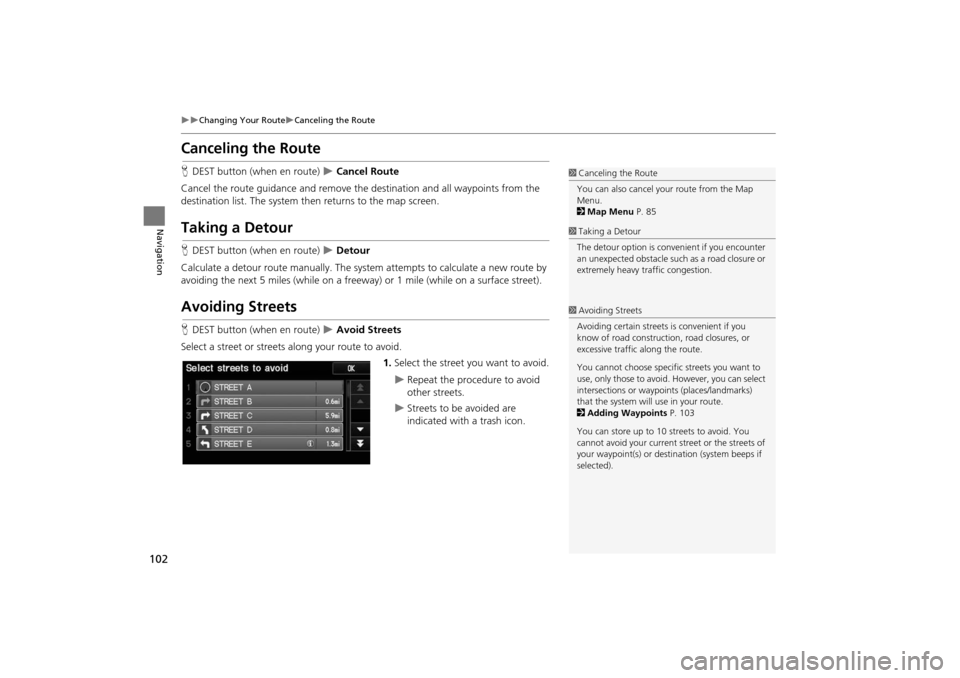

102
XXChanging Your RouteXCanceling the Route
Navigation
Canceling the Route
HDEST button (when en route) X Cancel Route
Cancel the route guidance and remove th e destination and all waypoints from the
destination list. The system th en returns to the map screen.
Taking a Detour
HDEST button (when en route) X Detour
Calculate a detour route manu ally. The system attempts to calculate a new route by
avoiding the next 5 miles (while on a freeway ) or 1 mile (while on a surface street).
Avoiding Streets
HDEST button (when en route) X Avoid Streets
Select a street or streets along your route to avoid.
1.Select the street you want to avoid.
XRepeat the procedure to avoid
other streets.
XStreets to be avoided are
indicated with a trash icon.
1Canceling the Route
You can also cancel your route from the Map
Menu.
2 Map Menu P. 85
1Taking a Detour
The detour option is conv enient if you encounter
an unexpected obstacle such as a road closure or
extremely heavy traffic congestion.
1 Avoiding Streets
Avoiding certain streets is convenient if you
know of road construction, road closures, or
excessive traffic along the route.
You cannot choose specific streets you want to
use, only those to avoid. However, you can select
intersections or waypoi nts (places/landmarks)
that the system will use in your route.
2 Adding Waypoints P. 103
You can store up to 10 streets to avoid. You
cannot avoid your current st reet or the streets of
your waypoint(s) or dest ination (system beeps if
selected).
INSIGHT_KA-31TM8820.book 102 ページ ２０１１年８月９日　火曜日　午後３時３１分

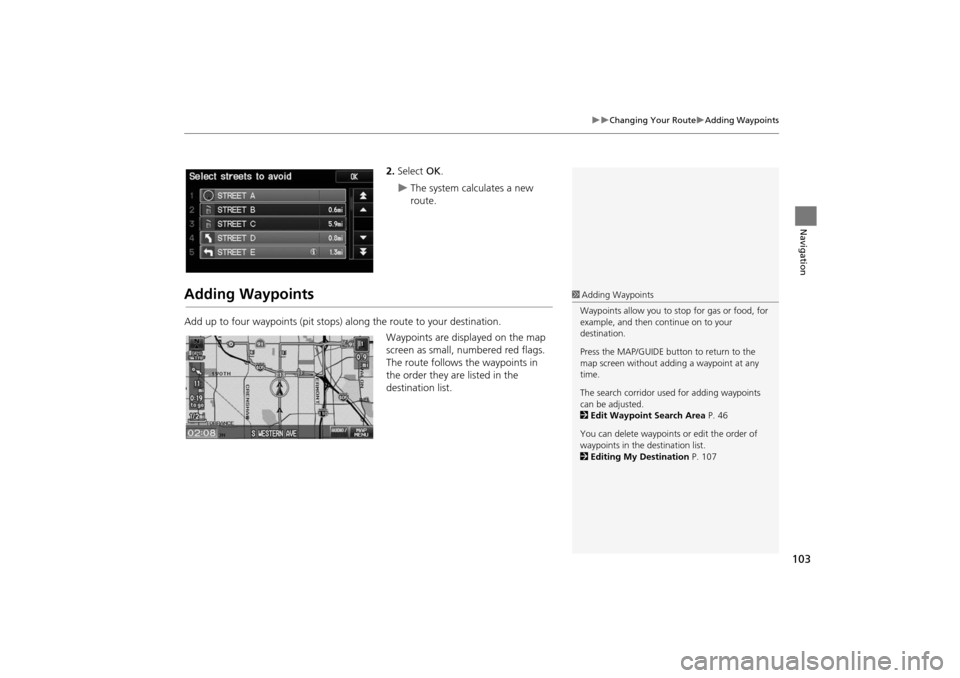

103
XXChanging Your RouteXAdding Waypoints
Navigation
2.Select OK.
XThe system calculates a new
route.
Adding Waypoints
Add up to four waypoints (pit stops) along the route to your destination.
Waypoints are displayed on the map
screen as small, numbered red flags.
The route follows the waypoints in
the order they are listed in the
destination list.
1 Adding Waypoints
Waypoints allow you to stop for gas or food, for
example, and then continue on to your
destination.
Press the MAP/GUIDE button to return to the
map screen without adding a waypoint at any
time.
The search corridor used for adding waypoints
can be adjusted.
2 Edit Waypoint Search Area P. 46
You can delete waypoints or edit the order of
waypoints in the destination list.
2 Editing My Destination P. 107
INSIGHT_KA-31TM8820.book 103 ページ ２０１１年８月９日　火曜日　午後３時３１分

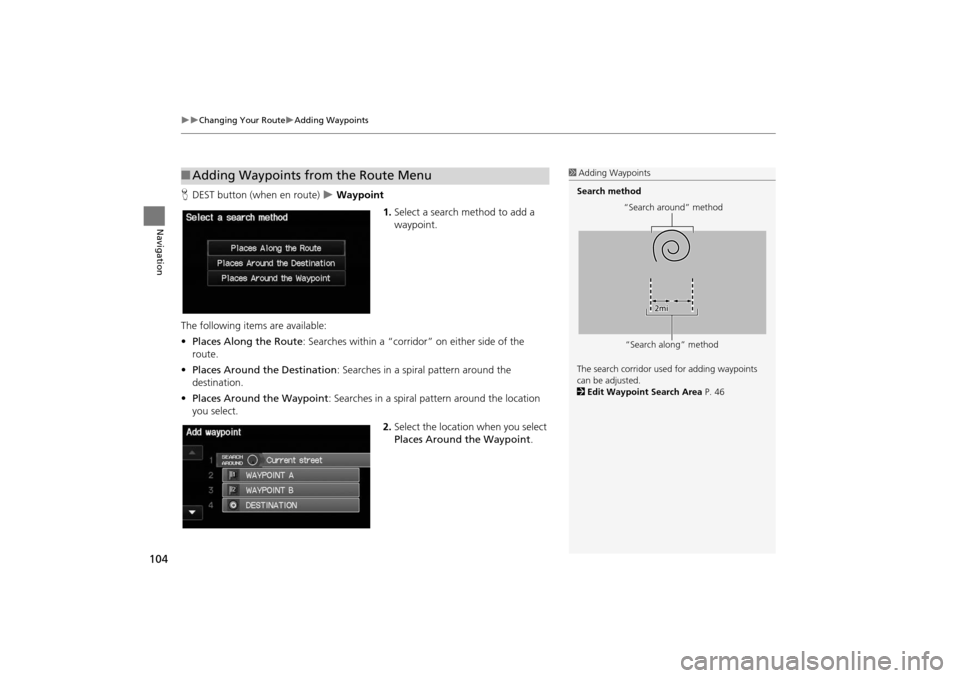

104
XXChanging Your RouteXAdding Waypoints
Navigation
HDEST button (when en route) X Waypoint
1.Select a search method to add a
waypoint.
The following item s are available:
• Places Along the Route : Searches within a “corridor” on either side of the
route.
• Places Around the Destination: Searches in a spiral pattern around the
destination.
• Places Around the Waypoint : Searches in a spiral pattern around the location
you select.
2.Select the location when you select
Places Around the Waypoint.
■Adding Waypoints from the Route Menu1 Adding Waypoints
Search method
The search corridor used for adding waypoints
can be adjusted.
2 Edit Waypoint Search Area P. 46
“Search around” method
“Search along” method
INSIGHT_KA-31TM8820.book 104 ページ ２０１１年８月９日　火曜日　午後３時３１分

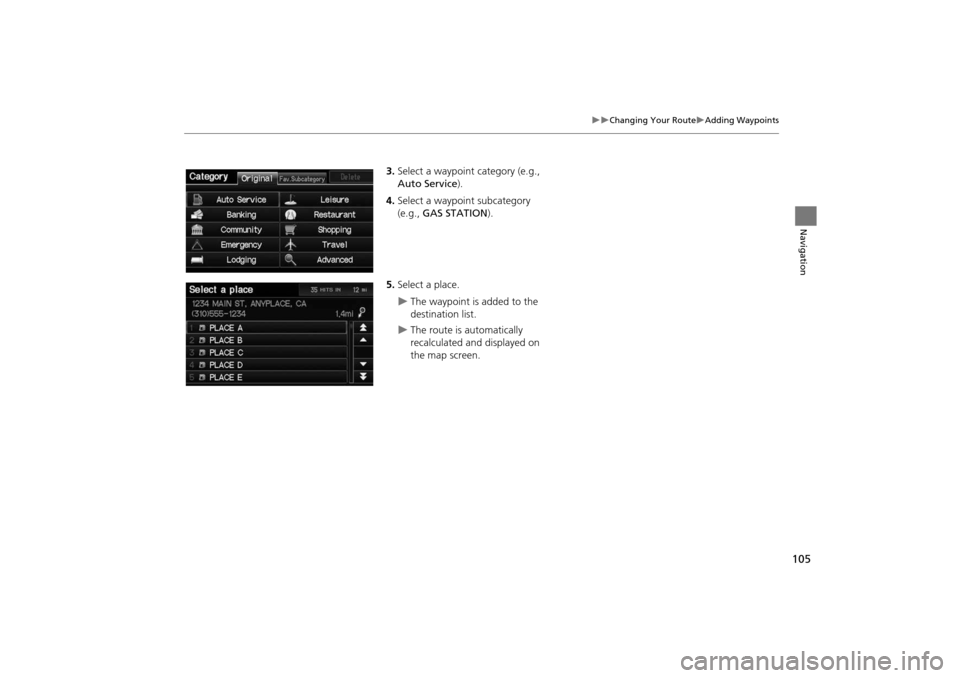

105
XXChanging Your RouteXAdding Waypoints
Navigation
3.Select a waypoint category (e.g.,
Auto Service).
4. Select a waypoint subcategory
(e.g., GAS STATION ).
5. Select a place.
XThe waypoint is added to the
destination list.
XThe route is automatically
recalculated and displayed on
the map screen.
INSIGHT_KA-31TM8820.book 105 ページ ２０１１年８月９日　火曜日　午後３時３１分

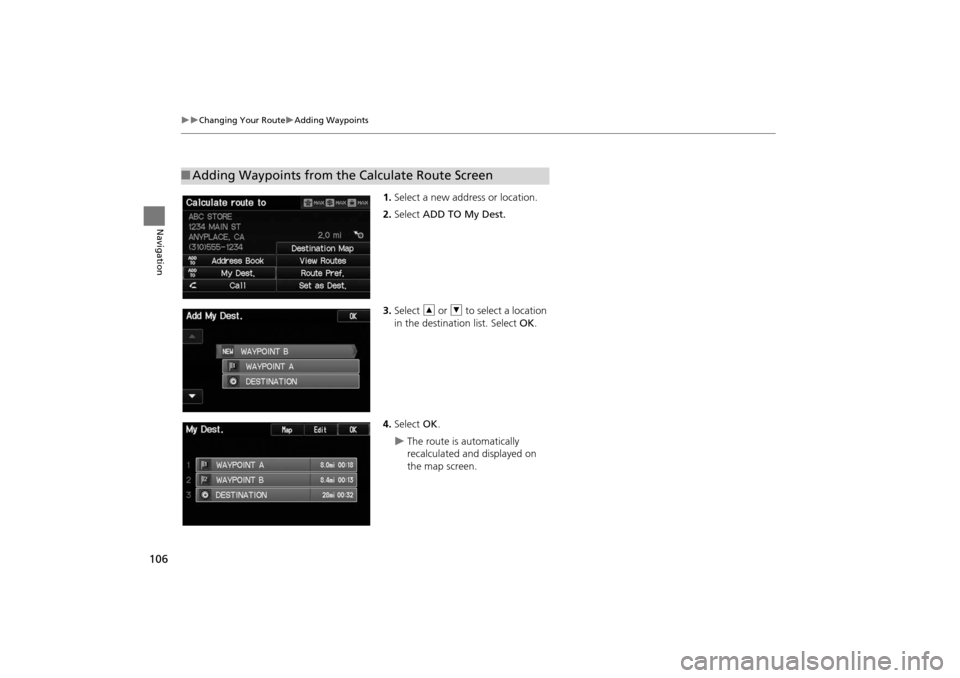

106
XXChanging Your RouteXAdding Waypoints
Navigation
1.Select a new address or location.
2. Select ADD TO My Dest.
3. Select R or U to select a location
in the destination list. Select OK .
4. Select OK.
XThe route is automatically
recalculated and displayed on
the map screen.
■Adding Waypoints from the Calculate Route Screen
INSIGHT_KA-31TM8820.book 106 ページ ２０１１年８月９日　火曜日　午後３時３１分

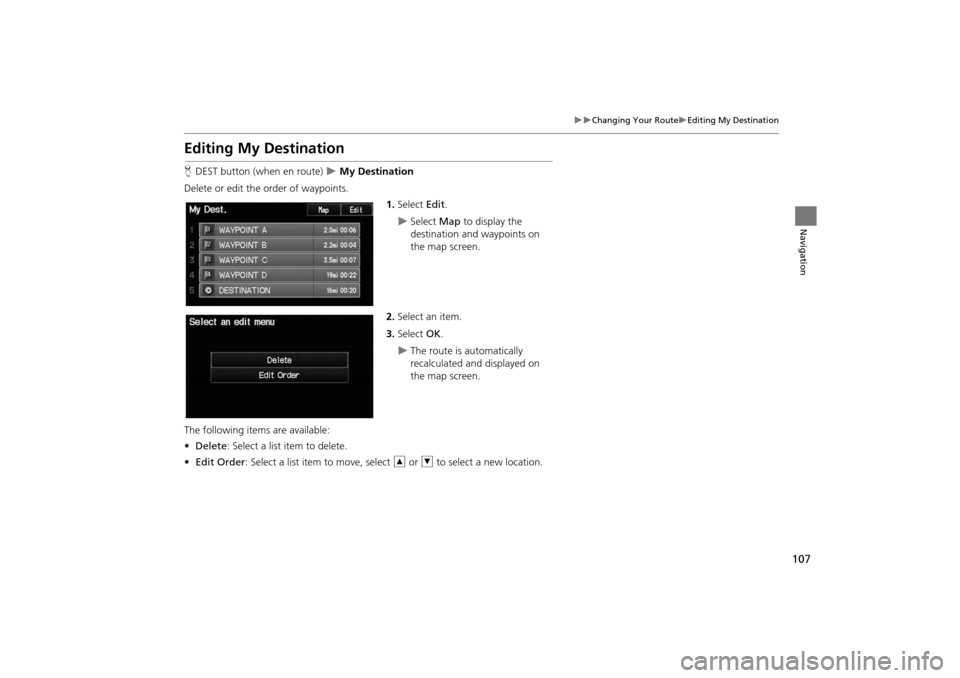

107
XXChanging Your RouteXEditing My Destination
Navigation
Editing My Destination
HDEST button (when en route) X My Destination
Delete or edit the order of waypoints. 1.Select Edit.
XSelect Map to display the
destination and waypoints on
the map screen.
2. Select an item.
3. Select OK.
XThe route is automatically
recalculated and displayed on
the map screen.
The following items are available:
• Delete : Select a list item to delete.
• Edit Order : Select a list item to move, select R or U to select a new location.
INSIGHT_KA-31TM8820.book 107 ページ ２０１１年８月９日　火曜日　午後３時３１分

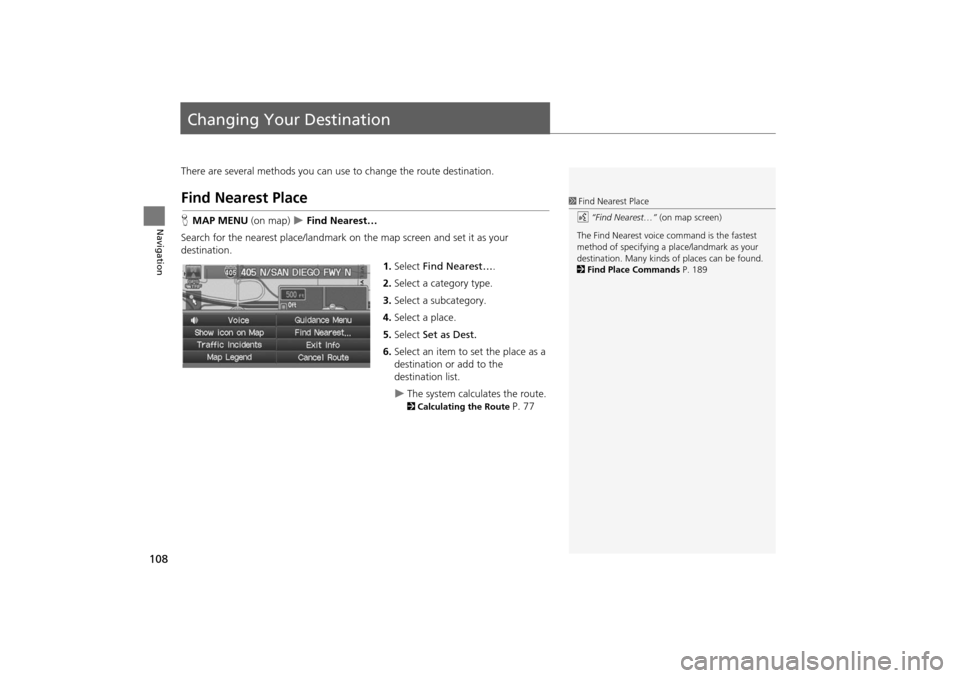

108
Navigation
Changing Your Destination
There are several methods you can use to change the route destination.
Find Nearest Place
HMAP MENU (on map) X Find Nearest…
Search for the nearest place/landmark on the map screen and set it as your
destination.
1.Select Find Nearest… .
2. Select a category type.
3. Select a subcategory.
4. Select a place.
5. Select Set as Dest.
6. Select an item to set the place as a
destination or add to the
destination list.
XThe system calculates the route.
2 Calculating the Route P. 77
1Find Nearest Place
d “Find Nearest…” (on map screen)
The Find Nearest voice command is the fastest
method of specifying a pl ace/landmark as your
destination. Many kinds of places can be found.
2 Find Place Commands P. 189
INSIGHT_KA-31TM8820.book 108 ページ ２０１１年８月９日　火曜日　午後３時３１分
