HONDA INSIGHT 2014 2.G Navigation Manual

139
Bluetooth® HandsFreeLink®
This section describes how to operate Bluetooth® HandsFreeLink®. You
can place and receive phone calls using your vehicle’s audio system without handling your cell phone.
Bluetooth® HandsFreeLink®............... 140
Pairing a Phone .................................... 142
Setting Up Speed Dialing...................... 147
Editing Phone Information.................... 150
Phone Setup ........................................ 151
Making a Call....................................... 152
Receiving a Call .................................... 155
HFL Menus ........................................... 156
INSIGHT_KA-31TM8820.book 139 ページ ２０１１年８月９日　火曜日　午後３時３１分

140
Bluetooth® HandsFreeLink®
Bluetooth® HandsFreeLink®
HPHONE button
Select an item.
The following item s are available:
• Redial : Dials the last number.
• Call History : Displays the call history.
2Using Call History P. 154
• Phonebook : Displays the cell phone’s imported phonebook.
2Using the Phonebook P. 153
• Dial: Makes a call by entering the phone number.
2 Entering a Phone Number P. 153
• Phone Setup : Sets up the HFL features.
2Pairing a Phone P. 142
• Speed Dial 1, 2 : Makes a call to stored speed dial entries.
2Using Speed Dial P. 154
2Setting Up Speed Dialing P. 147
1Bluetooth ® HandsFreeLink®
You can control the HFL system using voice
commands.
2 HFL Menus P. 156
To use HFL, you need a Bluetooth-compatible
cell phone. For a list of compatible phones,
pairing procedures, and special feature
capabilities:
•U.S.: Visit automobiles.honda.com/
handsfreelink .
•Canada: Visit www.handsfreelink .ca.
•Call HandsFreeLink customer support at
(888) 528-7876.
Voice Control Tips
•Aim the vents away from the ceiling and close
the windows, as noise coming from them may
interfere with the microphone.
•Press and release the d (Talk) button before
giving a command. Speak clearly and naturally
after a beep.
2 Voice Control Operation P. 5
•If the microphone picks up voices other than
yours, the command may be misinterpreted.
•To change the volume level, use the audio
system’s volume knob or the remote audio
controls.
INSIGHT_KA-31TM8820.book 140 ページ ２０１１年８月９日　火曜日　午後３時３１分

141
XXBluetooth® HandsFreeLink®X
Bluetooth® HandsFreeLink®
Say d “Phone command help” or d “Help” any time to get help or hear a list of
commands.
2 Voice Help P. 13
■Help Features1 Bluetooth ® HandsFreeLink®
Bluetooth ® Wireless Technology
Bluetooth ® name and logos are registered
trademarks owned by Bluetooth SIG, Inc., and
any use of such marks by Honda Motor Co., Ltd.,
is under license. Othe r trademarks and trade
names are those of thei r respective owners.
HFL Limitations
An incoming call on HFL will interrupt
Bluetooth ® Audio when it is playing. Audio will
resume when the call is ended.
Certain touchscreen functi ons are disabled while
the vehicle is moving.
2 Limitations for Manual Operation P. 19
INSIGHT_KA-31TM8820.book 141 ページ ２０１１年８月９日　火曜日　午後３時３１分

142
XXBluetooth® HandsFreeLink®XPairing a Phone
Bluetooth ® HandsFreeLink®
Pairing a Phone
HPHONE button
When no Bluetooth-compatible phone has ever been paired to the system, the
following screen appears:
1.Select Yes.
2. Put your cell phone in “Discovery”
or “Search” mode.
3. Select OK.
XThe system begins to search for
your phone.
4. Select your phone in the list.
XSelect Find Another Phone if
your phone is not found.
XRefer to your phone manual for
instructions on searching for a
Bluetooth ® device.
5. Enter the 4-digit pairing code on
your phone when prompted to
complete the pairing process.
1Pairing a Phone
Your Bluetooth -compatible phone must be
paired to HFL before you can make and receive
hands-free calls.
The maximum range be tween your phone and
vehicle is about 30 feet (10 meters).
Phone Pairing Tips
•You cannot pair your phone while the vehicle
is moving.
•Your phone must be in discovery or search
mode when pairing the phone. Refer to your
phone’s manual.
•Up to six phones can be paired.
•Your phone’s battery may drain faster when it
is paired to HFL.
•If your phone is not r eady for pairing or not
found by the system within three minutes, the
system will time out and returns to idle.
•The default pairing code “0000” is used unless
you change the setting.
Pairing Code
You can change the pairing code setting.
2 Changing the Pairing Code P. 144
Delete a Phone
You can delete the paired phone.
2 Deleting a Paired Phone P. 145
INSIGHT_KA-31TM8820.book 142 ページ ２０１１年８月９日　火曜日　午後３時３１分

143
XXBluetooth® HandsFreeLink®XPairing a Phone
Bluetooth® HandsFreeLink®
HPHONE button X Phone Setup
Use the Phone setup screen to pair an additional Bluetooth -compatible phone if a
phone has been previously paired to the system.
1.Select Add/Select a Phone under
Bluetooth setup.
2. Select Search.
3. Put your cell phone in “Discovery”
or “Search” mode.
4. Select OK.
XThe system begins to search for
your phone.
5. Select your phon e in the list.
XSelect Find Another Phone if
your phone is not found.
XRefer to your phone manual for
instructions on searching for a
Bluetooth ® device.
6. Enter the 4-digit pairing code on
your phone when prompted to
complete the pairing process.
■Pairing from Phone Setup1 Pairing from Phone Setup
You can control the HFL system using voice
commands.
2 HFL Menus P. 156
If a prompt appears asking to connect to a
phone, select No and proceed with step 1.
INSIGHT_KA-31TM8820.book 143 ページ ２０１１年８月９日　火曜日　午後３時３１分

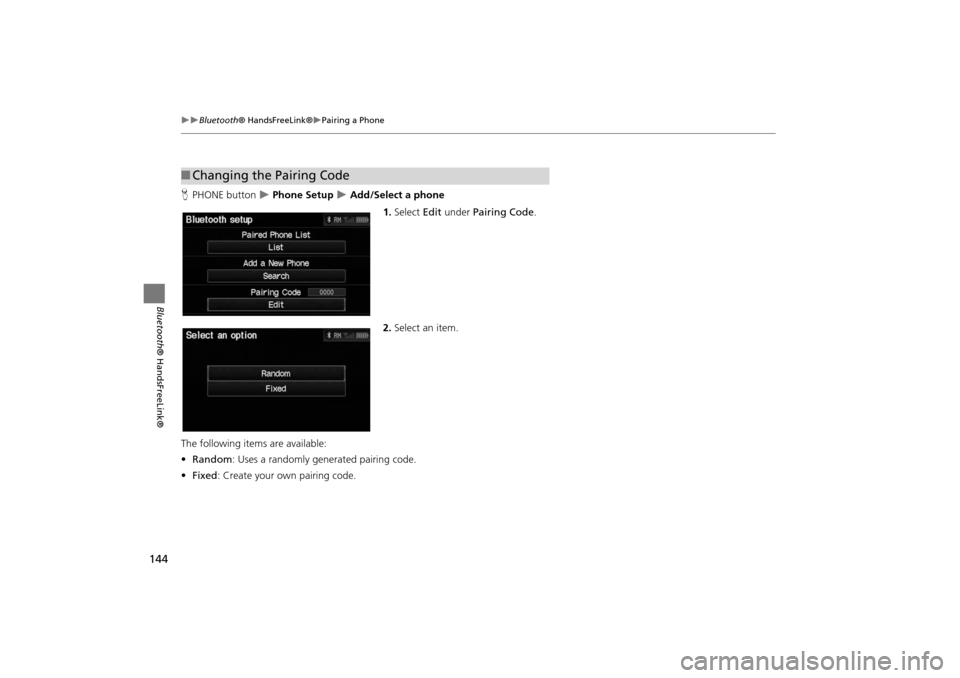

144
XXBluetooth® HandsFreeLink®XPairing a Phone
Bluetooth ® HandsFreeLink®
HPHONE button X Phone Setup X Add/Select a phone
1.Select Edit under Pairing Code .
2. Select an item.
The following item s are available:
• Random : Uses a randomly generated pairing code.
• Fixed : Create your own pairing code.
■Changing the Pairing Code
INSIGHT_KA-31TM8820.book 144 ページ ２０１１年８月９日　火曜日　午後３時３１分

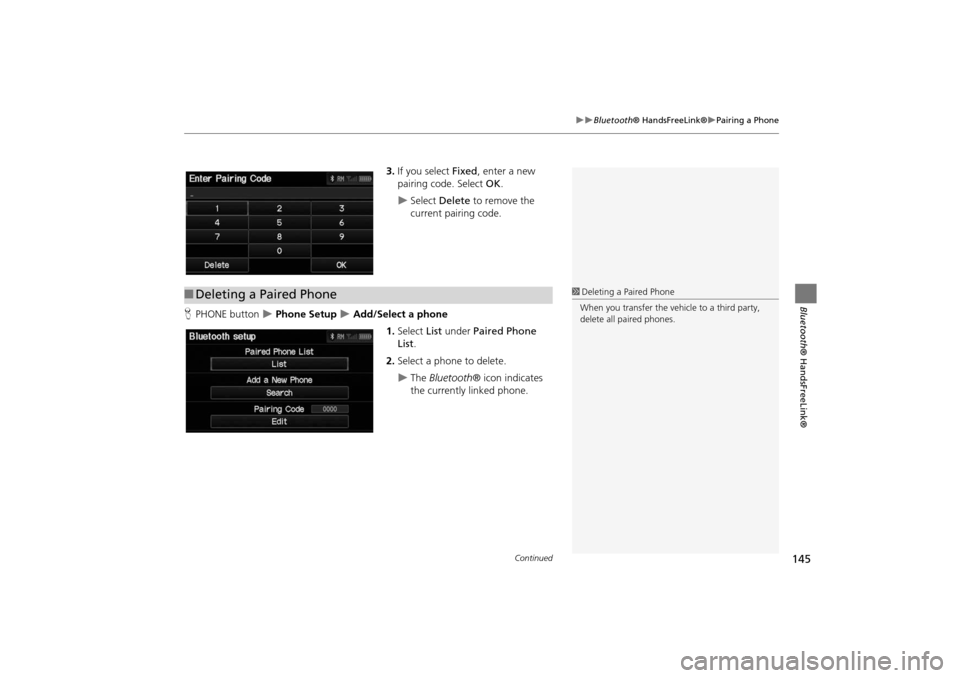

145
XXBluetooth® HandsFreeLink®XPairing a Phone
Bluetooth® HandsFreeLink®
3.If you select Fixed , enter a new
pairing code. Select OK.
XSelect Delete to remove the
current pairing code.
H PHONE button
X Phone Setup X Add/Select a phone
1.Select List under Paired Phone
List .
2. Select a phone to delete.
XThe Bluetooth ® icon indicates
the currently linked phone.
■ Deleting a Paired Phone1Deleting a Paired Phone
When you transfer the vehicle to a third party,
delete all paired phones.
Continued
INSIGHT_KA-31TM8820.book 145 ページ ２０１１年８月９日　火曜日　午後３時３１分

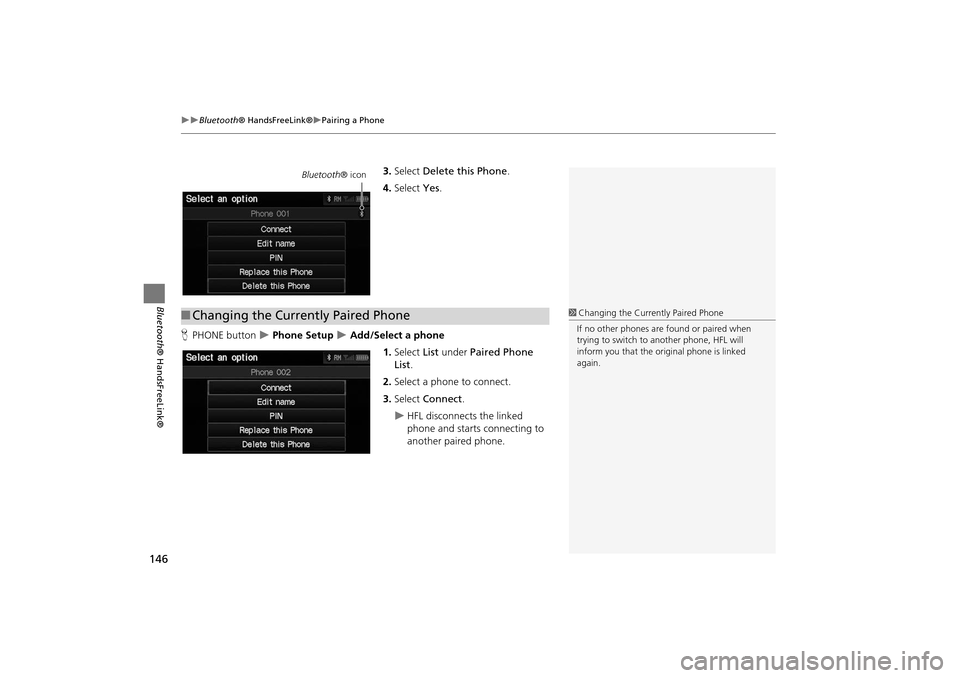

146
XXBluetooth® HandsFreeLink®XPairing a Phone
Bluetooth ® HandsFreeLink®
3.Select Delete this Phone .
4. Select Yes.
H PHONE button
X Phone Setup X Add/Select a phone
1.Select List under Paired Phone
List .
2. Select a phone to connect.
3. Select Connect .
XHFL disconnects the linked
phone and starts connecting to
another paired phone.
Bluetooth ® icon
■Changing the Currently Paired Phone1Changing the Currently Paired Phone
If no other phones are found or paired when
trying to switch to another phone, HFL will
inform you that the original phone is linked
again.
INSIGHT_KA-31TM8820.book 146 ページ ２０１１年８月９日　火曜日　午後３時３１分

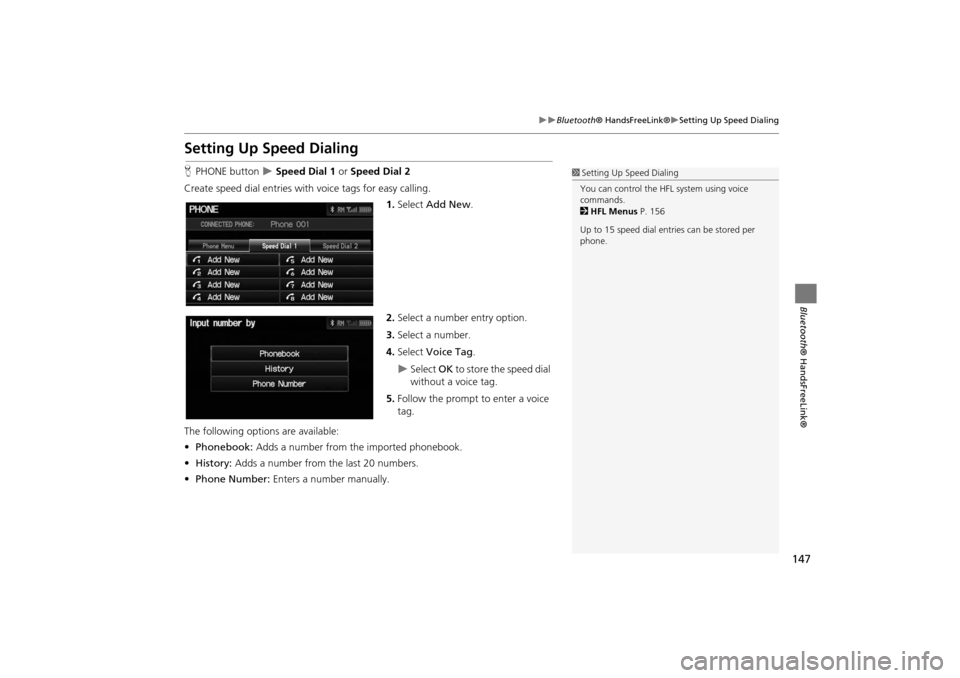

147
XXBluetooth® HandsFreeLink®XSetting Up Speed Dialing
Bluetooth ® HandsFreeLink®
Setting Up Speed Dialing
HPHONE button X Speed Dial 1 or Speed Dial 2
Create speed dial entries with voice tags for easy calling.
1.Select Add New .
2. Select a number entry option.
3. Select a number.
4. Select Voice Tag .
XSelect OK to store the speed dial
without a voice tag.
5. Follow the prompt to enter a voice
tag.
The following options are available:
• Phonebook: Adds a number from the imported phonebook.
• History: Adds a number from the last 20 numbers.
• Phone Number: Enters a number manually.
1Setting Up Speed Dialing
You can control the HFL system using voice
commands.
2 HFL Menus P. 156
Up to 15 speed dial entries can be stored per
phone.
INSIGHT_KA-31TM8820.book 147 ページ ２０１１年８月９日　火曜日　午後３時３１分

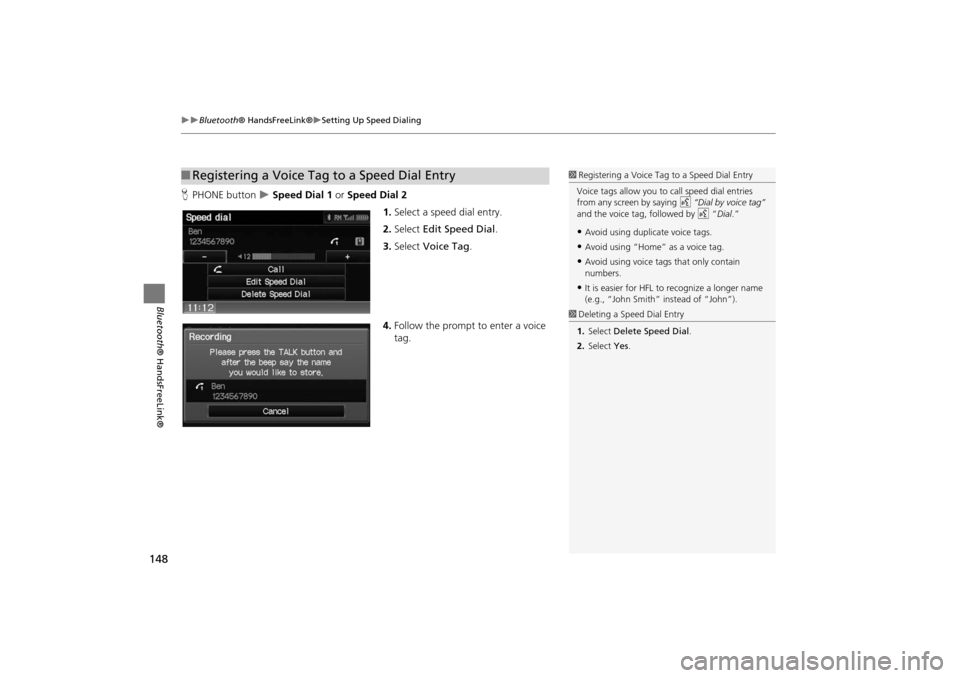

148
XXBluetooth® HandsFreeLink®XSetting Up Speed Dialing
Bluetooth ® HandsFreeLink®
HPHONE button X Speed Dial 1 or Speed Dial 2
1.Select a speed dial entry.
2. Select Edit Speed Dial .
3. Select Voice Tag .
4. Follow the prompt to enter a voice
tag.
■Registering a Voice Tag to a Speed Dial Entry1 Registering a Voice Tag to a Speed Dial Entry
Voice tags allow you to call speed dial entries
from any screen by saying d “Dial by voice tag”
and the voice tag, followed by d “Dial.”
•Avoid using duplicate voice tags.
•Avoid using “Home” as a voice tag.
•Avoid using voice tags that only contain
numbers.
•It is easier for HFL to recognize a longer name
(e.g., “John Smith” instead of “John”).
1 Deleting a Speed Dial Entry
1. Select Delete Speed Dial .
2. Select Yes.
INSIGHT_KA-31TM8820_04.fm 148 ページ ２０１２年１月２４日　火曜日　午後６時３４分
