HONDA INSIGHT 2020 Owner's Manual (in English)

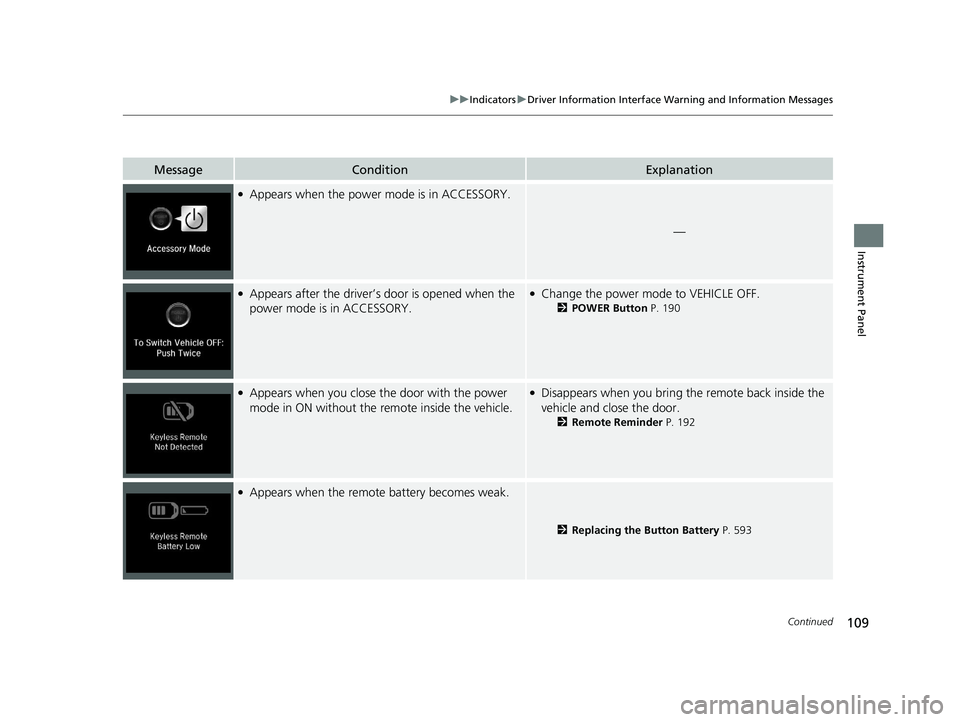

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the power mode is in ACCESSORY.
—
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2POWER Button P. 190
●Appears when you close th e door with the power
mode in ON without the re mote inside the vehicle.●Disappears when you bring the remote back inside the
vehicle and close the door.
2Remote Reminder P. 192
●Appears when the remote battery becomes weak.
2Replacing the Button Battery P. 593
20 INSIGHT-31TXM6100.book 109 ページ ２０１９年４月２４日　水曜日　午後２時２分

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if the remote battery is too weak to turn on
the power system or the key is not within operating
range to turn on the power system.
A beeper sounds six times.●Bring the back of the remote into contact with the
POWER button.
2If the Remote Battery is Weak P. 626
●Appears as soon as a problem is detected in the
smart entry system* or push button starting system.
●Appears constantly - Have your vehicle checked by a
dealer.
●Appears after you set the power mode to
ACCESSORY or ON.
●Appears after you unlock and open the driver’s door.2Turning on the Power P. 448
•Appears if you press the POWER button while the
vehicle is moving.• The message will disappear after six seconds or when
the power mode is set to VEHICLE OFF.
Canadian models
* Not available on all models
20 INSIGHT-31TXM6100.book 110 ページ ２０１９年４月２４日　水曜日　午後２時２分

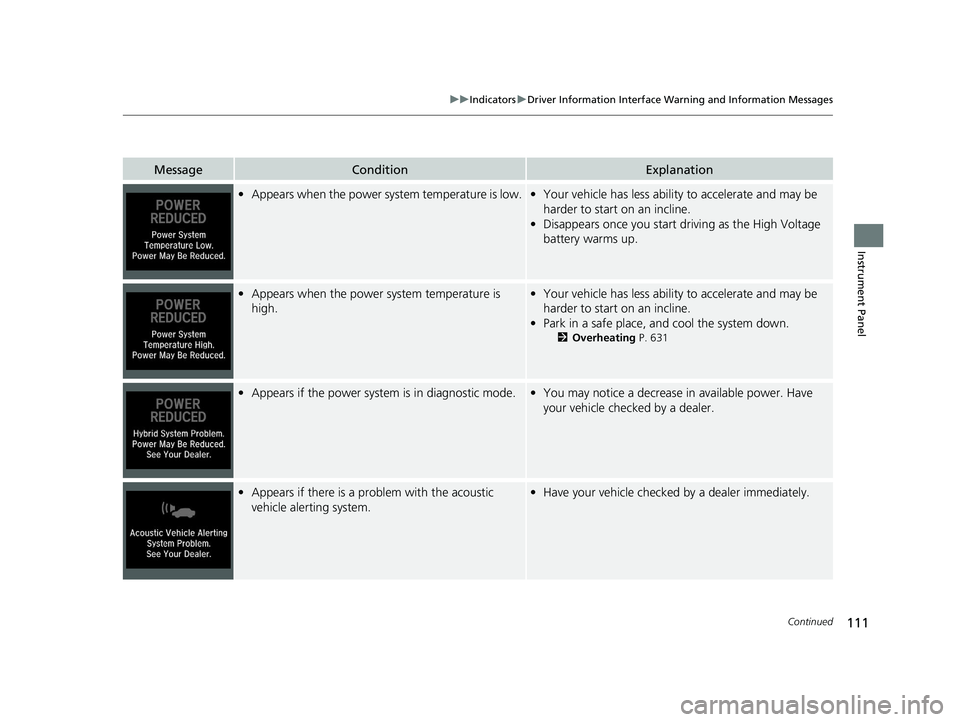

111
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the power sy stem temperature is low.•Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Disappears once you start dr iving as the High Voltage
battery warms up.
• Appears when the power system temperature is
high.• Your vehicle has less ability to accelerate and may be
harder to start on an incline.
• Park in a safe place, and cool the system down.
2 Overheating P. 631
•Appears if the power system is in diagnostic mode.•You may notice a decrease in available power. Have
your vehicle checked by a dealer.
•Appears if there is a pr oblem with the acoustic
vehicle alerting system.• Have your vehicle checked by a dealer immediately.
20 INSIGHT-31TXM6100.book 111 ページ ２０１９年４月２４日　水曜日　午後２時２分

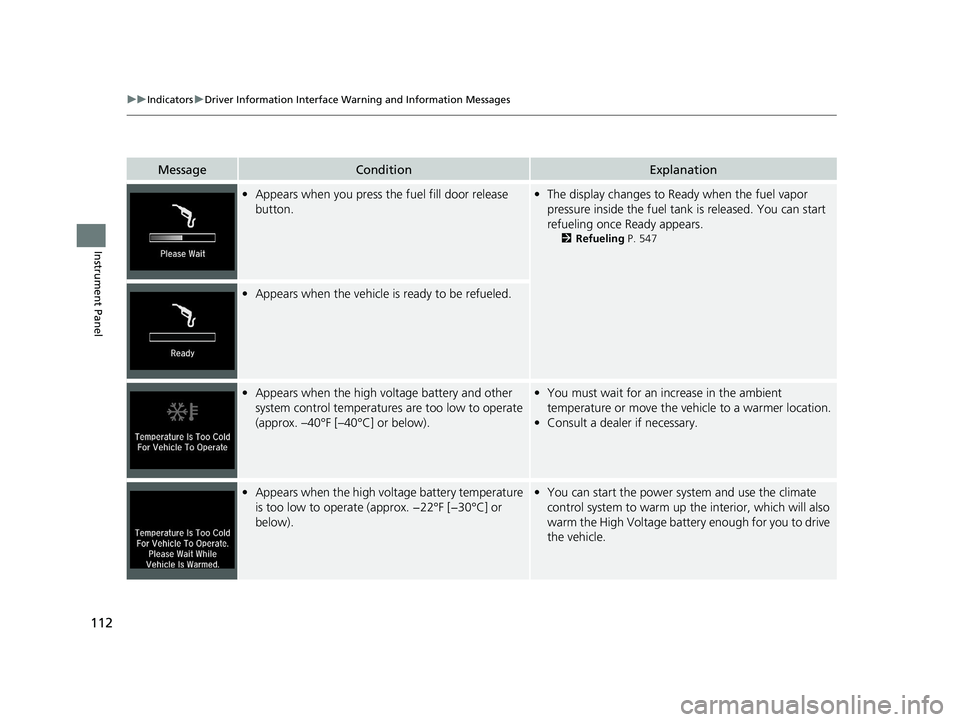

112
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you press th e fuel fill door release
button.• The display changes to R eady when the fuel vapor
pressure inside the fuel tank is released. You can start
refueling once Ready appears.
2 Refueling P. 547
•Appears when the vehicle is ready to be refueled.
•Appears when the high voltage battery and other
system control temperatures are too low to operate
(approx. –40°F [–40°C] or below).• You must wait for an increase in the ambient
temperature or move the vehicle to a warmer location.
• Consult a dealer if necessary.
•Appears when the high voltage battery temperature
is too low to operate (approx. −22°F [−30°C] or
below).•You can start the power sy stem and use the climate
control system to warm up th e interior, which will also
warm the High Voltage battery enough for you to drive
the vehicle.
20 INSIGHT-31TXM6100.book 112 ページ ２０１９年４月２４日　水曜日　午後２時２分

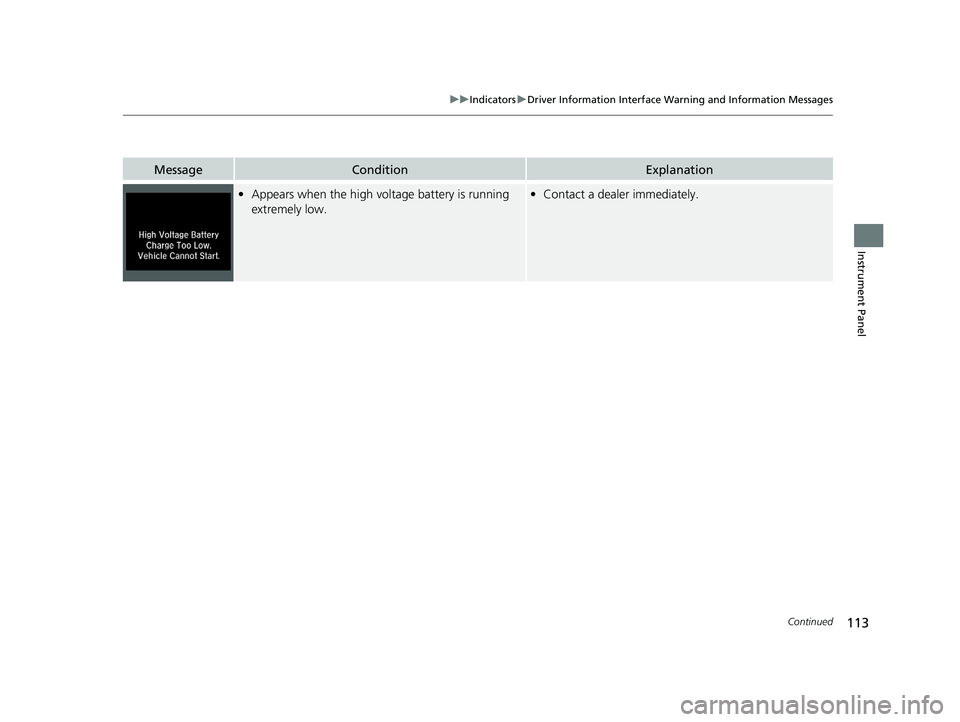

113
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the high voltage battery is running
extremely low.•Contact a dealer immediately.
20 INSIGHT-31TXM6100.book 113 ページ ２０１９年４月２４日　水曜日　午後２時２分

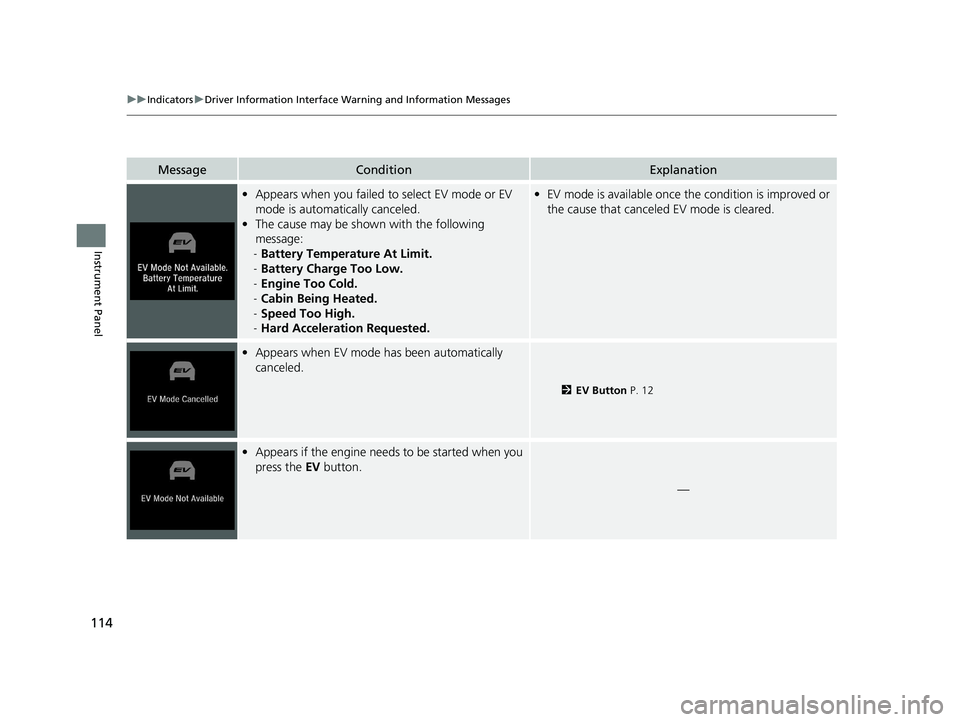

114
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you failed to select EV mode or EV
mode is automatically canceled.
• The cause may be shown with the following
message:
- Battery Temperature At Limit.
- Battery Charge Too Low.
- Engine Too Cold.
- Cabin Being Heated.
- Speed Too High.
- Hard Acceleration Requested.• EV mode is available once th e condition is improved or
the cause that canceled EV mode is cleared.
• Appears when EV mode has been automatically
canceled.
2 EV Button P. 12
•Appears if the engine needs to be started when you
press the EV button.
—
20 INSIGHT-31TXM6100.book 114 ページ ２０１９年４月２４日　水曜日　午後２時２分

115
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when you try to change the shift position
without releasing your foot off the accelerator pedal.• Release your foot off the acce lerator pedal, then select
a shift button.
• Appears when the (P button is pressed while the
vehicle is moving.
• Appears if you put the transmission into
(R while
the vehicle is moving forward, or into
(D while the
vehicle is reversing.
• Make sure that the vehicle comes to a stop before
operating the select button.
• Appears when you set the power mode to ON
without fastening the driver’s seat belt.
• Appears when you change the shift position after
(P has been automatically selected with the driver’s
door open, the driver’s seat belt unfastened, then
the brake pedal is released.
• Fasten the seat belt properly before you start to drive.
2 Shift Operation P. 459
•Appears when you try to change the shift position
without depressing the brake pedal.• Depress the brake pedal, then select a shift button.
20 INSIGHT-31TXM6100.book 115 ページ ２０１９年４月２４日　水曜日　午後２時２分

116
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you set the power mode to OFF while
driving.•Immediately stop in a safe place, set the parking brake,
then restart the power system. If the message
disappears, continue driving.
•Appears if the vehicle is stopped and the driver’s seat
belt is unfastened, as ther e is a possibility that the
vehicle may roll.• When the power system is ON or when you are parking
or exiting the vehicle, put the transmission into
(P
before releasing the brake pedal.
2 Shift Operation P. 459
•Appears if you depress the accelerator pedal when
the transmission is in
(N.
•Release the accelerator peda l. After that, depress the
brake pedal and change the transmission position.
●Appears if the shift positi on is repeatedly changed
between
(P and another position.
●Wait awhile, then change the shift position.
●Appears if the 12V battery is not charged enough to
make it possible to change shift positions.●Keep the power system on and wait awhile.●The battery may be nearing the end of its life.
Have it checked by a dealer.
20 INSIGHT-31TXM6100.book 116 ページ ２０１９年４月２４日　水曜日　午後２時２分

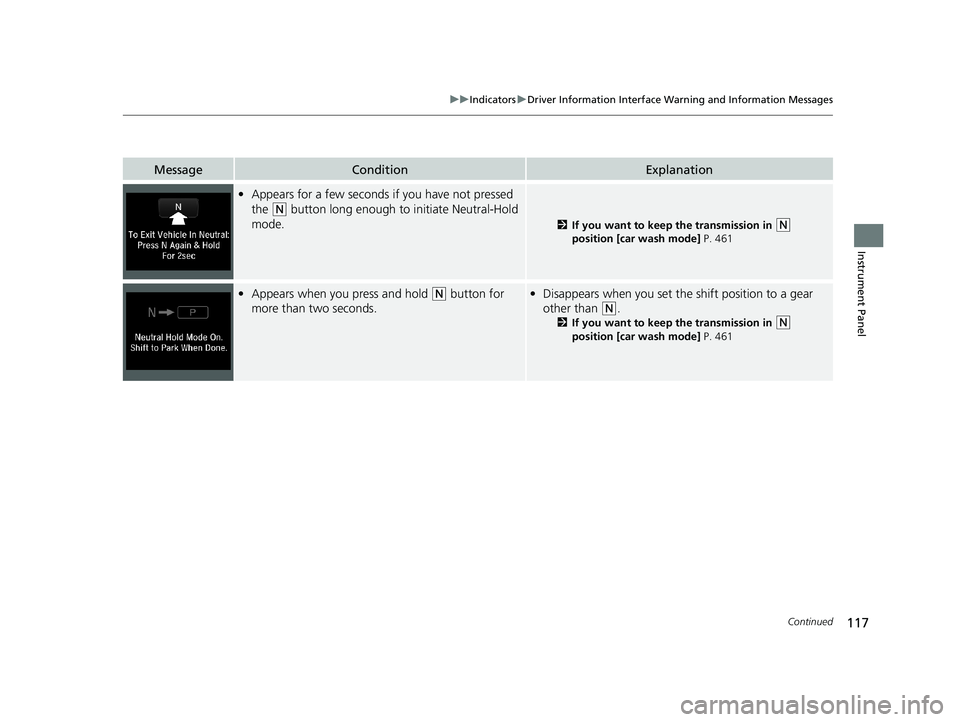

117
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears for a few seconds if you have not pressed
the
(N button long enough to initiate Neutral-Hold
mode.
2 If you want to keep the transmission in (N
position [car wash mode] P. 461
•Appears when you press and hold (N button for
more than two seconds.• Disappears when you set the shift position to a gear
other than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 461
20 INSIGHT-31TXM6100.book 117 ページ ２０１９年４月２４日　水曜日　午後２時２分

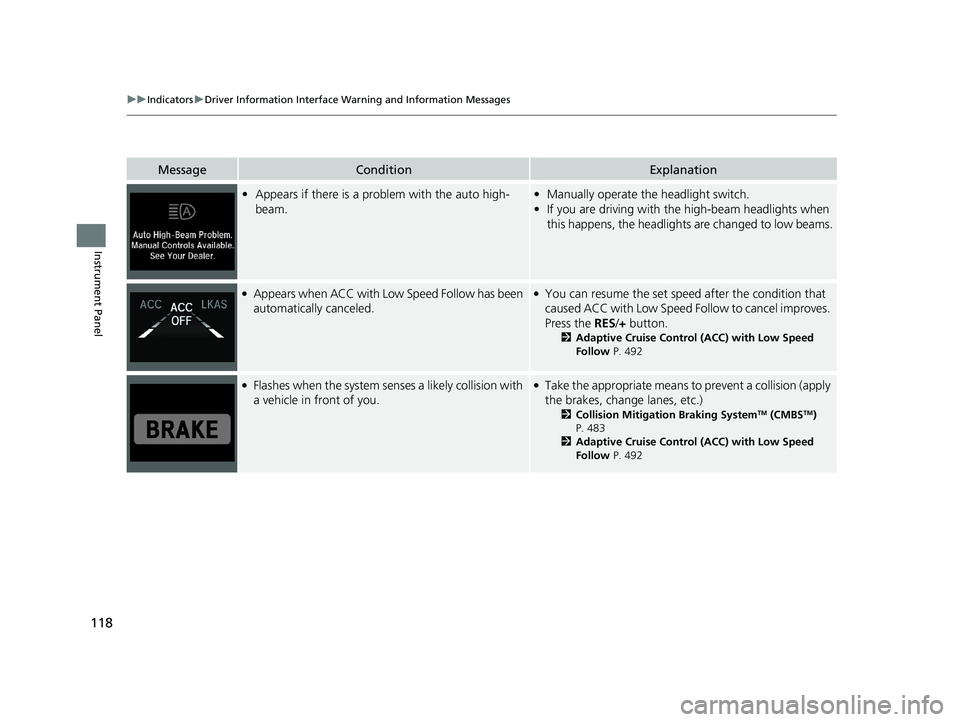

118
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.
●Appears when ACC with Low Speed Follow has been
automatically canceled.●You can resume the set speed after the condition that
caused ACC with Low Speed Follow to cancel improves.
Press the RES/+ button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 492
●Flashes when the system sens es a likely collision with
a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 483
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 492
20 INSIGHT-31TXM6100.book 118 ページ ２０１９年４月２４日　水曜日　午後２時２分
