Transmission Assembly
14. Install the intermediate shaft and the driveshafts(see section 16)-
NOTE: Replace the set rings with new ones.
Installation (cont'd)
-Sl
SET RINGReplace.
INTERMEDIATESHAFT
Replace.10 x 1.25 mm38 N.m (3.9 kgt m,28 tbtft)
15. Install the ball joints onto the lower arm (see sec-
tion 18).
16. Install the right damper fork (see section 18).
10 x 1.25 mm43 N.m {4.o ksf.m.32 lbf.ft)
RIGHTDAMPERFOBK
SELF.LOCKING NUTReplace.12 x 1.25 mm64 N.m {6.5 kgf.m,47 tbtft)
tLOWER ARM
:\
COTTER PIN
CASTLE NUT12 x 1.25 mm49 - 59 N.m 15.0 - 6.0 kgf m. Reptace.36 - 43 tbf.frl
13-44
DNIVESHAFTS
::.t
L
17. lnstall the exhaust pipe A, and the three way cat-
alytic converter (Bl8C'1 engine), and connect theheated oxygen sensor (HO2S) connector.
SELF-LOCKING NUTHO2SCONNECTORReplace.10 x 1.25 mm33 N.m (3.4 kgt.m,2s tbtftt
GASKETReplace.SELF.LOCKING NUTReplace.8 x 1.25 mm
SELF.LOCKING NUTReplace.THREE WAYCATALYTICCONVERTER1818C'l enginel
16 N'm 11.6 kgt m, 10 x 1 25 mm
l2tbt.ftl 54 N.m 15.5 kgt m,iro lbf.ftl
18. Install the engine splash shield.
GASKET

'19.Install the slave cylinder, then install the clutch pipe
bracket.
NOTE: Use only Super High Temp Urea Grease
(P/N 08798 - 9002).
CLUTCH PIPE6x1.0mm9.8 N.m {1.0 kgf.m, 7 lbf ft)
8 x 1.25 mm22 N-m 12.2 kgl.tr't,16 rbf.ftl
20.
21.
tPlN 08798 - 90021
VSS CONNECTOR
Connect the vehicle speed sensor (VSS) conneclor
and the starter motor cables.
Install the wire harness clamPs.
6x1.0mm9.8 N.m (1.0 kgt m,7 lbf ftl
WIREHARNESSCLAMPS
8 x 1.25 mm8.8 N.m 10.9 kgf.m,6.s tbf.ft)
STARTERMOTORCABLES
22, lnstall the lower radiator hose clamp on the trans-
mission hang€r B.
23. Connect the transmission ground wire and the
back-up light switch connector.
16 tbf.fttBACK.UP LIGI{TSWITCH CONNECTOR
GROUND WIRE HANGER B
Install the air cleaner housing assembly and the air24.
intake duct.
AIR CLEANERHOUSINGASSEMALY
6x1.0mm9.8 N.m 11.0 kgt'm,7 lbtftl
AIR INTAKE DUCT
Refill the transmission with oil (see page 13-3).
Connect the positive (+) cable first, then connect the
negative ( - ) cable to the battery.
Check the clutch operation.
Shift the transmission. and check for smooth opera-
tron.
29. Check the front wheel alignment (see section 18).
9\
\<
27.
28.
13-49

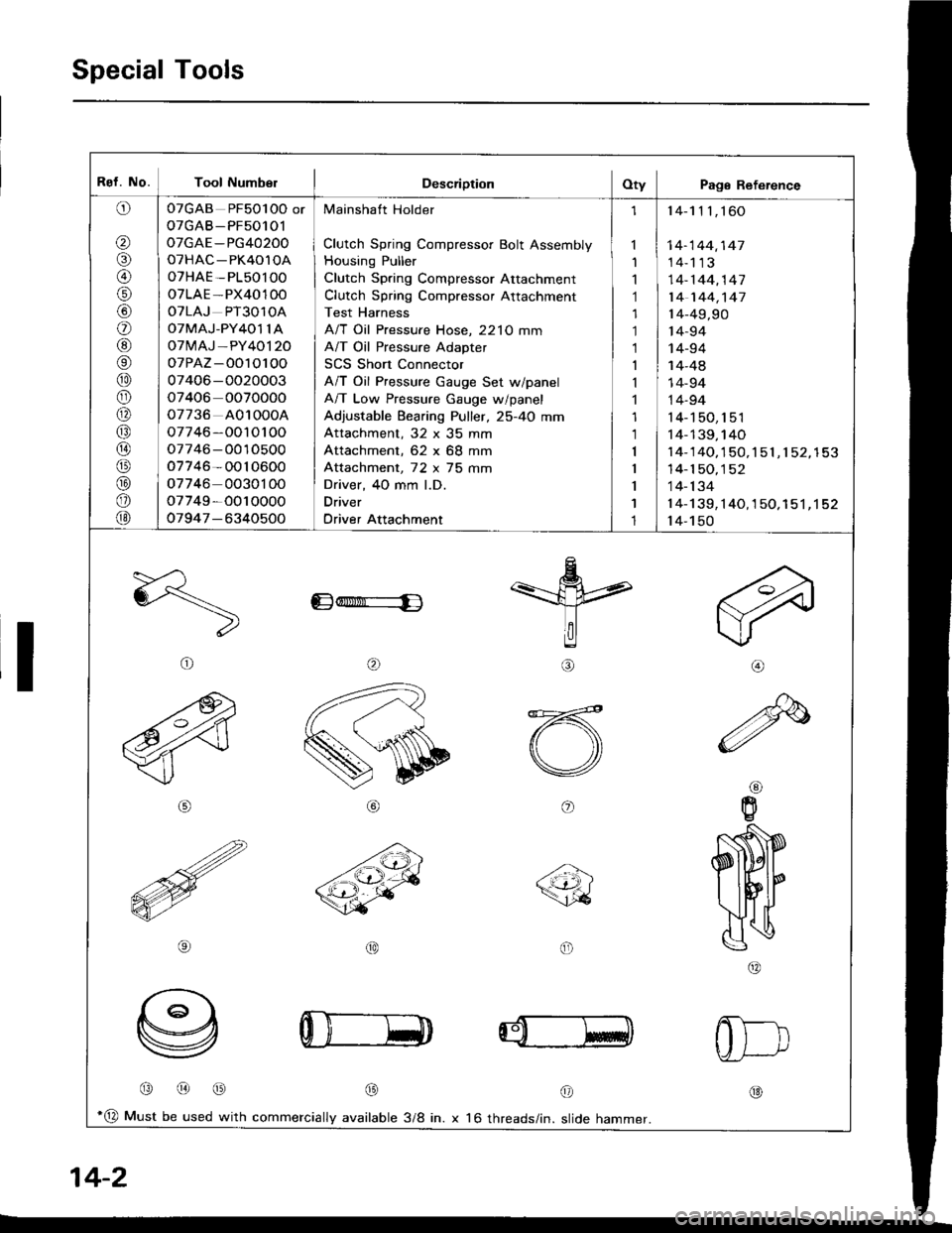

Special Tools
Rol. No. Tool NumbslDescriptionOty Page Reference
o
IA\
,6\
@
€/
o
@rt)
@
@
\9
@
@
@
@
@
@
OTGAB PF50l OO
oTGAB-PF50101
oTGAE-PG40200
oTHAC-PK4010A
oTHAE-PL50lOO
oTLAE-PX40100
OTLAJ PT30l OA
OTMAJ-PY4O'I 1A
oTMAJ-PY40120
oTPAZ -OO10100
07406-OO20003
o7406 0070000
07736 A01000A
o7746-O010100
o7746-O010500
07746-OO10600
07746 0030100
o7749-O010000
07947-6340500
Mainshatt Holder
Clutch Spring Compressor Bolt Assembly
Housing Puller
Clutch Spring Compressor Attachment
Clutch Spring Compressor Attachment
Test Harness
A/T Oil Pressure Hose, 221O mm
A/T Oil Pressure Adapter
SCS Short Connector
A/T Oil Pressure Gauge Set w/panel
A/T Low Pressure Gauge w/panel
Adjustable Bearing Puller, 25-40 mm
Attachment, 32 x 35 mm
Attachment, 62 x 68 mm
Attachment, 72 x 75 mm
Driver, 40 mm l.D.
Driver
Oriver Attachment
'I
I
1
1,1
1
1
1,|
1
1
1
1
1
I
I'I
1
14-1 1 1.160
14-144,147
14-1 1 3
14- 144,147
14 144,'t47
14-49,90
14-94
14-94't 4-44
14-94
14-94
14-150,151
14-139,140
14-140.1 50,1 51,1 52, 1 53
14-150,152
14-134
1 4-1 39,'140, 1 50.1 51,1 52
14,150
Edrn$r--€
o
a)
a6l@o
@@@@(r)
*@ Must be used with commercially available 3/8 in. x 16 threads/in. slide hammer.
@
14-2

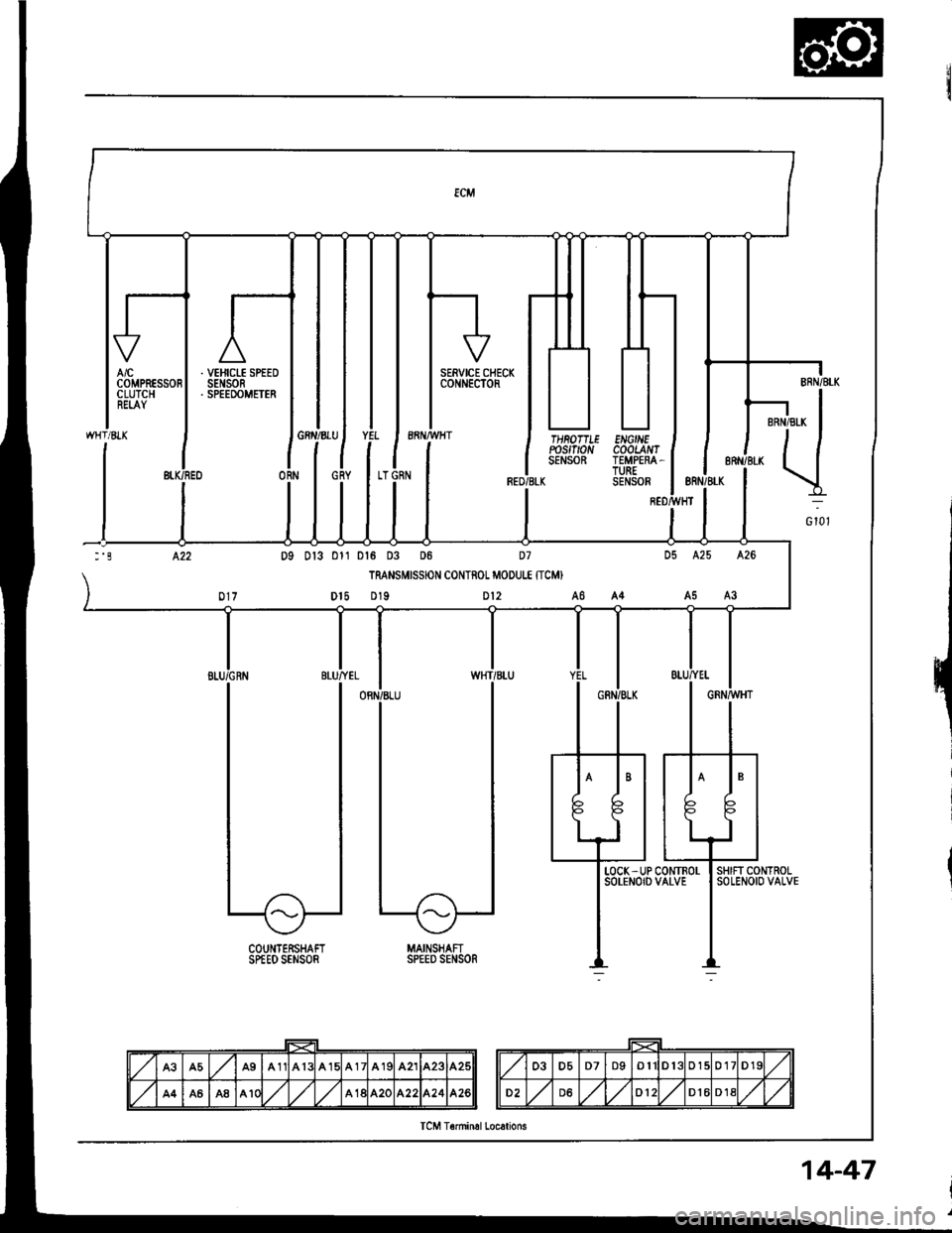

A/CCOMPRESSORCLUTCHREI.AY
. VEHICI.E SPEEDSENSOR. SPEEOOMETER
SERVICE CHECKCONNECTOR
D9 013 011 Dl6 D3 D6 D7
TMNSMISSION CONTROL MODULE {TCM}
Dls 019
/8tK'HBOTfLE ENE'NEPostto^l coolAlvrSENSOR TEMPERA.TURESENSOR
Dl2
D5 A25 A26
A5 A3I
I.OCK'UP CONTROLSOLENOID VATVESHIFTCONTROLSOLENOIO VALVE
COUNTERSHAFTSPEEO SENSORMAINSHAFISPEED SENSOR
A3A5A9A1:421
A6A8A1(,/1,/1,/A1t
TCM T6rmin6l Locations
14-47

Troubleshooting Procedures
when the TcM senses an abnormality in the input or output systems. the E]indicator light in the gaugo assembly willblink.
when the service check Connector {located under the dash on the passenger side} is connected with the specaat toolas shown, the E] indicator light will blink the Diagnostic Trouble iode {DTCI when the ignition switch is turned on.
When the lDil indicator light has been reported on, connect the service check connector with the special tool.Then turn on the ignition switch and observe the @ indicator light.
GAUGE ASSEMSLY
)'t
DAI'A LI]TKcor{r{EcToR (3P)NOTE:Do not atlachjumpe. wire.
Sc. DTCI
So. DTC2
S.. DTC14
scs sHoRT CO[{]{ECTORoTPAZ-OOl0too
codes 1 through I are indicated by individual short blinks, codes 1o through 1 5 are indicated by a series of tong andshon blinks. one long blink equals l0 short blinks. Add the long and short blinks together to dete;mins the cod€. Aft6rdetermining the code, refer to the erectricar system symptom-to-component chart on pages 14-5o and 51.
ahon
f"l
some PGM-FI problems will also make the @ indicator light come on. After repairing the pGM-Fr system, disconnectthe BACK UP tuse (7.5 Al in the under-hood fuse/relay box tor more than 1o seconds to reset the TcM memorv.
NOTE:
a PGM-FI svstem
The PGM-FI system on this model is a sequential multipon fuel iniection svstem.' Disconnecting the BACK UP tuse also cancels the radio anti-theft code, preset stations and the clock setting. G6tthe customer's code numbe. and make note of the radio presets befote temoving the fuse so you can reset them.
14-48

Symptom-to-Component Chart
Electrical System
Number of @indicator light
blinks while
Service Check
Connector is
connected with
the special tool.
@] indicaror
lightPossible CauseSymptomRefer to
page
BlinksDisconnected lock-up control solenoidvalve A connector
Short or open in lock-up control sole-noid valve A wire
Faulty lock-up control solenoid valve A
Lock-up clutch does not
engage.
Lock-up clutch does not
disengage.
Unstable idle speed.
14-52
BlinksDisconnected lock-up control solenoidvalve B connector
Short or open in lock-up control sole-noid valve B wire
Faulty lock-up cont.ol solenoid valve B
. Lock-up clutch does not
enga9e.
14-54
Blinks or
OFF
Disconnected throttle position (Tp)
sensor connector
Short or open in TP sensor wireFaully TP sensor
. Lock-up clutch does not
engage.14-56
4BlinksDisconnected vehicle speed sensor(VSS) connector
Short or open in VSS wire
Faulty VSS
. Lock-up clutch does not
engage.'t 4-57
Blinks. Short in A/T gear position switch wire. Faulty A/T gear position switch
. Fails to shift other than
2nde4th gears.. Lock-up clutch does not
engage.
14-58
OFFDisconnected A/T gear position switch
connector
Open in A/T gear position switch wireFaulty A/T gear position switch
Fails to shift other than
2nd-4th gears.
Lock-up clutch does not
en98ge.
Lock-up clutch engages
and disengages alter-
nately.
14-60
7BlinksDisconnected shift control solenoidvalve A connector
Short or open in shitt control solenoidvalve A wire
Faulty shift control solenoid valve A
. Fails to shift (between
1st-4th, 2nd-4th or
2nd-3rd gears only).. Fails to shift (stuck in
4th gear).
14-62
8BlinksDisconnected shitt control solenoid
valve B connector
Shon or open in shift control solenoidvalve B wi.e
Faulty shift control solenoid valve B
. Fails to shiJt (stuck in
lst or 4th gears).'t 4-64
aBlinksDisconnected countershatt speed sen-sor connector
Short or open in the countershaft
speed sensor wire
Faulty countershaft speed sensor
. Lock-up clutch does not
engage_
14-50

Number of @indicator light
blinks while
Service Check
Connector is
connected with
the special tool.
@ indicator
lightPossible CauseSymptomRefer to
page
'loBlinksDisconnected engine coolant tempera-
rure (ECT) sensor connector
Short or open in ECT sensor wire
Faulty ECT sensor
Lock-up clutch does not
engage.14-68
1lOFFDisconnected ignition coil connector
Short or open in ignition coil wire
Faulty ignition coil
. Lock-up clutch does not
engage.'t 4-7 0
13Blinks. Shon or open in LT GRN wire between
the D3 terminal and ECM. Faulty barometric pressure {BARO)
sensor
NOTE: The BARO sensor is built into
the ECM
. No specific symptom
appears.
14-7 1
14Blinks. Short of open in FAS {YEL} wire be-
tween the D16 terminal and ECM. Faulty ECM
. Transmission jerks hard
when shitting.
't5OFFDisconnected mainshaft speed sensor
connecror
Short or open in mainshaft speed sen-
sor wire
Faulty mainshaft speed sensor
. Transmission jerks hard
when shifting.
14-75
SymptomProbable CauseRet.page
LQ! indicator light is on steady, not blinking whenever the ignition is on.14-77
[Q3] indicator light does not come on for 2 seconds after ignition is first
turned on.14-78
Lock-up clutch does not have duty operation (ON-OFFI.Check A/C signal with
A/C on.14-80Lock-up clutch does not engage.
Shitt leve. cannot be moved lrom @ position with the brake pedal
depressed.Check brake switch signal,14-41
It the self-diagnosis LQ4 indicator light does not blink, perform an inspection according to the table below.
a lf a customer describes the symptoms for codes 3, (yet the LQ! indicator light is not blinkingl, 6, 1 1 or 15, it will
be necessa.y to recreate the symptom by test driving. and then checking the @ indicator light with the ignition still
oN.
e lt ttre @ indicator light displays codes olher than those listed above or stays lit continuously, the TCM is faulty.. Sometimes the Lqd indicator light and the Malfunction Indicator Lamp (MlL)/Check Engine light may come on simul-taneously. lf so, check the PGM-Fl system according to the numbe. of blinks on the MIL/Check Engine light. thenreset the memory by removing the BACK UP fuse in the unde.-hood fuse/relay box for more than 1O seconds. Drive
the vehicle for several minutes at speed over 30 mph (5O km/h), then recheck the MIL/Check Engine light.
NOTE:
. PGM-FI system
The PGM-Fl system on this model is a sequential multiport fuel injection system.a Disconnecting the BACK UP luse also cancels the radio anti-theft code. preset stations and the clock setting. Get
the fuse so vou can reset them.the customer's code number and make note ot the radio
14-51

Electrical Troubleshooting
Troubleshooting Flowchart
ls the MIL blinking?
fs the voftage 4.75 5.25 V?
Possible Cause
. Disconnected lock-up controlsolenoad valve A connector. Short or open in lock-up controlsolenoid valve A wire. Faulty lock-up control solenoid
NO
YES
Repair open or shorl in WHT/BLK wir€ botwe€n th€ D18 termi-nal and the ECM.
(-)
| | o " q " " o o o o o o o q litigse.*grq$:,1:d:sd:siia:l " "" o " " o o oo " I
I ro'r+ r rz6 r-tL--- l /trtr-- l
ls there voltage?
NO
ooooooooooo
oooooooo9oo
oooooooooooo
oooooooooooo
A25
Turn the ignition switch ON.
Check whether the MalfunctionIndicator Lamp (MlL) blinks (see
section I 1).
Repair the PGM-FI System (see
section 1 l ).
Turn the ignition switch OFF.
Disconnect the 26P and 22P con-nectors from the TCM.Connect the Test Harness "A"
and "D" connectors to the wireharness only, not to the TCM {seepage 14-49).
Turn the ignition switch ON.
Measure the voltage between theD18 and A25 or 426 terminals.
Measure the voltage between the46 and A25 or A26 terminals-
Repail short to power sourco inYEL wi.e between the A6 termi-nal and the lock-up control sole-noid valve A.
Turn the ignition switch OFF.
To page 14'53
14-52

Me6sure the resistance betweenthe 46 and A25 or A26terminals.
Check for loos€ TCM connectors.It necessary, substitute a known_good solenoid valve assembly orTCM and recheck.
Repair short to ground in YEL wirobetween tho AG t€rminal and th€lock-uo control solsnoid valve A.
Ch€ck tor open in YEL wire bo-tween the A6 terminal and thelock-uD control solenoid valve A.ls the resistance 14- 16 0?
RoDlaca th6 lock-up control sol€-noid valv6 assembly.
Disconnect the 2P connector lromthe lock-up control solenoid valve
Check Ior continuitv between the46 and A25 or 426 terminals.
ls the resistance 14 16 O?
ls there continuity?
Measure lhe resistance of thesolenoid at the 2P connector.
{cont'd}
View lrom terminal side
14-53

Electrical Troubleshooting
Troubleshooting Flowchart (cont'dl
Turn the ignition switch ON.
Check whether the MalfunctionIndicator Lamp (MlL) blinks (seesection 1 1).
Ropair tho PGM-FI Sysrom (se€soction 11).ls the MIL blinking?
Turn the ignition switch OFF.
Disconnect the 26P and 22P con-nectors trom the TCM.Connect the Test Harness "A"
and "D" connecto.s lo the wireharness only, not to the TCM (seepage 14-49).
Turn the ignition switch ON.
Measure the voltage between theD'18 and A25 or 426 terminats_
Rapair opon or shon in WHT/BLK wi.e botweon the O18 te.mi-nal rnd the ECM.
ls the voltage 4.75-5.25 V?
lvleasure the voltage between the44 and A25 or 426 rerminals.
Ropsir shon to power source inGRN/BLK wi.o betwoon the A4t6.minal and th€ lock-up controlsolonoid valve B.
Turn the ignition switch OFF.
14-54
Possible Cause
. Disconnected lock-up conlrolsolenoid valve B connector. Short or open in lock-up controlsolenoid valve B wire. Faulty lock up control solenoidvalve B
