Ashtrays, Interior Lights

Use the ashtray only for cigarettes,
cigars and other smoking materials. To
prevent a possible fire and damage to your car, don't put paper or other things that can burn in the ashtray.
Ceiling Lights
Your Honda has two ceiling lights. Each ceiling light has a three-
position switch. In the OFF position,
the lights do not come on. In the center position they come on when
you open any door. In the ON
position, they stay on continuously. Spotlights
On some models
Turn on the spotlight by pushing the button next to each light. Push the
button again to turn it off.

Instruments and Controls

NOTICE

DOOR ACTIVATEDProCarManuals.comMain Menu s t Table of Contents

Interior Lights

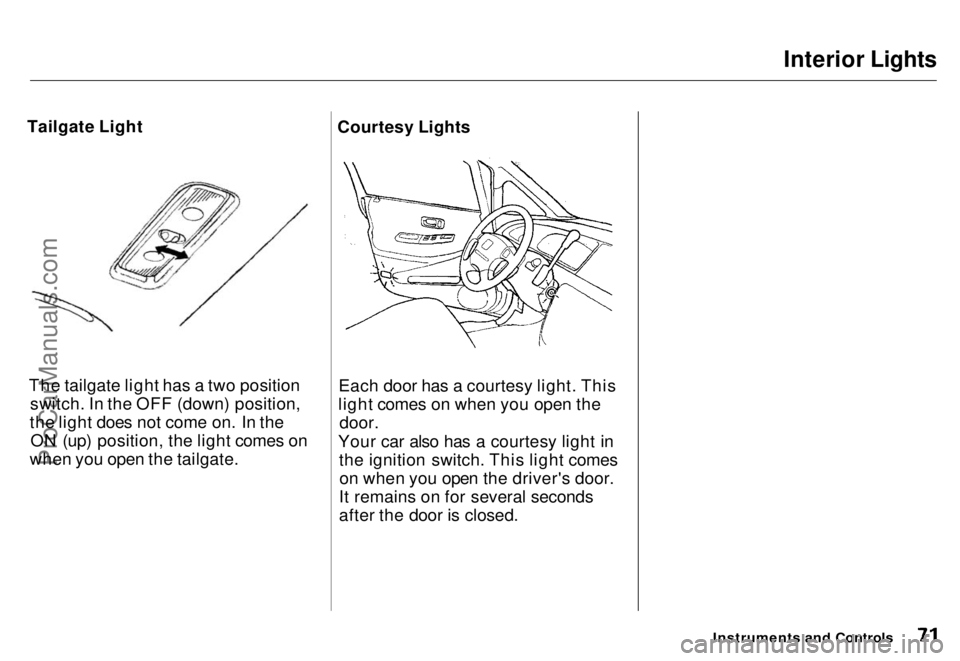

Tailgate Light
The tailgate light has a two positionswitch. In the OFF (down) position,
the light does not come on. In the ON (up) position, the light comes on
when you open the tailgate. Courtesy Lights
Each door has a courtesy light. This
light comes on when you open the door.
Your car also has a courtesy light in the ignition switch. This light comeson when you open the driver's door.
It remains on for several seconds
after the door is closed.

Instruments and ControlsProCarManuals.comMain Menu s t Table of Contents

Comfort and Convenience Features

The heating and air conditioning system in your car provides a com-
fortable driving environment in all
weather conditions.
The standard audio system has many features. This section de-scribes those features and how to
use them. (If you selected an
optional audio system, refer to the operating instructions that came
with it.)
Some models have an anti-theft
audio system that requires a code
number to enable it. Heating and Cooling........................ 74
What Each Control Does............ 74How to Use the System............... 76
To Turn Everything Off ............. 81 Rear A/C Unit.............................. 82
Audio System (U.S. LX and
Canadian EX)........................... 83

Operating the Radio.................... 84
Adjusting the Sound.................... 86 Radio Frequencies and Reception.................................. 86
Operating the Cassette Player... 87
Tape Search Functions............... 88
Caring for Cassettes.................... 89Operating the Optional CD Player/Changer....................... 90
Audio System (U.S. EX).................. 92 Operating the Radio.................... 93
Adjusting the Sound.................... 96 Radio Frequencies....................... 97
Radio Reception........................... 97
Operating the Cassette Player... 99
Tape Search Functions............. 100 Caring for the Cassette Player...................................... 101 Operating the Optional CD
Player/Changer..................... 102
Protecting Compact Discs........ 104 CD Error Indications................. 105
Theft Protection........................ 106

Comfort and Convenience FeaturesProCarManuals.comMain Menu s t

Heating and Cooling

Proper use of the Heating and

Cooling system can make the

interior dry and comfortable, and

keep the windows clear for best

visibility.

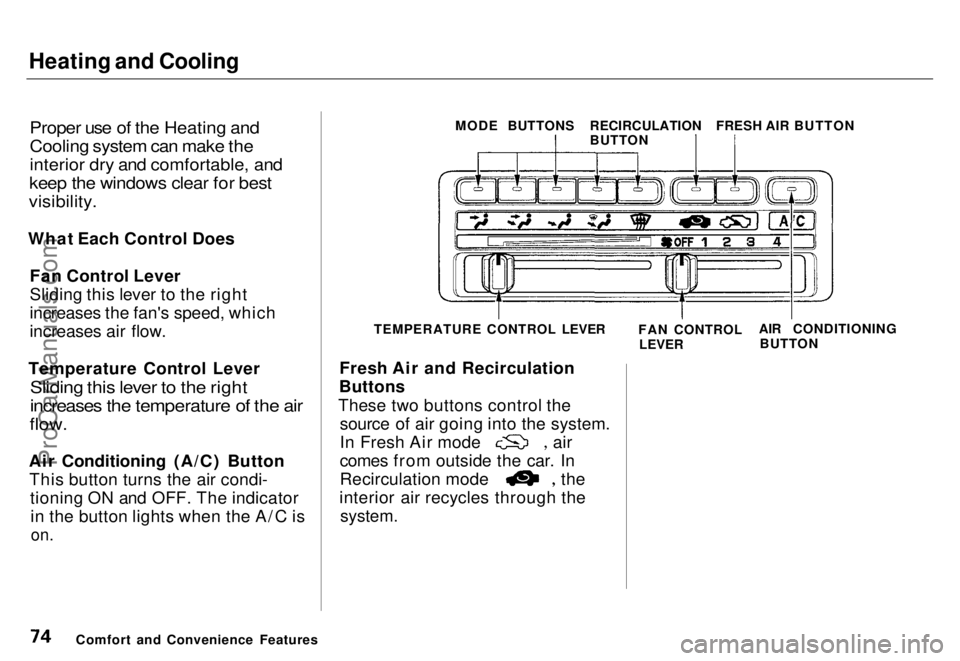

What Each Control Does Fan Control Lever
Sliding this lever to the right
increases the fan's speed, which
increases air flow.
Temperature Control Lever
Sliding this lever to the right

increases the temperature of the air

flow.

Air Conditioning (A/C) Button This button turns the air condi- tioning ON and OFF. The indicatorin the button lights when the A/C is
on.
Fresh Air and Recirculation
Buttons
These two buttons control the source of air going into the system. In Fresh Air mode air
comes from outside the car. In
Recirculation mode the
interior air recycles through the
system.

Comfort and Convenience Features TEMPERATURE CONTROL LEVER
FAN CONTROL
LEVER AIR CONDITIONING
BUTTON
MODE BUTTONS
RECIRCULATION
BUTTONFRESH AIR BUTTONProCarManuals.comMain Menu s t Table of Contents

Heating and Cooling

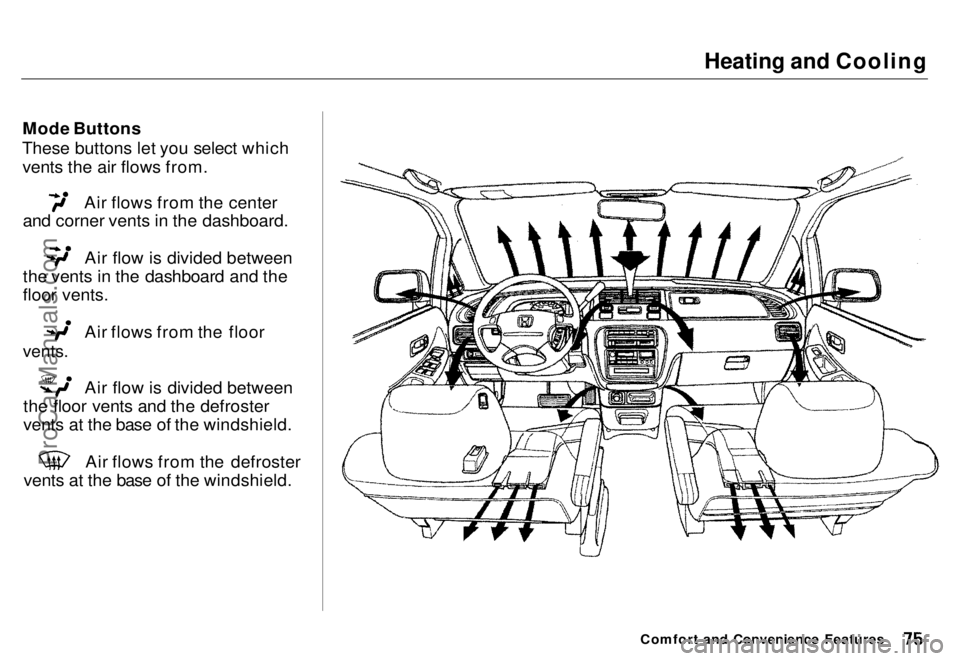

Mode Buttons
These buttons let you select which vents the air flows from. Air flows from the center
and corner vents in the dashboard. Air flow is divided between
the vents in the dashboard and the
floor vents. Air flows from the floor

vents.
Air flow is divided between
the floor vents and the defroster
vents at the base of the windshield. Air flows from the defroster
vents at the base of the windshield.
Comfort and Convenience FeaturesProCarManuals.comMain Menu s t Table of Contents

Heating and Cooling

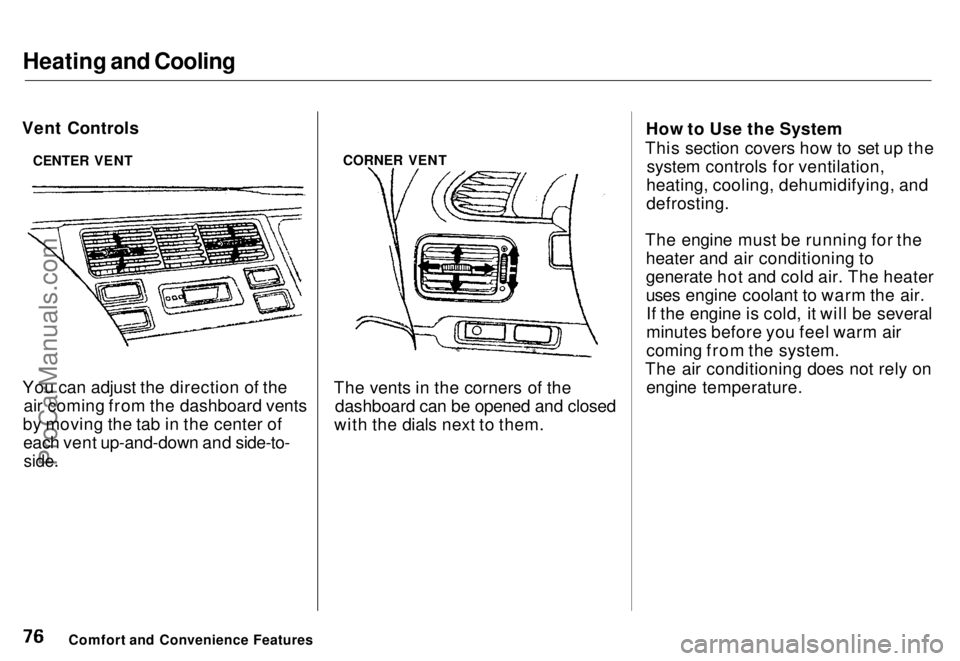

Vent Controls
You can adjust the direction of the air coming from the dashboard vents
by moving the tab in the center of each vent up-and-down and side-to-
side.
CORNER VENT
The vents in the corners of the dashboard can be opened and closed
with the dials next to them. How to Use the System
This section covers how to set up the system controls for ventilation,
heating, cooling, dehumidifying, and
defrosting.
The engine must be running for the heater and air conditioning to
generate hot and cold air. The heater
uses engine coolant to warm the air.If the engine is cold, it will be several
minutes before you feel warm air
coming from the system.
The air conditioning does not rely on engine temperature.
Comfort and Convenience Features
CENTER VENTProCarManuals.comMain Menu s t Table of Contents

Heating and Cooling
It is best to leave the system in mode under almost all
conditions. Keeping the system in mode, particularly with the
A/C off, can cause the windows to fog up. Switch to mode when
you are driving through smoky or dusty conditions, then switch back to mode when the condition

clears.

The outside air intakes for the heating and cooling system are atthe base of the windshield. Keep
these clear of leaves and other
debris.
Ventilation

The flow-through ventilation system draws in outside air, circulates it
through the interior, then exhausts it
through vents near the rear side

panels.
1. Slide the temperature control lever
all the way to the left.
Make sure the A/C is off. 2. Select and
3. Set the fan to the desired speed.
CONTINUED

Comfort and Convenience Features

MODE BUTTONS

RECIRCULATION
BUTTON
FRESH AIR BUTTON

AIR CONDITIONINGBUTTON

FAN CONTROL

LEVER

TEMPERATURE CONTROL LEVERProCarManuals.comMain Menu s t Table of Contents

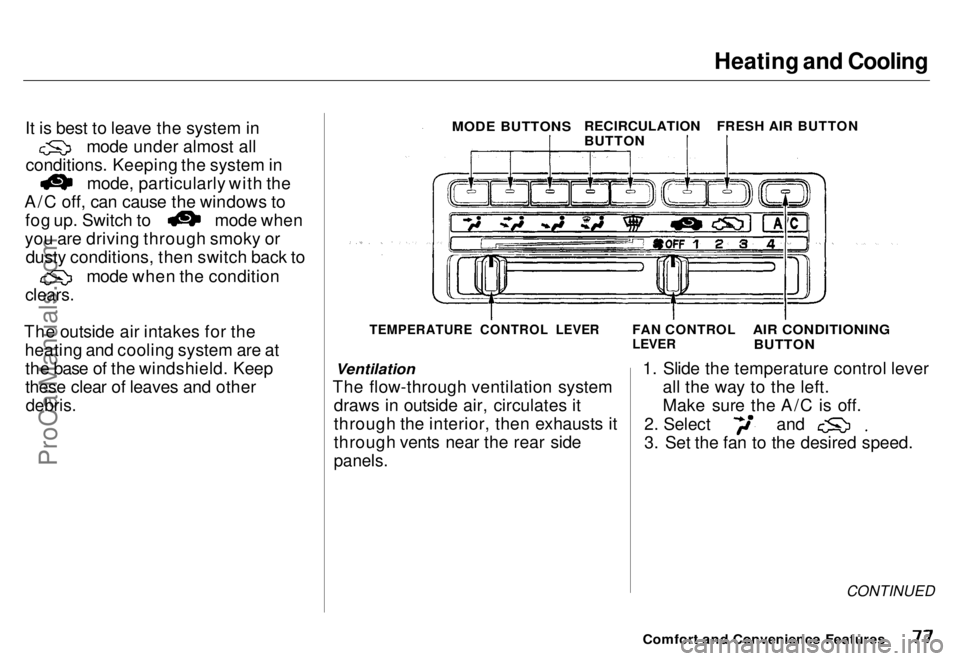

Heating and Cooling

To Cool with A/C
1. Turn on the A/C by pressing the button. The light in the button
should come on.
2. Make sure the temperature control lever is all the way to the

left.
3. Select and

4. Set the fan to the desired speed.

If the interior is very warm from

being parked in the sun, you can cool
it down more rapidly by setting up

the controls this way:

1. Start the engine.

2. Turn on the A/C by pressing the
button. Make sure the tempera-

ture control lever is all the way to

the left.

3. Set the fan to maximum speed.

4. Open the windows partially. Select
and
When the interior has cooled down
to a more comfortable temperature,
close the windows and set thecontrols as described for normal
cooling.
Air conditioning places an extra load
on the engine. Watch the engine
coolant temperature gauge (see page 38) when driving in stop-and-go
traffic or climbing a long, steep hill. If it moves near the red zone, turnoff the A/C until the gauge reads
normally.
Comfort and Convenience Features
MODE BUTTONS

RECIRCULATION
BUTTON
FRESH AIR BUTTON

AIR CONDITIONINGBUTTON

FAN CONTROL
LEVER
TEMPERATURE CONTROL LEVERProCarManuals.comMain Menu s t Table of Contents

Heating and Cooling

To Heat

To warm the interior:
1. Start the engine. 2. Select and
3. Set the fan to the desired speed.
4. Adjust the warmth of the air with
the temperature control lever.
To Heat and Dehumidify with Air
Conditioning

Air conditioning, as it cools, removes moisture from the air. When used in
combination with the heater, itmakes the interior warm and dry.
1. Switch the fan on.
2. Turn on the air conditioning. 3. Select and
4. Adjust the temperature control
lever so the mixture of heated and
cooled air feels comfortable.
This setting is suitable for all driving conditions whenever the outside
temperature is above 32°F (0°C).
To Defog and Defrost

To remove fog from the inside of the windows:
1. Switch the fan on.
2. Turn on the air conditioning. 3. Select and
4. Adjust the temperature control
lever so the airflow from the
defroster vents feels warm.
5. Turn on the rear window defogger to help clear the rear window.
CONTINUED

Comfort and Convenience FeaturesProCarManuals.comMain Menu s t Table of Contents

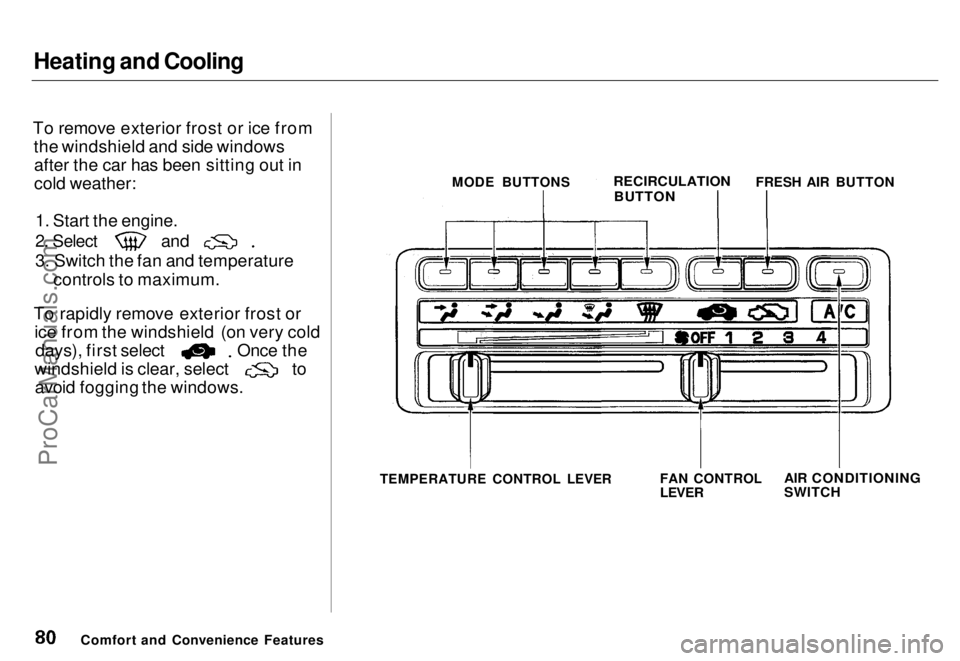

Heating and Cooling

To remove exterior frost or ice from the windshield and side windowsafter the car has been sitting out in
cold weather:
1. Start the engine.
2. Select
and
3. Switch the fan and temperature
controls to maximum.
To rapidly remove exterior frost or ice from the windshield (on very cold days), first select Once the
windshield is clear, select to
avoid fogging the windows.
TEMPERATURE CONTROL LEVER
Comfort and Convenience Features MODE BUTTONS

RECIRCULATION

BUTTON
FRESH AIR BUTTON
FAN CONTROL

LEVER
AIR CONDITIONING

SWITCHProCarManuals.comMain Menu s t Table of Contents
