Heating and Cooling

These settings direct all the air flow to the defroster vents at the base of the windshield and the side windowdefroster vents. The air flow will get
warmer and clear the windows faster as the engine warms up. You can
close the corner vents with the dial
beside each vent. This will send more warm air to the windshielddefroster vents.
For safety, make sure you have a
clear view through all the windows
before driving away.
To Turn Everything Off To shut off the system temporarily, slide the fan speed and temperature
control levers all the way to the left.
TEMPERATURE CONTROL LEVER

You should shut the system com- pletely off only for the first few
minutes of driving in cold weather,until the engine coolant warms up
enough to operate the heater. Keep
the fan on at all other times so stale air does not build up in the interior.
Comfort and Convenience Features
FAN CONTROL

LEVER

AIR CONDITIONING

SWITCH

RECIRCULATION BUTTON
FRESH AIR

BUTTON

MODE BUTTONSProCarManuals.comMain Menu s t Table of Contents

Heating and Cooling

Rear A/C Unit

(U.S. models only)

The rear A/C can be used when the
A/C switch on the front control panel is ON. Turn the rear A/C on
by moving the fan control lever out of the "OFF" position. The indicator
will come on. Adjust the fan speed by sliding the fan control lever. To
change the direction of air flow,
move the tab in the center of each
vent up-and-down and side-to-side.
Comfort and Convenience Features FAN CONTROL

LEVERProCarManuals.comMain Menu s t Table of Contents

Audio System

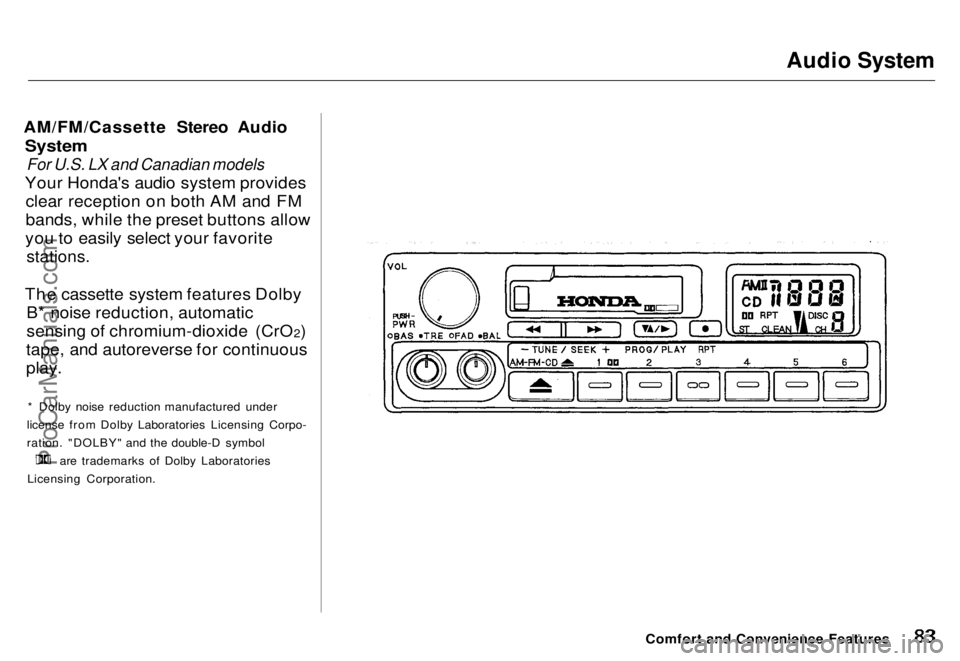

AM/FM/Cassette Stereo Audio
System
For U.S. LX and Canadian models

Your Honda's audio system provides clear reception on both AM and FM
bands, while the preset buttons allow
you to easily select your favorite
stations.

The cassette system features Dolby B* noise reduction, automatic
sensing of chromium-dioxide (CrO 2)
tape, and autoreverse for continuous

play.

* Dolby noise reduction manufactured under
license from Dolby Laboratories Licensing Corpo-
ration. "DOLBY" and the double-D symbol are trademarks of Dolby Laboratories
Licensing Corporation.
Comfort and Convenience FeaturesProCarManuals.comMain Menu s t Table of Contents

Audio System

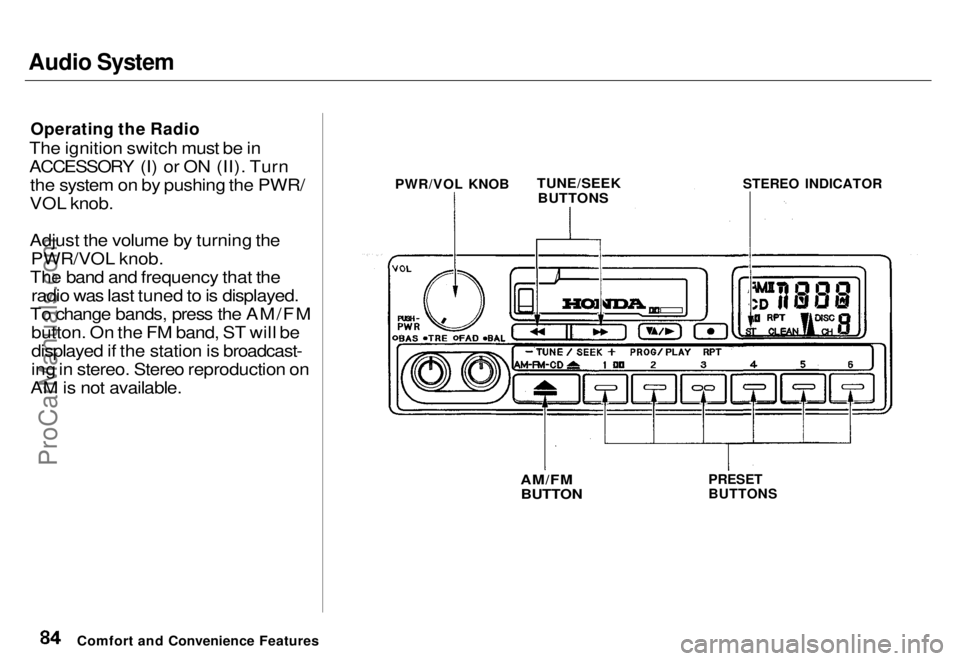

Operating the Radio

The ignition switch must be in
ACCESSORY (I) or ON (II). Turn the system on by pushing the PWR/
VOL knob.
Adjust the volume by turning the PWR/VOL knob.
The band and frequency that the radio was last tuned to is displayed.
To change bands, press the AM/FM button. On the FM band, ST will be
displayed if the station is broadcast-
ing in stereo. Stereo reproduction on
AM is not available.

Comfort and Convenience Features
TUNE/SEEK

BUTTONS
STEREO INDICATOR

PRESET

BUTTONS

AM/FM

BUTTON

PWR/VOL KNOBProCarManuals.comMain Menu s t Table of Contents

Audio System

You can use any of three methods to find radio stations on the selectedband: TUNE, SEEK, or the Preset
buttons.
TUNE — Use the TUNE/SEEK buttons to tune the radio to a desired frequency. Press ( ) to change
to a higher frequency, and press ( ) to tune to a lower frequency.
The frequency numbers will start to change rapidly. Release the switch
when the display reaches the desired frequency. To change the frequency
in small increments, press and
release the appropriate TUNE/SEEK button. SEEK — The SEEK function
searches the band for a station with
a strong signal. To activate it, push
the TUNE/SEEK button until you
hear a beep, then release it.
Depending on which TUNE/SEEK
button you pushed, the system scans
upward or downward from the
current frequency. It stops when it
finds a station with a strong signal.
Preset — You can store the fre- quencies of your favorite radio
stations in the six preset buttons.
Each button will store one frequency
on the AM band, and two on the FM

band.
To store a frequency:
1. Select the desired band, AM or FM. FM1 and FM2 let you store
two frequencies with each Preset

button.

2. Use the TUNE or SEEK function to tune the radio to a desired

station.

3. Pick the Preset button you want for that station. Press the button
and hold it until you hear a beep.
4. Repeat steps 1 to 3 to store a total of six stations on AM and twelve

on FM.

Once a station's frequency is stored,
simply press and release the proper
preset button to tune to it.
The preset frequencies will be lost if your vehicle's battery goes dead or is
disconnected.

Comfort and Convenience FeaturesProCarManuals.comMain Menu s t Table of Contents

Audio System

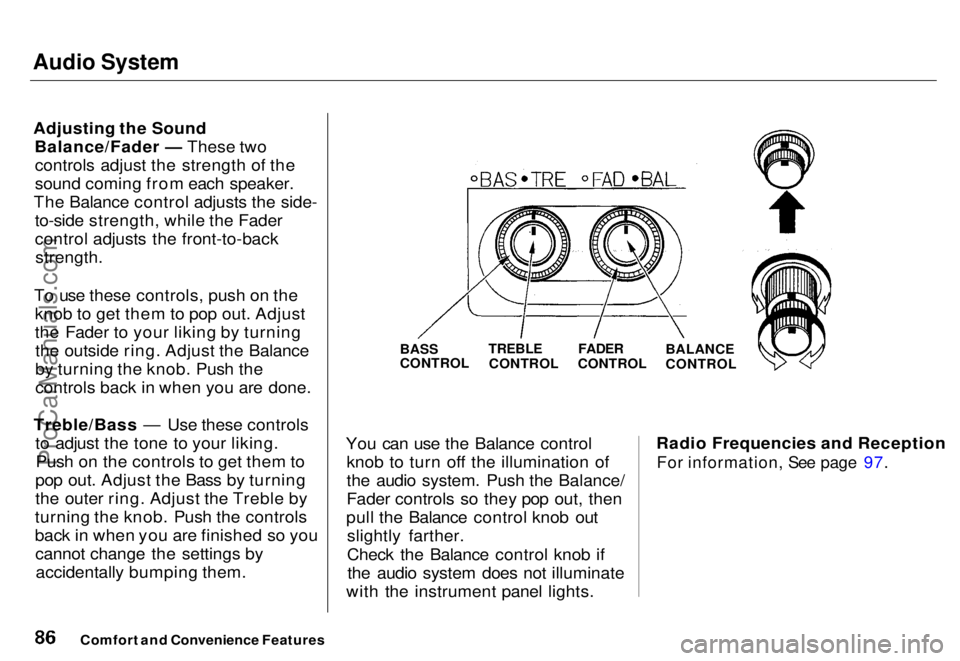

Adjusting the Sound Balance/Fader — These twocontrols adjust the strength of the
sound coming from each speaker.
The Balance control adjusts the side- to-side strength, while the Fader
control adjusts the front-to-back
strength.

To use these controls, push on the knob to get them to pop out. Adjust
the Fader to your liking by turningthe outside ring. Adjust the Balance
by turning the knob. Push the
controls back in when you are done.
Treble/Bass — Use these controls to adjust the tone to your liking.Push on the controls to get them to
pop out. Adjust the Bass by turning
the outer ring. Adjust the Treble by
turning the knob. Push the controls
back in when you are finished so you cannot change the settings byaccidentally bumping them.
BASS

CONTROL

You can use the Balance control knob to turn off the illumination of
the audio system. Push the Balance/
Fader controls so they pop out, then
pull the Balance control knob out slightly farther.
Check the Balance control knob ifthe audio system does not illuminate
with the instrument panel lights. Radio Frequencies and Reception

For information, See page 97.

Comfort and Convenience Features
TREBLE
CONTROL
FADER

CONTROL
BALANCE

CONTROLProCarManuals.comMain Menu s t Table of Contents

Audio System

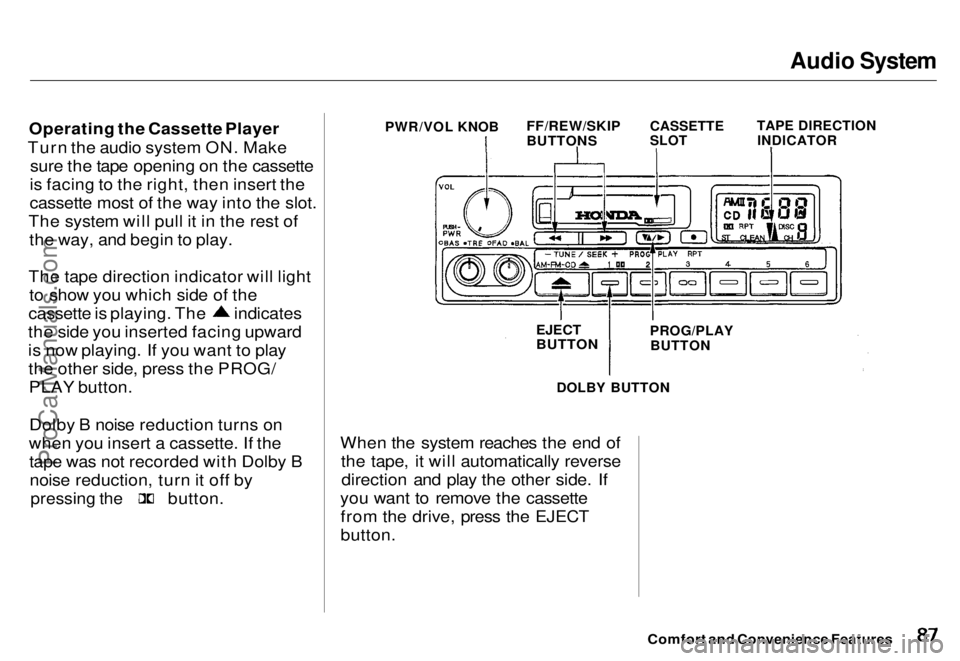

Operating the Cassette Player
Turn the audio system ON. Make sure the tape opening on the cassette
is facing to the right, then insert the
cassette most of the way into the slot.
The system will pull it in the rest of the way, and begin to play.
The tape direction indicator will light to show you which side of the cassette is playing. The indicates
the side you inserted facing upward
is now playing. If you want to play the other side, press the PROG/PLAY button.
Dolby B noise reduction turns on
when you insert a cassette. If the tape was not recorded with Dolby Bnoise reduction, turn it off by
pressing the
button.

DOLBY BUTTON

When the system reaches the end of the tape, it will automatically reversedirection and play the other side. If
you want to remove the cassette from the drive, press the EJECT
button.
Comfort and Convenience Features

PWR/VOL KNOB

FF/REW/SKIP

BUTTONS
CASSETTE

SLOT
TAPE DIRECTION

INDICATOR

EJECT

BUTTON
PROG/PLAY

BUTTONProCarManuals.comMain Menu s t Table of Contents

Audio System

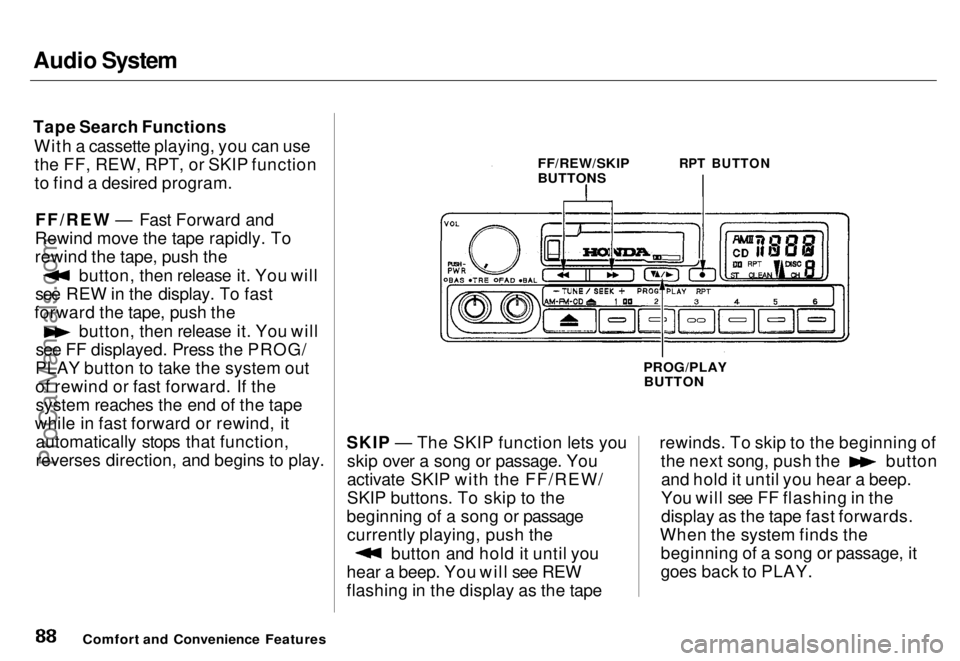

Tape Search Functions
With a cassette playing, you can usethe FF, REW, RPT, or SKIP function
to find a desired program.
FF/REW — Fast Forward and
Rewind move the tape rapidly. To
rewind the tape, push the button, then release it. You will
see REW in the display. To fast
forward the tape, push the button, then release it. You will
see FF displayed. Press the PROG/
PLAY button to take the system out
of rewind or fast forward. If the system reaches the end of the tape
while in fast forward or rewind, it automatically stops that function,
reverses direction, and begins to play. SKIP — The SKIP function lets you
skip over a song or passage. You
activate SKIP with the FF/REW/
SKIP buttons. To skip to the
beginning of a song or passage currently playing, push the button and hold it until you
hear a beep. You will see REW
flashing in the display as the tape rewinds. To skip to the beginning of the next song, push the button
and hold it until you hear a beep.
You will see FF flashing in the
display as the tape fast forwards.
When the system finds the beginning of a song or passage, it
goes back to PLAY.

Comfort and Convenience Features FF/REW/SKIP
BUTTONS

RPT BUTTON

PROG/PLAY BUTTONProCarManuals.comMain Menu s t Table of Contents

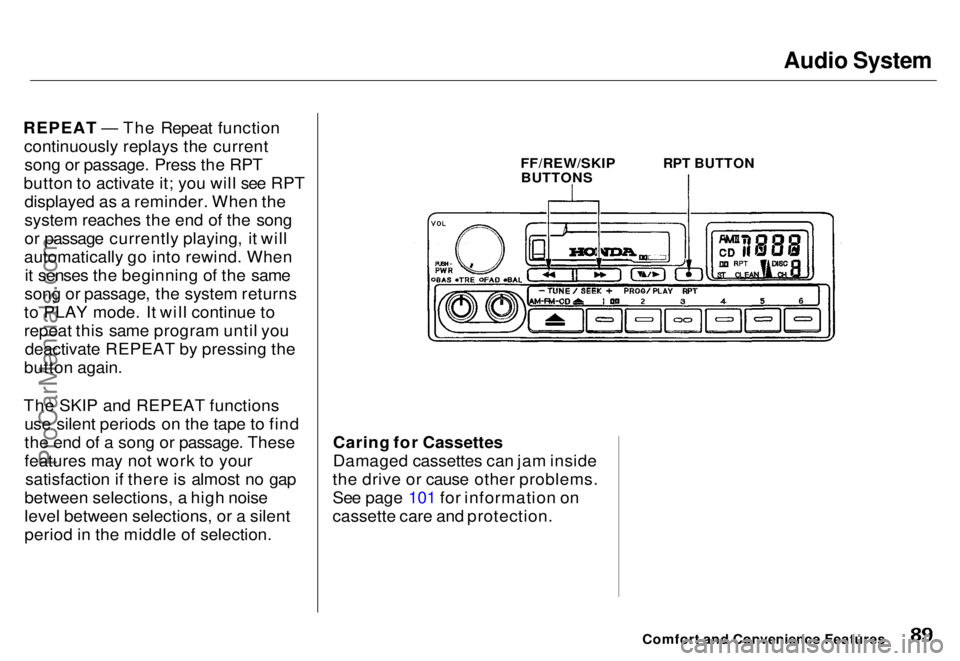

Audio System

REPEAT — The Repeat function continuously replays the currentsong or passage. Press the RPT
button to activate it; you will see RPT displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When it senses the beginning of the same
song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you deactivate REPEAT by pressing the
button again.
The SKIP and REPEAT functions use silent periods on the tape to find
the end of a song or passage. These
features may not work to yoursatisfaction if there is almost no gap
between selections, a high noise
level between selections, or a silent
period in the middle of selection.
FF/REW/SKIP

BUTTONS
RPT BUTTON
Caring for Cassettes
Damaged cassettes can jam inside
the drive or cause other problems.
See page 101 for information on
cassette care and protection.
Comfort and Convenience FeaturesProCarManuals.comMain Menu s t Table of Contents

Audio System

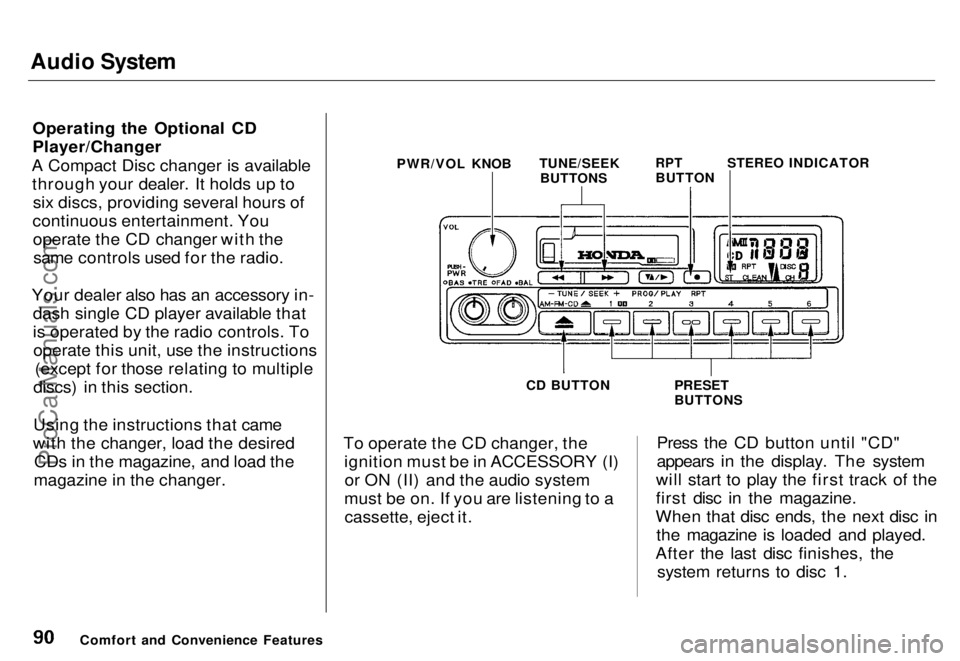

Operating the Optional CD
Player/Changer
A Compact Disc changer is available through your dealer. It holds up to six discs, providing several hours of
continuous entertainment. You operate the CD changer with thesame controls used for the radio.
Your dealer also has an accessory in- dash single CD player available that
is operated by the radio controls. Tooperate this unit, use the instructions (except for those relating to multiple
discs) in this section.
Using the instructions that came
with the changer, load the desired CDs in the magazine, and load the
magazine in the changer. To operate the CD changer, the
ignition must be in ACCESSORY (I)or ON (II) and the audio system
must be on. If you are listening to a cassette, eject it. Press the CD button until "CD"
appears in the display. The system
will start to play the first track of the
first disc in the magazine.
When that disc ends, the next disc in the magazine is loaded and played.
After the last disc finishes, the system returns to disc 1.
Comfort and Convenience Features PWR/VOL KNOB
TUNE/SEEK
BUTTONS
RPT

BUTTON
STEREO INDICATOR

PRESET

BUTTONS
