Press the SETUP button to display
the sound settings. Turn the selector
knob to select an appropriate setting:
BASS, TREBLE, FADER,
BALANCE, SUBW (subwoof er), and
SVC (speed-sensitive volume
compensation). Press the selector
knob to enter the setting, then turn
the selector knob to adjust the
setting. Press the SETUP button to display
the Setup menu. Turn the selector
knob to select Sound Settings, then
press the selector knob. Turn the
selector knob to select an
appropriate setting: Bass, Treble,
Fader, Balance, Subwoof er, and SVC
(speed-sensitive volume
compensation). Press the selector
knob to enter the setting, then turn
the selector knob to adjust thesetting. Press the selector knob
again to set your setting.
Adjusts the volume level
basedonthevehiclespeed. Adjusts
the strength of sound from the
subwoof er speaker. Adjusts the side-to-
side strength of the sound. Adjusts the front-to-back
strength of the sound. Adjusts the treble.
Adjusts the bass.
On EX models
On EX-L modelsPlaying the FM/AM Radio (EX, EX-L models without navigation system)Adjusting the Sound
SVC SUBW (SUBWOOFER) BAL ANCE
FADER TREBLE
BASS258U.S. EX modelsEX-L and Canadian EX models
10/07/17 10:09:00 31TK8600_263
2011 Odyssey

Eachmodeisshowninthedisplayas
it changes. Turn the selector knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display.The SVC mode controls the volume
based on vehicle speed. The f aster
you go, the louder the audio volume
becomes. As you slow down, the
audio volume decreases.
The SVC has f our modes: SVC OFF,
SVC LOW, SVC MID, and SVC
HIGH. Turn the selector knob to
adjust the setting to your liking. If
you f eel the sound is too loud,
choose low. If you f eel the sound is
too quiet, choose high. You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is turned of f .
To return to normal play, push the
RETURN or SETUP button af ter you
stop adjusting a mode. 140On U.S. EX models
Playing the FM/AM Radio (EX, EX-L models without navigation system)
Speed-sensit ive Volume
Compensat ion (SVC)
A udio System L ighting
Features
259
10/07/17 10:09:07 31TK8600_264
2011 Odyssey

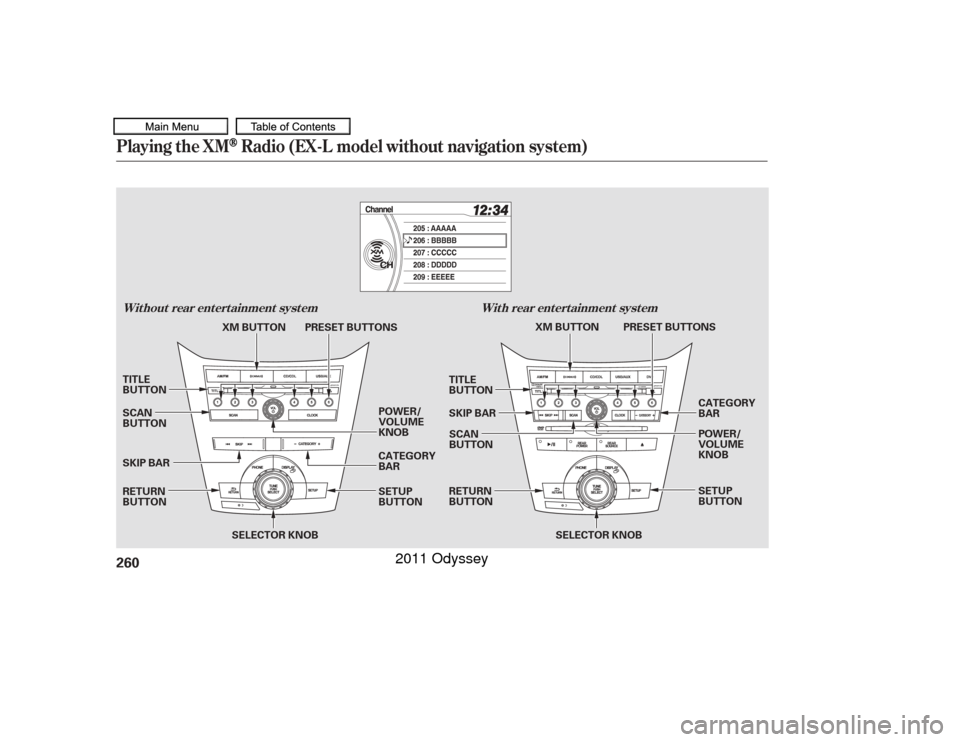

Playing the XM
Radio (EX-L model without navigation system)
Wit hout rear ent ert ainment syst emWit h rear ent ert ainment syst em260
RETURN
BUTTONSCAN
BUTTON
SKIP BAR TITLE
BUTTON
SCAN
BUTTON
SKIP BAR
RETURN
BUTTON TITLE
BUTTON PRESET BUTTONS
XM BUTTON
POWER/
VOLUME
KNOB
SETUP
BUTTON CATEGORY
BAR PRESET BUTTONS
XM BUTTON
SELECTOR KNOB SELECTOR KNOBCATEGORY
BAR
POWER/
VOLUME
KNOB
SETUP
BUTTON
10/07/17 10:09:15 31TK8600_265
2011 Odyssey

µ
To listen to XM Radio, turn the
ignition switch to the ACCESSORY
(I) or ON (II) position, and press the
button. The last channel you
listened to will show in the display.
Adjust the volume by turning the
power/volume knob.
XM Radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM Radio
allows you to view channel and
category selections in the display. Your vehicle is capable of receiving
XM
Radio anywhere in the United
States and Canada, except Hawaii,
Alaska,andPuertoRico.XMisa
registered trademark of Sirius XM
Radio,Inc.andXMCANADA
is a
registered business name of
Canadian Satellite Radio Inc. You can also change the mode from
the setup menu. Press the SETUP
button to display the setup menu.
Turn the selector knob to select XM
Mode and press the selector knob.
You can select Channel mode or
Category mode by turning and
pressing the selector knob.
Each time you press and release the
TITLE button, the display changes
f rom artist name to song name.
You may experience periods when
XM Radio does not transmit the
artist’s name and song title
inf ormation. If this happens, there is
nothing wrong with your system.
To switch between
channel mode and category mode,
either press and hold the TITLE
button until the mode changes.
In the channel mode, you can select
all of the available channels. In the
category mode, such as Jazz, Rock,
Classical, etc., you can select all of
the channels within that category.
CONT INUED
Operating the XM Radio
MODE
Playing the XM
Radio (EX-L model without navigation system)
Features
261
10/07/17 10:09:23 31TK8600_266
2011 Odyssey

µµ´µ
µ
The SCAN f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the stations within that
category are scanned. To activate
scan, press the SCAN button. The
system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
button again. Press
either side of the CATEGORY bar to
select another category.
Turn the selector knob to
change channel selections. Turn the
knob right f or higher numbered
channels and lef t f or lower
numbered channels. In the category
mode, you can only select channels
within that category.
You can also select a channel from
the list by using the selector knob.
Push the selector knob to switch the
display to the list, then turn the knob
to select a channel. Press the
selector knob to set your selection.SCAN CAT EGORY ( or )
TUNE
Playing the XM
Radio (EX-L model without navigation system)
262
10/07/17 10:09:28 31TK8600_267
2011 Odyssey

µµ
µ
µ
µ µ
µ
µ
Youcanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band.
To store a channel: Press the button. Either
XM1 or XM2 will show in the
display. Repeat steps 2 and 3 to store the
f irst six channels.
Once a channel is stored, simply
press and release the proper preset
button to tune to it. Press the button again.
The other XM band will show.
Store the next six channels using
steps 2 and 3.
The signal is
currently too weak. Move the vehicle
to an area away from tall buildings,
and with an unobstructed view of the
southern horizon.
The selected
channel has no artist or title
inf ormation at this time.
XM is loading the
audio or program inf ormation.
The channel
currently selected is no longer
broadcasting. The
encryption code is being updated.
Wait until the encryption code is
f ully updated. Channels 0 and 1
should still work normally.
There is
a problem with the XM antenna.
Please consult your dealer.
Use the selector knob, SKIP bar,
CATEGORYbarorSCANbutton
to tune to a desired channel.
The selected
channel number does not exist, is
not part of your subscription, or this
channel has no artist or title
inf ormation at this time.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
3. 4.
5.
2. 1.
CONT INUED
Preset
XM Radio Display Messages ‘‘NO SIGNA L ’’
‘‘NO INFO’’
‘‘L OA DING’’
‘‘OFF A IR’’ ‘‘UNA UT HORIZED’’
‘‘CHECK A NT ENNA ’’ ‘‘UNA VA IL A BL E’’
Playing the XM
Radio (EX-L model without navigation system)
Features
263
10/07/17 10:09:41 31TK8600_268
2011 Odyssey

The XM satellites are in orbit over
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel f rom the equator. Carrying
large items on a roof rack can also
block the signal.
Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of an
east/west mountain road.
Driving on the north side of a
large commercial truck on an
east/west road. Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you. Driving on the lower level of a
multi-tiered road. Large items carried on a roof rack.Playing the XM
Radio (EX-L model without navigation system)
264
Signal may be blocked by
mountains or large obstacles to
the south.
Signal weaker in
these areas.
SATELLITE GROUND REPEATER
10/07/17 10:09:49 31TK8600_269
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
2011 Odyssey

If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcastsavailable
on XM Radio. With the ignition
switch in the ACCESSORY (I) or the
ON (II) position, press the button. A variety of music
types and styles will play.
Theremaybeothergeographic
situations that could af f ect XM Radio
reception.
If you decide to purchase XM radio
service, contact XM Radio at,orat
1-800-852-9696. In Canada, contact
XM CANADA
at , or
at 1-877-209-0079. You will need to
give them your radio I.D. number
and your credit card number. To get
your radio I.D. number, press the button, then turn the
selector knob until ‘‘CH 000’’ appears
in the display. Your I.D. will appear
in the display. After you’ve registered with XM
Radio, keep your audio system in the
XM Radio mode while you wait f or
activation. This should take about 30
minutes.
While waiting f or activation, make
sure your vehicle remains in an open
area with good reception. XM Radio
will continue to send an activation
signal to your vehicle f or at least 12
hours from the activation request. If
the service has not been activated
af ter 36 hours, contact XM
Radio.
In Canada, contact XM CANADA
.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.comwww.xmradio.ca
Receiving XM Radio Service
Playing the XM
Radio (EX-L model without navigation system)
Features
265
10/07/17 10:09:57 31TK8600_270
2011 Odyssey

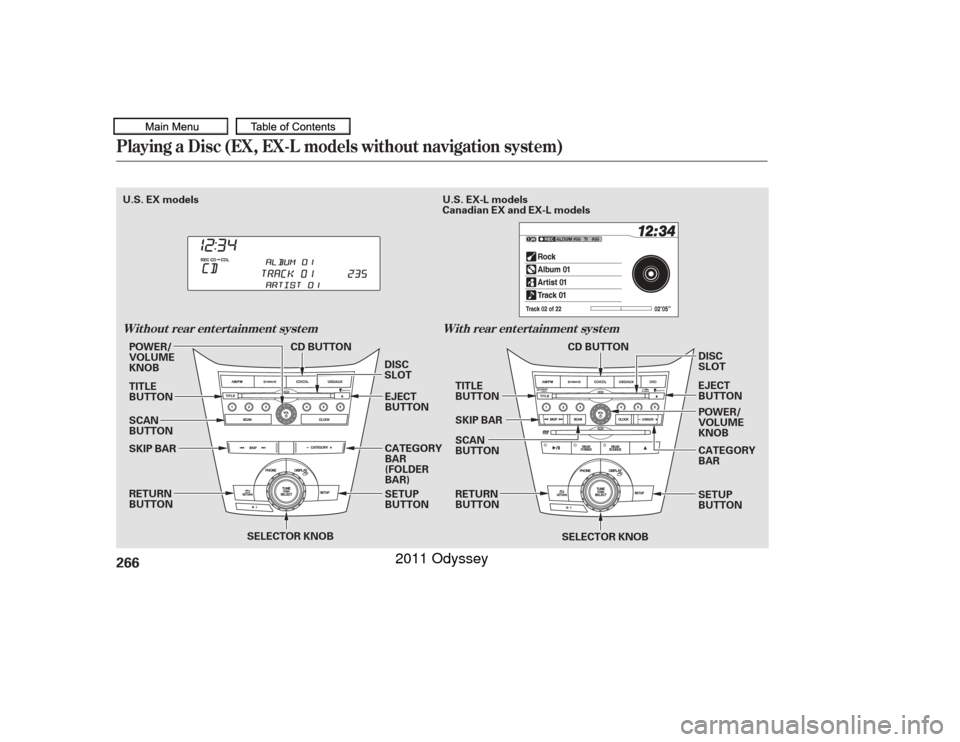

Playing a Disc (EX, EX-L models without navigation system)Wit hout rear ent ert ainment syst emWit h rear ent ert ainment syst em266
SELECTOR KNOB
SELECTOR KNOB
POWER/
VOLUME
KNOB
TITLE
BUTTON
SCAN
BUTTON
SKIP BAR
RETURN
BUTTON
EJECT
BUTTON
POWER/
VOLUME
KNOB
CATEGORY
BAR
SETUP
BUTTON
CD BUTTON
CD BUTTON
U.S. EX models
Canadian EX and EX-L models U.S. EX-L models
EJECT
BUTTON
CATEGORY
BAR
(FOLDER
BAR)
SETUP
BUTTON RETURN
BUTTON SCAN
BUTTON SKIP BAR TITLE
BUTTON
DISC
SLOT
DISC
SLOT
10/07/17 10:10:05 31TK8600_271
2011 Odyssey

To load or play a disc, the ignition
switch must be in the ACCESSORY
(I) or ON (II) position.
You operate the disc player with the
same controls used f or the radio. To
select the disc player, press the CD
button. You will see ‘‘CD’’ in the
display. The number of the track
playing is shown in the display. The
system will continuously play a disc
until you change modes.Title inf ormation will be displayed by
a list when the inf ormation is f ound
in the Gracenote
Album Inf o
(Gracenote
Media Database).
When you play a CD recorded with
text data, you will see the genre,
artist name, album and track name
on the screen. When you play MP3/
WMA/AAC discs, you will see the
genre, artist name, album name and
track name on the screen. If the disc
was not recorded with this
inf ormation, it will not be displayed.
You cannot load and play 3-inch
(8-cm)discsinthissystem.
Video CDs and DVDs do not work in
this unit. The CD player can play CD-Rs and
CD-RWs compressed in MP3, WMA
or AAC f ormats. When playing a disc
in MP3, WMA or AAC, you will see
‘‘MP3,’’ ‘‘WMA’’ or ‘‘AAC’’ on the
display. A disc can support more
than 99 folders, and each folder can
hold up to 255 playable f iles.
CONT INUED
To Play a Disc
Playing a Disc (EX, EX-L models without navigation system)
Features
267
Do not use discs with adhesive labels.
The label can curl up and cause the
disc to jam in the unit.
10/07/17 10:10:12 31TK8600_272
2011 Odyssey
