HONDA ODYSSEY 2013 RC1-RC2 / 5.G Owners Manual

120
uuOpening and Closing the TailgateuOpening/Closing the Tailgate Using the Tailgate Release Button
Controls

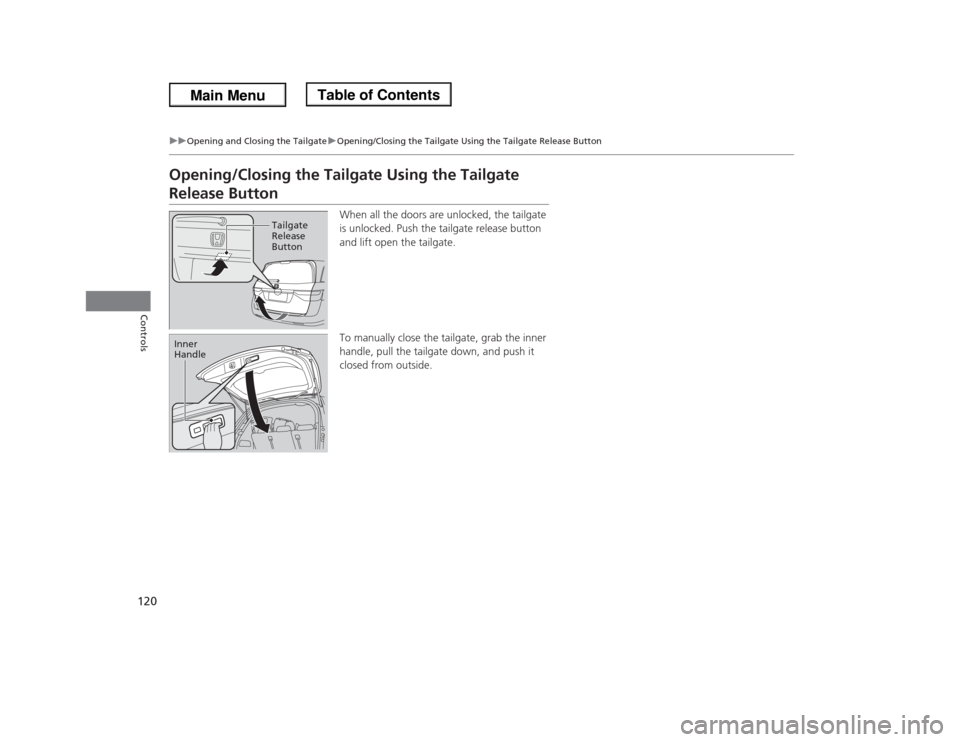

Opening/Closing the Tailgate Using the Tailgate Release Button
When all the doors are unlocked, the tailgate
is unlocked. Push the tailgate release button
and lift open the tailgate.
To manually close the tailgate, grab the inner
handle, pull the tailgate down, and push it
closed from outside.
Tailgate
Release
Button
Inner
Handle

121
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
*
Continued
Controls

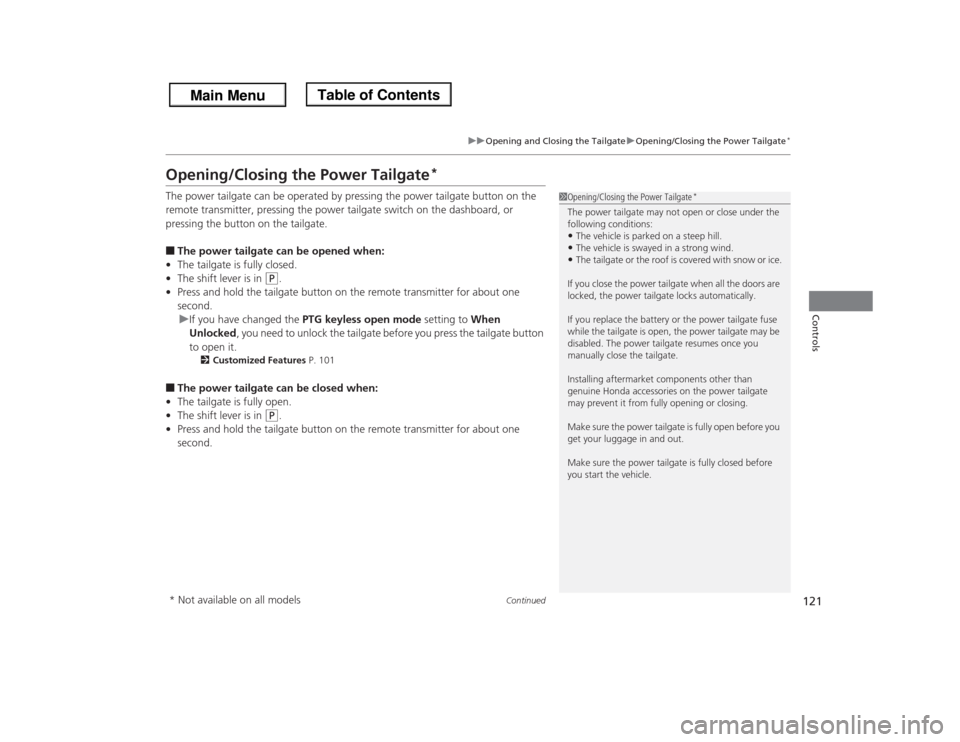

Opening/Closing the Power Tailgate
*
The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter, pressing the power tailgate switch on the dashboard, or
pressing the button on the tailgate.■The power tailgate can be opened when:
•The tailgate is fully closed.
•The shift lever is in
(P
.
•Press and hold the tailgate button on the remote transmitter for about one
second.
uIf you have changed the PTG keyless open mode setting to When
Unlocked, you need to unlock the tailgate before you press the tailgate button
to open it.
2Customized Features P. 101
■The power tailgate can be closed when:
•The tailgate is fully open.
•The shift lever is in
(P
.
•Press and hold the tailgate button on the remote transmitter for about one
second.
1Opening/Closing the Power Tailgate
*
The power tailgate may not open or close under the
following conditions:•The vehicle is parked on a steep hill.•The vehicle is swayed in a strong wind.•The tailgate or the roof is covered with snow or ice.
If you close the power tailgate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tailgate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda accessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your luggage in and out.
Make sure the power tailgate is fully closed before
you start the vehicle.
* Not available on all models

uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
*
122Controls

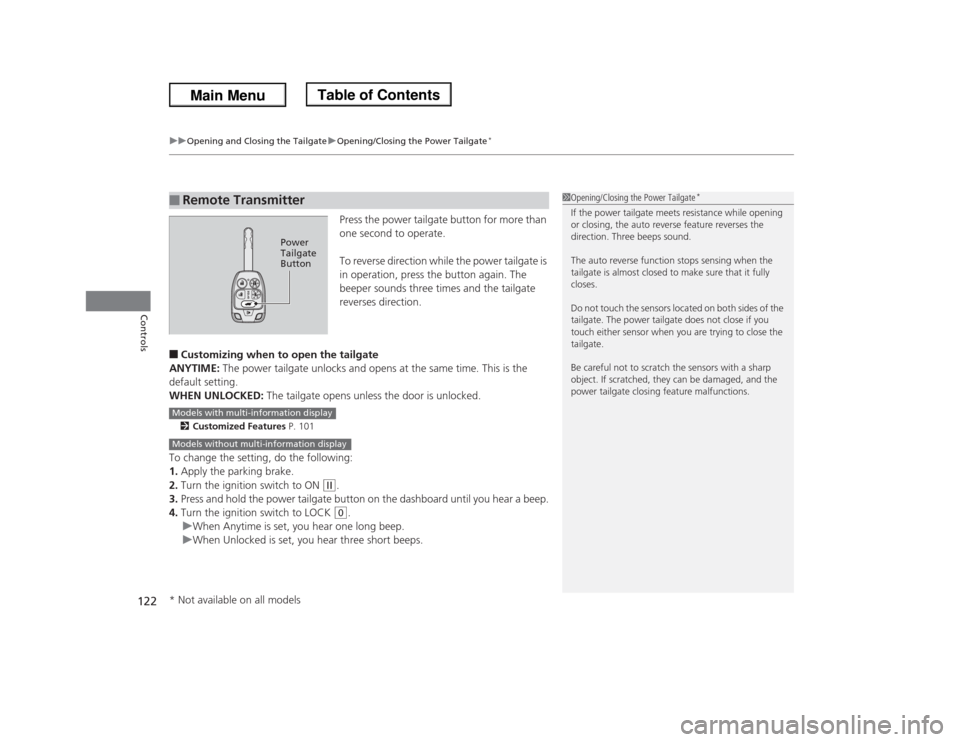

Press the power tailgate button for more than
one second to operate.
To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.
■Customizing when to open the tailgate
ANYTIME: The power tailgate unlocks and opens at the same time. This is the
default setting.
WHEN UNLOCKED: The tailgate opens unless the door is unlocked.2Customized Features P. 101To change the setting, do the following:
1.Apply the parking brake.
2.Turn the ignition switch to ON
(w
.
3.Press and hold the power tailgate button on the dashboard until you hear a beep.
4.Turn the ignition switch to LOCK (0
.
uWhen Anytime is set, you hear one long beep.
uWhen Unlocked is set, you hear three short beeps.
■
Remote Transmitter
1Opening/Closing the Power Tailgate
*
If the power tailgate meets resistance while opening
or closing, the auto reverse feature reverses the
direction. Three beeps sound.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailgate does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.
Power
Tailgate
Button
Models with multi-information displayModels without multi-information display* Not available on all models

Continued
123
uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
*
Controls

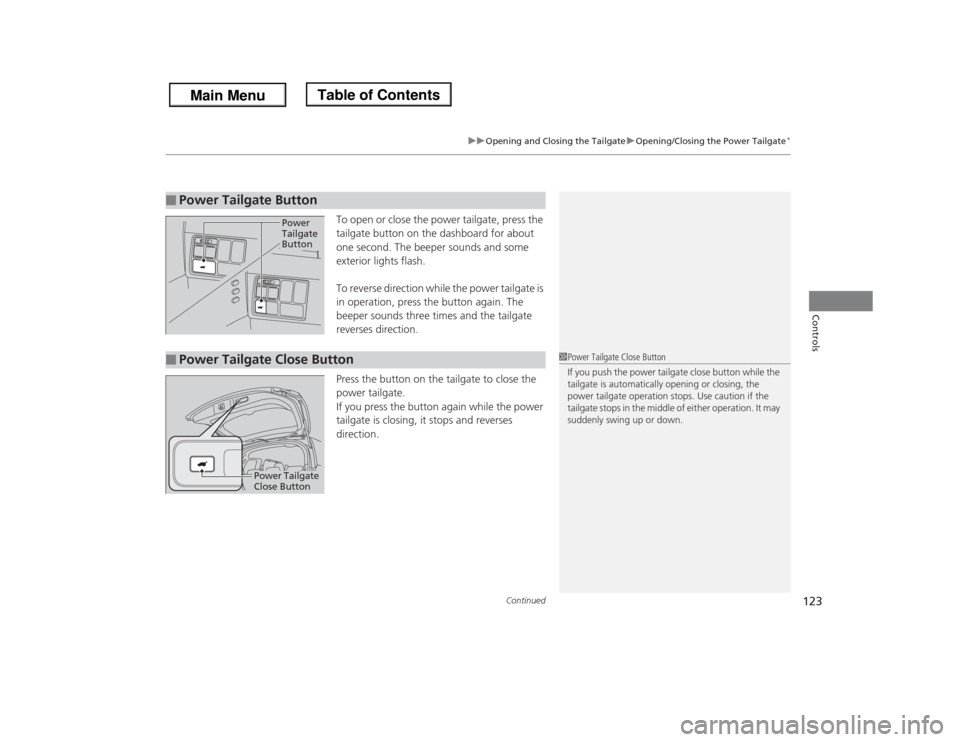

To open or close the power tailgate, press the
tailgate button on the dashboard for about
one second. The beeper sounds and some
exterior lights flash.
To reverse direction while the power tailgate is
in operation, press the button again. The
beeper sounds three times and the tailgate
reverses direction.
Press the button on the tailgate to close the
power tailgate.
If you press the button again while the power
tailgate is closing, it stops and reverses
direction.
■
Power Tailgate Button
Power
Tailgate
Button
■
Power Tailgate Close Button
1Power Tailgate Close Button
If you push the power tailgate close button while the
tailgate is automatically opening or closing, the
power tailgate operation stops. Use caution if the
tailgate stops in the middle of either operation. It may
suddenly swing up or down.
Power Tailgate
Close Button

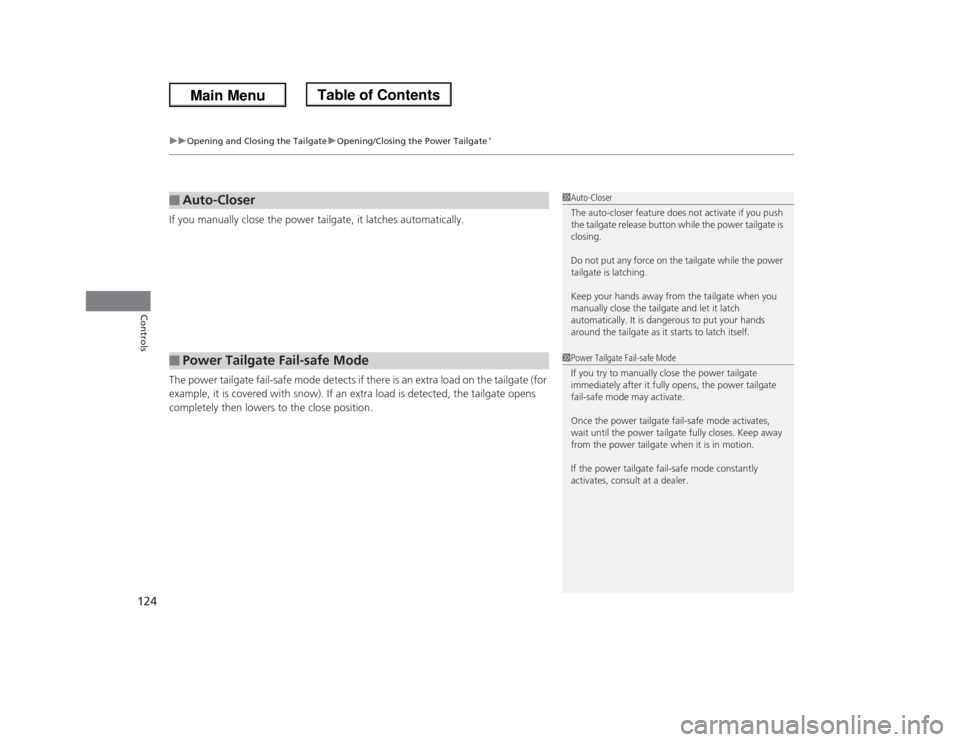

uuOpening and Closing the TailgateuOpening/Closing the Power Tailgate
*
124Controls
If you manually close the power tailgate, it latches automatically.
The power tailgate fail-safe mode detects if there is an extra load on the tailgate (for
example, it is covered with snow). If an extra load is detected, the tailgate opens
completely then lowers to the close position.■
Auto-Closer
■
Power Tailgate Fail-safe Mode
1Auto-Closer
The auto-closer feature does not activate if you push
the tailgate release button while the power tailgate is
closing.
Do not put any force on the tailgate while the power
tailgate is latching.
Keep your hands away from the tailgate when you
manually close the tailgate and let it latch
automatically. It is dangerous to put your hands
around the tailgate as it starts to latch itself.1Power Tailgate Fail-safe Mode
If you try to manually close the power tailgate
immediately after it fully opens, the power tailgate
fail-safe mode may activate.
Once the power tailgate fail-safe mode activates,
wait until the power tailgate fully closes. Keep away
from the power tailgate when it is in motion.
If the power tailgate fail-safe mode constantly
activates, consult at a dealer.

125Controls

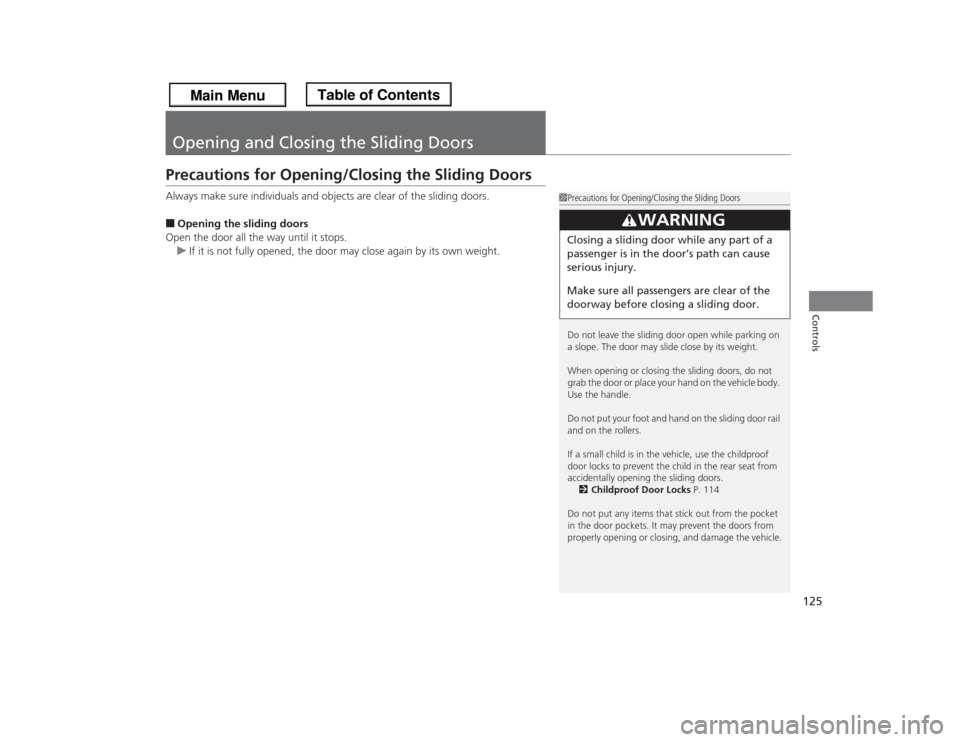

Opening and Closing the Sliding DoorsPrecautions for Opening/Closing the Sliding DoorsAlways make sure individuals and objects are clear of the sliding doors.■Opening the sliding doors
Open the door all the way until it stops.
uIf it is not fully opened, the door may close again by its own weight.
1Precautions for Opening/Closing the Sliding Doors
Do not leave the sliding door open while parking on
a slope. The door may slide close by its weight.
When opening or closing the sliding doors, do not
grab the door or place your hand on the vehicle body.
Use the handle.
Do not put your foot and hand on the sliding door rail
and on the rollers.
If a small child is in the vehicle, use the childproof
door locks to prevent the child in the rear seat from
accidentally opening the sliding doors.
2Childproof Door Locks P. 114
Do not put any items that stick out from the pocket
in the door pockets. It may prevent the doors from
properly opening or closing, and damage the vehicle.
3
WARNING
Closing a sliding door while any part of a
passenger is in the door’s path can cause
serious injury.
Make sure all passengers are clear of the
doorway before closing a sliding door.

126
uuOpening and Closing the Sliding DoorsuOpening/Closing a Sliding Door
Controls

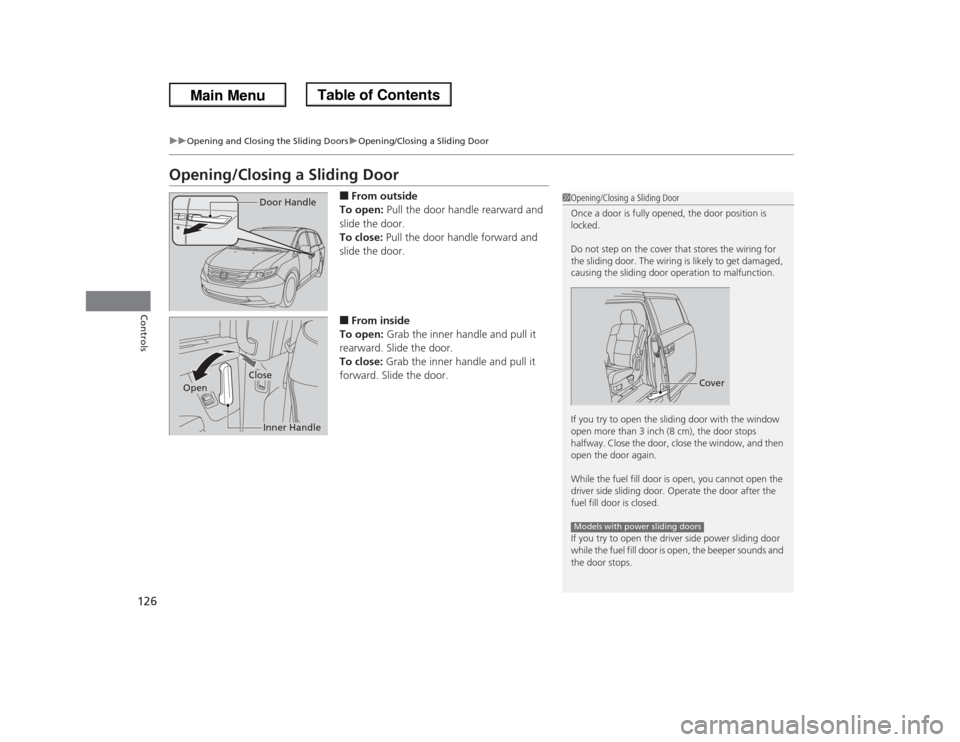

Opening/Closing a Sliding Door
■From outside
To open: Pull the door handle rearward and
slide the door.
To close: Pull the door handle forward and
slide the door.■From inside
To open: Grab the inner handle and pull it
rearward. Slide the door.
To close: Grab the inner handle and pull it
forward. Slide the door.
1Opening/Closing a Sliding Door
Once a door is fully opened, the door position is
locked.
Do not step on the cover that stores the wiring for
the sliding door. The wiring is likely to get damaged,
causing the sliding door operation to malfunction.
If you try to open the sliding door with the window
open more than 3 inch (8 cm), the door stops
halfway. Close the door, close the window, and then
open the door again.
While the fuel fill door is open, you cannot open the
driver side sliding door. Operate the door after the
fuel fill door is closed.
If you try to open the driver side power sliding door
while the fuel fill door is open, the beeper sounds and
the door stops.
Cover
Models with power sliding doors
Door HandleInner Handle
Close
Open

127
uuOpening and Closing the Sliding DoorsuOpening/Closing the Power Sliding Doors
*
Continued
Controls
Opening/Closing the Power Sliding Doors
*
The power sliding doors can be operated by pressing the power sliding door button
on the remote transmitter, pressing the power sliding door switches on the
dashboard or door pillars, or using the door handle.
The power sliding doors can be operated when:
•The sliding door main switch is in the ON position.
•The power sliding door is unlocked.
•The fuel fill door is closed (on the driver side sliding door only).
•The key is not in the ignition switch when using the remote transmitter.
•The shift lever is in
(P
, the brake pedal is depressed, or the parking brake is
applied (with the ignition switch in ON
(w
) when using the power sliding door
switches on the dashboard.
1Opening/Closing the Power Sliding Doors
*
If you move the shift lever out of P, and release the
brake pedal and the parking brake:
While opening – The sliding door stops and is left
ajar.
While closing – The beeper sounds until the door
closes.
Check that passengers, especially children, do not
have their hands on the sliding doors or on the door
pillars before its operation. If someone is caught in
the opening or closing sliding door, it can cause
serious injury.
Before replacing a rear tire, turn the power sliding
door main switch to OFF.
Operate the power sliding doors only when the
vehicle is at a complete stop. Make sure you apply the
brake when rear passengers are boarding or exiting.
* Not available on all models

uuOpening and Closing the Sliding DoorsuOpening/Closing the Power Sliding Doors
*
128Controls

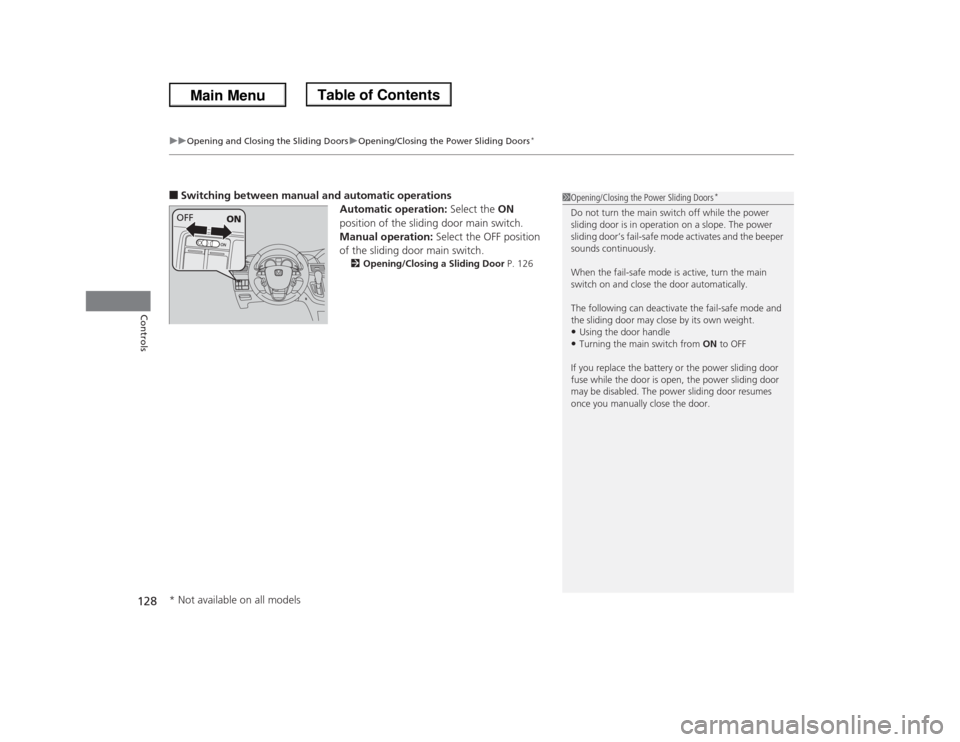

■Switching between manual and automatic operations
Automatic operation: Select the ON
position of the sliding door main switch.
Manual operation: Select the OFF position
of the sliding door main switch.
2Opening/Closing a Sliding Door P. 126
1Opening/Closing the Power Sliding Doors
*
Do not turn the main switch off while the power
sliding door is in operation on a slope. The power
sliding door’s fail-safe mode activates and the beeper
sounds continuously.
When the fail-safe mode is active, turn the main
switch on and close the door automatically.
The following can deactivate the fail-safe mode and
the sliding door may close by its own weight. •Using the door handle•Turning the main switch from ON to OFF
If you replace the battery or the power sliding door
fuse while the door is open, the power sliding door
may be disabled. The power sliding door resumes
once you manually close the door.
OFF
ON* Not available on all models

Continued
129
uuOpening and Closing the Sliding DoorsuOpening/Closing the Power Sliding Doors
*
Controls

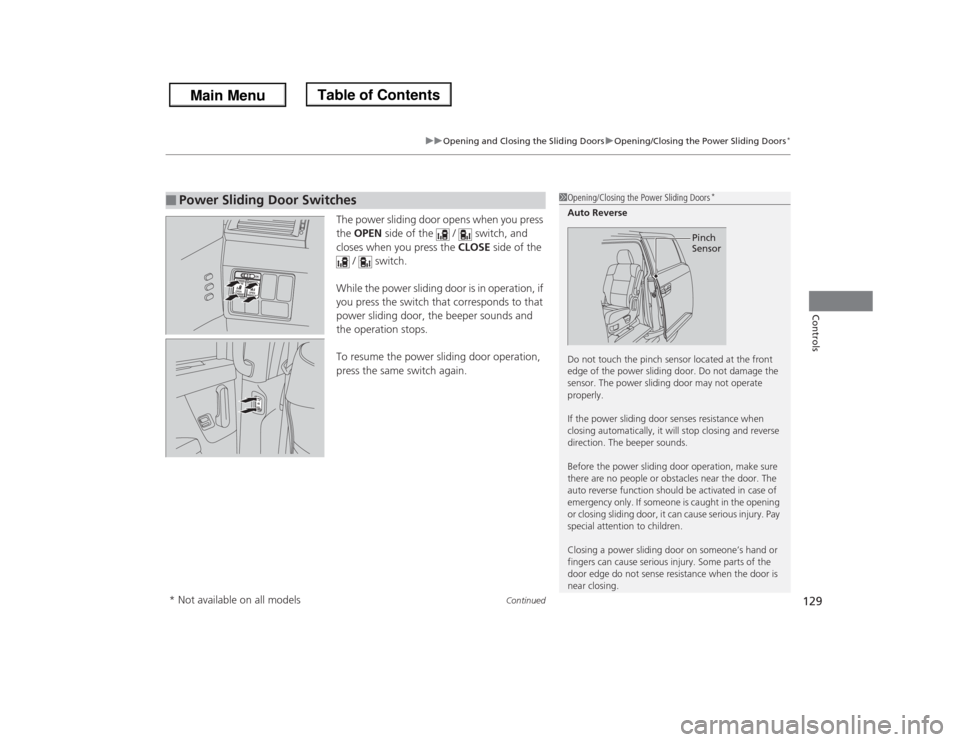

The power sliding door opens when you press
the OPEN side of the / switch, and
closes when you press the CLOSE side of the
/ switch.
While the power sliding door is in operation, if
you press the switch that corresponds to that
power sliding door, the beeper sounds and
the operation stops.
To resume the power sliding door operation,
press the same switch again.
■
Power Sliding Door Switches
1Opening/Closing the Power Sliding Doors
*
Auto Reverse
Do not touch the pinch sensor located at the front
edge of the power sliding door. Do not damage the
sensor. The power sliding door may not operate
properly.
If the power sliding door senses resistance when
closing automatically, it will stop closing and reverse
direction. The beeper sounds.
Before the power sliding door operation, make sure
there are no people or obstacles near the door. The
auto reverse function should be activated in case of
emergency only. If someone is caught in the opening
or closing sliding door, it can cause serious injury. Pay
special attention to children.
Closing a power sliding door on someone’s hand or
fingers can cause serious injury. Some parts of the
door edge do not sense resistance when the door is
near closing.
Pinch
Sensor
* Not available on all models
