HONDA ODYSSEY 2015 RC1-RC2 / 5.G Quick Guide

14 || 15
SAFETYSAFETY
Airbag Care
You do not need to, and should not, perform any maintenance on or replace\
any
airbag system components yourself. However, you should have your vehicle 
inspected by a dealer in the following situations:
When the airbags have deployed
If an airbag has inflated, the control unit and other related parts must be replaced. 
Similarly, once an automatic seat belt tensioner has been activated, it must be 
replaced.
When the vehicle has been in a moderate-to-severe collision
Even if the airbags did not inflate, have your dealer inspect the following: the 
driver’s seat position sensor, weight sensors in the passenger’s seat, front seat
belt tensioners, and each seat belt that was worn during the crash.
Do not remove or modify a front seat without first consulting a dealer
This would likely disable the driver’s seat position sensor or the weight sensors 
in the passenger’s seat. If it is necessary to remove or modify a front seat to 
accommodate a person with disabilities, contact a Honda dealer. For U.S. 
vehicles, call Honda Automobile Customer Service at (800) 999-1009. For Canadian 
vehicles, call Honda Canada Customer Relations at (888) 946-6329.
Child Safety
Each year, many children are injured or killed in vehicle crashes because they are 
either unrestrained or not properly restrained. In fact, vehicle collisions are the 
number one cause of death of children ages 12 and under.
The National Highway Traffic Safety Administration and Transport Canada
recommend that all children ages 12 and under be properly restrained in a rear seat. 
Some states or provinces/territories have laws restricting where children may ride. 
To reduce the number of child deaths and injuries, every state, Canadian province 
and territory requires that infants and children be properly restrained when they ride 
in a vehicle.
Protecting Child Passengers• 
An inflating front or side airbag can injure or kill a child sitting in the front seat.
• A child in the front seat is more likely to interfere with the driver’s ability to 
safely control the vehicle.
• 
Statistics show that children of all sizes and ages are safer when they are 
properly restrained in a rear seat.
• 
Any child who is too small to wear a seat belt correctly must be restrained in an 
approved child seat that is properly secured to the vehicle using either\
the lap
belt portion of the lap/shoulder belt or the lower anchors of the LATCH system.
• Never hold a child on your lap because it is impossible to protect them in the 
event of a collision.
• 
Never put a seat belt over yourself and a child. During a crash, the belt would 
likely press deep into the child and cause serious or fatal injuries.
• 
Never let two children use the same seat belt. Both children could be very 
seriously injured in a crash.
• 
Do not allow children to operate the doors, windows, or seat adjustments.
• Do not leave children in the vehicle unattended, especially in hot weather when 
the inside of the vehicle can get hot enough to kill them. They could al\
so activate
vehicle controls, causing it to move unexpectedly.
Children who are unrestrained or improperly restrained can be seriously 
injured or killed in a crash.
Any
 child too small for a seat belt should be properly restrained in a child 
seat. A larger child should be properly restrained with a seat belt, using a 
booster seat if necessary.
WARNING

16    || 17
SAFETYSAFETY
Protecting Infants
An infant must be properly restrained in a rear-facing, reclining child seat until the 
infant reaches the seat maker’s weight or height limit for the seat, and the infant
is at least one year old. Many experts recommend use of a rear-facing seat for
a child up to two years old if the child’s height and weight are appropriate for a
rear-facing seat.
Child seats must be placed and secured in a rear 
seating position. Rear-facing child seats should
never be installed in a forward-facing position.
When properly installed, a rear-facing child seat may prevent the driver or a front
passenger from moving their seat all the way back, or from locking their seat-back 
in the desired position. If this occurs, we recommend that you install the child 
seat directly behind the front passenger’s seat, move the seat as far forward as 
needed, and leave it unoccupied. Or, you may wish to get a smaller rear-facing
child seat.
Placing a rear-facing child seat in the front seat can result in serious injury or
death during a crash.
Always place a rear-facing child seat in the rear seat, not the front.
WARNING
Allowing a child to play with a seat belt or wrap one around their neck can 
result in serious injury or death.
Instruct children not to play with any seat belt and make sure any unused seat 
belt a child can reach is buckled, fully retracted, and locked.
WARNING Protecting Smaller Children
If a child is at least one year old and within the weight range indicated by the child 
seat manufacturer, the child should be properly restrained in a firmly secured 
forward-facing child seat.
We strongly recommend placing a forward-facing
child seat in a rear seating position.
Placing a forward-facing child seat in the front seat
can be hazardous, even with advanced front airbags 
that automatically turn the passenger’s front airbag 
off. A rear seat is the safest place for a child.
Placing a forward-facing child seat in the front seat can result in seri\
ous
injury
 or death if the front airbag inflates.
If
 you must place a forward-facing child seat in front, move the vehicle seat 
as far back as possible, and properly restrain the child.
WARNING
Selecting a Child Seat
Most child seats are LATCH-compatible (Lower Anchors and Tethers for CHildren). 
Some have a rigid-type connector, while others have a flexible-type connector. 
Both are equally easy to use. Some existing and previously owned child seats can 
only be installed using the seat belt. Whichever type you choose, follow the child 
seat manufacturer’s use and care instructions as well as the instructions in this
manual. Proper installation is key to maximizing your child’s safety.
In seating positions and vehicles not equipped with LATCH, a LATCH-compatible 
child seat can be installed using the seat belt and a top tether for added security. 
This is because all child seats are required to be designed so that they can be 
secured with a lap belt or the lap part of a lap/shoulder belt. In addition, the 
child seat manufacturer may advise that a seat belt be used to attach a LATCH-
compatible seat once a child reaches a specified weight. Please read the child 
seat owner’s manual for proper installation instructions.
Important considerations when selecting a child seat
Make sure the child seat meets the following three requirements:
• The child seat is the correct type and size for the child.
•  The child seat is the correct type for the seating position.
•  The child seat is compliant with Federal Motor Vehicle Safety Standard 213 or
Canadian Motor Vehicle Safety Standard 213.

18 || 19
SAFETYSAFETY

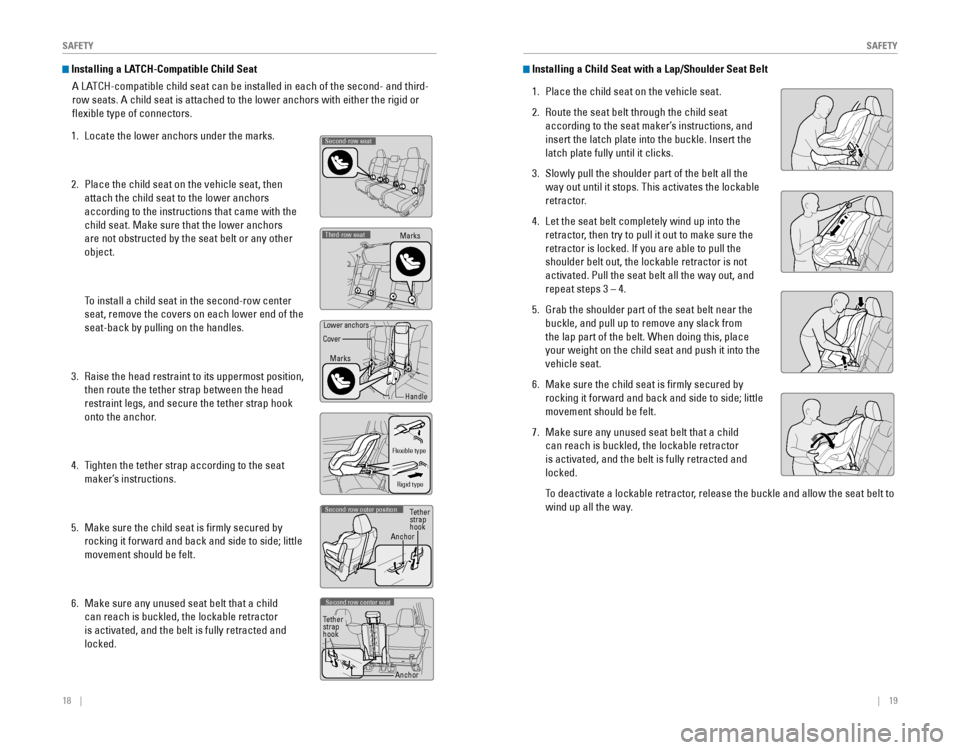

Installing a LATCH-Compatible Child Seat
A LATCH-compatible child seat can be installed in each of the second- and third-
row seats. A child seat is attached to the lower anchors with either the\
rigid or
flexible type of connectors.
1. Locate the lower anchors under the marks.
2. Place the child seat on the vehicle seat, then
attach the child seat to the lower anchors
according to the instructions that came with the
child seat. Make sure that the lower anchors
are not obstructed by the seat belt or any other 
object.
To install a child seat in the second-row center
seat, remove the covers on each lower end of the
seat-back by pulling on the handles.
3. Raise the head restraint to its uppermost position,
then route the tether strap between the head 
restraint legs, and secure the tether strap hook
onto the anchor.
4. Tighten the tether strap according to the seat
maker’s instructions.
5. Make sure the child seat is firmly secured by 
rocking it forward and back and side to side; little 
movement should be felt.
6. Make sure any unused seat belt that a child 
can reach is buckled, the lockable retractor 
is activated, and the belt is fully retracted and 
locked.
Second-row seat
Third-row seatMarks
Marks
Handle
Lower anchors
Cover
Flexible type
Rigid type
Second-row outer position
Anchor Tether
strap
hook
Second row center seat
Anchor
Tether
strap
hook
Installing a Child Seat with a Lap/Shoulder Seat Belt
1. Place the child seat on the vehicle seat.
2. Route the seat belt through the child seat 
according to the seat maker’s instructions, and
insert the latch plate into the buckle. Insert the 
latch plate fully until it clicks.
3. Slowly pull the shoulder part of the belt all the 
way out until it stops. This activates the lockable 
retractor.
4. Let the seat belt completely wind up into the 
retractor, then try to pull it out to make sure the
retractor is locked. If you are able to pull the 
shoulder belt out, the lockable retractor is not 
activated. Pull the seat belt all the way out, and 
repeat steps 3 – 4.
5. Grab the shoulder part of the seat belt near the 
buckle, and pull up to remove any slack from 
the lap part of the belt. When doing this, place 
your weight on the child seat and push it into the
vehicle seat.
6. Make sure the child seat is firmly secured by 
rocking it forward and back and side to side; little 
movement should be felt.
7. Make sure any unused seat belt that a child 
can reach is buckled, the lockable retractor 
is activated, and the belt is fully retracted and 
locked.
 To deactivate a lockable retractor, release the buckle and allow the seat belt to 
wind up all the way.

20 || 21
SAFETYSAFETY

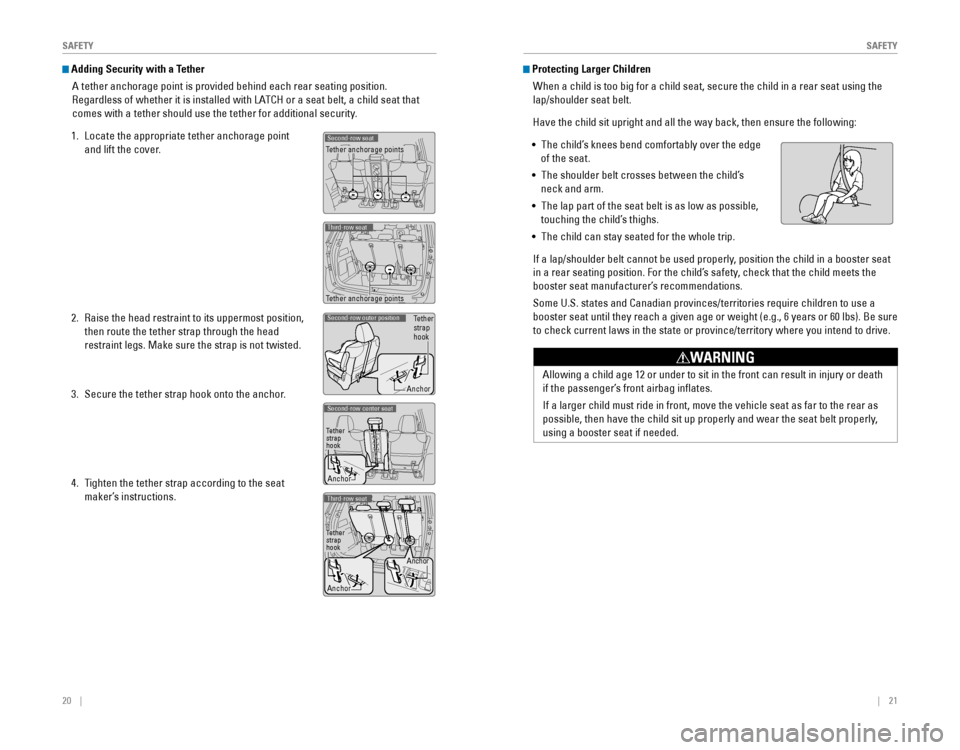

Adding Security with a Tether
A tether anchorage point is provided behind each rear seating position. 
Regardless of whether it is installed with LATCH or a seat belt, a child seat that 
comes with a tether should use the tether for additional security.
1. Locate the appropriate tether anchorage point
and lift the cover.
2. Raise the head restraint to its uppermost position,
then route the tether strap through the head
restraint legs. Make sure the strap is not twisted.
3. Secure the tether strap hook onto the anchor.
4. Tighten the tether strap according to the seat
maker’s instructions.
Second-row seatTether anchorage points
Tether anchorage points
Third-row seat
Tetherstrap
hook
AnchorSecond-row outer position
Tetherstrap
hook
Anchor
Second-row center seat
Tetherstrap
hook
Anchor Anchor
Third-row seat
Protecting Larger Children
When a child is too big for a child seat, secure the child in a rear seat using the 
lap/shoulder seat belt.
Have the child sit upright and all the way back, then ensure the following:
• The child’s knees bend comfortably over the edge 
of the seat.
• 
The shoulder belt crosses between the child’s 
neck and arm.
• 
The lap part of the seat belt is as low as possible, 
touching the child’s thighs.
•  The child can stay seated for the whole trip.
If a lap/shoulder belt cannot be used properly, position the child in a booster seat 
in a rear seating position. For the child’s safety, check that the child meets the
booster seat manufacturer’s recommendations.
Some U.S. states and Canadian provinces/territories require children to use a 
booster seat until they reach a given age or weight (e.g., 6 years or 60 lbs). Be sure 
to check current laws in the state or province/territory where you intend to drive.
Allowing a child age 12 or under to sit in the front can result in injur\
y or death
if the passenger’s front airbag inflates.
If a larger child must ride in front, move the vehicle seat as far to the rear as 
possible, then have the child sit up properly and wear the seat belt properly, 
using a booster seat if needed.
WARNING

22 || 23
SAFETYSAFETY
Safety Label Locations
Safety labels are in the locations shown. They warn you of potential hazards that 
can cause serious injury or death. Read these labels carefully.
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could 
cause injury or death, you should immediately inform the National Highway Traffic
Safety Administration (NHTSA) in addition to notifying American Honda \
Motor Co.,
Inc.
If NHTSA receives similar complaints, it may open an investigation, and if it finds 
that a safety defect exists in a group of vehicles, it may order a recal\
l and remedy
campaign. However, NHTSA cannot become involved in individual problems 
between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-
4236 (TTY: 1-800-424-9153); go to http://www.safercar.gov; or write to: Administrator,
NHTSA, 1200 New Jersey Avenue, SE., Washington, DC 20590. You can also obtain 
other information about motor vehicle safety from http://www.safercar.gov.
In Canada
If you believe that your vehicle has a defect which could cause a crash or could 
cause injury or death, you should immediately inform Honda Canada, Inc., and you 
may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if 
it finds that a safety defect exists in a group of vehicles, it may le\
ad to a recall and
remedy campaign. However, Transport Canada cannot become involved in individual 
problems between you, your dealer, or Honda Canada, Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may 
call 1-800-333-0510. For more information on reporting safety defects or about motor 
vehicle safety, go to http://www.tc.gc.ca/roadsafety.
Sun visor
U.S. models Canadian models Doorjambs
U.S. models
Canadian models
Dashboard
U.S. models only
Radiator cap

24 || 25
INSTRUMENT PANELINSTRUMENT PANEL
Learn about the indicators, gauges, and displays related to driving the vehicle.
Indicators briefly appear with each engine start and then go out. Red and amber 
indicators are most critical. Blue and green indicators are used for gen\
eral
information.
Malfunction Indicators
These are the most critical indicators. If they come on and stay lit while driving or at 
any other time, there may be a problem. See your dealer if necessary.
Brake system
• Brake fluid is low.
• The brake system has a problem.
Press the brake pedal lightly to check pedal pressure. If normal, check 
the brake fluid level when you stop. If abnormal, take immediate action. If 
necessary, downshift the transmission to slow the vehicle using engine
braking. Have your vehicle repaired immediately.
Low oil pressure
Engine oil pressure is low. Stop in a safe place. Open the hood. Check the oil 
level, and add oil if necessary (see page 126). If the indicator does not turn 
off, have your vehicle repaired immediately.
Charging system
The battery is not charging. Turn off all electrical items, but do not turn off 
the vehicle to prevent further battery discharge. Have your vehicle repaired 
immediately.
Supplemental Restraint System (SRS)
There is a problem with one of the airbag systems or seat belt tensioners. 
Smart Entry system*
There is a problem with the smart entry system.
INSTRUMENT PANEL
Canada
U.S.
*if equipped
Malfunction indicator lamp (check engine light)
• The emissions control system may have a problem, or the fuel cap is loose  
or missing.
• (Blinks) A misfire in the engine’s cylinders is detected. Stop in a safe place, 
and wait for the engine to cool down.
Anti-lock Brake System (ABS)
There is a problem with the anti-lock brake system. Your vehicle still has 
normal braking ability, but no anti-lock function. 
Tire Pressure Monitoring System (TPMS)*
There is a problem with the tire pressure monitoring system, or the vehicle is 
fitted with the compact spare tire.
Power tailgate*
There is a problem with the power tailgate system. You can still open the 
power tailgate manually.
Power sliding doors*
There is a problem with the power sliding door system. You can still open the 
power sliding doors manually.
Daytime Running Lights (DRL)*
There is a problem with the DRL system.
Vehicle Stability Assist (VSA®) system
There is a problem with the VSA system.
Brake system
There is a problem with the brake override system.
Forward Collision Warning (FCW) system*
There is a problem with the FCW system.
Lane Departure Warning (LDW) system*
There is a problem with the LDW system.
Starter system*
There is a problem with the starter system.
Blind Spot Indicator (BSI) system*
There is a problem with the BSI system.
Ca nada
U.S.SYSTEM
CanadaU.S.
Canada
U.S.
CanadaU.S.
*if equipped

26    || 27
INSTRUMENT PANELINSTRUMENT PANEL
Condition Indicators
These indicators may require you to perform an action.
Parking brake
Release the parking brake before driving. You will hear a beep if you drive 
with it not fully released.
Seat belt reminder
Make sure seat belts are fastened for you and all passengers. The indicator 
blinks and beeps sound continuously if you or your front passenger has not 
fastened your seat belts when you begin driving. If the indicator remains on 
after seat belts are fastened, see your dealer.
Low fuel
Refuel as soon as possible. If the indicator blinks, there is a problem with the 
fuel gauge. See your dealer.
Low tire pressure
Stop in a safe place, check tire pressures, and inflate tire(s) if n\
ecessary.
The indicator also appears if your vehicle is fitted with the compact \
spare
tire. Have your regular tire repaired or replaced as soon as possible.
System message*
When a condition or malfunction indicator comes on, a message also
appears on the multi-information display. Check the display for more
information.
Vehicle Stability Assist (VSA
®) system
(Blinks) VSA is active.
*if equipped
Forward Collision Warning (FCW) system*
(Blinks) Take appropriate action to avoid a collision.
Lane Departure Warning (LDW) system*
(Blinks) Take appropriate action to keep the vehicle within the lane.
Maintenance Minderâ„¢*
Scheduled maintenance for your vehicle is due.
Immobilizer
Your key or remote transmitter cannot be recognized by the vehicle. If the 
indicator blinks, you may not be able to start the engine. Turn the vehicle off, 
and then on again. If it continues to blink, there may be a problem with the 
system. See your dealer.
On/Off Indicators
These indicators remind you when an item is on or off.
VSA off
FCW* off
BSI* off
CRUISE MAIN on
CRUISE CONTROL on
Turn signals/hazards on
Fog lights* on
Fuel-efficient driving
High beams on
Exterior lights on
*if equipped
Canada
U.S.

28 || 29
INSTRUMENT PANELINSTRUMENT PANEL
Information Display*
Consists of several displays that provide you with useful information.
Odometer, Outside
temperature*
Engine oil lifeTrip meter B
Range, Instant fuel economy
Information Displays
Press the select/reset knob to change the display. When you start the
engine, the display shows
your last active selection
from the previous drive
cycle.
Trip meter A, Average fuel economy
*if equipped
Multi-Information Display*
Consists of several displays that provide you with useful information.
Customize Settings
Average fuel economy/Instant fuel economyOdometer, Outside temperature
Average speed Range
Elapsed time
Main Displays
Odometer,
Outside temperature Trip A,
Outside temperatureEngine oil lifeTrip B,
Outside temperature
Lower Displays
*if equipped
Main display
Lower display
Info buttons: Press to
change main displays.
SEL/RESET button: Press
to change lower displays.

30 || 31
VEHICLE CONTROLSVEHICLE CONTROLS
Learn about the various controls necessary for operating and driving the vehicle.
Using the Key or Remote Transmitter
Lock or unlock the doors and tailgate.
Unlock button: Press once
to unlock the driver’s door.
Press again to unlock all
doors and the tailgate.
Unlock button: Press once
to unlock the driver’s door.
Press again to unlock all
doors and the tailgate.
Built-in key: Slide the release
knob on the back of the transmitter and pull out the built-in key. 
Power sliding door
buttons*: Press to open
the sliding door. Press
again to stop the door
during operation. Press
again to close the door.
Power tailgate button*:
Press and hold to unlock
and open the power
tailgate. Press again to
close it.Lock button: Press to lock the
doors and tailgate. Press again
for audible verification.
Lock button: Press to lock the
doors and tailgate. Press again
for audible verification.
Panic button: Press and
hold to sound the alarm for
30 seconds. Press again to
cancel.
Panic button: Press to sound
the alarm for 30 seconds.
Press again to cancel.
VEHICLE CONTROLS
Release knob
Built-in key
*if equipped
Smart Entry System*
When you carry the remote transmitter (for example, in a pocket or purs\
e) and it
is outside the vehicle and within range (about 32 inches or 80 cm), you can lock or 
unlock the doors and tailgate without handling the transmitter.
Unlocking/Locking the Doors
To unlock:
 Grab the driver’s door handle when the 
vehicle is off to unlock the driver’s door. Grab the 
front passenger’s or rear door handle to unlock all
doors and the tailgate.
To lock:
 Press the door lock button on either front 
door handle when the vehicle is off. If the remote 
transmitter is inside the vehicle, the doors will not
lock.
Door lock
button
Unlocking/Locking the Tailgate
To unlock: Press and hold the tailgate release
button under the tailgate handle to unlock the 
tailgate and all doors. The vehicle can be on or off.
If there is not enough clearance for the tailgate to 
fully open, press and hold the tailgate release button 
until you hear two beeps. The tailgate unlatches, 
and you can open it manually.
To lock:
 Press the tailgate lock button to lock the 
tailgate and all doors. If the remote transmitter is 
inside the vehicle, the tailgate and doors will not
lock.
Tailgate
outer
handle
Lock button
*if equipped
Leaving the key or remote transmitter in the vehicle can result in theft\
or
accidental movement of the vehicle. Always take it with you whenever you\
leave
the vehicle unattended.
NOTICE

32 || 33
VEHICLE CONTROLSVEHICLE CONTROLS
Power Tailgate Operation*
Use these methods to operate the power tailgate.
Power Tailgate Button
The vehicle must be in Park (P) with all doors 
unlocked.
Press and hold the power tailgate button on the 
dashboard to open the tailgate. Press it again at any 
time to close it.
Power Tailgate Close Button
Press the power tailgate close button to 
automatically close the tailgate. Press it again at
any time to reverse the tailgate direction.
Powertailgate
button
Closing the power tailgate while anyone is in the path of the tailgate c\
an
cause serious injury.
Make sure everyone is clear before closing the tailgate. 
WARNING
*if equipped
Door Operation
Use several methods to lock or unlock the doors.
Using the Lock Tab
To unlock: When you unlock either front door
using the lock tab, the specific door (driver’s or 
passenger’s) unlocks.
To lock:
 When you lock the door using the lock tab 
on the driver’s door, all the other doors and tailgate
lock at the same time. When you lock the door using
the lock tab on the front passenger’s door, only that 
door locks.
Using the Master Door Lock SwitchTo unlock: Press the unlock side of the switch to
unlock all doors and the tailgate.
To lock: Press the lock side of the switch to lock all
doors and the tailgate.
The front passenger’s door also has the master door
lock switch.
Childproof Door LocksThe childproof door locks prevent the rear doors
from being opened from the inside regardless of the 
position of the lock tab.
Slide the lever in the rear door to the lock position,
and close the door.
Open the door using the outer door handle.


To lockLock tab
To lock
To unlockMaster door
lock switch
Lock
Unlock
To unlock
Power tailgate close button
Do not push or pull on the power tailgate when it is being automatically opened 
or closed. Forcibly opening or closing the power tailgate while in operation can 
deform the tailgate frame.
NOTICE
