HONDA ODYSSEY 2015 RC1-RC2 / 5.G Quick Guide

134 || 135
MAINTENANCE
MAINTENANCE

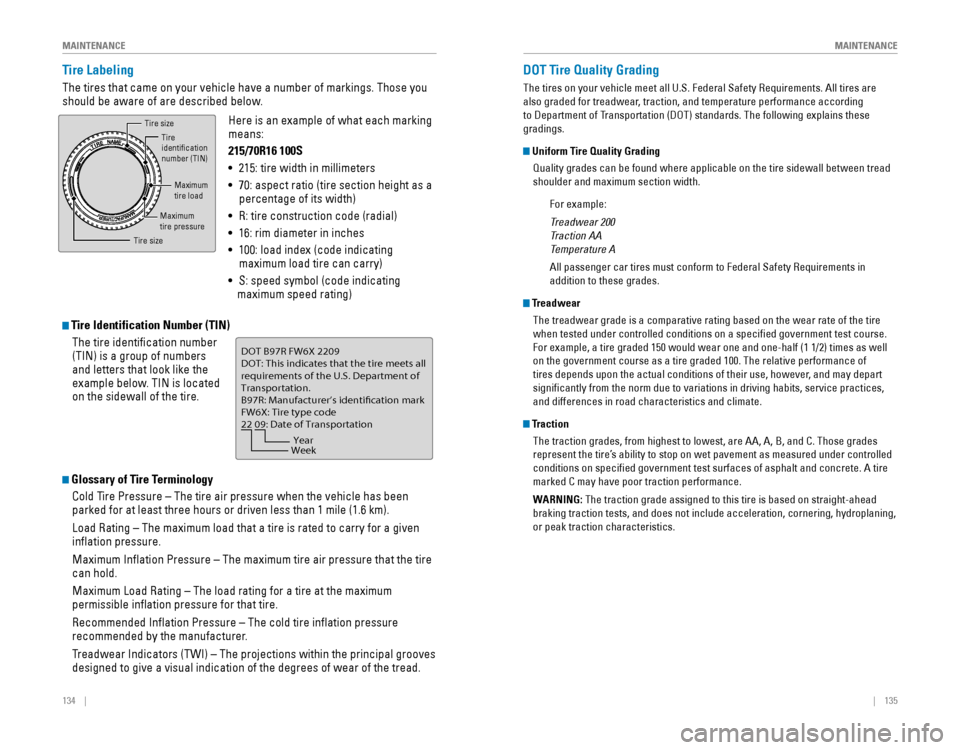

Tire Labeling
The tires that came on your vehicle have a number of markings. Those you 
should be aware of are described below.
Tire Identification Number (TIN)
The tire identification number 
(TIN) is a group of numbers 
and letters that look like the
example below. TIN is located 
on the sidewall of the tire.
Glossary of Tire Terminology
Cold Tire Pressure – The tire air pressure when the vehicle has been 
parked for at least three hours or driven less than 1 mile (1.6 km).
Load Rating – The maximum load that a tire is rated to carry for a gi\
ven
inflation pressure.
Maximum Inflation Pressure – The maximum tire air pressure that the tire 
can hold.
Maximum Load Rating – The load rating for a tire at the maximum
permissible inflation pressure for that tire.
Recommended Inflation Pressure – The cold tire inflation pressure 
recommended by the manufacturer.
Treadwear Indicators (TWI) – The projections within the principal grooves 
designed to give a visual indication of the degrees of wear of the tread\
. Here is an example of what each marking
means:
215/70R16 100S
• 
215: tire width in millimeters
•  70: aspect ratio (tire section height as a
percentage of its width)
•  R: tire construction code (radial)
• 
16: rim diameter in inches
•  100: load index (code indicating
maximum load tire can carry)
• 
S: speed symbol (code indicating 
maximum speed rating)
Tire size
Tire
identication
number (TIN)
Maximum
tire load
Maximum
tire pressure
Tire size
DOT B97R FW6X 2209\n
DOT: This in\ficat\bs t\nhat th\b tir\b m\b\bts all
r\bquir\bm\bnts of th\b U.S\n. D\bpartm\bnt of
Transportation.
B97R: Manufactur\br’s \ni\f\bntifcation mark
FW6X: Tir\b typ\b co\f\b
22 09: Dat\b of Transp\nortation

Year
Week
DOT Tire Quality Grading
The tires on your vehicle meet all U.S. Federal Safety Requirements. All tires are 
also graded for treadwear, traction, and temperature performance according
to Department of Transportation (DOT) standards. The following explains these 
gradings.
Uniform Tire Quality Grading
Quality grades can be found where applicable on the tire sidewall between tread 
shoulder and maximum section width.
For example:
Treadwear 200
Traction AA
Temperature A
All passenger car tires must conform to Federal Safety Requirements in 
addition to these grades.
Treadwear
The treadwear grade is a comparative rating based on the wear rate of the tire 
when tested under controlled conditions on a specified government test\
course.
For example, a tire graded 150 would wear one and one-half (1 1/2) times as well 
on the government course as a tire graded 100. The relative performance \
of
tires depends upon the actual conditions of their use, however, and may depart
significantly from the norm due to variations in driving habits, service practices, 
and differences in road characteristics and climate.
TractionThe traction grades, from highest to lowest, are AA, A, B, and C. Those \
grades
represent the tire’s ability to stop on wet pavement as measured under controlled 
conditions on specified government test surfaces of asphalt and concre\
te. A tire
marked C may have poor traction performance.
WARNING:
 The traction grade assigned to this tire is based on straight-ahead 
braking traction tests, and does not include acceleration, cornering, hydroplaning, 
or peak traction characteristics.

136    || 137
MAINTENANCE
MAINTENANCE

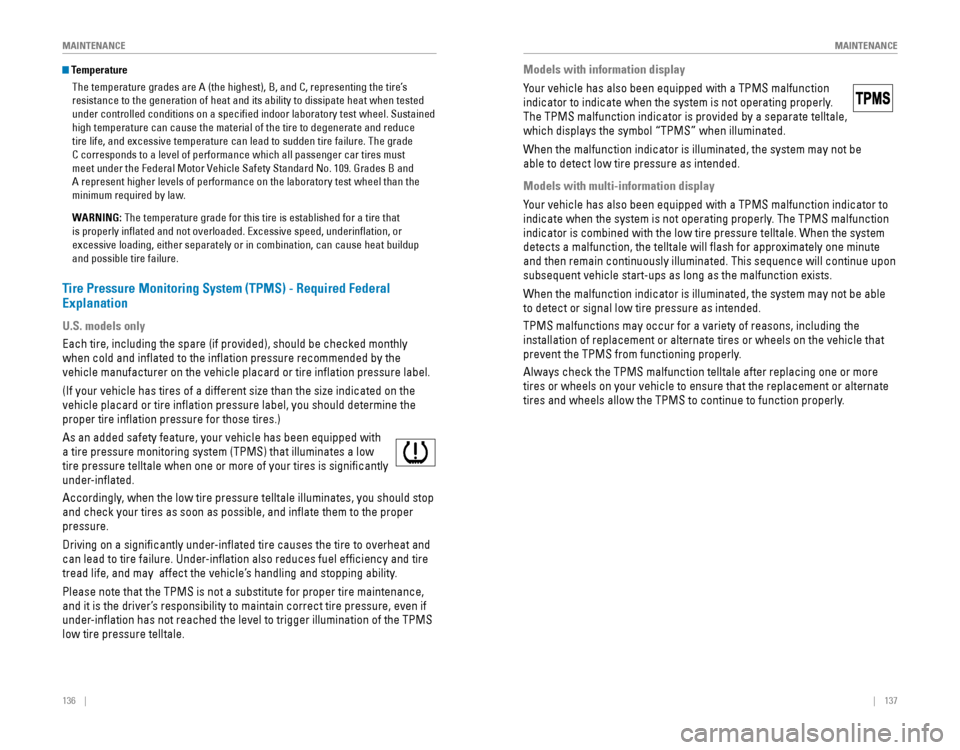

Temperature
The temperature grades are A (the highest), B, and C, representing the\
tire’s
resistance to the generation of heat and its ability to dissipate heat when tested 
under controlled conditions on a specified indoor laboratory test wheel. Sustained 
high temperature can cause the material of the tire to degenerate and re\
duce
tire life, and excessive temperature can lead to sudden tire failure. Th\
e grade
C corresponds to a level of performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and
A represent higher levels of performance on the laboratory test wheel than the 
minimum required by law.
WARNING: The temperature grade for this tire is established for a tire that 
is properly inflated and not overloaded. Excessive speed, underinflation, or 
excessive loading, either separately or in combination, can cause heat buildup 
and possible tire failure.
Tire Pressure Monitoring System (TPMS) - Required Federal
Explanation
U.S. models only
Each tire, including the spare (if provided), should be checked monthly 
when cold and inflated to the inflation pressure recommended by the 
vehicle manufacturer on the vehicle placard or tire inflation pressure label.
(If your vehicle has tires of a different size than the size indicated on the 
vehicle placard or tire inflation pressure label, you should determine the 
proper tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped with 
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale when one or more of your tires is significantly\

under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you should stop
and check your tires as soon as possible, and inflate them to the proper 
pressure.
Driving on a significantly under-inflated tire causes the tire to overheat and 
can lead to tire failure. Under-inflation also reduces fuel efficiency and tire
tread life, and may  affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, 
and it is the driver’s responsibility to maintain correct tire pressure, even if 
under-inflation has not reached the level to trigger illumination of the TP\
MS
low tire pressure telltale.
Models with information display
Your vehicle has also been equipped with a TPMS malfunction 
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is provided by a separate telltale, 
which displays the symbol “TPMS” when illuminated.
When the malfunction indicator is illuminated, the system may not be 
able to detect low tire pressure as intended. 
Models with multi-information display
Your vehicle has also been equipped with a TPMS malfunction indicator to 
indicate when the system is not operating properly. The TPMS malfunction
indicator is combined with the low tire pressure telltale. When the system 
detects a malfunction, the telltale will flash for approximately one m\
inute
and then remain continuously illuminated. This sequence will continue upon 
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may not be able 
to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including the
installation of replacement or alternate tires or wheels on the vehicle \
that
prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more
tires or wheels on your vehicle to ensure that the replacement or altern\
ate
tires and wheels allow the TPMS to continue to function properly.

138 || 139
SPECIFICATIONS
MAINTENANCE
Testing of Readiness Codes
Your vehicle has “readiness codes” as part of the onboard self-diagnostic system. 
Some states refer to these codes as a test to see if your vehicle’s emissions
components are working properly. The codes may not be read if you go through the 
testing just after the battery has gone dead or been disconnected.
To check if they are set, turn the vehicle on without starting the engine\
. The
malfunction indicator lamp will come on for several seconds. If it goes off, the 
readiness codes are set. If it blinks five times, the readiness codes are not set.
If you are required to have your vehicle tested before the readiness codes are set, 
prepare the vehicle for retesting by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the accelerator pedal, and let it idle\
for 20
seconds.
5. Keep the vehicle in Park (P). Increase the engine speed to 2,000 rpm, and hold it 
there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Select a nearby, lightly traveled major highway where you can maintain a speed 
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway with 
the vehicle in Drive. Do not use cruise control. When traffic allows, drive for 90 
seconds without using the accelerator pedal. (Vehicle speed may vary slightly;
this is OK.) If you cannot do this for a continuous 90 seconds because of traffic 
conditions, drive for at least 30 seconds, then repeat two more times (\
for a total of
90 seconds).
8. Drive in city/suburban traffic for at least 10 minutes. When traffic conditions 
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
The readiness codes are erased when the battery is disconnected, and set again 
only after several days of driving under a variety of conditions.
If a testing facility determines that the readiness codes are not set, you may be 
requested to return at a later date to complete the test, or see your dealer.
Vehicle
Engine and Fuel
Tires
Light Bulbs
Fluids
*1 :L X model
Mode lHonda OdysseyNo. of Passengers:
Front2
Rear 2nd Row3 (2
*1)
3rd Ro w3
Tota l8 (7
*1)Weights:Gross Vehicle
Weight Rating U.S.: 6,019 lbs (2,730 kg)
Canada: 2,730 kg
Gross Axle Weight
Rating (Front )U.S.: 2,910 lbs (1,320 kg)
Canada: 1,320 kg
Gross Axle Weight
Rating (R ear)U.S.: 3,197 lbs (1,450 kg)
Canada: 1,450 kg
Gross Combined
Weight Ratin g
U.S.: 8,477 lbs (3,845 kg)
Canada: 3,845 kg
Air Conditioning:Refrigerant Type HFC-134a (R-134a )Charge Quantity24.9 – 26.6 oz (705 – 755 g)Lubricant TypeND-OIL8
En gine Specication s
FuelDisplacement212 cu-in (3,471 cm3)
Spark Plug sN GKDILZKR7A11 G
Fuel:
TypeUnleaded gasoline, Pump octane
number of 87 or higher
Fuel Tank Capacit y21 US gal (79.5 )
*1:T ouring models
Regula rSizeP235/65R17 103TP235/60R18 102T*1Pressure
psi(kPa[kgf/cm2])33 (23 0 [2.3])
35 (24 0 [2.4])*1
Compact
Spar e Size
T135/80D17 103M
Pressure
ps i(kPa[kgf/cm2]) 60 (42
0 [4.2])
Wheel Siz eRegular17 x 7J
18 x 7J*1Compact Spar e17 x 4T
*Not available on all models
Headlights (Low Beam)35W (D2S )*55W (H11)
60W (HB3 )
21W
5W 21W (Amber)*Head lights (High Beam )Fog Lights*55W (H11)
Front Turn Signal/Park ing/Side
Marker Lights 28/8
W
Side Turn Signal Lights
(on Door Mirrors)*LE D
Brake Lights
Rear Side Marker/TaillightsLE D
Rear Turn Signal Lights
Back-Up Lights21W DEL
sthgilliaT
High-Mount Brake Ligh t16W
Rear License Plate Lights
Map Lights (F ront)5W
5W
1.4W
1.4W
Map Lights (Rear)
Cargo Area Ligh
t8W
Vanity Mirror Lights
Door Courtesy Lights3.8W (2CP )
Glove Box Li ght
Foot Ligh t*LED
Brake Fluid
Automatic Transmission Flui
d
Specie dHonda Heavy Duty Brake Fluid DOT 3
SpeciedHonda ATF DW-1
(automatic transmission uid)
Ca pacit yC hange3 .3 US qt (3.1)
Engine Oil
Engine Coolant
Recommended·Honda Genuine Motor Oil 0W-2 0
·API Premium-grade 0W-20 detergent oi l
Capacity Change
4.2 US qt (4.0 )
Change
including
lter 4.5 US qt (4.3 )
SpeciedHonda Long-Life Anti
freeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.93 US gal (7.3 )
(change in cluding the remaining
0.225 US gal (0.85 ) in the reserve tank)
Washer Fluid
Tank CapacityU.S.: 2.6 US qt (2.5 )Ca nada: 4.5 US qt (4.3 )
SPECIFICATIONS

140 || 141

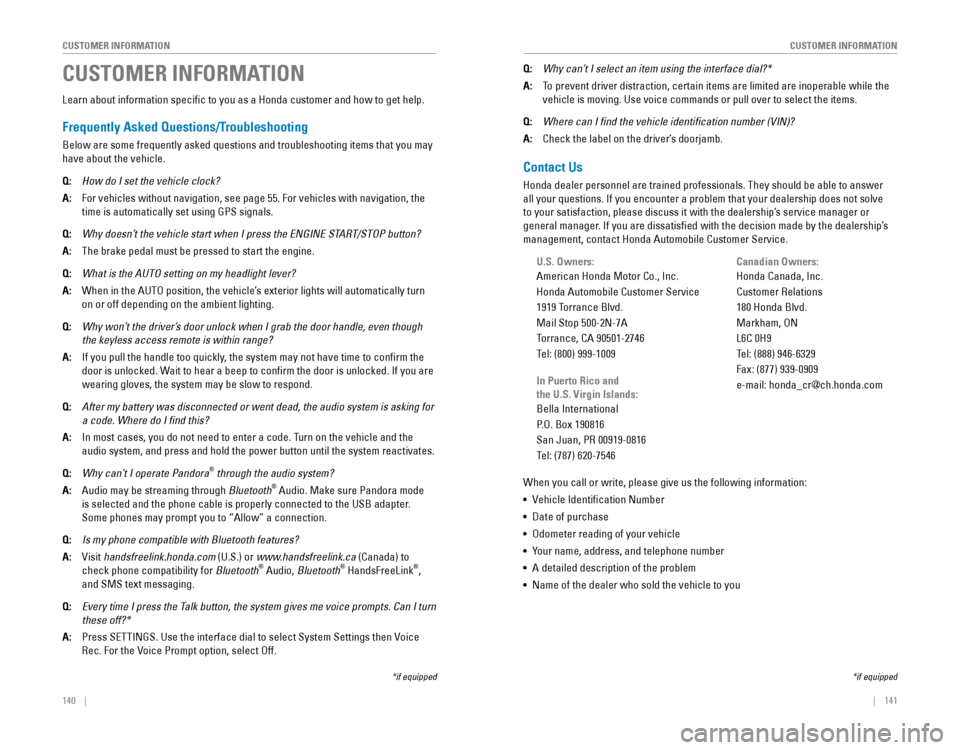

CUSTOMER INFORMATION
CUSTOMER INFORMATION
Learn about information specific to you as a Honda customer and how to get help.
Frequently Asked Questions/Troubleshooting
Below are some frequently asked questions and troubleshooting items that you may 
have about the vehicle.
Q: How do I set the vehicle clock?
A: For vehicles without navigation, see page 55. For vehicles with navigati\
on, the
time is automatically set using GPS signals.
Q: Why doesn’t the vehicle start when I press the ENGINE START/STOP button?
A: The brake pedal must be pressed to start the engine.
Q: What is the AUTO setting on my headlight lever?
A: When in the AUTO position, the vehicle’s exterior lights will automatically turn
 on or off depending on the ambient lighting.
Q: Why won’t the driver’s door unlock when I grab the door handle, even though 
 the keyless access remote is within range?
A: If you pull the handle too quickly, the system may not have time to confirm the
 door is unlocked. Wait to hear a beep to confirm the door is unlocked. If you are
 wearing gloves, the system may be slow to respond.
Q: After my battery was disconnected or went dead, the audio system is asking for 
 a code. Where do I find this?
A: In most cases, you do not need to enter a code. Turn on the vehicle and the
 audio system, and press and hold the power button until the system reactivates.
Q: Why can’t I operate Pandora® through the audio system?
A: Audio may be streaming through Bluetooth® Audio. Make sure Pandora mode
 is selected and the phone cable is properly connected to the USB adapter.
Some phones may prompt you to “Allow” a connection.
Q: Is my phone compatible with Bluetooth features?
A: Visit handsfreelink.honda.com (U.S.) or www.handsfreelink.ca (Canada) to
 check phone compatibility for Bluetooth® Audio, Bluetooth® HandsFreeLink®,
and SMS text messaging.
Q: Every time I press the Talk button, the system gives me voice prompts. Can I turn 
 these off?*
A: Press SETTINGS. Use the interface dial to select System Settings then Voice
Rec. For the Voice Prompt option, select Off.
CUSTOMER INFORMATION
*if equipped
Contact Us
Honda dealer personnel are trained professionals. They should be able to answer 
all your questions. If you encounter a problem that your dealership does not solve 
to your satisfaction, please discuss it with the dealership’s service manager or
general manager. If you are dissatisfied with the decision made by the dealership’s 
management, contact Honda Automobile Customer Service.
U.S. Owners:
American Honda Motor Co., Inc.
Honda Automobile Customer Service
1919 Torrance Blvd.
Mail Stop 500-2N-7A
Torrance, CA 90501-2746
Tel: (800) 999-1009
In Puerto Rico and
the U.S. Virgin Islands:
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: (787) 620-7546
When you call or write, please give us the following information:
• 
Vehicle Identification Number
• Date of purchase
•  Odometer reading of your vehicle
• 
Your name, address, and telephone number
• A detailed description of the problem
•  Name of the dealer who sold the vehicle to you Canadian Owners:
Honda Canada, Inc.
Customer Relations
180 Honda Blvd.
Markham, ON
L6C 0H9
Tel: (888) 946-6329
Fax: (877) 939-0909
e-mail: [email protected]
Q:
Why can’t I select an item using the interface dial?*
A: To prevent driver distraction, certain items are limited are inoperable while the
vehicle is moving. Use voice commands or pull over to select the items.
Q: Where can I find the vehicle identification number (VIN)?
A: Check the label on the driver’s doorjamb.
*if equipped

142 || 143
VOICE COMMAND INDEX
CUSTOMER INFORMATION

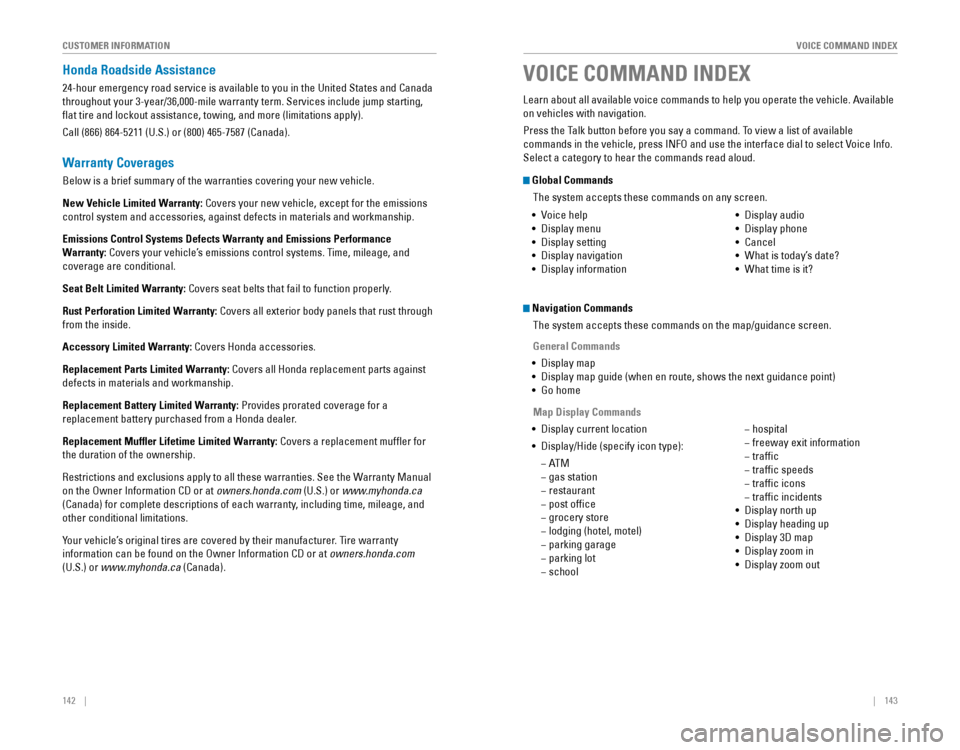

Honda Roadside Assistance
24-hour emergency road service is available to you in the United States and Canada 
throughout your 3-year/36,000-mile warranty term. Services include jump starting, 
flat tire and lockout assistance, towing, and more (limitations apply\
).
Call (866) 864-5211 (U.S.) or (800) 465-7587 (Canada).
Warranty Coverages
Below is a brief summary of the warranties covering your new vehicle. 
New Vehicle Limited Warranty: Covers your new vehicle, except for the emissions
control system and accessories, against defects in materials and workman\
ship.
Emissions Control Systems Defects Warranty and Emissions Performance
Warranty: Covers your vehicle’s emissions control systems. Time, mileage, and
coverage are conditional.
Seat Belt Limited Warranty:
Covers seat belts that fail to function properly. 
Rust Perforation Limited Warranty: Covers all exterior body panels that rust through 
from the inside.
Accessory Limited Warranty: Covers Honda accessories.
Replacement Parts Limited Warranty: Covers all Honda replacement parts against
defects in materials and workmanship.
Replacement Battery Limited Warranty: Provides prorated coverage for a
replacement battery purchased from a Honda dealer. 
Replacement Muffler Lifetime Limited Warranty: Covers a replacement muffler for
the duration of the ownership.
Restrictions and exclusions apply to all these warranties. See the Warranty Manual
on the Owner Information CD or at owners.honda.com (U.S.) or www.myhonda.ca
(Canada) for complete descriptions of each warranty, including time, mileage, and
other conditional limitations.
Your vehicle’s original tires are covered by their manufacturer. Tire warranty 
information can be found on the Owner Information CD or at owners.honda.com 
(U.S.) or www.myhonda.ca (Canada).
Global Commands
The system accepts these commands on any screen.
Navigation Commands
The system accepts these commands on the map/guidance screen.
General Commands
• 
Display map
• Display map guide (when en route, shows the next guidance point)
•  Go home
• 
Display current location
• Display/Hide (specify icon type):
− AT M
−gas station
−restaurant
−post office
−grocery store
−lodging (hotel, motel)
−parking garage
−parking lot
−school
−hospital
−freeway exit information
−traffic
−traffic speeds
−traffic icons
−traffic incidents
• 
Display north up
• Display heading up
• Display 3D map
• Display zoom in
• Display zoom out
Learn about all available voice commands to help you operate the vehicle. Available 
on vehicles with navigation.
Press the Talk button before you say a command. To view a list of available 
commands in the vehicle, press INFO and use the interface dial to select Voice Info. 
Select a category to hear the commands read aloud.
VOICE COMMAND INDEX
•  Voice help
• 
Display menu
• Display setting
• Display navigation
• Display information
• Display audio
• Display phone
•  Cancel
•  What is today’s date?
•  What time is it?
Map Display Commands

144 || 145
VOICE COMMAND INDEX
VOICE COMMAND INDEX

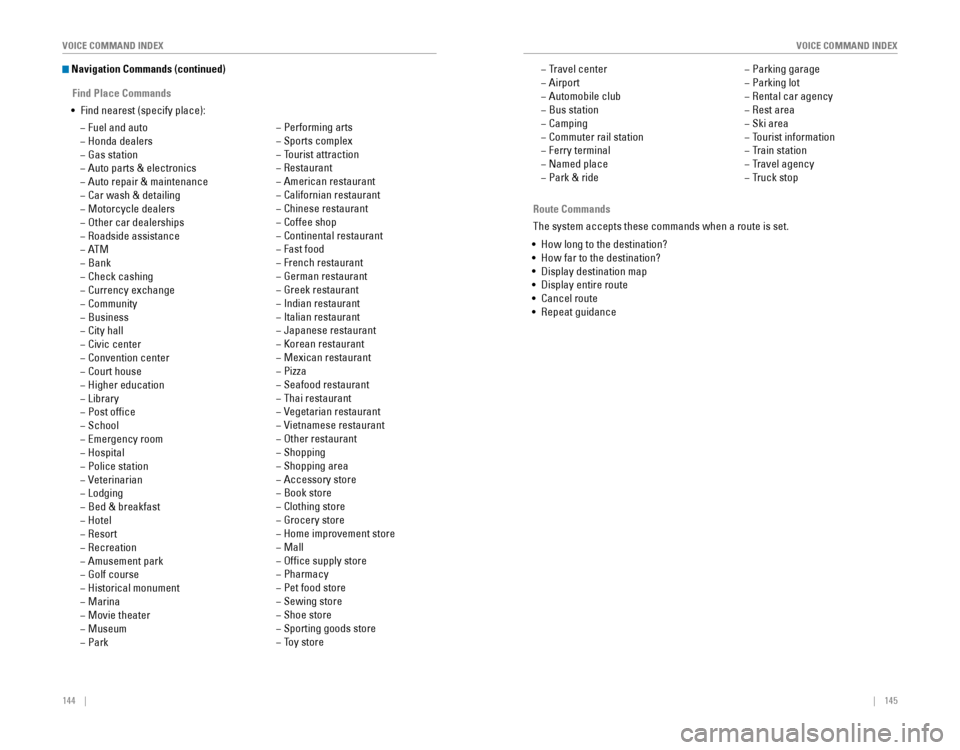

Navigation Commands (continued)
Find Place Commands
•  Find nearest (specify place):
−Fuel and auto
−Honda dealers
−Gas station
−Auto parts & electronics
−Auto repair & maintenance
−Car wash & detailing
−Motorcycle dealers
−Other car dealerships
−Roadside assistance
−AT M
−Bank
−Check cashing
−Currency exchange
−Community
−Business
−City hall
−Civic center
−Convention center
−Court house
−Higher education
−Library
−Post office
−School
−Emergency room
−Hospital
−Police station
−Veterinarian
−Lodging
−Bed & breakfast
−Hotel
−Resort
−Recreation
−Amusement park
−Golf course
−Historical monument
−Marina
−Movie theater
−Museum
−Park
−Performing arts
−Sports complex
−Tourist attraction
−Restaurant
−American restaurant
−Californian restaurant
−Chinese restaurant
−Coffee shop
−Continental restaurant
−Fast food
−French restaurant
−German restaurant
−Greek restaurant
−Indian restaurant
−Italian restaurant
−Japanese restaurant
−Korean restaurant
−Mexican restaurant
−Pizza
−Seafood restaurant
−Thai restaurant
−Vegetarian restaurant
−Vietnamese restaurant
−Other restaurant
−Shopping
−Shopping area
−Accessory store
−Book store
−Clothing store
−Grocery store
−Home improvement store
−Mall
−Office supply store
−Pharmacy
−Pet food store
−Sewing store
−Shoe store
−Sporting goods store
−Toy store Route Commands
The system accepts these commands when a route is set.
•  How long to the destination?
•  How far to the destination?
• 
Display destination map
• Display entire route
•  Cancel route
•  Repeat guidance
−Travel center
−Airport
−Automobile club
−Bus station
−Camping
−Commuter rail station
−Ferry terminal
−Named place
−Park & ride
−Parking garage
−Parking lot
−Rental car agency
−Rest area
−Ski area
−Tourist information
−Train station
−Travel agency
−Truck stop

146    || 147
VOICE COMMAND INDEX
VOICE COMMAND INDEX

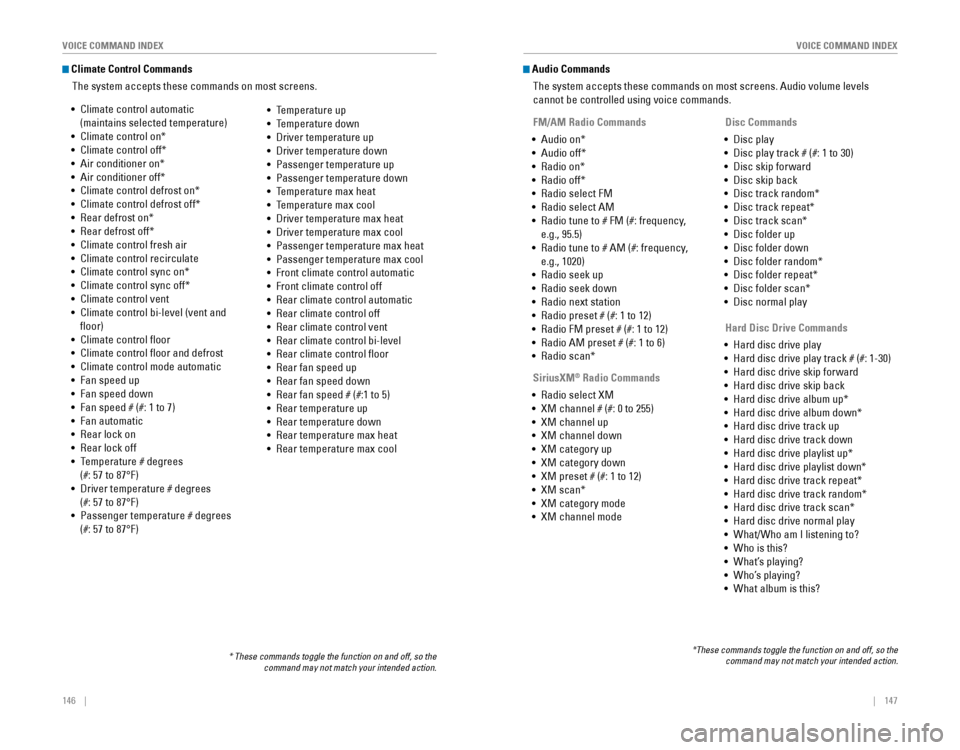

Climate Control Commands
The system accepts these commands on most screens.
* These commands toggle the function on and off, so the command may not match your intended action.
•  Climate control automatic
(maintains selected temperature)
• 
Climate control on*
• Climate control off*
• Air conditioner on*
• Air conditioner off*
• Climate control defrost on*
• Climate control defrost off*
• Rear defrost on*
• Rear defrost off*
•  Climate control fresh air
•  Climate control recirculate
• 
Climate control sync on*
• Climate control sync off*
•  Climate control vent
• 
Climate control bi-level (vent and 
floor)
•  Climate control floor
•  Climate control floor and defrost
•  Climate control mode automatic
•  Fan speed up
•  Fan speed down
•  Fan speed # (#: 1 to 7)
•  Fan automatic
•  Rear lock on
•  Rear lock off
•  Temperature # degrees
(#: 57 to 87°F) 
• Driver temperature # degrees         
(#: 57 to 87°F)
• Passenger temperature # degrees
(#: 57 to 87°F)
• Temperature up
•  Temperature down
• 
Driver temperature up
• Driver temperature down
•  Passenger temperature up
•  Passenger temperature down
•  Temperature max heat
•  Temperature max cool
• 
Driver temperature max heat
• Driver temperature max cool
•  Passenger temperature max heat
•  Passenger temperature max cool
•  Front climate control automatic
•  Front climate control off
•  Rear climate control automatic
•  Rear climate control off
•  Rear climate control vent
• 
Rear climate control bi-level
•  Rear climate control floor
•  Rear fan speed up
•  Rear fan speed down
•  Rear fan speed # (#:1 to 5)
•  Rear temperature up
•  Rear temperature down
•  Rear temperature max heat
•  Rear temperature max cool
Audio Commands
The system accepts these commands on most screens. Audio volume levels
cannot be controlled using voice commands. 
FM/AM Radio Commands
• 
Audio on*
• Audio off*
• Radio on*
• Radio off*
•  Radio select FM
•  Radio select AM
• 
Radio tune to # FM (#: frequency, 
e.g., 95.5)
• 
Radio tune to # AM (#: frequency, 
e.g., 1020)
•  Radio seek up
•  Radio seek down
•  Radio next station
•  Radio preset # (#: 1 to 12)
•  Radio FM preset # (#: 1 to 12)
• 
Radio AM preset # (#: 1 to 6)
• Radio scan*
SiriusXM® Radio Commands
•  Radio select XM
•  XM channel # (#: 0 to 255)
•  XM channel up
•  XM channel down
•  XM category up
•  XM category down
•  XM preset # (#: 1 to 12)
• 
XM scan*
•  XM category mode
•  XM channel mode Disc Commands
• 
Disc play
• Disc play track # (#: 1 to 30)
• Disc skip forward
• Disc skip back
• Disc track random*
• Disc track repeat*
• Disc track scan*
• Disc folder up
• Disc folder down
• Disc folder random*
• Disc folder repeat*
• Disc folder scan*
• Disc normal play
Hard Disc Drive Commands
•  Hard disc drive play
•  Hard disc drive play track # (#: 1-30)
•  Hard disc drive skip forward
• 
Hard disc drive skip back
• Hard disc drive album up*
• Hard disc drive album down*
•  Hard disc drive track up
•  Hard disc drive track down
• 
Hard disc drive playlist up*
• Hard disc drive playlist down*
• Hard disc drive track repeat*
• Hard disc drive track random* 
• Hard disc drive track scan*
•  Hard disc drive normal play
• 
What/Who am I listening to?
•  Who is this?
•  What’s playing?
•  Who’s playing?
• 
What album is this? 
*These commands toggle the function on and off, so the command may not match your intended action.

148 || 149

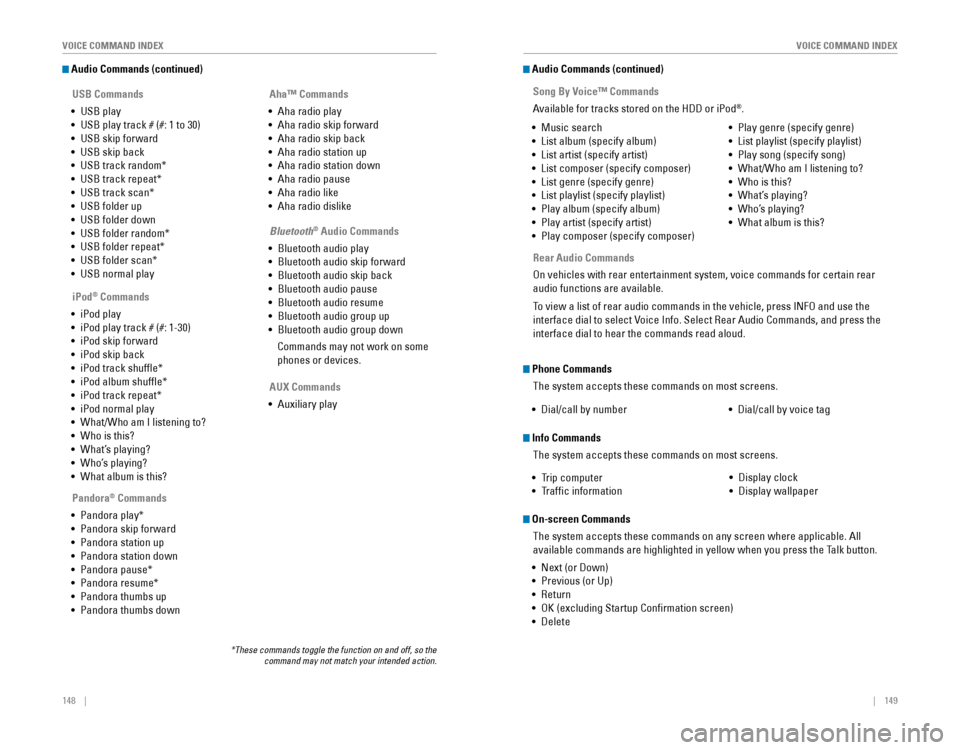

VOICE COMMAND INDEX
VOICE COMMAND INDEX
Audio Commands (continued)
USB Commands
•  USB play
•  USB play track # (#: 1 to 30)
•  USB skip forward
• 
USB skip back
• USB track random*
• USB track repeat*
• USB track scan*
•  USB folder up
•  USB folder down
• 
USB folder random*
• USB folder repeat*
• USB folder scan*
•  USB normal play
Pandora
® Commands
• 
Pandora play*
•  Pandora skip forward
•  Pandora station up
•  Pandora station down
• 
Pandora pause*
• Pandora resume*
• Pandora thumbs up
• Pandora thumbs down
*These commands toggle the function on and off, so the command may not match your intended action.
iPod® Commands
•  iPod play
•  iPod play track # (#: 1-30)
•  iPod skip forward
• 
iPod skip back
• iPod track shuffle*
• iPod album shuffle*
• iPod track repeat*
•  iPod normal play
• 
What/Who am I listening to?
•  Who is this?
•  What’s playing?
•  Who’s playing?
• 
What album is this?
Aha™ Commands
•  Aha radio play
•  Aha radio skip forward
• 
Aha radio skip back
•  Aha radio station up
•  Aha radio station down
•  Aha radio pause
•  Aha radio like
•  Aha radio dislike
Bluetooth
® Audio Commands
•  Bluetooth audio play
•  Bluetooth audio skip forward
• 
Bluetooth audio skip back
•  Bluetooth audio pause
•  Bluetooth audio resume
•  Bluetooth audio group up
•  Bluetooth audio group down
Commands may not work on some
phones or devices.
AUX Commands
•  Auxiliary play • 
Music search
• 
List album (specify album)
•  List artist (specify artist)
•  List composer (specify composer)
•  List genre (specify genre)
•  List playlist (specify playlist)
• 
Play album (specify album)
•  Play artist (specify artist)
•  Play composer (specify composer) • 
Play genre (specify genre)
•  List playlist (specify playlist)
•  Play song (specify song)
• 
What/Who am I listening to? 
•  Who is this?
•  What’s playing?
•  Who’s playing?
• 
What album is this?
Song By Voice™ Commands
Available for tracks stored on the HDD or iPod®.
Audio Commands (continued)
Rear Audio Commands
On vehicles with rear entertainment system, voice commands for certain rear
audio functions are available.
To view a list of rear audio commands in the vehicle, press INFO and use the 
interface dial to select Voice Info. Select Rear Audio Commands, and press the 
interface dial to hear the commands read aloud.
Phone CommandsThe system accepts these commands on most screens.
• 
Dial/call by number• Dial/call by voice tag
Info Commands The system accepts these commands on most screens.
•  Trip computer
•  Traffic information • 
Display clock
• Display wallpaper
On-screen Commands
The system accepts these commands on any screen where applicable. All 
available commands are highlighted in yellow when you press the Talk button.
• Next (or Down)
• 
Previous (or Up)
•  Return
•  OK (excluding Startup Confirmation screen)
•  Delete

150 || 151

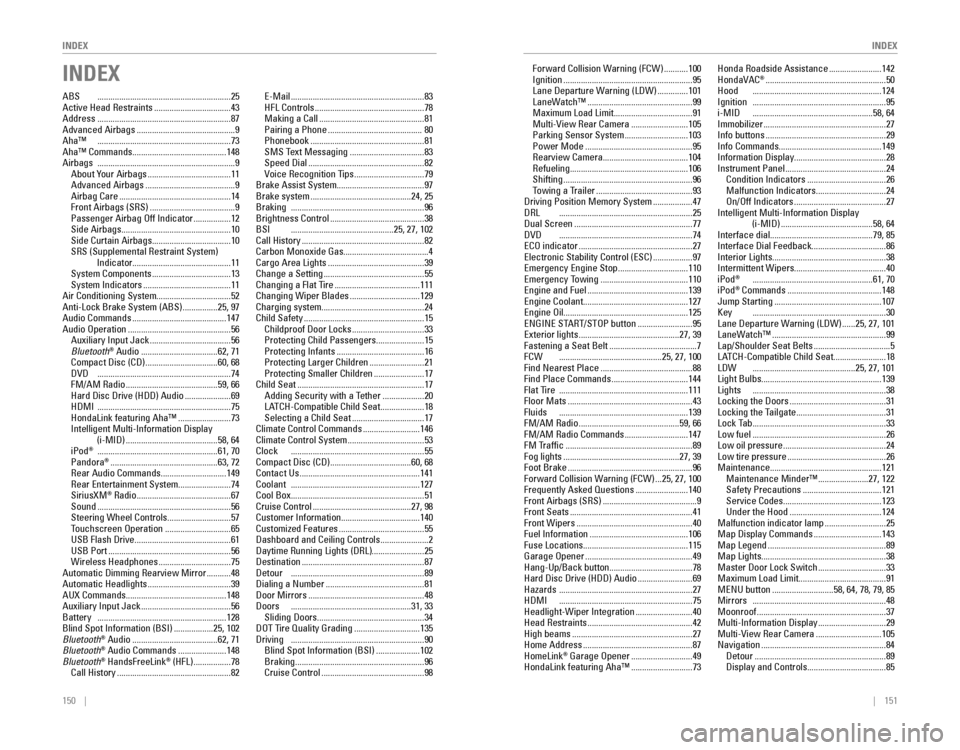

INDEX
INDEX
INDEX
ABS .............................................................25
Active Head Restraints ...................................43Address .............................................................87Advanced Airbags .............................................9Aha™  .............................................................73Aha™ Commands ...........................................148Airbags  ...............................................................9About Your Airbags ......................................11Advanced Airbags .........................................9Airbag Care ...................................................14Front Airbags (SRS) .......................................9Passenger Airbag Off Indicator .................12Side Airbags ..................................................10Side Curtain Airbags ....................................10
SRS (Supplemental Restraint System) Indicator ............................................. 11
System Components
....................................13System Indicators ........................................11
Air Conditioning System ..................................52
Anti-Lock Brake System (ABS)
................25, 97
Audio Commands ...........................................147
Audio Operation ...............................................56Auxiliary Input Jack .....................................56
Bluetooth® Audio ...................................62, 71Compact Disc (CD) .................................60, 68DVD  .............................................................74FM/AM Radio ..........................................59, 66Hard Disc Drive (HDD) Audio .....................69HDMI  .............................................................75HondaLink featuring Aha™ ........................73Intelligent Multi-Information Display
(i-MID) ..........................................58, 64iPod® .......................................................61, 70Pandora® .................................................63, 72Rear Audio Commands ..............................149Rear Entertainment System ........................74
SiriusXM® Radio ...........................................67Sound .............................................................56
Steering Wheel Controls .............................57
Touchscreen Operation ..............................65USB Flash Drive ............................................61
USB Port ........................................................56
Wireless Headphones .................................75Automatic Dimming Rearview Mirror ...........48
Automatic Headlights ......................................39
AUX Commands .............................................. 148
Auxiliary Input Jack .........................................56Battery ...........................................................128Blind Spot Information (BSI) ..................25, 102
Bluetooth® Audio .......................................62, 71Bluetooth® Audio Commands ......................148
Bluetooth® HandsFreeLink® (HFL) .................78
Call History ....................................................82
E-Mail  .............................................................83
HFL Controls ..................................................78
Making a Call ................................................81
Pairing a Phone ........................................... 80
Phonebook ....................................................81
SMS Text Messaging ..................................83Speed Dial .....................................................82
Voice Recognition Tips ................................79
Brake Assist System ........................................ 97
Brake system
..............................................24, 25Braking .............................................................96
Brightness Control ...........................................38BSI  ...............................................25, 27, 102
Call History ........................................................82Carbon Monoxide Gas....................................... 4
Cargo Area Lights ............................................39
Change a Setting ..............................................55
Changing a Flat Tire .......................................111
Changing Wiper Blades ................................129
Charging system ............................................... 24
Child Safety
.......................................................15Childproof Door Locks .................................33
Protecting Child Passengers ......................15Protecting Infants ........................................16
Protecting Larger Children .........................21
Protecting Smaller Children .......................17
Child Seat ..........................................................17
Adding Security with a Tether ...................20LATCH-Compatible Child Seat ....................18
Selecting a Child Seat .................................17
Climate Control Commands ..........................146
Climate Control System ...................................53Clock .............................................................55Compact Disc (CD) .....................................60, 68Contact Us .......................................................141Coolant ...........................................................127
Cool Box ............................................................. 51
Cruise Control
.............................................27, 98Customer Information.................................... 140Customized Features .......................................55Dashboard and Ceiling Controls ......................2Daytime Running Lights (DRL)........................25
Destination ........................................................87Detour  .............................................................89Dialing a Number .............................................81Door Mirrors .....................................................48Doors  .......................................................31, 33Sliding Doors .................................................34DOT Tire Quality Grading ..............................135Driving  .............................................................90Blind Spot Information (BSI) ....................102
Braking ...........................................................96
Cruise Control ...............................................98 Forward Collision Warning (FCW)
...........100
Ignition ...........................................................95Lane Departure Warning (LDW) ..............101
LaneWatch™ ................................................99
Maximum Load Limit ....................................91
Multi-View Rear Camera ..........................105
Parking Sensor System .............................103
Power Mode .................................................95
Rearview Camera .......................................104
Refueling ......................................................106
Shifting ...........................................................96
Towing a Trailer ............................................93Driving Position Memory System ..................47DRL  .............................................................25Dual Screen ......................................................77DVD  .............................................................74ECO indicator ....................................................27Electronic Stability Control (ESC) ..................97Emergency Engine Stop ................................110Emergency Towing ........................................110Engine and Fuel ..............................................139Engine Coolant................................................ 127Engine Oil......................................................... 125ENGINE START/STOP button .........................95Exterior lights ..............................................27, 39
Fastening a Seat Belt ........................................7FCW ...............................................25, 27, 100
Find Nearest Place ..........................................88
Find Place Commands ...................................144Flat Tire ...........................................................111
Floor Mats .........................................................43Fluids ...........................................................139FM/AM Radio ..............................................59, 66FM/AM Radio Commands .............................147
FM Traffic ..........................................................89
Fog lights .....................................................27, 39
Foot Brake .........................................................96
Forward Collision Warning (FCW) ...25, 27, 100Frequently Asked Questions ........................140Front Airbags (SRS) ...........................................9
Front Seats ........................................................41
Front Wipers .....................................................40Fuel Information .............................................106
Fuse Locations ................................................ 115
Garage Opener
.................................................49Hang-Up/Back button...................................... 78Hard Disc Drive (HDD) Audio .........................69Hazards  .............................................................27HDMI  .............................................................75Headlight-Wiper Integration ..........................40
Head Restraints ................................................42High beams .......................................................27
Home Address ..................................................87
HomeLink® Garage Opener ............................49HondaLink featuring Aha™ ............................73 Honda Roadside Assistance
........................142
HondaVAC® .......................................................50Hood ...........................................................124Ignition  .............................................................95i-MID  .......................................................58, 64Immobilizer ........................................................27Info buttons .......................................................29Info Commands............................................... 149Information Display..........................................28Instrument Panel ..............................................24Condition Indicators ....................................26Malfunction Indicators ................................24On/Off Indicators ..........................................27Intelligent Multi-Information Display
(i-MID) ..........................................58, 64Interface dial............................................... 79, 85Interface Dial Feedback..................................86Interior Lights.................................................... 38Intermittent Wipers..........................................40
iPod® .......................................................61, 70iPod® Commands ...........................................148
Jump Starting .................................................107Key .............................................................30Lane Departure Warning (LDW) ......25, 27, 101
LaneWatch™ ....................................................99Lap/Shoulder Seat Belts ...................................5LATCH-Compatible Child Seat ........................18LDW  ...............................................25, 27, 101Light Bulbs....................................................... 139Lights .............................................................38Locking the Doors ............................................31
Locking the Tailgate .........................................31Lock Tab .............................................................33Low fuel .............................................................26
Low oil pressure ...............................................24
Low tire pressure .............................................26
Maintenance ................................................... 121
Maintenance Minder™ .......................27, 122
Safety Precautions ....................................121
Service Codes .............................................123
Under the Hood ..........................................124
Malfunction indicator lamp ............................25Map Display Commands ...............................143
Map Legend ......................................................89
Map Lights ......................................................... 38
Master Door Lock Switch ...............................33
Maximum Load Limit ........................................ 91
MENU button ............................58, 64, 78, 79, 85Mirrors .............................................................48
Moonroof ...........................................................37Multi-Information Display ...............................29
Multi-View Rear Camera ..............................105
Navigation .........................................................84
Detour ............................................................89Display and Controls ....................................85

152 || 153

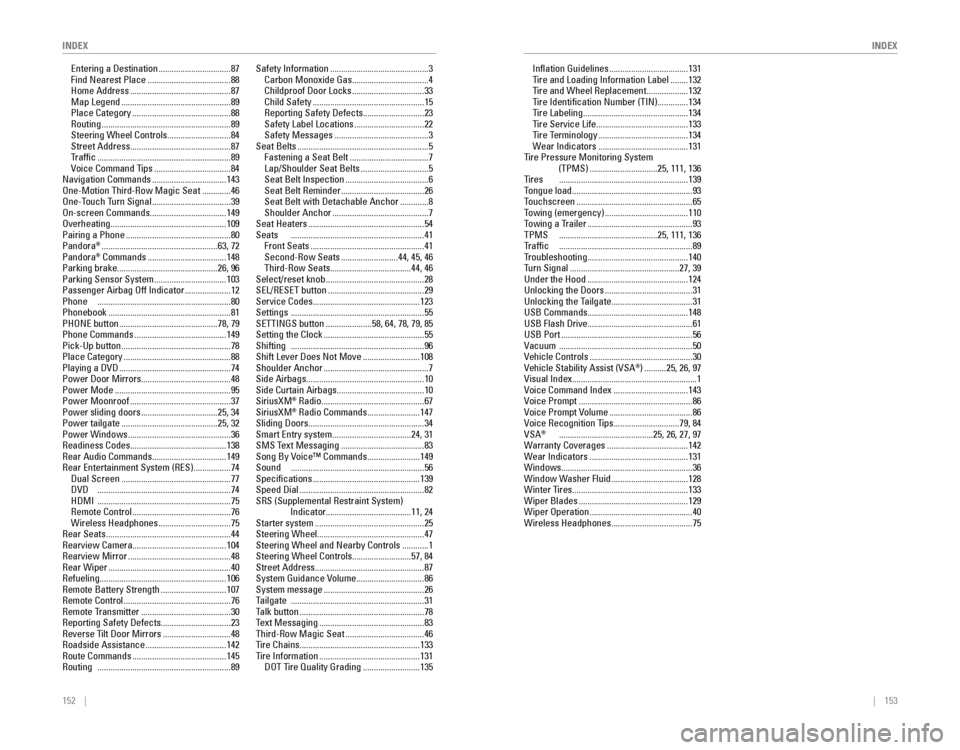

INDEX
INDEX
Entering a Destination .................................87
Find Nearest Place ......................................88
Home Address ..............................................87
Map Legend ..................................................89
Place Category .............................................88
Routing ...........................................................89
Steering Wheel Controls .............................84
Street Address ..............................................87Traffic .............................................................89
Voice Command Tips ...................................84
Navigation Commands ..................................143
One-Motion Third-Row Magic Seat .............46
One-Touch Turn Signal ....................................39
On-screen Commands ...................................149
Overheating ..................................................... 109
Pairing a Phone
................................................80
Pandora® .....................................................63, 72Pandora® Commands ....................................148Parking brake..............................................26, 96Parking Sensor System .................................103Passenger Airbag Off Indicator .....................12Phone .............................................................80
Phonebook ........................................................81PHONE button .............................................78, 79
Phone Commands ..........................................149Pick-Up button ..................................................78
Place Category .................................................88Playing a DVD ...................................................74Power Door Mirrors......................................... 48
Power Mode .....................................................95
Power Moonroof ..............................................37
Power sliding doors ...................................25, 34
Power tailgate ............................................25, 32
Power Windows ...............................................36
Readiness Codes ............................................ 138
Rear Audio Commands ..................................149
Rear Entertainment System (RES) .................74Dual Screen ..................................................77DVD  .............................................................74HDMI  .............................................................75
Remote Control .............................................76
Wireless Headphones .................................75
Rear Seats .........................................................44
Rearview Camera ........................................... 104
Rearview Mirror
...............................................48
Rear Wiper ........................................................40
Refueling .......................................................... 106
Remote Battery Strength
..............................107
Remote Control .................................................76
Remote Transmitter .........................................30Reporting Safety Defects................................ 23Reverse Tilt Door Mirrors ...............................48
Roadside Assistance .....................................142
Route Commands ...........................................145Routing .............................................................89
Safety Information .............................................3Carbon Monoxide Gas ...................................4Childproof Door Locks .................................33
Child Safety ...................................................15Reporting Safety Defects ............................23Safety Label Locations ................................22
Safety Messages ...........................................3
Seat Belts ............................................................5
Fastening a Seat Belt ....................................7Lap/Shoulder Seat Belts ...............................5Seat Belt Inspection ......................................6
Seat Belt Reminder ......................................26Seat Belt with Detachable Anchor .............8
Shoulder Anchor ............................................7
Seat Heaters .....................................................54Seats .............................................................41
Front Seats ....................................................41
Second-Row Seats ..........................44, 45, 46Third-Row Seats .....................................44, 46Select/reset knob .............................................28SEL/RESET button ............................................29
Service Codes ................................................. 123
Settings .............................................................55SETTINGS button .....................58, 64, 78, 79, 85Setting the Clock ..............................................55Shifting .............................................................96Shift Lever Does Not Move ..........................108
Shoulder Anchor ................................................7Side Airbags...................................................... 10Side Curtain Airbags........................................10
SiriusXM® Radio ...............................................67
SiriusXM® Radio Commands ........................147Sliding Doors..................................................... 34Smart Entry system ....................................24, 31
SMS Text Messaging ......................................83Song By Voice™ Commands ........................149Sound .............................................................56
Specifications .................................................139Speed Dial .........................................................82
SRS (Supplemental Restraint System) Indicator ....................................... 11, 24
Starter system
..................................................25
Steering Wheel ................................................. 47
Steering Wheel and Nearby Controls ............1
Steering Wheel Controls ...........................57, 84
Street Address .................................................. 87
System Guidance Volume
...............................86
System message ..............................................26Tailgate .............................................................31Talk button .........................................................78
Text Messaging ................................................83
Third-Row Magic Seat ....................................46
Tire Chains .......................................................133Tire Information ..............................................131DOT Tire Quality Grading ..........................135
Inflation Guidelines ....................................131Tire and Loading Information Label ........132
Tire and Wheel Replacement ...................132Tire Identification Number (TIN) ..............134Tire Labeling ................................................134
Tire Service Life ..........................................133
Tire Terminology .........................................134Wear Indicators .........................................131
Tire Pressure Monitoring System (TPMS)
...............................25, 111, 136Tires ...........................................................139
Tongue load .......................................................93
Touchscreen .....................................................65
Towing (emergency) ......................................110
Towing a Trailer ................................................93TPMS .............................................25, 111, 136Traffic .............................................................89
Troubleshooting ..............................................140
Turn Signal ..................................................27, 39
Under the Hood ..............................................124Unlocking the Doors ........................................31
Unlocking the Tailgate .....................................31
USB Commands .............................................. 148
USB Flash Drive................................................ 61
USB Port ............................................................56Vacuum .............................................................50
Vehicle Controls ...............................................30Vehicle Stability Assist (VSA®) ..........25, 26, 97Visual Index......................................................... 1Voice Command Index ..................................143
Voice Prompt ....................................................86
Voice Prompt Volume ......................................86
Voice Recognition Tips ..............................79, 84
VSA® ...........................................25, 26, 27, 97Warranty Coverages .....................................142Wear Indicators .............................................131
Windows ............................................................ 36
Window Washer Fluid
...................................128
Winter Tires .....................................................133
Wiper Blades ..................................................129
Wiper Operation ...............................................40
Wireless Headphones .....................................75
