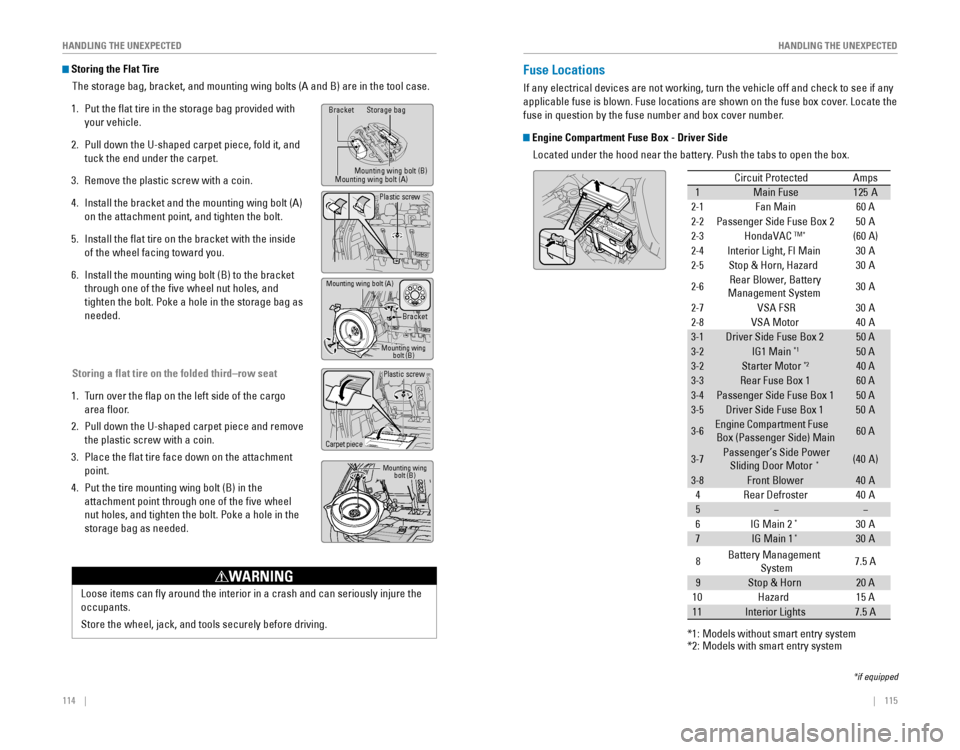

Storing the Flat Tire
The storage bag, bracket, and mounting wing bolts (A and B) are in the tool case.
1.  Put the flat tire in the storage bag provided with 
your vehicle.
2. Pull down the U-shaped carpet piece, fold it, and
tuck the end under the carpet.
3. Remove the plastic screw with a coin.
4.  Install the bracket and the mounting wing bolt (A) 
on the attachment point, and tighten the bolt.
5.  Install the flat tire on the bracket with the inside 
of the wheel facing toward you.
6.  Install the mounting wing bolt (B) to the bracket 
through one of the five wheel nut holes, and
tighten the bolt. Poke a hole in the storage bag as 
needed.
Storing a flat tire on the folded third–row seat
1. Turn over the flap on the left side of the cargo
area floor.
2. Pull down the U-shaped carpet piece and remove
the plastic screw with a coin.
3. Place the flat tire face down on the attachment
point.
4. Put the tire mounting wing bolt (B) in the 
attachment point through one of the five wheel
nut holes, and tighten the bolt. Poke a hole in the 
storage bag as needed.
Loose items can fly around the interior in a crash and can seriously i\
njure the
occupants.
Store the wheel, jack, and tools securely before driving.
WARNING
Bracket
Bracket
Plastic screw
Carpet pieceStorage bag
Mounting wing bolt (B)
Mounting wing bolt (B)
Mounting wing bolt (B)
Mounting wing bolt (A)
Mounting wing bolt (A)
Plastic screw
Fuse Locations
If any electrical devices are not working, turn the vehicle off and check to see if any 
applicable fuse is blown. Fuse locations are shown on the fuse box cover. Locate the 
fuse in question by the fuse number and box cover number. 
Engine Compartment Fuse Box - Driver Side
Located under the hood near the battery. Push the tabs to open the box.
Circuit ProtectedAmps
1Main Fuse12 5A
2-1Fan Main 60 A
2-2Passenger Side Fuse Box 2
2-3HondaVACTM*(60 A)
2-4Interior Light, FI Main
2-5Stop & Horn, Hazard
2-6Rear Blower, Battery
Ma nagement System 30
A
30
A
30
A
2-7VSA FSR 30A
50
A
2-8VSA Moto r
3-1Driver Side Fuse Box 250 A
3-2IG1 Main*150 A
3-2Starter Motor*240 A
3-3Rear Fuse Box 160 A
3-4Passenger Side Fuse Box 150 A
3-5Driver Side Fuse Box 150 A
3-6Engine Compartment Fuse
Box (Passenger Side) Main60 A
3-7Passenger’s Side Power
Sliding Door Moto r*(40A )
3-8Front Blower40A
40 A
40
A
4Rear Defroster
5
6I G Main 2*30A
7IG Main 1*30A
*1: M odels without smart entry system*2: M odels with smart entry system
8 Battery Management

System 7.5
A
9Stop & Hor n20 A
15 A
10 Hazard
11Interior Lights7.5 A
*if equipped

116    || 117
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

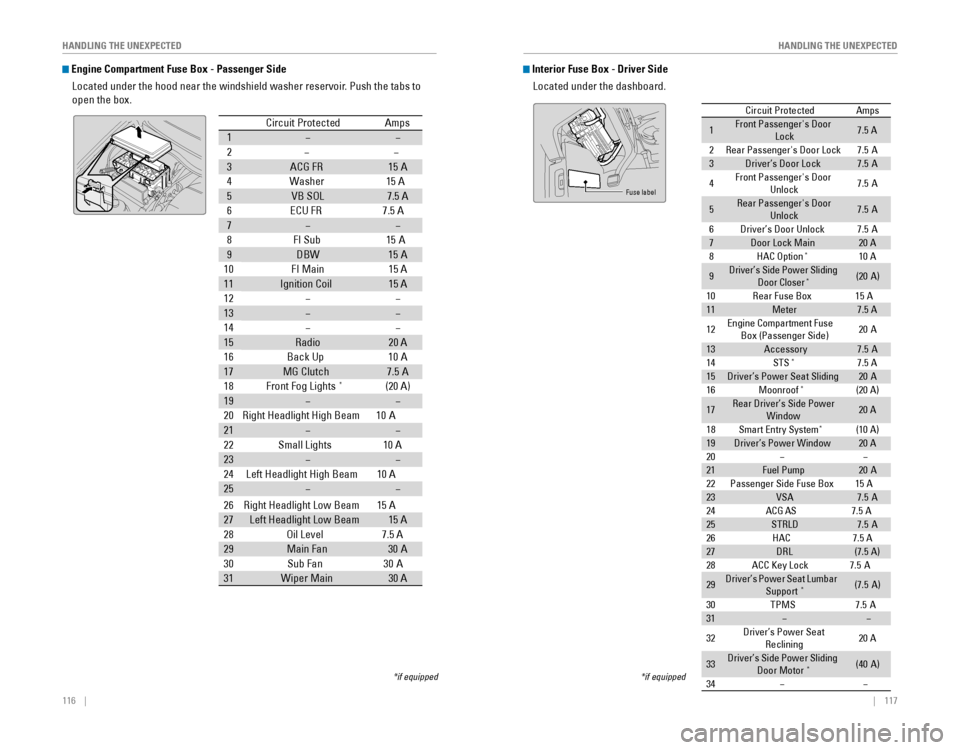

Engine Compartment Fuse Box - Passenger Side
Located under the hood near the windshield washer reservoir. Push the tabs to 
open the box.
Circuit Protecte dAmps
1
2
3ACG FR15A
4W ashe
r15 A
5VB SOL7.5 A
6E CU FR 7.5 A
7
8F I Su
b15A
9DBW15A
10 FI Main 15 A
11Ignition Coil15 A
12
13
14
15Radio20 A
16 Back Up 10A
17MG Clutch7.5A
18 Front Fog Lights*(20 A)
19
20 Right Headlight High Beam 10A
21
22 Small Lights 10 A
23
24 Left Headlight High Beam 10 A
25
26 Right Headlight Low Beam 15 A
27Left Headlight Low Beam15 A
28 Oil Level 7.5 A
29Main Fa n30A
30 Sub Fan 30A
31Wiper Main30 A
*if equipped
Interior Fuse Box - Driver Side
Located under the dashboard.
Circuit Protecte dAmps
1Front Passenger's Door
Lock7.5 A
2Rear Passenger's Door Lock7.5A
3Driver’s Door Lock7.5A
4Front Passenger's Door
Unlock7.5A
5Rear Passenger's Door
Unlock7.5A
6Driver’s Door Unlock7.5A
7Door Lock Main20 A
8HAC Option*10 A
9Driver’s Side Power Sliding
Door Closer*(20A )
10 Rear Fuse Bo
x15 A
11Meter7.5 A
12 Engine Compartment
Fuse
Box (Passenger Side) 20
A
13Accessor y7.5A
14 STS*7.5 A
15Driver’s Power Seat Sliding20A
16 Moonroof*(20 A)
17Rear Driver’s Side Power Window20 A
18 Smart Entry System
*(10 A)
19Driver’s Power Window20 A
20

21Fuel Pump20 A
22 Passenger Side Fuse Bo x15 A
23VSA7.5A
24 ACG AS 7.5 A
25STRLD7.5A
26 HAC 7.5 A
27DRL(7.5 A)
28 ACC Key Lock 7.5A
29Driver’s Power Seat Lumbar
Suppor t*(7.5 A)
30 TPMS 7.5A
31
32 Driver’s Power Seat
Reclining 20
A
33Driver’s Side Power Sliding
Door Moto r*(40A )
34

Fuse label
*if equipped

118 || 119
HANDLING THE UNEXPECTED
HANDLING THE UNEXPECTED

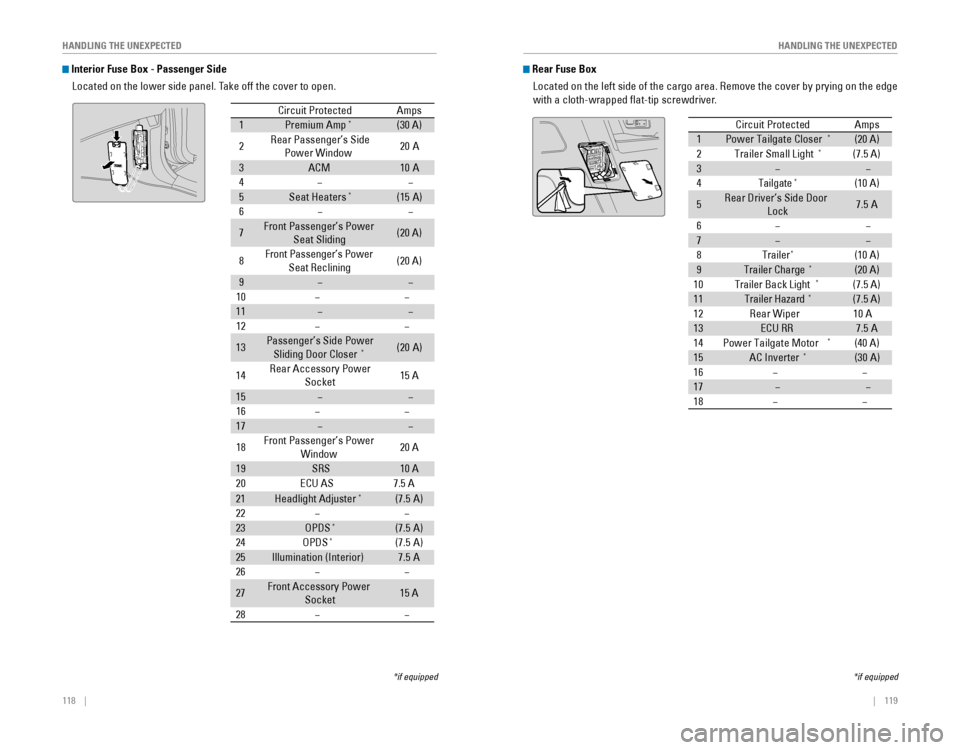

Interior Fuse Box - Passenger Side
Located on the lower side panel. Take off the cover to open.
Circuit ProtectedAmps
1Premium Amp*(30 A)
2Rear Passenger’s Side Power Windo w20A
3ACM10A
4
5Seat Heaters*(15A )
6
7Front Passenger’s Power
Seat Sliding(20 A)
8Front Passenger’s Power
Seat Reclining(20 A)
9
10

11
12

13Passenger’s Side Power Sliding Door Closer*(2 0A )
14 Rear Accessory Power
Socket 15
A
15
16

17
18 Front Passenger’s Power
Window 20
A
19SRS10 A
20 ECU AS 7.5 A
21Headlight Adjuster*(7.5 A)
22

23OPDS*(7.5 A)
24 OPDS*(7.5 A)
25Illumination (Interior)7.5A
26

27Front Accessory Power
Socket15 A
28

*if equipped
Rear Fuse Box
Located on the left side of the cargo area. Remove the cover by prying on the edge 
with a cloth-wrapped flat-tip screwdriver.
Circuit Protecte dAmps
1Power Tailgate Closer*(20 A)
2Trailer Small Light*(7.5 A)
3
4Tailgate*(10 A)
5Rear Driver’s Side Door
Lock7. 5A
6
7
8Traile r*(10 A)
9Trailer Charg e*(20 A)
10 Trailer Back Light*(7.5 A)
11Trailer Hazard*(7.5 A)
12 Rear Wiper 10 A
13ECU RR7.5A
14 Power Tailgate Motor*(40 A)
15AC Inverter*(3 0A )
16

17
18

*if equipped

120 || 121
MAINTENANCE
HANDLING THE UNEXPECTED

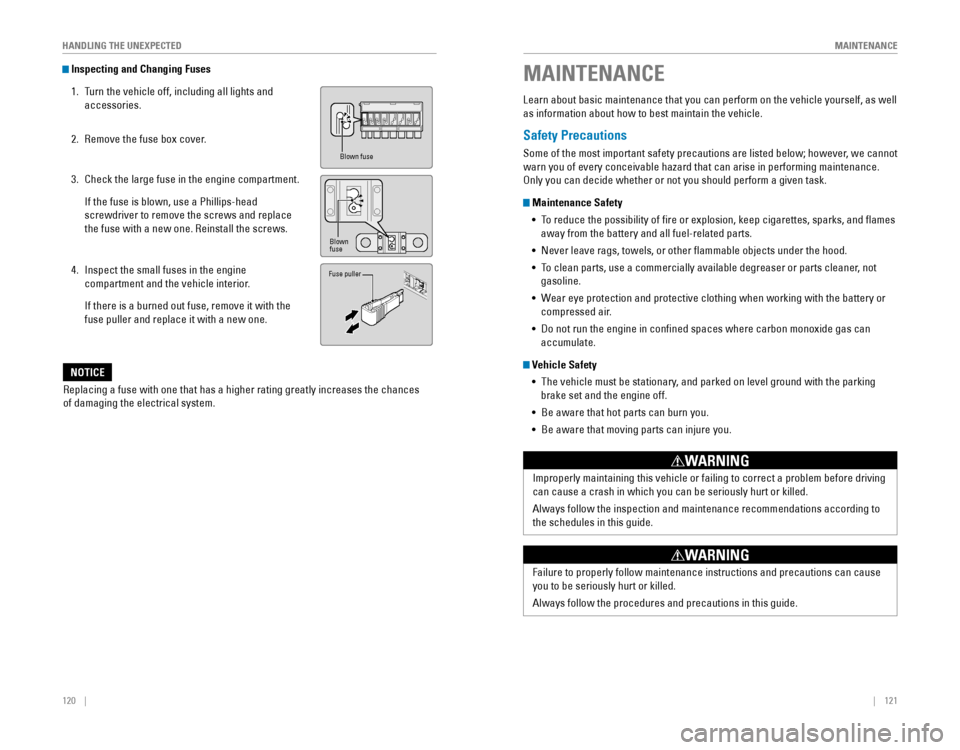

Inspecting and Changing Fuses
1. Turn the vehicle off, including all lights and
accessories.
2. Remove the fuse box cover.
3. Check the large fuse in the engine compartment.
 If the fuse is blown, use a Phillips-head 
screwdriver to remove the screws and replace
the fuse with a new one. Reinstall the screws.
4. Inspect the small fuses in the engine 
compartment and the vehicle interior.
 If there is a burned out fuse, remove it with the 
fuse puller and replace it with a new one.
Replacing a fuse with one that has a higher rating greatly increases the\
chances
of damaging the electrical system.
NOTICE
Blown fuse
Blown
fuse
Fuse puller
Safety Precautions
Some of the most important safety precautions are listed below; however, we cannot 
warn you of every conceivable hazard that can arise in performing maintenance. 
Only you can decide whether or not you should perform a given task.
Maintenance Safety • 
To reduce the possibility of fire or explosion, keep cigarettes, sparks, and flames 
away from the battery and all fuel-related parts.
• Never leave rags, towels, or other flammable objects under the hood.
• To clean parts, use a commercially available degreaser or parts cleaner, not 
gasoline.
• 
Wear eye protection and protective clothing when working with the battery or 
compressed air.
• 
Do not run the engine in confined spaces where carbon monoxide gas can 
accumulate.
Vehicle Safety • 
The vehicle must be stationary, and parked on level ground with the parking 
brake set and the engine off.
• Be aware that hot parts can burn you.
•  Be aware that moving parts can injure you.
Improperly maintaining this vehicle or failing to correct a problem before driving 
can cause a crash in which you can be seriously hurt or killed. 
Always follow the inspection and maintenance recommendations according t\
o
the schedules in this guide.
Failure to properly follow maintenance instructions and precautions can \
cause
you to be seriously hurt or killed.
Always follow the procedures and precautions in this guide.
WARNING
WARNING
Learn about basic maintenance that you can perform on the vehicle yourself, as well 
as information about how to best maintain the vehicle.
MAINTENANCE

122 || 123
MAINTENANCE
MAINTENANCE
When maintenance is due, the Maintenance Minder indicator comes on and a\

message appears on the display every time you turn the vehicle on. Press the select/
reset knob to change displays.

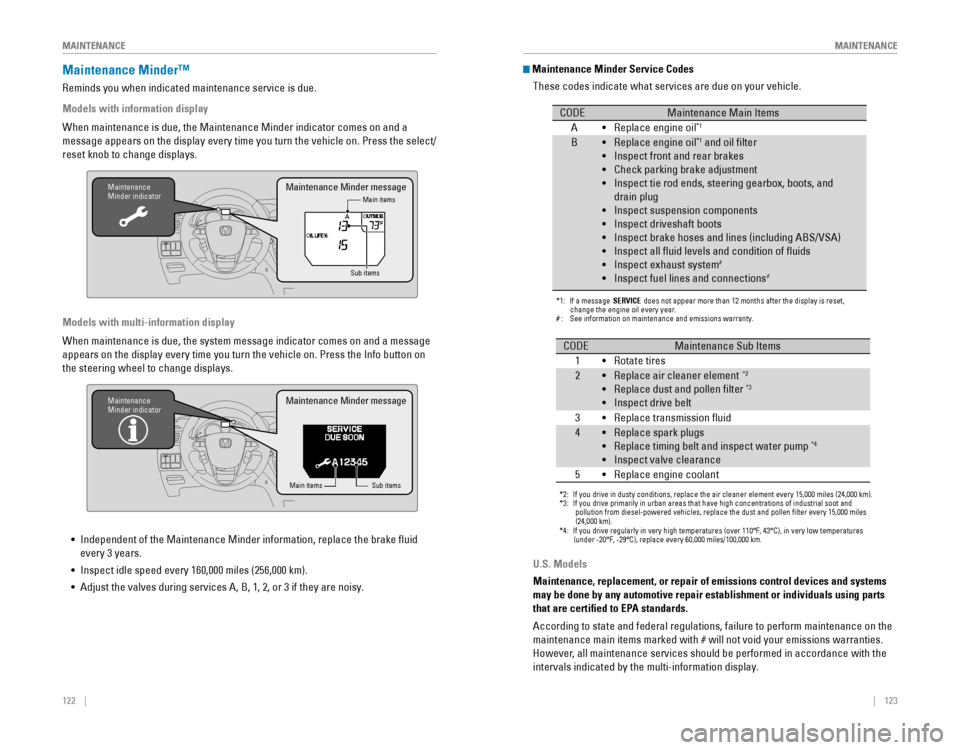

Maintenance Minder™
Reminds you when indicated maintenance service is due.
Models with information display
Maintenance
Minder indicator
Main items
Sub items
Maintenance Minder message
When maintenance is due, the system message indicator comes on and a mes\
sage
appears on the display every time you turn the vehicle on. Press the Info button on 
the steering wheel to change displays. Models with multi-information display
Maintenance
Minder indicator
Main itemsSub items
Maintenance Minder message
• Independent of the Maintenance Minder information, replace the brake fluid 
every 3 years.
• 
Inspect idle speed every 160,000 miles (256,000 km).
•  Adjust the valves during services A, B, 1, 2, or 3 if they are noisy. U.S. Models
Maintenance, replacement, or repair of emissions control devices and sys\
tems
may be done by any automotive repair establishment or individuals using \
parts
that are certified to EPA standards.
According to state and federal regulations, failure to perform maintenan\
ce on the
maintenance main items marked with # will not void your emissions warranties.
However, all maintenance services should be performed in accordance with the 
intervals indicated by the multi-information display.
Maintenance Minder Service Codes
These codes indicate what services are due on your vehicle.
*1: If a message SERVICE does not appear more than 12 months after the display is reset,
change the engine oil every year.
#: See information on maintenance and emissions warranty.
CODEMaintenance Main Items
A Replace engine oi l*1
BReplace engine oil*1 and oil lter
Inspect front and rear brakes
Check parking brake adjustment
Inspect tie rod ends, steering gearbox, boots, and
drain plug
Inspect suspension components
Inspect driveshaft boots
Inspect brake hoses and lines (including ABS/VSA)
Inspect all uid levels and condition of uids
Inspect exhaust system
#
Inspect fuel lines and connections#
*2:If you drive in dusty conditions, replace the air cleaner element every \
15,000 miles (24,000 km).*3: If you drive primarily in urban areas that have high concentrations of i\
ndustrial soot and pollution from diesel-powered vehicles, replace the dust and pollen lter every 15,000 \
miles
(24,000 km ).
*4: If you drive regularly in very high temperatures (over 110°F, 43°\
C), in very low temperatures
(under -20°F, -29°C), replace every 60,000 miles/100,000 km.
CODEMaintenance Sub Items
1 Rotate tires • •
•
•
•
•
•
•
•
•
•
•
2Replace air cleaner element*2
Replace dust and pollen lter*3
Inspect drive belt
3 Replace transmission ui d
4Replace spark plugs
Replace timing belt and inspect water pump*4
Inspect valve clearance
5 Replace engine coolan t
•
•
•
•
•
•
•
•

124 || 125
MAINTENANCE
MAINTENANCE

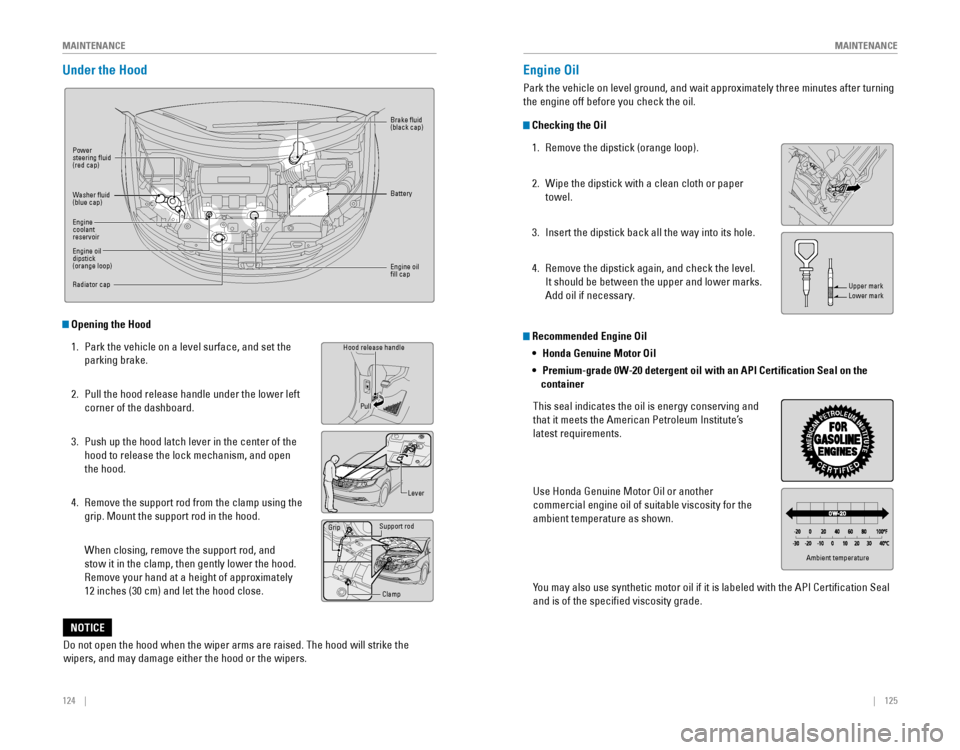

Under the Hood
Opening the Hood
1. Park the vehicle on a level surface, and set the
parking brake.
2. Pull the hood release handle under the lower left
corner of the dashboard.
3. Push up the hood latch lever in the center of the
hood to release the lock mechanism, and open
the hood.
4. Remove the support rod from the clamp using the
grip. Mount the support rod in the hood.
When closing, remove the support rod, and
stow it in the clamp, then gently lower the hood.
Remove your hand at a height of approximately
12 inches (30 cm) and let the hood close.
Do not open the hood when the wiper arms are raised. The hood will strike the 
wipers, and may damage either the hood or the wipers.
NOTICE
Power steering fluid
(red cap) Brake fluid
(black cap)
Battery
Engine oil fill cap
Hood release handle
Lever
Support rod
Grip
Clamp
Pull
Washer fluid
(blue cap)
Engine coolant
reservoir
Engine oil dipstick
(orange loop)
Radiator cap
Recommended Engine Oil
• 
Honda Genuine Motor Oil
•  Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container
This seal indicates the oil is energy conserving and
that it meets the American Petroleum Institute’s 
latest requirements.
Use Honda Genuine Motor Oil or another
commercial engine oil of suitable viscosity for the 
ambient temperature as shown.
You may also use synthetic motor oil if it is labeled with the API Certification Seal 
and is of the specified viscosity grade.
Engine Oil
Park the vehicle on level ground, and wait approximately three minutes after turning
the engine off before you check the oil. 
Checking the Oil
1. Remove the dipstick (orange loop).
2. Wipe the dipstick with a clean cloth or paper
towel.
3. Insert the dipstick back all the way into its hole.
4. Remove the dipstick again, and check the level.
It should be between the upper and lower marks. 
Add oil if necessary.Upper markLower mark
Ambient temperature

126    || 127
MAINTENANCE
MAINTENANCE

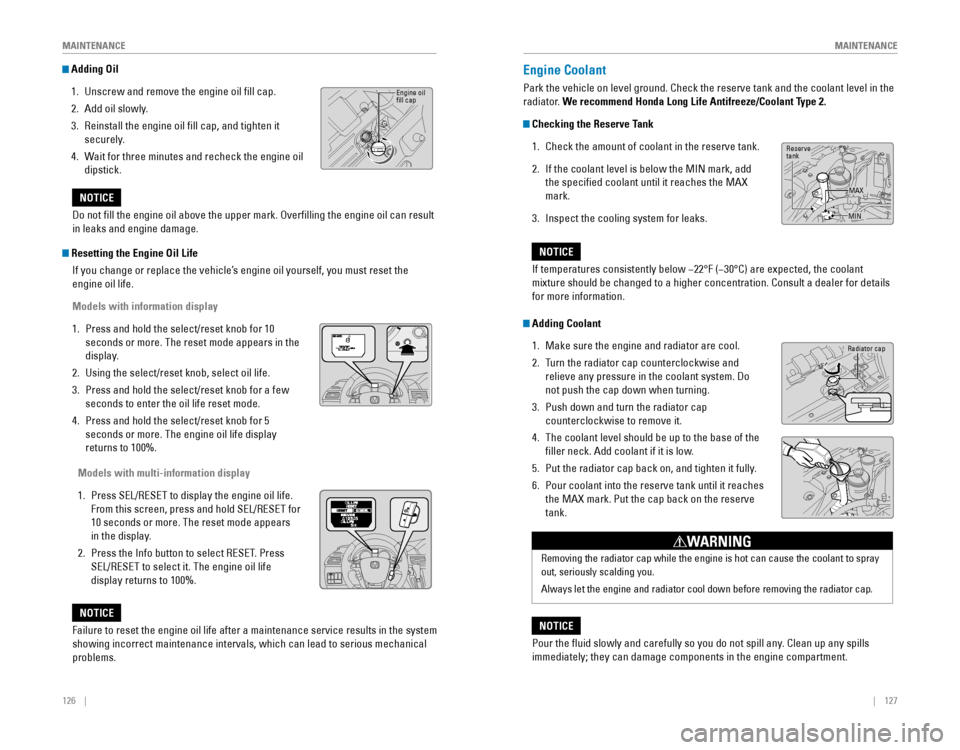

Adding Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten it
securely.
4. Wait for three minutes and recheck the engine oil
dipstick.
Do not fill the engine oil above the upper mark. Overfilling the engine oil can result 
in leaks and engine damage.
NOTICE
Engine oil fill cap
Resetting the Engine Oil Life
If you change or replace the vehicle’s engine oil yourself, you must reset the 
engine oil life.
Failure to reset the engine oil life after a maintenance service results\
in the system
showing incorrect maintenance intervals, which can lead to serious mecha\
nical
problems.
NOTICE
Models with information display
1. Press and hold the select/reset knob for 10 
seconds or more. The reset mode appears in the
display.
2. Using the select/reset knob, select oil life.
3. Press and hold the select/reset knob for a few 
seconds to enter the oil life reset mode.
4. Press and hold the select/reset knob for 5 
seconds or more. The engine oil life display
returns to 100%.
Models with multi-information display
1. Press SEL/RESET to display the engine oil life. 
From this screen, press and hold SEL/RESET for 
10 seconds or more. The reset mode appears
in the display.
2. Press the Info button to select RESET. Press 
SEL/RESET to select it. The engine oil life 
display returns to 100%.
Engine Coolant
Park the vehicle on level ground. Check the reserve tank and the coolant\
level in the
radiator. We recommend Honda Long Life Antifreeze/Coolant Type 2.
Checking the Reserve Tank
1. Check the amount of coolant in the reserve tank.
2. If the coolant level is below the MIN mark, add 
the specified coolant until it reaches the MAX
mark.
3. Inspect the cooling system for leaks.
Adding Coolant
1. Make sure the engine and radiator are cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system. Do 
not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base of the 
filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it fully.
6. Pour coolant into the reserve tank until it reaches
the MAX mark. Put the cap back on the reserve 
tank.
Removing the radiator cap while the engine is hot can cause the coolant \
to spray
out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator cap. 
WARNING
If temperatures consistently below −22°F (−30°C) are expected, the coolant 
mixture should be changed to a higher concentration. Consult a dealer for details 
for more information.
Pour the fluid slowly and carefully so you do not spill any. Clean up any spills
immediately; they can damage components in the engine compartment.
NOTICE
NOTICE
Reserve
tank Radiator capMAX
MIN

128 || 129
MAINTENANCE
MAINTENANCE

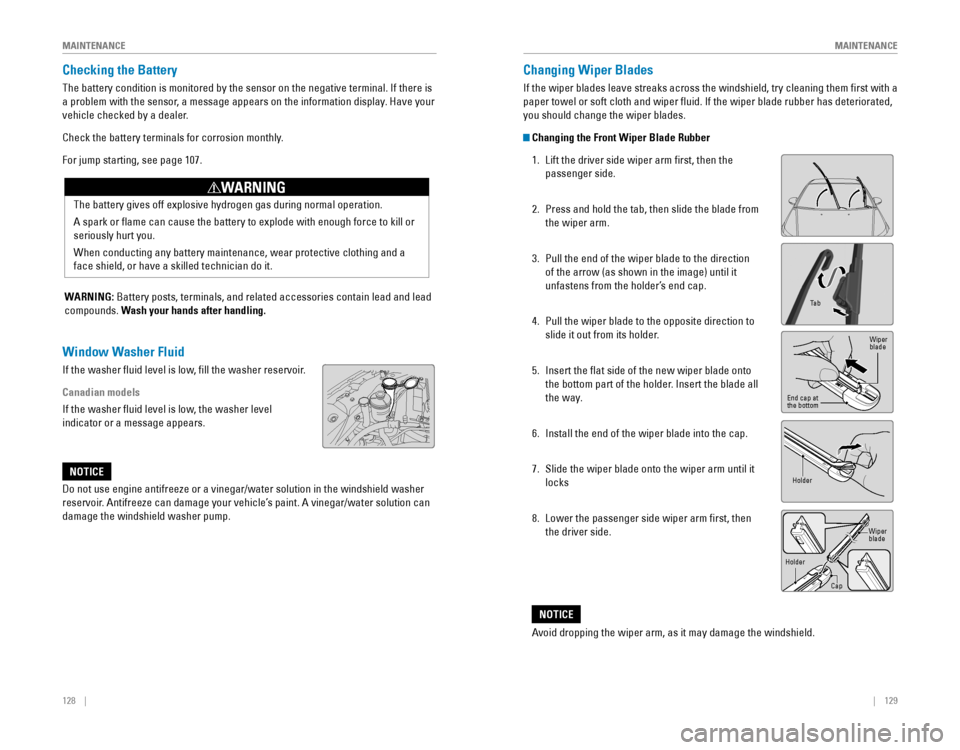

Checking the Battery
The battery condition is monitored by the sensor on the negative terminal. If there is 
a problem with the sensor, a message appears on the information display. Have your 
vehicle checked by a dealer.
Check the battery terminals for corrosion monthly.
For jump starting, see page 107.
The battery gives off explosive hydrogen gas during normal operation.
A spark or flame can cause the battery to explode with enough force to kill or 
seriously hurt you.
When conducting any battery maintenance, wear protective clothing and a 
face shield, or have a skilled technician do it.
WARNING
WARNING: Battery posts, terminals, and related accessories contain lead and lead\

compounds. Wash your hands after handling.
Window Washer Fluid
If the washer fluid level is low, fill the washer reservoir. 
Canadian models
If the washer fluid level is low, the washer level 
indicator or a message appears.
Do not use engine antifreeze or a vinegar/water solution in the windshield washer 
reservoir. Antifreeze can damage your vehicle’s paint. A vinegar/water solution can 
damage the windshield washer pump.
NOTICE
Changing Wiper Blades
If the wiper blades leave streaks across the windshield, try cleaning them first with a 
paper towel or soft cloth and wiper fluid. If the wiper blade rubber has deteriorated, 
you should change the wiper blades.
Changing the Front Wiper Blade Rubber
1. Lift the driver side wiper arm first, then the
passenger side.
2. Press and hold the tab, then slide the blade from 
the wiper arm.
3. Pull the end of the wiper blade to the direction 
of the arrow (as shown in the image) until it
unfastens from the holder’s end cap.
4. Pull the wiper blade to the opposite direction to 
slide it out from its holder.
5. Insert the flat side of the new wiper blade onto 
the bottom part of the holder. Insert the blade all 
the way.
6. Install the end of the wiper blade into the cap.
7. Slide the wiper blade onto the wiper arm until it 
locks
8. Lower the passenger side wiper arm first, then
the driver side.
Ta b
Wiper
blade
End cap at the bottom
Holder
Holder CapWiper
blade
Avoid dropping the wiper arm, as it may damage the windshield.
NOTICE

130 || 131
MAINTENANCE
MAINTENANCE

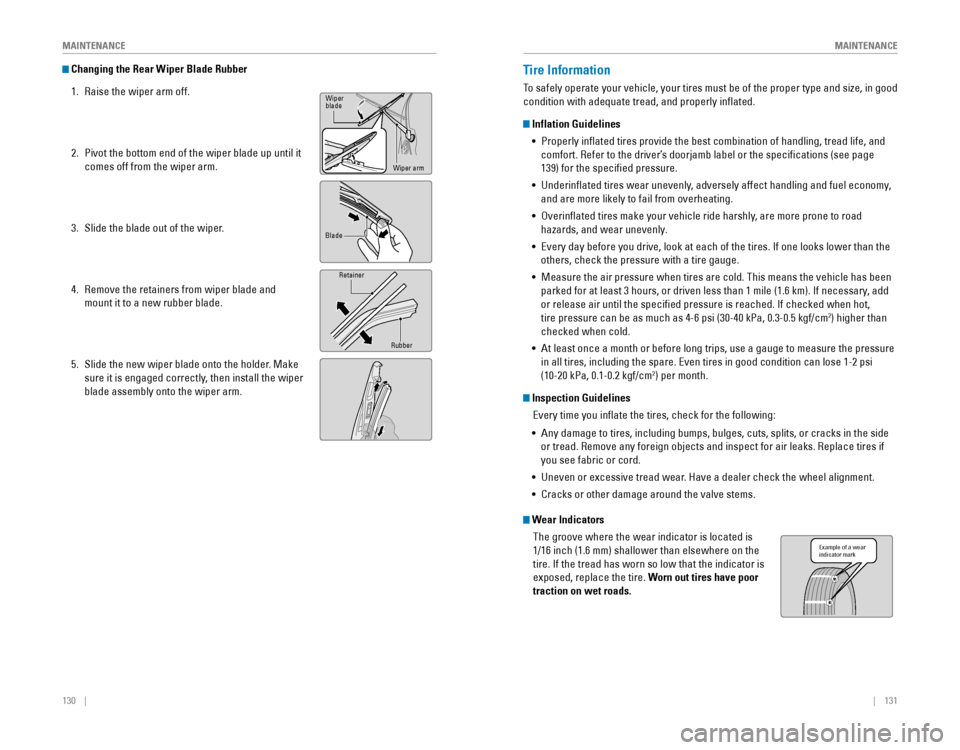

Changing the Rear Wiper Blade Rubber
1. Raise the wiper arm off.
2. Pivot the bottom end of the wiper blade up until it 
comes off from the wiper arm.
3. Slide the blade out of the wiper.
4. Remove the retainers from wiper blade and 
mount it to a new rubber blade.
5. Slide the new wiper blade onto the holder. Make 
sure it is engaged correctly, then install the wiper
blade assembly onto the wiper arm.
Wiperblade
Wiper arm
Blade Retainer
Rubber
Tire Information
To safely operate your vehicle, your tires must be of the proper type and size, in good 
condition with adequate tread, and properly inflated.
Inflation Guidelines• 
Properly inflated tires provide the best combination of handling, tread life, and 
comfort. Refer to the driver’s doorjamb label or the specifications (see page 
139) for the specified pressure.
•  Underinflated tires wear unevenly, adversely affect handling and fuel economy,
and are more likely to fail from overheating.
•  Overinflated tires make your vehicle ride harshly, are more prone to road
hazards, and wear unevenly.
• Every day before you drive, look at each of the tires. If one looks lower than the 
others, check the pressure with a tire gauge.
• 
Measure the air pressure when tires are cold. This means the vehicle has been 
parked for at least 3 hours, or driven less than 1 mile (1.6 km). If necessary, add 
or release air until the specified pressure is reached. If checked when hot, 
tire pressure can be as much as 4-6 psi (30-40 kPa, 0.3-0.5 kgf/cm2) higher than
checked when cold.
• 
At least once a month or before long trips, use a gauge to measure the pressure 
in all tires, including the spare. Even tires in good condition can lose 1-2 psi 
(10-20 kPa, 0.1-0.2 kgf/cm2) per month.
Inspection Guidelines
Every time you inflate the tires, check for the following:
• Any damage to tires, including bumps, bulges, cuts, splits, or cracks in the side 
or tread. Remove any foreign objects and inspect for air leaks. Replace tires if 
you see fabric or cord. 
•  Uneven or excessive tread wear. Have a dealer check the wheel alignment.
•  Cracks or other damage around the valve stems.
Wear Indicators
The groove where the wear indicator is located is
1/16 inch (1.6 mm) shallower than elsewhere on the 
tire. If the tread has worn so low that the indicator is 
exposed, replace the tire. Worn out tires have poor
traction on wet roads.
Example of a wear
indicator mark

132 || 133
MAINTENANCE
MAINTENANCE

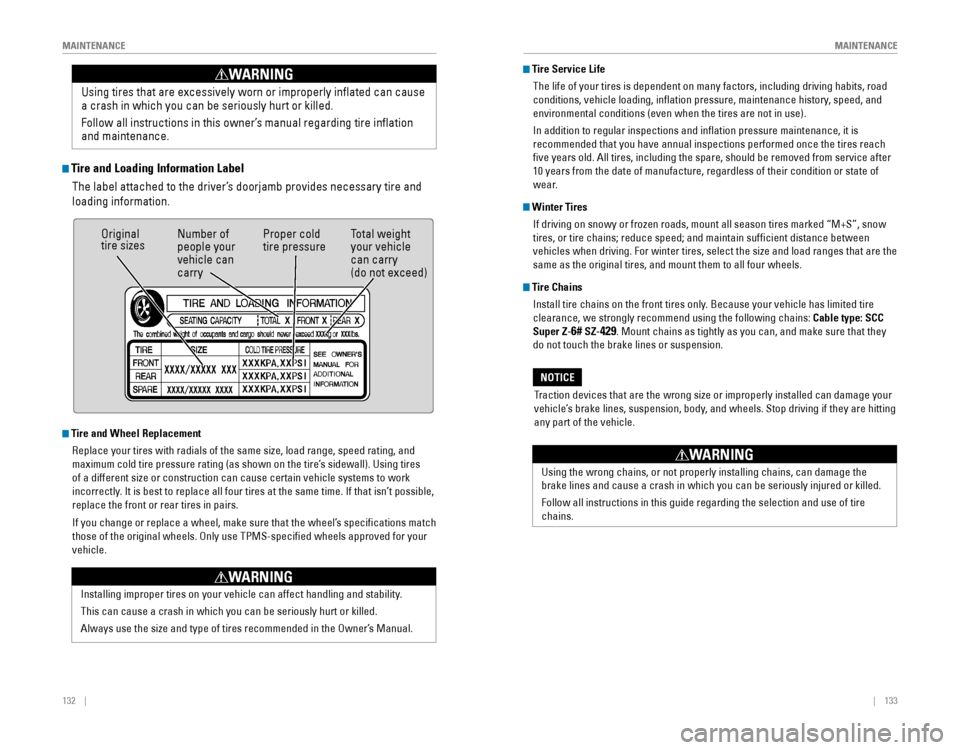

Tire and Loading Information Label
The label attached to the driver’s doorjamb provides necessary tire and 
loading information. Using tires that are excessively worn or improperly inflated can cause\

a crash in which you can be seriously hurt or killed.
Follow all instructions in this owner’s manual regarding tire inflation
and maintenance
.
WARNING
Original tire sizesNumber of 
people your
vehicle can
carry
Proper cold
tire pressure
Total weight
your vehicle
can carry
(do not exceed)
Tire and Wheel Replacement
Replace your tires with radials of the same size, load range, speed rating, and 
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires
of a different size or construction can cause certain vehicle systems to work 
incorrectly. It is best to replace all four tires at the same time. If that isn’t possible, 
replace the front or rear tires in pairs.
If you change or replace a wheel, make sure that the wheel’s specifications match 
those of the original wheels. Only use TPMS-specified wheels approved \
for your
vehicle.
Installing improper tires on your vehicle can affect handling and stability.
This can cause a crash in which you can be seriously hurt or killed.
Always use the size and type of tires recommended in the Owner’s Manual.
WARNING
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road 
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even when the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is 
recommended that you have annual inspections performed once the tires re\
ach
five years old. All tires, including the spare, should be removed from service after 
10 years from the date of manufacture, regardless of their condition or \
state of
wear.
Winter Tires
If driving on snowy or frozen roads, mount all season tires marked “M+S”, snow 
tires, or tire chains; reduce speed; and maintain sufficient distance between 
vehicles when driving. For winter tires, select the size and load ranges that are the 
same as the original tires, and mount them to all four wheels.
Tire Chains
Install tire chains on the front tires only. Because your vehicle has limited tire 
clearance, we strongly recommend using the following chains: Cable type: SCC
Super Z-
6# SZ-429. Mount chains as tightly as you can, and make sure that they
do not touch the brake lines or suspension.
Traction devices that are the wrong size or improperly installed can damage your 
vehicle’s brake lines, suspension, body, and wheels. Stop driving if they are hitting 
any part of the vehicle.
NOTICE
Using the wrong chains, or not properly installing chains, can damage th\
e
brake
 lines and cause a crash in which you can be seriously injured or killed.
Follow all instructions in this guide regarding the selection and use of\
tire
chains.
WARNING
