display HONDA ODYSSEY 2020 Navigation Manual (in English)

73
uuCalculating the RouteuViewing and Selecting the Routes
Navigation
Viewing and Selecting the Routes
View and select different routes to your destination.
1.Select your desired route.
uThe estimated arrival time and
travel distance are displayed for
each route.
2.Select Go!.
uThe system calculates and
displays the route line on the
map screen.

74
uuCalculating the RouteuViewing the Location Information
Navigation
Viewing the Location Information
1.Select an option.
2.Select Go!.
uThe system calculates and
displays the route line on the
map screen.
The following options are available:
•Save: Adds the destination to the saved location list.
2Saved Locations P. 19
•Set Location: Sets the vehicle position when you are indoors or not receiving
satellite signals.
You can use this feature when GPS Simulator is set to on.
2Navigation P. 40
•Routes: Displays different routes to the destination.
2Viewing and Selecting the Routes P. 73
•Routes Settings: Changes the route preferences.
2Navigation P. 40

75Continued
Navigation
Driving to Your Destination
Viewing the Route
This section describes how to follow the route guidance to your destination.
After calculating the route to your
destination, the route is displayed on
the map screen.
2During Route Guidance P. 7
As you drive, the system tracks your
position on the map in real time and
provides guidance as you approach
each guidance point on the route.
The following options are available:
• Select the next guidance indicator to replay the voice guidance for the next
maneuver.
• Select the text bar on the top of the map to display the turn list screen.
2Turn List Screen P. 77
• Select the queue indicator to display queued notifications.
2Alert and Notification Banners P. 78
• Select to display the map tools window.
2Map Tools P. 83
■Map Screen
1Viewing the Route
When your phone is connected to Bluetooth®
HandsFreeLink®, the navigation screen will switch to
the incoming call screen when receiving a call.
Speed limit icon
The speed limit shown on the map may be different
from the actual speed limit.
The speed limit icon is not displayed on all roads.
Select the vehicle icon to view the Where Am I?
screen.
2Viewing the Current Location Information
P. 87
You can stop your vehicle en route (e.g., to rest, stop
for gas, etc.), and then continue on your route.
If you did not complete your route, the navigation
restarts when you restart your vehicle.
When LaneWatch
* is activated, the navigation screen
will switch to the LaneWatch screen.
The next guidance indicator does not appear in the
following cases.
•The vehicle speed is 3 mph (4.8 km/h) or less•The GPS signal is weak
•The vehicle position on the map and current vehicle
position do not match
Next guidance indicator
Speed limit iconDashboardsQueue indicator
* Not available on all models

uuDriving to Your DestinationuViewing the Route
76
Navigation
• Select the map dashboards when you want to change the information that is
displayed. Select the following options:
Elevation, Direction, Location, Arrival, Distance, Arrive In, Via Arrival, Via
Distance, Via In.
The intersection view screen displays a view of the upcoming intersection and which
lane you should be driving.
■Intersection View Screen
1Viewing the Route
Turn-by-Turn Directions
The next guidance point appears on the Driver
Information Interface.
The Turn-by-Turn directions may not be displayed if
the information cannot be received correctly.

Continued77
uuDriving to Your DestinationuViewing the Route
Navigation
The turn list screen displays turn-by-turn instructions and the distance between
turns.
1.Select the text bar on the top of
the map.
2.Select a turn to display on the
map.
The full route screen displays the entire route and current vehicle position.
1.Select the text bar on the top of
the map.
2.Select .
3.Select View Full Route.
■Turn List Screen1Turn List Screen
When you are on the multi-destination route, the list
is separated for each route leg. You can skip from the
current route leg to another route leg by selecting
Go! displayed on the top of each route leg.
■Full Route Screen

uuDriving to Your DestinationuViewing the Route
78
Navigation
The slide-in banner appears on the top of the map screen when the system provides
an alert or notification.
■School Zone Proximity Alert
A proximity alert for school zone is displayed when the system receives the
information.
Select the banner to display the
distance to the alert point, speed
limit, and map preview with the alert
point centered.
■Parking Reminder Notification
A parking reminder notification is displayed when you approach your destination.
Select the banner to display the list of
parking near the destination.
■Alert and Notification Banners1Alert and Notification Banners
After a certain time of period, the alert or notification
is queued in the queue indicator.
You can view the alert or notification again by
selecting the queue indicator.
If the notifications center window is displayed, select
the notification from the list.

79
uuDriving to Your DestinationuViewing the Route
Navigation

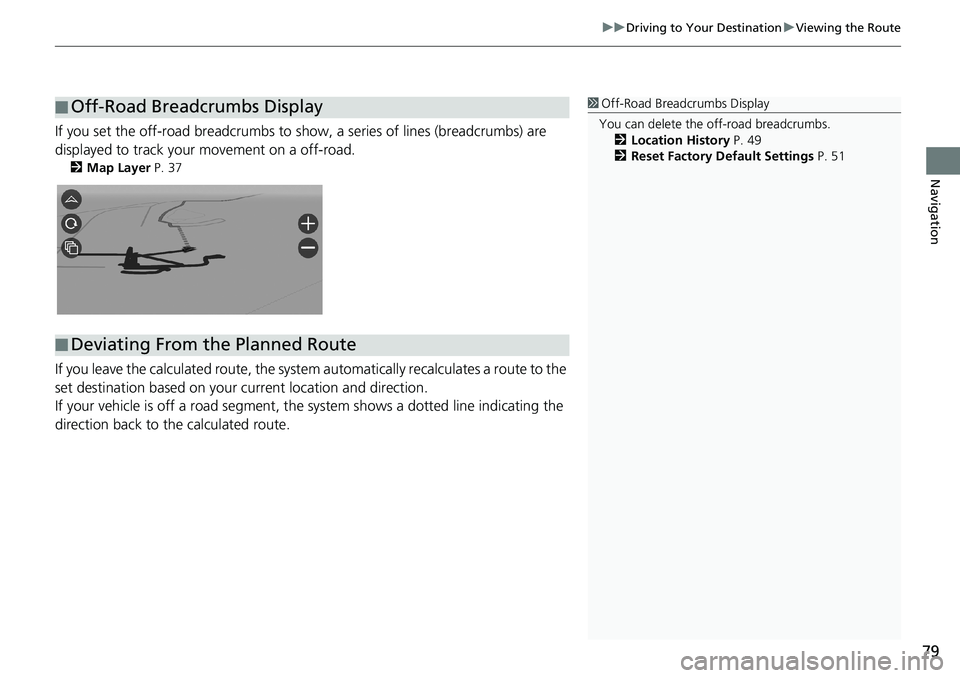

If you set the off-road breadcrumbs to show, a series of lines (breadcrumbs) are
displayed to track your movement on a off-road.
2Map Layer P. 37
If you leave the calculated route, the system automatically recalculates a route to the
set destination based on your current location and direction.
If your vehicle is off a road segment, the system shows a dotted line indicating the
direction back to the calculated route.
■Off-Road Breadcrumbs Display1Off-Road Breadcrumbs Display
You can delete the off-road breadcrumbs.
2Location History P. 49
2Reset Factory Default Settings P. 51
■Deviating From the Planned Route

80
uuDriving to Your DestinationuTraffic Information
Navigation
Traffic Information
When you set the traffic feature, the system examines traffic conditions and
optimizes the route for the shortest time. If a severe traffic delay occurs while you
are navigating, the system searches for a faster route. If it finds one, the system will
automatically alter the route and display the reroute notification banner on the map
screen.
The system may route you through a traffic delay if a better alternative route does
not exist. The delay time is added into your estimated time of arrival automatically.
Select the reroute notification banner
to view the saved time and avoided
traffic events.
uSelect Use Original Route to use
the original route.
The traffic alert window is displayed on the map screen when traffic may cause a
delay.
Select the window to view detailed
information and the map.1Traffic Information
Continuously updated traffic information is available
in major metropolitan areas across contiguous United
States and some cities in Canada.
You can change the traffic information settings.
2Traffic P. 48
■Viewing Traffic Alert1Viewing Traffic Alert
The notification will be queued in the queue indicator
after a certain period of time. Select the indicator to
display the notification again.

81
uuDriving to Your DestinationuTraffic Information
Navigation
H (Home)uNavigationuuTraffic
View the traffic flow and delays on nearby roads.
Select the traffic information window
to view detailed information and
map.
H (Home)uNavigationuuTrafficuuTraffic Legend
See an overview of the icons and colors used on the traffic map.
The system displays the traffic
legend.
■Viewing Traffic Delays Manually
■Viewing Traffic Legends

83
uuMap OperationuMap Tools
Continued
Navigation

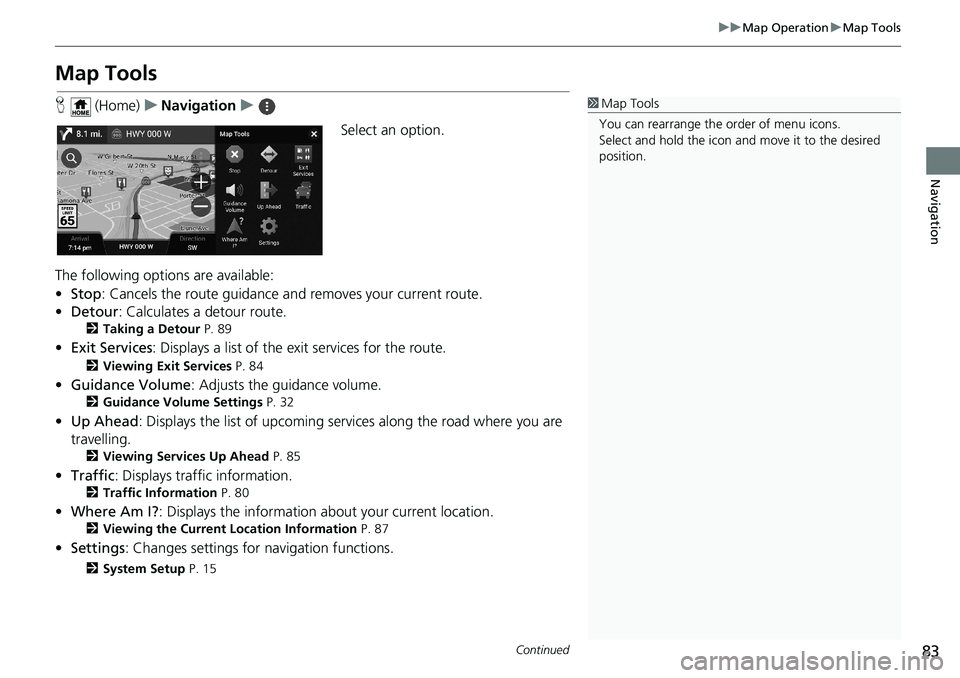

Map Tools
H (Home)uNavigationu
Select an option.
The following options are available:
•Stop: Cancels the route guidance and removes your current route.
•Detour: Calculates a detour route.
2Taking a Detour P. 89
•Exit Services: Displays a list of the exit services for the route.
2Viewing Exit Services P. 84
•Guidance Volume: Adjusts the guidance volume.
2Guidance Volume Settings P. 32
•Up Ahead: Displays the list of upcoming services along the road where you are
travelling.
2Viewing Services Up Ahead P. 85
•Traffic: Displays traffic information.
2Traffic Information P. 80
•Where Am I?: Displays the information about your current location.
2Viewing the Current Location Information P. 87
•Settings: Changes settings for navigation functions.
2System Setup P. 15
1Map Tools
You can rearrange the order of menu icons.
Select and hold the icon and move it to the desired
position.
