navigation system HONDA ODYSSEY 2020 Navigation Manual (in English)

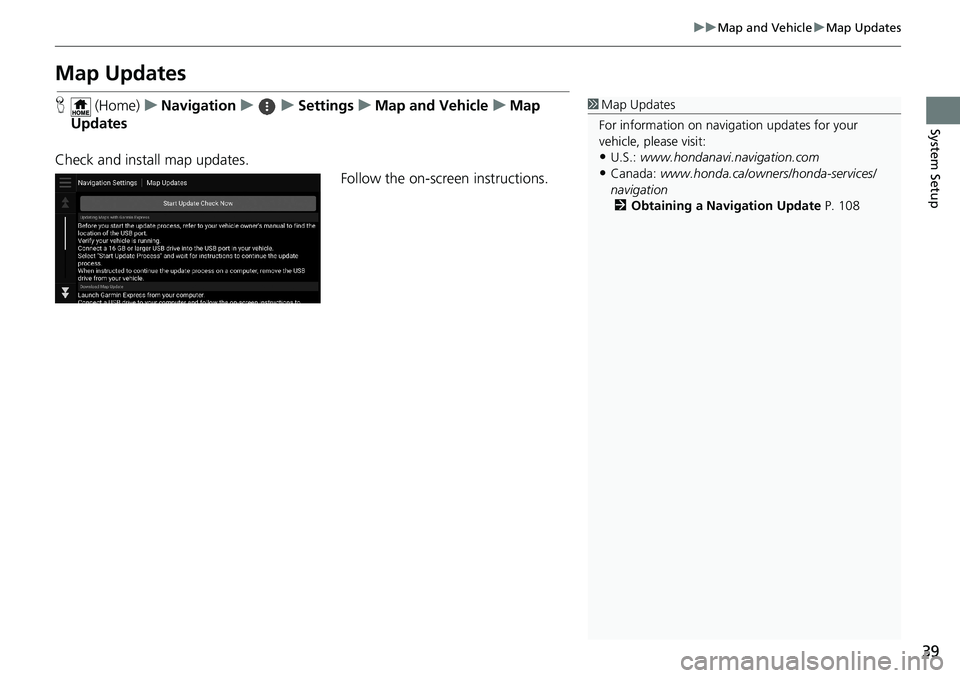

39
uuMap and VehicleuMap Updates
System Setup
Map Updates
H (Home)uNavigationuuSettingsuMap and VehicleuMap
Updates
Check and install map updates.
Follow the on-screen instructions.1Map Updates
For information on navigation updates for your
vehicle, please visit:
•U.S.: www.hondanavi.navigation.com
•Canada: www.honda.ca/owners/honda-services/
navigation
2Obtaining a Navigation Update P. 108

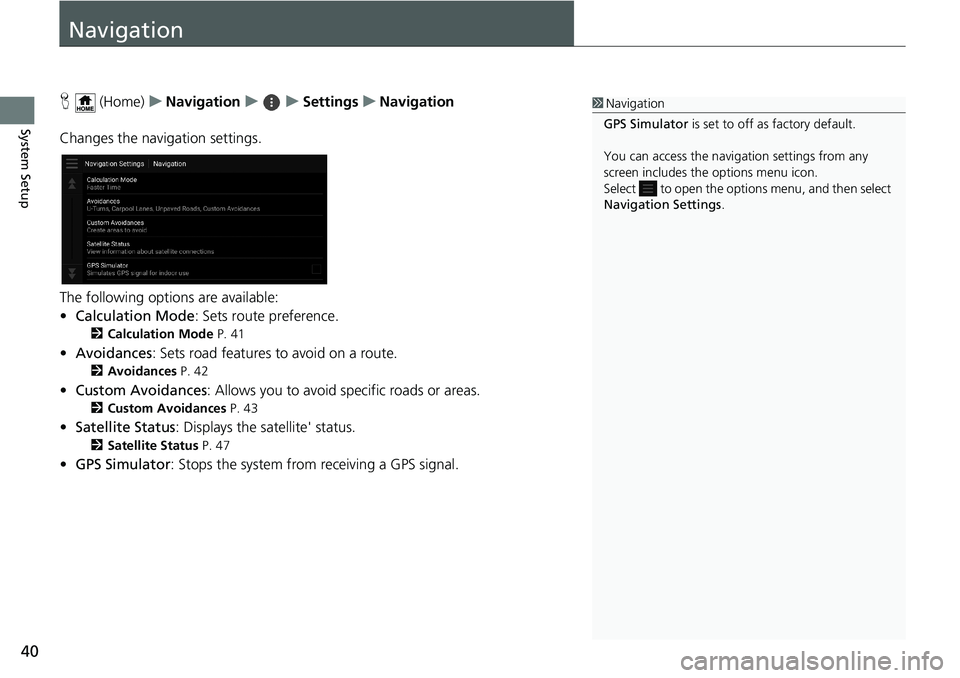

40
System Setup
Navigation
H (Home)uNavigationuuSettingsuNavigation
Changes the navigation settings.
The following options are available:
•Calculation Mode: Sets route preference.
2Calculation Mode P. 41
•Avoidances: Sets road features to avoid on a route.
2Avoidances P. 42
•Custom Avoidances: Allows you to avoid specific roads or areas.
2Custom Avoidances P. 43
•Satellite Status: Displays the satellite' status.
2Satellite Status P. 47
•GPS Simulator: Stops the system from receiving a GPS signal.
1Navigation
GPS Simulator is set to off as factory default.
You can access the navigation settings from any
screen includes the options menu icon.
Select to open the options menu, and then select
Navigation Settings.

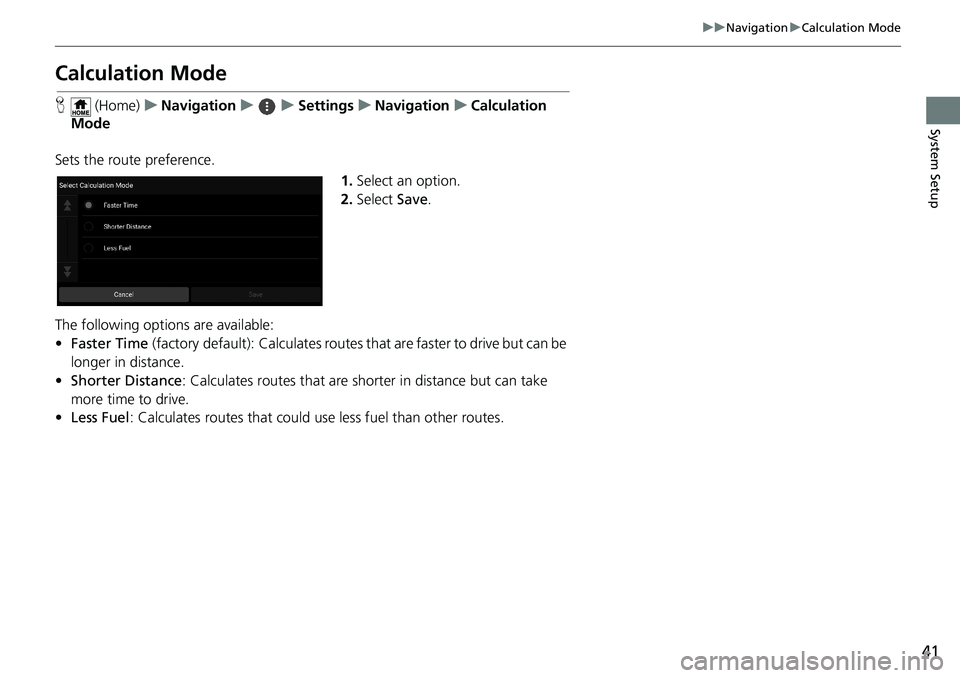

41
uuNavigationuCalculation Mode
System Setup
Calculation Mode
H (Home)uNavigationuuSettingsuNavigationuCalculation
Mode
Sets the route preference.
1.Select an option.
2.Select Save.
The following options are available:
•Faster Time (factory default): Calculates routes that are faster to drive but can be
longer in distance.
•Shorter Distance: Calculates routes that are shorter in distance but can take
more time to drive.
•Less Fuel: Calculates routes that could use less fuel than other routes.

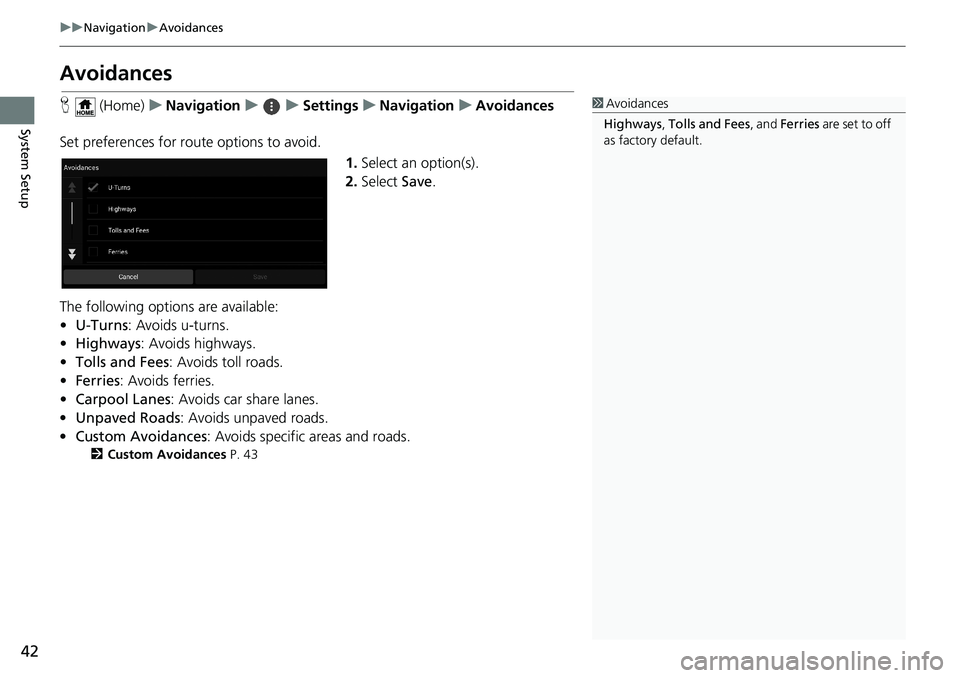

42
uuNavigationuAvoidances
System Setup
Avoidances
H (Home)uNavigationuuSettingsuNavigationuAvoidances
Set preferences for route options to avoid.
1.Select an option(s).
2.Select Save.
The following options are available:
•U-Turns: Avoids u-turns.
•Highways: Avoids highways.
•Tolls and Fees: Avoids toll roads.
•Ferries: Avoids ferries.
•Carpool Lanes: Avoids car share lanes.
•Unpaved Roads: Avoids unpaved roads.
•Custom Avoidances: Avoids specific areas and roads.
2Custom Avoidances P. 43
1Avoidances
Highways, Tolls and Fees, and Ferries are set to off
as factory default.

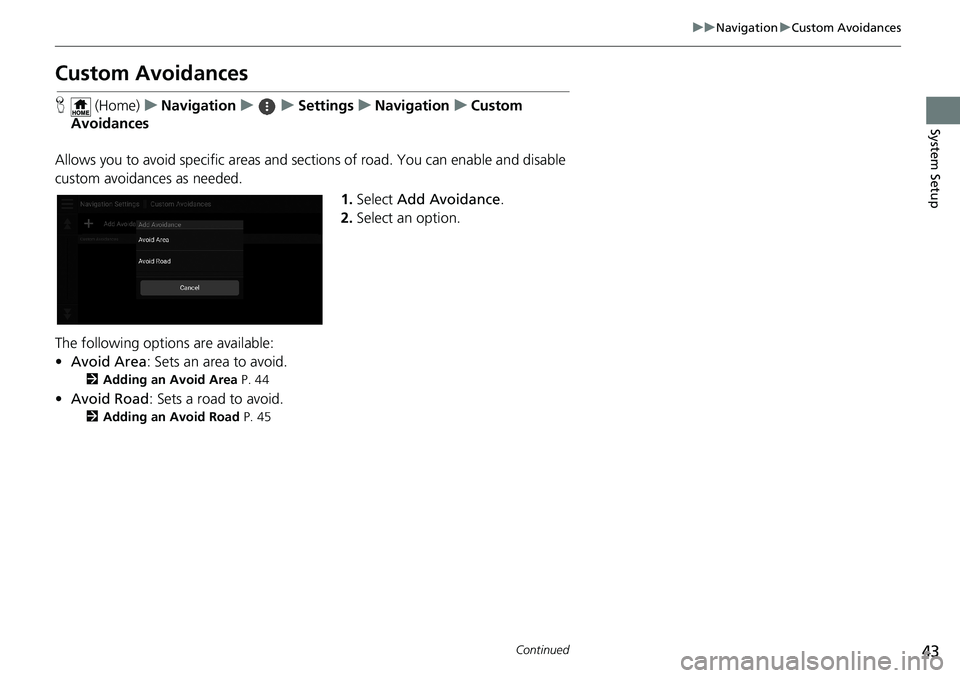

43
uuNavigationuCustom Avoidances
Continued
System Setup
Custom Avoidances
H (Home)uNavigationuuSettingsuNavigationuCustom
Avoidances
Allows you to avoid specific areas and sections of road. You can enable and disable
custom avoidances as needed.
1.Select Add Avoidance.
2.Select an option.
The following options are available:
•Avoid Area: Sets an area to avoid.
2Adding an Avoid Area P. 44
•Avoid Road: Sets a road to avoid.
2Adding an Avoid Road P. 45

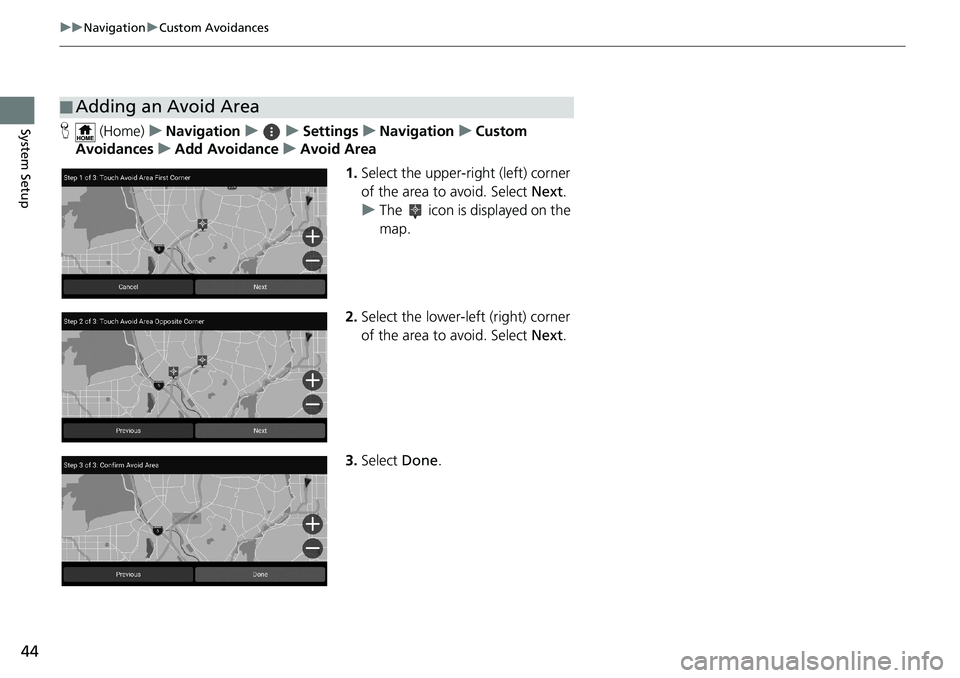

44
uuNavigationuCustom Avoidances
System SetupH (Home)uNavigationuuSettingsuNavigationuCustom
AvoidancesuAdd AvoidanceuAvoid Area
1.Select the upper-right (left) corner
of the area to avoid. Select Next.
uThe icon is displayed on the
map.
2.Select the lower-left (right) corner
of the area to avoid. Select Next.
3.Select Done.
■Adding an Avoid Area

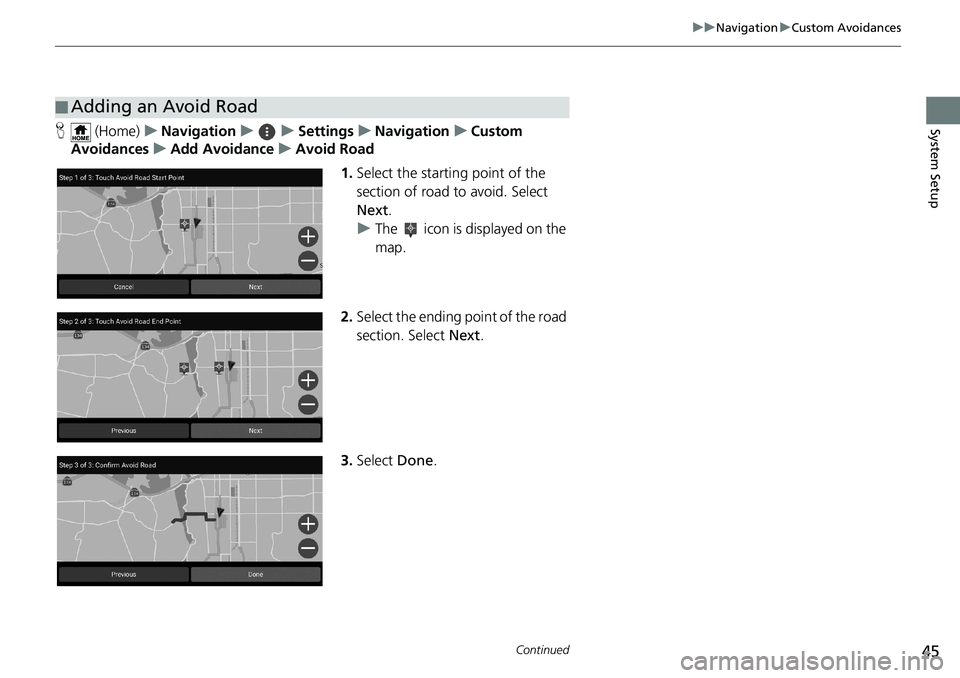

45
uuNavigationuCustom Avoidances
Continued
System SetupH (Home)uNavigationuuSettingsuNavigationuCustom
AvoidancesuAdd AvoidanceuAvoid Road
1.Select the starting point of the
section of road to avoid. Select
Next.
uThe icon is displayed on the
map.
2.Select the ending point of the road
section. Select Next.
3.Select Done.
■Adding an Avoid Road

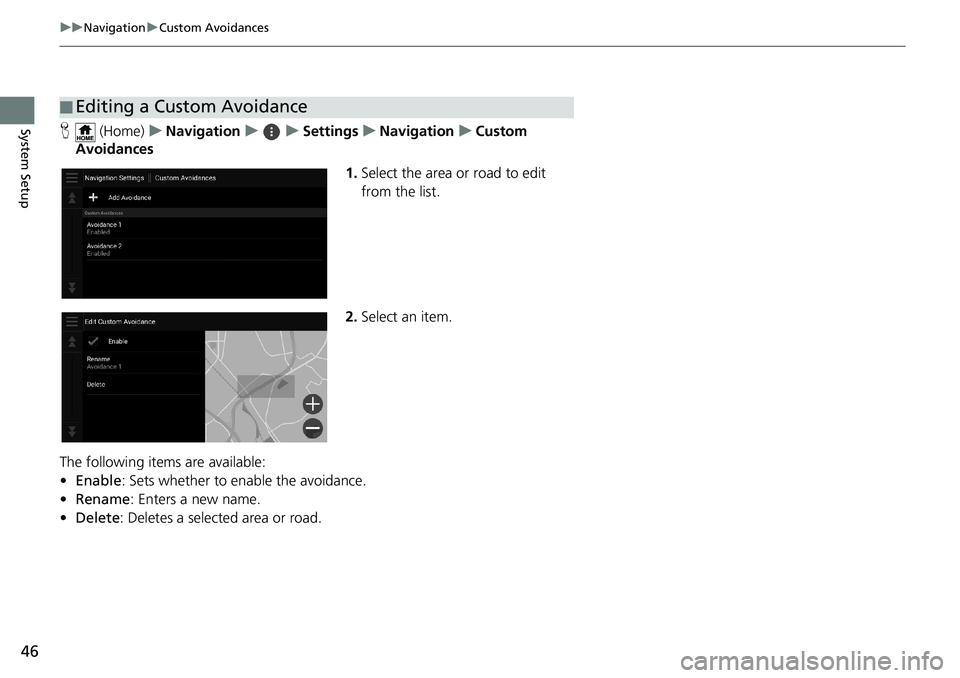

46
uuNavigationuCustom Avoidances
System SetupH (Home)uNavigationuuSettingsuNavigationuCustom
Avoidances
1.Select the area or road to edit
from the list.
2.Select an item.
The following items are available:
•Enable: Sets whether to enable the avoidance.
•Rename: Enters a new name.
•Delete: Deletes a selected area or road.
■Editing a Custom Avoidance

47
uuNavigationuSatellite Status
System Setup
Satellite Status
H (Home)uNavigationuuSettingsuNavigationuSatellite
Status
View the satellites’ status.

48
System Setup
Traffic
H (Home)uNavigationuuSettingsuTraffic
Sets the traffic feature.
Select an option.
The following options are available:
•Traffic: Enables the traffic feature.
2Traffic Information P. 80
•Traffic Alert: Sets whether to receive an alert when traffic may cause a delay.
•Automatic Route Optimization: Sets whether to use optimized alternate
routes.
•Current Provider: Sets the traffic provider to use for traffic data.
•Subscriptions: Displays the lists of the current traffic subscriptions.
