HONDA ODYSSEY 2020 (in English) Owners Manual

89
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Seat Belt
Reminder
Indicator
•Comes on and the beeper sounds
if you are not wearing a seat belt
when you set the power mode to
ON.
• If the front passenger is not
wearing a seat belt, the indicator
comes on a few seconds later.
• Blinks while driving if either you
and/or the front passenger has not
fastened a seat belt. The beeper
sounds and the indicator blinks at
regular intervals.•The beeper stops and the indicator goes
off when you and the front passenger
fasten their seat belts.
• Stays on after you and/or the front
passenger has fastened the seat
belt(s) - A detection error may have
occurred in the sensor. Have your vehicle
checked by a dealer.
2 Seat Belt Reminder P. 39
Low Fuel
Indicator
•Comes on when the fuel reserve is
running low (approximately 2.9
U.S. gal/11.0 Liter left).
• Blinks if there is a problem with
the fuel gauge.•Comes on - Refuel your vehicle as soon
as possible.
• Blinks - Have your vehicle checked by a
dealer.
20 US ODYSSEY-31THR6210.book 89 ページ ２０２０年２月２８日　金曜日　午前７時２６分

90
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Anti-lock Brake
System (ABS )
Indicator
• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• If it comes on at any other time,
there is a problem with the ABS.• Stays on constantly - Have your
vehicle checked by a dealer. With this
indicator on, your vehicle still has normal
braking ability but no anti-lock function.
2 Anti-lock Brake System (ABS) P. 613
Supplemental
Restraint System
Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if a problem with any of
the following is detected:
- Supplemental restraint system
- Knee airbag system
- Side airbag system
- Side curtain airbag system
- Seat belt tensioner• Stays on constantly or does not come
on at all - Have your vehicle checked by
a dealer.
Auto High-Beam
Indicator*
• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on when all the operating
conditions of the Auto high-beam
are met.
2 Auto High-Beam* P. 197—
* Not available on all models
20 US ODYSSEY-31THR6210.book 90 ページ ２０２０年２月２８日　金曜日　午前７時２６分

91
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Vehicle Stability
AssistTM (VSA®)
System Indicator
• Comes on for a fe w seconds when
you set the power mode to ON,
then goes off.
• Blinks when VSA ® is active.
• Comes on if there is a problem
with the VSA ®, hill start assist, or
brake lighting system.• Stays on constantly - Have your
vehicle checked by a dealer.
2 Vehicle Stability AssistTM (VSA ®),
aka Electronic Stability Control
(ESC), System P. 596
2 Hill start assist system P. 547
Vehicle Stability
AssistTM (VSA®)
OFF Indicator
•Comes on for a fe w seconds when
you set the power mode to ON,
then goes off.
• Comes on when you partially
disable VSA ®.
2VSA ® On and Off P. 597—
Electric Power
Steering (EPS)
System Indicator
•Comes on when you set the
power mode to ON, and goes off
when the engine starts.
• Comes on if there is a problem
with the EPS system.•Stays on constantly - Have your
vehicle checked by a dealer.
2 If the Electric Power Steering (EPS)
System Indicator Comes On P. 726
20 US ODYSSEY-31THR6210.book 91 ページ ２０２０年２月２８日　金曜日　午前７時２６分

92
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire
Pressure/TPMS
Indicator
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if the tire pressure of
any of the tires becomes
significantly low.•Comes on while driving - Stop in a
safe place, check tire pressures, and
inflate the tire(s) if necessary.
• Blinks for about one minute, and
then stays on if there is a problem
with the TPMS with Tire Fill Assist,
or when a compact spare tire is
temporarily installed.•Blinks and remains on - Have your
vehicle checked by a dealer. If the vehicle
is fitted with a compact spare, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
Turn Signal and
Hazard Warning
Indicators
• Blinks when you operate the turn
signal lever.
• Blink along with all turn signals
when you press the hazard
warning button.• Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 669, 671
—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
20 US ODYSSEY-31THR6210.book 92 ページ ２０２０年２月２８日　金曜日　午前７時２６分

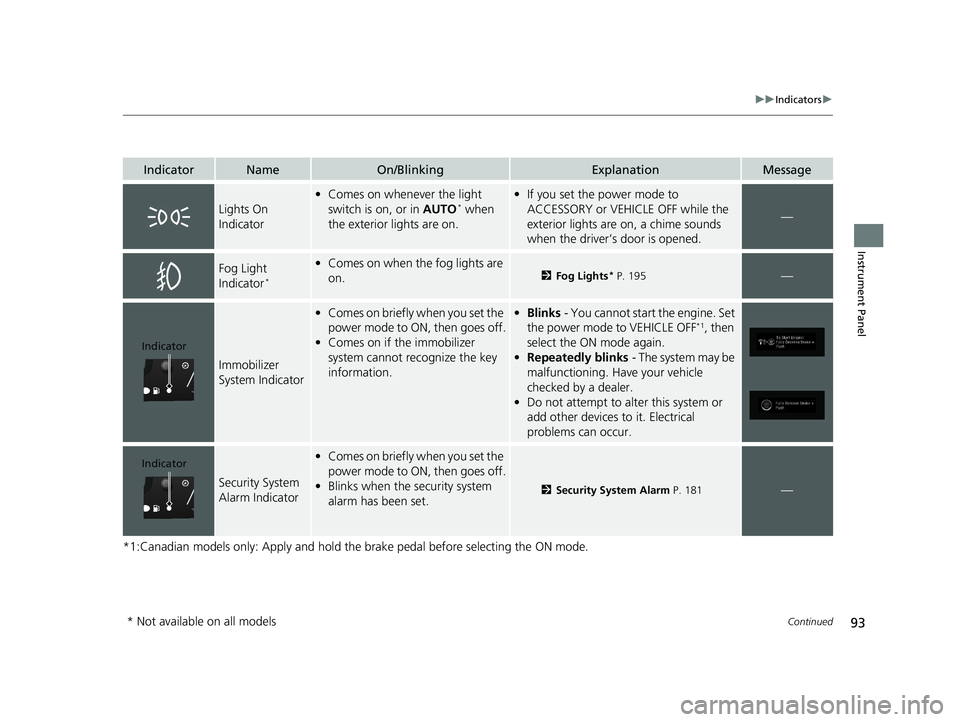

93
uuIndicators u
Continued
Instrument Panel
*1:Canadian models only: Apply and hold th e brake pedal before selecting the ON mode.
IndicatorNameOn/BlinkingExplanationMessage
Lights On
Indicator
•Comes on whenever the light
switch is on, or in AUTO* when
the exterior lights are on.
• If you set the power mode to
ACCESSORY or VEHICLE OFF while the
exterior lights are on, a chime sounds
when the driver’s door is opened.
—
Fog Light
Indicator*
•Comes on when the fog lights are
on.2 Fog Lights* P. 195—
Immobilizer
System Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Comes on if the immobilizer
system cannot recognize the key
information.•Blinks - You cannot start the engine. Set
the power mode to VEHICLE OFF*1, then
select the ON mode again.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle
checked by a dealer.
• Do not attempt to alter this system or
add other devices to it. Electrical
problems can occur.
Security System
Alarm Indicator
•Comes on briefly when you set the
power mode to ON, then goes off.
• Blinks when the security system
alarm has been set.
2 Security System Alarm P. 181—
Indicator
Indicator
* Not available on all models
20 US ODYSSEY-31THR6210.book 93 ページ ２０２０年２月２８日　金曜日　午前７時２６分

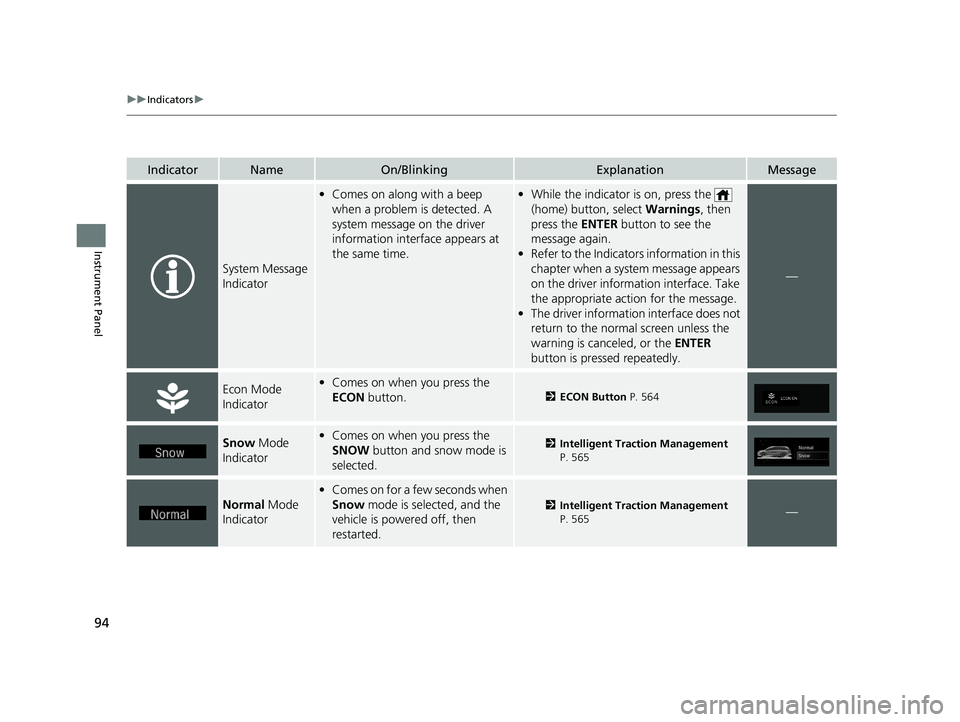

94
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
•Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.•While the indicator is on, press the
(home) button, select Warnings, then
press the ENTER button to see the
message again.
• Refer to the Indicators information in this
chapter when a syst em message appears
on the driver inform ation interface. Take
the appropriate action for the message.
• The driver information interface does not
return to the normal screen unless the
warning is canceled, or the ENTER
button is pressed repeatedly.
—
Econ Mode
Indicator• Comes on when you press the
ECON button.
2ECON Button P. 564
Snow Mode
Indicator• Comes on when you press the
SNOW button and snow mode is
selected.2 Intelligent Traction Management
P. 565
Normal Mode
Indicator
• Comes on for a few seconds when
Snow mode is selected, and the
vehicle is powered off, then
restarted.
2 Intelligent Traction Management
P. 565—
20 US ODYSSEY-31THR6210.book 94 ページ ２０２０年２月２８日　金曜日　午前７時２６分

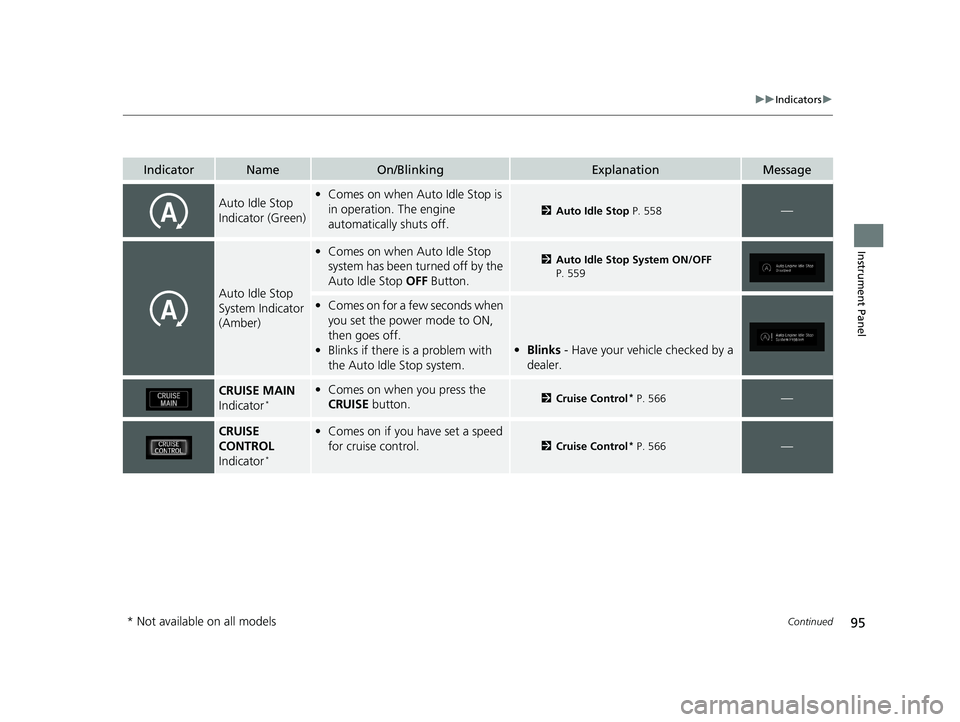

95
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Auto Idle Stop
Indicator (Green)•Comes on when Auto Idle Stop is
in operation. The engine
automatically shuts off.
2 Auto Idle Stop P. 558—
Auto Idle Stop
System Indicator
(Amber)
•Comes on when Auto Idle Stop
system has been turned off by the
Auto Idle Stop OFF Button.2Auto Idle Stop System ON/OFF
P. 559
•Comes on for a fe w seconds when
you set the power mode to ON,
then goes off.
• Blinks if there is a problem with
the Auto Idle Stop system.
•Blinks - Have your vehicle checked by a
dealer.
CRUISE MAIN
Indicator*• Comes on when you press the
CRUISE button.2Cruise Control* P. 566—
CRUISE
CONTROL
Indicator
*
• Comes on if you have set a speed
for cruise control.
2 Cruise Control* P. 566—
* Not available on all models
20 US ODYSSEY-31THR6210.book 95 ページ ２０２０年２月２８日　金曜日　午前７時２６分

96
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Lane Keeping
Assist System
(LKAS ) Indicator
(Amber)
*
• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with the LKAS.•Stays on constantly - Have your
vehicle checked by a dealer.
Lane Keeping
Assist System
( LKAS ) Indicator
(Green)
*
• Comes on when you press the
MAIN button.2Lane Keeping Assist System (LKAS)*
P. 588—
• Comes on when the LKAS is in
operation, or the LKAS button is
pressed, but the temperature
inside the front sensor camera is
too high. The LKAS cancels
automatically. Th e beeper sounds
simultaneously.• Use the climate contro l system to cool
down the camera.
• Goes off - The camera has cooled down
and the system is working normally.
2 Front Sensor Camera* P. 569
•Comes on when the area around
the camera is blocked by dirt,
mud, etc. Stop your vehicle in a
safe place, and wipe it off with a
soft cloth.
• May come on when driving in bad
weather (rain, snow, fog, etc.)•Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
* Not available on all models
20 US ODYSSEY-31THR6210.book 96 ページ ２０２０年２月２８日　金曜日　午前７時２６分

97
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Road Departure
Mitigation
(RDM) Indicator
*
•Comes on for a fe w seconds when
you change the power mode to
ON, then goes off.
• Comes on if there is a problem
with the RDM system.•Stays on constantly - Have your
vehicle checked by a dealer.
• Comes on when the RDM system
shuts itself off.•Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera* P. 569
•Stays on - The area around the camera
is blocked by dirt, mud, etc. Stop your
vehicle in a safe place, and wipe it off
with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator and message come back on
after you cleaned the area around the
camera.
2 Front Sensor Camera* P. 569
* Not available on all models
20 US ODYSSEY-31THR6210.book 97 ページ ２０２０年２月２８日　金曜日　午前７時２６分

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
Indicator
(Amber)
*
• Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with ACC.•Comes on while driving - Have your
vehicle checked by a dealer.
• Comes on if anything covers the
radar sensor cover and prevents
the sensor from detecting a
vehicle in front.
• May come on when driving in bad
weather (rain, snow, fog, etc.)
• ACC has been automatically
canceled.•When the radar sensor gets dirty, stop
your vehicle in a safe place, and wipe off
dirt using a soft cloth. Indicator may take
some time to go off after the radar
sensor is cleaned.
• Have your vehicle checked by a dealer if
the indicator does not go off even after
you clean the sensor cover.
Adaptive Cruise
Control ( ACC)
Indicator
(Green)
*
• Comes on when you press the
MAIN button.2Adaptive Cruise Control (ACC)*
P. 571—
• Comes on when ACC is in
operation, but the temperature
inside the front sensor camera is
too high. ACC cancels
automatically. Th e beeper sounds
simultaneously.• Use the climate contro l system to cool
down the camera.
• Goes off - The camera has been cooled
down. Pressing the MAIN button can
resume the system.
2 Front Sensor Camera* P. 569
2 Adaptive Cruise Control (ACC)*
P. 571
* Not available on all models
20 US ODYSSEY-31THR6210.book 98 ページ ２０２０年２月２８日　金曜日　午前７時２６分
