HONDA ODYSSEY 2020 (in English) Manual Online

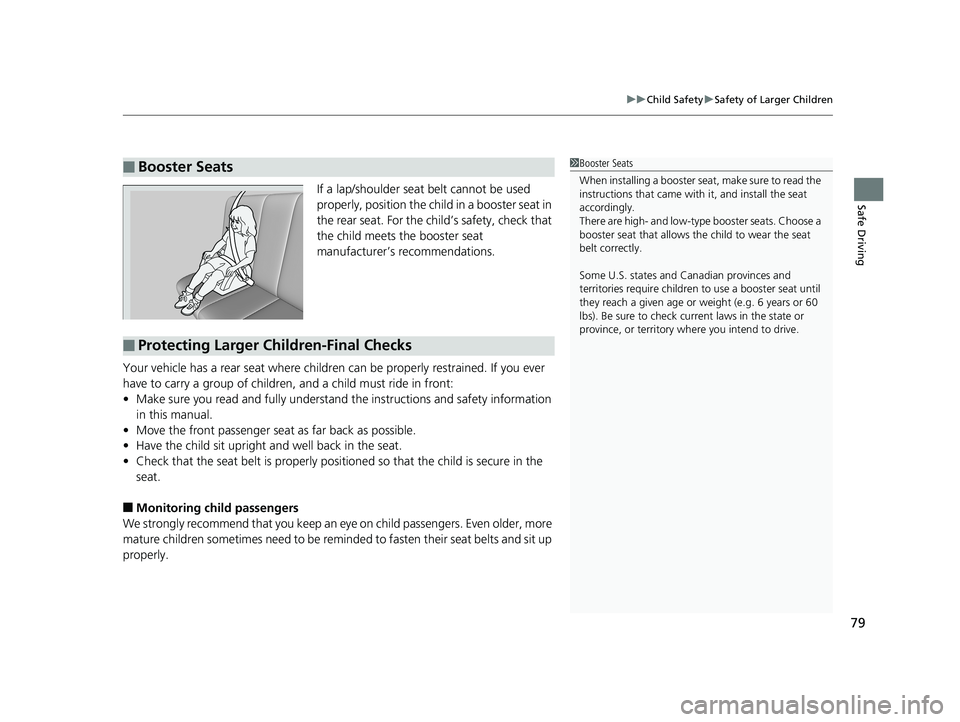

79
uuChild Safety uSafety of Larger Children
Safe DrivingIf a lap/shoulder seat belt cannot be used
properly, position the child in a booster seat in
the rear seat. For the child’s safety, check that
the child meets the booster seat
manufacturer’s recommendations.
Your vehicle has a rear seat where children can be properly restrained. If you ever
have to carry a group of children, and a child must ride in front:
• Make sure you read and fully understand the instructions and safety information
in this manual.
• Move the front passenger seat as far back as possible.
• Have the child sit upright and well back in the seat.
• Check that the seat belt is properly positi oned so that the child is secure in the
seat.
■Monitoring child passengers
We strongly recommend that you keep an ey e on child passengers. Even older, more
mature children sometimes need to be remind ed to fasten their seat belts and sit up
properly.
■Booster Seats1 Booster Seats
When installing a booster seat, make sure to read the
instructions that came with it, and install the seat
accordingly.
There are high- and low-type booster seats. Choose a
booster seat that allows the child to wear the seat
belt correctly.
Some U.S. states and Canadian provinces and
territories require children to use a booster seat until
they reach a given age or weight (e.g. 6 years or 60
lbs). Be sure to check current laws in the state or
province, or territory where you intend to drive.
■Protecting Larger Children-Final Checks
20 US ODYSSEY-31THR6210.book 79 ページ ２０２０年２月２８日　金曜日　午前７時２６分

80
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is m aking an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailgat e open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediately afte r starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
20 US ODYSSEY-31THR6210.book 80 ページ ２０２０年２月２８日　金曜日　午前７時２６分

81
Safe Driving
Safety Labels
Label Locations
These labels are in the locations shown. They warn you of potential hazards that can cause serious injury or death. Read these labels
carefully.
If a label comes off or becomes hard to read (except for the U. S. dashboard label which may be removed by the owner), contact a dealer
for a replacement.
Sun Visor
U.S. models Canadian models
Radiator Cap U.S. models
Dashboard
U.S. models only
Canadian models
Air Conditioner System
20 US ODYSSEY-31THR6210.book 81 ページ ２０２０年２月２８日　金曜日　午前７時２６分

82
20 US ODYSSEY-31THR6210.book 82 ページ ２０２０年２月２８日　金曜日　午前７時２６分

83
Instrument Panel
This chapter describes the buttons, indicators, and gauges that are used while driving.
Indicators............................................ 84
Driver Information Interface Warning and Information Messages .................... 102
Gauges and Displays Gauges ............................................ 119
Driver Information Interface ............. 120
20 US ODYSSEY-31THR6210.book 83 ページ ２０２０年２月２８日　金曜日　午前７時２６分

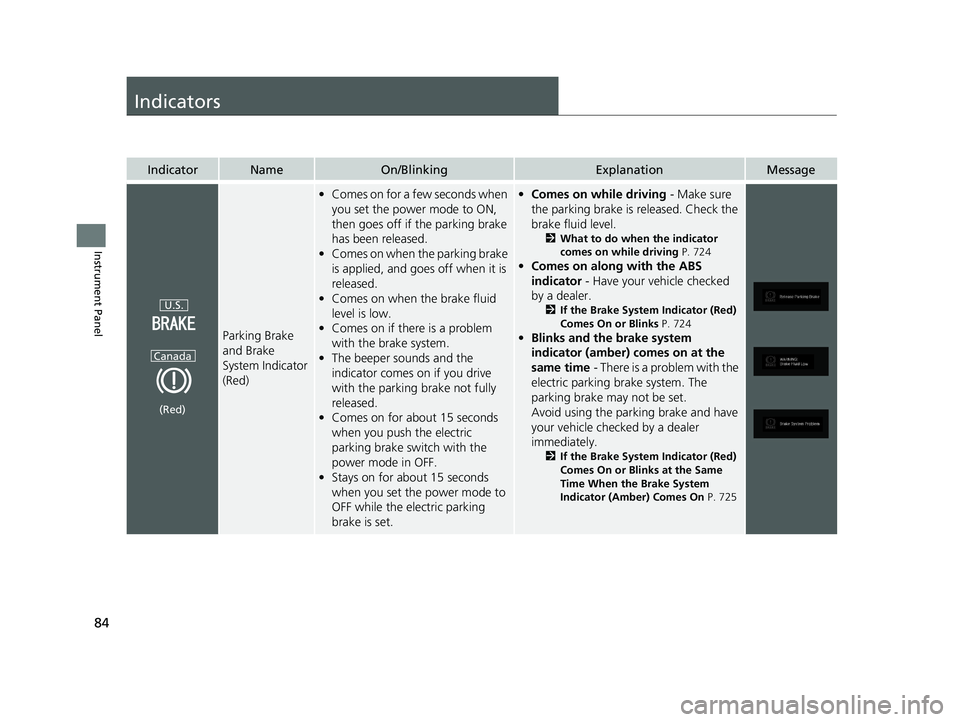

84
Instrument Panel
Indicators
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Red)
•Comes on for a few seconds when
you set the power mode to ON,
then goes off if the parking brake
has been released.
• Comes on when the parking brake
is applied, and goes off when it is
released.
• Comes on when the brake fluid
level is low.
• Comes on if there is a problem
with the brake system.
• The beeper sounds and the
indicator comes on if you drive
with the parking brake not fully
released.
• Comes on for about 15 seconds
when you push the electric
parking brake switch with the
power mode in OFF.
• Stays on for about 15 seconds
when you set the power mode to
OFF while the electric parking
brake is set.•Comes on while driving - Make sure
the parking brake is released. Check the
brake fluid level.
2 What to do when the indicator
comes on while driving P. 724
•Comes on along with the ABS
indicator - Have your vehicle checked
by a dealer.
2 If the Brake System Indicator (Red)
Comes On or Blinks P. 724
•Blinks and the brake system
indicator (amber) comes on at the
same time - There is a problem with the
electric parking brake system. The
parking brake may not be set.
Avoid using the parking brake and have
your vehicle checked by a dealer
immediately.
2 If the Brake System Indicator (Red)
Comes On or Blinks at the Same
Time When the Brake System
Indicator (Amber) Comes On P. 725
U.S.
Canada
(Red)
20 US ODYSSEY-31THR6210.book 84 ページ ２０２０年２月２８日　金曜日　午前７時２６分

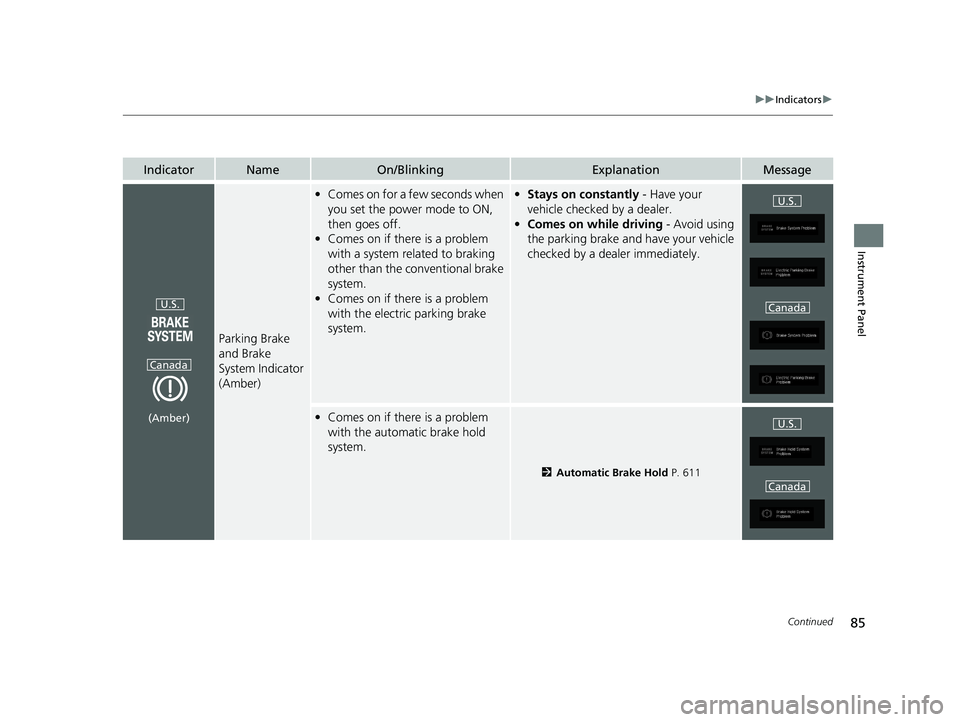

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Parking Brake
and Brake
System Indicator
(Amber)
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with a system related to braking
other than the conventional brake
system.
• Comes on if there is a problem
with the electric parking brake
system.•Stays on constantly - Have your
vehicle checked by a dealer.
• Comes on while driving - Avoid using
the parking brake and have your vehicle
checked by a dealer immediately.
• Comes on if there is a problem
with the automatic brake hold
system.
2 Automatic Brake Hold P. 611
U.S.
Canada
(Amber)
U.S.
Canada
U.S.
Canada
20 US ODYSSEY-31THR6210.book 85 ページ ２０２０年２月２８日　金曜日　午前７時２６分

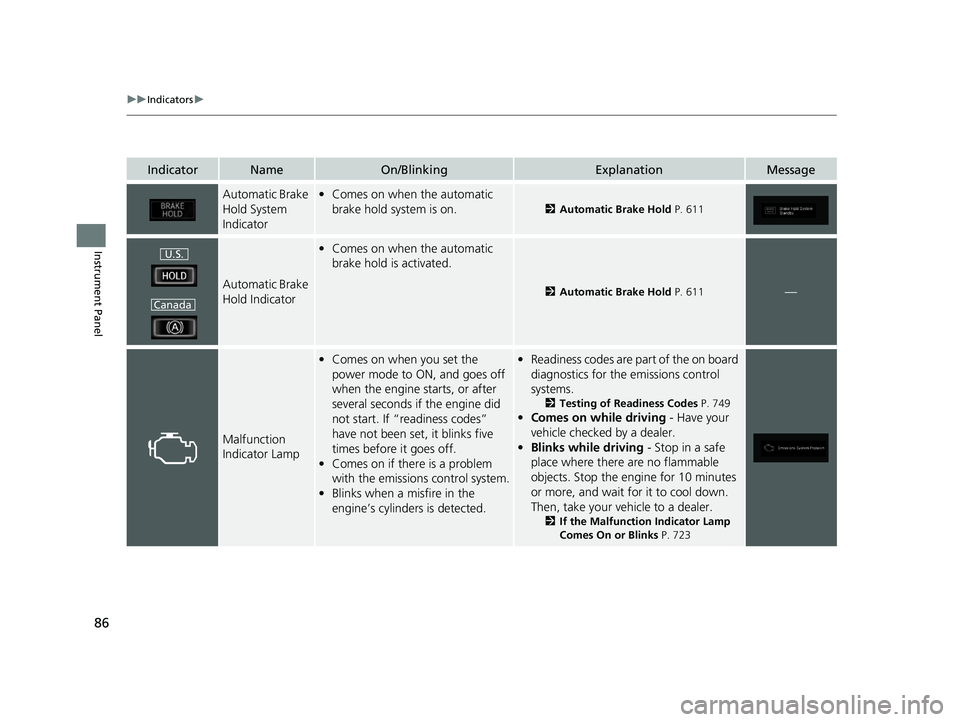

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Automatic Brake
Hold System
Indicator•Comes on when the automatic
brake hold system is on.
2 Automatic Brake Hold P. 611
Automatic Brake
Hold Indicator
•Comes on when the automatic
brake hold is activated.
2 Automatic Brake Hold P. 611—
Malfunction
Indicator Lamp
•Comes on when you set the
power mode to ON, and goes off
when the engine starts, or after
several seconds if the engine did
not start. If “readiness codes”
have not been set, it blinks five
times before it goes off.
• Comes on if there is a problem
with the emissions control system.
• Blinks when a misfire in the
engine’s cylinders is detected.•Readiness codes are part of the on board
diagnostics for the emissions control
systems.
2 Testing of Readiness Codes P. 749
•Comes on while driving - Have your
vehicle checked by a dealer.
• Blinks while driving - Stop in a safe
place where there are no flammable
objects. Stop the engine for 10 minutes
or more, and wait for it to cool down.
Then, take your vehicle to a dealer.
2 If the Malfunction Indicator Lamp
Comes On or Blinks P. 723
U.S.
Canada
20 US ODYSSEY-31THR6210.book 86 ページ ２０２０年２月２８日　金曜日　午前７時２６分

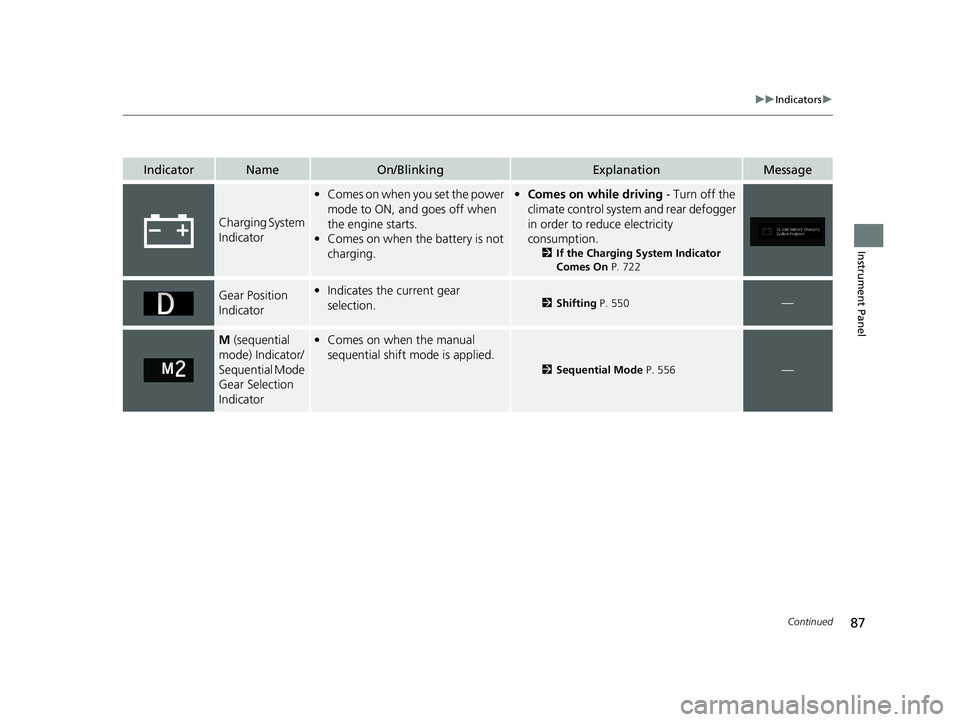

87
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Charging System
Indicator
•Comes on when you set the power
mode to ON, and goes off when
the engine starts.
• Comes on when the battery is not
charging.•Comes on while driving - Turn off the
climate control system and rear defogger
in order to reduce electricity
consumption.
2 If the Charging System Indicator
Comes On P. 722
Gear Position
Indicator•Indicates the current gear
selection.2 Shifting P. 550—
M (sequential
mode) Indicator/
Sequential Mode
Gear Selection
Indicator• Comes on when the manual
sequential shift mode is applied.
2 Sequential Mode P. 556—
20 US ODYSSEY-31THR6210.book 87 ページ ２０２０年２月２８日　金曜日　午前７時２６分

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Transmission
System Indicator
•All the gear positions may light for
several seconds, and go off.•When all the gear positions light,
immediately stop your vehicle in a safe
place.
• Indicators go off if there is no problem.
However, even if they go off, take your
vehicle to a dealer for inspection.
• The indicated current gear
selection blinks if there is a
problem with the transmission
system.•Avoid sudden start and acceleration, and
stop in a safe place immediately.
Have your vehicle checked by a dealer.
•The current gear position or all the
gear positions blink if there is a
problem with the transmission
system and the vehicle will no
longer move.•Immediately stop in a safe place.
2 Emergency Towing P. 735
•Have your vehicle checked by a dealer.
•The current gear position or all the
gear positions blink if you cannot
select
(P due to a transmission
system failure.
• The engine can be activated as a
temporary measure.
2 If the Transmission System
Indicator Blinks along with the
Warning Message P. 727
•Set the parking brake when parking.
• Have your vehicle checked by a dealer
immediately.
20 US ODYSSEY-31THR6210.book 88 ページ ２０２０年２月２８日　金曜日　午前７時２６分
