Page 730 of 767
728
Handling the Unexpected
Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF and check
to see if any applic able fuse is blown.
■Fuse box A
Located at the rear end of the engine
compartment on the ri ght side. Push the
tabs to open the box.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
■Engine Compartment Fuse
Box
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2− −
3−−
4 IG1 VB SOL 10 A
5VSA/ABS5 A
6 Wiper 30 A
7IG1 DBW15 A
8TCU 15A
9IGP115 A
10 Sub Fan Motor 30 A
11Rear Driver’s Side Power Window30 A
12 Ignition Coil/Injector 30 A
13TCU 210 A
14 TCU 3 10 A
15PDM LT230 A
16ST CUT 30 A
17Shutter Grill10 A
18 Back Up 10 A
19Stop10 A
20 PDM LT1 30 A
21Rear Passenger’s Side Power Window30 A
22 ACM 30 A
23Hazard15 A
24 Washer 15 A
25Main Fan Motor30 A
26 STRLD 5 A
27IGPS5 A
28 Stop 10 A
29Right Headlight Low Beam10 A
30 Left Headlight Low Beam 10 A
31Injector20 A
32 Ignition Coil 15 A
33FET Module5 A
Circuit ProtectedAmps
20 US ODYSSEY-31THR6210.book 728 ページ ２０２０年２月２８日 金曜日 午前７時２６分
Page 746 of 767
744
Information
Specifications
■Vehicle Specifications
*1: LX grade model
■Air Conditioning
ModelOdyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Gross Combined Weight
Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Refrigerant TypeHFO-1234yf (R-1234yf)Charge Quantity20.3 - 22.0 oz (575 - 625 g)Lubricant TypeND-OIL14 (POE)Quantity7.3 - 8.2 cu-in (120 - 135 cm3)
■Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
*1: LX and LX-HS grade models
*2: EX, EXL, EXL-NR, EX-R, EXLNAV, and EXLRES grade models
*3: ELITE and TOURING grade models
Headlights (Low Beam)55W (H11)*1, *2
LED*3
Headlights (High Beam) 60W (HB3)*1, *2
LED*3
Fog Lights35W (H8)*2
LED*3
Front Turn Signal/Parking Lights 28/8W (Amber)*1
Front Turn Signal Lights28/8W (Amber)*2, *3
Front Side Marker Lights 3CPParking/Daytime Running LightsLED*2, *3
Daytime Running Lights 60W (HB3)*1
Side Turn Signal Lights
(on Door Mirrors)LED*2, *3
Brake Lights
21WRear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W
Back-Up Lights21W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Map Lights (Front)5W
Map Lights (Rear) 5W
Cargo Area Light8W
Vanity Mirror Lights 1.4W
Door Courtesy Lights3.8W (2CP)
Glove Box Light 1.4W
Foot Lights*LED
Console Compartment Light*1.4WDoor Inner Handle Lights*LED
Instrument Panel Ambient Lights*LEDPass Through Light*LED
* Not available on all models
20 US ODYSSEY-31THR6210.book 744 ページ ２０２０年２月２８日 金曜日 午前７時２６分

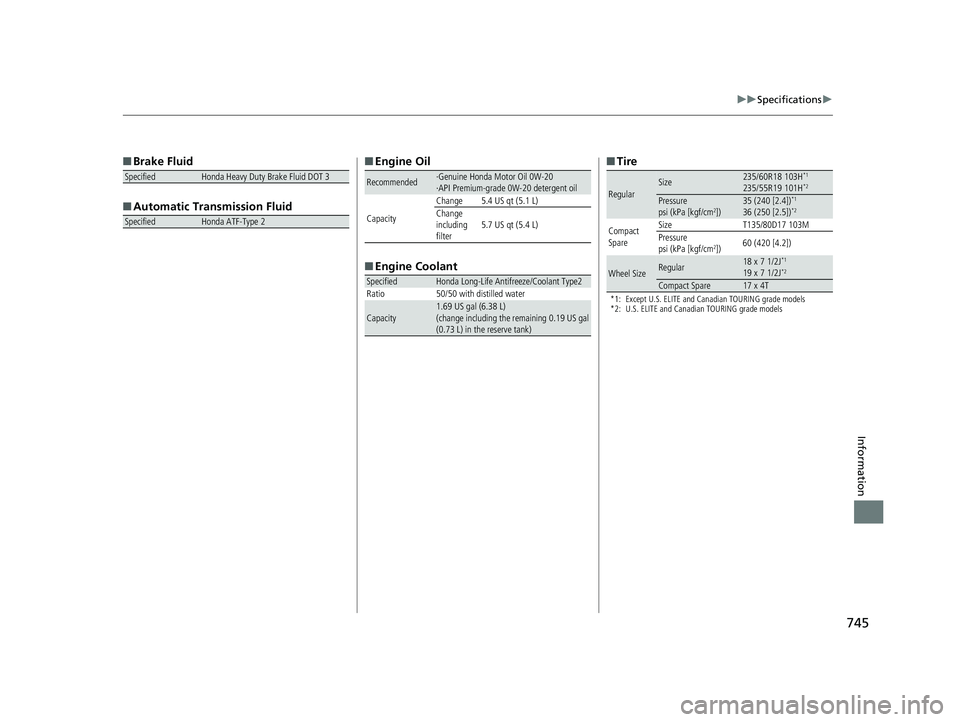

Page 747 of 767
745
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF-Type 2
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 5.4 US qt (5.1 L)
Change
including
filter
5.7 US qt (5.4 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.69 US gal (6.38 L)
(change including the remaining 0.19 US gal
(0.73 L) in the reserve tank)
■ Tire
*1: Except U.S. ELITE and Canadian TOURING grade models
*2: U.S. ELITE and Canadian TOURING grade models
RegularSize235/60R18 103H*1
235/55R19 101H*2
Pressure
psi (kPa [kgf/cm2])35 (240 [2.4])*1
36 (250 [2.5])*2
Compact
Spare Size
T135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2J*1
19 x 7 1/2J*2
Compact Spare17 x 4T
20 US ODYSSEY-31THR6210.book 745 ページ ２０２０年２月２８日 金曜日 午前７時２６分
Page 757 of 767
Index
755
Index
Index
A
ABS (Anti-lock Brake System).................. 613
AC Power Outlet ...................................... 238
Accessories and Modifications ................ 700
Accessory Power Sockets ......................... 236
Adaptive Cruise Control (ACC) Indicator (Amber) ..................................................... 98
Adaptive Cruise Control (ACC) Indicator
(Green) ................................................ 98, 99
Additives Coolant .................................................. 659
Engine Oil ............................................... 654
Washer ................................................... 663
Additives, Engine Oil ............................... 654
Adjusting Armrest .................................................. 227
Front and Second Row Outer and Third Row
Outer Head Restraints Positions ............. 224
Front Seats.............................................. 212
Mirrors.................................................... 209
Second Row Seats................................... 215
Steering Wheel ....................................... 208
Third Row Seats ...................................... 220
Agile Handling Assist ............................... 598
Air Conditioning System (Climate Control
System) ............................................ 251, 256
Changing the Mode........................ 251, 256
Defrosting the Windshield and
Windows ...................................... 252, 258 Dust and Pollen Filter ............................... 693
Recirculation/Fresh Air Mode ................... 251
Sensors ............................................ 255, 262
Using Automatic Climate Control .... 251, 256
Air Pressure ....................................... 680, 745
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Front Knee Airbags .................................... 54
Indicator .............................................. 59, 90
Passenger Front Airbag Off Indicator ......... 60
Sensors ...................................................... 47
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
AM/FM Radio .................................... 278, 322
Android Auto ............................................ 367
Anti-lock Brake System (ABS) .................. 613
Indicator .................................................... 90
Apple CarPlay ........................................... 364
Armrest ..................................................... 227
Audio Remote Controls ............................ 268
Audio System ............................................ 264
Adjusting the Sound ........................ 276, 316
Audio/Information Screen ................ 272, 290
Auxiliary Input Jack .................................. 266
Display Setup ................................... 277, 317
Error Messages ........................................ 371 File Manager ........................................... 310
General Information ................................ 376
Home Screen........................................... 296
How to Delete a File ................................ 313
How to Transfer a File ............................. 310
How to Update Wirelessly ....................... 304
How to Update with a USB Device........... 308
Limitations for Manual Operation ............ 318
MP3/WMA/AAC .............. 283, 336, 342, 345
My Honda Music ..................................... 345
Near Field Communication (NFC) ............. 360
Playing a CD............................................ 336
Playing Social Playlist ............................... 351
Reactivating ............................................ 267
Recommended CDs ................................. 377
Remote Controls ..................................... 268
Security Code .......................................... 267
Selecting an Audio Source ....................... 318
Status Area ............................................. 301
System Updates....................................... 304
Theft Protection ...................................... 267
USB Flash Drives ...................................... 379
USB Ports ................................................ 265
Wallpaper Setup.............................. 274, 294
Audio/Information Screen ............... 272, 290
Authorized Manuals ................................ 753
Auto Door Locking/Unlocking ................. 160
Customize ....................................... 138, 468
Auto High-Beam ....................................... 197
Indicator.................................................... 90
20 US ODYSSEY-31THR6210.book 755 ページ ２０２０年２月２８日 金曜日 午前７時２６分
Page 759 of 767
757
Index
C
CabinTalkTM.............................................. 527
CabinWatchTM........................................... 526
Car Wash Mode ........................................ 554
Carbon Monoxide Gas ............................... 80
Cargo Hooks ............................................. 242
Carrying Cargo ................................. 531, 533
CD Player .................................................. 336
Center Pocket ........................................... 233
Certification Label ................................... 746
Changing Bulbs ........................................ 664
Charging System Indicator ................ 87, 722
Child Safety ................................................ 62
Childproof Door Locks ............................ 159
Child Seat ................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Using a Tether .......................................... 74
Childproof Door Locks ............................. 159
Cleaning the Exterior ............................... 697
Cleaning the Interior ............................... 694 Climate Control System
.................... 251, 256
Changing the Mode ........................ 251, 256
Defrosting the Windshield and Windows ....................................... 252, 258
Dust and Pollen Filter ............................... 693
Recirculation/Fresh Air Mode ................... 251
Sensors ............................................ 255, 262
Using Automatic Climate Control .... 251, 256
Clock .......................................................... 144
Coat Hooks ................................................ 241
Collision Mitigation Braking System
TM
(CMBSTM) Indicator ............................ 99, 100
Compact Spare Tire .......................... 705, 745
Console Box .............................................. 231
Console Compartment with Lid ............... 232
Controls ..................................................... 143
Coolant (Engine) ....................................... 659
Adding to the Radiator ............................ 660
Adding to the Reserve Tank ..................... 659
Overheating ............................................ 719
Temperature Gauge ................................ 119
Creeping (Automatic Transmission) ........ 549
Cruise Control ........................................... 566
Indicator .................................................... 95
Cup Holders .............................................. 234
Customer Service Information ................. 754
Customized Features ........................ 134, 448
D
Daytime Running Lights .......................... 196
Dead Battery ............................................. 717
Defaulting All the Settings ...................... 472
Defrosting the Windshield and
Windows ......................................... 252, 258
Detachable Anchor .................................... 43
Devices that Emit Radio Waves ............... 747
Dimming Headlights ............................................... 192
Rearview Mirror....................................... 209
Dipstick (Engine Oil) ................................. 655
Directional Signals (Turn Signal) ............. 191
Door Mirrors ............................................. 210
Doors ......................................................... 146
Auto Door Locking .................................. 160
Auto Door Unlocking .............................. 160
Door and Tailgate Open Message .............. 37
Keys ........................................................ 146
Locking/Unlocking the Doors from the Inside .............................................. 156
Locking/Unlocking the Doors from
the Outside ........................................... 149
Lockout Prevention System ...................... 155
DOT Tire Quality Grading ........................ 682
Driver Information Interface ................... 120
Accessing Content .................................. 122
Warning and Information Messages ........ 102
20 US ODYSSEY-31THR6210.book 757 ページ ２０２０年２月２８日 金曜日 午前７時２６分
Page 760 of 767
758
Index
Driving....................................................... 529
Automatic Transmission ........................... 549
Braking .................................................... 607
Cruise Control ......................................... 566
Shifting Gear ........................................... 550
Starting the Engine .................................. 542
Driving Position Memory System ............. 206
Dust and Pollen Filter ............................... 693
E
Eco Assist® System ....................................... 11
Econ Mode
Indicator .................................................... 94
Electric Power Steering (EPS) System Indicator ............................................ 91, 726
Electronic Stability Control (ESC) ............. 596
Emergency ................................................. 735
Emergency Engine Stop ........................... 716
Emissions Testing (Readiness Codes) ....... 749
Engine ....................................................... 746
Coolant ................................................... 659
Jump Starting .......................................... 717
Oil ........................................................... 654
Starting ................................................... 542
Engine Coolant ......................................... 659
Adding to the Radiator ............................ 660
Adding to the Reserve Tank ..................... 659
Overheating............................................. 719
Temperature Gauge................................. 119 Engine Oil
................................................. 654
Adding .................................................... 656
Checking................................................. 655
Displaying Maintenance Minder Information ........................................... 646
Low Oil Pressure Symbol.......................... 722
Recommended Engine Oil ....................... 654
ENGINE START/STOP Button .................... 188
Exhaust Gas Hazard (Carbon Monoxide) .. 80
Exterior Care (Cleaning) ........................... 697
Exterior Mirrors ........................................ 210
F
Features.................................................... 263
File Manager ............................................. 310
Filters Dust and Pollen ....................................... 693
Oil ........................................................... 657
Flat Tire ..................................................... 705
Floor Mats ................................................. 695
Fluids Automatic Transmission .......................... 661
Brake ...................................................... 662
Engine Coolant ....................................... 659
Windshield Washer ................................. 663
FM/AM Radio .................................... 278, 322
Fog Light Indicator ..................................... 93
Folding Down the Rear Seats .................. 221
Foot Brake ................................................ 610 Front Airbags (SRS)
.................................... 50
Front Knee Airbags .................................... 54
Front Seat Heaters ................................... 245
Front Seat Heaters and Seat Ventilation .............................................. 246
Front Seats ................................................ 212
Adjusting ................................................ 212
Fuel ..................................................... 26, 637
Economy................................................. 640
Gauge .................................................... 119
Instant Fuel Economy .............................. 125
Low Fuel Indicator..................................... 89
Range ..................................................... 125
Recommendation.................................... 637
Refueling ................................................ 637
Fuel Economy ........................................... 640
Fuel Fill Door ...................................... 26, 638
Fuses ......................................................... 728
Inspecting and Changing ........................ 734
Locations ................................ 728, 730, 733
G
Gasoline (Fuel)
Economy................................................. 640
Gauge .................................................... 119
Information............................................. 637
Instant Fuel Economy .............................. 125
Low Fuel Indicator..................................... 89
Refueling ................................................ 637
20 US ODYSSEY-31THR6210.book 758 ページ ２０２０年２月２８日 金曜日 午前７時２６分
Page 761 of 767
759
Index
Gauges...................................................... 119
Gear Position Indicator .............................. 87
Glass (care) ....................................... 694, 699
Glove Box ................................................. 230
Grocery Bag Hook .................................... 242
H
Halogen Bulbs.................................. 664, 667
Handling the Unexpected ....................... 703
HandsFreeLink ® (HFL) ...................... 476, 501
Automatic Import of Cellular Phonebook and Call History ................................... 490, 510
Automatic Transferring ........................... 509
Caller’s ID Information ............................ 488
Displaying Messages ............................... 520
Favorite Contacts .................................... 511
HFL Buttons .................................... 476, 501
HFL Menus...................................... 478, 504
HFL Status Display ........................... 477, 503
In Case of Emergency ............................. 524
Limitations for Manual Operation.... 477, 503
Making a Call ................................. 495, 513
Options During a Call...................... 500, 516
Phone Setup ................................... 482, 506
Receiving a Call............................... 499, 516
Receiving a Text Message........................ 518
Ring Tone ....................................... 488, 509
Selecting a Phone ................................... 519
Speed Dial .............................................. 491 To Clear the System ................................. 489
To Set Up a Text Message Options ........... 517
Hazard Warning Button ............................... 4
HD Radio
TM................................................ 325
HDMITM Port .............................................. 403
Head Restraints ......................................... 224
Headlights ................................................. 192
Aiming .................................................... 664
Auto High-Beam ...................................... 197
Automatic Operation ............................... 193
Dimming ......................................... 192, 196
Operating ................................................ 192
Heated Steering Wheel ............................ 244
Heated Windshield Button ...................... 204
Heaters (Seat) ................................... 245, 246
HFL (HandsFreeLink ®)....................... 476, 501
High Beam Indicator .................................. 92
HomeLink® Universal Transceiver ............ 473
Honda App License Agreement ............... 380
HondaLink® ............................................... 353
HondaVAC
TM............................................. 248
I
Identification Numbers Engine and Transmission ......................... 746
Vehicle Identification ............................... 746
Illumination Control Knob ....................................................... 205
Immobilizer System .................................. 181
Indicator .................................................... 93 Indicators
.................................................... 84
Adaptive Cruise Control (ACC) (Amber)..... 98
Adaptive Cruise Control (ACC) (Green) .............................................. 98, 99
Anti-lock Brake System (ABS)..................... 90
Auto High-Beam ....................................... 90
Auto Idle Stop (Amber).............................. 95
Auto Idle Stop (Green)............................... 95
Automatic Brake Hold ............................... 86
Automatic Brake Hold System ................... 86
Blind spot information System ................. 101
Charging System ............................... 87, 722
Collision Mitigati on Braking System
TM
(CMBSTM) ......................................... 99, 100
CRUISE CONTROL ............................. 95, 567
CRUISE MAIN .................................... 95, 566
Econ Mode................................................ 94
Electric Power Steering (EPS) System .. 91, 726
Fog Light ................................................... 93
Gear Position............................................. 87
Hazard Warning ........................................ 92
High Beam ................................................ 92
Immobilizer System ................................... 93
Lane Keeping Assist System (LKAS) (Amber) ................................................... 96
Lane Keeping Assist System (LKAS) (Green) .................................................... 96
Lights On .................................................. 93
Low Fuel ................................................... 89
Low Oil Pressure Symbol.......................... 722
Low Tire Pressure/TPMS ............. 92, 601, 726
20 US ODYSSEY-31THR6210.book 759 ページ ２０２０年２月２８日 金曜日 午前７時２６分
Page 762 of 767
760
Index
Maintenance Minder ............................... 645
Malfunction Indicator Lamp ............... 86, 723
Parking Brake and Brake System (Amber) ........................................... 85, 725
Parking Brake and Brake System
(Red) ........................................ 84, 724, 725
Road Departure Mitigation (RDM) .............. 97
Seat Belt Reminder .............................. 39, 89
Security System Alarm ............................... 93
Snow Mode ............................................... 94
Supplemental Restraint System ............ 59, 90
System Message ........................................ 94
Transmission System .......................... 88, 727
Turn Signal ................................................ 92
Vehicle Stability Assist
TM (VSA ®)
System ............................................. 91, 596
VSA ® OFF .......................................... 91, 597
Information ............................................... 743
Instant Fuel Economy ............................... 125
Instrument Panel ........................................ 83
Brightness Control ................................... 205
Integrated Sunshades ............................... 247
Interior Lights ........................................... 228
Interior Rearview Mirror .......................... 209
iPad ............................................................ 379
iPhone ....................................................... 379
iPod ............................................ 280, 339, 379
J
Jack (Wheel Nut Wrench) ........................ 708
Jump Starting ........................................... 717
K
Key Number Tag ....................................... 147
Keyless Lockout Prevention ..................... 155
Keys ........................................................... 146
Lockout Prevention.................................. 155
Number Tag ............................................ 147
Rear Door Won’t Open............................ 159
Remote Transmitter ................................. 153
Types and Functions ................................ 146
Kickdown (Automatic Transmission) ....... 549
L
Lane Keeping Assist System (LKAS) Indicator
(Amber) ..................................................... 96
Lane Keeping Assist System (LKAS) Indicator (Green) ...................................................... 96
LaneWatch
TM............................................. 605
Language (HFL) ................................ 477, 503
LATCH (Child Seats) .................................... 67
Lights ................................................. 192, 664
Automatic ............................................... 193
Bulb Replacement ................................... 664
Daytime Running Lights........................... 196
Fog Lights ............................................... 195
High Beam Indicator .................................. 92 Interior.................................................... 228
Light Switches......................................... 192
Lights On Indicator.................................... 93
Turn Signals ............................................ 191
Load Limits ............................................... 533
Locking/Unlocking ................................... 146
Auto Door Locking/Unlocking ................. 160
Childproof Door Locks ............................ 159
From Inside ............................................. 156
From Outside .......................................... 149
Keys........................................................ 146
Using a Key............................................. 154
Lockout Prevention System ..................... 155
Low Battery Charge ................................. 722
Low Fuel Indicator ..................................... 89
Low Oil Pressure Symbol ......................... 722
Low Remote Signal Strength .................. 148
Lower Anchors ........................................... 67
Luggage (Maximum Load Limit) ............. 533
M
Maintenance.................................... 128, 641
Battery .................................................... 688
Brake Fluid .............................................. 662
Cleaning ................................................. 694
Climate Control System .......................... 693
Coolant .................................................. 659
Maintenance Minder
TM............................ 645
Oil .......................................................... 655
Precautions ............................................. 642
20 US ODYSSEY-31THR6210.book 760 ページ ２０２０年２月２８日 金曜日 午前７時２６分
Page 763 of 767
761
Index
Radiator .................................................. 660
Remote Control and Wireless Headphone ........................................... 691
Remote Transmitter ................................ 690
Replacing Light Bulbs .............................. 664
Safety ..................................................... 643
Service Items ........................................... 648
Tires........................................................ 679
Transmission Fluid ................................... 661
Under the Hood ...................................... 651
Malfunction Indicator Lamp ............. 86, 723
Map Lights ................................................ 229
Maximum Load Limit ............................... 533
Meters, Gauges ........................................ 119
Mirrors ...................................................... 209
Adjusting ................................................ 209
Door ....................................................... 210
Exterior ................................................... 210
Interior Rearview ..................................... 209
Modifications (and Accessories) .............. 700
Moonroof ................................................. 187
MP3/WMA/AAC ................ 283, 336, 342, 345
Multi-View Rear Camera ......................... 635
My Honda Music ...................................... 345
N
Navigation................................................ 126
Near Field Communication (NFC) ............ 360
Now Playing ............................................. 130
Numbers (Identification) ......................... 746
O
Odometer.................................................. 121
Oil (Engine) ............................................... 654
Adding .................................................... 656
Checking ................................................. 655
Displaying Maintenance Minder Information ........................................... 646
Low Oil Pressure Symbol .......................... 722
Oil Life ..................................................... 128
Recommended Engine Oil ........................ 654
Viscosity .................................................. 654
Open Source Licenses ............................... 394
Opening/Closing Hood ....................................................... 652
Moonroof................................................ 187
Power Windows ...................................... 184
Sliding Doors ........................................... 172
Tailgate ................................................... 161
Outside Temperature Display .................. 121
Overheating .............................................. 719
P
Panic Mode............................................... 183
Parking ...................................................... 624
Parking Brake ........................................... 607
Parking Brake and Brake System Indicator
(Amber) ............................................. 85, 725
Parking Brake and Brake System Indicator (Red) .......................................... 84, 724, 725 Parking Sensor System
............................. 626
Passenger Front Airb ag Off Indicator....... 60
Passing Indicators ..................................... 192
Phone ........................................................ 129
Playing Bluetooth ® Audio ................ 286, 349
Power Sliding Doors ................................. 174
Unable to Close....................................... 739
Power Tailgate ......................................... 163
Unable to Open....................................... 737
Power Windows ....................................... 184
Precautions While Driving
Rain ........................................................ 548
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 705
R
Radiator.................................................... 660
Radio (FM/AM) ................................. 278, 322
Radio (SiriusXM ®) ..................................... 326
Radio Data System (RDS) ................. 279, 324
Range ........................................................ 125
RDS (Radio Data System) ................. 279, 324
Readiness Codes (Emissions Testing) ....... 749
Rear Defogger/Heated Door Mirror Button ..................................................... 203
Rear Entertainment System ..................... 400
Rear Seats (Folding Down) ...................... 221
Rearview Mirror ....................................... 209
20 US ODYSSEY-31THR6210.book 761 ページ ２０２０年２月２８日 金曜日 午前７時２６分
Page 765 of 767
763
Index
T
Tachometer.............................................. 120
Tailgate ..................................................... 161
Unable to Open ...................................... 737
Temperature
Gauge .................................................... 119
Outside Temperature Display .................. 121
Temperature Gauge ................................ 119
Temperature Sensor ................ 121, 255, 262
Third Row Seat Access ............................. 216
Time (Adjusting) ...................................... 144
Tire Pressure ............................................. 128
Tire Pressure Monitoring System (TPMS) Indicator ........................................... 92, 726
Tires .......................................................... 679
Air Pressure..................................... 680, 745
Checking and Maintaining ...................... 679
Inspection ............................................... 679
Labeling .................................................. 680
Puncture (Flat Tire) .................................. 705
Regulations ............................................. 682
Rotation.................................................. 686
Spare Tire ....................................... 705, 745
Summer .................................................. 687
Tire Chains.............................................. 687
Wear Indicators....................................... 684
Winter .................................................... 687
Tools ......................................................... 704
Towing a Trailer ....................................... 536
Equipment and Accessories ..................... 537
Load Limits ............................................. 536 Towing Your Vehicle
................................ 541
Emergency .............................................. 735
TPMS (Tire Pressure Monitoring System) Indicator ............................................ 92, 726
Transmission ............................................. 550
Automatic ............................................... 549
Fluid ........................................................ 661
Gear Position Indicator .............................. 87
Number ................................................... 746
Transmission System Indicator ............................................ 88, 727
Trip Computer .......................................... 124
Trip Meter ................................................. 125
Troubleshooting ....................................... 703
Blown Fuse .............................. 728, 730, 733
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door .......... 31
Emergency Towing .................................. 735
Engine Won’t Start .................................. 714
Noise When Braking .................................. 31
Overheating ............................................ 719
Puncture/Flat Tire ..................................... 705
Sliding Door Won’t Open .................. 30, 159
Warning Indicators ............................ 84, 722
Tucking away the One-Motion Third Row
Stowing Magic Seat ®.............................. 221
Turn Signals .............................................. 191
Indicators (Instrument Panel) ...................... 92
U
Units .......................................................... 129
Unlocking the Doors ................................ 149
Unlocking the Front Doors from the Inside ................................................ 156
USB Flash Drives ....................... 283, 342, 379
USB Ports ................................................... 265
Using the Smart Entry with Push Button Start
System ..................................................... 149
V
Vacuum ..................................................... 248
Vanity Mirrors ............................................... 7
Vehicle Customization ............................. 134
Vehicle Identification Number ................ 746
Vehicle Stability Assist
TM (VSA ®) .............. 596
Off Button............................................... 597
Off Indicator.............................................. 91
System Indicator ........................................ 91
Ventilation ................................................ 251
Viscosity (Oil) .................................... 654, 745
Voice Control Operation .......................... 319
Audio Commands ................................... 321
Phone Commands ................................... 321
Voice Portal Screen.................................. 320
Voice Recognition ................................... 319
VSA ® (Vehicle Stability Assist
TM) .............. 596
20 US ODYSSEY-31THR6210.book 763 ページ ２０２０年２月２８日 金曜日 午前７時２６分
