uuParking Your Vehicle uCross Traffic Monitor*
Continued
Driving
Cross Traffic Monitor*

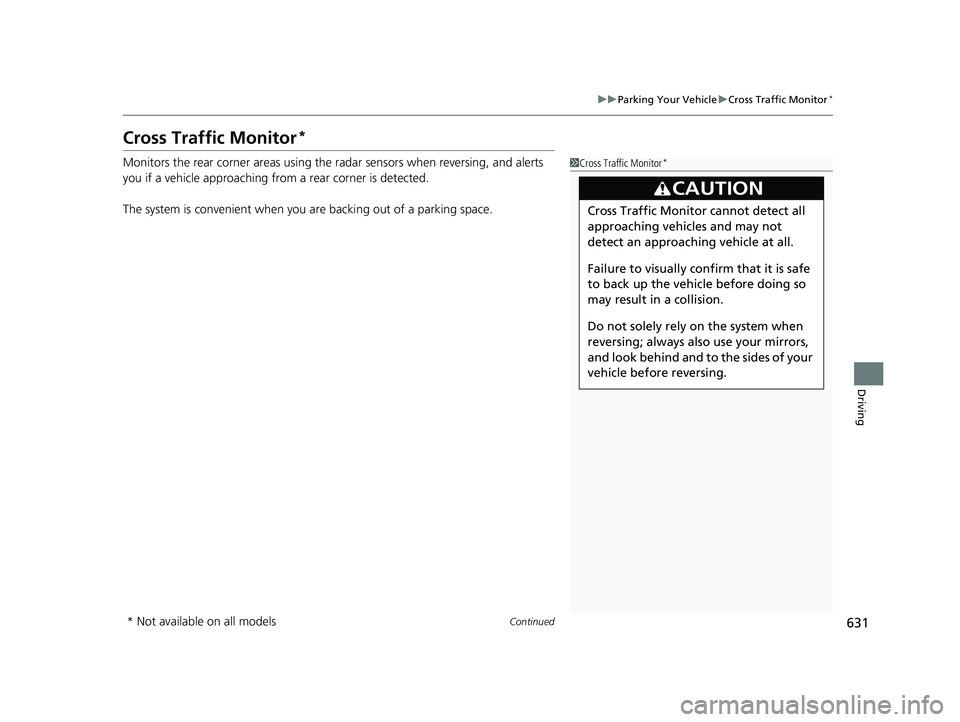

Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching from a rear corner is detected.
The system is convenient when you are backing out of a parking space.1Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not
detect an approaching vehicle at all.
Failure to visually conf irm that it is safe
to back up the vehicle before doing so
may result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors,
and look behind and to the sides of your
vehicle before reversing.
* Not available on all models
20 US ODYSSEY-31THR6210.book 631 ページ ２０２０年２月２８日　金曜日　午前７時２６分

uuParking Your Vehicle uCross Traffic Monitor*
632
Driving

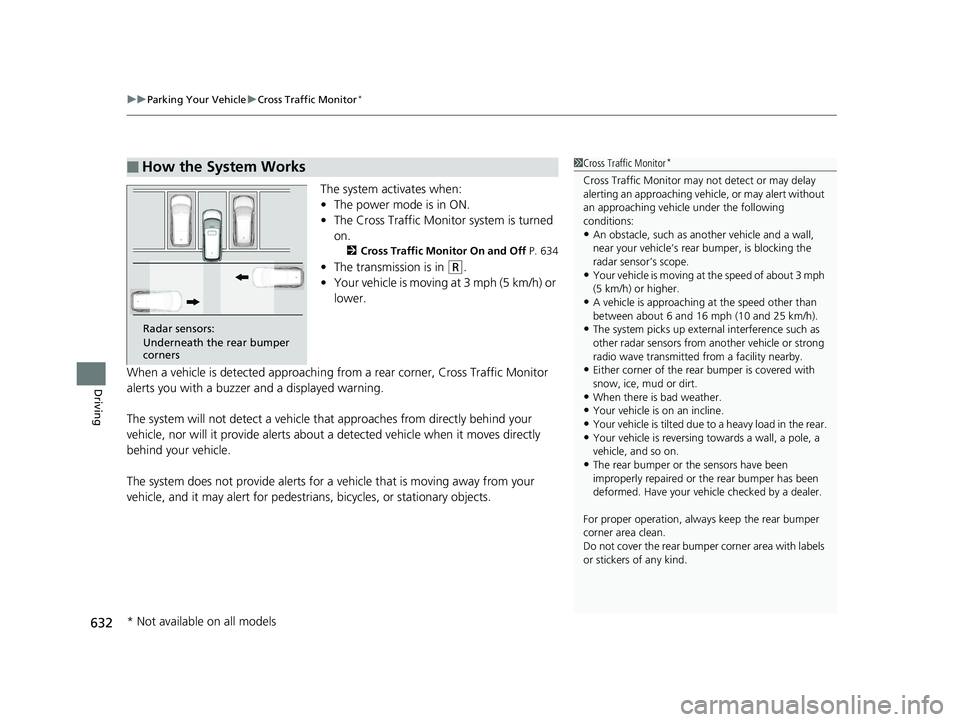

The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor system is turned
on.
2 Cross Traffic Monitor On and Off P. 634
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestri ans, bicycles, or stationary objects.
■How the System Works1Cross Traffic Monitor*
Cross Traffic Monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicl e under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle’s rear bumper, is blocking the
radar sensor’s scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 and 16 mph (10 and 25 km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.
•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
•The rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have your vehi cle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
20 US ODYSSEY-31THR6210.book 632 ページ ２０２０年２月２８日　金曜日　午前７時２６分

Continued633
uuParking Your Vehicle uCross Traffic Monitor*
Driving

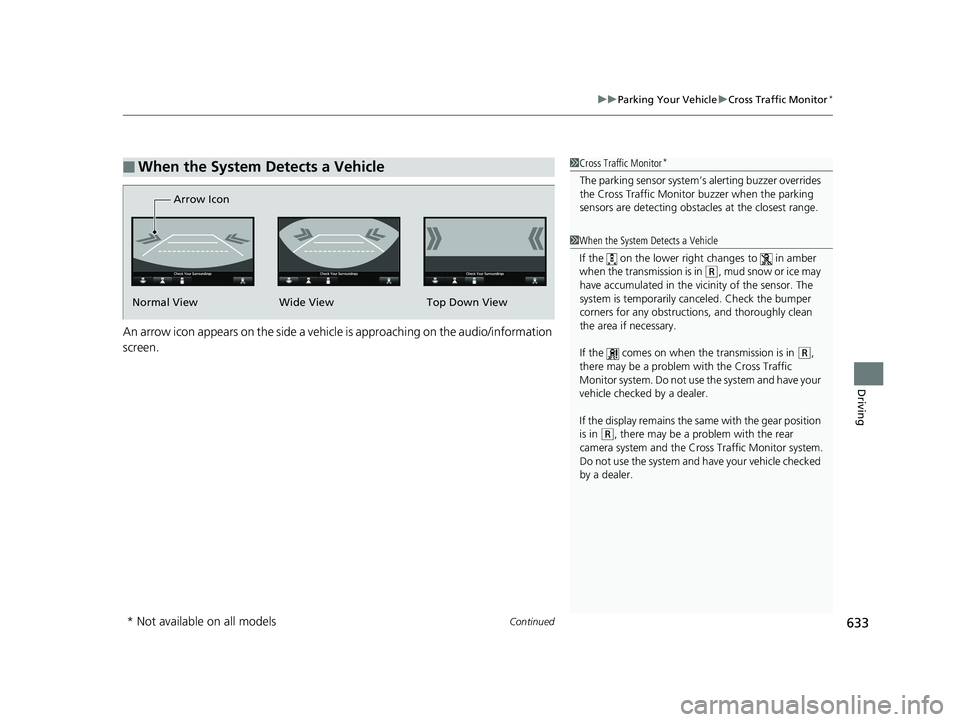

An arrow icon appears on the side a vehicle is approaching on the audio/information
screen.
■When the System Detects a Vehicle1 Cross Traffic Monitor*
The parking sensor system’s alerting buzzer overrides
the Cross Traffic Monitor buzzer when the parking
sensors are detecting obstacles at the closest range.
1 When the System Detects a Vehicle
If the on the lower right changes to in amber
when the transmission is in
(R, mud snow or ice may
have accumulated in the vi cinity of the sensor. The
system is temporarily canceled. Check the bumper
corners for any obstructions, and thoroughly clean
the area if necessary.
If the comes on when the transmission is in
( R,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the sa me with the gear position
is in
( R, there may be a problem with the rear
camera system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.
Arrow Icon
Normal View Top Down View Wide View
* Not available on all models
20 US ODYSSEY-31THR6210.book 633 ページ ２０２０年２月２８日　金曜日　午前７時２６分

688
Maintenance
Battery

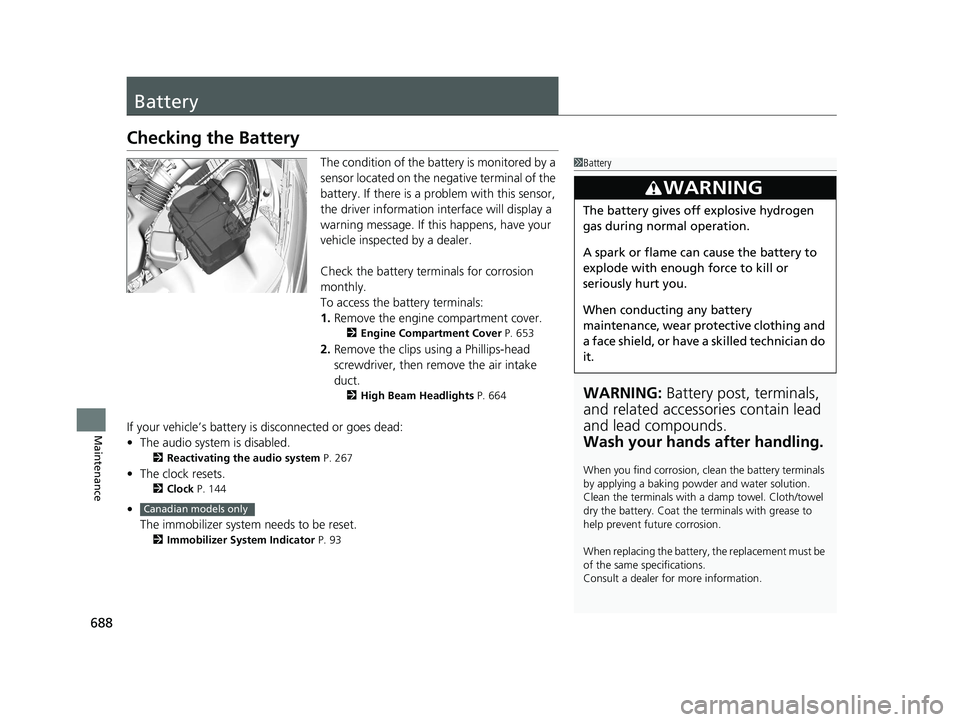

Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information in terface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
To access the battery terminals:
1. Remove the engine compartment cover.
2 Engine Compartment Cover P. 653
2.Remove the clips using a Phillips-head
screwdriver, then remove the air intake
duct.
2 High Beam Headlights P. 664
If your vehicle’s battery is disconnected or goes dead:
•The audio system is disabled.
2 Reactivating the audio system P. 267
•The clock resets.
2 Clock P. 144
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 93
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
20 US ODYSSEY-31THR6210.book 688 ページ ２０２０年２月２８日　金曜日　午前７時２６分

694
Maintenance
Cleaning
Interior Care

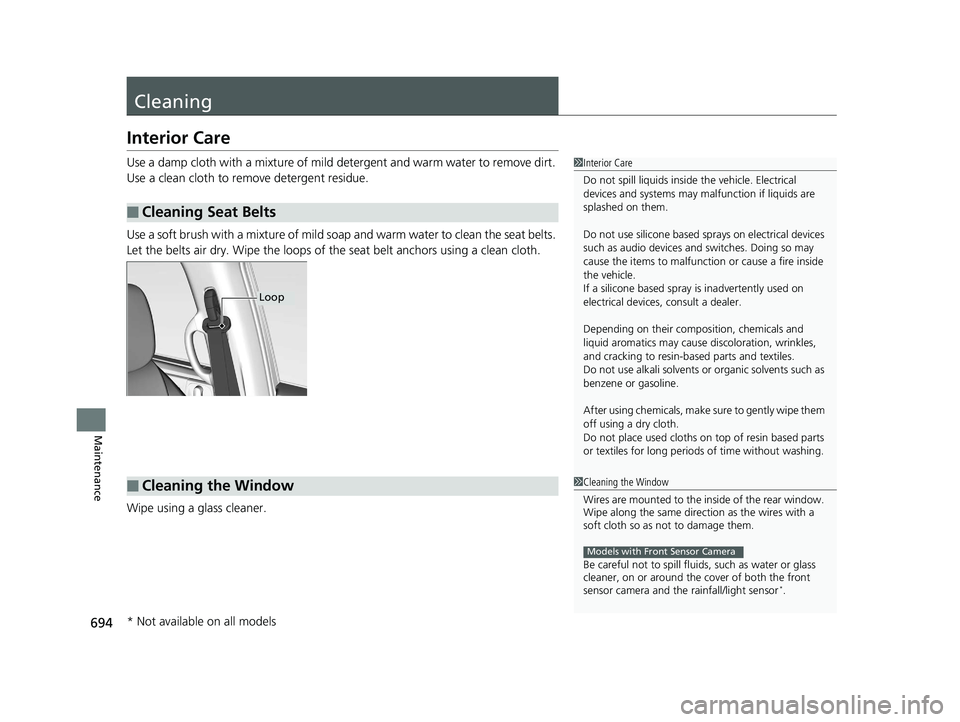

Use a damp cloth with a mixture of mild detergent and warm water to remove dirt.
Use a clean cloth to remove detergent residue.
Use a soft brush with a mixture of mild soap and warm water to clean the seat belts.
Let the belts air dry. Wipe the loops of the seat belt anchors using a clean cloth.
Wipe using a glass cleaner.
■Cleaning Seat Belts
1 Interior Care
Do not spill liquids inside the vehicle. Electrical
devices and systems may ma lfunction if liquids are
splashed on them.
Do not use silicone based sprays on electrical devices
such as audio devices and switches. Doing so may
cause the items to malfunction or cause a fire inside
the vehicle.
If a silicone based spray is inadvertently used on
electrical devices, consult a dealer.
Depending on their compos ition, chemicals and
liquid aromatics may cause discoloration, wrinkles,
and cracking to resin-ba sed parts and textiles.
Do not use alkali solvents or organic solvents such as
benzene or gasoline.
After using chemical s, make sure to gently wipe them
off using a dry cloth.
Do not place used cloths on top of resin based parts
or textiles for long periods of time without washing.
Loop
■Cleaning the Window1Cleaning the Window
Wires are mounted to the in side of the rear window.
Wipe along the same direct ion as the wires with a
soft cloth so as not to damage them.
Be careful not to spill flui ds, such as water or glass
cleaner, on or around the co ver of both the front
sensor camera and the rainfall/light sensor
*.
Models with Front Sensor Camera
* Not available on all models
20 US ODYSSEY-31THR6210.book 694 ページ ２０２０年２月２８日　金曜日　午前７時２６分

705Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Press the
(P button.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
20 US ODYSSEY-31THR6210.book 705 ページ ２０２０年２月２８日　金曜日　午前７時２６分

Index
755
Index
Index
A
ABS (Anti-lock Brake System).................. 613
AC Power Outlet ...................................... 238
Accessories and Modifications ................ 700
Accessory Power Sockets ......................... 236
Adaptive Cruise Control (ACC) Indicator (Amber) ..................................................... 98
Adaptive Cruise Control (ACC) Indicator
(Green) ................................................ 98, 99
Additives Coolant .................................................. 659
Engine Oil ............................................... 654
Washer ................................................... 663
Additives, Engine Oil ............................... 654
Adjusting Armrest .................................................. 227
Front and Second Row Outer and Third Row
Outer Head Restraints Positions ............. 224
Front Seats.............................................. 212
Mirrors.................................................... 209
Second Row Seats................................... 215
Steering Wheel ....................................... 208
Third Row Seats ...................................... 220
Agile Handling Assist ............................... 598
Air Conditioning System (Climate Control
System) ............................................ 251, 256
Changing the Mode........................ 251, 256
Defrosting the Windshield and
Windows ...................................... 252, 258 Dust and Pollen Filter ............................... 693
Recirculation/Fresh Air Mode ................... 251
Sensors ............................................ 255, 262
Using Automatic Climate Control .... 251, 256
Air Pressure ....................................... 680, 745
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
Airbag Care ............................................... 61
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Front Knee Airbags .................................... 54
Indicator .............................................. 59, 90
Passenger Front Airbag Off Indicator ......... 60
Sensors ...................................................... 47
Side Airbags .............................................. 56
Side Curtain Airbags .................................. 58
AM/FM Radio .................................... 278, 322
Android Auto ............................................ 367
Anti-lock Brake System (ABS) .................. 613
Indicator .................................................... 90
Apple CarPlay ........................................... 364
Armrest ..................................................... 227
Audio Remote Controls ............................ 268
Audio System ............................................ 264
Adjusting the Sound ........................ 276, 316
Audio/Information Screen ................ 272, 290
Auxiliary Input Jack .................................. 266
Display Setup ................................... 277, 317
Error Messages ........................................ 371 File Manager ........................................... 310
General Information ................................ 376
Home Screen........................................... 296
How to Delete a File ................................ 313
How to Transfer a File ............................. 310
How to Update Wirelessly ....................... 304
How to Update with a USB Device........... 308
Limitations for Manual Operation ............ 318
MP3/WMA/AAC .............. 283, 336, 342, 345
My Honda Music ..................................... 345
Near Field Communication (NFC) ............. 360
Playing a CD............................................ 336
Playing Social Playlist ............................... 351
Reactivating ............................................ 267
Recommended CDs ................................. 377
Remote Controls ..................................... 268
Security Code .......................................... 267
Selecting an Audio Source ....................... 318
Status Area ............................................. 301
System Updates....................................... 304
Theft Protection ...................................... 267
USB Flash Drives ...................................... 379
USB Ports ................................................ 265
Wallpaper Setup.............................. 274, 294
Audio/Information Screen ............... 272, 290
Authorized Manuals ................................ 753
Auto Door Locking/Unlocking ................. 160
Customize ....................................... 138, 468
Auto High-Beam ....................................... 197
Indicator.................................................... 90
20 US ODYSSEY-31THR6210.book 755 ページ ２０２０年２月２８日　金曜日　午前７時２６分

757
Index
C
CabinTalkTM.............................................. 527
CabinWatchTM........................................... 526
Car Wash Mode ........................................ 554
Carbon Monoxide Gas ............................... 80
Cargo Hooks ............................................. 242
Carrying Cargo ................................. 531, 533
CD Player .................................................. 336
Center Pocket ........................................... 233
Certification Label ................................... 746
Changing Bulbs ........................................ 664
Charging System Indicator ................ 87, 722
Child Safety ................................................ 62
Childproof Door Locks ............................ 159
Child Seat ................................................... 62
Booster Seats ............................................ 79
Child Seat for Infants ................................ 64
Child Seat for Small Children .................... 65
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 72
Larger Children ......................................... 78
Rear-facing Child Seat............................... 64
Selecting a Child Seat ............................... 66
Using a Tether .......................................... 74
Childproof Door Locks ............................. 159
Cleaning the Exterior ............................... 697
Cleaning the Interior ............................... 694 Climate Control System
.................... 251, 256
Changing the Mode ........................ 251, 256
Defrosting the Windshield and Windows ....................................... 252, 258
Dust and Pollen Filter ............................... 693
Recirculation/Fresh Air Mode ................... 251
Sensors ............................................ 255, 262
Using Automatic Climate Control .... 251, 256
Clock .......................................................... 144
Coat Hooks ................................................ 241
Collision Mitigation Braking System
TM
(CMBSTM) Indicator ............................ 99, 100
Compact Spare Tire .......................... 705, 745
Console Box .............................................. 231
Console Compartment with Lid ............... 232
Controls ..................................................... 143
Coolant (Engine) ....................................... 659
Adding to the Radiator ............................ 660
Adding to the Reserve Tank ..................... 659
Overheating ............................................ 719
Temperature Gauge ................................ 119
Creeping (Automatic Transmission) ........ 549
Cruise Control ........................................... 566
Indicator .................................................... 95
Cup Holders .............................................. 234
Customer Service Information ................. 754
Customized Features ........................ 134, 448
D
Daytime Running Lights .......................... 196
Dead Battery ............................................. 717
Defaulting All the Settings ...................... 472
Defrosting the Windshield and
Windows ......................................... 252, 258
Detachable Anchor .................................... 43
Devices that Emit Radio Waves ............... 747
Dimming Headlights ............................................... 192
Rearview Mirror....................................... 209
Dipstick (Engine Oil) ................................. 655
Directional Signals (Turn Signal) ............. 191
Door Mirrors ............................................. 210
Doors ......................................................... 146
Auto Door Locking .................................. 160
Auto Door Unlocking .............................. 160
Door and Tailgate Open Message .............. 37
Keys ........................................................ 146
Locking/Unlocking the Doors from the Inside .............................................. 156
Locking/Unlocking the Doors from
the Outside ........................................... 149
Lockout Prevention System ...................... 155
DOT Tire Quality Grading ........................ 682
Driver Information Interface ................... 120
Accessing Content .................................. 122
Warning and Information Messages ........ 102
20 US ODYSSEY-31THR6210.book 757 ページ ２０２０年２月２８日　金曜日　午前７時２６分

761
Index
Radiator .................................................. 660
Remote Control and Wireless Headphone ........................................... 691
Remote Transmitter ................................ 690
Replacing Light Bulbs .............................. 664
Safety ..................................................... 643
Service Items ........................................... 648
Tires........................................................ 679
Transmission Fluid ................................... 661
Under the Hood ...................................... 651
Malfunction Indicator Lamp ............. 86, 723
Map Lights ................................................ 229
Maximum Load Limit ............................... 533
Meters, Gauges ........................................ 119
Mirrors ...................................................... 209
Adjusting ................................................ 209
Door ....................................................... 210
Exterior ................................................... 210
Interior Rearview ..................................... 209
Modifications (and Accessories) .............. 700
Moonroof ................................................. 187
MP3/WMA/AAC ................ 283, 336, 342, 345
Multi-View Rear Camera ......................... 635
My Honda Music ...................................... 345
N
Navigation................................................ 126
Near Field Communication (NFC) ............ 360
Now Playing ............................................. 130
Numbers (Identification) ......................... 746
O
Odometer.................................................. 121
Oil (Engine) ............................................... 654
Adding .................................................... 656
Checking ................................................. 655
Displaying Maintenance Minder Information ........................................... 646
Low Oil Pressure Symbol .......................... 722
Oil Life ..................................................... 128
Recommended Engine Oil ........................ 654
Viscosity .................................................. 654
Open Source Licenses ............................... 394
Opening/Closing Hood ....................................................... 652
Moonroof................................................ 187
Power Windows ...................................... 184
Sliding Doors ........................................... 172
Tailgate ................................................... 161
Outside Temperature Display .................. 121
Overheating .............................................. 719
P
Panic Mode............................................... 183
Parking ...................................................... 624
Parking Brake ........................................... 607
Parking Brake and Brake System Indicator
(Amber) ............................................. 85, 725
Parking Brake and Brake System Indicator (Red) .......................................... 84, 724, 725 Parking Sensor System
............................. 626
Passenger Front Airb ag Off Indicator....... 60
Passing Indicators ..................................... 192
Phone ........................................................ 129
Playing Bluetooth ® Audio ................ 286, 349
Power Sliding Doors ................................. 174
Unable to Close....................................... 739
Power Tailgate ......................................... 163
Unable to Open....................................... 737
Power Windows ....................................... 184
Precautions While Driving
Rain ........................................................ 548
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 705
R
Radiator.................................................... 660
Radio (FM/AM) ................................. 278, 322
Radio (SiriusXM ®) ..................................... 326
Radio Data System (RDS) ................. 279, 324
Range ........................................................ 125
RDS (Radio Data System) ................. 279, 324
Readiness Codes (Emissions Testing) ....... 749
Rear Defogger/Heated Door Mirror Button ..................................................... 203
Rear Entertainment System ..................... 400
Rear Seats (Folding Down) ...................... 221
Rearview Mirror ....................................... 209
20 US ODYSSEY-31THR6210.book 761 ページ ２０２０年２月２８日　金曜日　午前７時２６分

763
Index
T
Tachometer.............................................. 120
Tailgate ..................................................... 161
Unable to Open ...................................... 737
Temperature
Gauge .................................................... 119
Outside Temperature Display .................. 121
Temperature Gauge ................................ 119
Temperature Sensor ................ 121, 255, 262
Third Row Seat Access ............................. 216
Time (Adjusting) ...................................... 144
Tire Pressure ............................................. 128
Tire Pressure Monitoring System (TPMS) Indicator ........................................... 92, 726
Tires .......................................................... 679
Air Pressure..................................... 680, 745
Checking and Maintaining ...................... 679
Inspection ............................................... 679
Labeling .................................................. 680
Puncture (Flat Tire) .................................. 705
Regulations ............................................. 682
Rotation.................................................. 686
Spare Tire ....................................... 705, 745
Summer .................................................. 687
Tire Chains.............................................. 687
Wear Indicators....................................... 684
Winter .................................................... 687
Tools ......................................................... 704
Towing a Trailer ....................................... 536
Equipment and Accessories ..................... 537
Load Limits ............................................. 536 Towing Your Vehicle
................................ 541
Emergency .............................................. 735
TPMS (Tire Pressure Monitoring System) Indicator ............................................ 92, 726
Transmission ............................................. 550
Automatic ............................................... 549
Fluid ........................................................ 661
Gear Position Indicator .............................. 87
Number ................................................... 746
Transmission System Indicator ............................................ 88, 727
Trip Computer .......................................... 124
Trip Meter ................................................. 125
Troubleshooting ....................................... 703
Blown Fuse .............................. 728, 730, 733
Brake Pedal Vibrates .................................. 30
Buzzer Sounds When Opening Door .......... 31
Emergency Towing .................................. 735
Engine Won’t Start .................................. 714
Noise When Braking .................................. 31
Overheating ............................................ 719
Puncture/Flat Tire ..................................... 705
Sliding Door Won’t Open .................. 30, 159
Warning Indicators ............................ 84, 722
Tucking away the One-Motion Third Row
Stowing Magic Seat ®.............................. 221
Turn Signals .............................................. 191
Indicators (Instrument Panel) ...................... 92
U
Units .......................................................... 129
Unlocking the Doors ................................ 149
Unlocking the Front Doors from the Inside ................................................ 156
USB Flash Drives ....................... 283, 342, 379
USB Ports ................................................... 265
Using the Smart Entry with Push Button Start
System ..................................................... 149
V
Vacuum ..................................................... 248
Vanity Mirrors ............................................... 7
Vehicle Customization ............................. 134
Vehicle Identification Number ................ 746
Vehicle Stability Assist
TM (VSA ®) .............. 596
Off Button............................................... 597
Off Indicator.............................................. 91
System Indicator ........................................ 91
Ventilation ................................................ 251
Viscosity (Oil) .................................... 654, 745
Voice Control Operation .......................... 319
Audio Commands ................................... 321
Phone Commands ................................... 321
Voice Portal Screen.................................. 320
Voice Recognition ................................... 319
VSA ® (Vehicle Stability Assist
TM) .............. 596
20 US ODYSSEY-31THR6210.book 763 ページ ２０２０年２月２８日　金曜日　午前７時２６分
