HONDA ODYSSEY 2020 Owner's Manual (in English)

739
Handling the Unexpected

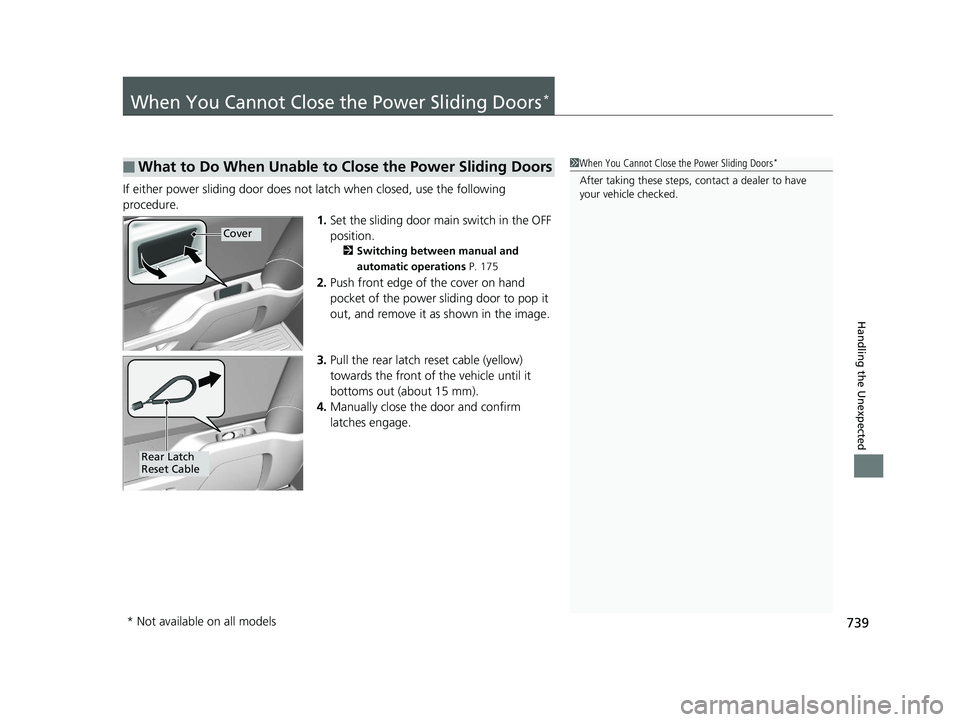

When You Cannot Close the Power Sliding Doors*
If either power sliding door does not latch when closed, use the following
procedure.
1.Set the sliding door main switch in the OFF
position.
2 Switching between manual and
automatic operations P. 175
2.Push front edge of the cover on hand
pocket of the power sliding door to pop it
out, and remove it as shown in the image.
3. Pull the rear latch reset cable (yellow)
towards the front of the vehicle until it
bottoms out (about 15 mm).
4. Manually close the door and confirm
latches engage.
■What to Do When Unable to Close the Power Sliding Doors1When You Cannot Close the Power Sliding Doors*
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Rear Latch
Reset Cable
* Not available on all models
20 US ODYSSEY-31THR6210.book 739 ページ ２０２０年２月２８日　金曜日　午前７時２６分

740
Handling the Unexpected

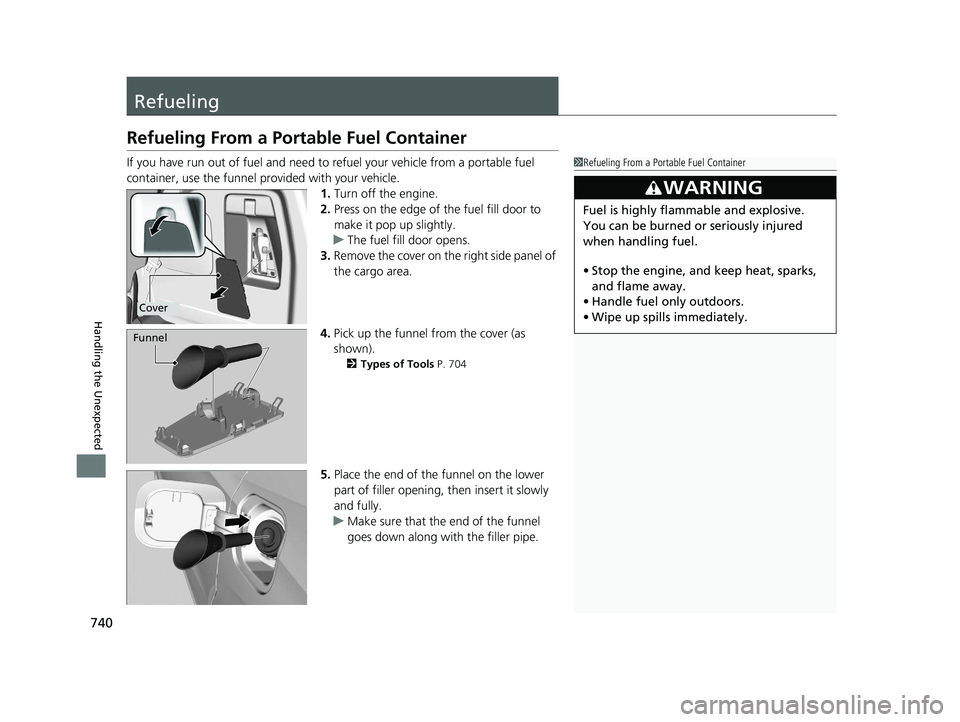

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Remove the cover on the right side panel of
the cargo area.
4. Pick up the funnel from the cover (as
shown).
2 Types of Tools P. 704
5.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
1Refueling From a Portable Fuel Container
3WARNING
Fuel is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Cover
Funnel
20 US ODYSSEY-31THR6210.book 740 ページ ２０２０年２月２８日　金曜日　午前７時２６分

741
uuRefueling uRefueling From a Portable Fuel Container
Handling the Unexpected

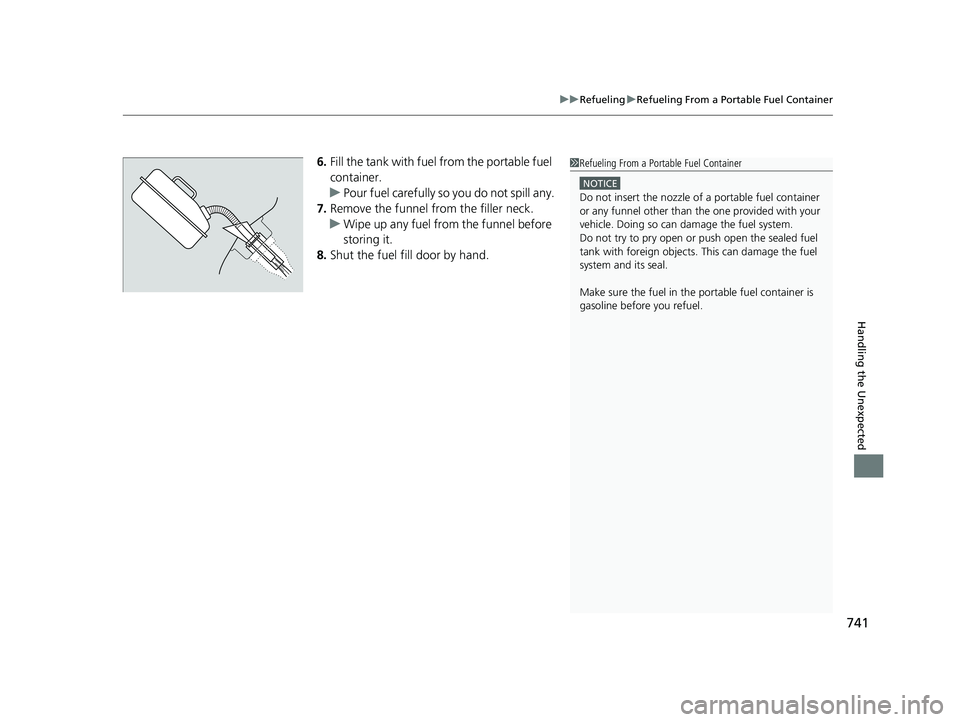

6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
20 US ODYSSEY-31THR6210.book 741 ページ ２０２０年２月２８日　金曜日　午前７時２６分

742
20 US ODYSSEY-31THR6210.book 742 ページ ２０２０年２月２８日　金曜日　午前７時２６分

743
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 744
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 746
Devices that Emit Radio Waves ....... 747
Reporting Safety Defects ................. 748
Emissions Testing Testing of Readiness Codes.............. 749
Warranty Coverages ........................ 751
Authorized Manuals ......................... 753
Customer Service Information ......... 754
20 US ODYSSEY-31THR6210.book 743 ページ ２０２０年２月２８日　金曜日　午前７時２６分

744
Information
Specifications
■Vehicle Specifications
*1: LX grade model
■Air Conditioning
ModelOdyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 (2
*1)
3rd Row 3
Total 8 (7
*1)Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Gross Combined Weight
Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Refrigerant TypeHFO-1234yf (R-1234yf)Charge Quantity20.3 - 22.0 oz (575 - 625 g)Lubricant TypeND-OIL14 (POE)Quantity7.3 - 8.2 cu-in (120 - 135 cm3)
■Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
*1: LX and LX-HS grade models
*2: EX, EXL, EXL-NR, EX-R, EXLNAV, and EXLRES grade models
*3: ELITE and TOURING grade models
Headlights (Low Beam)55W (H11)*1, *2
LED*3
Headlights (High Beam) 60W (HB3)*1, *2
LED*3
Fog Lights35W (H8)*2
LED*3
Front Turn Signal/Parking Lights 28/8W (Amber)*1
Front Turn Signal Lights28/8W (Amber)*2, *3
Front Side Marker Lights 3CPParking/Daytime Running LightsLED*2, *3
Daytime Running Lights 60W (HB3)*1
Side Turn Signal Lights
(on Door Mirrors)LED*2, *3
Brake Lights
21WRear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W
Back-Up Lights21W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Map Lights (Front)5W
Map Lights (Rear) 5W
Cargo Area Light8W
Vanity Mirror Lights 1.4W
Door Courtesy Lights3.8W (2CP)
Glove Box Light 1.4W
Foot Lights*LED
Console Compartment Light*1.4WDoor Inner Handle Lights*LED
Instrument Panel Ambient Lights*LEDPass Through Light*LED
* Not available on all models
20 US ODYSSEY-31THR6210.book 744 ページ ２０２０年２月２８日　金曜日　午前７時２６分

745
uuSpecifications u
Information
■Brake Fluid
■ Automatic Transmission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF-Type 2
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 5.4 US qt (5.1 L)
Change
including
filter
5.7 US qt (5.4 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.69 US gal (6.38 L)
(change including the remaining 0.19 US gal
(0.73 L) in the reserve tank)
■ Tire
*1: Except U.S. ELITE and Canadian TOURING grade models
*2: U.S. ELITE and Canadian TOURING grade models
RegularSize235/60R18 103H*1
235/55R19 101H*2
Pressure
psi (kPa [kgf/cm2])35 (240 [2.4])*1
36 (250 [2.5])*2
Compact
Spare Size
T135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2J*1
19 x 7 1/2J*2
Compact Spare17 x 4T
20 US ODYSSEY-31THR6210.book 745 ページ ２０２０年２月２８日　金曜日　午前７時２６分

746
Information
Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows:
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification
Number
Certification Label/
Vehicle Identification
Number
Engine Number
Transmission Number
20 US ODYSSEY-31THR6210.book 746 ページ ２０２０年２月２８日　金曜日　午前７時２６分

747
Information

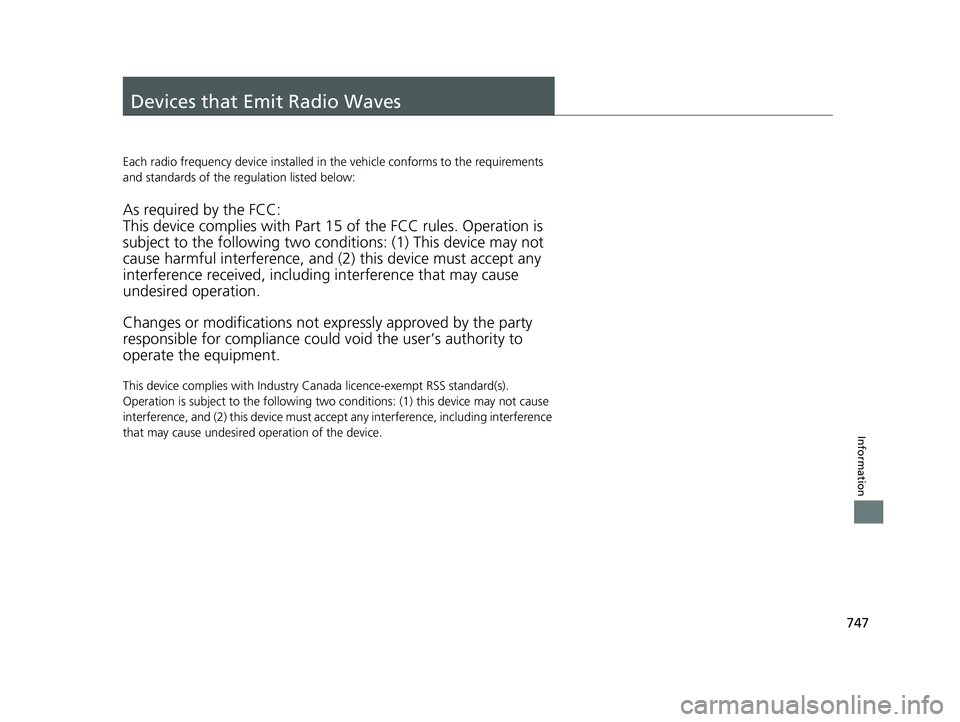

Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
20 US ODYSSEY-31THR6210.book 747 ページ ２０２０年２月２８日　金曜日　午前７時２６分

748
Information
Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
