HONDA ODYSSEY 2021 Owner's Manual (in English)

169
uuLocking and Unlocking the Doors uChildproof Door Locks
Controls

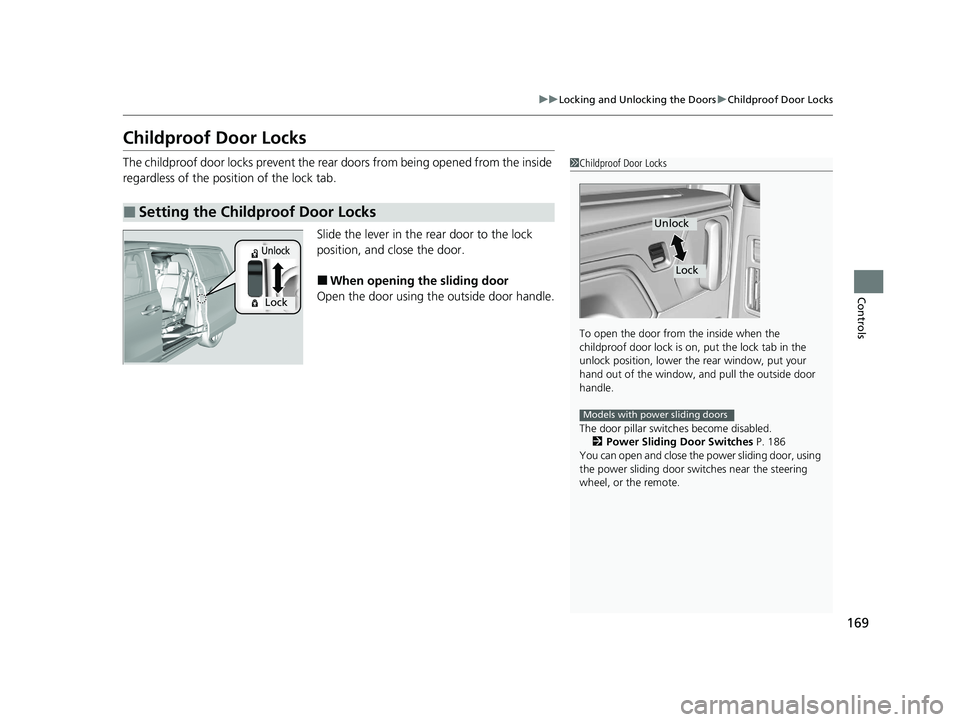

Childproof Door Locks
The childproof door locks prevent the rear doors from being opened from the inside
regardless of the position of the lock tab.
Slide the lever in the rear door to the lock
position, and close the door.
■When opening the sliding door
Open the door using the outside door handle.
■Setting the Childproof Door Locks
1 Childproof Door Locks
To open the door from the inside when the
childproof door lock is on, put the lock tab in the
unlock position, lower the rear window, put your
hand out of the window, and pull the outside door
handle.
The door pillar switch es become disabled.
2 Power Sliding Door Switches P. 186
You can open and close the power sliding door, using
the power sliding door swit ches near the steering
wheel, or the remote.
Unlock
Lock
Models with power sliding doors
Lock
Unlock
21 US ODYSSEY-31THR6310.book 169 ページ ２０２０年６月１７日　水曜日　午後２時４６分

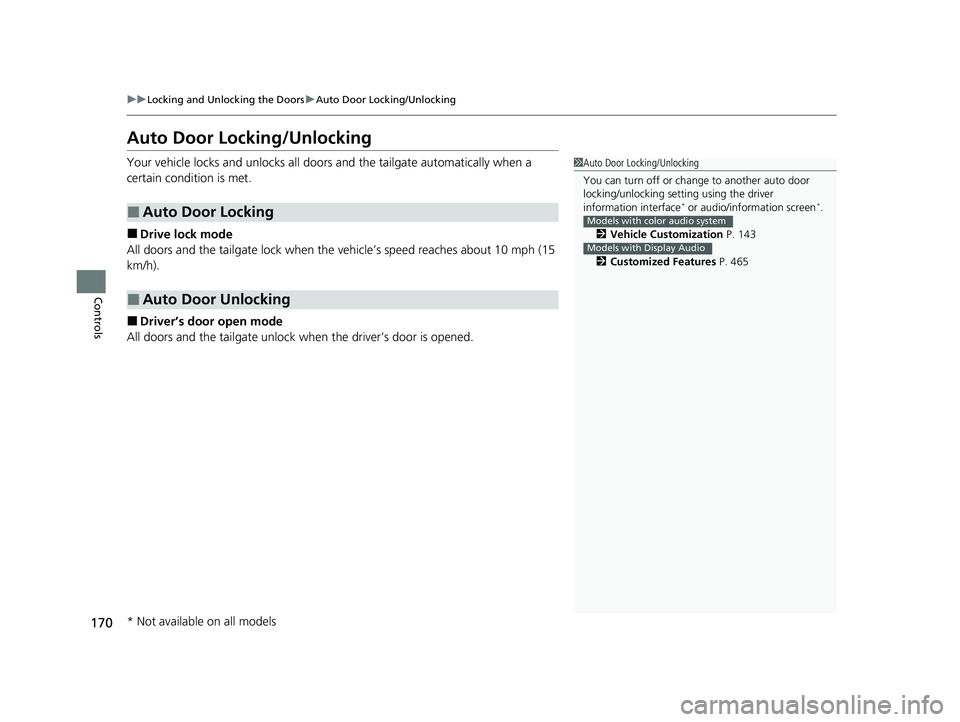

170
uuLocking and Unlocking the Doors uAuto Door Locking/Unlocking
Controls
Auto Door Locking/Unlocking
Your vehicle locks and unlocks all doors and the tailgate automatically when a
certain condition is met.
■Drive lock mode
All doors and the tailgate lock when the vehicle’s speed reaches about 10 mph (15
km/h).
■Driver’s door open mode
All doors and the tailgate unlock when the driver’s door is opened.
■Auto Door Locking
■Auto Door Unlocking
1 Auto Door Locking/Unlocking
You can turn off or cha nge to another auto door
locking/unlocking sett ing using the driver
information interface
* or audio/information screen*.
2 Vehicle Customization P. 143
2 Customized Features P. 465Models with color audio system
Models with Display Audio
* Not available on all models
21 US ODYSSEY-31THR6310.book 170 ページ ２０２０年６月１７日　水曜日　午後２時４６分

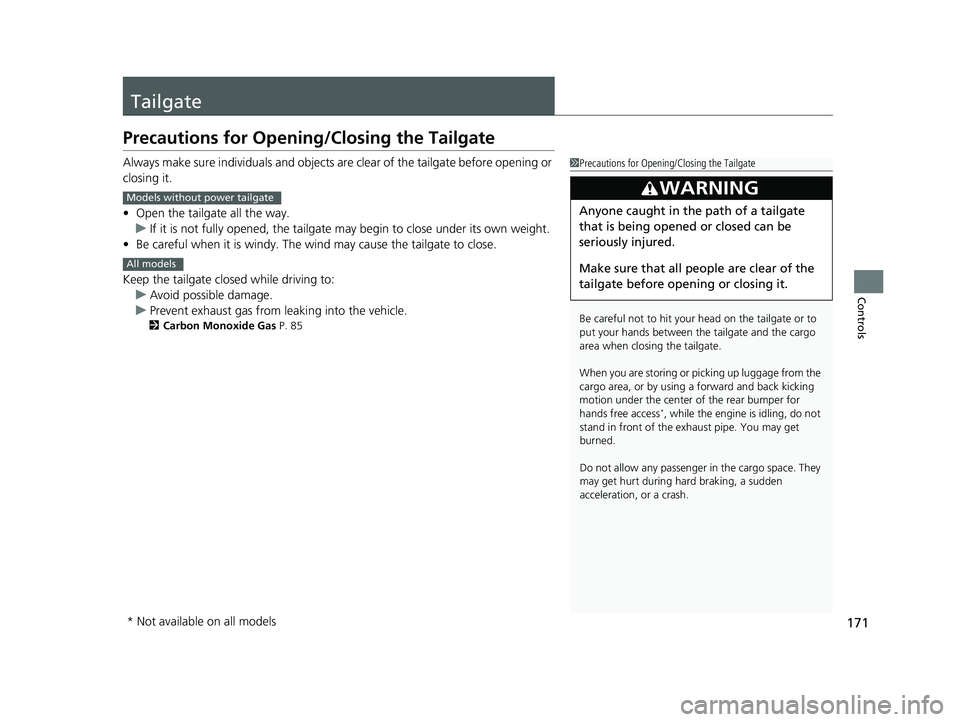

171
Controls
Tailgate
Precautions for Opening/Closing the Tailgate
Always make sure individuals and objects are clear of the tailgate before opening or
closing it.
• Open the tailgate all the way.
u If it is not fully opened, the tailgate may begin to close under its own weight.
• Be careful when it is windy. The wi nd may cause the tailgate to close.
Keep the tailgate closed while driving to: u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Carbon Monoxide Gas P. 85
1Precautions for Opening/Closing the Tailgate
Be careful not to hit your head on the tailgate or to
put your hands between th e tailgate and the cargo
area when closing the tailgate.
When you are storing or picking up luggage from the
cargo area, or by using a forward and back kicking
motion under the center of the rear bumper for
hands free access
*, while the engine is idling, do not
stand in front of the ex haust pipe. You may get
burned.
Do not allow any passenger in the cargo space. They
may get hurt during hard braking, a sudden
acceleration, or a crash.
3WARNING
Anyone caught in the path of a tailgate
that is being opened or closed can be
seriously injured.
Make sure that all people are clear of the
tailgate before opening or closing it.
Models without power tailgate
All models
* Not available on all models
21 US ODYSSEY-31THR6310.book 171 ページ ２０２０年６月１７日　水曜日　午後２時４６分

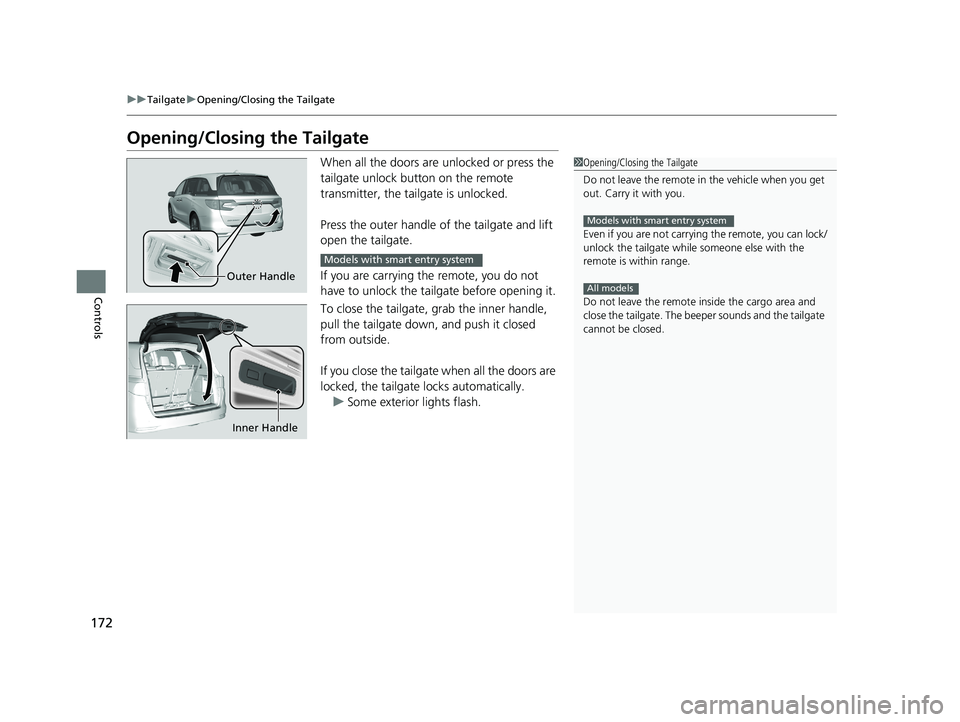

172
uuTailgate uOpening/Closing the Tailgate
Controls
Opening/Closing the Tailgate
When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the outer handle of the tailgate and lift
open the tailgate.
If you are carrying the remote, you do not
have to unlock the tailgate before opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
If you close the tailgate when all the doors are
locked, the tailgate locks automatically. u Some exterior lights flash.1Opening/Closing the Tailgate
Do not leave the remote in the vehicle when you get
out. Carry it with you.
Even if you are not carrying the remote, you can lock/
unlock the tailgate while someone else with the
remote is within range.
Do not leave the remote in side the cargo area and
close the tailgate. The beeper sounds and the tailgate
cannot be closed.
Models with smart entry system
All modelsOuter Handle
Models with smart entry system
Inner Handle
21 US ODYSSEY-31THR6310.book 172 ページ ２０２０年６月１７日　水曜日　午後２時４６分

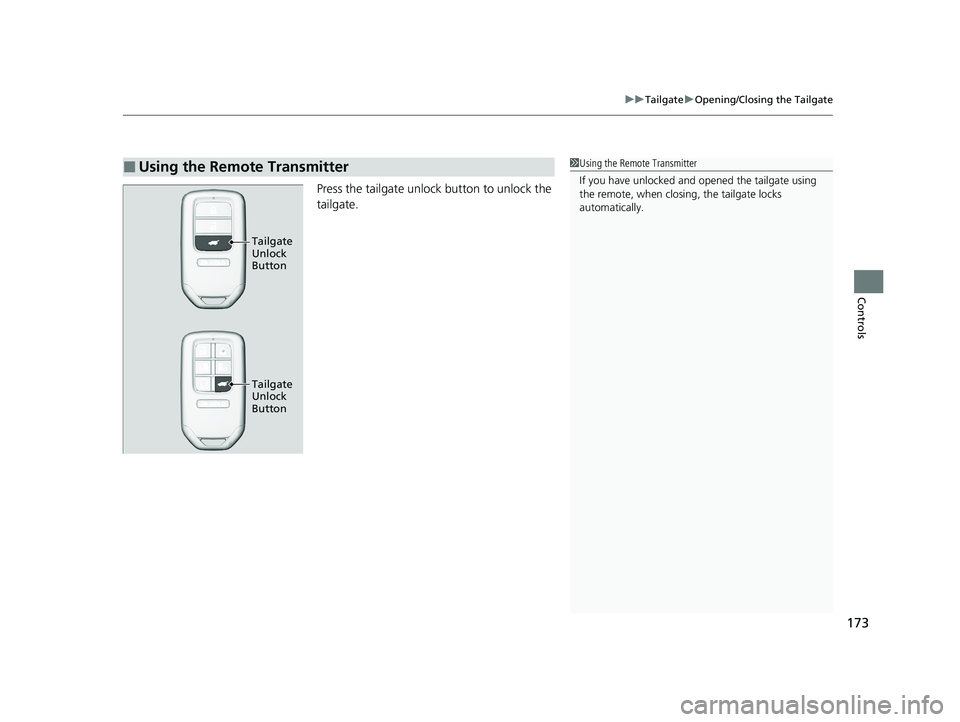

173
uuTailgate uOpening/Closing the Tailgate
Controls
Press the tailgate unlock button to unlock the
tailgate.
■Using the Remote Transmitter1Using the Remote Transmitter
If you have unlocked and opened the tailgate using
the remote, when closing, the tailgate locks
automatically.
Tailgate
Unlock
Button
Tailgate
Unlock
Button
21 US ODYSSEY-31THR6310.book 173 ページ ２０２０年６月１７日　水曜日　午後２時４６分

174
uuTailgate uOpening/Closing the Power Tailgate*
Controls

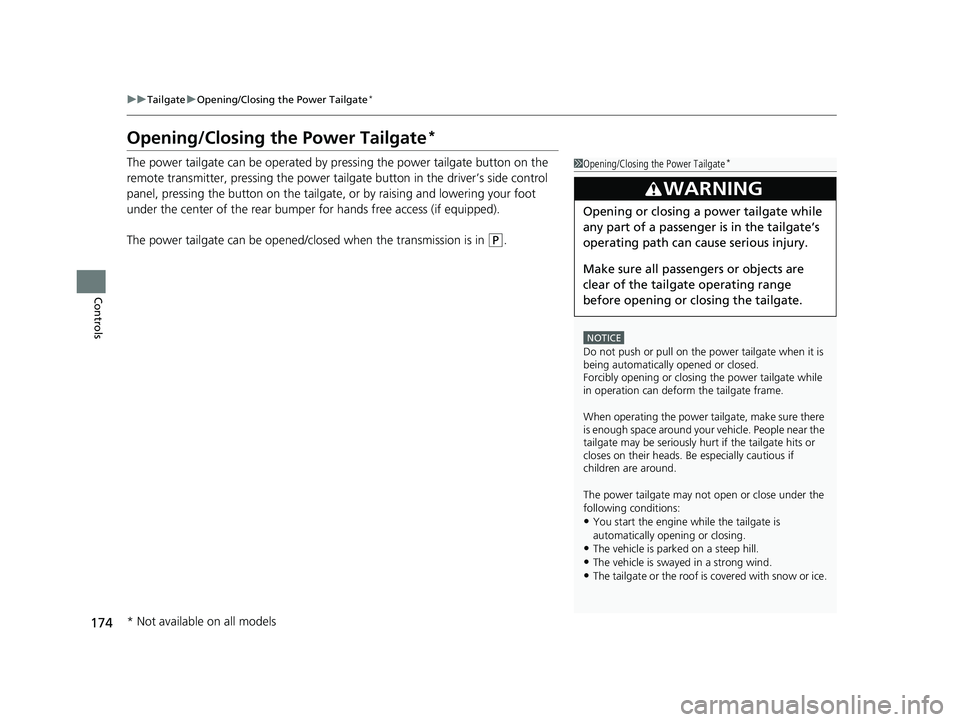

Opening/Closing the Power Tailgate*
The power tailgate can be operated by pressing the power tailgate button on the
remote transmitter, pressing the power tail gate button in the driver’s side control
panel, pressing the button on the tailgate, or by raising and lowering your foot
under the center of the rear bumper for hands free access (if equipped).
The power tailgate can be opened/c losed when the transmission is in
(P.
1Opening/Closing the Power Tailgate*
NOTICE
Do not push or pull on the power tailgate when it is
being automatically opened or closed.
Forcibly opening or closing the power tailgate while
in operation can deform the tailgate frame.
When operating the power tailgate, make sure there
is enough space around your ve hicle. People near the
tailgate may be se riously hurt if the tailgate hits or
closes on their heads. Be especially cautious if
children are around.
The power tailgate may not open or close under the
following conditions:
•You start the engine while the tailgate is
automatically openi ng or closing.
•The vehicle is parked on a steep hill.
•The vehicle is swayed in a strong wind.
•The tailgate or the roof is covered with snow or ice.
3WARNING
Opening or closing a power tailgate while
any part of a passenger is in the tailgate’s
operating path can cause serious injury.
Make sure all passengers or objects are
clear of the tailgate operating range
before opening or closing the tailgate.
* Not available on all models
21 US ODYSSEY-31THR6310.book 174 ページ ２０２０年６月１７日　水曜日　午後２時４６分

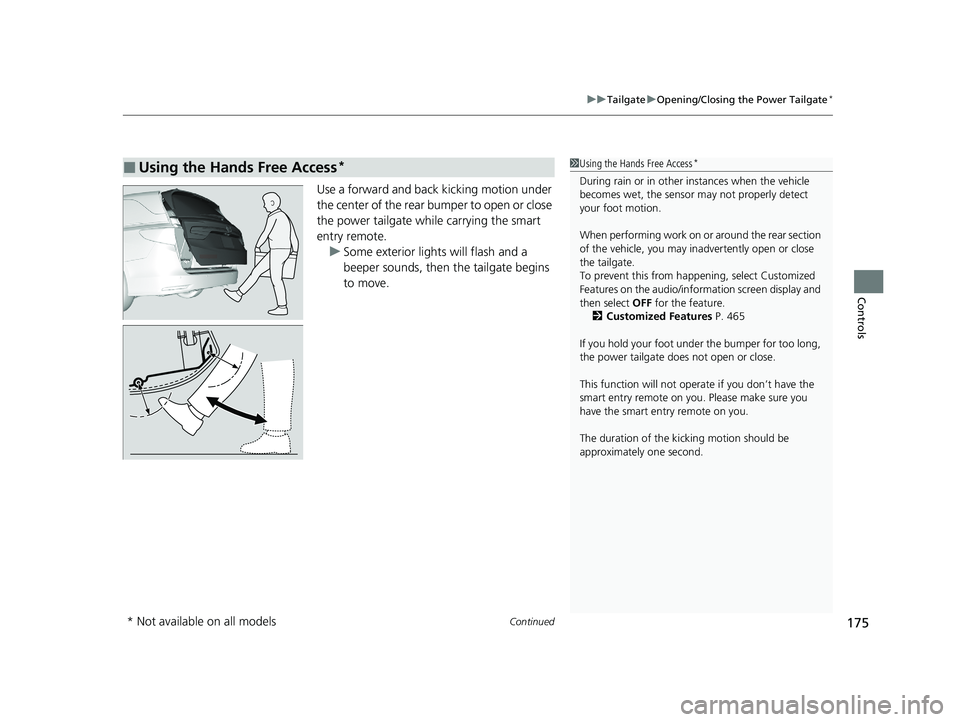

Continued175
uuTailgate uOpening/Closing the Power Tailgate*
Controls
Use a forward and back kicking motion under
the center of the rear bumper to open or close
the power tailgate while carrying the smart
entry remote.
u Some exterior lights will flash and a
beeper sounds, then the tailgate begins
to move.
■Using the Hands Free Access*1Using the Hands Free Access*
During rain or in other instances when the vehicle
becomes wet, the sensor may not properly detect
your foot motion.
When performing work on or around the rear section
of the vehicle, you may in advertently open or close
the tailgate.
To prevent this from happe ning, select Customized
Features on the audio/info rmation screen display and
then select OFF for the feature.
2 Customized Features P. 465
If you hold your foot under the bumper for too long,
the power tailgate doe s not open or close.
This function will not opera te if you don’t have the
smart entry remote on you. Please make sure you
have the smart entry remote on you.
The duration of the kick ing motion should be
approximately one second.
* Not available on all models
21 US ODYSSEY-31THR6310.book 175 ページ ２０２０年６月１７日　水曜日　午後２時４６分

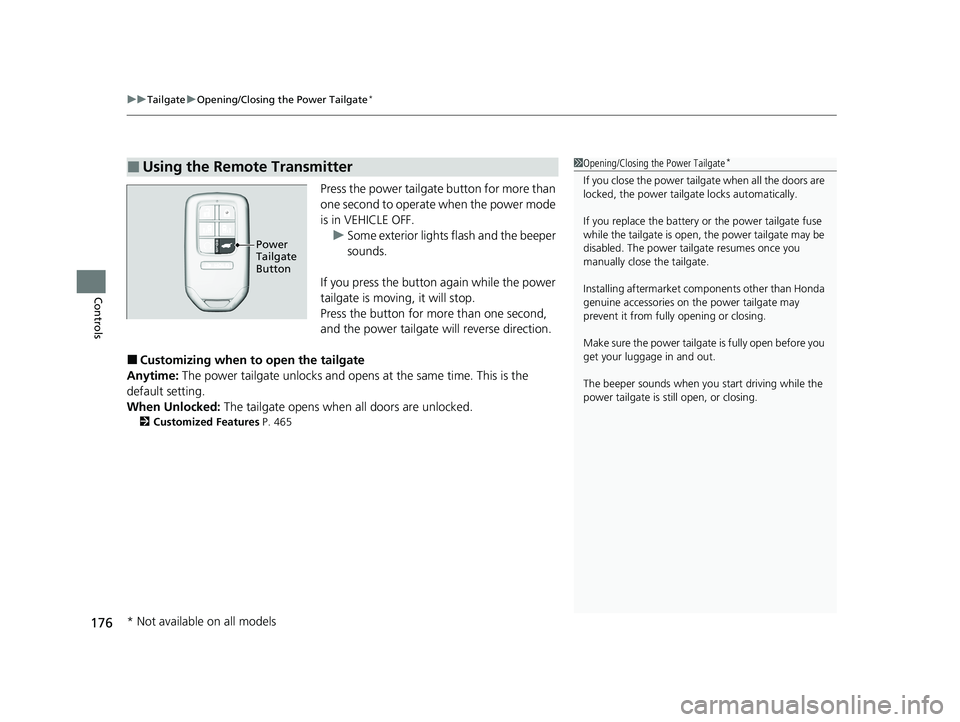

uuTailgate uOpening/Closing the Power Tailgate*
176
Controls
Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF.
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will stop.
Press the button for more than one second,
and the power tailgate will reverse direction.
■Customizing when to open the tailgate
Anytime: The power tailgate unlocks and opens at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.
2Customized Features P. 465
■Using the Remote Transmitter1Opening/Closing the Power Tailgate*
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket com ponents other than Honda
genuine accessories on the power tailgate may
prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your luggage in and out.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
21 US ODYSSEY-31THR6310.book 176 ページ ２０２０年６月１７日　水曜日　午後２時４６分

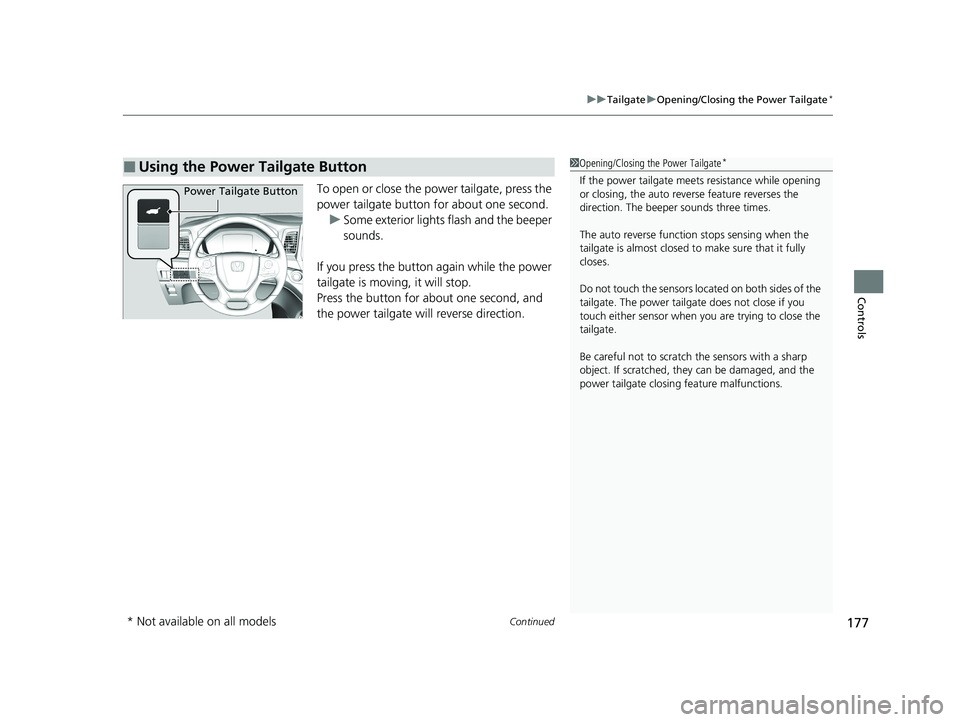

Continued177
uuTailgate uOpening/Closing the Power Tailgate*
Controls
To open or close the power tailgate, press the
power tailgate button for about one second.
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will stop.
Press the button for about one second, and
the power tailgate will reverse direction.
■Using the Power Tailgate Button1 Opening/Closing the Power Tailgate*
If the power tailgate meet s resistance while opening
or closing, the auto reverse feature reverses the
direction. The beeper sounds three times.
The auto reverse function stops sensing when the
tailgate is almost closed to make sure that it fully
closes.
Do not touch the sensors located on both sides of the
tailgate. The power tailga te does not close if you
touch either sensor when you are trying to close the
tailgate.
Be careful not to scratch the sensors with a sharp
object. If scratched, they can be damaged, and the
power tailgate closing feature malfunctions.Power Tailgate Button
* Not available on all models
21 US ODYSSEY-31THR6310.book 177 ページ ２０２０年６月１７日　水曜日　午後２時４６分

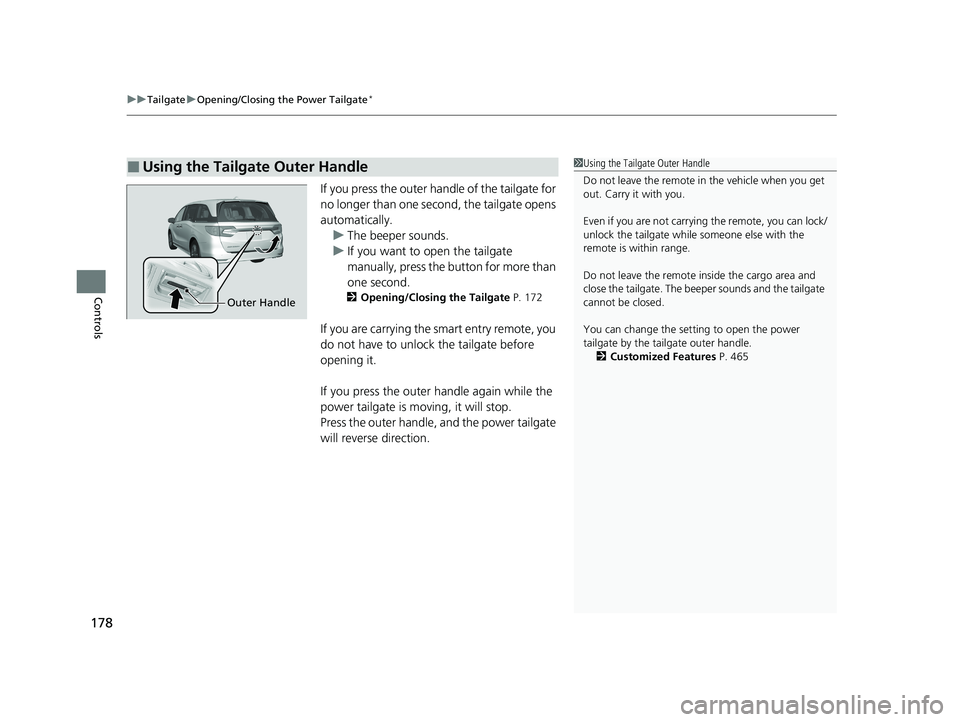

uuTailgate uOpening/Closing the Power Tailgate*
178
Controls
If you press the outer ha ndle of the tailgate for
no longer than one second, the tailgate opens
automatically. u The beeper sounds.
u If you want to open the tailgate
manually, press the button for more than
one second.
2 Opening/Closing the Tailgate P. 172
If you are carrying the smart entry remote, you
do not have to unlock the tailgate before
opening it.
If you press the outer handle again while the
power tailgate is moving, it will stop.
Press the outer handle, and the power tailgate
will reverse direction.
■Using the Tailgate Outer Handle1Using the Tailgate Outer Handle
Do not leave the remote in the vehicle when you get
out. Carry it with you.
Even if you are not carrying the remote, you can lock/
unlock the tailgate while someone else with the
remote is within range.
Do not leave the remote in side the cargo area and
close the tailgate. The beeper sounds and the tailgate
cannot be closed.
You can change the setting to open the power
tailgate by the ta ilgate outer handle.
2 Customized Features P. 465
Outer Handle
21 US ODYSSEY-31THR6310.book 178 ページ ２０２０年６月１７日　水曜日　午後２時４６分
