HONDA PASSPORT 2000 2.G Service Manual

To fasten the belt, insert the latch
plate into the buckle, then tug on
the belt to make sure the buckle is

latched.

To unlock the belt, push the red PRESS button on the buckle.
Guide the belt across your body to
the door pillar. After exiting the
vehicle, be sure the belt is out of
the way and will not get closed in
the door.
All lap/shoulder belts have an emergency locking retractor. In
normal driving, the retractor lets
you move freely in your seat while it keeps some tension on the
belt. During a collision or suddenstop, the retractor automatically
locks the belt to help restrain your

body.

Drive r an d Passenge r Safet y

Additiona
l Informatio n Abou t You r Sea t Belt s
Sea t Bel t Syste m
Component s

Your seat belt system includes
lap/shoulder belts in the front seats and the outer back seats, and
a lap belt in the center back seat.
Lap/Shoulde
r Bel t

This seat-belt has a single belt that
goes over your shoulder, across

your chest, and across your hips.

The system also includes
a light on the instrument
panel to remind you and your
passengers to fasten your belts. If the driver's seat belt is not
fastened before the ignition is turned ON (II), the light will come
on and a beeper will also sound.
The beeper will stop after a few seconds, but the light will stay on
until the driver's seat belt is

fastened.

All the lap/shoulder belts except
the driver's have an additional
locking mechanism that must beactivated to secure a child seat.(See pages 25 and 30 for
instructions on how to secure
child seats with this type of seat

belt.)
If the shoulder part of the belt is

pulled all the way out, the locking
mechanism will activate. The belt

will retract, but it will not allow a

passenger to move freely.

To deactivate the locking

mechanism, unlatch the buckle
and let the seat belt fully retract.

To refasten the belt, pull it out only as far as needed.

See page 13 for instructions on

how to wear the lap/shoulder belt

properly.
La
p Bel t

The lap belt has one manually adjusted belt that fits across the

hips.

To fasten the belt, insert the latch

plate into the buckle marked
CENTER, then tug on the belt to

make sure the buckle is latched.

To unlock the belt, push the red

PRESS button.
See page 14 for how to lengthen
the lap belt, and how to properly
position the belt.

Sea t Bel t Maintenanc e

For safety, you should check the condition of your seat belts
regularly.
Pull each belt out fully and look
for frays, cuts, burns, and wear.
Check that the latches work smoothly and that the lap/shoulder
belts retract easily. Any belt not in good condition or not working
properly will not provide good protection and should be replacedas soon as possible.
Drive r an d Passenge r Safet y

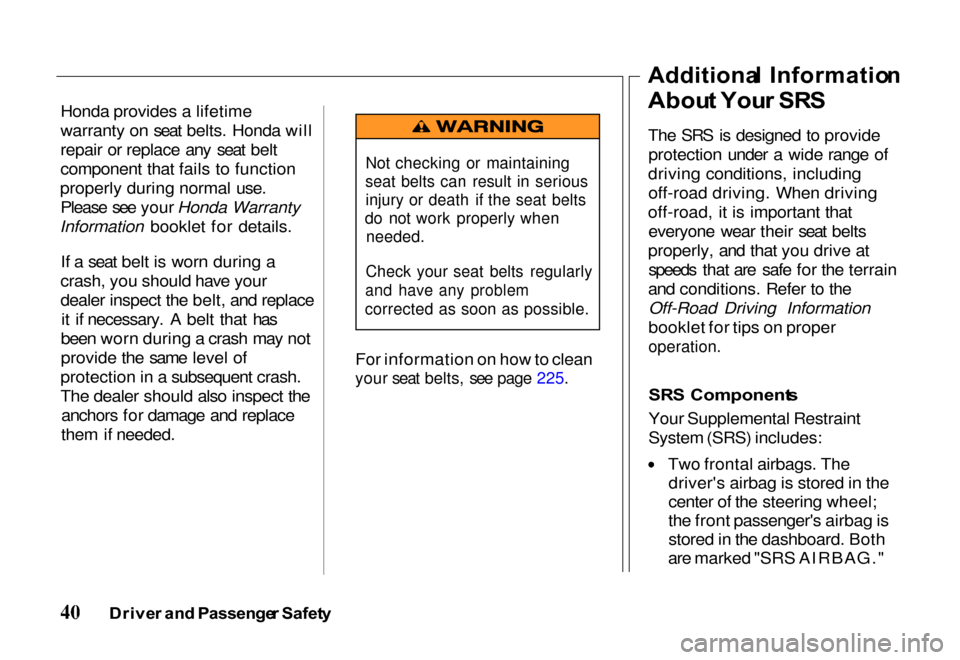

Honda provides a lifetime
warranty on seat belts. Honda will
repair or replace any seat belt
component that fails to function
properly during normal use. Please see your Honda Warranty
Information booklet for details.
If a seat belt is worn during a
crash, you should have your
dealer inspect the belt, and replace it if necessary. A belt that has
been worn during a crash may not
provide the same level of
protection in a subsequent crash.
The dealer should also inspect the anchors for damage and replace
them if needed. For information on how to clean

your seat belts, see page 225.
The SRS is designed to provide
protection under a wide range of
driving conditions, including off-road driving. When driving
off-road, it is important that everyone wear their seat belts
properly, and that you drive at speeds that are safe for the terrain
and conditions. Refer to the Off-Road Driving Information
booklet for tips on proper

operation.

SR S Component s

Your Supplemental Restraint
System (SRS) includes:
Two frontal airbags. Thedriver's airbag is stored in the
center of the steering wheel;
the front passenger's airbag is
stored in the dashboard. Both
are marked "SRS AIRBAG."
Drive r an d Passenge r Safet y
Additiona
l Informatio n

Abou t You r SR S

Not checking or maintaining

seat belts can result in serious injury or death if the seat belts

do not work properly when
needed.

Check your seat belts regularly

and have any problem

corrected as soon as possible.

Sensors that can detect a
moderate to severe frontal

collision.
A sophisticated electronic system that continually
monitors the sensors, control unit, the airbag activators and
all related wiring when the
ignition is ON (II).
An indicator light on the instrument panel to alert you to
a possible problem with the

system (see page 42).
Emergency backup power in
case your vehicle's electrical system is disconnected in a

crash.
Ho
w You r Airbag s Wor k
If you ever have a moderate to severe frontal collision, the
sensors will detect rapid
deceleration and signal the control
unit to instantly inflate the
airbags.
During a crash, your seat belt
helps restrain your lower body and torso. Your airbag provides a
cushion to help restrain and
protect your head and chest.
Since both airbags use the same
sensors, both airbags normally
inflate at the same time. However, it is possible for only one airbag
to inflate.
This can occur when the severity of a collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. Insuch cases, the seat belt will
provide sufficient protection and the supplemental protection
provided by the airbag would be minimal.

Drive r an d Passenge r Safet y

After inflating, the airbags
immediately deflate so they won't
interfere with the driver's
visibility, or the ability to steer or
operate other controls.
The total time for inflation and
deflation is approximately
one-tenth of a second, so fast that most occupants are not aware that
the airbags deployed until they
see them lying in their laps. After a crash, you may see what
looks like smoke. This is actually
powder from the airbag's surface.
Although the powder is not
harmful, people with respiratory problems may experience some
temporary discomfort. If this
occurs, get out of the vehicle as soon as it is safe to do so.
For additional information on how
your airbags work, see the booklet titled SRS: What You Need to
Know About Airbags that came with your owner's manual. Ho
w You r SR S Indicato r

Ligh t Work s

The purpose of the SRS light is to alert you to a
potential problem with your Supplemental Restraint System.
When you turn the ignition ON
(II), this indicator will blink seven
times, then go out. This tells you
that the system is working
properly.
However, if the light comes on at
any other time, you should have
the system checked by your
dealer. For example:
If the SRS indicator light does
not come on after you turn the
ignition ON (II).

Drive r an d Passenge r Safet y
AI
R

BA G

If the light stays on after the
engine starts.
If the light comes on or flashes
on and off while you drive.
If you see any of these
indications, your airbags may not
deploy when you need them. See your Honda dealer as soon as
possible.
SR
S Servic e

Your Supplemental Restraint
System is virtually maintenance-
free, and there are no parts you
can safely service. However, you
must have your vehicle serviced if:
Your airbags ever inflate. The
airbags and control unit must
be replaced. Do not try to
remove or replace the airbags yourself. This must be done by
a Honda dealer or a
knowledgeable body shop.
The SRS indicator light alerts
you to a problem. Take your vehicle to an authorized Honda
dealer as soon as possible. If
you ignore this indication, the
airbags might not inflate when
you need them.
Additiona
l Safet y

Precaution s

Do not attempt to deactivate
your airbags. Together, airbags and seat belts provide the best
protection in a moderate to severe frontal collision.
Do not tamper with SRS components or wiring for any
reason. Tampering could cause
the airbags to deploy, possibly
causing very serious injury.
See page 170 for further information and precautions
relating to your SRS.
Drive r an d Passenge r Safet y
Ignoring the SRS indicator light
can result in serious injury or
death if the airbags do not inflate when needed.
Have your vehicle checked by a
dealer as soon as possible if
the SRS light alerts you to a potential problem.

Carbo
n Monoxid e Hazar d
Your vehicle's exhaust contains
carbon monoxide gas. You should
have no problem with carbon monoxide entering the vehicle in
normal driving if you maintain your vehicle properly. Have theexhaust system inspected for leaks
whenever:
The vehicle is raised for an oil
change.

You notice a change in the
sound of the exhaust.
The vehicle was in an accident that may have damaged the
underside. High levels of carbon monoxide
can collect rapidly in enclosed areas, such as a garage. Do not
run the engine with the garage door closed. Even with the door
open, run the engine only longenough to move the vehicle out of
the garage.
With the tailgate glass open, air
flow can pull exhaust gas into theinterior. This can create a
hazardous condition. If you must drive with the tailgate glass open,
open all the windows and set the
heating and cooling system asshown below.
If you must sit in your parked
vehicle, even in an unconfined
area, with the engine running, adjust the heating and cooling
system as follows: 1. Slide the lever to
2. Turn the dial to mode.
3. Turn the fan on high speed.
4. Set the temperature control to a comfortable setting.
Driver an d Passenge r Safet y

Carbon monoxid
e gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.

Avoid any enclosed areas or

activities that expose you to

carbon monoxide.

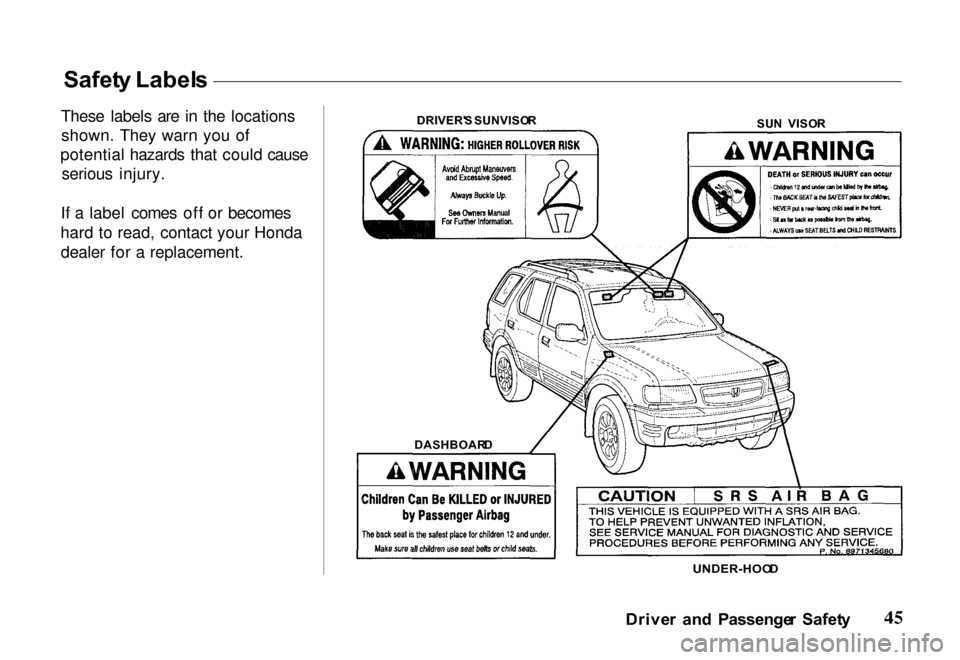

Safet
y Label s
These labels are in the locations shown. They warn you of
potential hazards that could cause serious injury.
If a label comes off or becomes
hard to read, contact your Honda dealer for a replacement.
Drive r an d Passenge r Safet y

DRIVER' S SUNVISO R
SUN
VISO
R
DASHBOAR D

UNDER-HOOD

46

Of
f to a Goo d Star t

To make it easier for you to enjoyyour new Passport, we've
gathered together the bits and
pieces of information that will get you "off to a good start." Eachitem in this section refers you to a
page of the manual for detailed instructions on that aspect of
vehicle operation. While you should take the time to become
familiar with all the information in this manual, we hope that thissection saves some time in getting
you safely behind the wheel.
Seats .................... 48

Interior .................. 49
Engine Compartment ....... 51
Off t o a Goo d Star t
