The needle may move during
turning, stopping and

acceleration.

Fue l Doo r

This is a reminder that the fuel fill door is on the left side of the
vehicle. Always park with that side closest to the service station
pumps.
Engin
e Coolan t

Temperatur e Gaug e

When the key is in the "ON"
position, the engine coolant temperature gauge indicates the
temperature of the engine coolant.
The letters "C" and "H" on the gauge represent "Cold" and
"Hot," respectively. The gray area indicates the
normal engine coolant

temperature.

If the pointer reaches the "H"
mark, pull safely to the side of the
road. Turn to page 213 for instructions and precautions on
checking the engine's cooling
system.

Driving with the temperature gauge pointer at "H" can causeserious damage to the engine.

Instrument s an d Control s
NOTIC
E

NORMA
L
RANG E OVERHEATIN
G

Indicato
r Light s

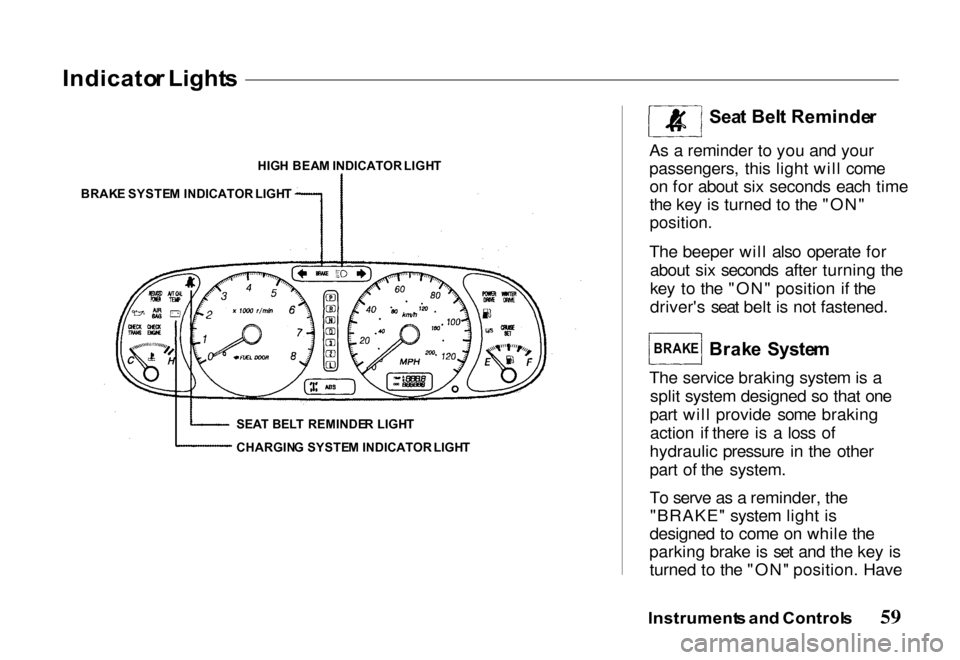

SEA T BEL T REMINDE R LIGH T Sea
t Bel t Reminde r

As a reminder to you and your
passengers, this light will come on for about six seconds each time
the key is turned to the "ON"

position.

The beeper will also operate for about six seconds after turning the
key to the "ON" position if the
driver's seat belt is not fastened.

Brake Syste m

The service braking system is a split system designed so that one
part will provide some braking action if there is a loss of
hydraulic pressure in the other
part of the system.
To serve as a reminder, the "BRAKE" system light is
designed to come on while the
parking brake is set and the key is turned to the "ON" position. Have
Instrument s an d Control s

BRAK
E

HIG
H BEA M INDICATOR LIGHT
BRAK E SYSTE M INDICATOR LIGHT
CHARGIN G SYSTE M INDICATOR LIGHT

the system repaired if the light
does not come on when the key is
turned to the "ON" position
without the engine running or
when the parking brake is set.
This light does not eliminate the need for brake inspection and
maintenance. The brake fluid
level must be checked regularly.See the maintenance section of
this manual for other brake
checks.
If the light remains on after
engine start up with the parking
brake released, or comes on during operation of the vehicle, it
may mean that there is something
wrong with the brake system.

What to do?1. Check to see if the parking
brake has been fully released.
2. If it has, pull off the road and
stop carefully. Remember that: Stopping distances may be
longer.
You may have to push
harder on the pedal. The pedal may go down
farther than normal.
3. Have the vehicle towed to the nearest Honda dealer for
repair.
Do not continue to drive with the
brake system light on. There may
be a serious problem with the braking system. Driving under
this condition is hazardous and
could lead to an accident.
The brake system light does not indicate that the parking brake is
fully set. When applying the
parking brake, always pull it up as
far as possible. Hig
h Bea m
The headlight high beam indicator
lights up when the headlights are
on high beam.

Chargin g Syste m

This light should come on when
the key is turned to the "ON"
position and the alternator is not
charging. The light may stay on at
engine idle; however, it should go off and stay off above the normal
engine idle speed. If the light
comes on while driving, the
charging system should be
checked at once so the battery will
not completely discharge. Stop the engine, and check for a broken
drive belt. If it is broken, or if the
drive belt is not responsible for the trouble, have your Honda
dealer inspect and correct the
fault. If the drive belt is broken,

Instrument s an d Control s

LO
W
OI L

PRESSUR E
INDICATO R TUR
N SIGNA L INDICATOR S
MALFUNCTIO N
INDICATO R
overheating of the engine could
result. Have the system checked as soon as possible.

Malfunctio n Indicato r

Lam p

The indicator light should turn on when the key is turned to the
"ON" position, but should go out
after the engine is started. (The
light will stay on a short time afterthe engine starts.) If the light stays
on, or comes on while driving, it indicates a problem in the engine
emissions control system. Have your Honda dealer inspect thesystem and correct the problem. If
this indicator starts flashing as
you drive, engine misfiring has
been detected. Misfiring can
damage the catalytic converter and the engine. Stop as soon as it
is safe, turn off the engine, and
call for assistance.
Instrument s an d Control s

LO
W FUE L
INDICATO R

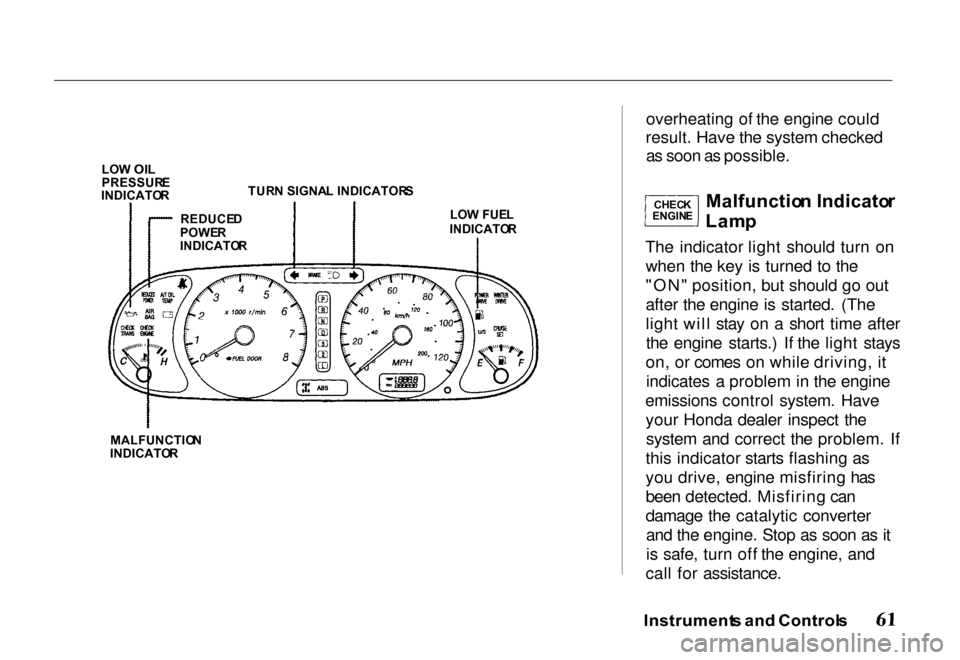

REDUCE
D
POWE R
INDICATO R CHEC
K
ENGIN E

If you keep driving with the
malfunction indicator lamp on,
you can damage your vehicle's emissions controls and engine.Those repairs may not be covered
by your vehicle's warranties.

Reduce d Powe r
Indicato r

This light comes on for a few seconds when you turn the key to

the "ON" position

If it comes on at any other time, it

indicates that there is a problem in
the throttle "drive-by-wire"
system. With the light on, your

vehicle goes into "limp home"

mode — the engine runs on three

cylinders, and the accelerator

pedal no longer controls engine
speed.
As soon as it is safe, pull off the
road and turn off the engine.
Restart the engine to reset the
system. If the light remains on, or
comes on again while driving, have the vehicle towed to your
Honda dealer for repair.

Turn Signa l

Indicator s

A green light flashing on the instrument panel lets you know
that the front and rear turn signal lights are working. If the light
stays on and does not flash, check
for a burned out bulb. If there is no light when the lever is moved,check the fuse and bulb.
Whenever the Hazard Warning
Flasher Switch is on, both turn signals will flash.
Lo
w Fue l Indicato r

This light comes on when the tank
becomes nearly empty. Fill up the tank as soon as possible.
If the low fuel indicator light
comes on when the fuel tank is
not nearly empty, have the fuel
tank sensing unit and related
components inspected and
repaired by your Honda dealer.
Driving on a road with many
sharp curves may cause the fuel
indicator light to blink
intermittently. This is normal.
Low Oi l

Pressur e Indicato r

This light is designed to come on
to provide a "bulb check" when
the key is turned to the "ON"
position, but should go out after
Instrument s an d Control s
NOTIC
E
REDUCEDPOWER

the engine is started. If the light
fails to come on with the key
turned to the "ON" position, it
could indicate a burned out bulb
or a blown fuse. Have the system
repaired if the light does not come on when checking.
Occasionally, this light may
flicker momentarily while the
engine is running, but this will not
harm the system. However, if the light remains on during normal
engine operation, the engine should be stopped until the cause
of the trouble can be located and
corrected. The source of the
trouble could be either of the
following: Low engine oil level

Loss of engine oil pressure
Running the engine with low oil
pressure can cause serious mechanical damage almostimmediately. Turn off the engine
as soon as you can safely get the
vehicle stopped.

Instruments an d Control s

NOTIC
E

Automati
c Transmissio n

4-WHEE L DRIV E (4WD )
INDICATO R LIGH T
ANTI-LOC
K BRAK E SYSTE M
INDICATO R

Manua l Transmissio n
UPSHIFT INDICATO R LIGH T
Upshif
t Indicato r
Manual transmission only A "U/S" (upshift) light will come
on to indicate that you can get
better fuel economy by shifting to
the next higher gear if conditions
permit. Best fuel economy can be achieved by accelerating slowly
and shifting to the next higher gear
when the "U/S" light comes on.
Safe operation of the vehicle may
require a different shifting schedule than indicated by the
"U/S" light to adapt to weather,
road, or traffic conditions. The
"U/S" light should be ignored when downshifting or when hard
acceleration is required for satisfactory performance.
For the best compromise between
vehicle performance and fuel
economy, upshift the transmission

Instrument s an d Control s
U/S

as indicated by the "U/S" (upshift)
light on the instrument panel.
If vehicle speed drops below
20 mph (30 km/h), or if the
engine is not running smoothly,
you should downshift to the next lower gear. You may need to
downshift two or more gears to
keep the engine running smoothly or for satisfactory performance.
This indicator comes on for a fewseconds when you turn the
ignition switch to the "ON"
position. 4-Whee
l Driv e
(4WD ) Indicato r

4WD models only

This indicator lights when the 4-Wheel Drive system is engaged.
With the 4WD-2WD switch in the "OFF" or 2WD position, this light
will come on to provide a "bulb
check" when the key is turned to the "ON" position, but should go
out after the engine is started.
If the 4WD-2WD switch is in the "ON" or 4WD position, this light
will come on when the key is
turned to the "ON" position and
remain on after the engine is
started.
Anti-Loc
k Indicato r
This light will come on and go out when the ignition switch is turned
to the "ON" position. (If the light
does not come on, see your Honda
dealer to have the system

repaired.)

If the light remains on after
engine start-up or comes on
during operation of the vehicle, stop as soon as possible and turn
the key off. Then start the engine
to reset the system. If the light stays on, or it comes on again
while you're driving, the anti-lock
brake system should be checked at your Honda dealer.
Until you get it fixed, you'll have
normal brakes, but you won't
have anti-lock.
Instrument s an d Control s

AB
S

Chec
k Automati c

Transmissio n Indicato r

The indicator light comes on for a
few seconds when the ignition
switch is turned to the "ON"

position.
If the light flashes, it means the
computer controlling the
transmission has found a problem.
Have the automatic transmission checked by your Honda dealer as
soon as possible. You can safely
drive the vehicle while the light is
flashing, but the computer may
put the transmission into its "backup mode."
In the backup mode, the
transmission may not shiftautomatically. If the transmission
does not shift automatically, you must move the shift lever to
change gears. This chart shows the shift lever position and the
gear range that will result. "L" position First gear
"2" position Third gear
"3" position Fourth gear
"D" position Fourth gear
When the transmission is in
backup mode and does not shift
automatically, you should move

the selector lever to the
appropriate position for your

driving needs, as follows:

Select "3" or "D" for high speed

driving (over 50 mph, 80 km/h).

Select "2" for moderate speed
driving (between 15 mph [25

km/h] and 50 mph [80 km/h]).

Select "L" when starting from a

stop, driving up or down a steep

hill, or for engine braking when
towing a trailer downhill.

Do not exceed 65 mph (45 mph if

towing a trailer).

Instrument s an d Control s

Depending on the type of problem,
the "CHECK TRANS" light will
flash but the transmission may continue to shift automatically. If
the transmission is shifting
normally, you do not have tochoose gears with the shift lever.
However, continued operation of the vehicle with this light flashingcan cause serious mechanical
damage. You should have the vehicle serviced by your Honda
dealer as soon as possible.
Winte r Driv e Indicato r
Automatic Transmission only

The "Winter Drive" light will

come on when you push the

Winter Drive button with the
engine running and the
transmission lever in the "D"

range.
It also comes on for a few seconds
when you turn the ignition switch
to the "ON" position.
Refer to "Driving PatternSelector" later in this section.
Powe r Driv e Indicato r
Automatic Transmission only
The "Power Drive" light will

come on when you push the
Power Drive button with the
engine running.
It also comes on for a few seconds
when you turn the ignition switch
to the "ON" position.
Refer to "Driving PatternSelector" later in this section.
Instrument s an d Control s

NOTIC
E
