39
uuMap and Vehicle uMap Updates
System Setup

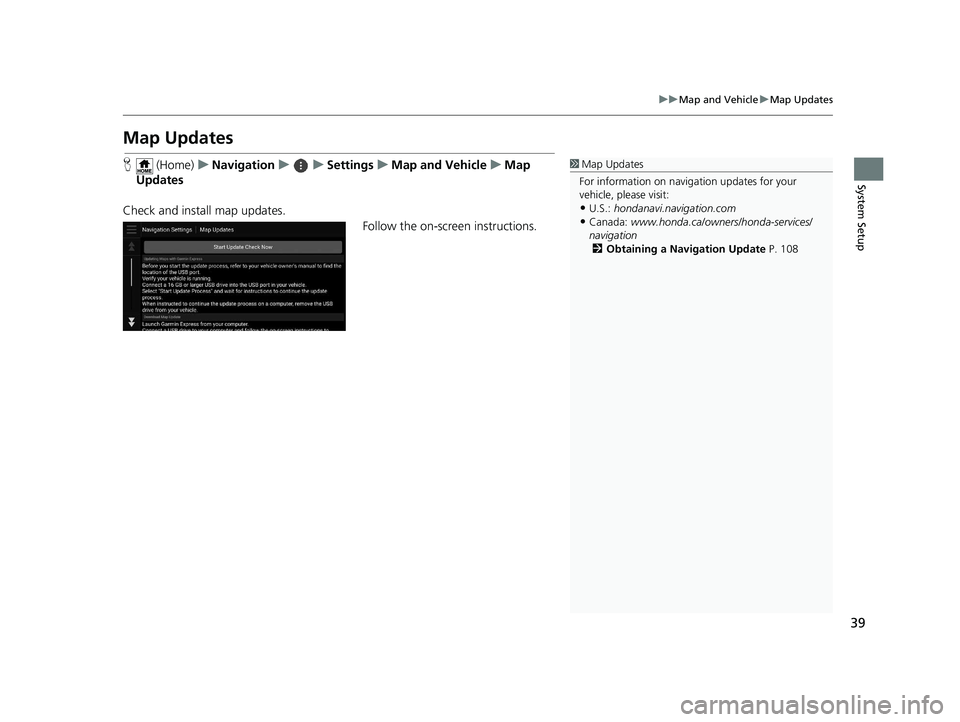

Map Updates
H (Home) uNavigation uuSettings uMap and Vehicle uMap
Updates
Check and install map updates. Follow the on-screen instructions.1Map Updates
For information on navigation updates for your
vehicle, please visit:
•U.S.: hondanavi.navigation.com
•Canada: www.honda.ca/owners/honda-services/
navigation 2 Obtaining a Navigation Update P. 108
19 PILOT NAVI-31TG78300.book 39 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

40
System Setup
Navigation
H (Home) uNavigation uuSettings uNavigation
Changes the navigation settings.
The following options are available:
• Calculation Mode : Sets route preference.
2Calculation Mode P. 41
•Avoidances : Sets road features to avoid on a route.
2Avoidances P. 42
•Custom Avoidances : Allows you to avoid sp ecific roads or areas.
2Custom Avoidances P. 43
•Satellite Status : Displays the satellite' status.
2Satellite Status P. 47
•GPS Simulator : Stops the system from receiving a GPS signal.
1Navigation
GPS Simulator is set to off as factory default.
You can access the naviga tion settings from any
screen includes the options menu icon.
Select to open the options menu, and then select
Navigation Settings .
19 PILOT NAVI-31TG78300.book 40 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

41
uuNavigation uCalculation Mode
System Setup

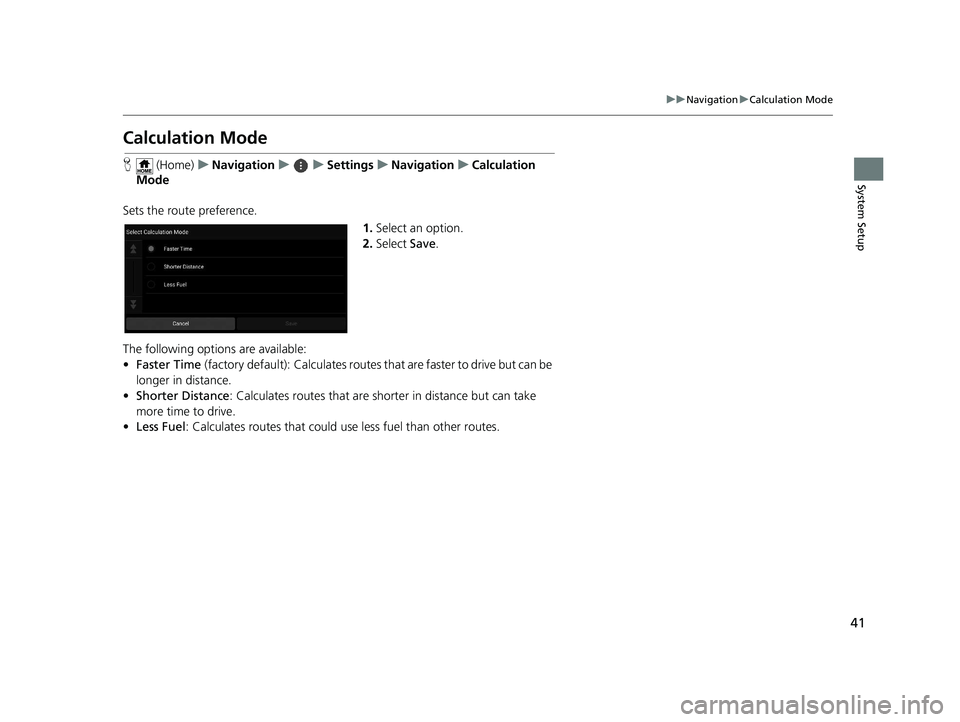

Calculation Mode
H (Home) uNavigation uuSettings uNavigation uCalculation
Mode
Sets the route preference. 1.Select an option.
2. Select Save.
The following options are available:
• Faster Time (factory default): Calculates routes that are faster to drive but can be
longer in distance.
• Shorter Distance : Calculates routes that are shorter in distance but can take
more time to drive.
• Less Fuel : Calculates routes that could us e less fuel than other routes.
19 PILOT NAVI-31TG78300.book 41 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

42
uuNavigation uAvoidances
System Setup

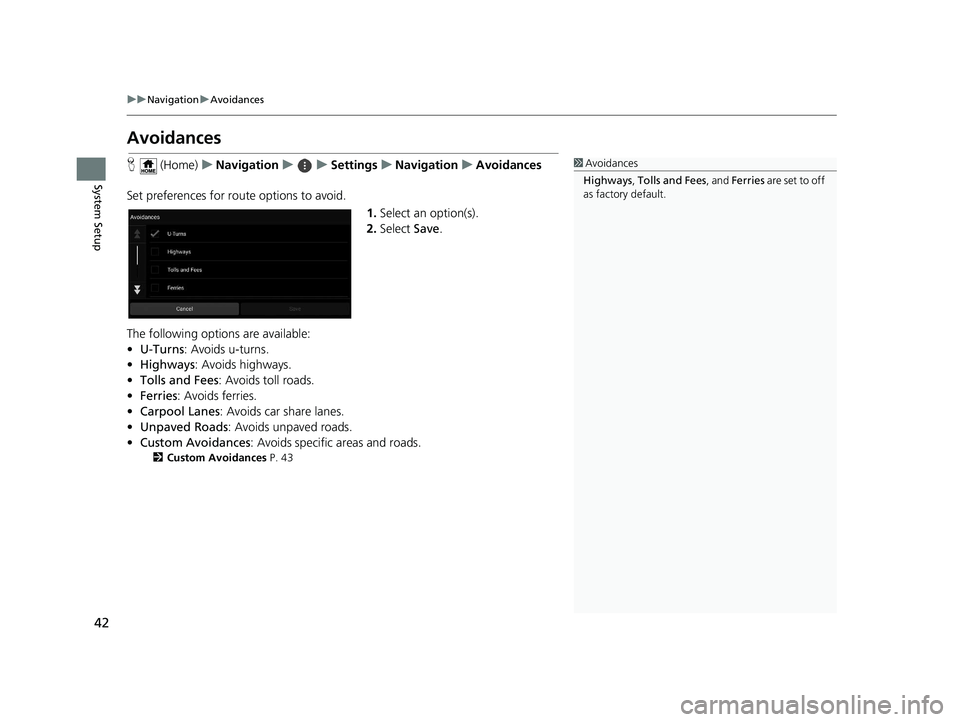

Avoidances
H (Home) uNavigation uuSettings uNavigation uAvoidances
Set preferences for route options to avoid. 1.Select an option(s).
2. Select Save.
The following options are available:
• U-Turns : Avoids u-turns.
• Highways : Avoids highways.
• Tolls and Fees : Avoids toll roads.
• Ferries : Avoids ferries.
• Carpool Lanes : Avoids car share lanes.
• Unpaved Roads : Avoids unpaved roads.
• Custom Avoidances : Avoids specific areas and roads.
2Custom Avoidances P. 43
1Avoidances
Highways , Tolls and Fees , and Ferries are set to off
as factory default.
19 PILOT NAVI-31TG78300.book 42 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

43
uuNavigation uCustom Avoidances
Continued
System Setup

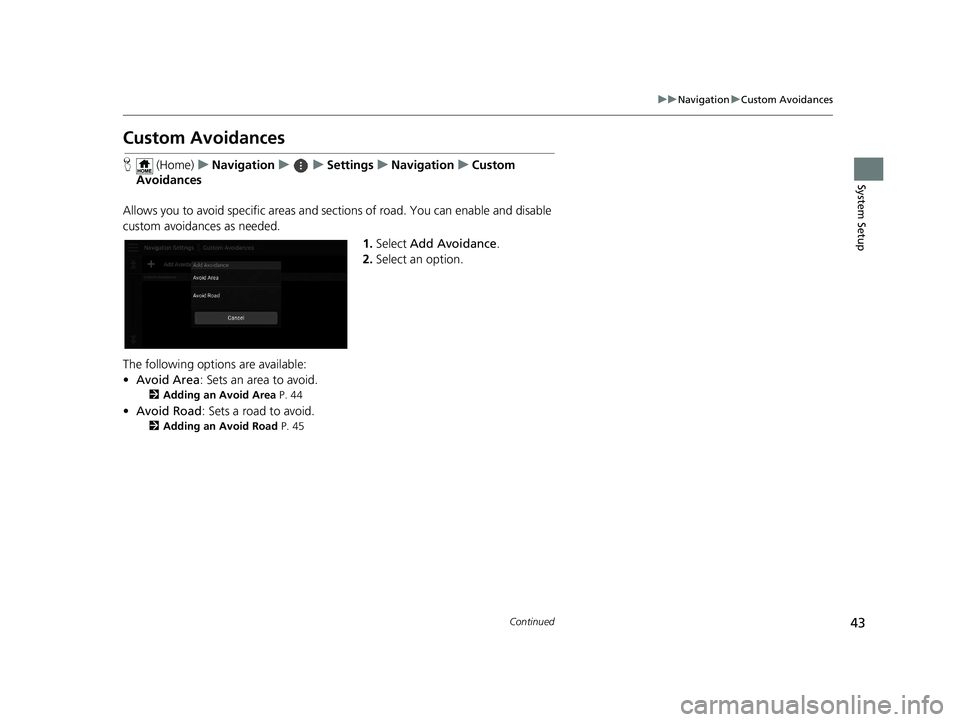

Custom Avoidances
H (Home) uNavigation uuSettings uNavigation uCustom
Avoidances
Allows you to avoid specific areas and sect ions of road. You can enable and disable
custom avoidances as needed.
1.Select Add Avoidance .
2. Select an option.
The following options are available:
• Avoid Area : Sets an area to avoid.
2Adding an Avoid Area P. 44
•Avoid Road : Sets a road to avoid.
2Adding an Avoid Road P. 45
19 PILOT NAVI-31TG78300.book 43 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

44
uuNavigation uCustom Avoidances
System SetupH (Home) uNavigation uuSettings uNavigation uCustom
Avoidances uAdd Avoidance uAvoid Area
1.Select the upper-right (left) corner
of the area to avoid. Select Next.
u The icon is displayed on the
map.
2. Select the lower-left (right) corner
of the area to avoid. Select Next.
3. Select Done.

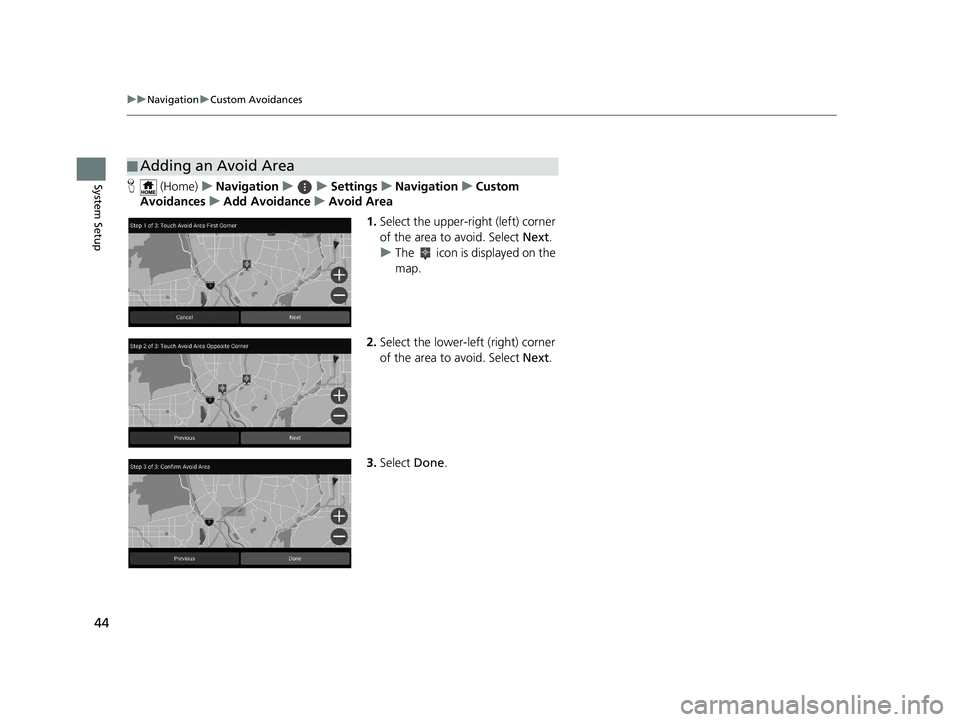

■Adding an Avoid Area
19 PILOT NAVI-31TG78300.book 44 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

45
uuNavigation uCustom Avoidances
Continued
System SetupH (Home) uNavigation uuSettings uNavigation uCustom
Avoidances uAdd Avoidance uAvoid Road
1.Select the starting point of the
section of road to avoid. Select
Next .
u The icon is displayed on the
map.
2. Select the ending point of the road
section. Select Next.
3. Select Done.

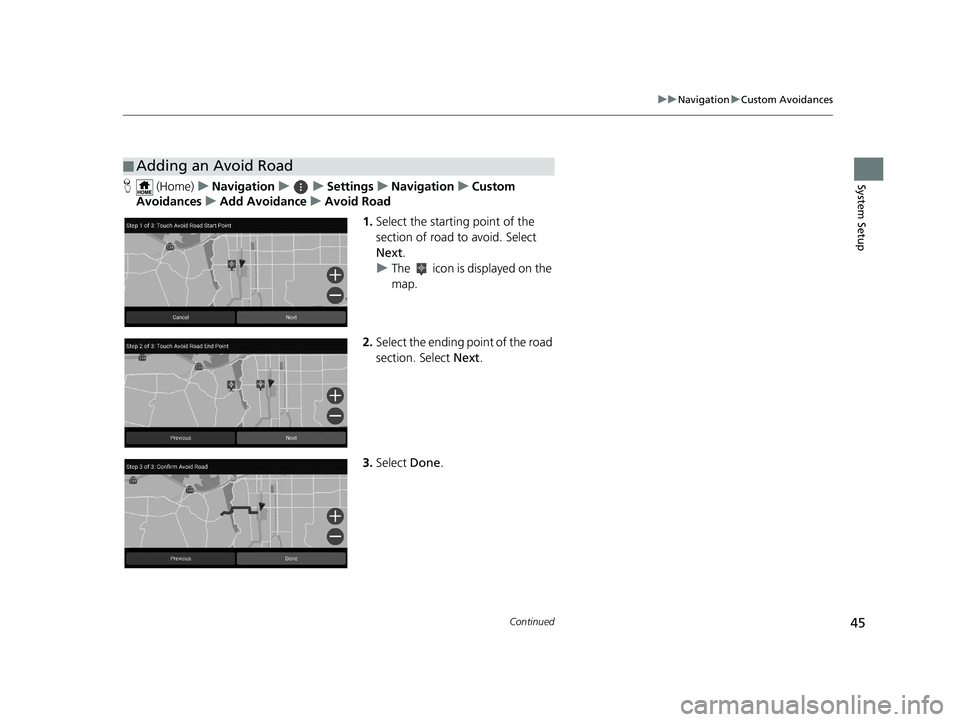

■Adding an Avoid Road
19 PILOT NAVI-31TG78300.book 45 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

46
uuNavigation uCustom Avoidances
System SetupH (Home) uNavigation uuSettings uNavigation uCustom
Avoidances
1.Select the area or road to edit
from the list.
2. Select an item.
The following items are available:
• Enable : Sets whether to enable the avoidance.
• Rename : Enters a new name.
• Delete: Deletes a selected area or road.

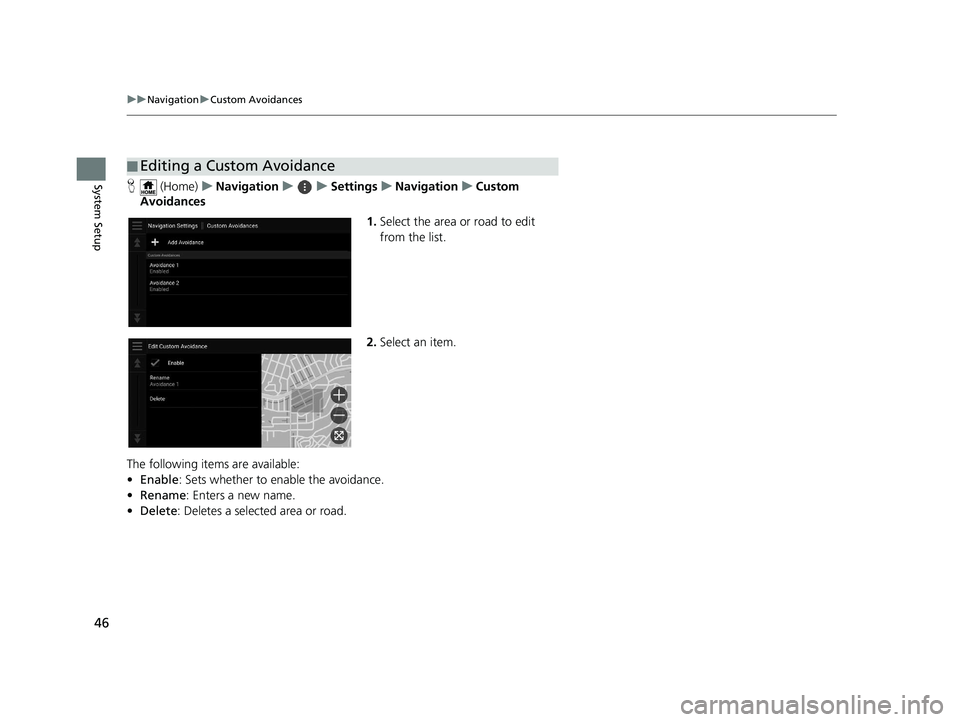

■Editing a Custom Avoidance
19 PILOT NAVI-31TG78300.book 46 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

47
uuNavigation uSatellite Status
System Setup
Satellite Status
H (Home) uNavigation uuSettings uNavigation uSatellite
Status
View the satellites’ status.
19 PILOT NAVI-31TG78300.book 47 ページ ２０１８年５月２４日　木曜日　午前１０時５２分

48
System Setup

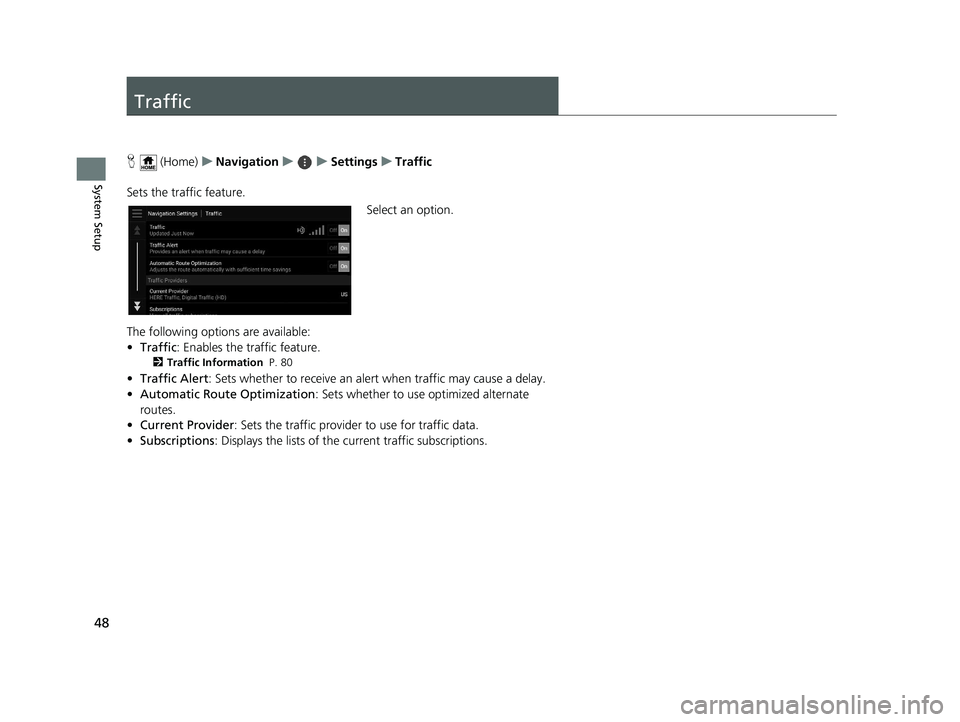

Traffic
H (Home) uNavigation uuSettings uTraffic
Sets the traffic feature. Select an option.
The following options are available:
• Traffic : Enables the traffic feature.
2Traffic Information P. 80
•Traffic Alert : Sets whether to receive an alert when traffic may cause a delay.
• Automatic Route Optimization : Sets whether to use optimized alternate
routes.
• Current Provider : Sets the traffic provider to use for traffic data.
• Subscriptions : Displays the lists of the current traffic subscriptions.
