HONDA PILOT 2003 1.G Owners Manual

When the seat-back is returned to its
upright position, be sure to latch the
detachable anchor by lining up the
triangle marks on the small latch
plate and buckle and inserting the
plate into the buckle. Tug on the seat
belt to make sure the detachable
anchor is securely attached.
To unlatch the detachable anchor
before folding down a seat-back,
insert a key into the slot on the side
of the small buckle and allow the
seat belt to retract.
Once the seat belt has completely
retracted, secure the latch plates. In
the second row, the latch plates
should be placed into their holding
slots in the ceiling. In the third row,
the small latch plate should be
clipped to the seat belt webbing.
The seat belts in the center seat of
thesecondrowandinallof thethird
row seats are equipped with a
detachable seat belt anchor that
allows the seat belt to be unlatched
when the seats are f olded down.
CONT INUED
Detachable A nchors
Seats
Inst rument s and Cont rols97
SMALL LATCH PLATE
TRIANGULAR MARK
Using a seat belt with the
detachable anchor unlatched
increases the chance of serious
injury or death in a crash.
Before using the seat belt,
make sure the detachable
anchor is correctly latched.

Follow these precautions whenever
you use the seat heaters:Use the HI setting only to heat the
seats quickly. Select the LO
setting when the seats f eel warm.
The HI setting draws large
amounts of current f rom the
battery.
Do not use the seat heaters, even
on the LO setting, if the engine is
lef t idling f or an extended period.
They can weaken the battery,
causing hard starting.
The HI or LO indicator lights and
remains lit until you turn it of f by
pushing the opposite side of the
switch lightly. The indicator will turn
off.
In HI, the heater turns of f when the
seat gets warm, and turns back on
after the seat’s temperature drops. It
continues to cycle as long as you
leave it set on HI. The HI indicator
remains lit as a reminder that you
have the heater on.
In LO, the heater runs continuously.
It does not cycle with temperature
changes.
Because of the sensors f or the side
airbag system, there is no heater in
the passenger’s seat-back.
Both f ront seats are equipped with
seat heaters. The ignition switch
must be ON (II) to use them. Push
the front of the switch, HI, to rapidly
heat up the seat. After the seat
reaches a comf ortable temperature,
select LO by pushing the back of the
switch. This will keep the seat warm.On Canadian EX model with leather
seats
Seat Heaters
Inst rument s and Cont rols98
SEAT HEATERS

Your vehicle’s windows are
electrically-powered. Turn the
ignition switch to ON (II) to raise or
lower any window.Each door has a switch that controls
its window. To open the window,
push the switch down and hold it.
Release the switch when you want
the window to stop. Close the
window by pulling back on the
switch and holding it.The driver’s door armrest has a
master power window control panel.
To open any of the passenger’s
windows, push down on the switch
and hold it down until the window
reaches the desired position. To
close the window, pull back on the
window switch. Release the switch
when the window gets to the position
you want.
CONT INUED
Power Windows
Inst rument s and Cont rols99
DRIVER’S WINDOW
SWITCH
MAIN SWITCH

µ
The master control panel also con-
tains these extra features:
To open the driver’s
window f ully, push the window
switch f irmly down and release it.
The window automatically goes all
the way down. To stop the window
f rom going all the way down, pull
back on the window switch brief ly. The MAIN switch controls power to
the f ront passenger’s window and
the rear power windows. With this
switch of f , the passenger’s windows
cannot be raised or lowered. The
MAIN switch does not af f ect the
driver’s window. Keep the MAIN
switch of f when you have children in
the vehicle so they do not injure
themselves by operating the
windows unintentionally.
To close the driver’s window f ully,
pull back the window switch f irmly,
then release it. The window
automatically goes all the way up. To
stop the window f rom going all the
way up, push down on the window
switch brief ly.
To open or close the driver’s window
partially, push down or pull back on
the window switch lightly and hold it.
The window will stop when you
release the switch. AUTO
Power Windows
Inst rument s and Cont rols100
Closing a power window on
someone’s hands or fingers can
cause serious injury.
Make sure your passengers are
away from the windows before
closing them.

The power window system has a key-
of f delay f unction. The windows will
stilloperateforuptotenminutes
after you turn off the ignition.
Opening either f ront door cancels
the delay function. You must turn
the ignition switch ON (II) again
bef ore you can operate the windows.
If the driver’s window runs into any
obstacle while it is closing
automatically, it will reverse
direction, and then stop. To close the
window, remove the obstacle, then
use the window switch again.
Auto reverse stops sensing when the
window is almost closed. You should
always check that all passengers and
objects are away from the window
bef ore closing it. If your vehicle’s battery is
disconnected or goes dead, or the
driver’s window f use is removed, the
AUTO f unction will be disabled. The
power window system needs to be
reset af ter reconnecting the battery
or installing the f use. You should do
the f ollowing.
Start the engine. Push down on
the driver’s window switch until
the window is f ully open.
Pull back on the driver’s window
switch to close the window
completely, then hold the switch
f or a second or two more.
If the power windows do not operate
properly af ter resetting, have your
vehicle checked by a Honda dealer. 1.
2.
Power Windows
Inst rument s and Cont rols
Auto Reverse
101

Keeptheinsideandoutsidemirrors
clean and adjusted f or best visibility.
Be sure to adjust the mirrors bef ore
you start driving.The inside mirror has day and night
positions. The night position reduces
glare f rom headlights behind you.
Flip the tab on the bottom edge of
the mirror to select the day or night
position.
Mirrors
Inst rument s and Cont rols102
TAB

Turn the ignition switch ON (II).
Move the selector switch to L
(driver’s side) or R (passenger’s
side).Push the appropriate edge of the
adjustment switch to move the
mirrorright,left,up,ordown.
When you f inish, move the
selector switch to the center (off)
position. This turns of f the
adjustment switch so you can’t
move a mirror out of position by
accidentally bumping the switch.
Adjust the outside mirrors with the
adjustment switch on the driver’s
door armrest:
The outside mirrors are heated to re-
move fog and frost. With the ignition
switchON(II),turnontheheaters
by pressing the button. The light in
the button comes on as a reminder.
Press the button again to turn the
heaters of f .
1.
2. 3.
4.
Available on Canadian models
Adjusting the Power Mirrors
Mirrors
Inst rument s and Cont rols103
HEATED MIRROR BUTTON
SELECTOR SWITCH ADJUSTMENT SWITCH

To apply the parking brake, push the
parking brake pedal down with your
f oot. To release the parking brake,
push on the pedal again. The parking
brake light on the instrument panel
should go out when the parking
brake is f ully released with the
engine running. (see page .)63
Inst rument s and Cont rols
Parking Brake
104
PARKING BRAKE PEDAL
Driving the vehicle with the parking
brake applied can damage the rear
brakes and axles.

Spilled liquids can also damage the
upholstery, carpeting, and electrical
components in the interior. Be caref ul when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your

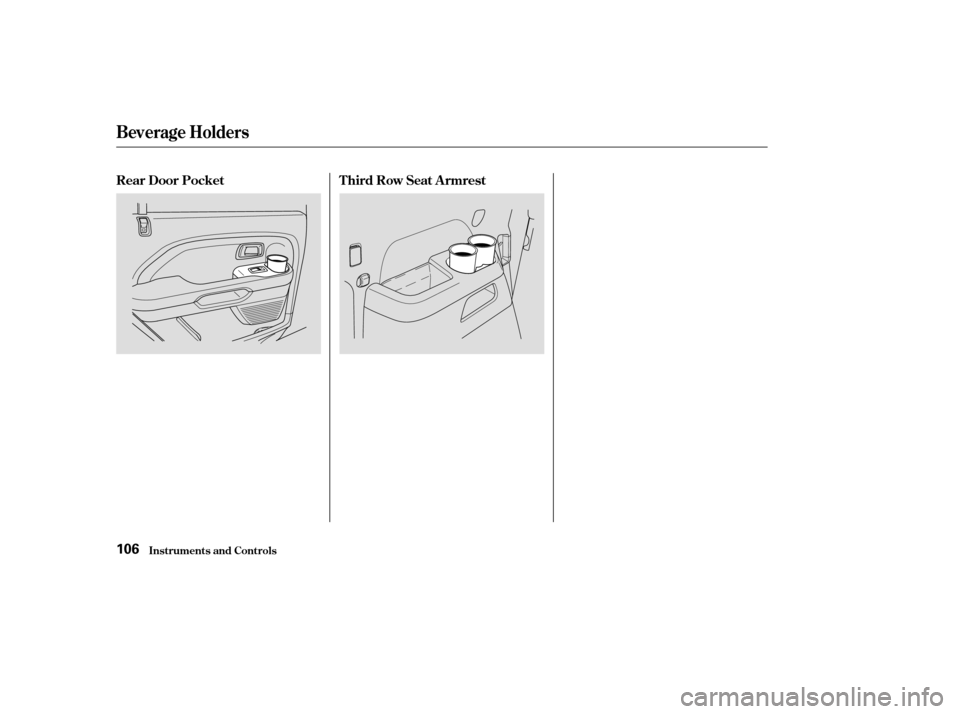

passengers. Liquid can also spill
f rom the rear door pocket beverage
holders when you close the rear
doors. Use only resealable
containers in the door pockets.

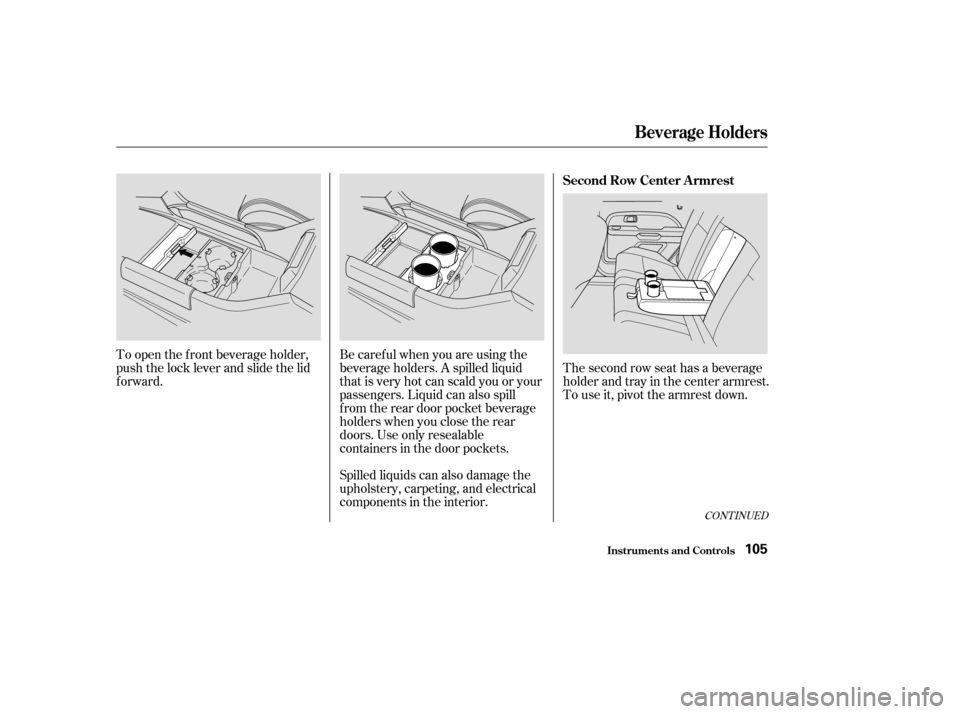

To open the f ront beverage holder,
push the lock lever and slide the lid
forward.
The second row seat has a beverage
holder and tray in the center armrest.
To use it, pivot the armrest down.
CONT INUED
Beverage Holders
Inst rument s and Cont rols
Second Row Center A rmrest
105

Inst rument s and Cont rols
Third Row Seat Armrest
Rear Door Pocket
Beverage Holders
106
