HONDA PILOT 2003 1.G Owners Manual

Your vehicle also has a rear A/C unit
that allows the rear passengers to
adjust the heating, cooling, and f an
speed. See page f or operation of
the rear A/C unit.To shut of f the system temporarily,
turn the fan speed and temperature
control dials all the way to the lef t.
You should shut the system
completely of f only f or the f irst f ew
minutes of driving in cold weather,
until the engine coolant warms up
enough to operate the heater. Keep
the fan on at all other times so stale
air does not build up in the interior.
136
Rear A/C Unit
To Turn Everything Of f
Heating and Cooling
Comf ort and Convenience Feat ures127

The automatic climate control
system in your Honda picks the
proper combination of air condi-
tioning, heating, and ventilation to
maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.
Your vehicle also has a rear A/C unit
that allows the rear passengers to
adjust the heating, cooling, and air
f low (see page ).

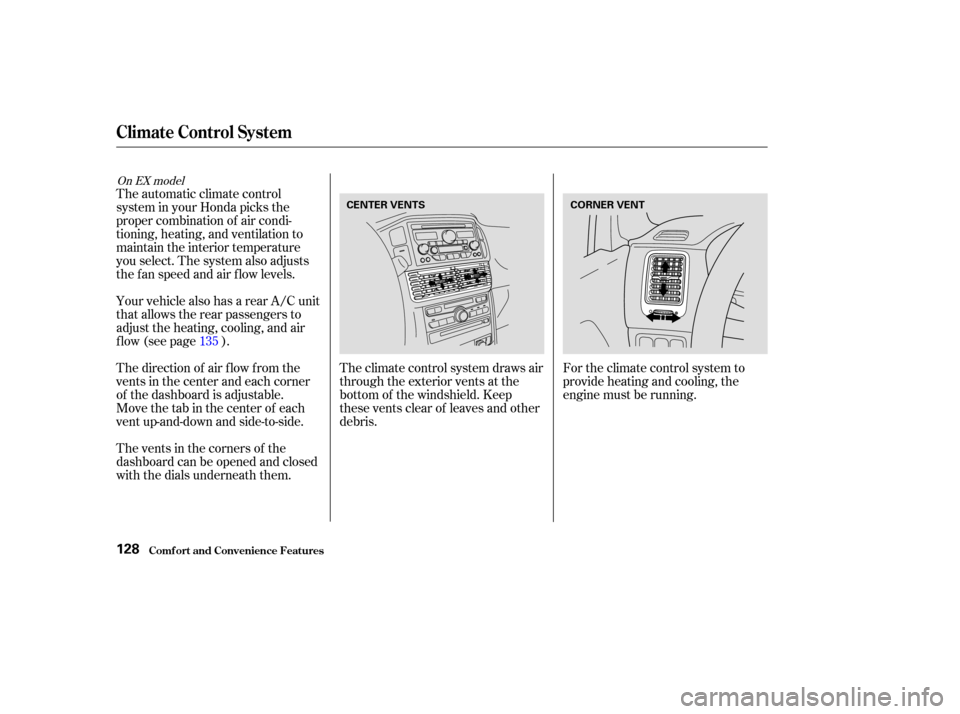

The vents in the corners of the
dashboard can be opened and closed
with the dials underneath them. The direction of air f low f rom the
vents in the center and each corner
of the dashboard is adjustable.
Move the tab in the center of each
vent up-and-down and side-to-side.The climate control system draws air
through the exterior vents at the
bottom of the windshield. Keep
these vents clear of leaves and other
debris.For the climate control system to
provide heating and cooling, the
engine must be running.
135
On EX model
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
128
CENTER VENTS
CORNER VENT

Climat e Cont rol Syst em
Comf ort and Convenience Feat ures129

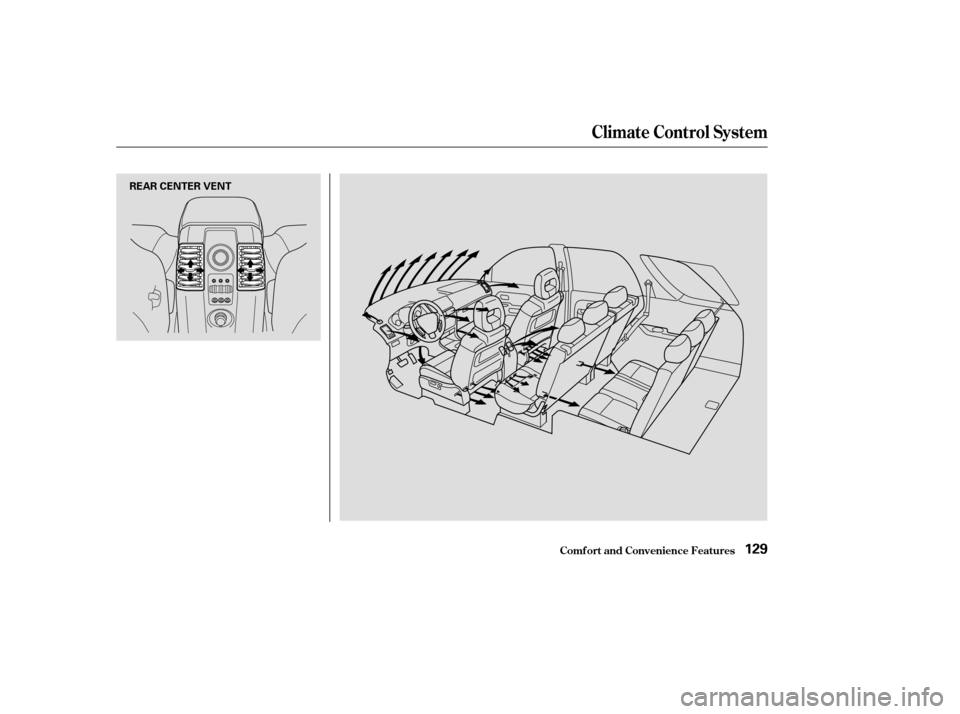

REAR CENTER VENT

To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button and set the
desired temperature by turning the
temperature control dial. You will
see FULL AUTO in the system’s
display. The light above thebutton also show you which
mode, Recirculation or Fresh Air, is
selected.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature. Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature. When the temperature is set
between the lower and upper limits,
the system regulates the interior
temperature to the set value.
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
Fully-automatic Operation
130

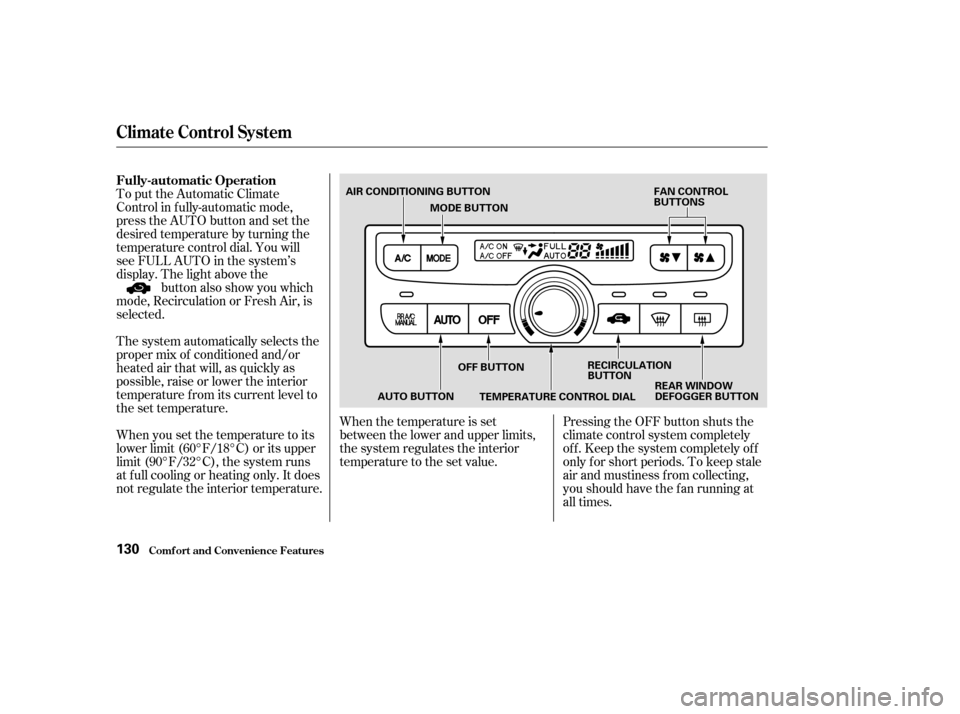

RECIRCULATION
BUTTON
REAR WINDOW
DEFOGGER BUTTON
FAN CONTROL
BUTTONS
OFF BUTTON
AUTO BUTTON TEMPERATURE CONTROL DIAL
MODE BUTTON
AIR CONDITIONING BUTTON

Û
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Making any
manual selection causes the word
FULL to go out.
Press the A/C button to turn the air
conditioningonandoff.Youwillsee
A/C ON or A/C OFF in the display.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
on, use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting. This button controls the source of
the air going into the system. When
the indicator above this button is lit,
air f rom the vehicle’s interior is sent
through the system again (Recircula-
tion mode). When the indicator is off,
air is brought in f rom outside the
vehicle (Fresh Air mode).
You can, f or example, manually put
the system in recirculation mode
when driving through an area of
smoke or f umes.
You can manually select the f an
speed by pressing the f an control
buttons. When you press either
button, the fan is taken out of
automatic mode and starts to run at
its lowest speed. Pressing the
button repeatedly makes the fan run
f aster. The f an speed is shown by
vertical bars in the display.
CONT INUED
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
Recirculation Button
Fan Control Buttons
131

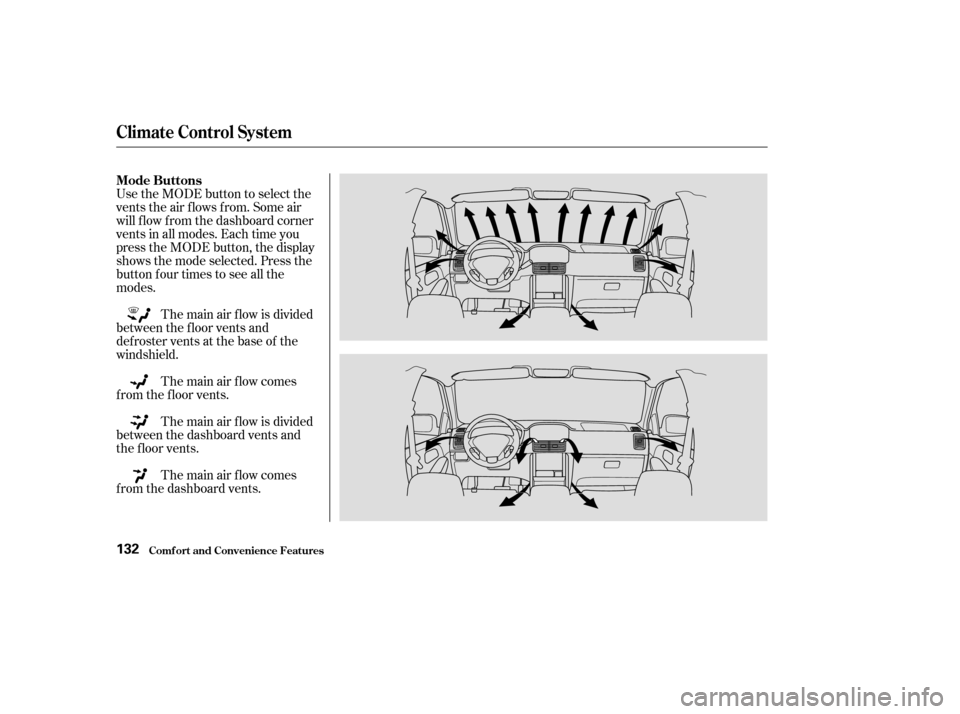

Use the MODE button to select the
vents the air flows from. Some air
will f low f rom the dashboard corner
vents in all modes. Each time you
press the MODE button, the display
shows the mode selected. Press the
button four times to see all the
modes.The main air f low is divided
between the f loor vents and
defroster vents at the base of the
windshield.
The main air flow comes
f rom the f loor vents.
The main air f low is divided
between the dashboard vents and
the f loor vents.
The main air flow comes
f rom the dashboard vents.
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
Mode Buttons
132

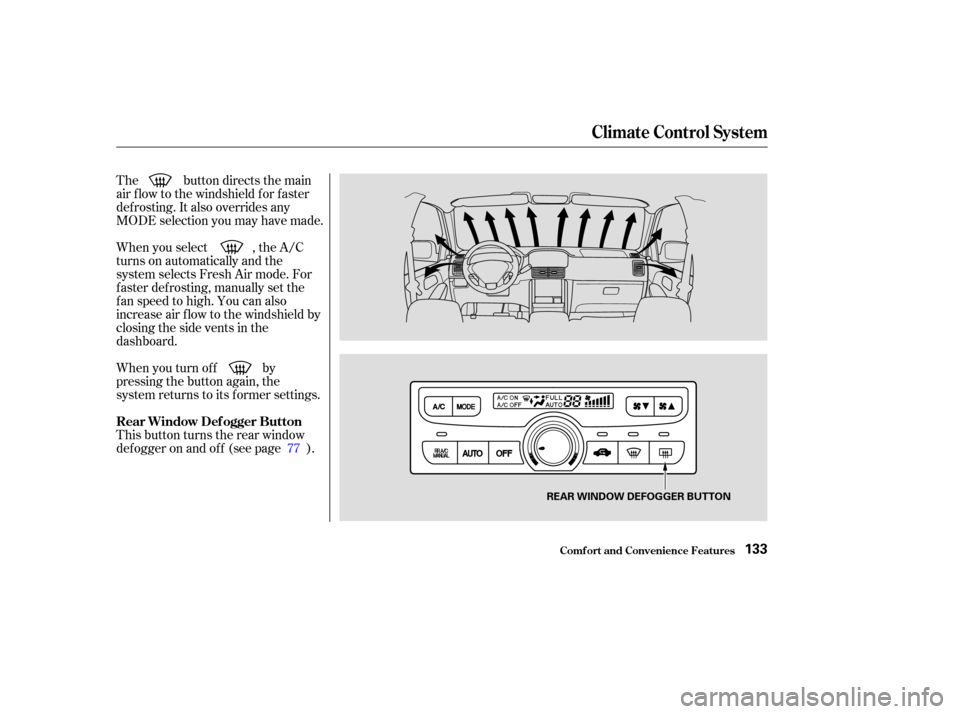

The button directs the main
air f low to the windshield f or f aster
def rosting. It also overrides any
MODE selection you may have made.
When you select , the A/C
turns on automatically and the
system selects Fresh Air mode. For
f aster def rosting, manually set the
fanspeedtohigh.Youcanalso
increase air f low to the windshield by
closing the side vents in the
dashboard.
When you turn of f by
pressing the button again, the
system returns to its former settings.
This button turns the rear window
def ogger on and of f (see page ).77
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Rear Window Def ogger Button
133
REAR WINDOW DEFOGGER BUTTON

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is located
in the top of the dashboard and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
Sunlight Sensor/T emperature
Sensor
134
SUNLIGHT SENSORTEMPERATURE SENSOR

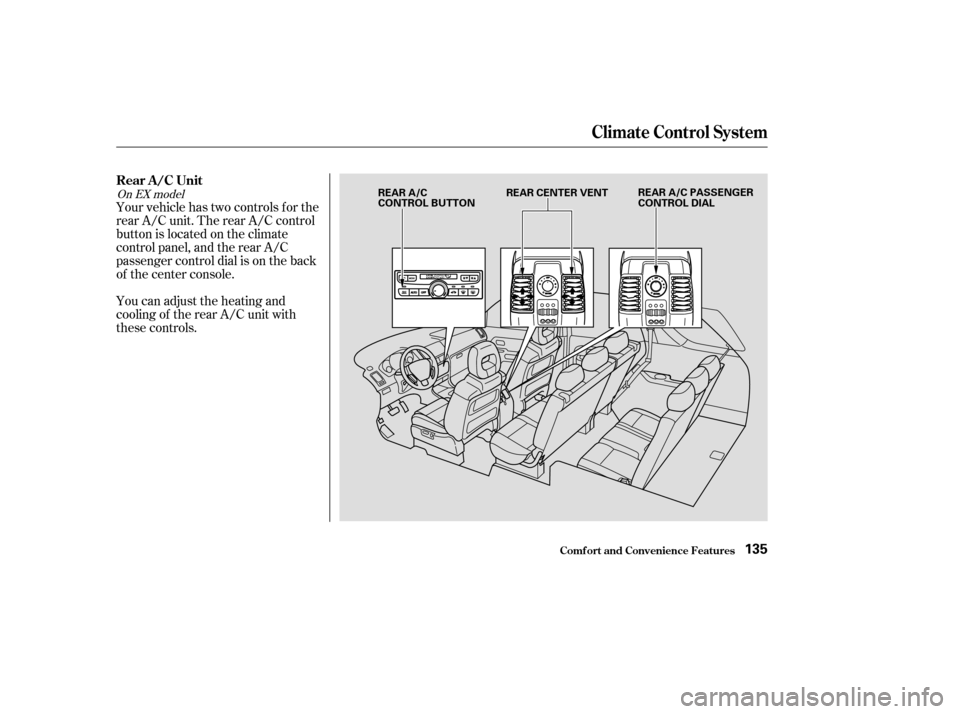

Your vehicle has two controls f or the
rear A/C unit. The rear A/C control
button is located on the climate
control panel, and the rear A/C
passenger control dial is on the back
of the center console.
You can adjust the heating and
cooling of the rear A/C unit with
these controls.
On EX model
Rear A/C Unit
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures135
REAR A/C
CONTROL BUTTONREAR CENTER VENT
REAR A/C PASSENGER
CONTROL DIAL

When the system is in FULL AUTO,
the rear A/C passenger control dial
cannot be used. The system will
cycle on and of f automatically to
bring the interior to the set
temperature.

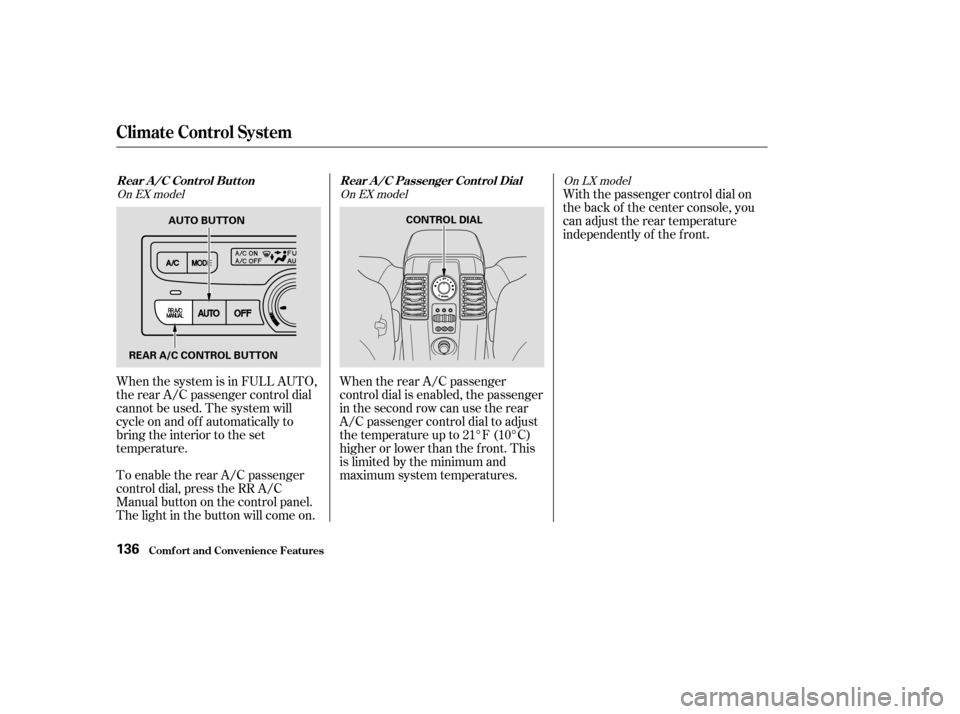

To enable the rear A/C passenger
control dial, press the RR A/C
Manual button on the control panel.
The light in the button will come on.When the rear A/C passenger
control dial is enabled, the passenger
in the second row can use the rear
A/C passenger control dial to adjust
the temperature up to 21°F (10°C)
higher or lower than the f ront. This
is limited by the minimum and
maximum system temperatures.With the passenger control dial on
the back of the center console, you
can adjust the rear temperature
independently of the f ront.
On EX model
On EX modelOn LX model
Rear A /C Cont rol But t on Rear A /C Passenger Cont rol Dial
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
136
AUTO BUTTON
REAR A/C CONTROL BUTTON CONTROL DIAL
