If you must drive the vehicle a short
distance in this condition, drive
slowly and carefully.
However,
if the brake pedal does not
feel normal, you should take
immediate action. A problem in one
part of the system’s dual circuit
design will still give you braking at
two wheels. You will feel the brake
pedal go down much farther before
the vehicle begins to slow down, and
you will have to press harder on the
pedal.
If the brake system indicator comes
on while driving, the brake fluid level
is probably low. Press lightly on the
brake pedal to see if it feels normal.
If it does, check the brake fluid level
thenexttimeyoustopataservice
station (see page ).
The
brake system
indicator normally
comes on when
you turn the ignition switch to the
ON (II) position and as a reminder to
check the parking brake. It will stay
on if you do not fully release the
parking brake.
If the fluid level is low, take your
vehicle to a dealer, and have the
brake system inspected for leaks or
worn brake pads. Slow
down by shifting to a lower
gear, and pull to the side of the road
when it is safe. Because of the long
distance needed to stop, it is
hazardous to drive the vehicle. You
should have it towed, and repaired as
soon as possible (see on page ). If the ABS indicator and the VSA
system indicator come on with the
brake system indicator, have your
vehicle inspected by your dealer
immediately.
246 279
Brake System Indicator
Emergency
Towing
278
U.S. Canada

If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inf orm
them a f lat-bed is required.The operator will load
your vehicle on the back of a truck.
The vehicle’s f uses are located in
f our f use boxes. The interior f use
boxes are located under the
dashboard on the driver’s and
passenger’s side.
On 4WD models
CONT INUED
Emergency T owing
The only way you can saf ely tow
your vehicle is with f lat-bed
equipment.Fuses
Emergency Towing, Fuses
T aking Care of t he Unexpect ed
279
DRIVER’ S SIDE INTERIOR
Towing with only two tires on the
ground will damage parts of the 4WD
system. It should be transported on a
f lat-bed truck or trailer.

If something electrical in your
vehicle stops working, the first thing
youshouldcheckforisablownfuse.
Determine from the chart on pages
and , or the diagram on the
f use box lid, which f use or f uses
control that device. Check those
f uses f irst, but check all the f uses
bef ore deciding that a blown f use is
the cause. Replace any blown f uses,
and check if the device works.
Turn the ignition switch to the
LOCK (0) position. Make sure the
headlights and all other
accessories are of f .
Remove the cover f rom the f use
box.
To open the passenger’s side f use
box, pull the right edge of the cover.
The primary under-hood f use box is
on the passenger’s side. To open it,
pushthetabsasshown.
1.
2.283 284
Fuses
Checking and Replacing Fuses
280
PASSENGER’ S SIDE INTERIOR
UNDER-
HOOD
FUSE
BOX

CONT INUED

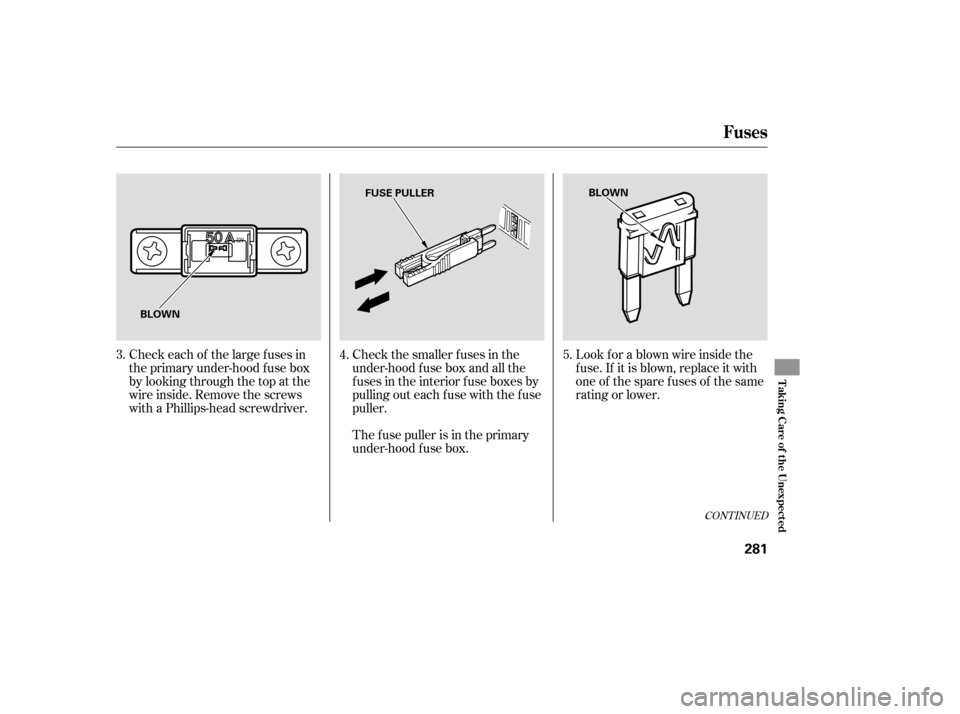

Check each of the large f uses in
the primary under-hood f use box
by looking through the top at the
wire inside. Remove the screws
with a Phillips-head screwdriver.Look f or a blown wire inside the
f use. If it is blown, replace it with
one of the spare f uses of the same
rating or lower.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each f use with the f use
puller.
The f use puller is in the primary
under-hood f use box.
3. 4. 5.
Fuses
T aking Care of t he Unexpect ed
281
BLOWN BLOWN
FUSE PULLER

If you cannot drive the vehicle
wi thout fixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
from one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accesso ry
power socket or radio).
If you replace the blown fuse with a
spare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as
soon as you can. If
the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem with your
vehicle. Leave the blown fuse in
that circuit, and have your vehicle
checked by a qualified technician. If
a trailer light is burned out, check
if these fuses are blown when you
replace the light bulbs:
IfthosefusesareOK,butthetrailer
lights still do not work, there are two
blown 7.5 amp fuses in the trailer
hitch wiring. To access the 7.5 amp
fuses: Open the tailgate and remove the
cargo floor lid.
Pull out the bottom of the tailgate
rubber seal.
Remove rear trim panel by pulling
up on the inside edge of the rear
trim panel, and unhooking the four
clips and tabs.
After replacing fuses, and reinstall
the rear trim panel in the reverse
order of removal.
Primary
under-hood fuse box
fuses5,7,and24
Interior driver’s side fuse box: 10
Interior passenger’s side fuse box:
10
If the driver’s power window fuse is
removed, the AUTO function of the
driver’s window will be disabled. You
should reset the AUTO feature, (see
page ).
If the radio fuse is removed, the
audio system will disable itsel f. The
nexttimeyouturnontheradio,you
will see ‘‘ENTER COdE’’ in the
frequency display. Use the preset
buttons to enter the five-digit code
(see page ). 6.
1.
2.
3.
4.
95
139
On EX and EX-L models
Trailer Fuses
Fuses
282
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.

µµ
No. Amps.No.Circuits Protected
No. Circuits Protected
Amps.
Amps.
Circuits Protected
Circuits Protected
No. Amps.
1
2
3
4
5
6
7
8
9
10
11
12
13 20 A
30 A
20 A
15 A
15 A
20 A
20 A
20 A
40 A
40 A
30 A
40 A 14
15
16
17
18
19
20
21
22
23
24
Rear A/C
Heater Motor
Cooling Fan
Spare Fuse
Spare Fuse
Spare Fuse
Battery
Condenser Fan
MG Clutch
IGI Main
Trailer (accessory)
7
8
9
10
11 ET CS
IG Coil
LAF
TPMS
(FR FOG)
30 A
40 A
30 A
7.5 A 10 A
15 A
120 A 30 A
7.5 A 50 A
15 A
15 A
15 A
7.5 A
(20 A)
Spare Fuse
Spare Fuse
Right Headlight
ACG S
Hazard
Not used
Stop, Horn
Left Headlight
Radio
Power Window Motor
Power Seat
Rear Defroster
Back Up, ACC
AC INVERTER
VSA F/S Relay
VSA Motor
VTM-4
ACM
Rear Accessory Socket
1
2
3
4
5
6 20 A
40 A
30 A
20 A
10 A
15 A
Fuse Locations
T aking Care of t he Unexpect ed
283

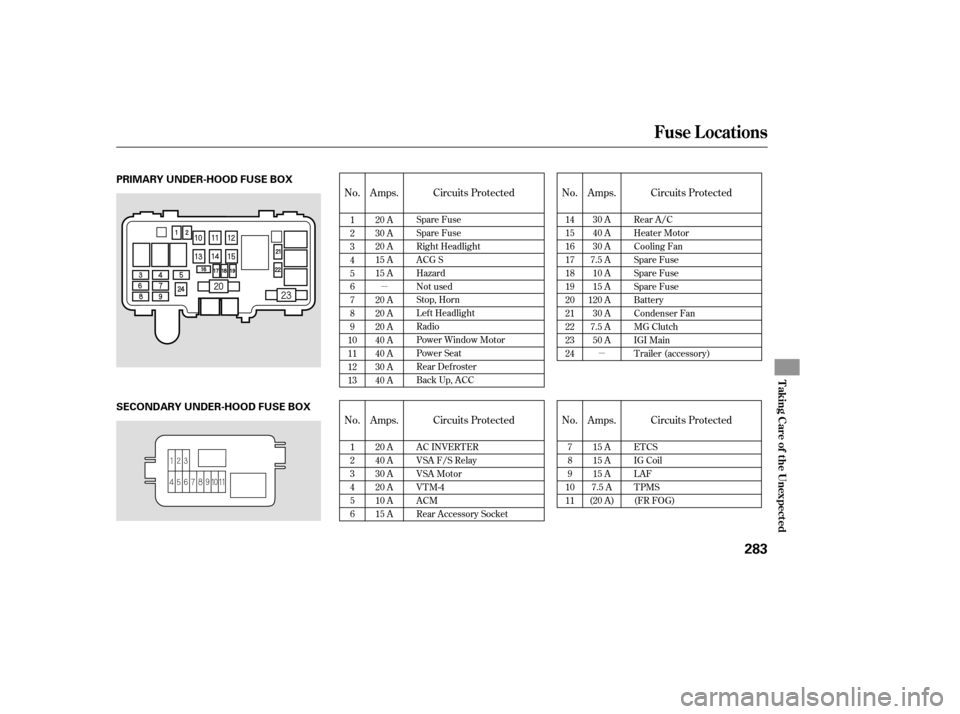

PRIMARY UNDER-HOOD FUSE BOX
SECONDARY UNDER-HOOD FUSE BOX

µ
µ
Î
ÎÎ Î
No.No. Amps.
Amps. Circuits Protected Circuits Protected
1
2
3
4
5
6
7
8
9
10
11
12
13 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16 20 A
20 A
20 A
20 A
10 A
20 A
20 A
15 A
15 A
10 A
20 A
7.5 A
7.5 A 20 A
20 A
15 A
10 A
7.5 A
7.5 A 10 A
15 A
7.5 A
7.5 A 10 A
7.5 A
7.5 A 30 A Fuel Pump
SRS
Heater Control, A/C Clutch
Relay, Cooling Fan Relay
Power Mirror, ABS
Daytime Running Light
ECU(PCM),CruiseControl
OPDS, Rear Wiper
ACC Relay
Back-up Lights, Instrument
Lights
Turn Signals
VTM-4
Front Wiper
Not used Driver’s Power Window
Driver’s Power Seat Reclining
Heated Seat
Driver’s Power Seat Sliding
Not used
Daytime Running Light
Driver’s side Rear Power
Window
Front Passenger’s Power
Window
Front Accessory Socket
Small Light
Interior Light
Power Door Lock
Back Up
Moonroof
Moonroof
Passenger’s Side Rear Power
Window
Canadian models
:
Canadian models
Fuse Locations
284

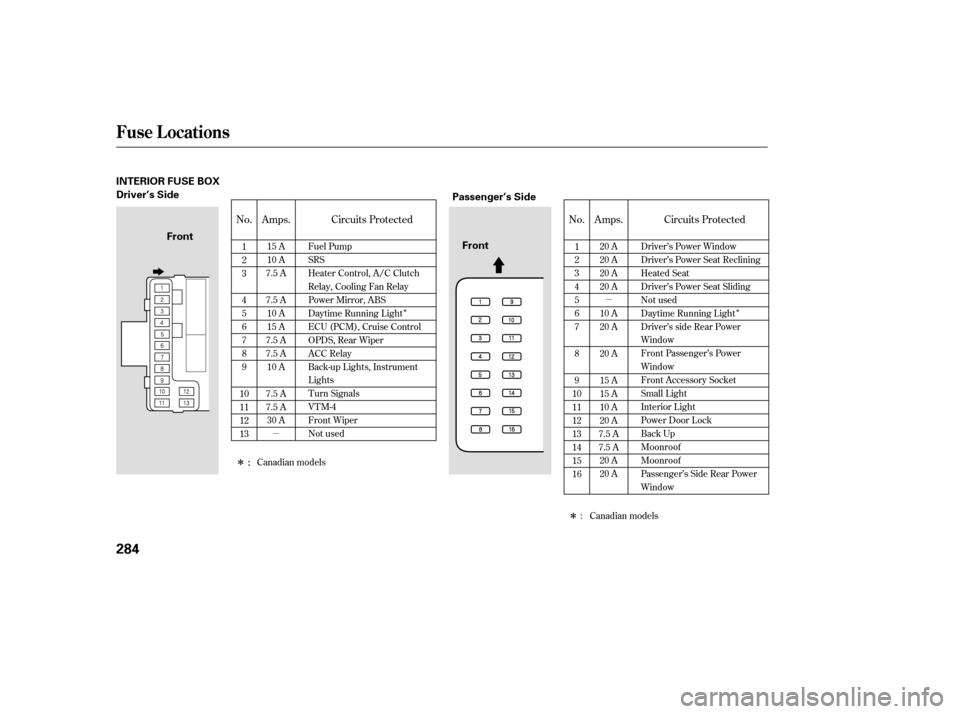

Driver’s Side INTERIOR FUSE BOX
Passenger’s Side
Front Front
:

Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.................
Identif ication Numbers .286
................................
Specif ications .288
..........
DOT Tire Quality Grading .290
Unif orm Tire Quality ..................................
Grading .290
.................................
Treadwear .290
......................................
Traction .290
.............................
Temperature .291
.................................
Tire Labeling .291
Tire Pressure Monitoring
System (TPMS)-Required .............
Federal Explanation .293 .......................
Emissions Controls .295
.....................
The Clean Air Act .295
Crankcase Emissions Control
....................................
System .295
Evaporative Emissions Control ....................................
System .295
Onboard Ref ueling Vapor ................................
Recovery .295
...
Exhaust Emissions Controls .296
....................
PGM-FI System .296
Ignition Timing Control
................................
System .296
Exhaust Gas Recirculation ...................
(EGR) System .296
Three Way Catalytic ...........................
Converter .296
....................
Replacement Parts .296
..
Three Way Catalytic Converter .297
..............
State Emissions Testing .298
....
Testing of Readiness Codes .298
T echnical Inf ormation
Technical Inf ormation
285

Your vehicle has several identif ying
numbers in various places.

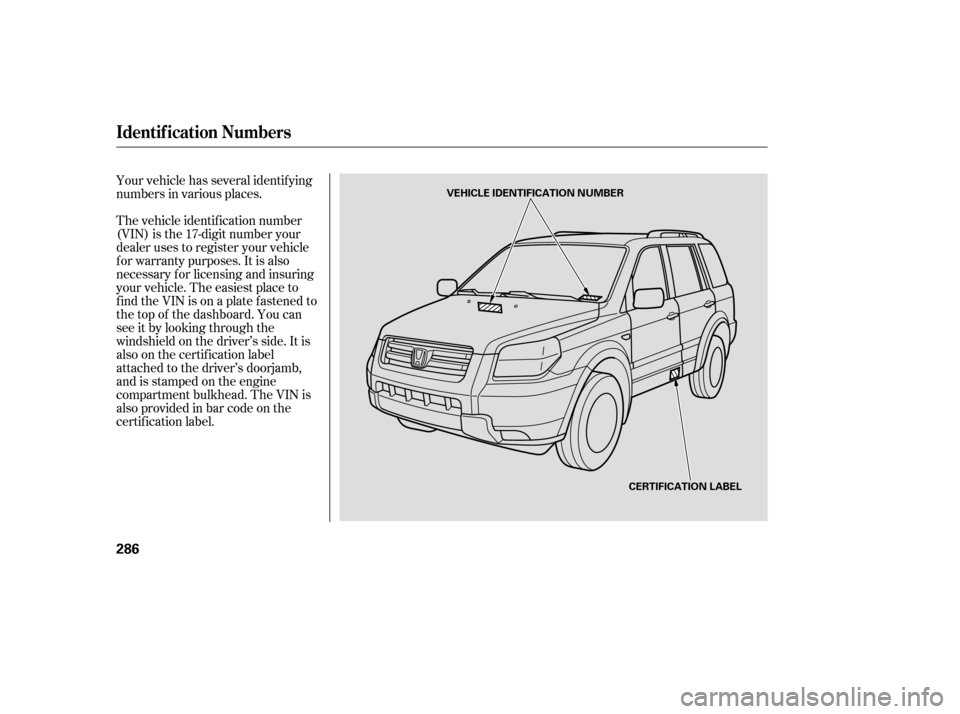

The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
286
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL

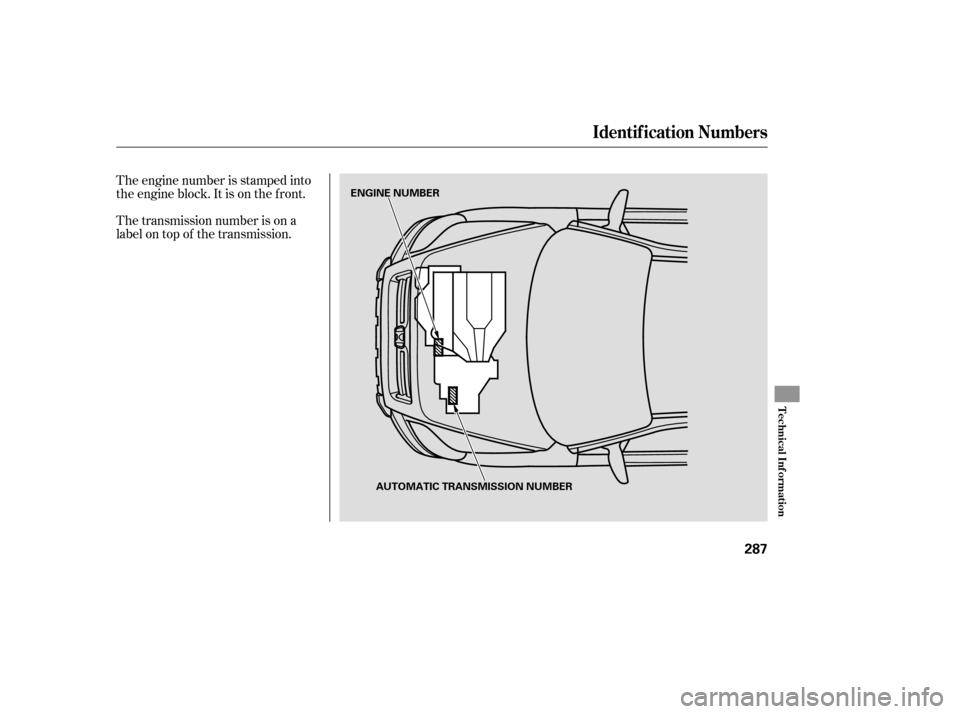

The transmission number is on a
label on top of the transmission. The engine number is stamped into
the engine block. It is on the f ront.
Identif ication Numbers
Technical Inf ormation
287
ENGINE NUMBERAUTOMATIC TRANSMISSION NUMBER
