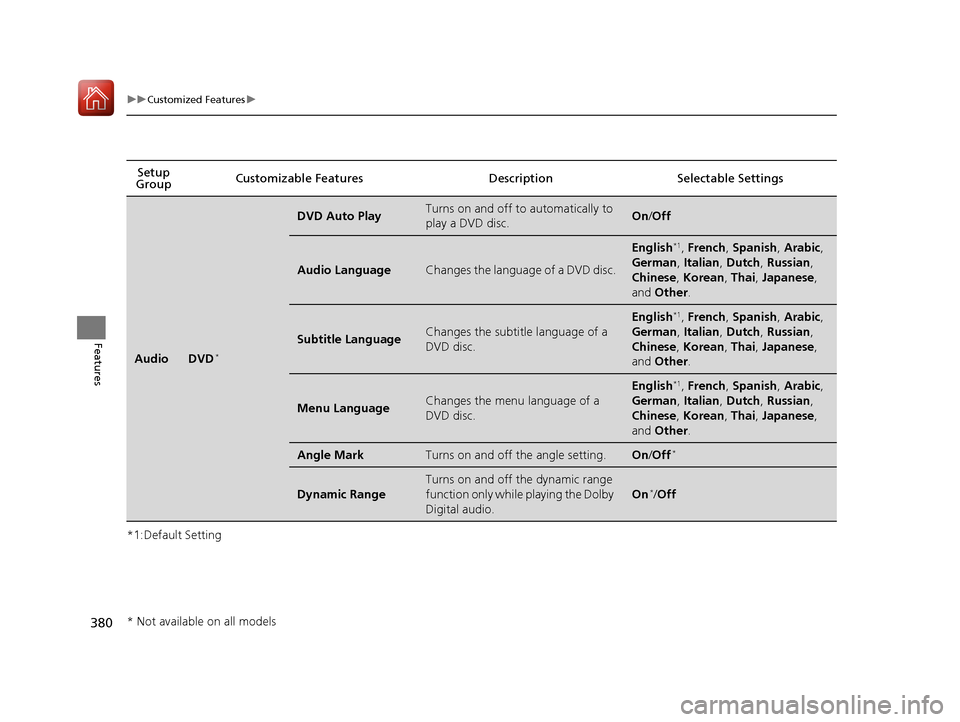

Page 381 of 673

380
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
AudioDVD*
DVD Auto PlayTurns on and off to automatically to
play a DVD disc.On/Off
Audio LanguageChanges the language of a DVD disc.
English*1, French , Spanish , Arabic ,
German , Italian, Dutch, Russian,
Chinese , Korean , Thai , Japanese ,
and Other .
Subtitle LanguageChanges the subtitle language of a
DVD disc.
English*1, French , Spanish , Arabic ,
German , Italian, Dutch, Russian,
Chinese , Korean , Thai , Japanese ,
and Other .
Menu LanguageChanges the menu language of a
DVD disc.
English*1, French , Spanish , Arabic ,
German , Italian, Dutch, Russian,
Chinese , Korean , Thai , Japanese ,
and Other .
Angle MarkTurns on and off the angle setting.On/Off*
Dynamic Range
Turns on and off the dynamic range
function only while playing the Dolby
Digital audio.
On*/ Off
* Not available on all models
17 PILOT-31TG76100.book 380 ページ 2016年9月20日 火曜日 午後4時9分

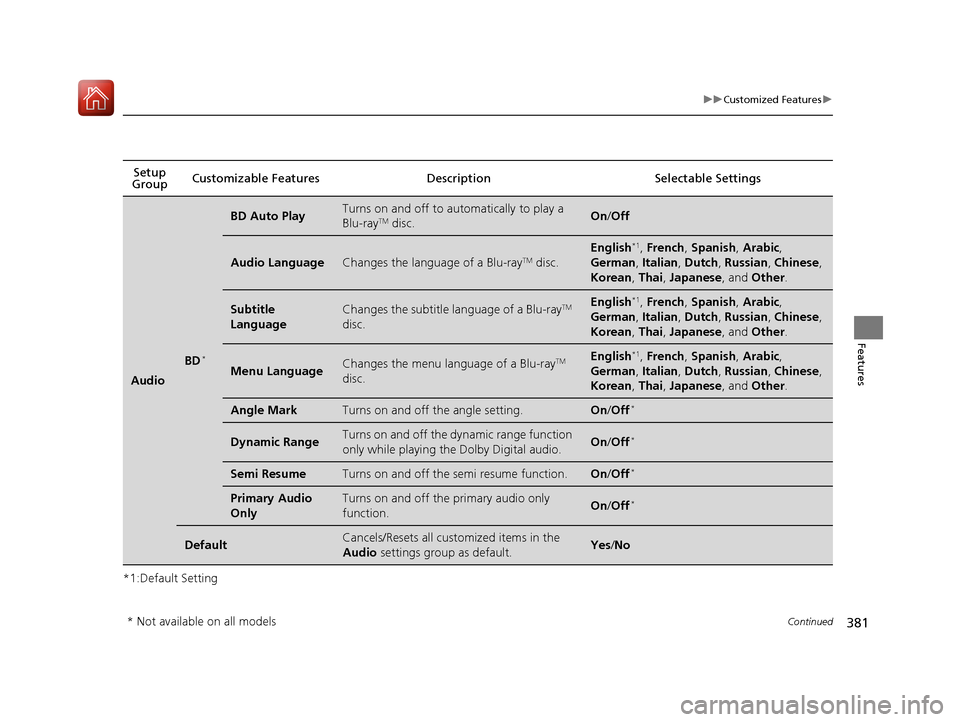

Page 382 of 673

381
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Audio
BD*
BD Auto PlayTurns on and off to automatically to play a
Blu-rayTM disc.On/Off
Audio LanguageChanges the language of a Blu-rayTM disc.
English*1, French , Spanish , Arabic,
German , Italian , Dutch , Russian , Chinese ,
Korean , Thai , Japanese , and Other .
Subtitle
LanguageChanges the subtitle language of a Blu-rayTM
disc.English*1, French , Spanish , Arabic,
German , Italian , Dutch , Russian , Chinese ,
Korean , Thai , Japanese , and Other .
Menu LanguageChanges the menu language of a Blu-rayTM
disc.English*1, French , Spanish , Arabic,
German , Italian , Dutch , Russian , Chinese ,
Korean , Thai , Japanese , and Other .
Angle MarkTurns on and off the angle setting.On/Off*
Dynamic RangeTurns on and off the dy namic range function
only while playing the Dolby Digital audio.On /Off*
Semi ResumeTurns on and off the semi resume function.On /Off*
Primary Audio
OnlyTurns on and off the primary audio only
function.On /Off*
DefaultCancels/Resets all cust omized items in the
Audio settings group as default.Yes/No
* Not available on all models
17 PILOT-31TG76100.book 381 ページ 2016年9月20日 火曜日 午後4時9分

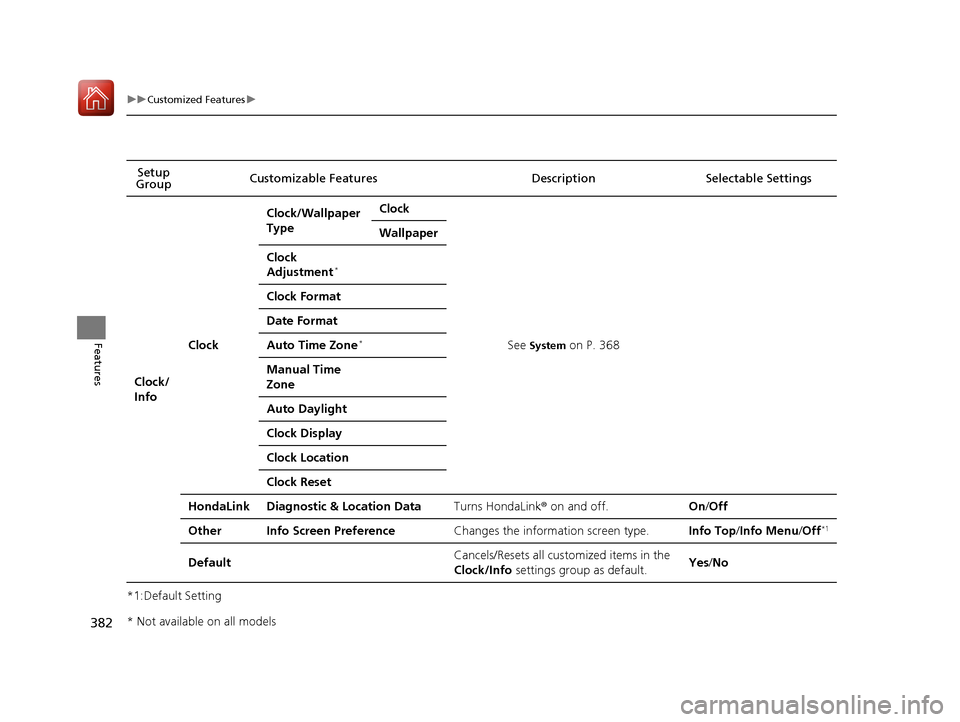

Page 383 of 673

382
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
Clock/
Info
Clock
Clock/Wallpaper
TypeClock
See System on P. 368
Wallpaper
Clock
Adjustment*
Clock Format
Date Format
Auto Time Zone*
Manual Time
Zone
Auto Daylight
Clock Display
Clock Location
Clock Reset
HondaLinkDiagnostic & Location DataTurns HondaLink® on and off.On/Off
OtherInfo Screen PreferenceChanges the information screen type.Info Top /Info Menu /Off*1
DefaultCancels/Resets all cust omized items in the
Clock/Info settings group as default.Yes/No
* Not available on all models
17 PILOT-31TG76100.book 382 ページ 2016年9月20日 火曜日 午後4時9分

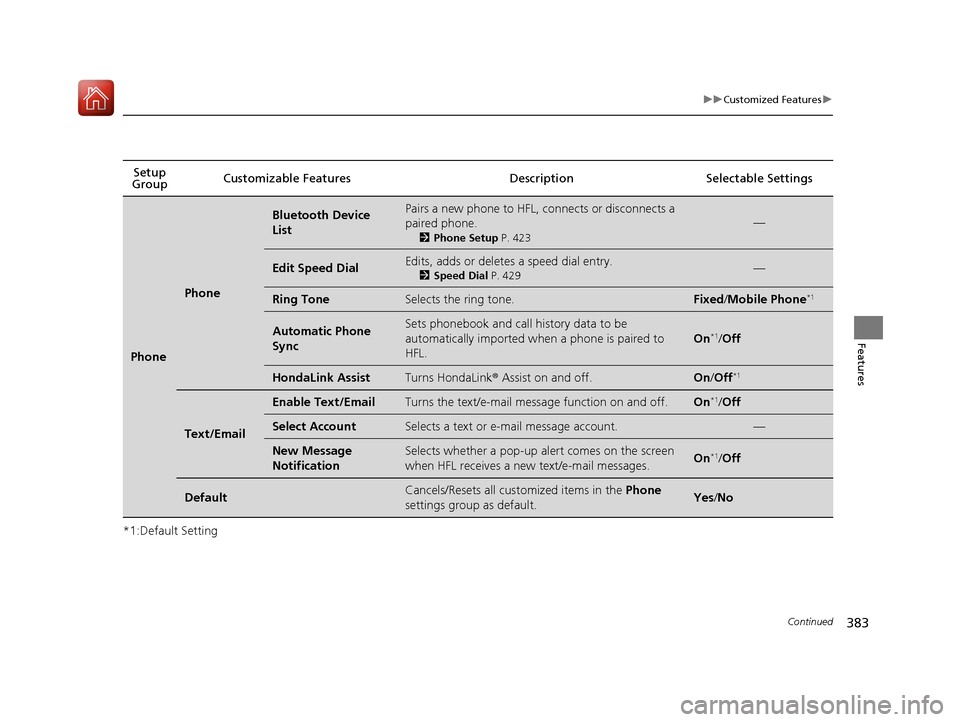

Page 384 of 673

383
uuCustomized Features u
Continued
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Phone
Phone
Bluetooth Device
ListPairs a new phone to HFL, connects or disconnects a
paired phone.
2Phone Setup P. 423
—
Edit Speed DialEdits, adds or deletes a speed dial entry.
2Speed Dial P. 429—
Ring ToneSelects the ring tone.Fixed/Mobile Phone*1
Automatic Phone
SyncSets phonebook and call history data to be
automatically imported when a phone is paired to
HFL.
On*1/Off
HondaLink AssistTurns HondaLink ® Assist on and off.On /Off*1
Text/Email
Enable Text/EmailTurns the text/e-mail message function on and off.On*1/Off
Select AccountSelects a text or e-mail message account.—
New Message
NotificationSelects whether a pop-up alert comes on the screen
when HFL receives a new text/e-mail messages.On*1/Off
DefaultCancels/Resets all customized items in the Phone
settings group as default.Yes /No
17 PILOT-31TG76100.book 383 ページ 2016年9月20日 火曜日 午後4時9分

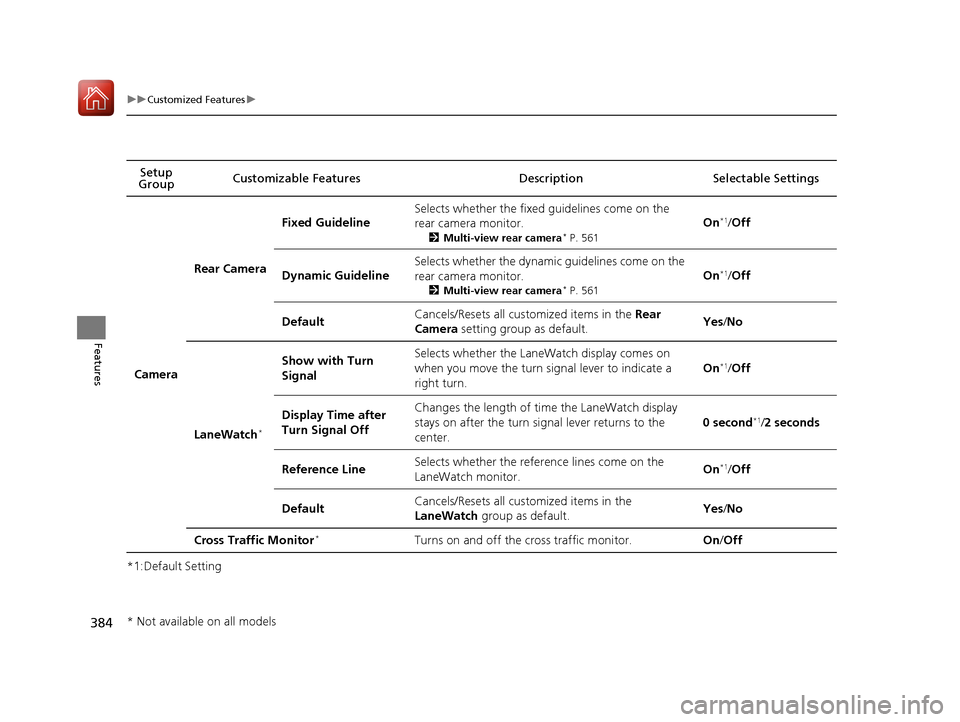

Page 385 of 673

384
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Camera
Rear Camera
Fixed Guideline
Selects whether the fixed guidelines come on the
rear camera monitor.
2Multi-view rear camera* P. 561
On*1/Off
Dynamic Guideline
Selects whether the dynamic guidelines come on the
rear camera monitor.
2 Multi-view rear camera* P. 561
On*1/Off
DefaultCancels/Resets all cust omized items in the Rear
Camera setting group as default.Yes/No
LaneWatch*
Show with Turn
SignalSelects whether the LaneWatch display comes on
when you move the turn signal lever to indicate a
right turn.
On*1/Off
Display Time after
Turn Signal OffChanges the length of time the LaneWatch display
stays on after the turn si gnal lever returns to the
center.
0 second*1/ 2 seconds
Reference LineSelects whether the reference lines come on the
LaneWatch monitor.On*1/ Off
DefaultCancels/Resets all cust omized items in the
LaneWatch group as default.Yes/No
Cross Traffic Monitor*Turns on and off the cross traffic monitor.On/Off
* Not available on all models
17 PILOT-31TG76100.book 384 ページ 2016年9月20日 火曜日 午後4時9分

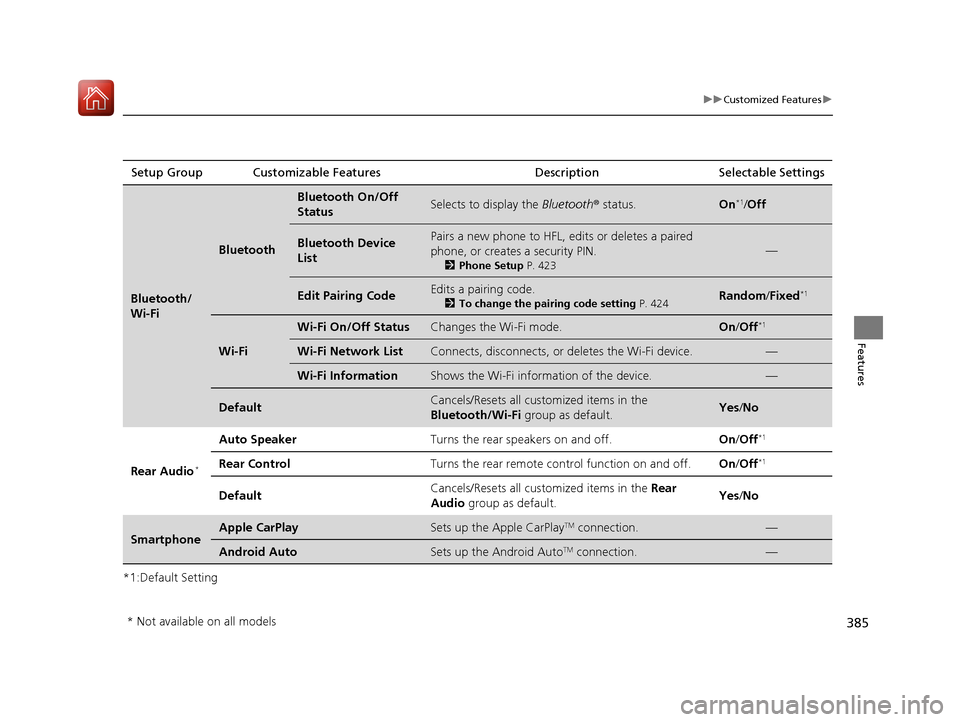

Page 386 of 673

385
uuCustomized Features u
Features
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Bluetooth/
Wi-Fi
Bluetooth
Bluetooth On/Off
StatusSelects to display the Bluetooth® status.On*1/Off
Bluetooth Device
ListPairs a new phone to HFL, edits or deletes a paired
phone, or creates a security PIN.
2 Phone Setup P. 423
—
Edit Pairing CodeEdits a pairing code.
2To change the pairing code setting P. 424Random/Fixed*1
Wi-Fi
Wi-Fi On/Off StatusChanges the Wi-Fi mode.On /Off*1
Wi-Fi Network ListConnects, disconnects, or deletes the Wi-Fi device.—
Wi-Fi InformationShows the Wi-Fi information of the device.—
DefaultCancels/Resets all customized items in the
Bluetooth/Wi-Fi group as default.Yes/No
Rear Audio*
Auto SpeakerTurns the rear speakers on and off.On /Off*1
Rear ControlTurns the rear remote co ntrol function on and off.On/Off*1
DefaultCancels/Resets all customized items in the Rear
Audio group as default.Yes/No
SmartphoneApple CarPlaySets up the Apple CarPlayTM connection.—
Android AutoSets up the Android AutoTM connection.—
* Not available on all models
17 PILOT-31TG76100.book 385 ページ 2016年9月20日 火曜日 午後4時9分

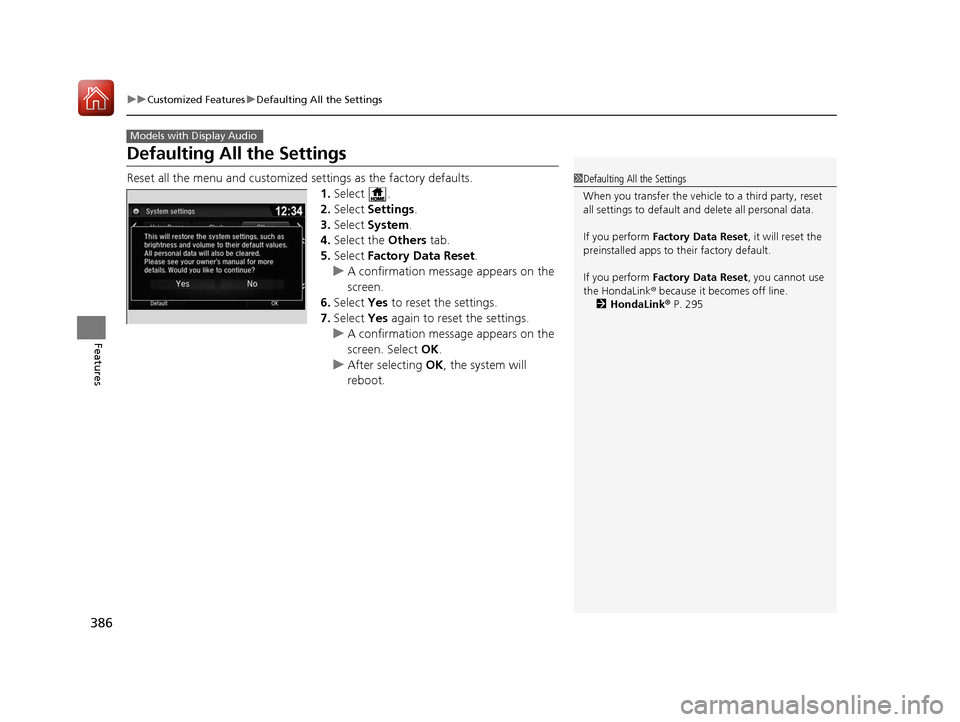

Page 387 of 673

386
uuCustomized Features uDefaulting All the Settings
Features
Defaulting All the Settings
Reset all the menu and customized settings as the factory defaults.
1. Select .
2. Select Settings .
3. Select System .
4. Select the Others tab.
5. Select Factory Data Reset .
u A confirmation message appears on the
screen.
6. Select Yes to reset the settings.
7. Select Yes again to reset the settings.
u A confirmation message appears on the
screen. Select OK.
u After selecting OK, the system will
reboot.
Models with Display Audio
1 Defaulting All the Settings
When you transfer the vehicle to a third party, reset
all settings to default a nd delete all personal data.
If you perform Factory Data Reset , it will reset the
preinstalled apps to their factory default.
If you perform Factory Data Reset , you cannot use
the HondaLink ® because it becomes off line.
2 HondaLink ® P. 295
17 PILOT-31TG76100.book 386 ページ 2016年9月20日 火曜日 午後4時9分

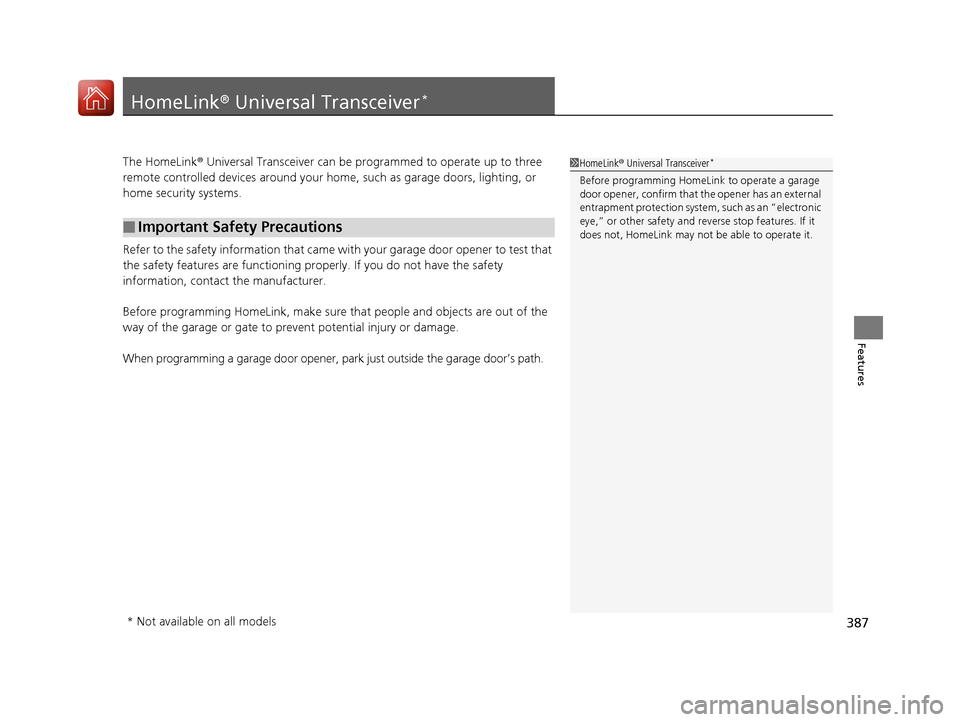

Page 388 of 673

387
Features
HomeLink® Universal Transceiver*
The HomeLink ® Universal Transceiver can be programmed to operate up to three
remote controlled devices around your home, such as garage doors, lighting, or
home security systems.
Refer to the safety information that came wi th your garage door opener to test that
the safety features are functioning properly. If you do not have the safety
information, contact the manufacturer.
Before programming HomeLink, make sure that people and objects are out of the
way of the garage or gate to prevent potential injury or damage.
When programming a garage door opener, pa rk just outside the garage door’s path.
■Important Safety Precautions
1HomeLink ® Universal Transceiver*
Before programming HomeLi nk to operate a garage
door opener, confirm that the opener has an external
entrapment protection system, such as an “electronic
eye,” or other safety and re verse stop features. If it
does not, HomeLink may not be able to operate it.
* Not available on all models
17 PILOT-31TG76100.book 387 ページ 2016年9月20日 火曜日 午後4時9分

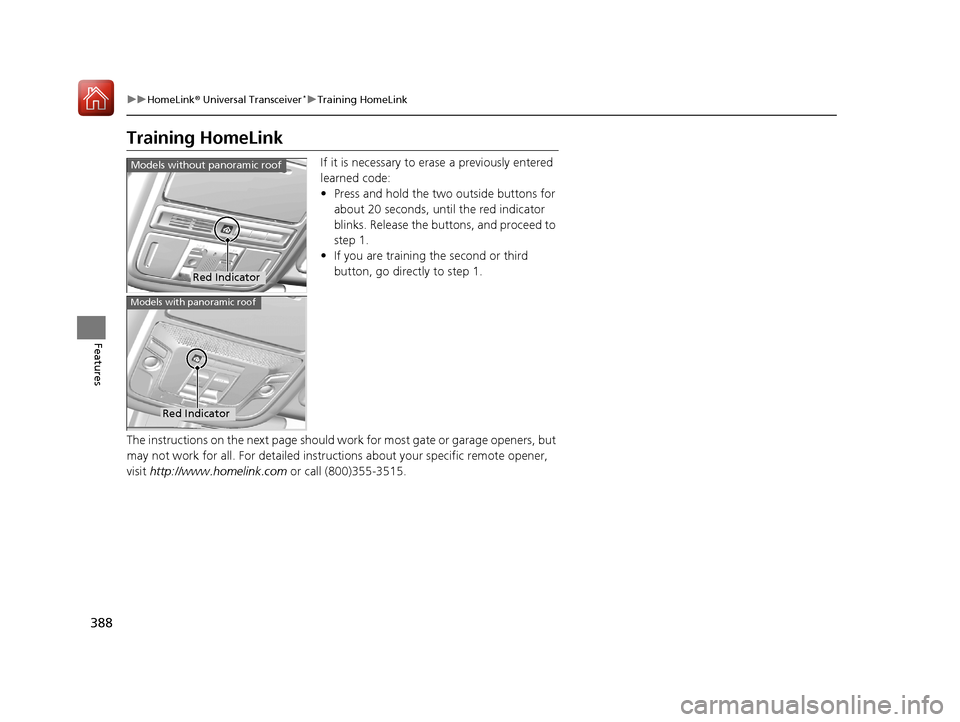

Page 389 of 673

388
uuHomeLink ® Universal Transceiver*u Training HomeLink
Features
Training HomeLink
If it is necessary to erase a previously entered
learned code:
• Press and hold the two outside buttons for
about 20 seconds, until the red indicator
blinks. Release the bu ttons, and proceed to
step 1.
• If you are training the second or third
button, go directly to step 1.
The instructions on the next page should work for most gate or garage openers, but
may not work for all. For detailed instruct ions about your specific remote opener,
visit http://www.homelink.com or call (800)355-3515.
Red Indicator
Models without panoramic roof
Red Indicator
Models with panoramic roof
17 PILOT-31TG76100.book 388 ページ 2016年9月20日 火曜日 午後4時9分

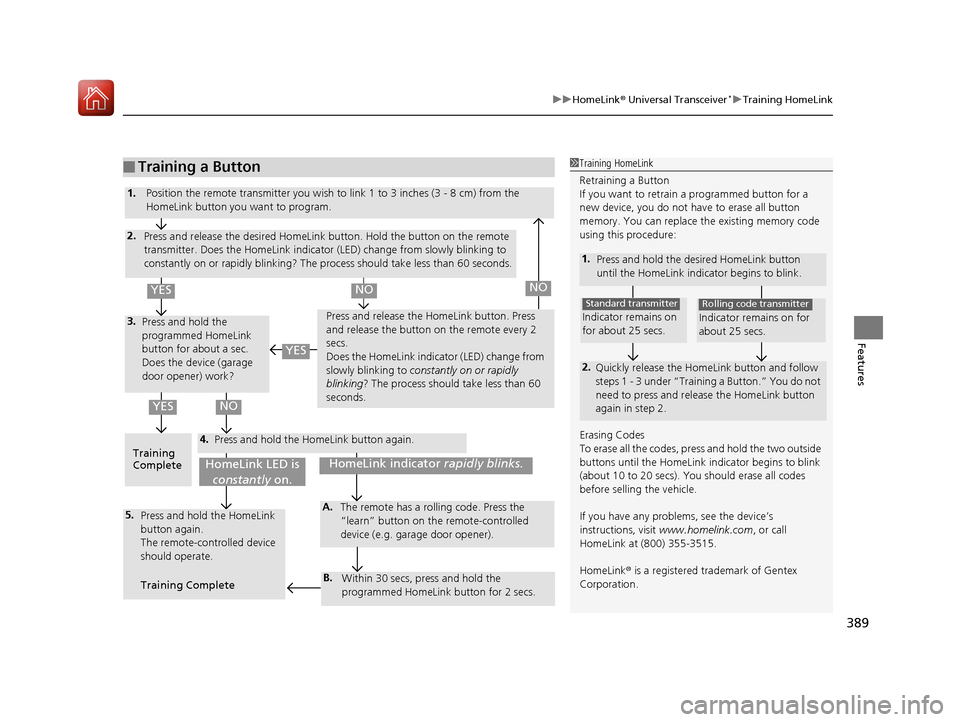

Page 390 of 673

389
uuHomeLink ® Universal Transceiver*u Training HomeLink
Features
■Training a Button1Training HomeLink
Retraining a Button
If you want to retrain a programmed button for a
new device, you do not ha ve to erase all button
memory. You can replace the existing memory code
using this procedure:
1. Press and hold the desired HomeLink button
until the HomeLink indi cator begins to blink.
2.
Quickly release the Home Link button and follow
steps 1 - 3 under “Training a Button.” You do not
need to press and rele ase the HomeLink button
again in step 2.
Indicator remains on
for about 25 secs.
Standard transmitter
Indicator remains on for
about 25 secs.
Rolling code transmitter
Erasing Codes
To erase all the codes, press and hold the two outside
buttons until the HomeLink i ndicator begins to blink
(about 10 to 20 secs). You should erase all codes
before selling the vehicle.
If you have any problems, see the device’s
instructions, visit www.homelink.com , or call
HomeLink at (800) 355-3515.
HomeLink® is a registered tra demark of Gentex
Corporation.4.
3.
2.
5.A.
B.
1. Position the remote transmitter you wish to link 1 to 3 inches (3 - 8 cm) from the
HomeLink button you want to program.
Press and release the desi red HomeLink button. Hold the button on the remote
transmitter. Does the HomeLink indicato r (LED) change from slowly blinking to
constantly on or rapidly blinking? The pr ocess should take less than 60 seconds.
Press and hold the
programmed HomeLink
button for about a sec.
Does the device (garage
door opener) work? Press and release the Ho
meLink button. Press
and release the button on the remote every 2
secs.
Does the HomeLink indicator (LED) change from
slowly blinking to constantly on or rapidly
blinking ? The process should take less than 60
seconds.
Training
Complete Press and hold the HomeLink button again.
Press and hold the HomeLink
button again.
The remote-controlled device
should operate.
Training Complete The remote has a ro
lling code. Press the
“learn” button on the remote-controlled
device (e.g. garage door opener).
Within 30 secs, press and hold the
programmed HomeLink button for 2 secs.
HomeLink indicator rapidly blinks.HomeLink LED is
constantly on.
YESNO
YES
YESNONO
17 PILOT-31TG76100.book 389 ページ 2016年9月20日 火曜日 午後4時9分
