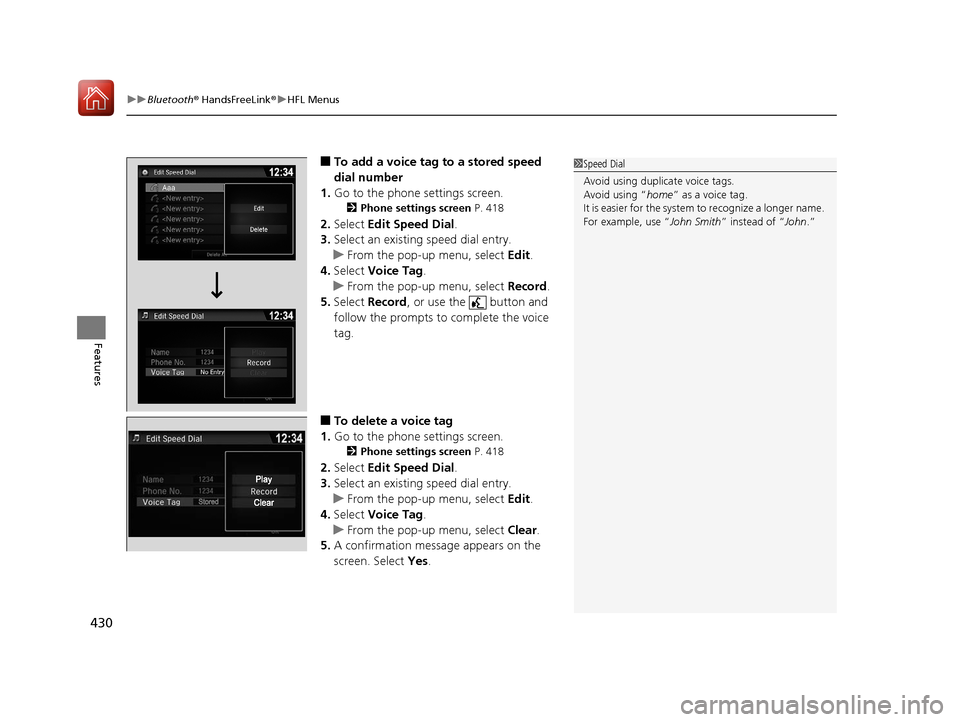

HONDA PILOT 2017 3.G Owners Manual

uuBluetooth ® HandsFreeLink ®u HFL Menus
430
Features
■To add a voice tag to a stored speed
dial number
1. Go to the phone settings screen.
2 Phone settings screen P. 418
2.Select Edit Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, select Edit.
4. Select Voice Tag .
u From the pop-up menu, select Record.
5. Select Record , or use the button and
follow the prompts to complete the voice
tag.
■To delete a voice tag
1. Go to the phone settings screen.
2 Phone settings screen P. 418
2.Select Edit Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, select Edit.
4. Select Voice Tag .
u From the pop-up menu, select Clear.
5. A confirmation message appears on the
screen. Select Yes.
1Speed Dial
Avoid using duplicate voice tags.
Avoid using “home ” as a voice tag.
It is easier for the system to recognize a longer name.
For example, use “John Smith ” instead of “John.”
17 PILOT-31TG76100.book 430 ページ ２０１６年９月２０日　火曜日　午後４時９分

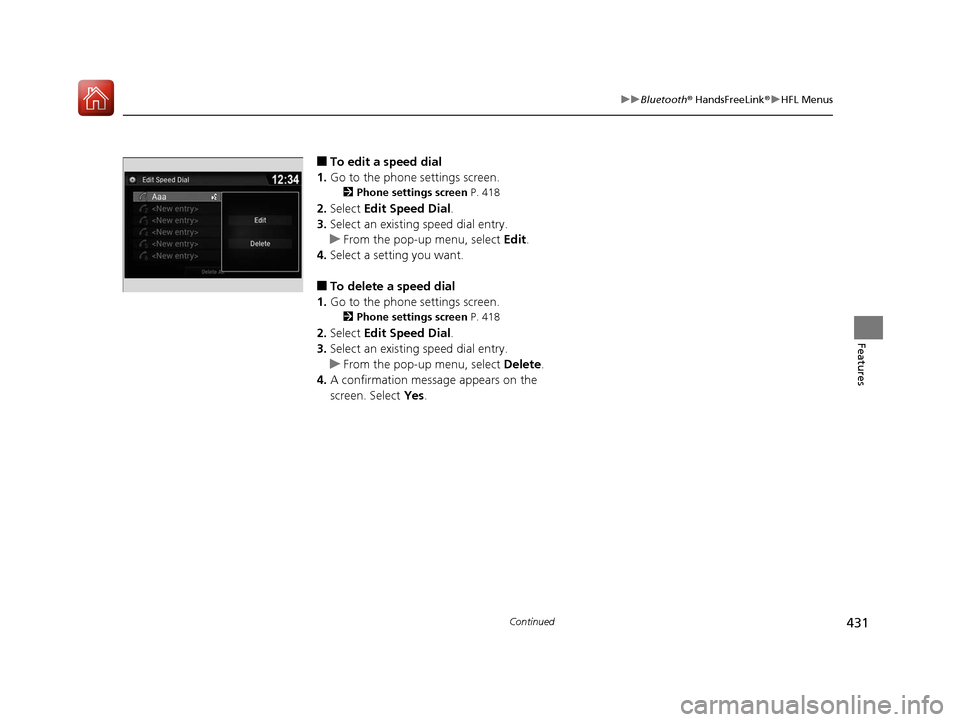

431
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To edit a speed dial
1. Go to the phone settings screen.
2 Phone settings screen P. 418
2.Select Edit Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, select Edit.
4. Select a setting you want.
■To delete a speed dial
1. Go to the phone settings screen.
2 Phone settings screen P. 418
2.Select Edit Speed Dial .
3. Select an existing speed dial entry.
u From the pop-up menu, select Delete.
4. A confirmation message appears on the
screen. Select Yes.
17 PILOT-31TG76100.book 431 ページ ２０１６年９月２０日　火曜日　午後４時９分

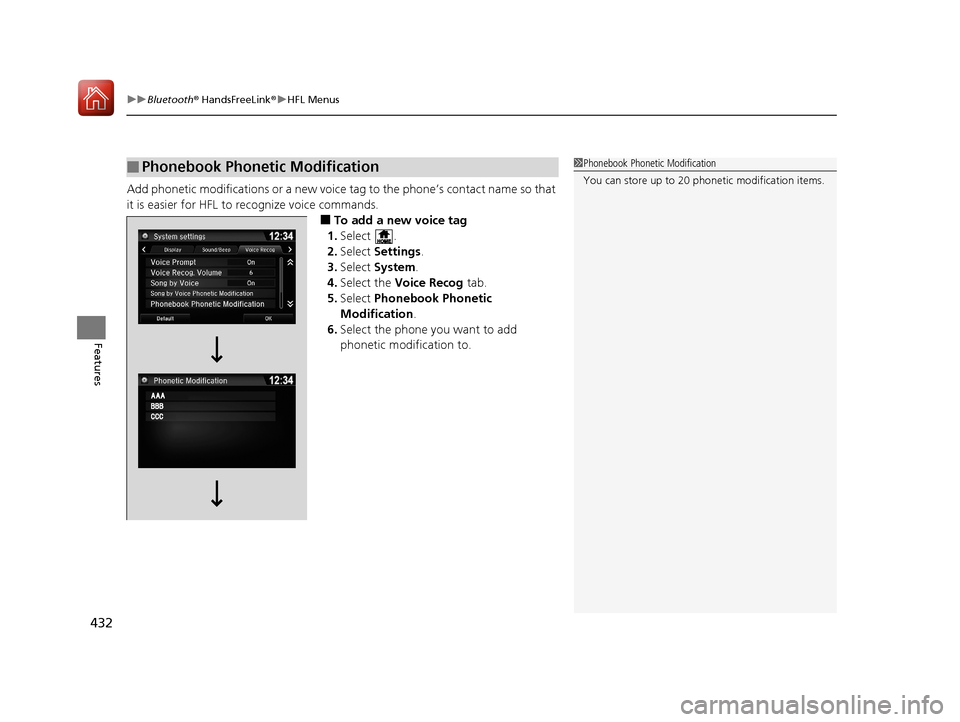

uuBluetooth ® HandsFreeLink ®u HFL Menus
432
Features
Add phonetic modifications or a new voice tag to the phone’s contact name so that
it is easier for HFL to recognize voice commands.
■To add a new voice tag
1. Select .
2. Select Settings .
3. Select System .
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification .
6. Select the phone you want to add
phonetic modification to.
■Phonebook Phonetic Modification1Phonebook Phonetic Modification
You can store up to 20 phone tic modification items.
17 PILOT-31TG76100.book 432 ページ ２０１６年９月２０日　火曜日　午後４時９分

433
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features

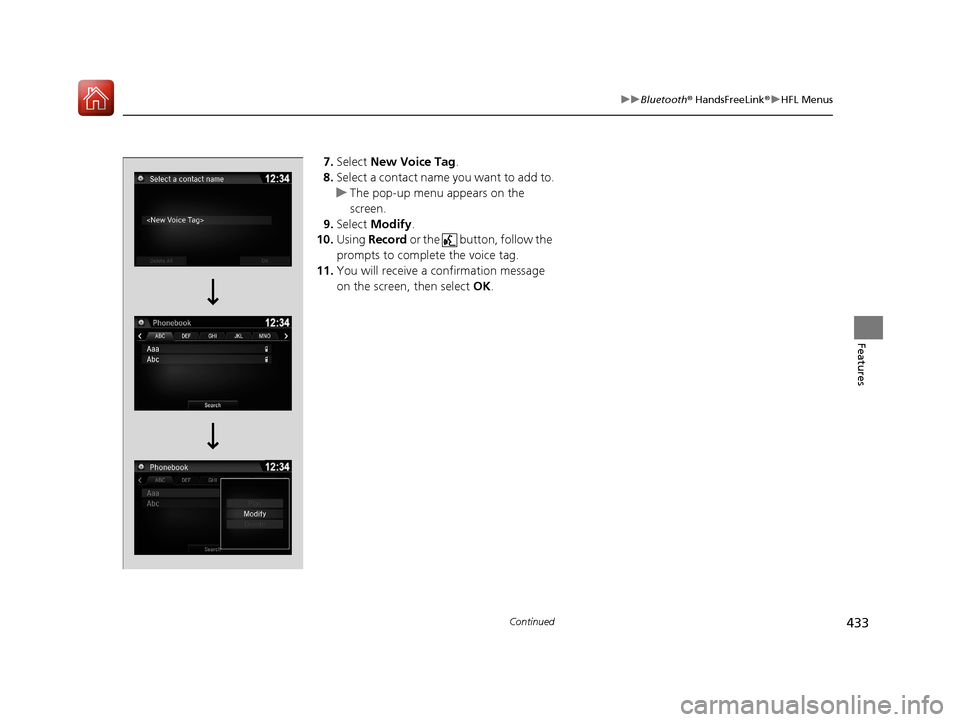

7. Select New Voice Tag .
8. Select a contact name you want to add to.
u The pop-up menu appears on the
screen.
9. Select Modify .
10. Using Record or the button, follow the
prompts to complete the voice tag.
11. You will receive a confirmation message
on the screen, then select OK.
17 PILOT-31TG76100.book 433 ページ ２０１６年９月２０日　火曜日　午後４時９分

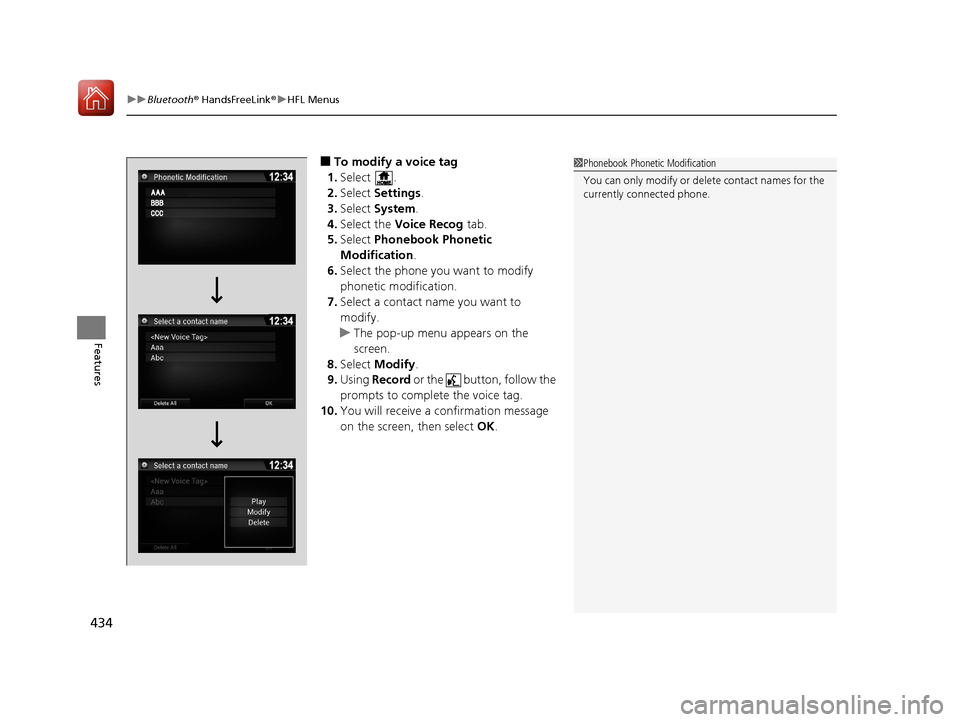

uuBluetooth ® HandsFreeLink ®u HFL Menus
434
Features
■To modify a voice tag
1. Select .
2. Select Settings .
3. Select System .
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification .
6. Select the phone you want to modify
phonetic modification.
7. Select a contact name you want to
modify.
u The pop-up menu appears on the
screen.
8. Select Modify .
9. Using Record or the button, follow the
prompts to complete the voice tag.
10. You will receive a confirmation message
on the screen, then select OK.1Phonebook Phonetic Modification
You can only modify or de lete contact names for the
currently connected phone.
17 PILOT-31TG76100.book 434 ページ ２０１６年９月２０日　火曜日　午後４時９分

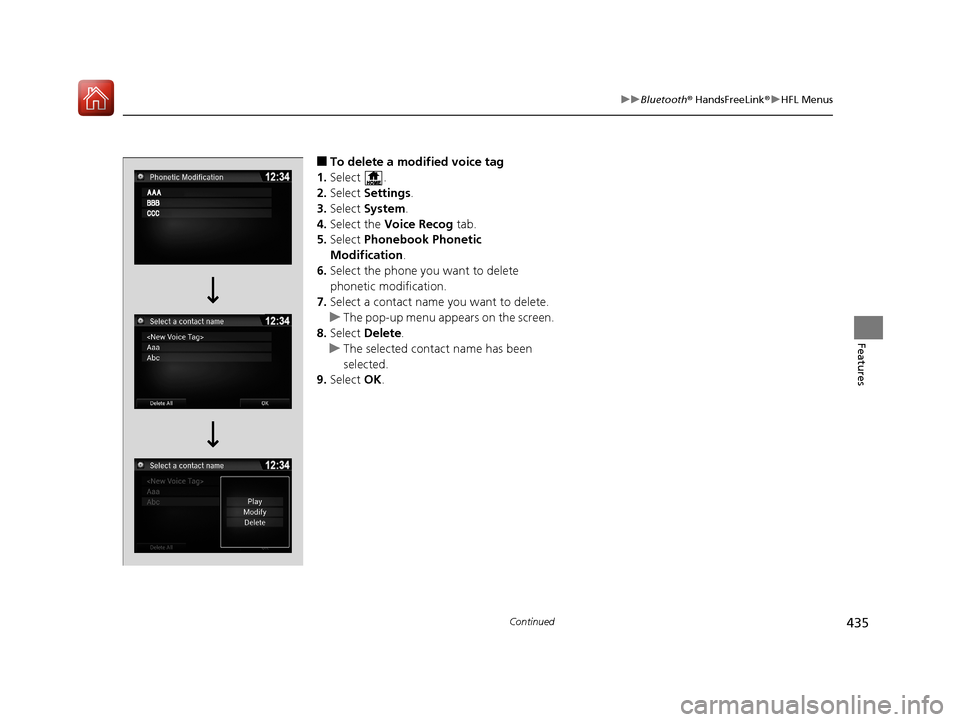

435
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To delete a modified voice tag
1. Select .
2. Select Settings .
3. Select System.
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification .
6. Select the phone you want to delete
phonetic modification.
7. Select a contact name you want to delete.
u The pop-up menu appears on the screen.
8. Select Delete .
u The selected contact name has been
selected.
9. Select OK.
17 PILOT-31TG76100.book 435 ページ ２０１６年９月２０日　火曜日　午後４時９分

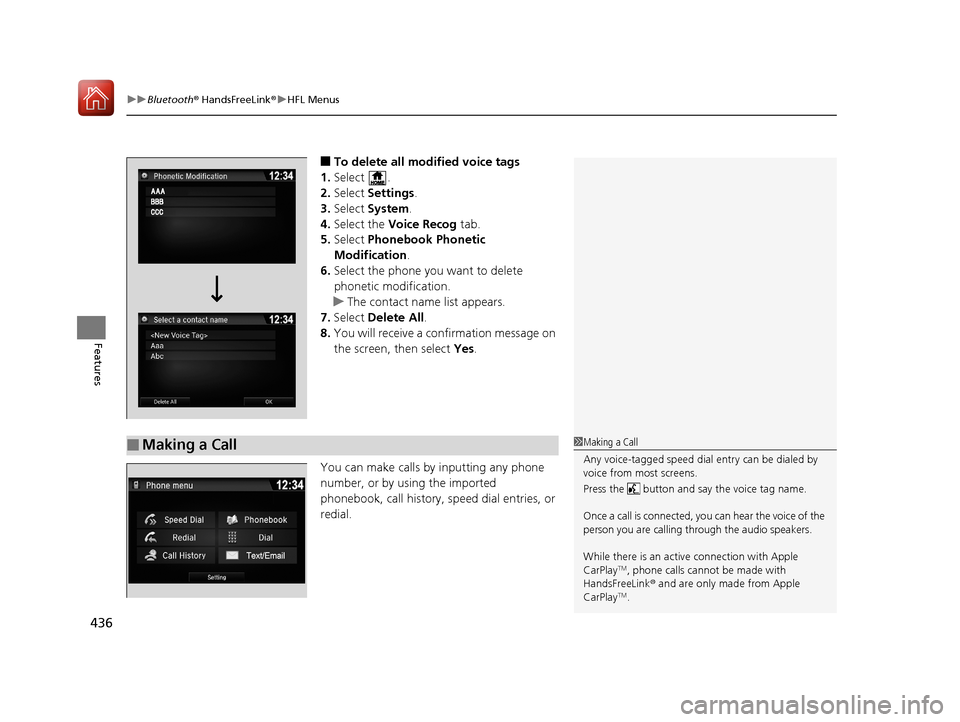

uuBluetooth ® HandsFreeLink ®u HFL Menus
436
Features
■To delete all modified voice tags
1. Select .
2. Select Settings .
3. Select System .
4. Select the Voice Recog tab.
5. Select Phonebook Phonetic
Modification .
6. Select the phone you want to delete
phonetic modification.
u The contact name list appears.
7. Select Delete All .
8. You will receive a confirmation message on
the screen, then select Yes.
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, speed dial entries, or
redial.
■Making a Call1 Making a Call
Any voice-tagged speed dial entry can be dialed by
voice from most screens.
Press the button and say the voice tag name.
Once a call is connected, you can hear the voice of the
person you are calling th rough the audio speakers.
While there is an active connection with Apple
CarPlay
TM, phone calls cannot be made with
HandsFreeLink ® and are only made from Apple
CarPlay
TM.
17 PILOT-31TG76100.book 436 ページ ２０１６年９月２０日　火曜日　午後４時９分

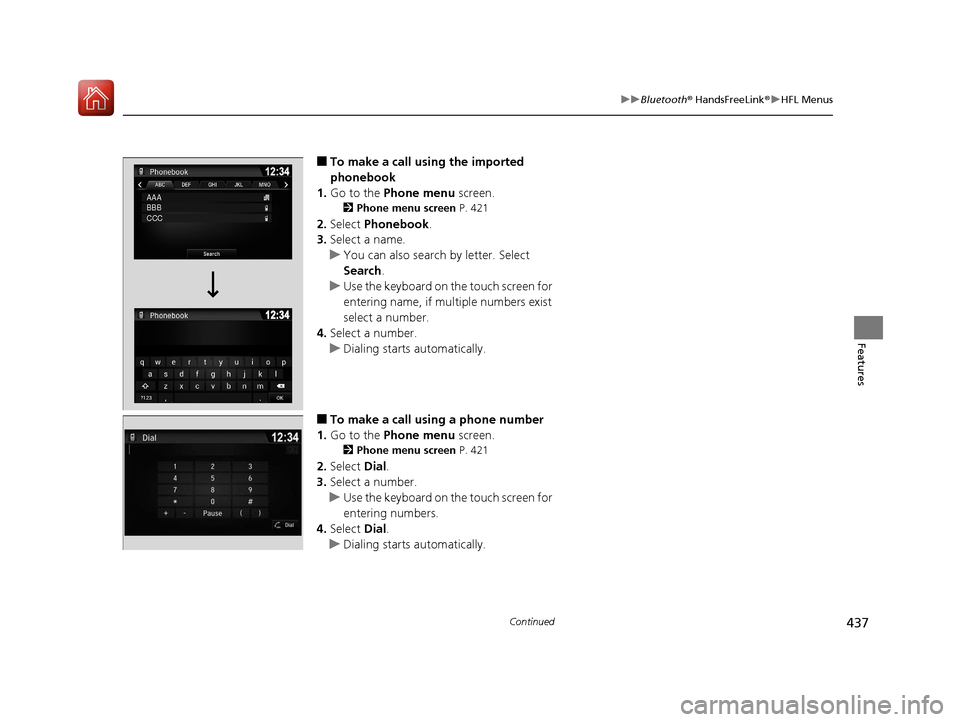

437
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To make a call us ing the imported
phonebook
1. Go to the Phone menu screen.
2Phone menu screen P. 421
2.Select Phonebook.
3. Select a name.
u You can also search by letter. Select
Search .
u Use the keyboard on the touch screen for
entering name, if multiple numbers exist
select a number.
4. Select a number.
u Dialing starts automatically.
■To make a call using a phone number
1. Go to the Phone menu screen.
2Phone menu screen P. 421
2.Select Dial.
3. Select a number.
u Use the keyboard on the touch screen for
entering numbers.
4. Select Dial.
u Dialing starts automatically.
AAAAAABBBBBBCCCCCC
AAA
BBB
CCC
17 PILOT-31TG76100.book 437 ページ ２０１６年９月２０日　火曜日　午後４時９分

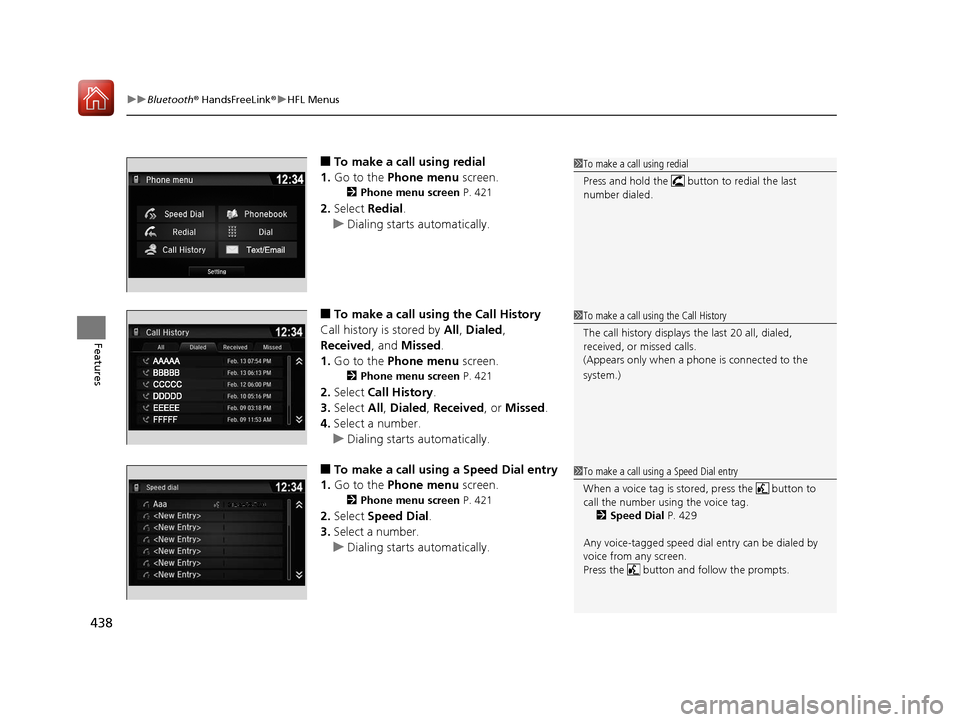

uuBluetooth ® HandsFreeLink ®u HFL Menus
438
Features
■To make a call using redial
1. Go to the Phone menu screen.
2Phone menu screen P. 421
2.Select Redial.
u Dialing starts automatically.
■To make a call using the Call History
Call history is stored by All, Dialed ,
Received, and Missed.
1. Go to the Phone menu screen.
2Phone menu screen P. 421
2.Select Call History .
3. Select All, Dialed , Received, or Missed .
4. Select a number.
u Dialing starts automatically.
■To make a call using a Speed Dial entry
1. Go to the Phone menu screen.
2Phone menu screen P. 421
2.Select Speed Dial .
3. Select a number.
u Dialing starts automatically.
1To make a call using redial
Press and hold the butt on to redial the last
number dialed.
1 To make a call using the Call History
The call history displays the last 20 all, dialed,
received, or missed calls.
(Appears only when a phone is connected to the
system.)
1 To make a call using a Speed Dial entry
When a voice tag is stored, press the button to
call the number using the voice tag.
2 Speed Dial P. 429
Any voice-tagged speed dial entry can be dialed by
voice from any screen.
Press the button and follow the prompts.
17 PILOT-31TG76100.book 438 ページ ２０１６年９月２０日　火曜日　午後４時９分

Continued439
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
When there is an inco ming call, an audible
notification sounds (if activated) and the
Incoming call screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
The following options are available during a call.
Mute : Mute your voice.
Transfer: Transfer a call from the system to your phone.
Touch Tones : Send numbers during a call. This is useful when you call a menu-
driven phone system. The available options are shown on the lower
half of the screen.
Select the option. u The mute icon appears when Mute is
selected. Select Mute again to turn it off.
■Receiving a Call1Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Select Ignore to ignore the incoming call if you do
not want to answer it.
Press the button if you want to hang up the
current call.
You can select the icons on the audio/information
screen instead of the and buttons.
■Options During a Call1 Options During a Call
Touch Tones : Available on some phones.
You can select the icons on the audio/information
screen.
Mute Icon
