702
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator Comes On or Blinks
Handling the Unexpected

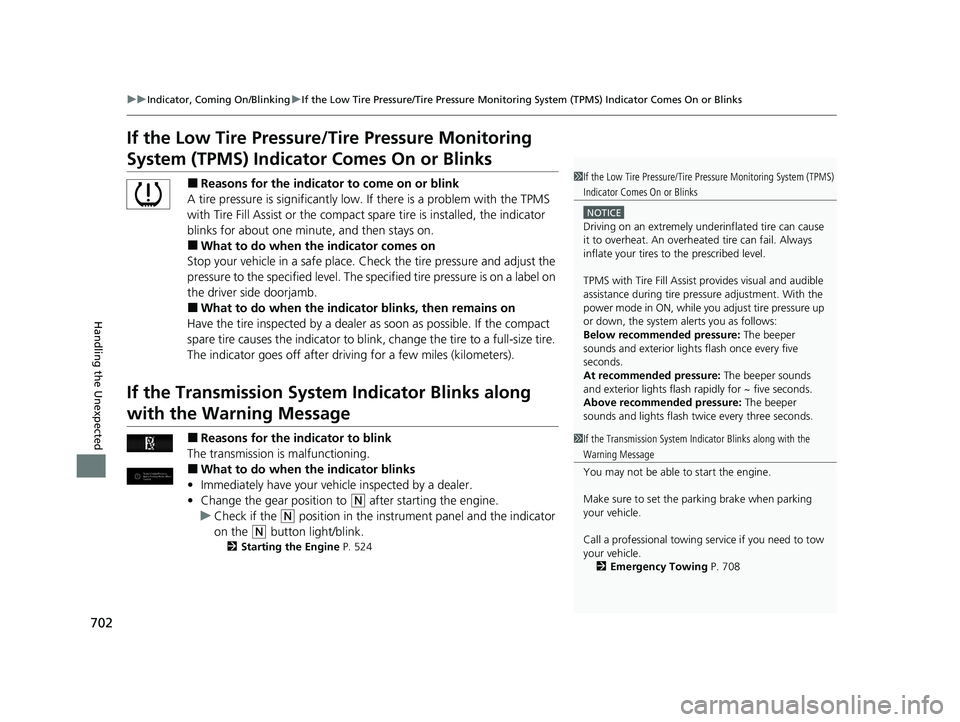

If the Low Tire Pressure/Tire Pressure Monitoring
System (TPMS) Indicato r Comes On or Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS
with Tire Fill Assist or the compact spare tire is installed, the indicator
blinks for about one mi nute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indica tor blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driving for a few miles (kilometers).
If the Transmission System Indicator Blinks along
with the Warning Message
■Reasons for the in dicator to blink
The transmission is malfunctioning.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Change the gear position to
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
2 Starting the Engine P. 524
1If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS)
Indicator Comes On or Blinks
NOTICE
Driving on an extremely underinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS with Tire Fill Assist provides visual and audible
assistance during tire pre ssure adjustment. With the
power mode in ON, while y ou adjust tire pressure up
or down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission System In dicator Blinks along with the
Warning Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle. 2 Emergency Towing P. 708
21 PILOT-31TG76500.book 702 ページ ２０２０年３月１８日　水曜日　午後４時３８分

703Continued
Handling the Unexpected

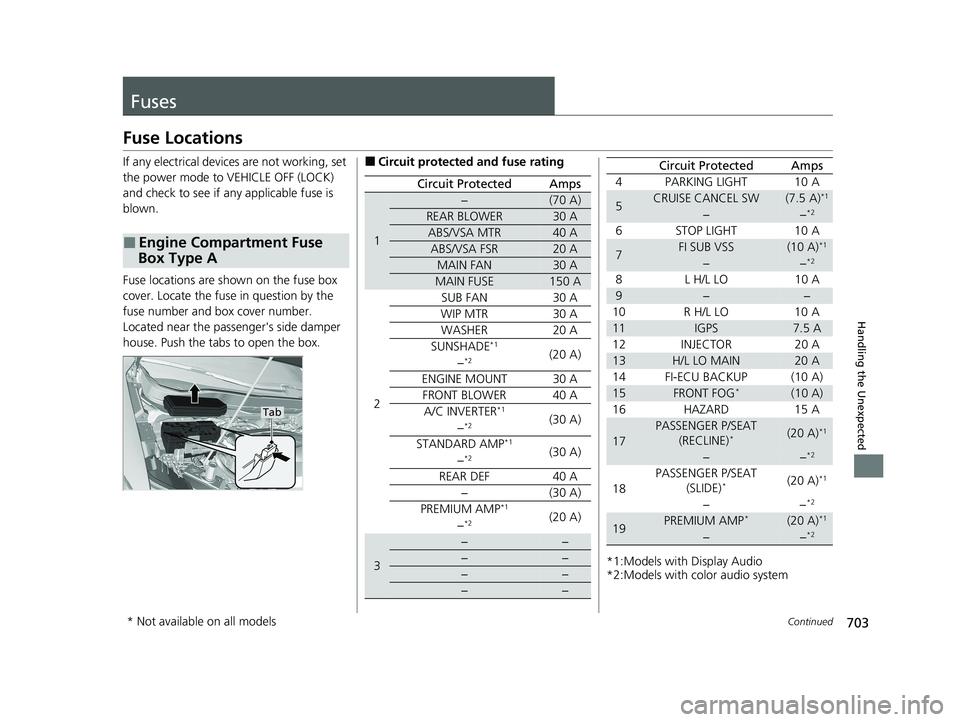

Fuses
Fuse Locations
If any electrical devices are not working, set
the power mode to VEHICLE OFF (LOCK)
and check to see if any applicable fuse is
blown.
Fuse locations are shown on the fuse box
cover. Locate the fuse in question by the
fuse number and box cover number.
Located near the passenger's side damper
house. Push the tabs to open the box.
■Engine Compartment Fuse
Box Type A
Tab
■Circuit protected and fuse rating
Circuit ProtectedAmps
1
−(70 A)
REAR BLOWER30 A
ABS/VSA MTR40 A
ABS/VSA FSR20 A
MAIN FAN30 A
MAIN FUSE150 A
2
SUB FAN30 A
WIP MTR30 A
WASHER20 A
SUNSHADE*1(20 A)−*2
ENGINE MOUNT30 A
FRONT BLOWER40 A
A/C INVERTER*1(30 A)−*2
STANDARD AMP*1(30 A)−*2
REAR DEF40 A
−(30 A)
PREMIUM AMP*1(20 A)−*2
3
−−
−−
−−
−−
*1:Models with Display Audio
*2:Models with color audio system 4 PARKING LIGHT 10 A
5CRUISE CANCEL SW(7.5 A)*1
−−*2
6 STOP LIGHT 10 A
7FI SUB VSS(10 A)*1
−−*2
8L
H/L L O 1 0 A
9−−
10 R H/L LO 10 A
11IGPS7.5 A
12 INJECTOR 20 A
13H/L LO MAIN20 A
14 FI-ECU BACKUP (10 A)
15FRONT FOG*(10 A)
16 HAZARD 15 A
17
PASSENGER P/SEAT (RECLINE)*(20 A)*1
−−*2
18 PASSENGER P/SEAT
(SLIDE)*(20 A)*1
−−*2
19PREMIUM AMP*(20 A)*1
−−*2
Circuit ProtectedAmps
* Not available on all models
21 PILOT-31TG76500.book 703 ページ ２０２０年３月１８日　水曜日　午後４時３８分

707
uuFuses uInspecting and Changing Fuses
Handling the Unexpected

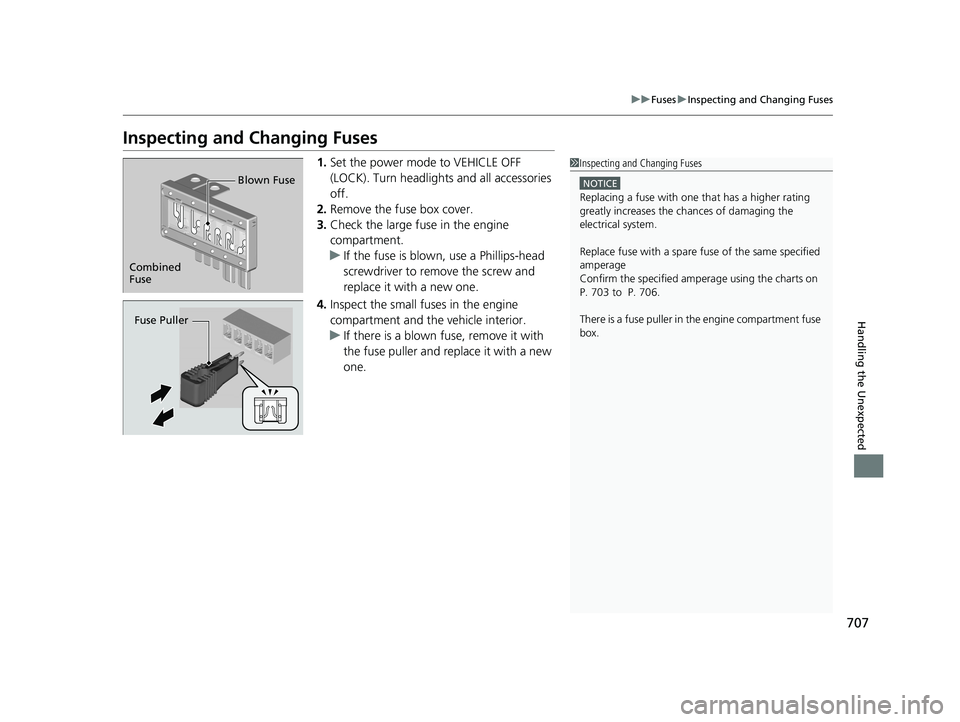

Inspecting and Changing Fuses
1. Set the power mode to VEHICLE OFF
(LOCK). Turn headlights and all accessories
off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.1Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
Replace fuse with a spare fuse of the same specified
amperage
Confirm the specified amperage using the charts on
P. 703 to P. 706.
There is a fuse puller in the engine compartment fuse
box.
Combined
Fuse Blown Fuse
Fuse Puller
21 PILOT-31TG76500.book 707 ページ ２０２０年３月１８日　水曜日　午後４時３８分

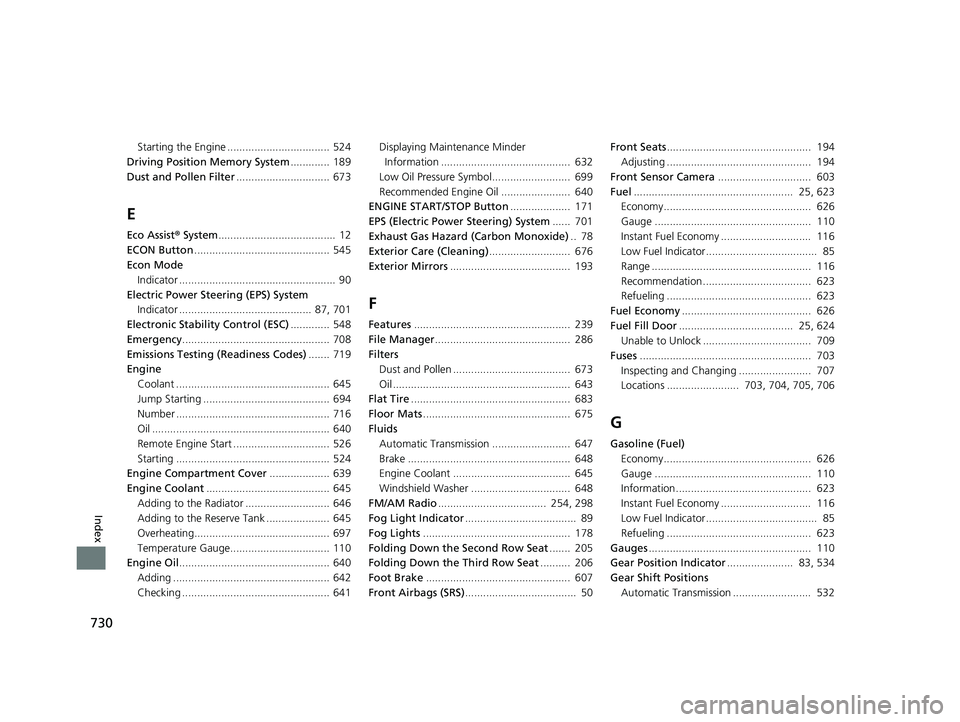

730
Index
Starting the Engine .................................. 524
Driving Position Memory System ............. 189
Dust and Pollen Filter ............................... 673
E
Eco Assist® System ....................................... 12
ECON Button ............................................. 545
Econ Mode Indicator .................................................... 90
Electric Power Steering (EPS) System Indicator ............................................ 87, 701
Electronic Stability Control (ESC) ............. 548
Emergency ................................................. 708
Emissions Testing (Readiness Codes) ....... 719
Engine
Coolant ................................................... 645
Jump Starting .......................................... 694
Number ................................................... 716
Oil ........................................................... 640
Remote Engine Start ................................ 526
Starting ................................................... 524
Engine Compartment Cover .................... 639
Engine Coolant ......................................... 645
Adding to the Radiator ............................ 646
Adding to the Reserve Tank ..................... 645
Overheating............................................. 697
Temperature Gauge................................. 110
Engine Oil .................................................. 640
Adding .................................................... 642
Checking ................................................. 641 Displaying Maintenance Minder
Information ........................................... 632
Low Oil Pressure Symbol.......................... 699
Recommended Engine Oil ....................... 640
ENGINE START/STOP Button .................... 171
EPS (Electric Power Steering) System ...... 701
Exhaust Gas Hazard (Carbon Monoxide) .. 78
Exterior Care (Cleaning) ........................... 676
Exterior Mirrors ........................................ 193
F
Features.................................................... 239
File Manager ............................................. 286
Filters Dust and Pollen ....................................... 673
Oil ........................................................... 643
Flat Tire ..................................................... 683
Floor Mats ................................................. 675
Fluids Automatic Transmission .......................... 647
Brake ...................................................... 648
Engine Coolant ....................................... 645
Windshield Washer ................................. 648
FM/AM Radio .................................... 254, 298
Fog Light Indicator ..................................... 89
Fog Lights ................................................. 178
Folding Down the Second Row Seat ....... 205
Folding Down the Third Row Seat .......... 206
Foot Brake ................................................ 607
Front Airbags (SRS) ..................................... 50 Front Seats
................................................ 194
Adjusting ................................................ 194
Front Sensor Camera ............................... 603
Fuel ..................................................... 25, 623
Economy................................................. 626
Gauge .................................................... 110
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Range ..................................................... 116
Recommendation.................................... 623
Refueling ................................................ 623
Fuel Economy ........................................... 626
Fuel Fill Door ...................................... 25, 624
Unable to Unlock .................................... 709
Fuses ......................................................... 703
Inspecting and Changing ........................ 707
Locations ........................ 703, 704, 705, 706
G
Gasoline (Fuel)
Economy................................................. 626
Gauge .................................................... 110
Information............................................. 623
Instant Fuel Economy .............................. 116
Low Fuel Indicator ..................................... 85
Refueling ................................................ 623
Gauges ...................................................... 110
Gear Position Indicator ...................... 83, 534
Gear Shift Positions
Automatic Transmission .......................... 532
21 PILOT-31TG76500.book 730 ページ ２０２０年３月１８日　水曜日　午後４時３８分

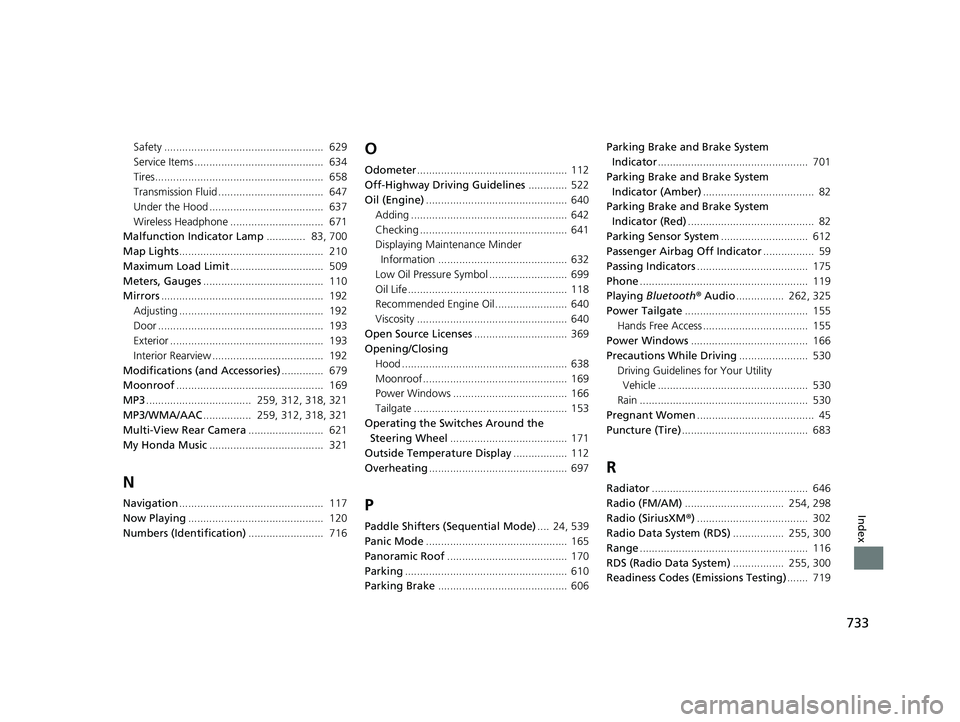

733
Index
Safety ..................................................... 629
Service Items ........................................... 634
Tires........................................................ 658
Transmission Fluid ................................... 647
Under the Hood ...................................... 637
Wireless Headphone ............................... 671
Malfunction Indicator Lamp ............. 83, 700
Map Lights ................................................ 210
Maximum Load Limit ............................... 509
Meters, Gauges ........................................ 110
Mirrors ...................................................... 192
Adjusting ................................................ 192
Door ....................................................... 193
Exterior ................................................... 193
Interior Rearview ..................................... 192
Modifications (and Accessories) .............. 679
Moonroof ................................................. 169
MP3 ................................... 259, 312, 318, 321
MP3/WMA/AAC ................ 259, 312, 318, 321
Multi-View Rear Camera ......................... 621
My Honda Music ...................................... 321
N
Navigation................................................ 117
Now Playing ............................................. 120
Numbers (Identification) ......................... 716
O
Odometer.................................................. 112
Off-Highway Driving Guidelines ............. 522
Oil (Engine) ............................................... 640
Adding .................................................... 642
Checking ................................................. 641
Displaying Maintenance Minder Information ........................................... 632
Low Oil Pressure Symbol .......................... 699
Oil Life ..................................................... 118
Recommended Engine Oil ........................ 640
Viscosity .................................................. 640
Open Source Licenses ............................... 369
Opening/Closing
Hood ....................................................... 638
Moonroof ................................................ 169
Power Windows ...................................... 166
Tailgate ................................................... 153
Operating the Switches Around the
Steering Wheel ....................................... 171
Outside Temperature Display .................. 112
Overheating .............................................. 697
P
Paddle Shifters (Sequential Mode) .... 24, 539
Panic Mode ............................................... 165
Panoramic Roof ........................................ 170
Parking ...................................................... 610
Parking Brake ........................................... 606 Parking Brake and Brake System
Indicator .................................................. 701
Parking Brake and Brake System Indicator (Amber) ..................................... 82
Parking Brake and Brake System
Indicator (Red) .......................................... 82
Parking Sensor System ............................. 612
Passenger Airbag Off Indicator ................. 59
Passing Indicators ..................................... 175
Phone ........................................................ 119
Playing Bluetooth ® Audio ................ 262, 325
Power Tailgate ......................................... 155
Hands Free Access ................................... 155
Power Windows ....................................... 166
Precautions While Driving ....................... 530
Driving Guidelines for Your Utility Vehicle .................................................. 530
Rain ........................................................ 530
Pregnant Women ....................................... 45
Puncture (Tire) .......................................... 683
R
Radiator.................................................... 646
Radio (FM/AM) ................................. 254, 298
Radio (SiriusXM ®) ..................................... 302
Radio Data System (RDS) ................. 255, 300
Range ........................................................ 116
RDS (Radio Data System) ................. 255, 300
Readiness Codes (Emissions Testing) ....... 719
21 PILOT-31TG76500.book 733 ページ ２０２０年３月１８日　水曜日　午後４時３８分
