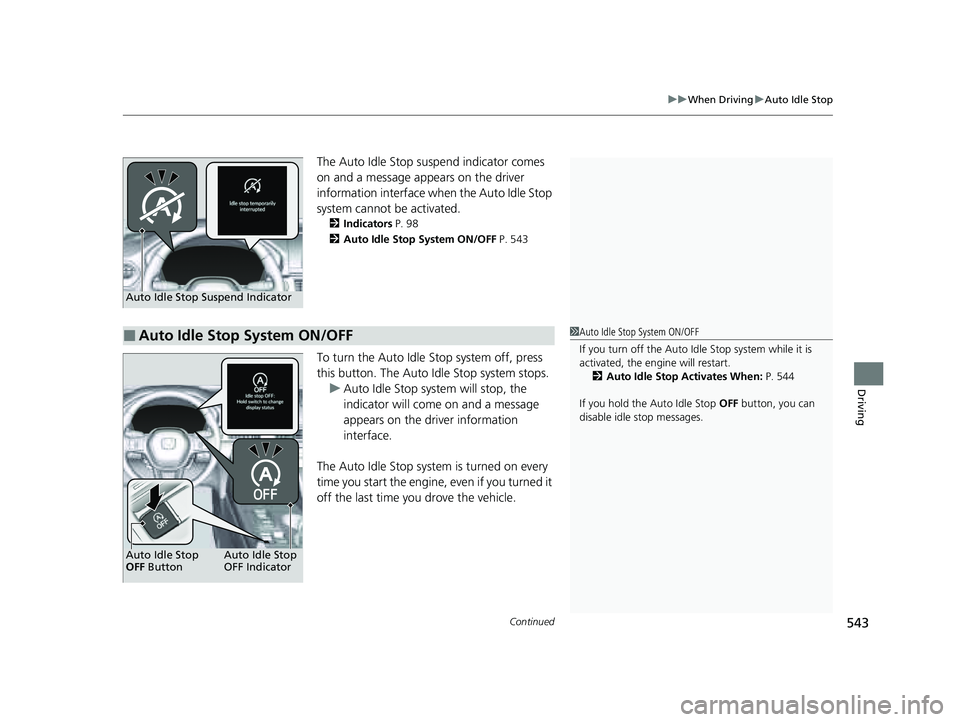

Continued543
uuWhen Driving uAuto Idle Stop
Driving
The Auto Idle Stop suspend indicator comes
on and a message appears on the driver
information interface when the Auto Idle Stop
system cannot be activated.
2 Indicators P. 98
2 Auto Idle Stop System ON/OFF P. 543
To turn the Auto Idle Stop system off, press
this button. The Auto Id le Stop system stops.
u Auto Idle Stop system will stop, the
indicator will come on and a message
appears on the dr iver information
interface.
The Auto Idle Stop syst em is turned on every
time you start the engine, even if you turned it
off the last time you drove the vehicle.
Auto Idle Stop Suspend Indicator
■Auto Idle Stop System ON/OFF1 Auto Idle Stop System ON/OFF
If you turn off the Auto Idle Stop system while it is
activated, the engine will restart.
2 Auto Idle Stop Activates When: P. 544
If you hold the Auto Idle Stop OFF button, you can
disable idle stop messages.
Auto Idle Stop
OFF Indicator
Auto Idle Stop
OFF Button
23 PILOT-31T906000_03.book 543 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

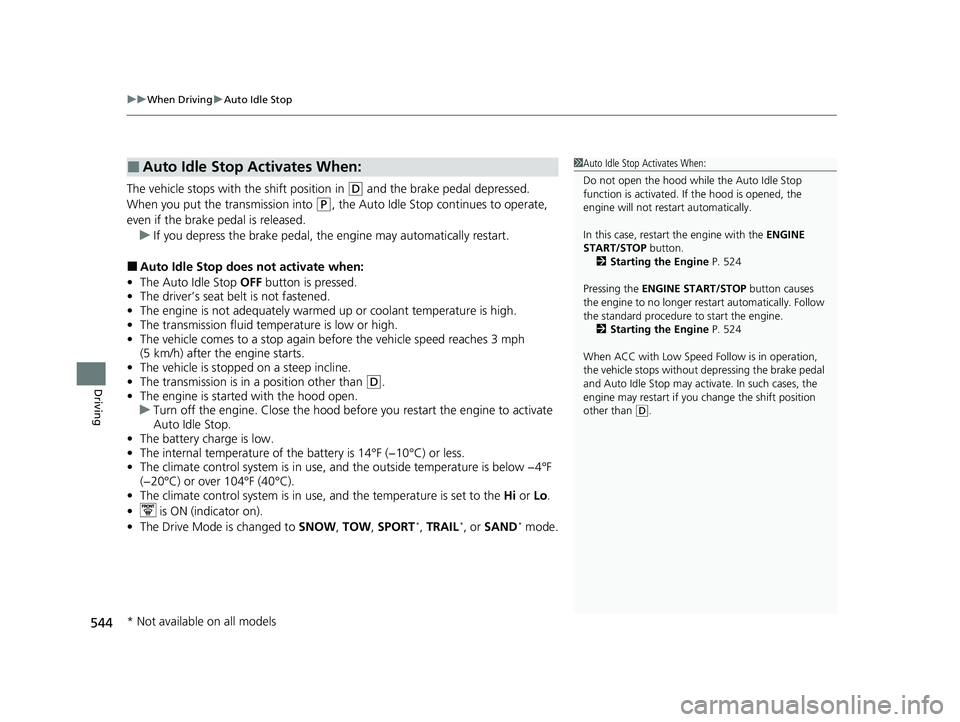

uuWhen Driving uAuto Idle Stop
544
Driving
The vehicle stops with the shift position in (D and the brake pedal depressed.
When you put the transmission into
(P, the Auto Idle Stop continues to operate,
even if the brake pedal is released. u If you depress the brake pedal, the engine may automatically restart.
■Auto Idle Stop does not activate when:
• The Auto Idle Stop OFF button is pressed.
• The driver’s seat belt is not fastened.
• The engine is not adequately warmed up or coolant temperature is high.
• The transmission fluid temperature is low or high.
• The vehicle comes to a stop again be fore the vehicle speed reaches 3 mph
(5 km/h) after the engine starts.
• The vehicle is stopped on a steep incline.
• The transmission is in a position other than
(D.
• The engine is started with the hood open.
u Turn off the engine. Close the hood before you restart the engine to activate
Auto Idle Stop.
• The battery charge is low.
• The internal temperature of the battery is 14°F (−10°C) or less.
• The climate control system is in use, an d the outside temperature is below −4°F
(−20°C) or over 104°F (40°C).
• The climate control system is in use, and the temperature is set to the Hi or Lo.
• is ON (indicator on).
• The Drive Mode is changed to SNOW, TOW , SPORT
*, TRAIL*, or SAND* mode.
■Auto Idle Stop Activates When:1Auto Idle Stop Activates When:
Do not open the hood while the Auto Idle Stop
function is activated. If the hood is opened, the
engine will not re start automatically.
In this case, restart the engine with the ENGINE
START/STOP button.
2 Starting the Engine P. 524
Pressing the ENGINE START/STOP button causes
the engine to no longer rest art automatically. Follow
the standard procedure to start the engine.
2 Starting the Engine P. 524
When ACC with Low Speed Follow is in operation,
the vehicle stops without de pressing the brake pedal
and Auto Idle Stop may activate. In such cases, the
engine may restart if you change the shift position
other than
( D.
* Not available on all models
23 PILOT-31T906000_03.book 544 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

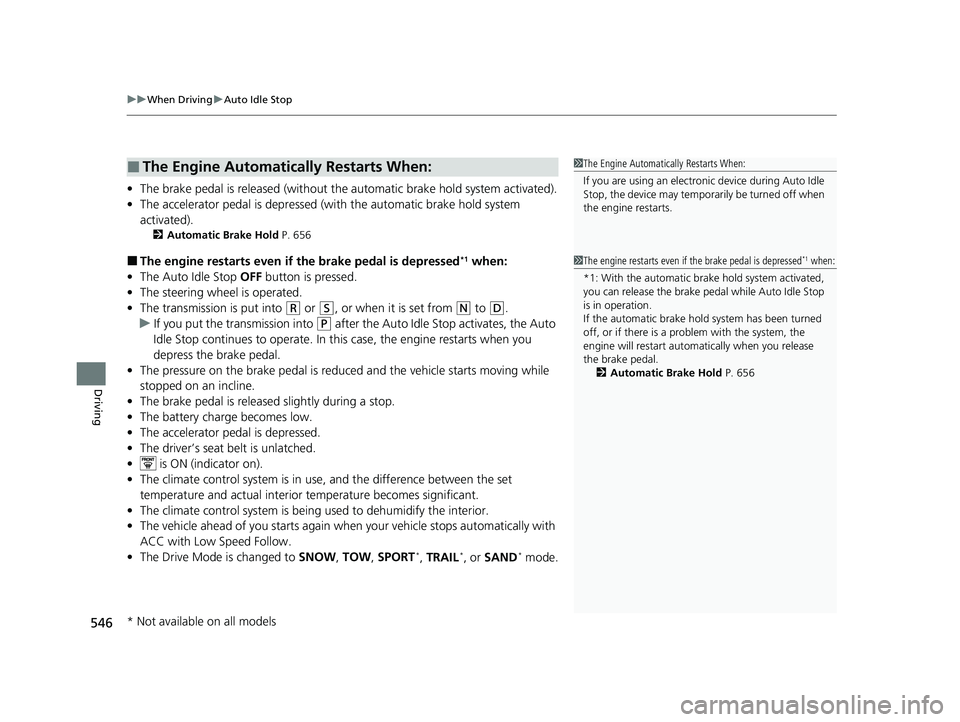

uuWhen Driving uAuto Idle Stop
546
Driving
• The brake pedal is released (without the automatic brake hold system activated).
• The accelerator pedal is depressed (with the automatic brake hold system
activated).
2 Automatic Brake Hold P. 656
■The engine restarts even if the brake pedal is depressed*1 when:
• The Auto Idle Stop OFF button is pressed.
• The steering wheel is operated.
• The transmission is put into
(R or (S, or when it is set from (N to (D.
u If you put the transmission into
(P after the Auto Idle Stop activates, the Auto
Idle Stop continues to operate. In this case, the engine restarts when you
depress the brake pedal.
• The pressure on the brake pedal is redu ced and the vehicle starts moving while
stopped on an incline.
• The brake pedal is released slightly during a stop.
• The battery charge becomes low.
• The accelerator pedal is depressed.
• The driver’s seat belt is unlatched.
• is ON (indicator on).
• The climate control system is in us e, and the difference between the set
temperature and actual interior temperature becomes significant.
• The climate control system is bein g used to dehumidify the interior.
• The vehicle ahead of you starts again when your vehicle stops automatically with
ACC with Low Speed Follow.
• The Drive Mode is changed to SNOW, TOW , SPORT
*, TRAIL*, or SAND* mode.
■The Engine Automatically Restarts When:1The Engine Automatically Restarts When:
If you are using an electroni c device during Auto Idle
Stop, the device may tempor arily be turned off when
the engine restarts.
1 The engine restarts even if the brake pedal is depressed*1 when:
*1: With the automatic brake hold system activated,
you can release the brake pedal while Auto Idle Stop
is in operation.
If the automatic brake hold system has been turned
off, or if there is a problem with the system, the
engine will restart automatically when you release
the brake pedal. 2 Automatic Brake Hold P. 656
* Not available on all models
23 PILOT-31T906000_03.book 546 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

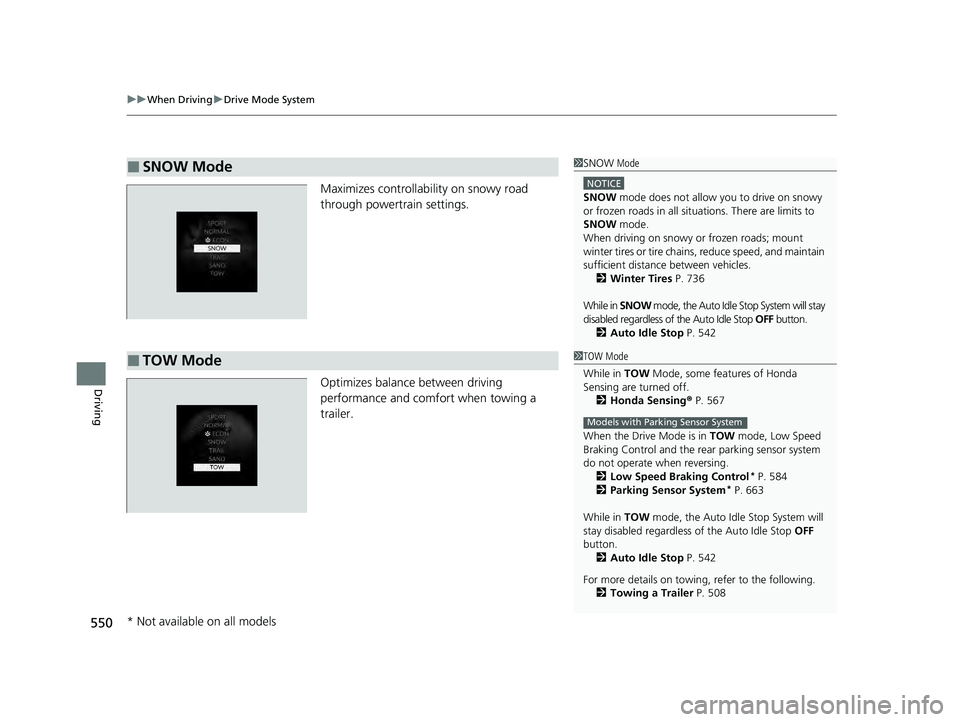

uuWhen Driving uDrive Mode System
550
Driving
Maximizes controllab ility on snowy road
through powertrain settings.
Optimizes balance between driving
performance and comfort when towing a
trailer.
■SNOW Mode1 SNOW Mode
NOTICE
SNOW mode does not allow you to drive on snowy
or frozen roads in all situations. There are limits to
SNOW mode.
When driving on snowy or frozen roads; mount
winter tires or tire chains , reduce speed, and maintain
sufficient distance between vehicles.
2 Winter Tires P. 736
While in SNOW mode, the Auto Idle Stop System will stay
disabled regardless of the Auto Idle Stop OFF button.
2 Auto Idle Stop P. 542
■TOW Mode1TOW Mode
While in TOW Mode, some features of Honda
Sensing are turned off. 2 Honda Sensing ® P. 567
When the Drive Mode is in TOW mode, Low Speed
Braking Control and the rear parking sensor system
do not operate when reversing. 2 Low Speed Braking Control
* P. 584
2 Parking Sensor System* P. 663
While in TOW mode, the Auto Idle Stop System will
stay disabled regardless of the Auto Idle Stop OFF
button.
2 Auto Idle Stop P. 542
For more details on towing, refer to the following. 2 Towing a Trailer P. 508
Models with Parking Sensor System
* Not available on all models
23 PILOT-31T906000_03.book 550 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

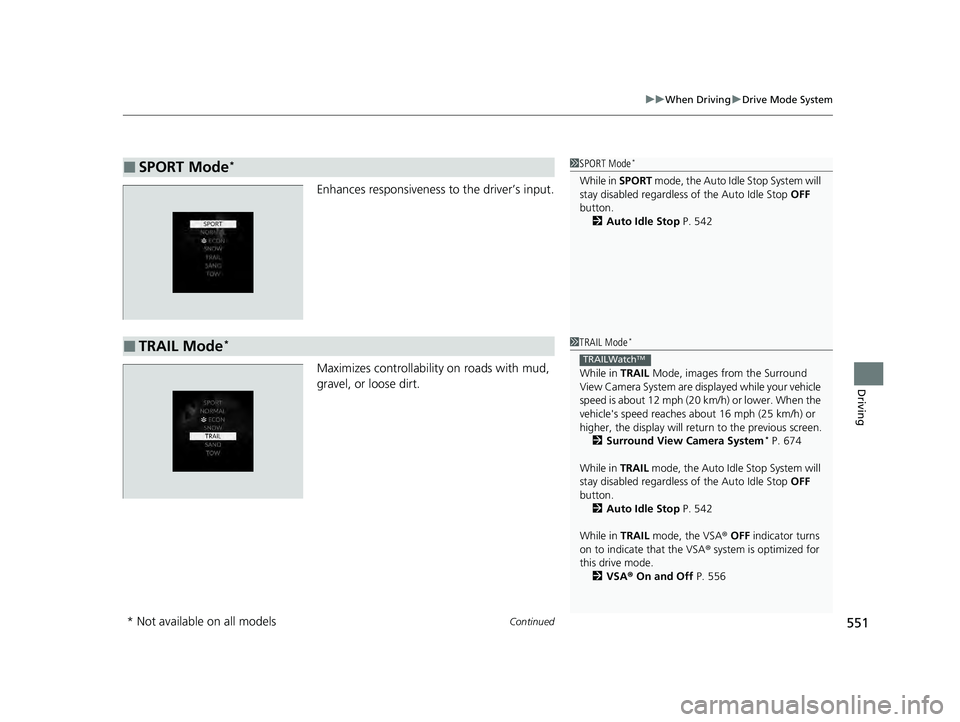

Continued551
uuWhen Driving uDrive Mode System
Driving
Enhances responsiveness to the driver’s input.
Maximizes controllability on roads with mud,
gravel, or loose dirt.
■SPORT Mode*1SPORT Mode*
While in SPORT mode, the Auto Idle Stop System will
stay disabled regardless of the Auto Idle Stop OFF
button.
2 Auto Idle Stop P. 542
■TRAIL Mode*1TRAIL Mode*
While in TRAIL Mode, images from the Surround
View Camera System are displayed while your vehicle
speed is about 12 mph (20 km/h) or lower. When the
vehicle's speed reaches about 16 mph (25 km/h) or
higher, the display will return to the previous screen. 2 Surround View Camera System
* P. 674
While in TRAIL mode, the Auto Idle Stop System will
stay disabled regardless of the Auto Idle Stop OFF
button. 2 Auto Idle Stop P. 542
While in TRAIL mode, the VSA® OFF indicator turns
on to indicate that the VSA ® system is optimized for
this drive mode.
2 VSA ® On and Off P. 556
TRAILWatchTM
* Not available on all models
23 PILOT-31T906000_03.book 551 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

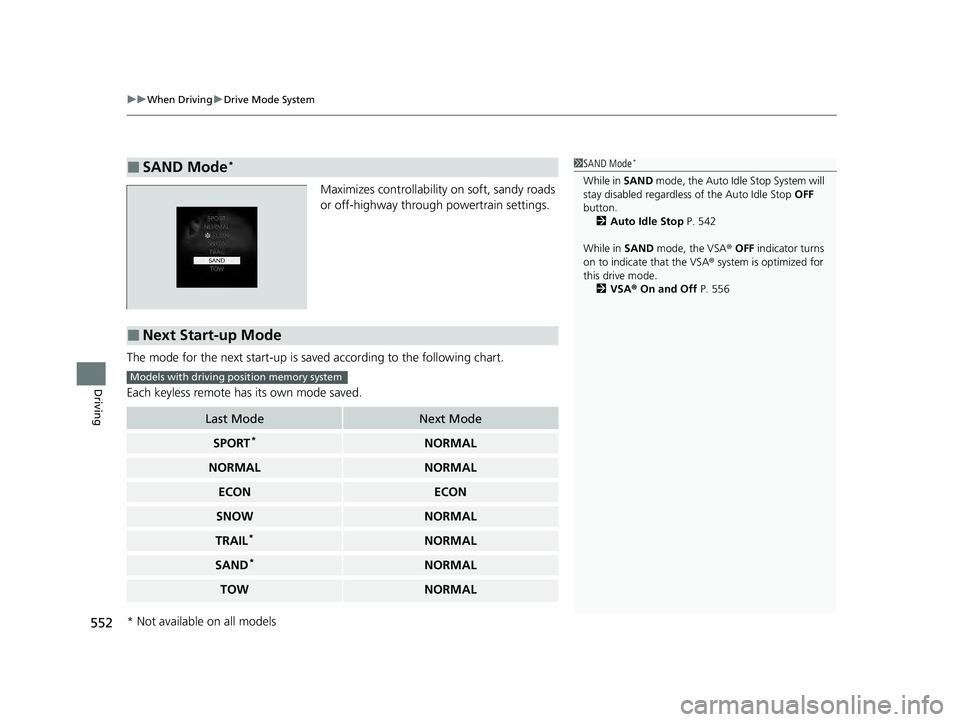

uuWhen Driving uDrive Mode System
552
Driving
Maximizes controllability on soft, sandy roads
or off-highway through powertrain settings.
The mode for the next start-up is sa ved according to the following chart.
Each keyless remote has its own mode saved.
■SAND Mode*1 SAND Mode*
While in SAND mode, the Auto Idle Stop System will
stay disabled regardless of the Auto Idle Stop OFF
button.
2 Auto Idle Stop P. 542
While in SAND mode, the VSA ® OFF indicator turns
on to indicate that the VSA ® system is optimized for
this drive mode. 2 VSA ® On and Off P. 556
■Next Start-up Mode
Last ModeNext Mode
SPORT*NORMAL
NORMALNORMAL
ECONECON
SNOWNORMAL
TRAIL*NORMAL
SAND*NORMAL
TOWNORMAL
Models with driving position memory system
* Not available on all models
23 PILOT-31T906000_03.book 552 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

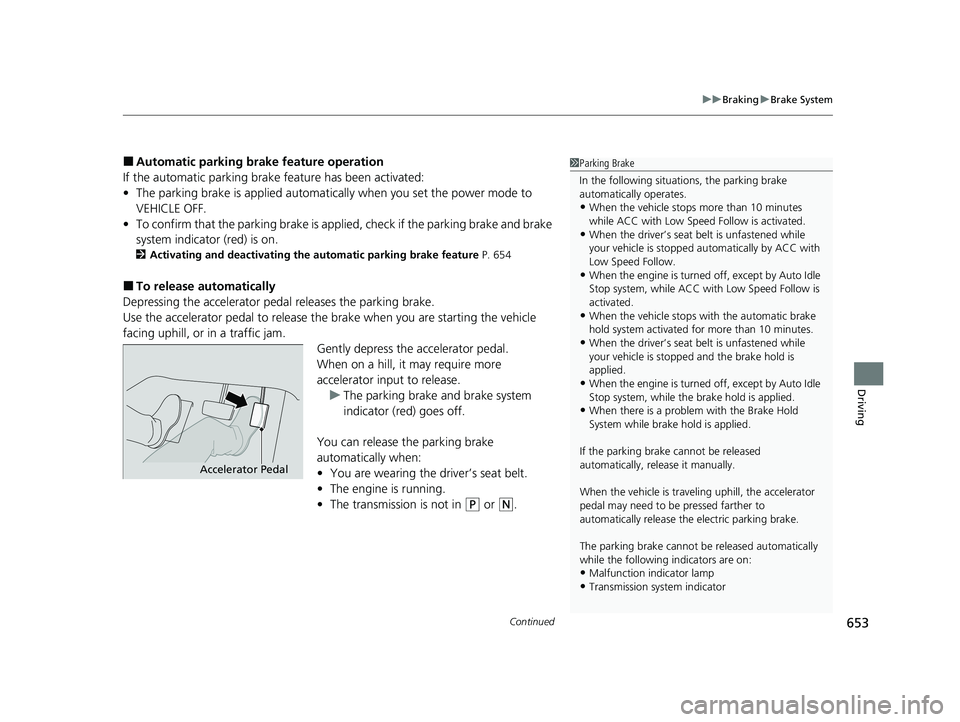

Continued653
uuBraking uBrake System
Driving
■Automatic parking brake feature operation
If the automatic parking brake feature has been activated:
• The parking brake is applied automatically when you set the power mode to
VEHICLE OFF.
• To confirm that the parking brake is applied, check if the parking brake and brake
system indicator (red) is on.
2 Activating and deactivating the automatic parking brake feature P. 654
■To release automatically
Depressing the accelerator pedal releases the parking brake.
Use the accelerator pedal to release the brake when you are starting the vehicle
facing uphill, or in a traffic jam. Gently depress the accelerator pedal.
When on a hill, it may require more
accelerator input to release.u The parking brake and brake system
indicator (red) goes off.
You can release the parking brake
automatically when:
• You are wearing the driver’s seat belt.
• The engine is running.
• The transmission is not in
(P or (N.
1Parking Brake
In the following situations, the parking brake
automatically operates.
•When the vehicle stops more than 10 minutes
while ACC with Low Speed Follow is activated.
•When the driver’s seat belt is unfastened while
your vehicle is stopped au tomatically by ACC with
Low Speed Follow.
•When the engine is turned off, except by Auto Idle
Stop system, while ACC with Low Speed Follow is
activated.
•When the vehicle stops with the automatic brake
hold system activated for more than 10 minutes.
•When the driver’s seat belt is unfastened while
your vehicle is stopped and the brake hold is
applied.
•When the engine is turned off, except by Auto Idle
Stop system, while the brake hold is applied.
•When there is a problem with the Brake Hold
System while brake hold is applied.
If the parking brake cannot be released
automatically, release it manually.
When the vehicle is travel ing uphill, the accelerator
pedal may need to be pressed farther to
automatically release the electric parking brake.
The parking brake cannot be released automatically
while the following indicators are on:
•Malfunction indicator lamp
•Transmission system indicator
Accelerator Pedal
23 PILOT-31T906000_03.book 653 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

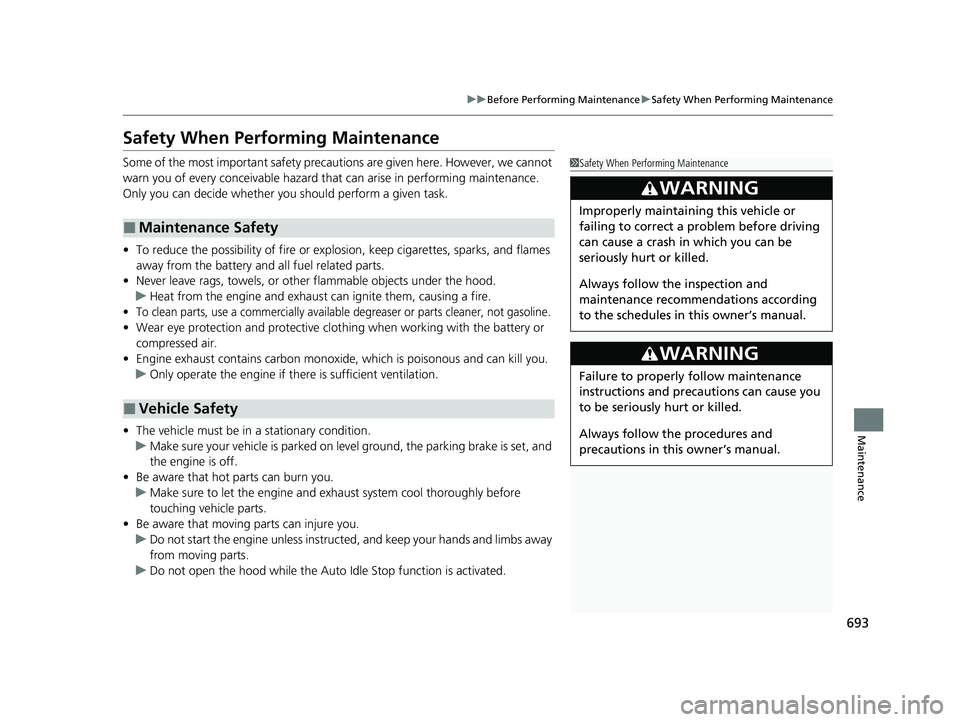

693
uuBefore Performing Maintenance uSafety When Performing Maintenance
Maintenance
Safety When Performing Maintenance
Some of the most important safety precau tions are given here. However, we cannot
warn you of every conceivable hazard that can arise in performing maintenance.
Only you can decide whether you should perform a given task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
•To clean parts, use a commercially available degreaser or parts cleaner, not gasoline.
•Wear eye protection and protective clothi ng when working with the battery or
compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on le vel ground, the parking brake is set, and
the engine is off.
• Be aware that hot parts can burn you.
u Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not start the engine unless instruct ed, and keep your hands and limbs away
from moving parts.
u Do not open the hood while the Auto Idle Stop function is activated.
■Maintenance Safety
■Vehicle Safety
1Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3WARNING
Failure to properly follow maintenance
instructions and precautions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
23 PILOT-31T906000_03.book 693 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

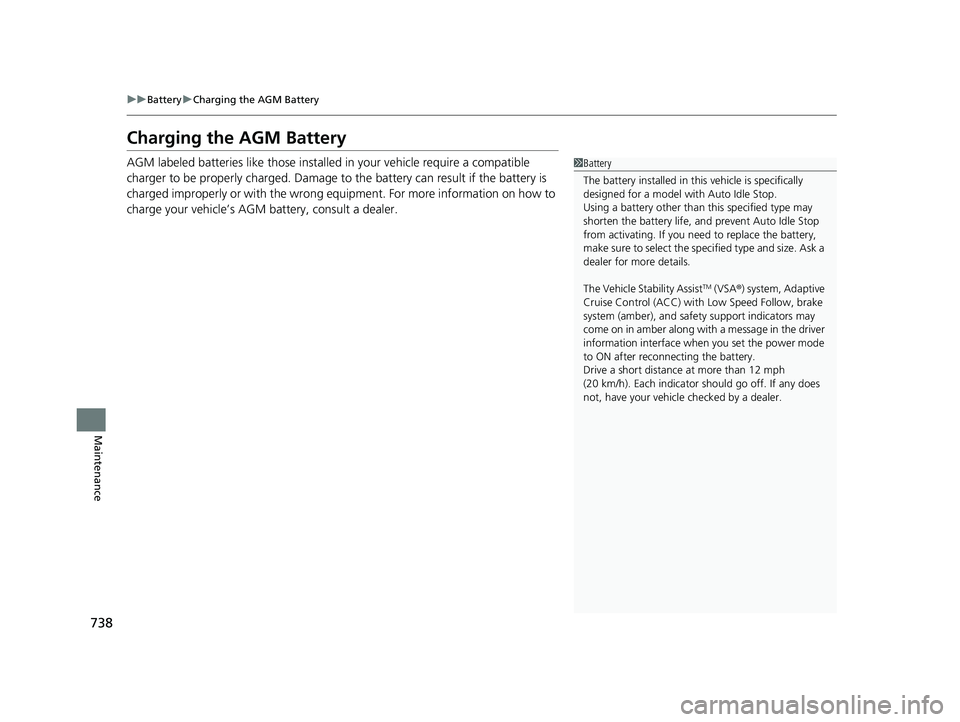

738
uuBattery uCharging the AGM Battery
Maintenance
Charging the AGM Battery
AGM labeled batteries like those installe d in your vehicle require a compatible
charger to be properly charged. Damage to the battery can result if the battery is
charged improperly or with the wrong equipment. For more information on how to
charge your vehicle’s AGM battery, consult a dealer.1Battery
The battery installed in this vehicle is specifically
designed for a model wi th Auto Idle Stop.
Using a battery other than this specified type may
shorten the battery life, a nd prevent Auto Idle Stop
from activating. If you need to replace the battery,
make sure to select the specified type and size. Ask a
dealer for more details.
The Vehicle Stability Assist
TM (VSA ®) system, Adaptive
Cruise Control (ACC) with Low Speed Follow, brake
system (amber), and safety support indicators may
come on in amber along with a message in the driver
information interface when you set the power mode
to ON after reconnecting the battery.
Drive a short distance at more than 12 mph
(20 km/h). Each indicator should go off. If any does
not, have your vehicle checked by a dealer.
23 PILOT-31T906000_03.book 738 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

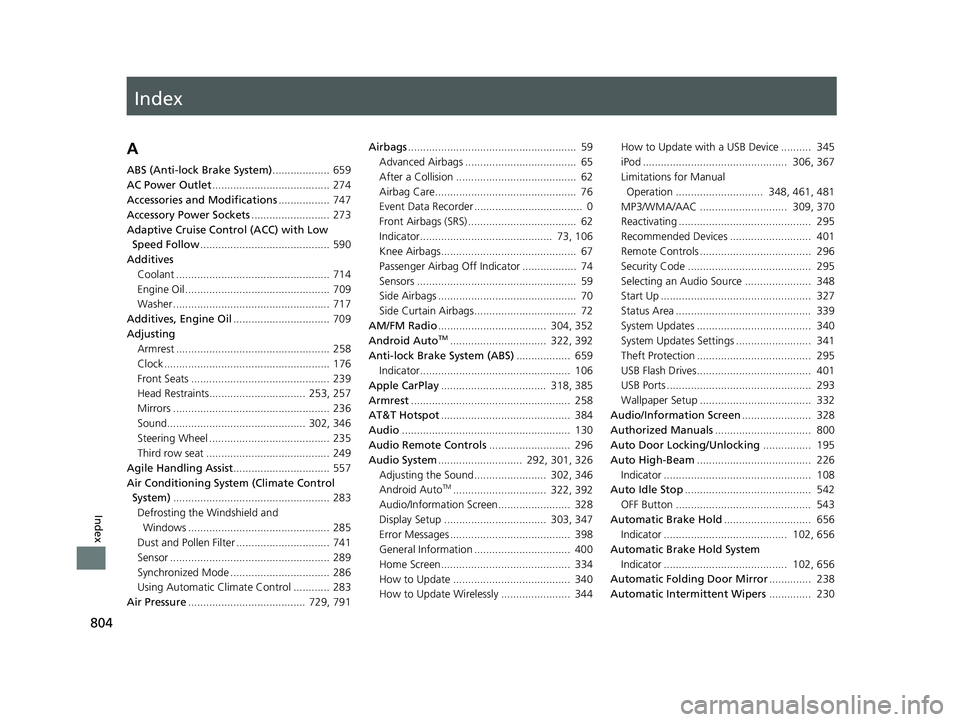

Index
804
Index
Index
A
ABS (Anti-lock Brake System)................... 659
AC Power Outlet ....................................... 274
Accessories and Modifications ................. 747
Accessory Power Sockets .......................... 273
Adaptive Cruise Control (ACC) with Low Speed Follow ........................................... 590
Additives
Coolant ................................................... 714
Engine Oil ................................................ 709
Washer .................................................... 717
Additives, Engine Oil ................................ 709
Adjusting Armrest ................................................... 258
Clock ....................................................... 176
Front Seats .............................................. 239
Head Restraints................................ 253, 257
Mirrors .................................................... 236
Sound.............................................. 302, 346
Steering Wheel ........................................ 235
Third row seat ......................................... 249
Agile Handling Assist ................................ 557
Air Conditioning System (Climate Control System) .................................................... 283
Defrosting the Windshield and
Windows ............................................... 285
Dust and Pollen Filter ............................... 741
Sensor ..................................................... 289
Synchronized Mode ................................. 286
Using Automatic Climate Control ............ 283
Air Pressure ....................................... 729, 791 Airbags
........................................................ 59
Advanced Airbags ..................................... 65
After a Collision ........................................ 62
Airbag Care............................................... 76
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 62
Indicator............................................ 73, 106
Knee Airbags............................................. 67
Passenger Airbag Off Indicator .................. 74
Sensors ..................................................... 59
Side Airbags .............................................. 70
Side Curtain Airbags.................................. 72
AM/FM Radio .................................... 304, 352
Android Auto
TM................................ 322, 392
Anti-lock Brake System (ABS) .................. 659
Indicator.................................................. 106
Apple CarPlay ................................... 318, 385
Armrest ..................................................... 258
AT&T Hotspot ........................................... 384
Audio ........................................................ 130
Audio Remote Controls ........................... 296
Audio System ............................ 292, 301, 326
Adjusting the Sound........................ 302, 346
Android Auto
TM............................... 322, 392
Audio/Information Screen........................ 328
Display Setup .................................. 303, 347
Error Messages ........................................ 398
General Information ................................ 400
Home Screen........................................... 334
How to Update ....................................... 340
How to Update Wirelessly ....................... 344 How to Update with a USB Device .......... 345
iPod ................................................ 306, 367
Limitations for Manual
Operation ............................. 348, 461, 481
MP3/WMA/AAC ............................. 309, 370
Reactivating ............................................ 295
Recommended Devices ........................... 401
Remote Controls ..................................... 296
Security Code ......................................... 295
Selecting an Audio Source ...................... 348
Start Up .................................................. 327
Status Area ............................................. 339
System Updates ...................................... 340
System Updates Settings ......................... 341
Theft Protection ...................................... 295
USB Flash Drives...................................... 401
USB Ports ................................................ 293
Wallpaper Setup ..................................... 332
Audio/Information Screen ....................... 328
Authorized Manuals ................................ 800
Auto Door Locking/Unlocking ................ 195
Auto High-Beam ...................................... 226
Indicator ................................................. 108
Auto Idle Stop .......................................... 542
OFF Button ............................................. 543
Automatic Brake Hold ............................. 656
Indicator ......................................... 102, 656
Automatic Brake Hold System
Indicator ......................................... 102, 656
Automatic Folding Door Mirror .............. 238
Automatic Intermittent Wipers .............. 230
23 PILOT-31T906000_03.book 804 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
