HONDA PILOT 2023 Owner's Manual

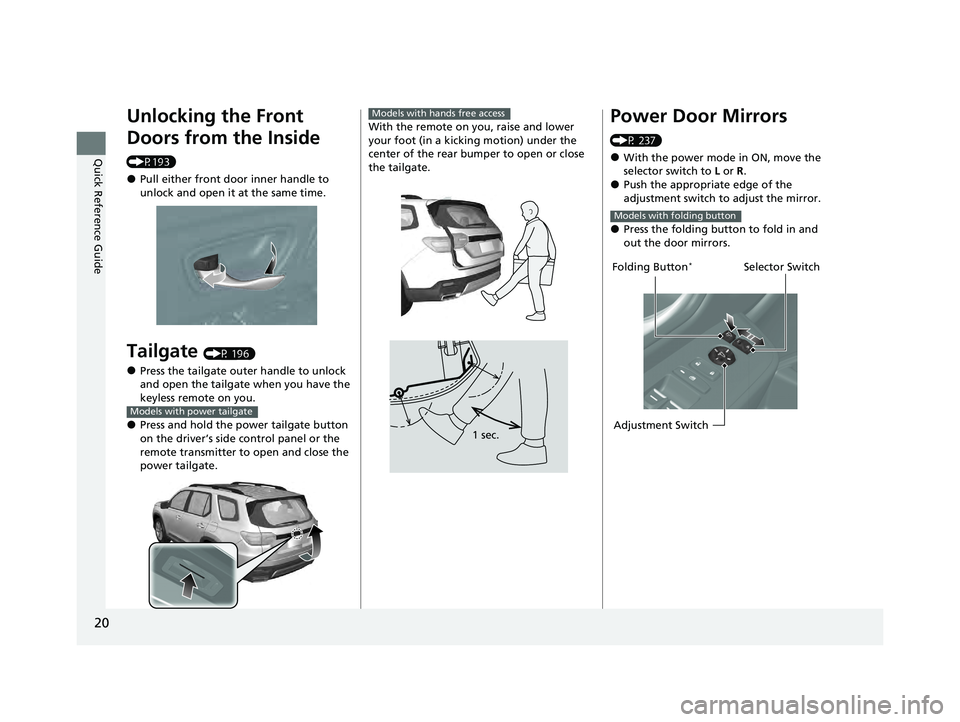

20
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P193)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P 196)
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
keyless remote on you.
●Press and hold the power tailgate button
on the driver’s side control panel or the
remote transmitter to open and close the
power tailgate.
Models with power tailgate
With the remote on you, raise and lower
your foot (in a kicking motion) under the
center of the rear bumper to open or close
the tailgate.
Models with hands free access
1 sec.
Power Door Mirrors
(P 237)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button to fold in and
out the door mirrors.
Models with folding button
Selector Switch
Adjustment SwitchFolding Button*
23 PILOT-31T906000_03.book 20 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

21
Quick Reference Guide

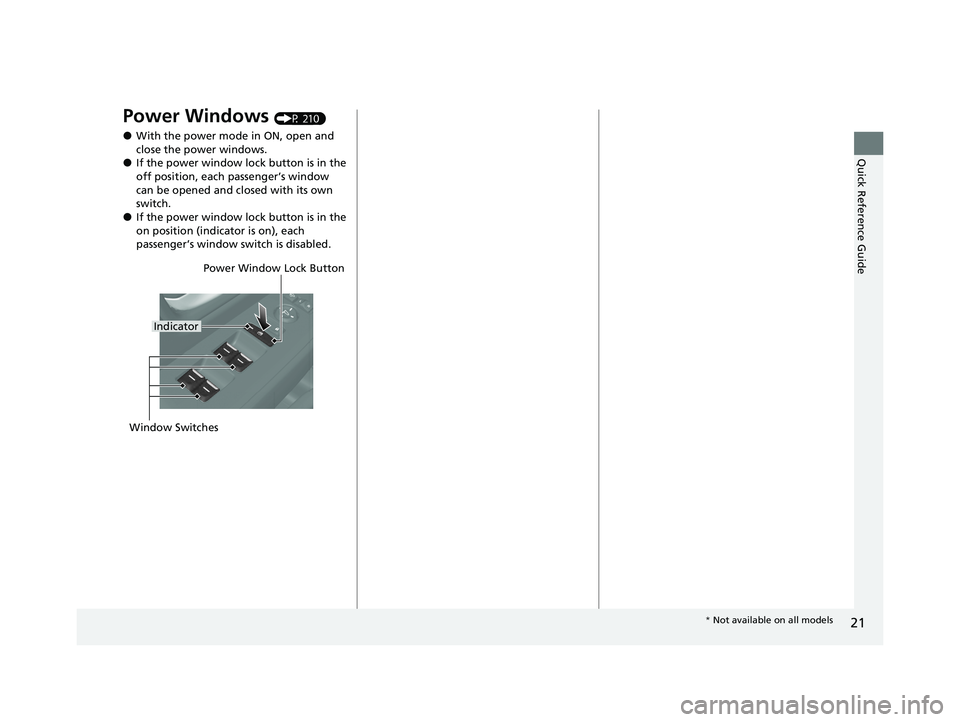

Power Windows (P 210)
●With the power mode in ON, open and
close the power windows.
●If the power window lock button is in the
off position, each passenger’s window
can be opened and closed with its own
switch.
●If the power window lock button is in the
on position (indicator is on), each
passenger’s window switch is disabled.
Power Window Lock Button
Window Switches
Indicator
* Not available on all models
23 PILOT-31T906000_03.book 21 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

22
Quick Reference Guide

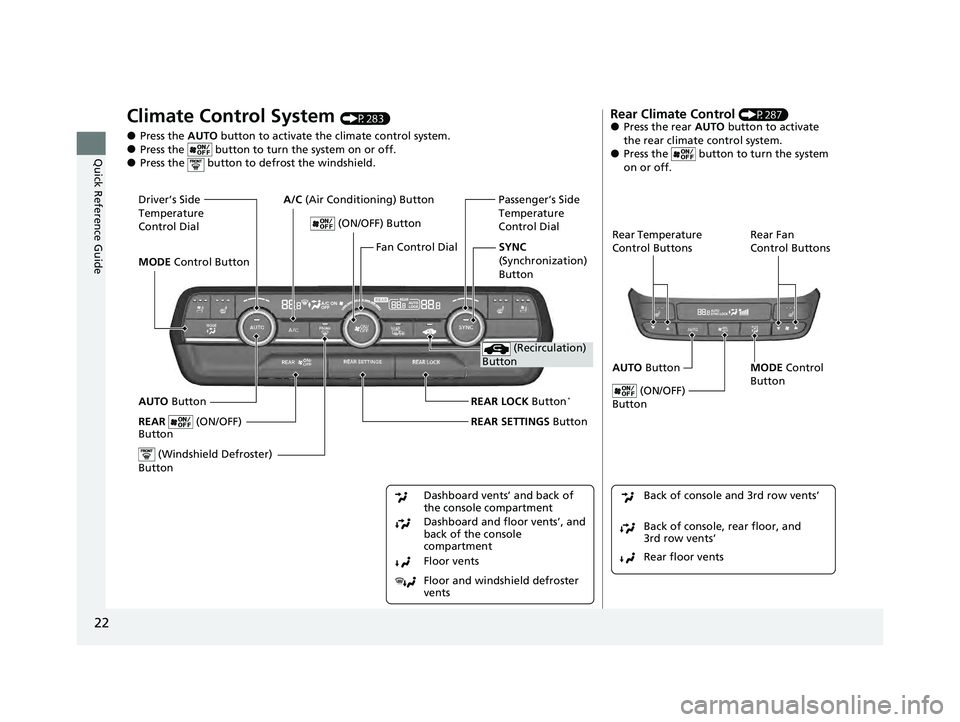

Climate Control System (P283)
●Press the AUTO button to activate the climate control system.●Press the button to turn the system on or off.●Press the button to defrost the windshield.
Floor and windshield defroster
vents Floor vents Dashboard and floor vents’, and
back of the console
compartment Dashboard vents’ and back of
the console compartment
AUTO Button Passenger’s Side
Temperature
Control Dial
(ON/OFF) Button
(Windshield Defroster)
Button
SYNC
(Synchronization)
Button
Fan Control Dial
Driver’s Side
Temperature
Control Dial
MODE
Control Button A/C
(Air Conditioning) Button
(Recirculation)
Button
REAR LOCK Button*
REAR SETTINGS ButtonREAR (ON/OFF)
Button
Rear Climate Control (P287)●Press the rear AUTO button to activate
the rear climate control system.
●Press the button to turn the system
on or off.
Rear Temperature
Control Buttons Rear Fan
Control Buttons
AUTO Button
(ON/OFF)
Button
MODE Control
Button
Rear floor vents Back of console, rear floor, and
3rd row vents’ Back of console and 3rd row vents’
23 PILOT-31T906000_03.book 22 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

23
Quick Reference Guide

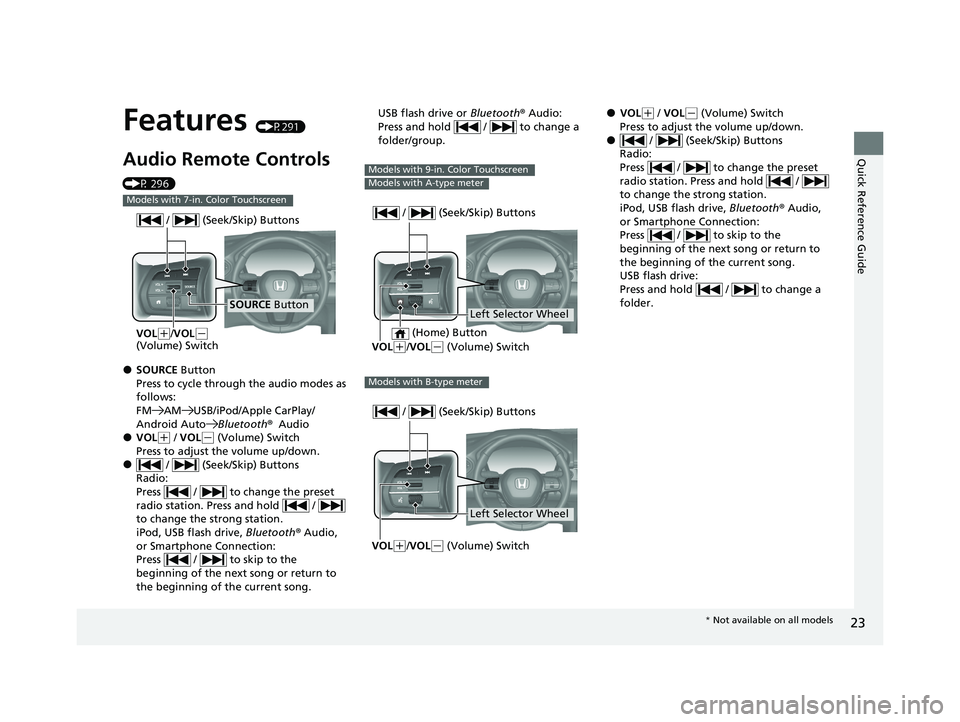

Features (P291)
Audio Remote Controls
(P 296)
●SOURCE Button
Press to cycle through the audio modes as
follows:
FM AM USB/iPod/Apple CarPlay/
Android AutoBluetooth®Audio
●VOL(+ / VOL( - (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
Models with 7-in. Color Touchscreen
SOURCE Button
/ (Seek/Skip) Buttons
VOL(
+/VOL(-
(Volume) Switch
USB flash drive or Bluetooth® Audio:
Press and hold / to change a
folder/group.
Models with 9-in. Color Touchscreen
Models with A-type meter
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL( - (Volume) Switch
(Home) Button
Models with B-type meter
Left Selector Wheel
/ (Seek/Skip) Buttons
VOL(
+/VOL( - (Volume) Switch
●VOL(+ / VOL( - (Volume) Switch
Press to adjust the volume up/down.
● / (Seek/Skip) Buttons
Radio:
Press / to change the preset
radio station. Press and hold /
to change the strong station.
iPod, USB flash drive, Bluetooth® Audio,
or Smartphone Connection:
Press / to skip to the
beginning of the next song or return to
the beginning of the current song.
USB flash drive:
Press and hold / to change a
folder.
* Not available on all models
23 PILOT-31T906000_03.book 23 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

24
Quick Reference Guide

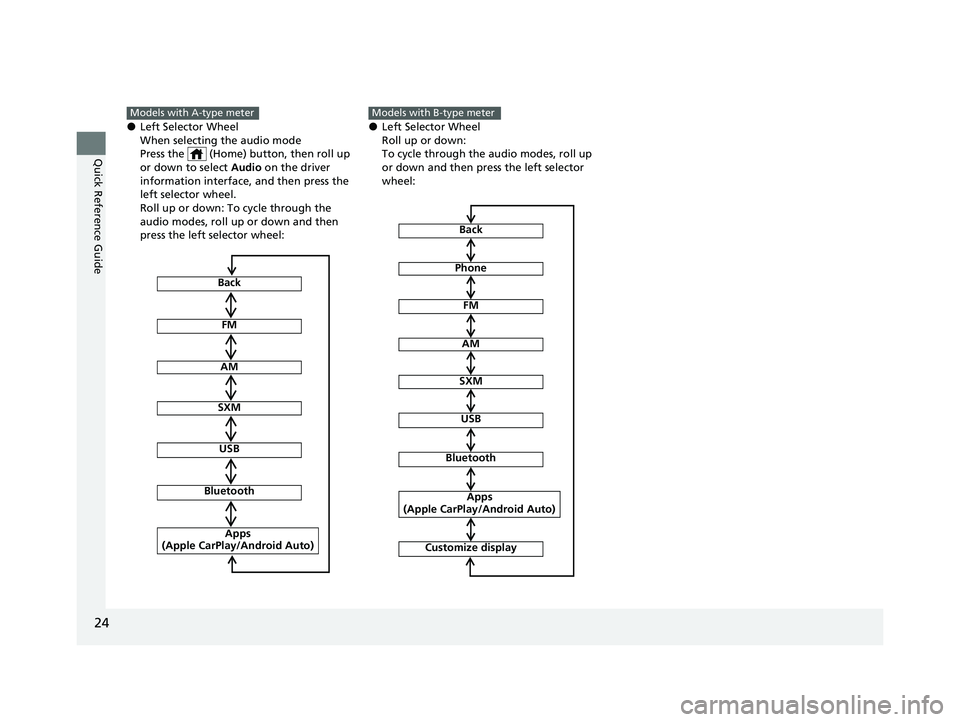

●Left Selector Wheel
When selecting the audio mode
Press the (Home) button, then roll up
or down to select Audio on the driver
information interface, and then press the
left selector wheel.
Roll up or down: To cycle through the
audio modes, roll up or down and then
press the left selector wheel:
Models with A-type meter
FM
AM
SXM
USB
Bluetooth
Apps
(Apple CarPlay/Android Auto)
Back
●Left Selector Wheel
Roll up or down:
To cycle through the audio modes, roll up
or down and then press the left selector
wheel:
Models with B-type meter
FM
AM
SXM
USB
Bluetooth
Apps
(Apple CarPlay/Android Auto)
Back
Phone
Customize display
23 PILOT-31T906000_03.book 24 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

25
Quick Reference Guide

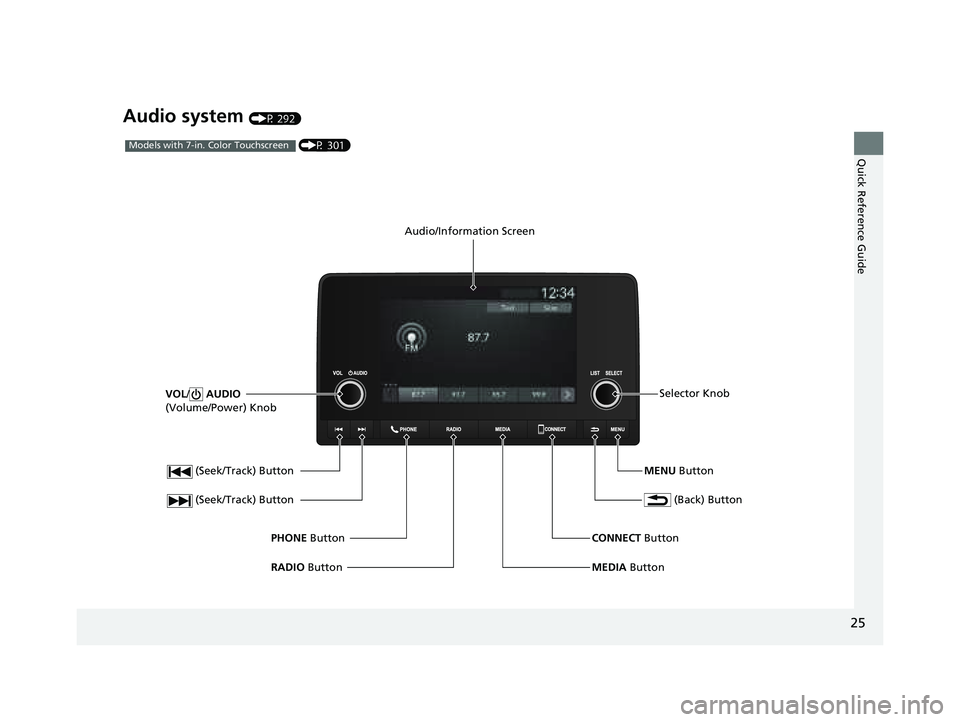

Audio system (P 292)
(Seek/Track) Button
RADIO Button
PHONE
Button
(Seek/Track) Button
VOL
/ AUDIO
(Volume/Power) Knob
Audio/Information Screen
(Back) Button
MENU ButtonSelector Knob
MEDIA Button
CONNECT
Button
(P 301)Models with 7-in. Color Touchscreen
23 PILOT-31T906000_03.book 25 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

26
Quick Reference Guide
VOL/ AUDIO
(Volume/Power) Knob
(Home) Button
(Back) Button
Audio/Information Screen
(Seek/Track) Button
(Seek/Track) Button
(P 326)
For navigation system operation () See the Navigation System Manual
Models with 9-in. Color Touchscreen
23 PILOT-31T906000_03.book 26 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

27
Quick Reference Guide

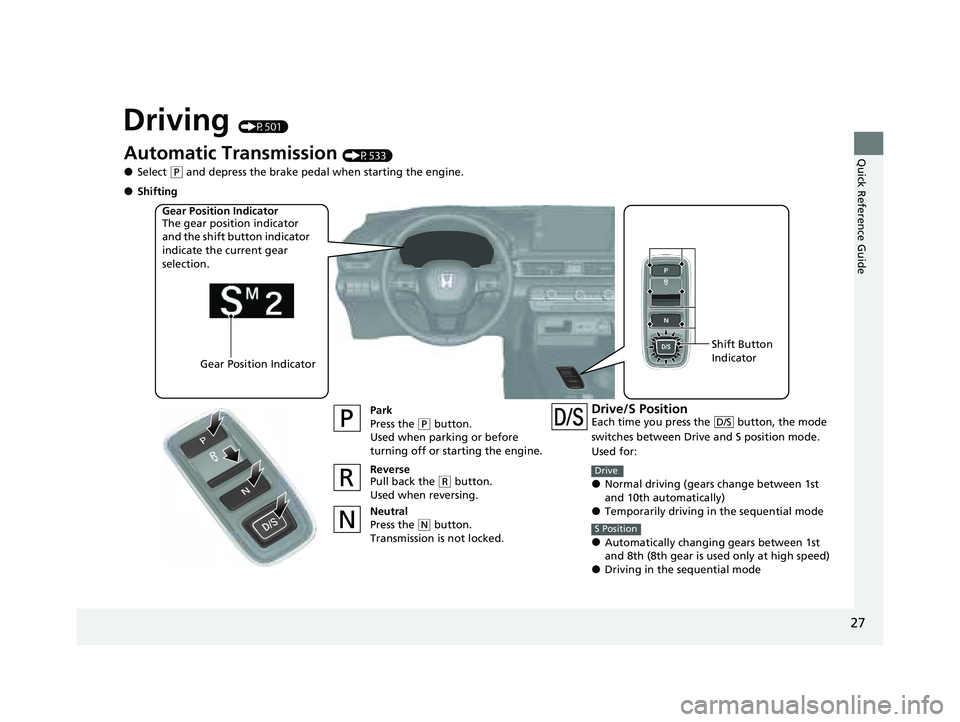

Driving (P501)
Automatic Transmission (P533)
●Select (P and depress the brake pedal when starting the engine.
Park
Press the
(P button.
Used when parking or before
turning off or starting the engine.
Reverse
Pull back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked.
Gear Position Indicator
The gear position indicator
and the shift button indicator
indicate the current gear
selection.
Gear Position Indicator Shift Button
Indicator
●Shifting
Drive/S PositionEach time you press the button, the mode
switches between Drive
and S position mode.
Used for:
●Normal driving (gears change between 1st
and 10th automatically)
●Temporarily driving in the sequential mode
●Automatically changing gears between 1st
and 8th (8th gear is used only at high speed)
●Driving in the sequential mode
D/S
Drive
S Position
23 PILOT-31T906000_03.book 27 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

28
Quick Reference Guide

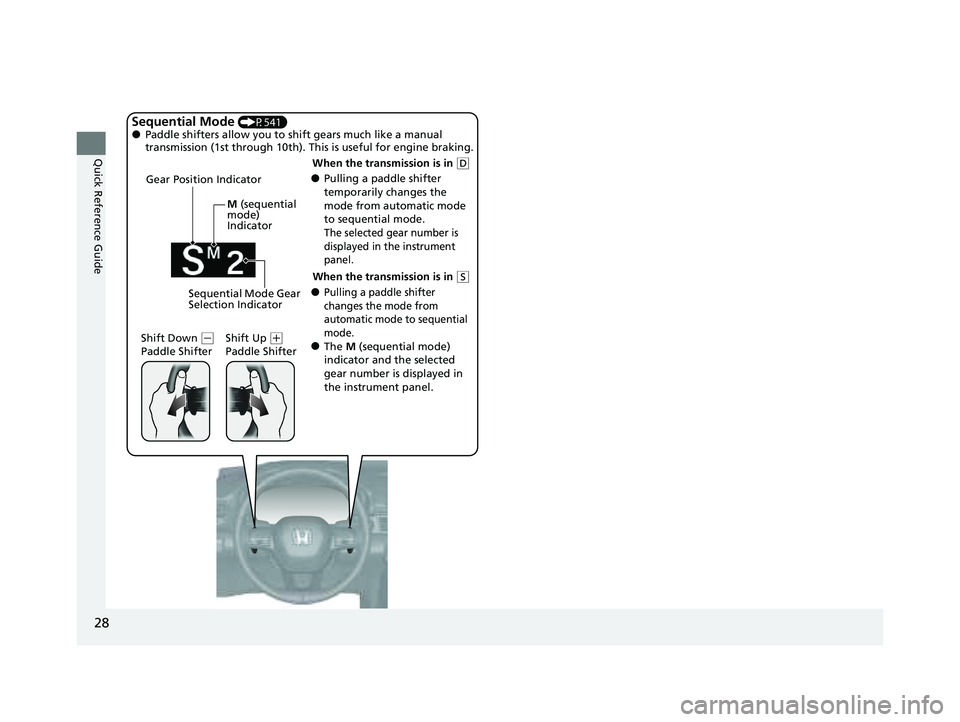

Sequential Mode (P541)●Paddle shifters allow you to shift gears much like a manual
transmission (1st through 10th). This is useful for engine braking.
●Pulling a paddle shifter
temporarily changes the
mode from automatic mode
to sequential mode.
The selected gear number is
displayed in the instrument
panel.
Gear Position Indicator
Shift Down
( -
Paddle Shifter Shift Up (
+
Paddle Shifter
Sequential Mode Gear
Selection Indicator M
(sequential
mode)
Indicator When the transmission is in
(
D
●Pulling a paddle shifter
changes the mode from
automatic mode to sequential
mode.
●The M (sequential mode)
indicator and the selected
gear number is displayed in
the instrument panel.
When the transmission is in
(
S
23 PILOT-31T906000_03.book 28 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

29
Quick Reference Guide

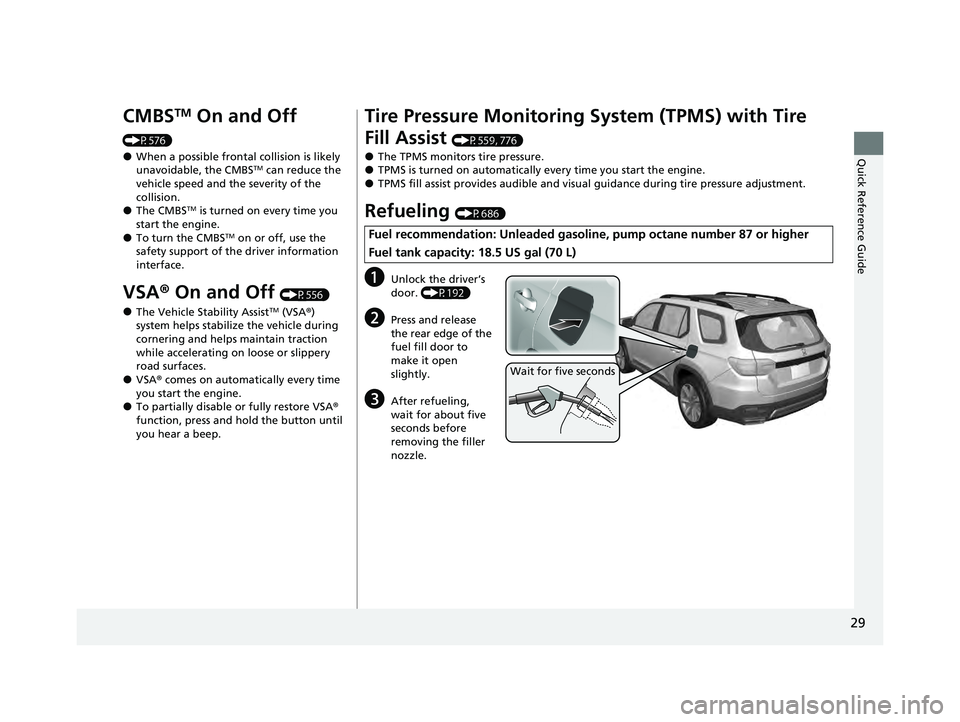

CMBSTM On and Off
(P576)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support of th e driver information
interface.
VSA ® On and Off (P556)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA®
function, press and ho ld the button until
you hear a beep.
Tire Pressure Monitoring System (TPMS) with Tire
Fill Assist
(P559, 776)
●The TPMS monitors tire pressure.●TPMS is turned on automatically every time you start the engine.●TPMS fill assist provides audible and visual guidance during tire pressure adjustment.
Refueling (P686)
aUnlock the driver’s
door. (P192)
bPress and release
the rear edge of the
fuel fill door to
make it open
slightly.
cAfter refueling,
wait for about five
seconds before
removing the filler
nozzle.
Fuel recommendation: Unleaded gasoline, pump octa ne number 87 or higher
Fuel tank capacity: 18.5 US gal (70 L)
Wait for five seconds
