HONDA PILOT 2023 Service Manual

40
uuFor Safe Driving uImportant Handling Information
Safe Driving

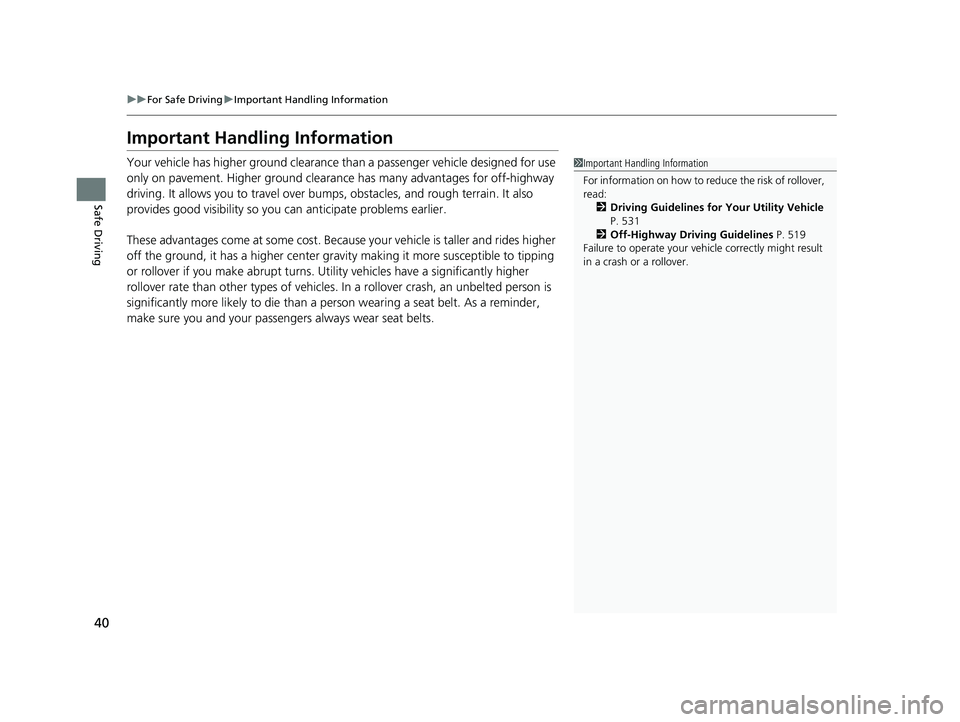

Important Handling Information
Your vehicle has higher ground clearance than a passenger vehicle designed for use
only on pavement. Higher ground clearance has many advantages for off-highway
driving. It allows you to travel over bumps, obstacles, and rough terrain. It also
provides good visibility so you can anticipate problems earlier.
These advantages come at some cost. Beca use your vehicle is taller and rides higher
off the ground, it has a higher center grav ity making it more susceptible to tipping
or rollover if you make abrupt turns. Util ity vehicles have a significantly higher
rollover rate than other types of vehicles. In a rollover crash, an unbelted person is
significantly more likely to die than a pe rson wearing a seat belt. As a reminder,
make sure you and your passeng ers always wear seat belts.1Important Handling Information
For information on how to reduce the risk of rollover,
read:
2 Driving Guidelines for Your Utility Vehicle
P. 531
2 Off-Highway Driving Guidelines P. 519
Failure to operate your vehicle correctly might result
in a crash or a rollover.
23 PILOT-31T906000_03.book 40 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

41
uuFor Safe Driving uYour Vehicle’s Safety Features
Safe Driving
Your Vehicle’s Safety Features
The following checklist will help you take an active role in protecting yourself and
your passengers.
1Your Vehicle’s Safety Features
Your vehicle is equipped wi th many features that
work together to help protect you and your
passengers during a crash.
Some features do not require any action on your part.
These include a strong steel framework that forms a
safety cage around the passenger compartment,
front and rear crush zone s, a collapsible steering
column, and tensioners th at tighten the front and
second row outer seat belts in a sufficient crash.
However, you and your passe ngers cannot take full
advantage of these features unless you remain seated
in the correct position and always wear your seat
belts. In fact, some safety features can contribute to
injuries if they are not used properly.
678910
Safety Cage
Crush Zones
Seats and Seat-Backs
Head Restraints
Collapsible Steering Column
Seat Belts
Front Airbags
Side Curtain Airbags
Door Locks Side Airbags
11
Knee Airbags
Seat Belt Tensioners
12
10106
11
7
8
12
11
12
9789
23 PILOT-31T906000_03.book 41 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

42
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 192
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Seats P. 239
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front and Second Row Outer Seat Head Restraint Positions
P. 253
• Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 52
•Protect children by using seat belts or child seats according to a child’s age,
height, and weight.
2 Child Safety P. 77
1Safety Checklist
If the door and/or tailga te open message appears on
the driver information inte rface, a door and/or the
tailgate is not completely closed. Close all doors and
the tailgate tightly unti l the message disappears.
Models with A-type meter
Models with B-type meter
23 PILOT-31T906000_03.book 42 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

43Continued
Safe Driving

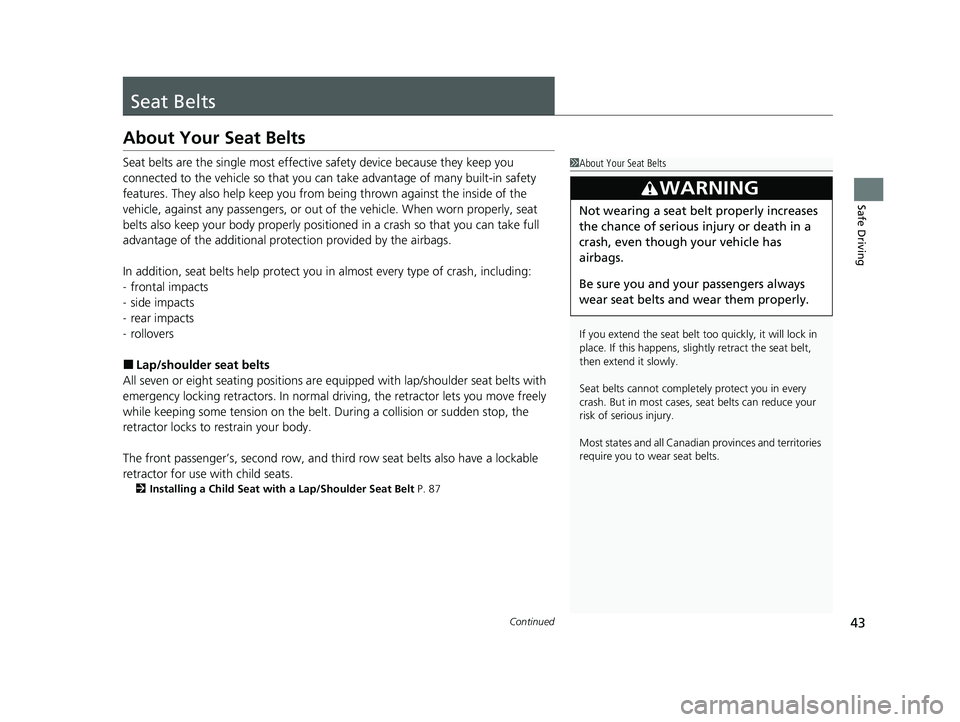

Seat Belts
About Your Seat Belts
Seat belts are the single most effective safety device because they keep you
connected to the vehicle so that you can take advantage of many built-in safety
features. They also help keep you from be ing thrown against the inside of the
vehicle, against any passengers, or out of the vehicle. When worn properly, seat
belts also keep your body properly positioned in a crash so that you can take full
advantage of the additional protection provided by the airbags.
In addition, seat belts help protect you in almost every type of crash, including:
- frontal impacts
- side impacts
- rear impacts
- rollovers
■Lap/shoulder seat belts
All seven or eight seating positions are e quipped with lap/shoulder seat belts with
emergency locking retractors. In normal driv ing, the retractor lets you move freely
while keeping some tension on the belt. During a collision or sudden stop, the
retractor locks to restrain your body.
The front passenger’s, second row, and th ird row seat belts also have a lockable
retractor for use with child seats.
2 Installing a Child Seat with a Lap/Shoulder Seat Belt P. 87
1About Your Seat Belts
If you extend the seat belt t oo quickly, it will lock in
place. If this happens, sli ghtly retract the seat belt,
then extend it slowly.
Seat belts cannot complete ly protect you in every
crash. But in most cases, seat belts can reduce your
risk of serious injury.
Most states and all Canadian provinces and territories
require you to w ear seat belts.
3WARNING
Not wearing a seat belt properly increases
the chance of serious injury or death in a
crash, even though your vehicle has
airbags.
Be sure you and your passengers always
wear seat belts and wear them properly.
23 PILOT-31T906000_03.book 43 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuSeat Belts uAbout Your Seat Belts
44
Safe Driving

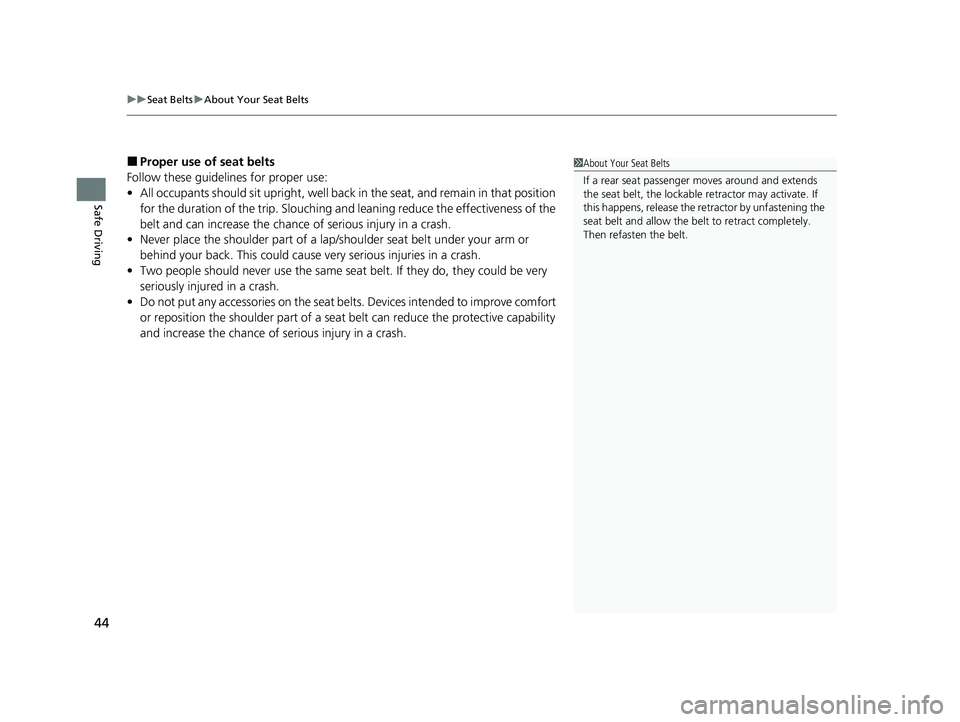

■Proper use of seat belts
Follow these guidelines for proper use:
• All occupants should sit upright, well back in the seat, and remain in that position
for the duration of the trip. Slouching and leaning reduc e the effectiveness of the
belt and can increase the chance of serious injury in a crash.
• Never place the shoulder part of a lap/shoulder seat belt under your arm or
behind your back. This could cause very serious injuries in a crash.
• Two people should never use the same seat belt. If they do, they could be very
seriously injured in a crash.
• Do not put any accessories on the seat be lts. Devices intended to improve comfort
or reposition the shoulder part of a seat be lt can reduce the protective capability
and increase the chance of serious injury in a crash.1 About Your Seat Belts
If a rear seat passenger moves around and extends
the seat belt, the lockable retractor may activate. If
this happens, release the retractor by unfastening the
seat belt and allow the belt to retract completely.
Then refasten the belt.
23 PILOT-31T906000_03.book 44 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued45
uuSeat Belts uAbout Your Seat Belts

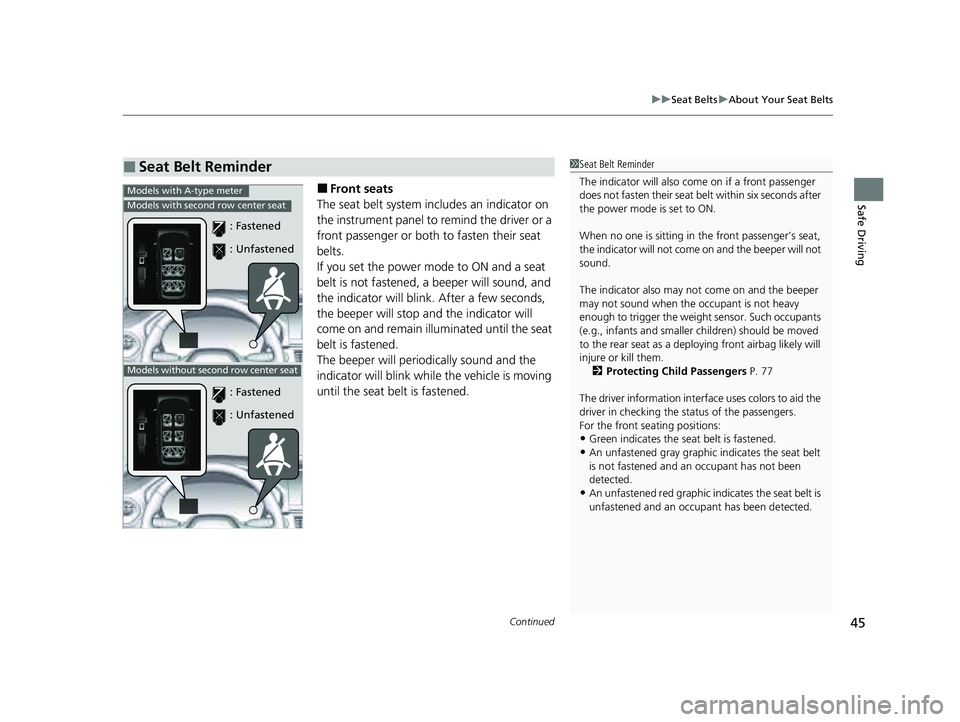

Safe Driving■Front seats
The seat belt system includes an indicator on
the instrument panel to remind the driver or a
front passenger or both to fasten their seat
belts.
If you set the power mode to ON and a seat
belt is not fastened, a beeper will sound, and
the indicator will blink. After a few seconds,
the beeper will stop and the indicator will
come on and remain illuminated until the seat
belt is fastened.
The beeper will periodically sound and the
indicator will blink while the vehicle is moving
until the seat belt is fastened.
■Seat Belt Reminder1 Seat Belt Reminder
The indicator will also co me on if a front passenger
does not fasten their seat be lt within six seconds after
the power mode is set to ON.
When no one is sitting in th e front passenger’s seat,
the indicator will not come on and the beeper will not
sound.
The indicator also may no t come on and the beeper
may not sound when the occupant is not heavy
enough to trigger the weight sensor. Such occupants
(e.g., infants and smaller children) should be moved
to the rear seat as a deploying front airbag likely will
injure or kill them. 2 Protecting Child Passengers P. 77
The driver information interface uses colors to aid the
driver in checking the st atus of the passengers.
For the front seating positions:
•Green indicates the seat belt is fastened.•An unfastened gray graphic indicates the seat belt
is not fastened and an occupant has not been
detected.
•An unfastened red graphic i ndicates the seat belt is
unfastened and an occupa nt has been detected.
Models with A-type meter
Models with second row center seat
Models without second row center seat
: Fastened
: Unfastened
: Fastened
: Unfastened
23 PILOT-31T906000_03.book 45 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

46
uuSeat Belts uAbout Your Seat Belts
Safe Driving

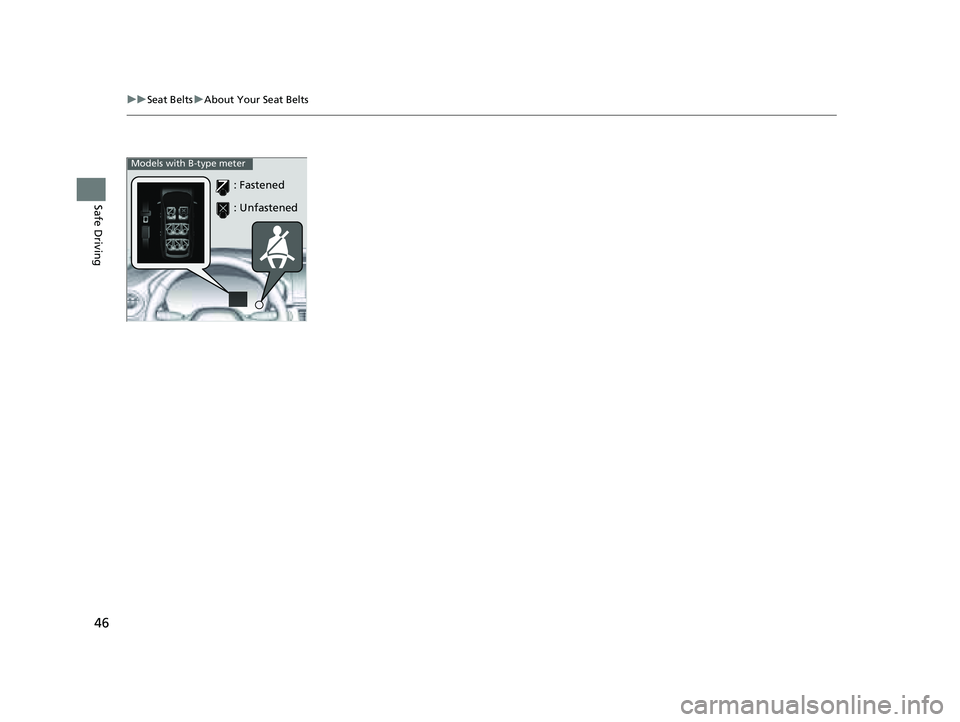

Models with B-type meter
: Fastened
: Unfastened
23 PILOT-31T906000_03.book 46 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued47
uuSeat Belts uAbout Your Seat Belts
Safe Driving

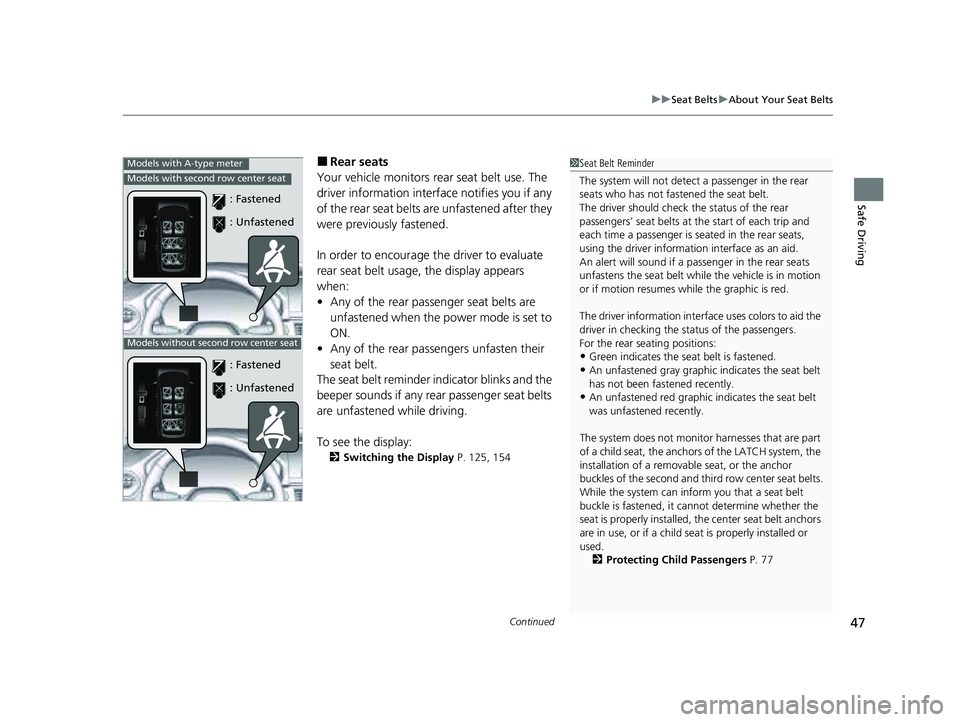

■Rear seats
Your vehicle monitors rear seat belt use. The
driver information interface notifies you if any
of the rear seat belts are unfastened after they
were previously fastened.
In order to encourage th e driver to evaluate
rear seat belt usage, the display appears
when:
• Any of the rear passenger seat belts are
unfastened when the power mode is set to
ON.
• Any of the rear passengers unfasten their
seat belt.
The seat belt reminder indicator blinks and the
beeper sounds if any rear passenger seat belts
are unfastened while driving.
To see the display:
2 Switching the Display P. 125, 154
Models with A-type meter
Models with second row center seat
Models without second row center seat
: Fastened
: Unfastened
: Fastened
: Unfastened
1Seat Belt Reminder
The system will not detect a passenger in the rear
seats who has not fastened the seat belt.
The driver should check the status of the rear
passengers’ seat belts at th e start of each trip and
each time a passenger is seated in the rear seats,
using the driver information interface as an aid.
An alert will sound if a pa ssenger in the rear seats
unfastens the seat belt whil e the vehicle is in motion
or if motion resumes wh ile the graphic is red.
The driver information interface uses colors to aid the
driver in checking the st atus of the passengers.
For the rear seating positions:
•Green indicates the seat belt is fastened.
•An unfastened gray graphic indicates the seat belt
has not been fastened recently.
•An unfastened red graphic indicates the seat belt
was unfastened recently.
The system does not monito r harnesses that are part
of a child seat, the anchor s of the LATCH system, the
installation of a removable seat, or the anchor
buckles of the second and third row center seat belts.
While the system can inform you that a seat belt
buckle is fastened, it ca nnot determine whether the
seat is properly installed, the center seat belt anchors
are in use, or if a child se at is properly installed or
used. 2 Protecting Child Passengers P. 77
23 PILOT-31T906000_03.book 47 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

48
uuSeat Belts uAbout Your Seat Belts
Safe Driving
Models with B-type meter
: Fastened
: Unfastened
23 PILOT-31T906000_03.book 48 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued49
uuSeat Belts uAbout Your Seat Belts
Safe Driving
A transceiver is installed in the removable seat
to wirelessly communicate the seat belt
fastening information to the vehicle. It will
automatically connect to the vehicle whenever
the seat is in or near its installation position.
Radio waves are transmitted to and from a
transceiver in the removable seat in order to
obtain the seat belt status.
In the following cases, the seat belt may be
displayed as unfastened even if it is fastened:
• Strong radio waves are being transmitted
by nearby equipment, such as a wireless
phone charger.
• Telecommunications equipment, a laptop
computer, cell phone, wireless device, or
another high-powered electronic device is
placed in, under, or close to the removable
seat.
• A metallic object is covering all or part of
the seat, or a large metallic object is placed
in the cabin in a way that is blocking the
vehicle’s antennas from communicating
with the transmitter in the seat.
• The battery in the transceiver dies.
1Seat Belt Reminder
Electronic devices can create radio frequencies which
interfere with the wireless seat belt reminder
communication. If the system does not function as
expected, please check that such items are not in,
under or adjacent to the removable seat. Then turn
the ignition off and then on again. If the malfunction
continues, please see your dealer.
The transceiver has a spec ially designed coin-cell
battery that needs to be replaced periodically. Battery
life is about five years, but this varies depending on
regularity of use.
The battery can be consumed whenever the seat
transceiver is receiving strong radio waves. Avoid
placing high powered electric al devices in or near the
removable seat, such as ga ming consoles or wireless
chargers.
If the battery is low or the seat belt reminder is no
longer working, please see your dealer to have the
battery replaced.
3WARNING
CHEMICAL BURN HAZARD
The battery that powers the seat belt
transceiver can cause severe internal burns
and can even lead to death if swallowed.
Keep new and used batteries away from
children.
If you suspect that a child has swallowed
the battery, seek medical attention
immediately.
Transceiver
Models equipped with a removable seat
23 PILOT-31T906000_03.book 49 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
