HONDA PILOT 2023 User Guide

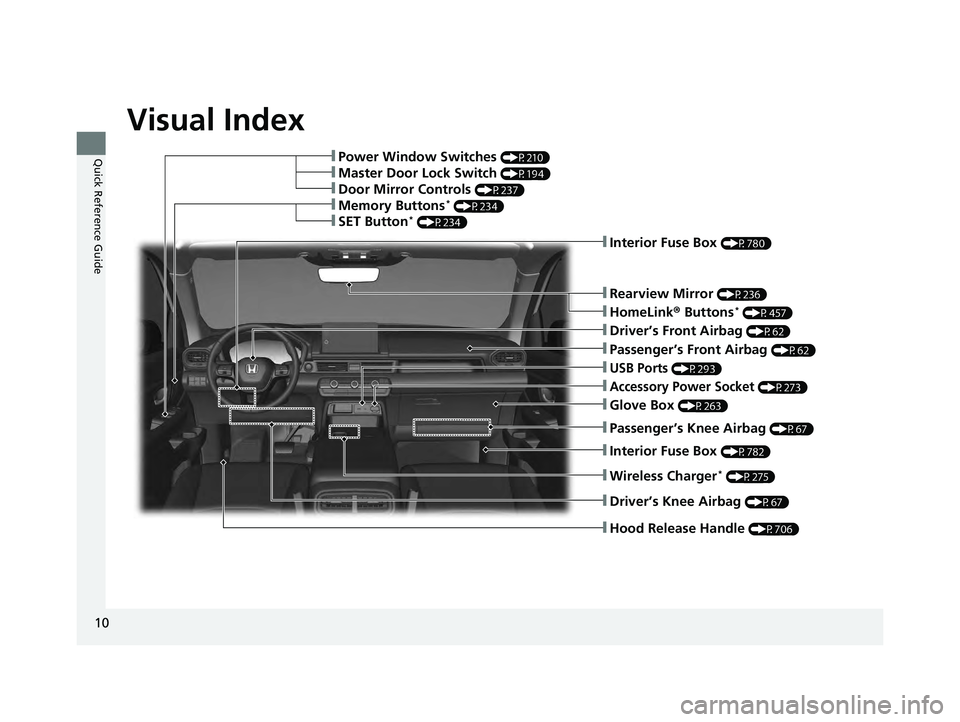

Visual Index
10
Quick Reference Guide❚Power Window Switches (P210)
❚Memory Buttons* (P234)
❚SET Button* (P234)
❚Driver’s Front Airbag (P62)
❚Hood Release Handle (P706)
❚Glove Box (P263)
❚Driver’s Knee Airbag (P67)
❚Accessory Power Socket (P273)
❚Rearview Mirror (P236)
❚HomeLink® Buttons* (P457)
❚Passenger’s Front Airbag (P62)
❚Door Mirror Controls (P237)
❚Master Door Lock Switch (P194)
❚USB Ports (P293)
❚Passenger’s Knee Airbag (P67)
❚Wireless Charger* (P275)
❚Interior Fuse Box (P782)
❚Interior Fuse Box (P780)
23 PILOT-31T906000_03.book 10 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

11

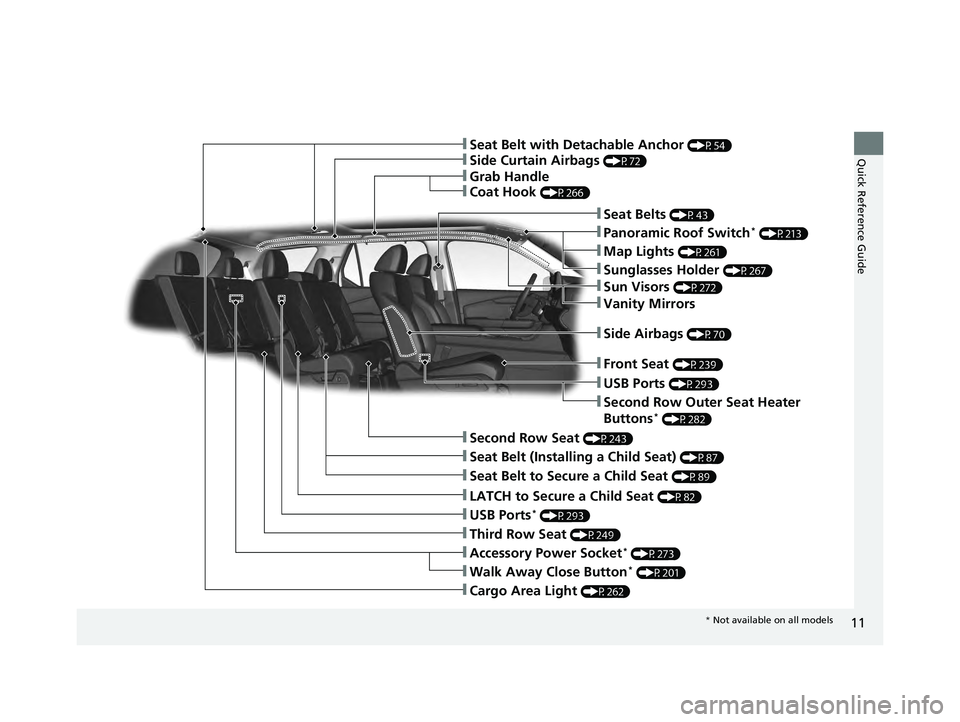

Quick Reference Guide
❚Accessory Power Socket* (P273)
❚LATCH to Secure a Child Seat (P82)
❚Seat Belt (Installing a Child Seat) (P87)
❚Third Row Seat (P249)
❚Second Row Seat (P243)
❚Seat Belt to Secure a Child Seat (P89)
❚Side Curtain Airbags (P72)
❚Seat Belts (P43)
❚Grab Handle
❚Coat Hook (P266)
❚Walk Away Close Button* (P201)
❚Panoramic Roof Switch* (P213)
❚Map Lights (P261)
❚Sunglasses Holder (P267)
❚Sun Visors (P272)
❚Vanity Mirrors
❚Front Seat (P239)
❚Side Airbags (P70)
❚USB Ports (P293)
❚Second Row Outer Seat Heater
Buttons* (P282)
❚USB Ports* (P293)
❚Cargo Area Light (P262)
❚Seat Belt with Detachable Anchor (P54)
* Not available on all models
23 PILOT-31T906000_03.book 11 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

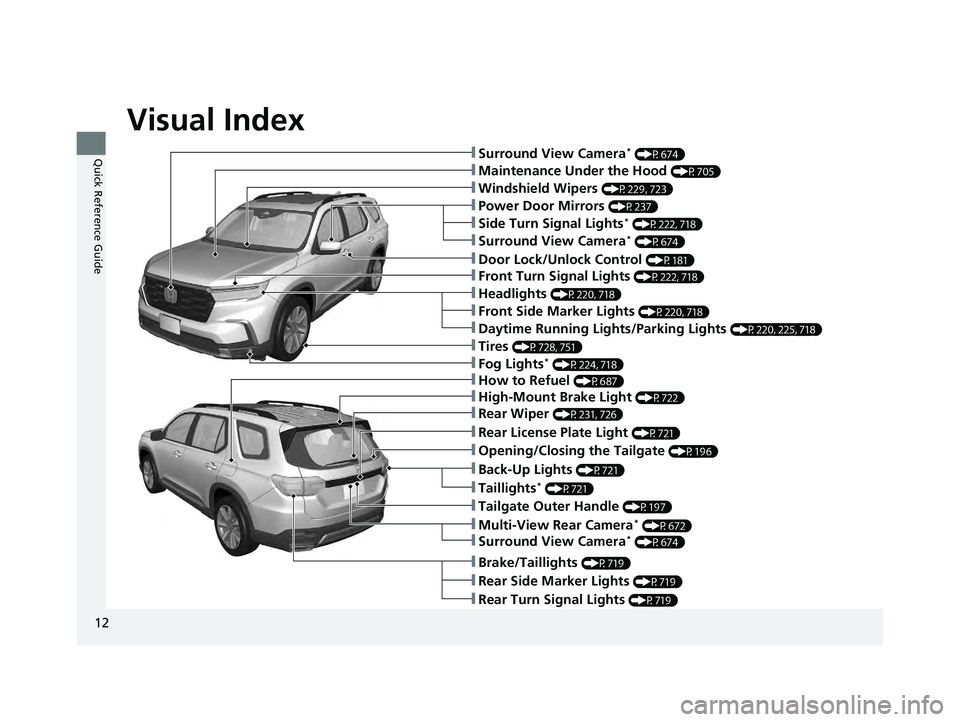

Visual Index
12
Quick Reference Guide
❚Maintenance Under the Hood (P705)
❚Windshield Wipers (P229, 723)
❚Tires (P728, 751)
❚Power Door Mirrors (P237)
❚How to Refuel (P687)
❚High-Mount Brake Light (P722)
❚Rear Wiper (P231, 726)
❚Rear License Plate Light (P721)
❚Tailgate Outer Handle (P197)
❚Multi-View Rear Camera* (P672)
❚Surround View Camera* (P674)
❚Fog Lights* (P224, 718)
❚Opening/Closing the Tailgate (P196)
❚Taillights* (P721)
❚Back-Up Lights (P721)
❚Rear Side Marker Lights (P719)
❚Rear Turn Signal Lights (P719)
❚Brake/Taillights (P719)
❚Front Turn Signal Lights (P222, 718)
❚Headlights (P220, 718)
❚Front Side Marker Lights (P220, 718)
❚Daytime Running Lights/Parking Lights (P220, 225, 718)
❚Surround View Camera* (P674)
❚Surround View Camera* (P674)
❚Side Turn Signal Lights* (P222, 718)
❚Door Lock/Unlock Control (P181)
23 PILOT-31T906000_03.book 12 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

13
Quick Reference Guide

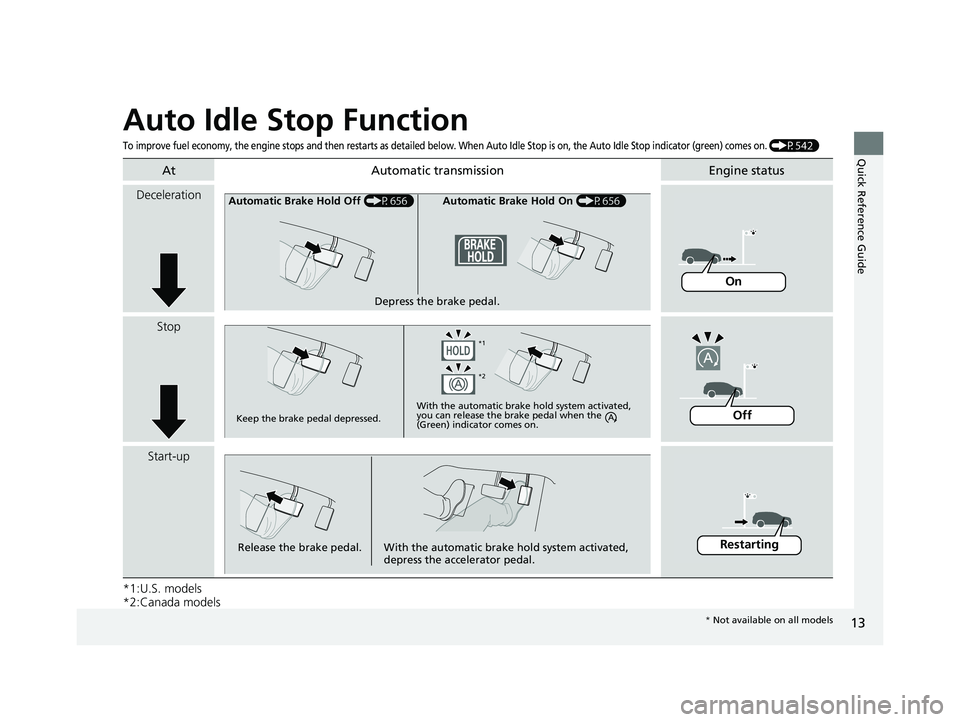

Auto Idle Stop Function
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop indicator (green) comes on. (P542)
*1:U.S. models
*2:Canada models
AtAutomatic transmissionEngine status
Deceleration
Stop
Start-up
Automatic Brake Hold Off (P656)Automatic Brake Hold On (P656)
Depress the brake pedal.
On
Keep the brake pedal depressed. With the automatic brake hold system activated,
you can release the brake pedal when the
(Green) indicator comes on.
*1
*2
Off
Release the brake pedal. With the automatic brake hold system activated,
depress the accelerator pedal.Restarting
* Not available on all models
23 PILOT-31T906000_03.book 13 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

14
Quick Reference Guide

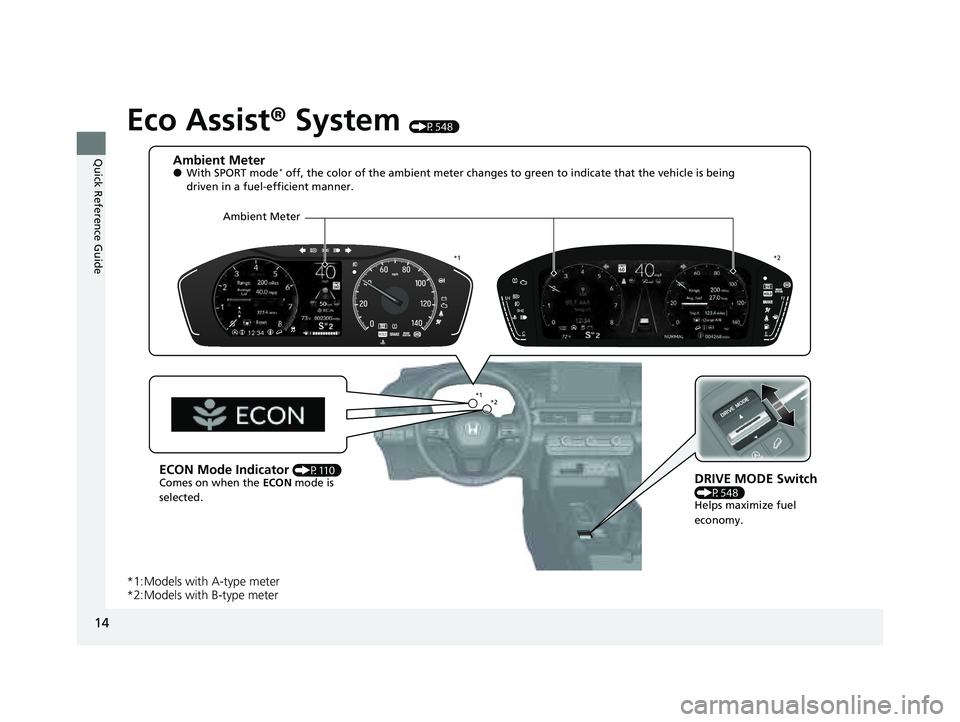

Eco Assist® System (P548)
*1:Models with A-type meter
*2:Models with B-type meter
Ambient Meter●With SPORT mode* off, the color of the ambient meter changes to green to indica te that the vehicle is being
driven in a fuel-efficient manner.
DRIVE MODE Switch
(P548) Helps maximize fuel
economy.
ECON Mode Indicator (P110)
Comes on when the ECON mode is
selected.
*1 *2
*1 *2
Ambient Meter
23 PILOT-31T906000_03.book 14 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

15
Quick Reference Guide

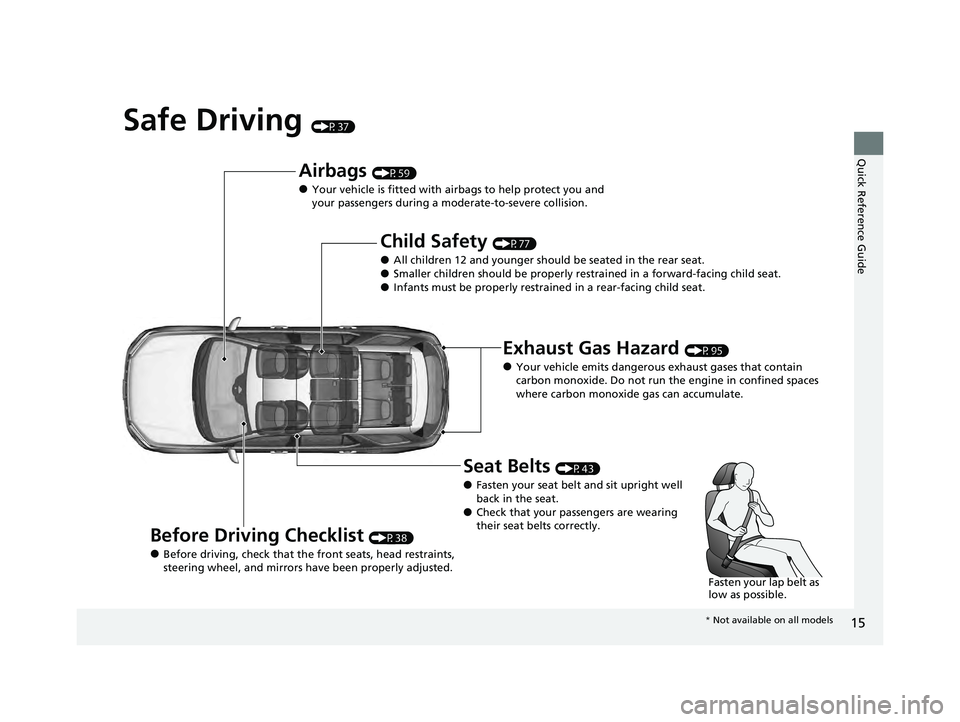

Safe Driving (P37)
Airbags (P59)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P77)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restrained in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P95)
●Your vehicle emits dangerous exhaust gases that contain
carbon monoxide. Do not run the engine in confined spaces
where carbon monoxide gas can accumulate.
Before Driving Checklist (P38)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P43)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
* Not available on all models
23 PILOT-31T906000_03.book 15 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

16
Quick Reference Guide

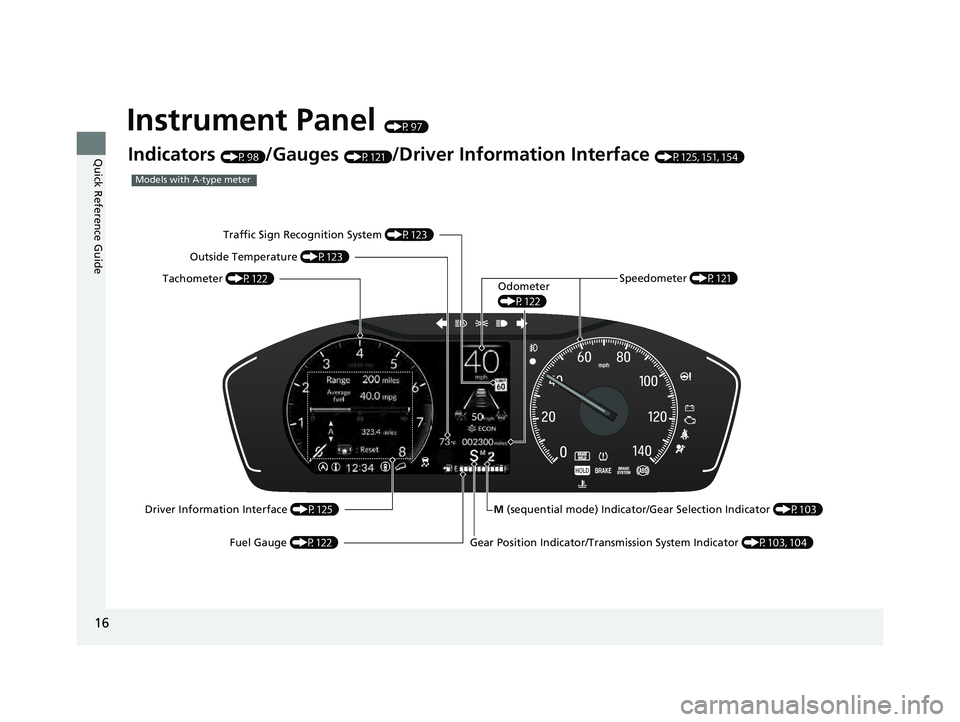

Instrument Panel (P97)
Indicators (P98)/Gauges (P121)/Driver Information Interface (P125, 151, 154)
M (sequential mode) Indicator/Gear Selection Indicator (P103)
Models with A-type meter
Gear Position Indicator/Transmission System Indicator (P103, 104)
Fuel Gauge (P122)
Driver Information Interface
(P125)
Tachometer
(P122) Speedometer
(P121)
Traffic Sign Recognition System
(P123)
Odometer
(P122)
Outside Temperature
(P123)
23 PILOT-31T906000_03.book 16 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

17

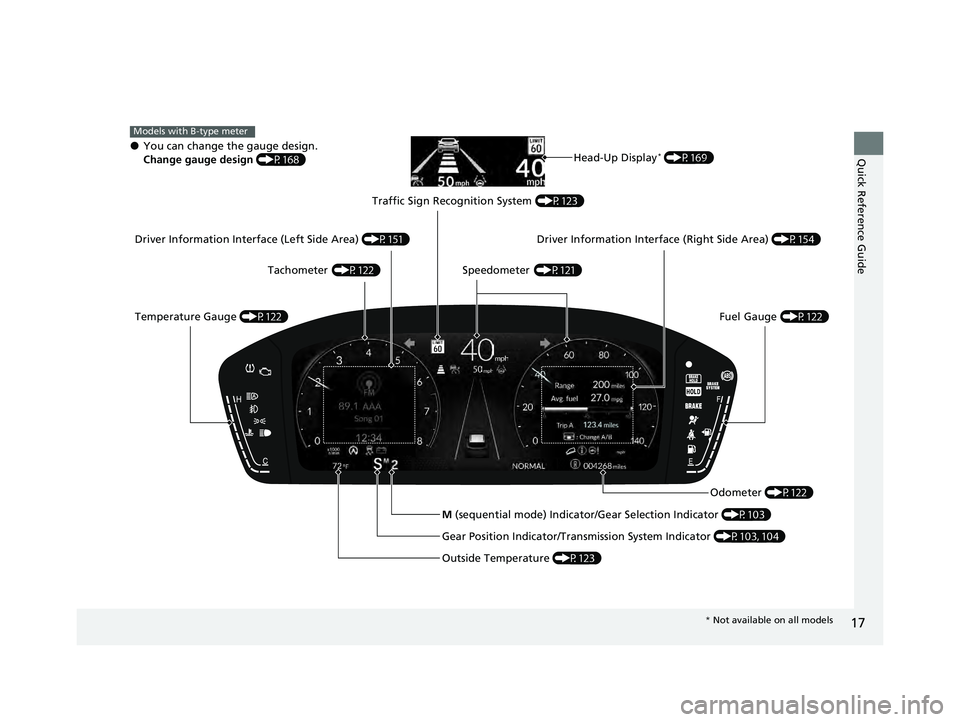

Quick Reference Guide●You can change the gauge design.
Change gauge design (P168)
Models with B-type meter
Gear Position Indicator/Transmission System Indicator (P103, 104)
M (sequential mode) Indicator/Gear Selection Indicator (P103)
Fuel Gauge
(P122)
Driver Information Interface (Right Side Area)
(P154)
Tachometer (P122) Speedometer (P121)
Traffic Sign Recognition System
(P123)
Odometer (P122)
Temperature Gauge
(P122)
Driver Information Interface (Left Side Area)
(P151)
Outside Temperature (P123)
Head-Up Display* (P169)
* Not available on all models
23 PILOT-31T906000_03.book 17 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

18
Quick Reference Guide
Controls (P175)
Clock (P176)
aPress the MENU button.
bSelect Clock Settings .
cSelect Automatic Time , then select OFF.
dSelect Set Time .
eSelect 12H/24H to change 12 or 24 hour
clock.
fSelect or .
gSelect Set to set the time.
Models with 7-in. Color Touchscreen
MENU Button
34
To adjust date
To adjust time
aPress the button.
bSelect General Settings.
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time , then
select OFF.
Models with 9-in. Color TouchscreengSelect Set Date or Set Time .
hSelect or .
iSelect Save to set the date or time.
The clock is automatically updated through
the audio system.
ENGINE START/STOP
Button
(P217)
Press the button to change the vehicle’s
power mode.
34
23 PILOT-31T906000_03.book 18 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

19
Quick Reference Guide

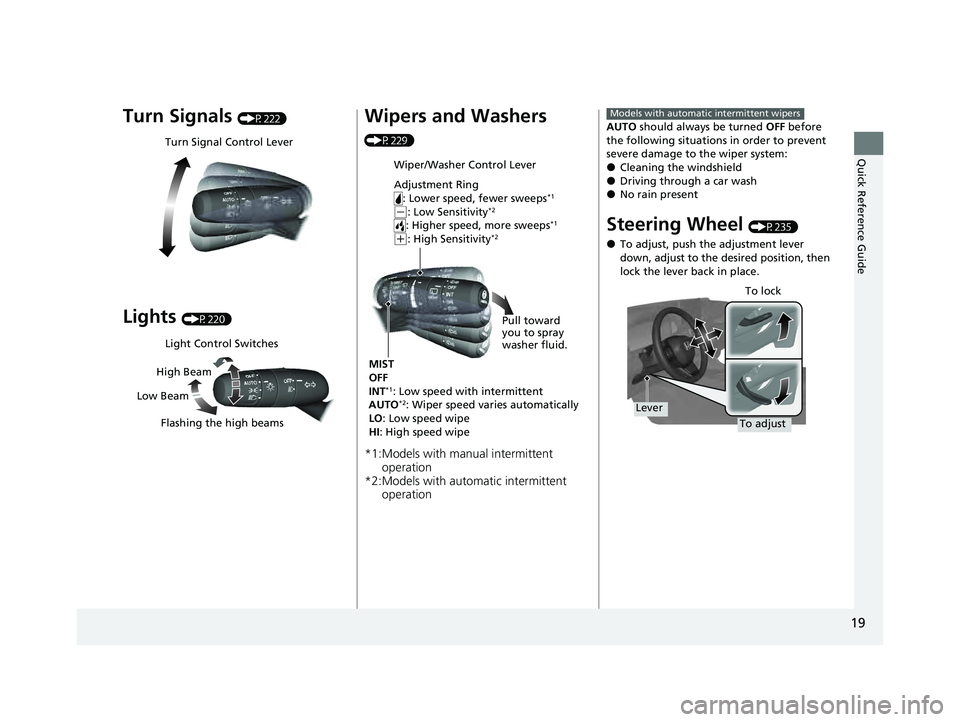

Turn Signals (P222)
Lights (P220)
Turn Signal Control Lever
Light Control Switches
Low Beam High Beam
Flashing the high beams
Wipers and Washers
(P229)
*1:Models with manual intermittent operation
*2:Models with automatic intermittent operation
Wiper/Washer Control Lever
Adjustment Ring
: Lower speed, fewer sweeps
*1
(-: Low Sensitivity*2
: Higher speed, more sweeps*1
(+: High Sensitivity*2
MIST
OFF
INT
*1: Low speed with intermittent
AUTO*2: Wiper speed varies automatically
LO : Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
AUTO
should always be turned OFF before
the following situations in order to prevent
severe damage to the wiper system:
●Cleaning the windshield●Driving through a car wash●No rain present
Steering Wheel (P235)
●To adjust, push the adjustment lever
down, adjust to the desired position, then
lock the lever back in place.
Models with automatic intermittent wipers
To adjust To lock
Lever
