HONDA PRELUDE 1998 Owners Manual

Tires

Snow Tires

If you mount snow tires on your
Honda, make sure they are radial
tires of the same size and load range
as the original tires. Mount snow
tires on all four wheels to balance
your vehicle's handling in all weather conditions. Keep in mind the traction
provided by snow tires on dry roads
may not be as high as your vehicle's original equipment tires. You should
drive cautiously even when the roads
are clear. Check with the tire dealer
for maximum speed recommenda-
tions.
Tire Chains

Mount snow chains on your vehicle
when warranted by driving condi- tions or required by local laws. Makesure the chains are the correct size
for your tires. Install them only on
the front tires. If metal chains are used, they must be SAE class "S".
Cable type traction devices can also
be used.
When installing chains, follow the manufacturer's instructions and
mount them as tightly as you can.
Drive slowly with chains installed. If
you hear the chains contacting the body or chassis, stop and investigate.
Make sure the chains are installed
tightly, and that they are not
contacting the brake lines orsuspension. Remove the chains as
soon as you begin driving on cleared

roads.
Chains of the wrong size or that are
improperly installed can damage your
vehicle's brake lines, suspension, body,
and wheels. Stop driving if you hear the chains hitting any part of thevehicle.

Maintenance
NOTICEProCarManuals.comMain Menu Table of Contents s t

Lights

Check the operation of your vehicle's
exterior lights at least once a month.
A burned out bulb can create an unsafe condition by reducing your
vehicle's visibility and the ability to signal your intentions to other
drivers.

CONTINUED

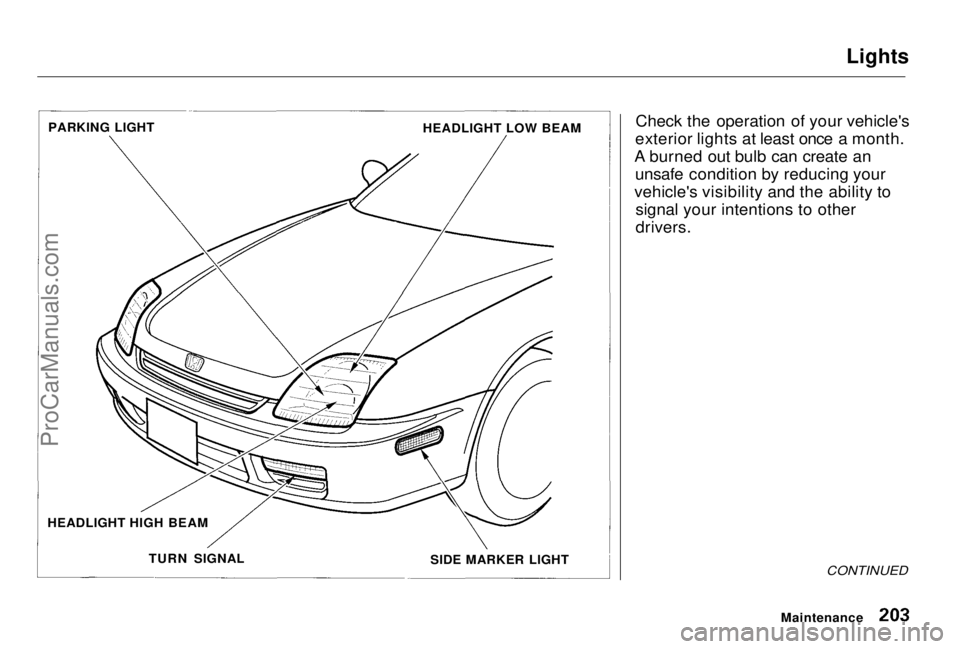

Maintenance
PARKING LIGHT
HEADLIGHT LOW BEAM
SIDE MARKER LIGHT
HEADLIGHT HIGH BEAM
TURN SIGNALProCarManuals.comMain Menu Table of Contents s t

Lights

Check the following:
Headlights (low and high beam)
Parking lights Taillights
Brake lights
High-mount brake light
Turn signals
Back-up lights
Hazard light function
License plate light
Side marker lights
Daytime running lights
(Canadian models)
If you find any bulbs are burned out,

replace them as soon as possible.
Refer to the chart on page 255 to

determine what type of replacement

bulb is needed.

Maintenance TAILLIGHT/BRAKE LIGHT
HIGH-MOUNT BRAKE LIGHT

TAILLIGHT

BACK-UP LIGHT
LICENSE PLATE LIGHT
TURN SIGNAL
SIDE MARKER LIGHTProCarManuals.comMain Menu Table of Contents s t

Lights

Headlight Aiming
The headlights were properly aimed
when your vehicle was new. You should check their aim if you
regularly carry heavy items in the
trunk or pull a trailer. Each headlight
assembly has horizontal and vertical
adjustment indicators. These are set to their "0" positions after the
headlights are aimed at the factory.
To check these settings:
1. Make sure the fuel tank is full. Park the vehicle on level ground.
2. The driver or someone who weighs the same should be sitting
in the driver's seat for all checks
and adjustments.Load the trunk with the items you
normally carry. If you usually pull a trailer, load it as
you would normally and attach it to the vehicle. Push down on the frontand rear bumpers several times tomake sure the vehicle is sitting
normally.
3. Open the hood.
4. Check the horizontal angle gauge. The line on the adjustment screwindicator should line up with the"0" mark on the gauge. 5. Check the vertical angle gauge.
The bubble should be centeredunderneath the longest scribe
mark on the gauge.

CONTINUED

Maintenance
HORIZONTAL ANGLE GAUGE

BUBBLE

VERTICAL ANGLE GAUGEProCarManuals.comMain Menu Table of Contents s t

Lights

6. If either indicator is not aligned
with its "0" mark as described, an adjustment ca

n be made using a
Phillips-head

screwdriver to
realign it with the "0" mark. Please
refer t
o the illustrations. 7. I
f you cannot get an indicator to
align,

have your Honda dealer
inspect the vehicle for body

damage or suspension problems.
Replacing a Headlight Bulb
Your ca

r has two bulbs on each side,
four in total. Make sure you are replacing
the bulb that is burned out.
Your ca

r uses halogen headlight
bulbs. When replacing a bulb, handle it by its plastic case and protect the
glass

from contact with your skin or
hard

objects. If you touch the glass,
clea

n it with denatured alcohol and a
clean

cloth.
The headlight bulbs in your car are H1 headlight bulbs for
longer life.
We recommend the use of Genuine Honda parts for replacing a
headlight bulb.

Halogen headlight bulbs get very hot when lit. Oil, perspiration, or a scratch
on the glass can
cause the bulb to
overheat and shatter.

Maintenance

HORIZONTAL ADJUSTMENT


VERTICAL ADJUSTMENT

NOTICE
ProCarManuals.comMain Menu Table of Contents s t

Lights

1. Open the hood.
2. Remove the electrical connector from the bulb by squeezing the
connector on both sides to unlock
the tab. Pull the connector straight
off.

3. Remove the rubber weather sealby pulling on the tab.
4. Unclip the end of the hold-down wire from its slot. Pivot it out ofthe way and remove the bulb.
5. Insert the new bulb into the hole,
making sure the tabs are in theirslots. Pivot the hold-down wire
back in place and clip the end into
the slot.
6. Install the rubber seal over the back of the headlight assembly.Make sure it is right side up; it is

marked "TOP".

7. Push the electrical connector onto the tabs of the new bulb. Makesure it locks in place.
Turn on the headlights to test the new bulb.
Maintenance

BULB

CONNECTOR

WEATHER SEAL

HOLD-

DOWN

WIREProCarManuals.comMain Menu Table of Contents s t

Lights

Replacing a Parking Light Bulb
1. Open the hood. The front parking light is next to the headlight bulb.
If you need to change a bulb on
the passenger's side, remove the radiator reserve tank by pulling it
out of its holder.
2. Remove the socket from theheadlight assembly by turning itone-quarter turn counterclockwise. 3. Pull the bulb straight out of its

socket.

Push the new bulb straight into
the socket until it bottoms.
4. Insert the socket back into the headlight assembly. Turn itclockwise to lock it in place.
5. Turn on the parking lights to make sure the new bulb works.
6. (Passenger's side) Reinstall the radiator reserve tank.

MaintenanceProCarManuals.comMain Menu Table of Contents s t

Lights

Replacing a Front Side Marker Light Bulb
1. Use a Phillips-head screwdriver to remove the side marker assembly's
mounting screw.
2. Remove the side marker assembly from the bumper. 3. Remove the socket from the side
marker assembly by turning it one-quarter turn counterclockwise.
4. Pull the bulb straight out of its socket.
Push the new bulb straight into
the socket until it bottoms. 5. Insert the socket back into the
side marker assembly. Turn it
clockwise to lock it in place.
6. Test the side marker to make sure the new bulb is working.
7. Put the side marker assembly into the bumper. Make sure the tab on
the side marker assembly fits into
the bumper slot. Tighten themounting screw.
Maintenance

SCREW

BULB

SOCKET

FRONT SIDE MARKER ASSEMBLYProCarManuals.comMain Menu Table of Contents s t

Lights

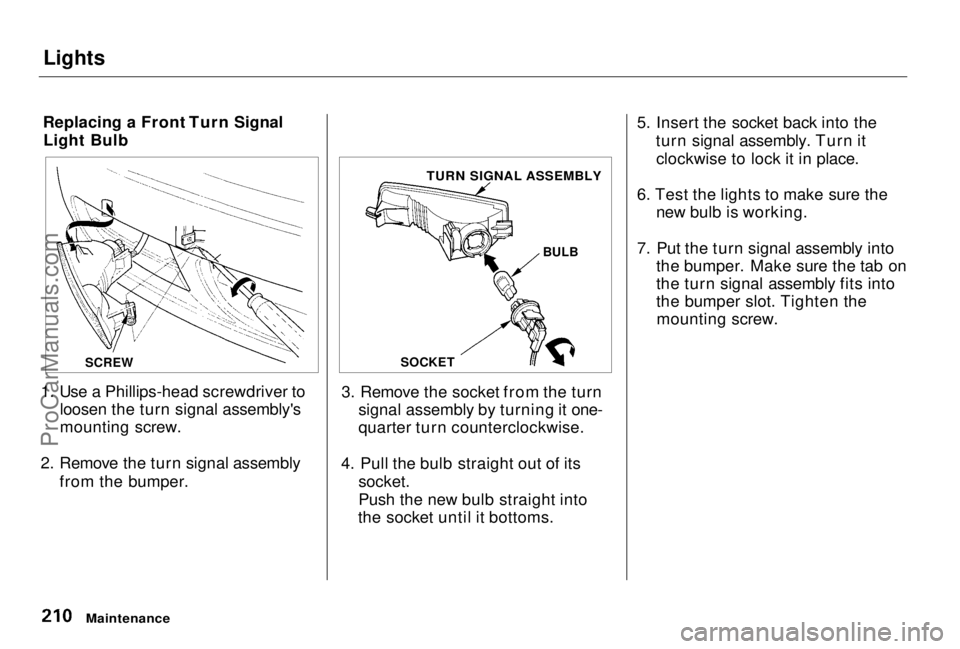

Replacing a Front Turn Signal Light Bulb
1. Use a Phillips-head screwdriver to loosen the turn signal assembly's
mounting screw.
2. Remove the turn signal assembly from the bumper. 3. Remove the socket from the turn
signal assembly by turning it one-
quarter turn counterclockwise.
4. Pull the bulb straight out of its socket.
Push the new bulb straight into
the socket until it bottoms. 5. Insert the socket back into the
turn signal assembly. Turn itclockwise to lock it in place.
6. Test the lights to make sure the new bulb is working.
7. Put the turn signal assembly into the bumper. Make sure the tab on
the turn signal assembly fits into
the bumper slot. Tighten themounting screw.

Maintenance

SCREW
SOCKETBULB

TURN SIGNAL ASSEMBLYProCarManuals.comMain Menu Table of Contents s t

Lights

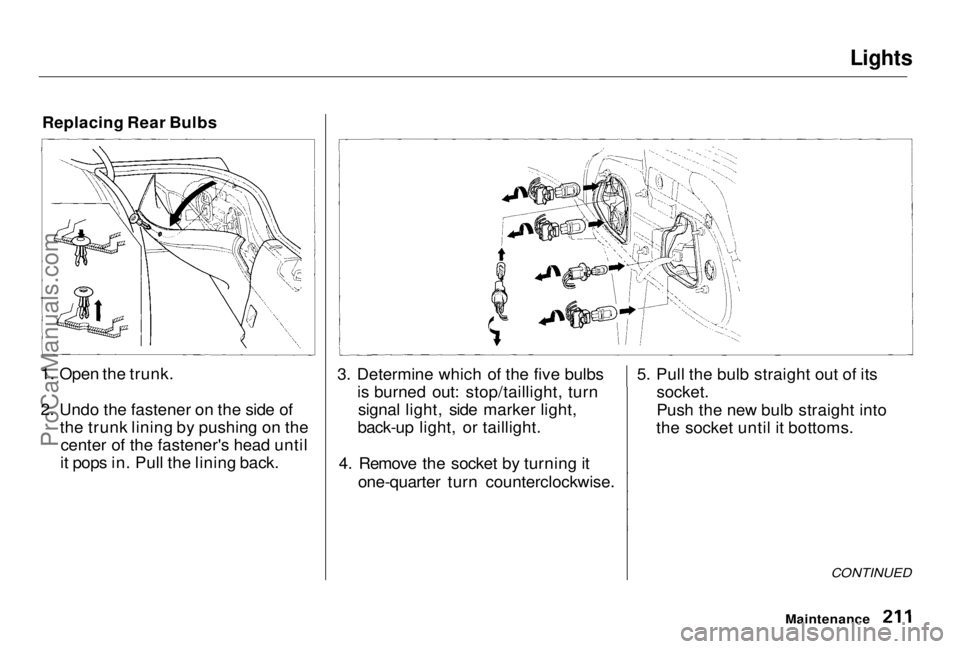

Replacing Rear Bulbs
1. Open the trunk.
2. Undo the fastener on the side of the trunk lining by pushing on thecenter of the fastener's head until
it pops in. Pull the lining back. 3. Determine which of the five bulbs
is burned out: stop/taillight, turnsignal light, side marker light,
back-up light, or taillight.
4. Remove the socket by turning it one-quarter turn counterclockwise. 5. Pull the bulb straight out of its
socket.
Push the new bulb straight into
the socket until it bottoms.

CONTINUED
