HONDA RIDGELINE 2010 1.G Owners Manual

The engine number is stamped into
the engine block. It is on the f ront.
The transmission number is on a
label on top of the transmission.
Identif ication Numbers
T echnical Inf ormation
387

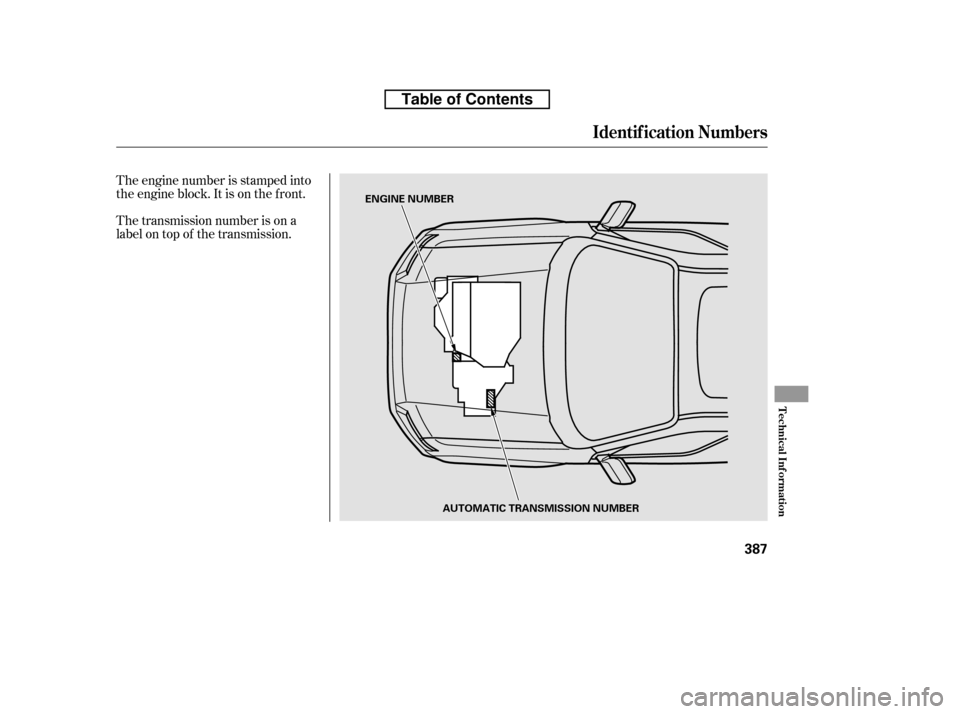

ENGINE NUMBERAUTOMATIC TRANSMISSION NUMBER
Table of Contents

µµ
Î Î
Î Î Î
Î
Î
Î
ÎÎÎ Î
Î
Î
Specif icat ions
388
Air Conditioning
Weights
Seating Capacities
Dimensions
Capacities
206.9 in (5,255 mm)
77.8 in (1,976 mm)
70.3 in (1,786 mm)
Refrigerant type
Charge quantity
Lubricant type HFC-134a (R-134a)
19.4 21.2 oz (550 600 g)
ND-OIL8
Gross vehicle weight rating
Gross combined weight
rating (GCWR)
Maximum load limit
(Payload) Total
FrontRear 32
5
1,470 lbs (670 kg)
1,520 lbs (690 kg)
10,088 lbs (4,575 kg)
See the tire information label
attached to the driver’s doorjamb.
Length
Width
Height
Wheelbase
Track
66.9 in (1,700 mm)
67.1 in (1,705 mm)
122.0 in (3,100 mm)
The GCWR must be reduced 2 percent for every 1,000 feet (305
meters) of elevation. Fuel tank
Engine
coolant
Engine oil Automatic
transmission
fluidRear
differential
fluid
22.01 US gal (83.3
)
1.64 US gal (6.2)
2.14 US gal (8.1)
4.2 US qt (4.0
)
4.5 US qt (4.3
)
5.3 US qt (5.0
)
3.3 US qt (3.1)
8.5 US qt (8.0)
2.79 US qt (2.64
)
3.01 US qt (2.85)
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
0.16 US gal (0.6
)
Excluding the oil remaining in the engine
71.2 in (1,808 mm)
Approx.
Front Rear
1: 2:
1: 2: 3:
ChangeTotal
Change
Including
filter
Without
filter
Total
ChangeTotal
Change Total
On vehicles without moonroof
On vehicles with moonroof
1:
2:
On vehicles without moonroof
On vehicles with moonroof
1
231 2
1
2
Table of Contents

µ µ
µµ µ µµµµµµµµµµµµµ µ µÎ
Î
ÎÎ
Specif ications
T echnical Inf ormation
389
Fuses
Engine
Alignment
Capacities
Lights Battery
Tires
Interior
Under-hoodType
BorexStroke
Displacement
Compression ratio
Spark plugs
Toe-in
CamberCaster
3.50 x 3.66 in (89.0 x 93.0 mm)
211.8 cu-in (3,471 cm
)
10.0 : 1
ILZKR7B11 SXU22HCR11
0.00 in (0.0 mm)
0.00 in (0.0 mm) 0°50’
0°50’
1°53’
P245/65R17 105T
Water cooled 4-stroke SOHC VTEC,
V6 gasoline engine
Transfer
assembly
fluid
Windshield
washer
reservoir
0.45 US qt (0.43
)
0.48 US qt (0.45)
4.8 US qt (4.5
)
Headlights
Front turn signal/parking/
hazard lights
Daytime running light
Fog light
Rear turn signal/hazard lights
Brake/Taillights
Back-up lights
License plate lights
High-mount brake lights
Individual map lights
Bed lights
Console compartment light
Glove box light
Vanity mirror light
Door courtesy lights 12 V 60/55 W (HB2)
12 V 28/8 W
12 V 21 W
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
12 V
21/5 W
18 W
3CP
3CP8W5W
3CP
1.4 W
3.4 W2W
3.8 W
Capacity 12 V 12 V72 AH/20 HR
60 AH/5 HR Size
Pressure
60 psi (420 kPa , 4.2 kgf/cm
)
32 psi (220 kPa , 2.2 kgf/cm)
T165/90R17 105M
12 V 55 W
12 V 60 W
P245/60R18 104T
See page 382 or the fuse label
attached to the inside of the fuse
box lid under the dashboard.
See page 381 or the fuse box lid.
FrontRear
FrontRear
Front
FrontRear NGK:
DENSO:
High/Low
ChangeTotal
Front/Rear
Spare
Front/Rear
Spare
1:2: U.S. RT, RTS models, and Canadian DX, VP models
U.S. RTL models, and Canadian EX-L models
(HB3)(H11)
12
Table of Contents

The tires on your vehicle meet all
U.S. Federal Saf ety Requirements.
All tires are also graded f or
treadwear, traction, and temperature
perf ormance according to
Department of Transportation
(DOT) standards. The f ollowing
explains these gradings.The treadwear grade is a compara-
tive rating based on the wear rate of
the tire when tested under controlled
conditions on a specif ied government
test course. For example, a tire
graded 150 would wear one and one-
half (1 1/2) times as well on the
government course as a tire graded
100. The relative perf ormance of
tires depends upon the actual condi-
tions of their use, however, and may
depart signif icantly f rom the norm
due to variations in driving habits,
service practices and dif f erences in
road characteristics and climate.The traction grades, f rom highest to
lowest, are AA, A, B, and C. Those
grades represent the tire’s ability to
stop on wet pavement as measured
under controlled conditions on
specif ied government test surf aces
of asphalt and concrete. A tire
marked C may have poor traction
perf ormance.
Warning: The traction grade
assignedtothistireisbasedon
straight-ahead braking traction tests,
and does not include acceleration,
cornering, hydroplaning, or peak
traction characteristics.
Quality grades can be f ound where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
All passenger car tires must conf orm
to Federal Saf ety Requirements in
addition to these grades.
Unif orm T ire Quality Grading
T readwear T raction
T readwear 200
Traction AA
Temperature A
DOT T ire Quality Grading (U.S. Vehicles)
390
Table of Contents

Warning: The temperature grade f or
this tire is established f or a tire that
is properly inf lated and not
overloaded. Excessive speed,
underinf lation, or excessive loading,
either separately or in combination,
can cause heat buildup and possible
tire f ailure.
The temperature grades are A (the
highest), B, and C, representing the
tire’s resistance to the generation of
heat and its ability to dissipate heat
when tested under controlled
conditions on a specif ied indoor
laboratory test wheel. Sustained high
temperature can cause the material
of the tire to degenerate and reduce
tire life, and excessive temperature
can lead to sudden tire f ailure. The
grade C corresponds to a level of
perf ormance which all passenger car
tires must meet under the Federal
Motor Vehicle Saf ety Standard No.
109. Grades B and A represent
higher levels of perf ormance on the
laboratory test wheel than the
minimum required by law.
DOT T ire Quality Grading (U.S. Vehicles)
Temperature
T echnical Inf ormation
391
Table of Contents

µ µ µ
µ µ µ µ
The tires that came on your vehicle
have a number of markings. Those
you should be aware of are described
below.
Rim diameter in inches.
Load index (a numerical code
associated with the maximum
load the tire can carry).
Speed symbol (an
alphabetical code indicating
the maximum speed rating).
Whenever tires are replaced, they
should be replaced with tires of the
same size. The f ollowing is an
exampleof tiresizewithan
explanation of what each component
means.
Vehicletype(Pindicates
passenger vehicle).
Tire width in millimeters.
Aspect ratio (the tire’s section
height as a percentage of its
width).
Tire construction code (R
indicates radial).
R
65
245
P 17 105 T
Tire Labeling
Tire Size
392

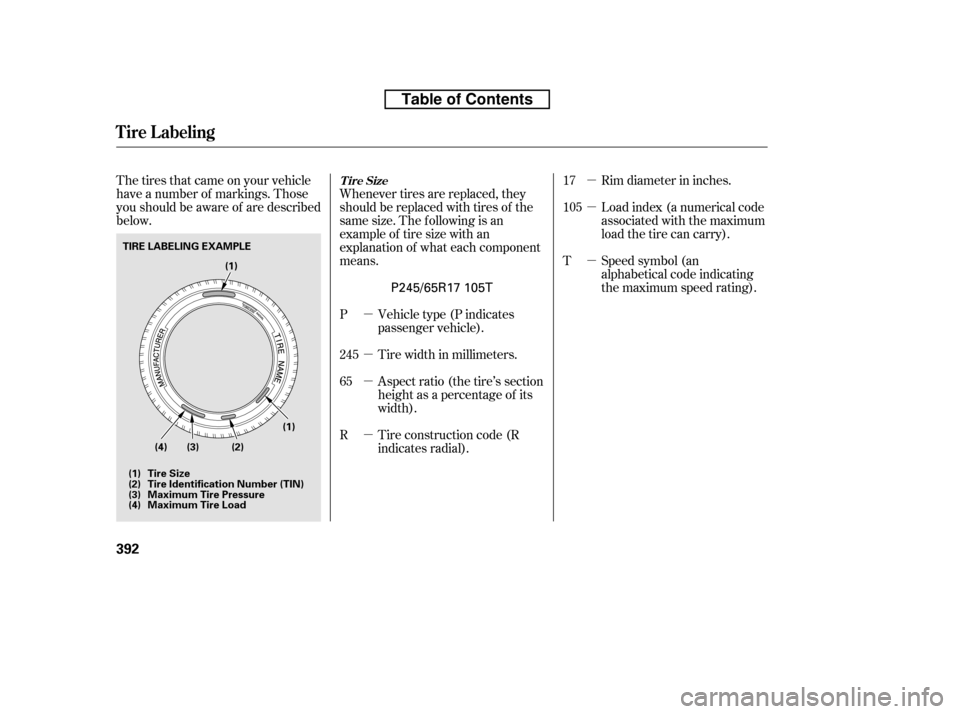

TIRE LABELING EXAMPLE
(1)
(2)
(3)
(4) (4) (3) (2) (1)
(1)
Tire Identification Number (TIN)
Tire Size
Maximum Tire Pressure
Maximum Tire Load
P245/65R17 105T
Table of Contents

µ
µ µ
µ µ
µ
µ µ
µ µ
The tire identif ication number (TIN)
is a group of numbers and letters
that look like the f ollowing example.
TIN is located on the sidewall of the
tire.
Week
Year
Date of manufacture.
Tire type code.
Manuf acturer’s
identification mark.
This indicates that the
tire meets all
requirements of the U.S.
Department of
Transportation. Cold Tire Pressure The tire air
pressure when the vehicle has been
parked f or at least three hours or
driven less than 1 mile (1.6 km).
Load Rating Means the maximum
load that a tire is rated to carry for a
given inf lation pressure.
Maximum Inf lation Pressure The
maximum tire air pressure that the
tire can hold.
Maximum Load Rating Means the
load rating for a tire at the maximum
permissible inf lation pressure f or
that tire. Recommended Inf lation Pressure
The cold tire inf lation pressure
recommended by the manuf acturer.
Treadwear Indicators (TWI)
Means the projections within the
principal grooves designed to give a
visual indication of the degrees of
wear of the tread.
DOT B97R
FW6X 2202
T ire Ident if icat ion Number (T IN)
Tire Labeling
Glossary of T ire T erminology
T echnical Inf ormation
393
DOT B97R FW6X 2202
Table of Contents

µ
Accordingly, when the low tire
pressure telltale illuminates, you
should stop and check your tires as
soon as possible, and inf late them to
the proper pressure.Driving on a signif icantly under-
inf lated tire causes the tire to
overheat and can lead to tire failure.
Under-inf lation also reduces f uel
efficiency and tire tread life, and may
af f ect the vehicle’s handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire
maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure, even if under-inf lation has
not reached the level to trigger
illumination of the TPMS low tire
pressure telltale.
(If your vehicle has tires of a
dif f erent size than the size indicated
on the vehicle placard or tire
inf lation pressure label, you should
determine the proper tire inf lation
pressure f or those tires.)
Each tire, including the spare (if
provided), should be checked
monthly when cold and inf lated to
the inf lation pressure recommended
by the vehicle manuf acturer on the
vehicle placard or tire inf lation
pressure label.
As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale
when one or more of your tires is
signif icantly under-inf lated.
All Models
Tire Pressure Monitoring System (TPMS) Required Federal Explanat
ion
394
Table of Contents

µ
Always check the TPMS malf unction
telltale af ter replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to f unction
properly.
TPMS malf unctions may occur f or a
variety of reasons, including the
installation of replacement or
alternate tires or wheels on the
vehicle that prevent the TPMS f rom
f unctioning properly.
When the malf unction indicator is
illuminated,
the system may not be able to detect
or signal low tire pressure as
intended.
Your vehicle has also been equipped
with a TPMS malf unction indicator
to indicate when the system is not
operating properly. The TPMS
malf unction indicator is provided by
a separate telltale, which displays the
symbol ‘‘TPMS’’ when illuminated.On models without navigation system
Tire Pressure Monitoring System (TPMS) Required Federal Explanat
ion
T echnical Inf ormation
395
Table of Contents

µ
TPMS malf unctions may occur f or a
variety of reasons, including the
installation of replacement or
alternate tires or wheels on the
vehicle that prevent the TPMS f rom
f unctioning properly.
Always check the TPMS malf unction
telltale af ter replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or
alternate tires and wheels allow the
TPMS to continue to f unction
properly.
When the malf unction indicator is
illuminated, the system may not be
able to detect or signal low tire
pressure as intended.
Your vehicle has also been equipped
with a TPMS malf unction indicator
to indicate when the system is not
operating properly. The TPMS
malf unction indicator is combined
with the low tire pressure telltale.
When the system detects a
malf unction, the telltale will f lash f or
approximately one minute and then
remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long
as the malfunction exists.On models with navigation system
Tire Pressure Monitoring System (TPMS) Required Federal Explanat
ion
396
Table of Contents
